Jeep 50-0284x-015 Series User manual

INSTALLATION INSTRUCTIONS
FOR
50-0284x-015 SERIES 1181313
JEEP GRAND CHEROKEE
OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver 2. Powered screwdriver or drill with adapter
3. Awl or similar tool 4. Razor knife or similar
5. 18 GA wire 4' -6' 6. Scissors
7. 5/16” Hex Socket Bit 8. Safety Goggles
9. Test light 10. 3/8” Drill Bit
11. Audiovox Series 640/650 Video Module
NOT FOR VEHICLES EQUIPPED WITH SUN ROOF.
June 2, 1999
Printed in the U.S.A
INSTALLATION INSTRUCTION # 44-0031A

2

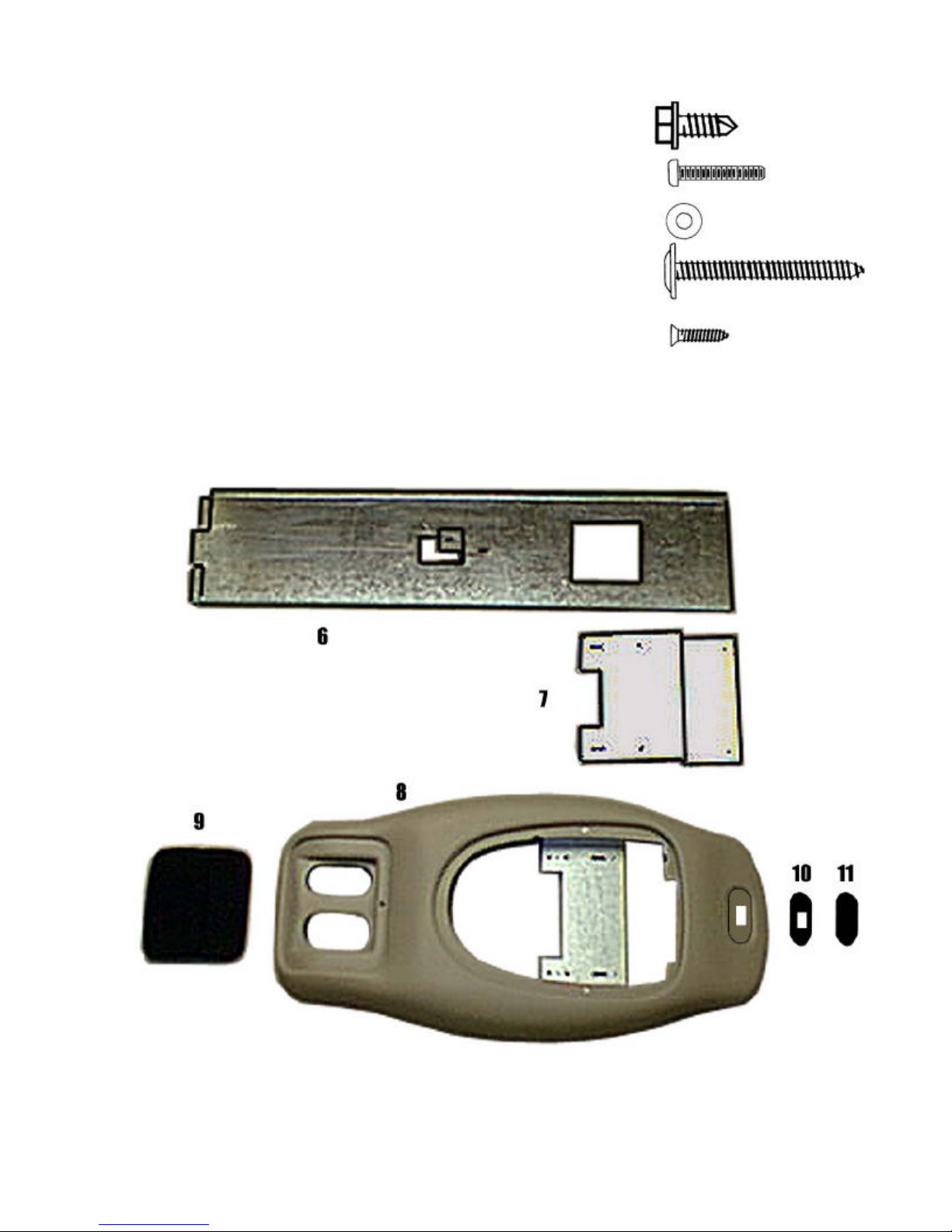

MATERIALS PROVIDED FOR INSTALLATION:
ITEM Description QTY 1
1SCREW, # 10 X 1/2" HWH 4
2SCREW, 6-32 X 3/4" PPH 6
3WASHER, 3.5 mm 42
4SCREW, # 8 X 1 1/2" PWH 1
5SCREW, # 6 X 1/2" PFH 23
6REAR MOUNTING BRACKET 1
7FRONT MOUNTING BRACKET 14
8CONSOLE 1
9SPEAKER GRILLE 1
10 COVER PLATE 15
11 COVER PLATE DECAL 1
INSTALLATION INSTRUCTION # 44-0031A June 2, 1999
Printed in the U.S.A.

3
I. PREPARATION OF VEHICLE INTERIOR
1. Using the rear edge of O.E. console as a reference
location, carefully measure & trim headliner as
shown. Use a razor knife to score the first layer
and scissors to cut remaining layers. Caution:
Before cutting headliner material, check for
wiring or other componentry above headliner.
Cut only where indicated. Wear safety goggles
when cutting headliner material. Make sure
that the 9" & 7" cuts are centered left to right in
vehicle. See Figure 1.
DO NOT OVERCUT HEADLINER.
2. Scribe a center line on the sheet metal roof of
the vehicle from front to rear of opening in
headliner. This will be used for bracket
alignment. See Figure 1.
3. Remove and retain (1) one screw which secures
front O.E. console. Pull downward to release
console. See Figure2.
4. Using a 3/8" drill bit, make an access hole in rear
of plastic bracket. Caution: Drill toward rear
of vehicle. See Figure 3.
5. Construct a jumper harness that will connect the
vehicle’s dome light wires to the lights in video
system. Connect the white wire to the O.E. pink
wire. Connect the black wire to the O.E.
yellow/green wire. See Figure 3.
6. Using a test light, test function of lights.
7. Install O.E. console.
FIGURE 2
FIGURE 1
FIGURE 3

4
8. Insert rear mounting bracket (item 6 pg. 2) with the
bent edges downward. Slide bracket rearward
between headliner and roof until tabs engage rear
O.E. roof brace. Align slots in bracket with center
line scribed on roof. See Figure 4. Note: There is
a foam sealer between O.E. braces and roof of
vehicle. It may require a little force to fully
engage tabs of bracket if foam is in that area.
9. Install front mounting bracket (Item 7 pg. 2) over rear
mounting bracket and align slot with centerline scribe
and edge of bracket with front O.E. brace. Secure
using (4) four # 10x 1/2" screws. (Item 1 pg.2)
See Figure 5.
FIGURE 5
FIGURE 4

5
10. Install and route all video and audio cables,
and any other added component requirements
to their respective places in the vehicle. Refer
to component installation instructions for
wiring diagrams. The suggested routing of
the video system cable is as follows: Above
the headliner from video system to C-pillar.
Down the C-pillar to the floor. Route the
power lead to an accessory controlled source.
Connect the ground lead to the vehicle
chassis. Route the remaining wiring (RCA
plugs, Remote Sensor extension, etc.) to the
VCP location. See Figure 6. Connect per
instructions included with the video system.
If video system if to be used as a television,
install an appropriate antenna per
instructions included with the antenna.
II. INSTALLATION OF CONSOLE
IF SPEAKER UPGRADE KIT WAS PURCHASED, INSTALL PER INSTRUCTIONS PROVIDED.
11. Raise console (item 8 pg.2) into approximate
position against headliner. Loosely install using
(2) two 6-32 x 3/4" screws (item 2 pg. 2) through
the smaller holes in bracket on console into
threaded clips on front mounting bracket. See
Figure 7.
12. Using a scribe or similar tool, align hole in rear of
console with slot in rear mounting bracket.
Loosely secure rear of console using (1) one # 8 x
1 1/2" screw (item 4 pg. 2). Make sure console
alignment is straight then tighten (2) two 6-32
screws previously installed. See Figure 7.

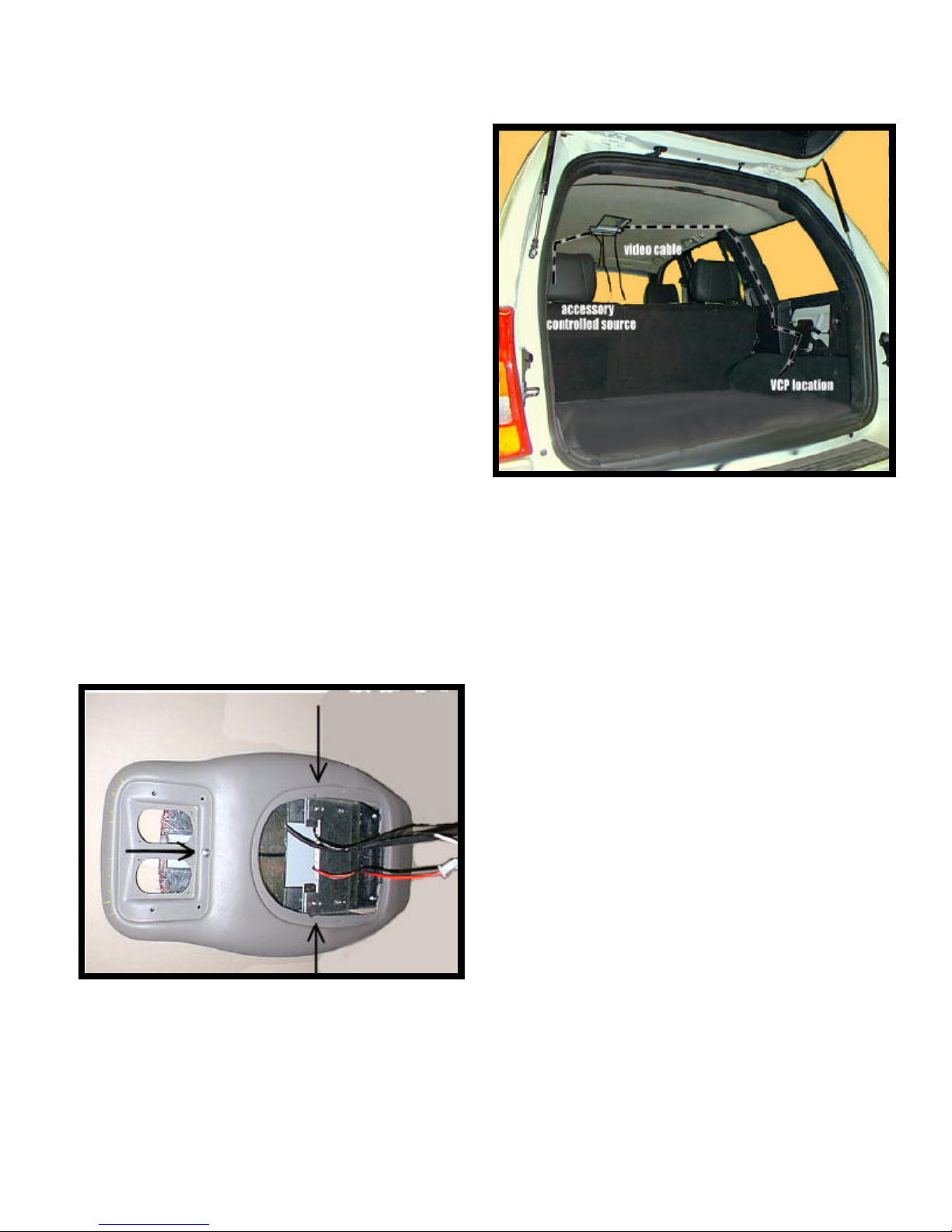

FIGURE 6
FIGURE 7

6
13. Release video screen from locked position.
Lower video screen to viewing position for
access to mounting location in top of video
system housing.
14. Raise video system into approximate position
and connect all wiring to components. Connect
wiring and cabling to video system per
instruction included with video system.
15. Check function of all component and lights. See
operating instruction for video system operations check.
For further assistance, refer to the video
system manual for the technical support phone
number listed for your area.
16. Insert video system into opening in console.
Note : Make sure wires do not get pinched between video system and console.
Align holes in housing with clips in mounting bracket. Secure using (4) four 6-32x 3/4" screws
(item 2 pg.2) and (4) four 3.5mm washers (item 3 pg. 2). See Figure 8.
Caution : Do not overtighten screws.
17. Tighten screw previously installed to secure rear of
console to headliner.
Caution: Do not overtighten screws or damage to
vehicle roof may occur.
18. Raise video screen into locked position.
19. Install speaker grille (item 9 pg 2). Align clips in grille
with holes in console and press firmly. See Figure 9.
20. If speaker upgrade kit was not installed, install cover
plate (item 10 pg 2) at front of console and secure using
(2) # 6 X 1/2" screws (item 5 pg 2).
21. Install cover plate decal (item 11 pg 2).

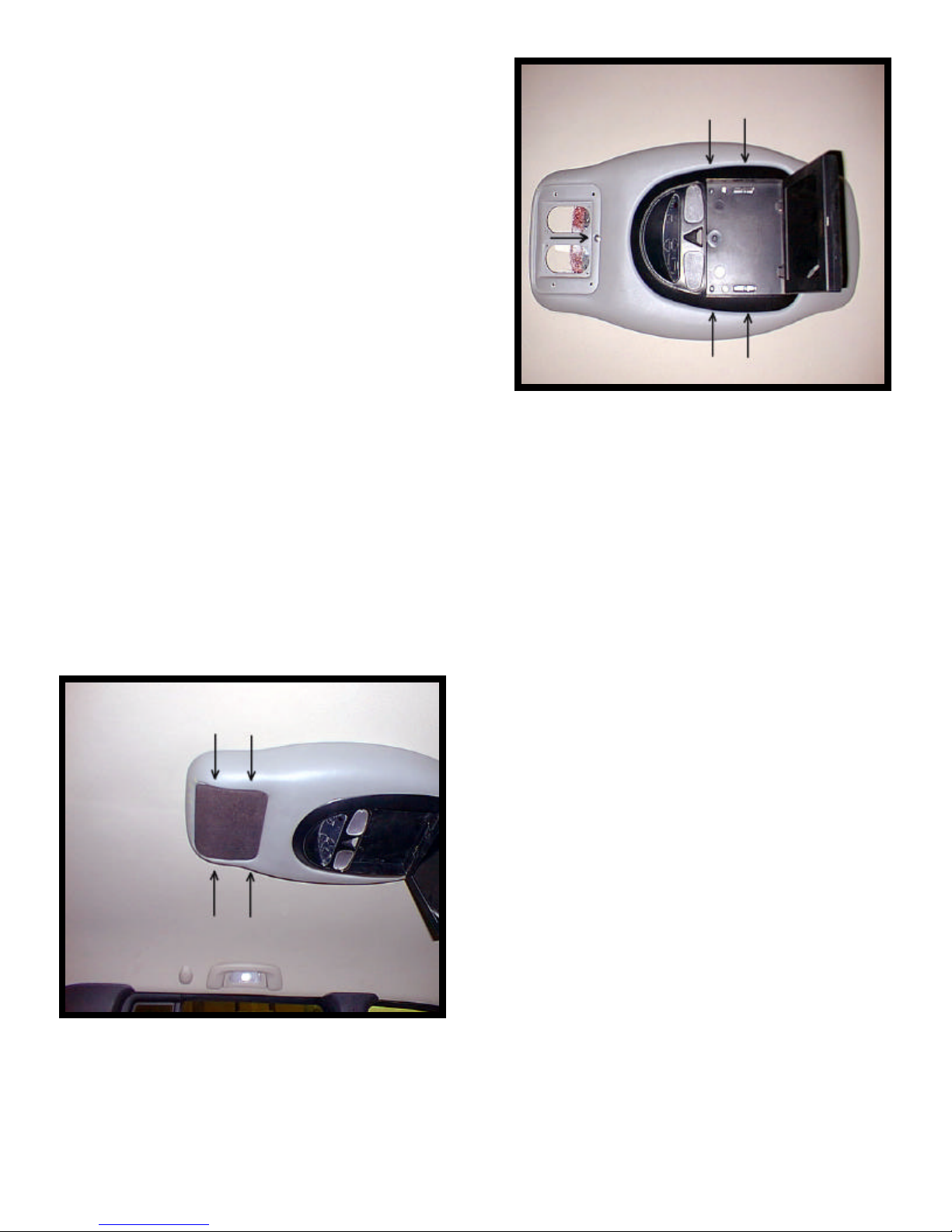

FIGURE 8
FIGURE 9
