JENN-AIR_30"AND 36"(76.2CM AND 91.4CM)

WALL-MOUNTCANOPY RANGEHOOD/

HOTIE 30"ET36"(76,2CM ET91,4CM)

InstallationInstructionsand Use&Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-807-6777, or visit our website at www.jennair.ca.

Instructionsd'installation etGuide d'utilisationetd'entretien

Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site web &www.jennair.ca.

Table of Contents/Table des matieres2

iMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

iMPORTANT : LIRE ET CONSERVER CES iNSTRUCTiONS.

POUR UTILISATION RESIDENTIELLE UNIQUEMENT.

JENN-AIRo

W10134195

TABLEOF CONTENTS

RANGE HOOD SAFETY ................................................................. 2

INSTALLATION REQUIREMENTS ................................................ 4

Tools and Parts ............................................................................ 4

Location Requirements ................................................................ 4

Venting Requirements .................................................................. 5

Electrical Requirements ............................................................... 6

INSTALLATION INSTRUCTIONS .................................................. 7

Prepare Location .......................................................................... 7

Install Range Hood ....................................................................... 8

Connect Vent System .................................................................. 8

Make Electrical Connection ......................................................... 9

Install Vent Covers ..................................................................... 10

Install Filters ................................................................................ 10

Complete Installation ................................................................. 10

RANGE HOOD USE ...................................................................... 10

RANGE HOOD CARE ................................................................... 11

Cleaning ...................................................................................... 11

WIRING DIAGRAM ...................................................................... 12

ASSISTANCE OR SERVICE ......................................................... 13

In the U.S.A................................................................................ 13

Accessories List ......................................................................... 13

In Canada ................................................................................... 13

Accessories List ......................................................................... 13

WAR RANTY .................................................................................. 14

TABLEDESMATIERES

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

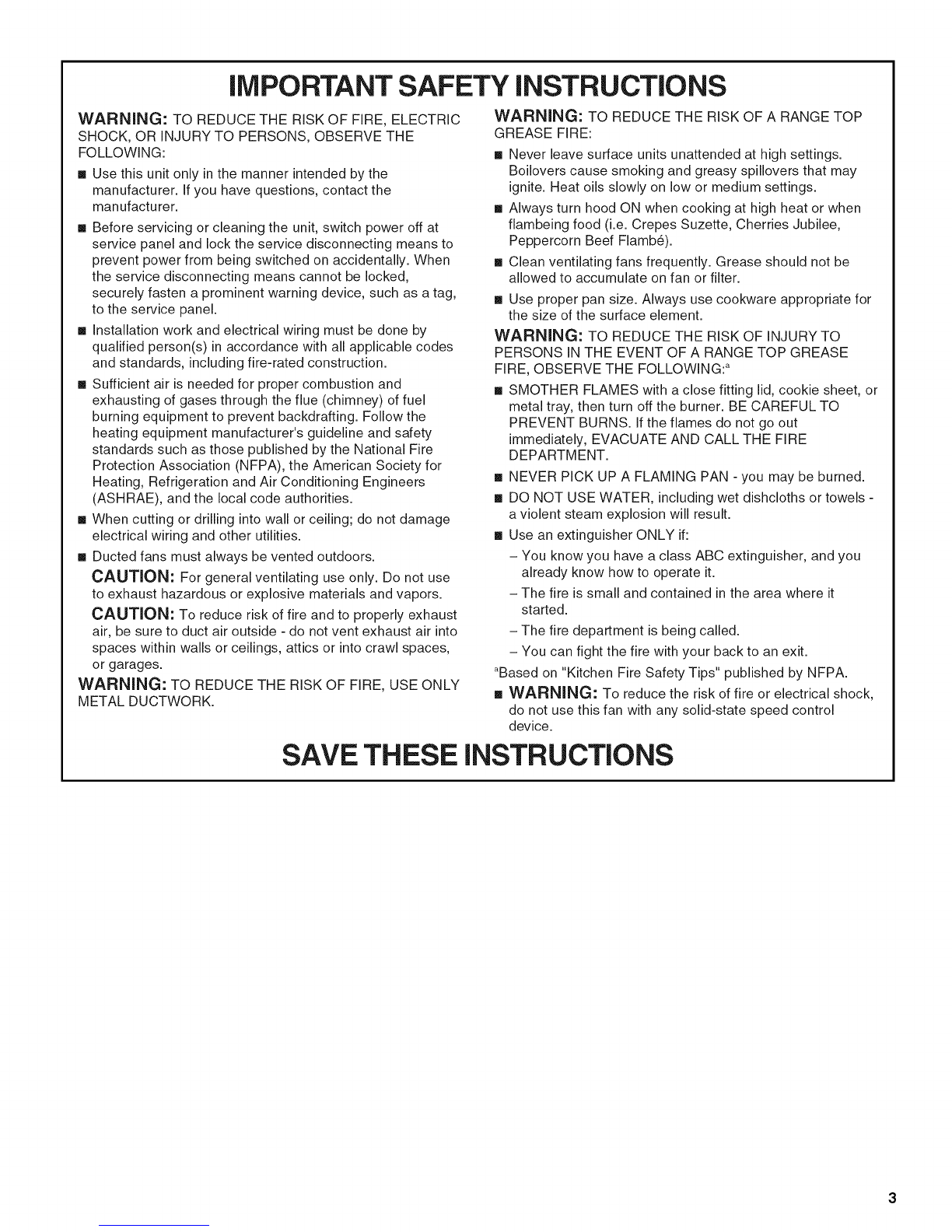

iMPORTANT SAFETY iNSTRUCTiONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

[] Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer.

[] Before servicing or cleaning the unit, switch power off at

service panel and lock the service disconnecting means to

prevent power from being switched on accidentally. When

the service disconnecting means cannot be locked,

securely fasten a prominent warning device, such as a tag,

to the service panel.

[] Installation work and electrical wiring must be done by

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction.

[] Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel

burning equipment to prevent backdrafting. Follow the

heating equipment manufacturer's guideline and safety

standards such as those published by the National Fire

Protection Association (NFPA), the American Society for

Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE), and the local code authorities.

[] When cutting or drilling into wall or ceiling; do not damage

electrical wiring and other utilities.

[] Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use

to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust

air, be sure to duct air outside - do not vent exhaust air into

spaces within walls or ceilings, attics or into crawl spaces,

or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY

METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP

GREASE FIRE:

[] Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may

ignite. Heat oils slowly on low or medium settings.

[] Always turn hood ON when cooking at high heat or when

flambeing food (i.e. Crepes Suzette, Cherries Jubilee,

Peppercorn Beef Flamb6).

[] Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filter.

[] Use proper pan size. Always use cookware appropriate for

the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO

PERSONS IN THE EVENT OF A RANGE TOP GREASE

FIRE, OBSERVE THE FOLLOWING: a

[] SMOTHER FLAMES with a close fitting lid, cookie sheet, or

metal tray, then turn off the burner. BE CAREFUL TO

PREVENT BURNS. If the flames do not go out

immediately, EVACUATE AND CALL THE FIRE

DEPARTMENT.

[] NEVER PICK UP A FLAMING PAN - you may be burned.

[] DO NOT USE WATER, including wet dishcloths or towels -

a violent steam explosion will result.

[] Use an extinguisher ONLY if:

- You know you have a class ABC extinguisher, and you

already know how to operate it.

- The fire is small and contained inthe area where it

started.

- The fire department is being called.

- You can fight the fire with your back to an exit.

aBased on "Kitchen Fire Safety Tips" published by NFPA.

[] WARNING: To reduce the risk of fire or electrical shock,

do not use this fan with any solid-state speed control

device.

SAVE THESE iNSTRUCTiONS

INSTALLATIONREQUIREMENTS

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools needed

• Level

• Drill with 11¼"(3 cm), 3/8"(9.5 mm), 7/64"(2.75 mm) and

V8"(3 mm) drill bits

• Pencil

• Wire stripper or utility knife

• Tape measure or ruler

• Pliers

• Caulking gun and weatherproof caulking compound

• Vent clamps

• Jigsaw or keyhole saw

• Flat-blade screwdriver

• Metal snips

• Phillips screwdriver

Parts needed

• Home power supply cable

• 1/2"(12.7 mm) UL listed or CSA approved strain relief

• 3 UL listed wire connectors

For vented installations, you will also need:

• 1 wall or roof cap

• Metal vent system

For non-vented (recirculating) installations, you will also

need:

• Charcoal Filter Kit Part Number W10158163 for non-vented

(recirculating) installations only. See "Assistance or Service"

section to order.

Parts supplied

Remove parts from packages. Check that all parts are included.

• Hood canopy assembly with ventilator and light bulbs

installed

• Deflector for non-vented (recirculating) installations

• Vent transition with back draft dampers installed

• Filter(s) - depending on model and size

• 2 mounting hooks

• Vent cover support bracket (3 pieces)

• Mounting template

• 2-piece vent cover

• 2 - 2.9 x 6.5 mm screws

• 8- 3.5 x 9.5 mm screws

• 2-6x70mmscrews

• 6- 5 x 35 mm mounting screws

• 2 - 10 x 70 mm drywall anchors

• Allen wrench for Torx®thead screws

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the

installer's responsibility to comply with installation clearances

specified on the model/serial rating plate. The model/serial rating

plate is located behind the left filter on the rear wall of the vent

hood.

Canopy hood location should be away from strong draft areas,

such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given

dimensions provide minimum clearance.

Grounded electrical outlet is required. See "Electrical

Requirements" section.

The canopy hood is factory set for venting through the roof or

wall. For non-vented (recirculating) Installation see "Non-vented

(recirculating) Installations" in "Prepare Location" section.

Charcoal Filter Kit Part Number W10158163 is available from

your dealer or an authorized parts distributor.

All openings in ceiling and wall where canopy hood will be

installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the

Manufactured Home Construction Safety Standards, Title 24

CFR, Part 328 (formerly the Federal Standard for Mobile Home

Construction and Safety, Title 24, HUD, Part 280) or when such

standard is not applicable, the standard for Manufactured Home

Installation 1982 (Manufactured Home Sites, Communities and

Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local

codes.

Product Dimensions

93/_6'' 113/s''

(23.3 crn) (28.9 cm)

[

207/8 ''

(53.0 crn) 323/s'' (82.2 crn) rnin.

46V2" (118.0 crn) max.

*36" (91.4 crn) rnin.

"507/8'' (129.2 crn) max.

• 4-4x8mmscrews

30" (76.2 crn)

or "_-_ 203/8"

36" (91.4 crn) __ (51.7 crn)

*For non-vented (recirculating) installations

1-®TORX is a registered trademark of Textron Innovations Inc.

Installation Dimensions

*For non-vented (recirculating) installations

_:_ _edmodes o_sy)

Vent system must terminate to the outdoors, except for non-

vented (recirculating) installations.

Do not terminate the vent system in an attic or other enclosed

area.

• Do not use 4" (10.2 cm) laundry-type wall cap.

• Use metal vent only. Rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

• The length of vent system and number of elbows should be

kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

• Use no more than three 90° elbows.

• Make sure there is a minimum of 24" (61 cm) of straight vent

between the elbows if more than 1 elbow is used.

• Do not install 2 elbows together.

• Use clamps to seal all joints in the vent system.

• The vent system must have a damper. If the roof or wall cap

has a damper, do not use the damper supplied with the range

hood.

• Use caulking to seal exterior wall or roof opening around the

cap.

• The size of the vent should be uniform.

Cold weather installations

An additional back draft damper should be installed to minimize

backward cold air flow and athermal break should be installed to

minimize conduction of outside temperatures as part of the vent

system. The damper should be on the cold air side of the thermal

break.

The break should be as close as possible to where the vent

system enters the heated portion of the house.

Makeup air

Local building codes may require the use of makeup air systems

when using ventilation systems greater than specified CFM of air

movement. The specified CFM varies from locale to locale.

Consult your HVAC professional for specific requirements in your

area.

Venting Methods

This canopy hood is factory set for venting through the roof or

wall.

A 8" (20.0 cm) round vent system is needed for installation (not

included). The hood exhaust opening is 8" (20.0 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates

back pressure and air turbulence that greatly reduce

performance.

Vent system can terminate either through the roof or wall. To vent

through a wall, a 90° elbow is needed.

Rear discharge

A 90° elbow may be installed immediately above the hood.

For non-vented (recirculating) installations

If it is not possible to vent cooking fumes and vapors to the

outside, the hood can be used in the non-vented (recirculating)

version, fitting an activated carbon filter and the deflector. Fumes

and vapors are recycled through the top grille.

Roof Venting Wall Venting Non-vented

(recirculating)

A. Roof cap A. Waft cap

B. 8" (20.0 cm) B. 8" (20.0 cm)

round vent round vent

A. Deflector

B. 8" (20.0 cm)

round vent

C. Vent transition

adapter

Calculating Vent System Length

To calculate the length of the system you need, add the

equivalent feet (meters) for each vent piece used in the system.

Vent Piece 8" (20.0 cm) Round

45° elbow 2.5 ft

(0.8m)

90° elbow 5.0 ft

(1.5m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example vent system

9o°elbow _<_ 6ft (1.8m)-_ Wall cap

2fl

(0.6 m)

Thefollowing example falls within the maximum recommended

vent length of 35 ft (10.7 m).

1 - 90 ° elbow = 5.0 ft (1.5 m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

Length of system = 13.0 ft (3.9 m)

& equ s

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSl/NFPA 70 (latest

edition), or CSA Standards C22.1-94, Canadian Electrical Code,

Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes

and ordinances.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

• A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is

required.

• If the house has aluminum wiring follow the procedure below:

1. Connect a section of solid copper wire to the pigtail

leads.

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools

designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended

procedure. Aluminum/copper connection must conform with

local codes and industry accepted wiring practices.

• Wire sizes and connections must conform with the rating of

the appliance as specified on the model/serial rating plate.

The model/serial plate is located behind the filter on the rear

wall of the hood.

Wire sizes must conform to the requirements of the National

Electrical Code, ANSl/NFPA 70 (latest edition), or CSA

Standards C22.1-94, Canadian Electrical Code, Part 1 and

C22.2 No. 0-M91 (latest edition) and all local codes and

ordinances.

INSTALLATIONINSTRUCTIONS

It is recommended that the vent system be installed before

hood is installed.

• Before making cutouts, make sure there is proper clearance

within the ceiling or wall for exhaust vent.

• Check your ceiling height and the hood height maximum

before you select your hood.

1. Disconnect pwer

2. Determine which venting method to use: roof, wall, or non-

vented.

3. Select a flat surface for assembling the range hood. Place

covering over that surface.

Excessive Weight Hazard

Use two or more people to move and install

range hood.

Failure to do so can result in back or other injury.

8= Mark centers of the 6 fastener locations through the template

to the wall.

IMPORTANT: All screws must be installed into wood.

Remove the template.

9. Drill %4" (2.75 mm) pilot holes at all locations where screws

are being installed into wood.

10. Attach two mounting hooks to the wall at location marked on

the template.

A B

A. Mounting hooks

B. Centerline on wall

Vent Cover Bracket Assembly and Installation

4. Using 2 or more people, lift range hood onto covered surface.

Range Hood Mounting Screws Installation

1. Assemble the 3 pieces of the vent cover bracket using 4 -

4 x 8 mm screws provided. The assembled bracket should be

sized to fit inside the upper vent cover.

5. Determine and mark the centerline on the wall where the

canopy hood will be installed.

6. Select a mounting height between a minimum of

30" (76.2 cm) and a suggested maximum of 36" (91.4 cm),

above the range to the bottom of the hood and mark

reference line on the wall.

7. Tape template in place, aligning the template centerline and

bottom of template with hood bottom line and with the

centerline marked on the wall.

• " i S¸ !

...... 3===L===J=

....... .... I

A.Centerline

B.Mounting hook location

C.Fastenerlocations

D.Mounting height reference

| ...................................

oE....

B,'......... B I

/i i| "" ' I

•,. • 0 i ""• •

.... A

A. Vent cover bracket assembly

B. Upper vent cover

C. 4 x 8 mm screws

Install vent cover bracket to wall about 1/8"(3.0 mm) away

from the ceiling. Use 2 - 6 x 70 mm screws with 10 x 70 mm

drywall anchors supplied.

k...............................B

A. Vent cover bracket

B. Centerline on waft

Non-Vented (recirculating) Installations

1= Connect the deflector to the vent cover bracket using 4 -3.5

x 9.5 sheet metal screws provided.

A. Vent cover bracket

B. C3.5 x 9.5 mm sheet metal screws

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent

system. Install the vent system before installing the hood. See

"Venting Requirements" section.

2. Determine the required height for the home power supply

cable and drill a 11¼"(3.2 cm) hole at this location.

3. Run wire through the home power supply cable according to

the National Electrical Code or CSA Standards and local

codes and ordinances. There must be enough 1/2"conduit

and wires from the fused disconnect (or circuit breaker) box

to make the connection in the hood's electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

4. Use caulk to seal all openings.

Excessive Weight Hazard

Use two or more people to move and install

range hood.

Failure to do so can result in back or other injury.

1= Using 2 or more people, hang range hood on 2 mounting

hooks through the rectangular cutouts on back of hood.

A. Mounting hooks

B. 5 x 35 mm mounting screws C. Leveling screws

D. Centerline on wall

2. Level the hood with leveling screws in mounting hooks or

rectangular cutouts, using a level across bottom of hood.

3. Secure hood with 4 screws through remaining 4 holes in

hood.

1= Install transition on top of range hood (if removed for

shipping) with 4 - 3.5 x 9.5 mm sheet metal screws.

A.Venttransition

B.3.5 x 9.5 mm screw

For Vented Installations Only:

1. Fit vent system over transition piece.

2. Seal connection with clamps.

3. Check that backdraft dampers work properly.

For Non-vented (recirculating) Installation Only:

1. Fit vent system over deflector and transition piece.

4= Run 3 wires, black, white and green (14AWG), in 1/2"conduit

from service panel to terminal box. Use caulking to seal

opening.

A. Deflector

B. Vent system

C. Vent transition

2. Seal connection with clamps.

3. Check that backdraft dampers work properly.

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Remove terminal box cover.

3. Remove the knockout in the terminal box cover and install a

UL listed or CSA approved 1/2"strain relief.

A. UL fisted or CSA approved strain relief

B. Home power supply cable

C. Terminal box

D. Black wires

E. Green (or bare) wire connected to yellow-green wire

F. White wires

5. Use UL listed wire connectors and connect black wires (D)

together.

6. Use UL listed wire connectors and connect white wires (F)

together.

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire

in terminal box.

Failure to do so can result in death or electrical shock.

7. Connect green (or bare) ground wire from home power supply

to yellow-green ground wire (E)in terminal box using UL listed

wire connectors.

8. Tighten strain relief screw.

9. Install terminal box cover.

10. Check all light bulbs to make sure they are secure in their

sockets.

11. Reconnect power.

n C

When using both upper and lower vent covers, push lower cover

down onto hood and lift upper cover to ceiling and install with

two 2.9 x 6.5 mm screws.

NOTE: Upper vent cover may be reversed to hide slots.

7. Pull filter toward the front and insert into front channel.

C.............................A

............................S

A. Upper vent cover

B. Lower vent cover

C. 2.9 x 6.5 mm screws

D. Bracket

1. For non-vented (recirculating installations, install charcoal

filter over grille on blower housing (2 charcoal filters

necessary).

2. Align pins B with slots C on filter.

3. Turn filter clockwise until it locks in place or turn the central

handle clockwise.

4. Repeat with other charcoal filter.

Check Range Hood Operation

1. Move the light switch to "1" position. The light should turn on.

2. Move blower switch to "1" position. The blower should

operate.

3. Move the blower speed switch to "1" position for low speed,

"2" position for medium speed or "3" position for high speed.

4. Move blower and light switches to "0" position to turn off

blower and light.

5. If range hood does not operate, check to see whether a

circuit breaker has tripped or a household fuse has blown.

NOTE: To get the most efficient use from your new range hood,

read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors

and odors from the cooktop area. For best results, start the hood

before cooking and allow it to operate several minutes after the

cooking is complete to clear all smoke and odors from the

kitchen.

Control Panel

The range hood controls are located on the front side of the

canopy. ..........B

(it

A. Blower housing

B.Alignment pins

C.Alignment slots

D. Charcoal filter

5. For all installations, insert back edge of metal filter into rear

channel of the filter opening.

6. Push handle toward the rear and push filter up.

A. Light switch

B. Blower switch

Operating the Light

1. Move the light switch to the "1" position to turn on the light.

2. Move the light switch to the "0" position to turn off the light.

Operating the Blower and Adjusting Blower Speed

1. Move the blower switch to the "1" position for low speed, the

"2" position for medium speed or the "3" position for high

speed.

2. Move the blower switch to the "0" position to turn off the

blower.

RANGE HOOD CARE

IMPORTANT: Clean the hood and grease filters frequently

according to the following instructions. Replace grease filters

before operating hood.

Be sure lights are cool before cleaning the hood.

Exterior Surfaces

Cleanthe range hood with a mild detergent and soft cloth. Donot

use abrasive cleanser or steel-wool pads.

Metal Grease Filters

The filters should be washed frequently. Place metal filters in

dishwasher or hot detergent solution to clean.

Drain water through edge holes and let each filter dry thoroughly

before replacing it.

To Remove Metal Grease Filters

1. Turn off fan and lights. Check that halogen lamp is cool.

2. Push handle toward the rear and pull downward.

3. Pull filter toward the front.

To Replace Metal Grease Filter

1. Insert back edge of filter into rear channel of the filter

opening.

2. Push handle toward the rear and push filter up.

3. Pull filter toward the front and insert into front channel.

Charcoal Filters -For Non-Vented (recirculating)

Installations

The charcoal filters are not washable nor reusable.

They should be changed every 6 months in normal use or more

frequently in heavy use.

The charcoal filters capture unpleasant cooking odors.

To Install Charcoal Filters

1. Turn fan and lights off. Check that halogen lamp is cool.

2. Remove the metal grease filters. See "Metal Grease Filters"

section.

3. Set metal grease filter aside.

4. Repeat to remove other metal grease filter.

5. Install charcoal filter over grille on blower housing by aligning

the pins B with the slots C and turning filter clockwise until it

locks in place or turn the central handle clockwise.

A. Blower housing

B.Alignment pins

C.Alignment slots

D. Charcoal filter

6. Repeat to install other charcoal filter.

7. Replace metal grease filters. See "Metal Grease Filters"

section.

To Replace Charcoal Filters

1. Turn fan and lights off. Check that halogen lamp is cool.

2. Remove the metal grease filters. See "Metal Grease Filters"

section.

3. Turn charcoal filter counterclockwise.

4. Remove and discard both charcoal filters.

5. Install replacement charcoal filter over grille on blower

housing by aligning the pins B with the slots C and turning

the filter clockwise until it locks in place or turn the central

handle clockwise.

6. Replace metal grease filters. See "Metal Grease Filters"

section.

Replacing a Halogen Lamp

Turn off the range hood and allow the halogen lamp to cool.

Replace using a tissue.

If new lights do not operate, make sure the lamps are inserted

correctly before calling service.

1. Disconnect power.

2. Use a flat-blade screwdriver and gently pry the light cover

loose.

Remove the lamp and replace with a 12-volt, 20-watt

maximum, halogen lamp made for a G-4 base.

Replace the light cover.

WIRING DIAGRAM

MOTOR CONNECTIONS

SPEED TO TERMINALS

1 BLUE - WHITE

2 BLUE - RED

3 BLUE - BLACK

COLOR TABLE COLOR TABLE

BLK BLACK RED RED

BLU BLUE WriT WHITE

BRW BROWN YEL YELLOW

GRN GREEN Y-G YELLOW/GREEN

GRY GREY SE1Q7A

m m

Y-G Y-G

WHT

RED

GRY

BLK

BLU

YEL

o°w

--@

BLU

BLK

RED WHT

WHT

RED

BRW

t_ =_m

Fan Speed Cont. Brd (FSCB)

SPEED 1 2 3

CONTACT 3-5 5-7 8-10

ooo_

2 4 6j8

FSCB _1

1 3 5,2 7

o i__I,I,

BLK

L_N

BRW

..J

WIRING BOX

IXl

Light Cont. Brd (LCB)

2-4 4-6

1-3 3-5

BRW

RED

BLU BLU

ASSISTANCEOR SERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service call. If

you still need help, follow the instructions below.

When calling, please know the purchase date and the complete

model and serial number of your appliance. This information will

help us to better respond to your request.

If the problem is not due to one of the items listed in the

"Troubleshooting" section...

Call the dealer from whom your appliance was purchased, or call

Jenn-Air at 1-800-JENNAIR (1-800-536-6247) to locate an

authorized service company. When calling, please know the

purchase date and the complete model and serial number of your

appliance. Be sure to retain proof of purchase to verify warranty

status.

If the dealer or service company cannot resolve your problem,

write to:

Jenn-Air Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Web address: www.jennair.com

Or call: 1-800-JENNAIR (1-800-536-6247).

U.S. customers using -FrY for deaf, hearing impaired or speech

impaired, call: 1-800-688-2080 (Monday - Friday, 8:00 a.m. -

8:00 p.m. Eastern Time).

NOTE: When writing or calling about aservice problem, please

include the following information:

1. Your name, address and daytime telephone number.

2. Appliance model number and serial number.

3. Name and address of your dealer or servicer.

4. A clear description of the problem you are having.

5. Proof of purchase (sales receipt).

User's guides, service manuals and parts information are

available from Jenn-Air Brand Home Appliances, Customer

eXperience Center.

n Cc ncxdc

If the problem is not due to one of the items listed in the

"Troubleshooting" section...

Call the dealer from whom your appliance was purchased, or call

Jenn-Air at 1-800-807-6777 to locate an authorized service

company. When calling, please know the purchase date and the

complete model and serial number of your appliance. Be sure to

retain proof of purchase to verify warranty status.

If the dealer or service company cannot resolve your problem,

write to:

Jenn-Air Brand Home Appliances

Customer Interaction Centre

1901 Minnesota Court

Mississauga, ON LSN 3A7

Web address: www.jennair.ca

Or call: 1-800-807-6777.

NOTE: When writing or calling about a service problem, please

include the following information:

1. Your name, address and daytime telephone number.

2. Appliance model number and serial number.

3. Name and address of your dealer or servicer.

4. A clear description of the problem you are having.

5. Proof of purchase (sales receipt).

User's guides, service manuals and parts information are

available from Jenn-Air Brand Home Appliances, Customer

Interaction Centre.

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W10158163

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W10158163

JENN-AIR MAJOR APPLIANCEWARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or

furnished with the product, Jenn-Air brand of Maytag Corporation or Maytag Limited (hereafter "Jenn-Air") will pay for factory specified

replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Jenn-Air designated

service company. This limited warranty applies only when the major appliance is used in the country in which it was purchased.

ITEMS JENN-AIR WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair

house fuses or to correct house wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty

coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in

accordance with electrical or plumbing codes, or use of products not approved by Jenn-Air.

5. Any food loss due to refrigerator or freezer product failures.

6. Replacement parts or repair labor costs for units operated outside the United States or Canada.

7. Pickup and delivery. This major appliance is designed to be repaired in the home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service in remote locations.

10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with

published installation instructions.

11. Replacement parts or repair labor costs when the major appliance is used in a country other than the country in which it was

purchased.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED

HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,

ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE XCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS, SO THESE XCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE

TO PROVINCE.

Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Jenn-Air dealer to determine if another

warranty applies.

If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," additional help

can be found by checking the "Assistance or Service" section or by calling Jenn-Air. In the U.S.A., call 1-800-JENNAIR

(1-800-536-6247). In Canada, call 1-800-807-6777. 2/o7

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your major appliance

to better help you obtain assistance or service if you ever need it.

You will need to know your complete model number and serial

number. You can find this information on the model and serial

number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

W10134195

® Registered Trademark/TM Trademark of Jenn-Air U.S.A.

Used under license in Canada.

® Marque deposeef TM Marque de commerce de Jenn-Air U.S.A.

Utilise sous licence par Canada.

8/07

Printed in U.S.A.

Imprime aux E.-U.

JENN-AIR_30"AND 36"(76.2CM AND 91.4CM)

WALL-MOUNTCANOPY RANGEHOOD/

HOTIE 30"ET36"(76,2CM ET91,4CM)

InstallationInstructionsand Use&Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-807-6777, or visit our website at www.jennair.ca.

Instructionsd'installation etGuide d'utilisationetd'entretien

Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site web &www.jennair.ca.

Table of Contents/Table des matieres2

iMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

iMPORTANT : LIRE ET CONSERVER CES iNSTRUCTiONS.

POUR UTILISATION RESIDENTIELLE UNIQUEMENT.

JENN-AIRo

W10134195
