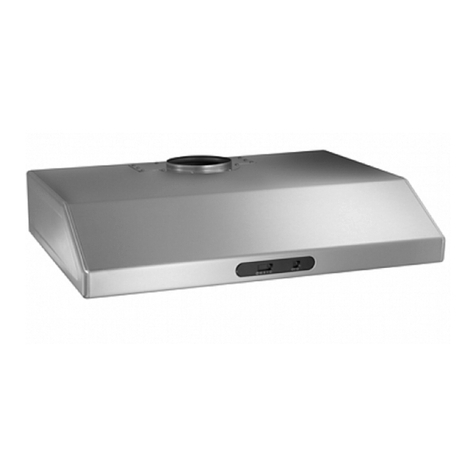

Jenn-Air JXT9036CDP User manual

RANGE HOOD
Model Number:
Manufacturer Number:
Size:
JX[9030CDP
MK7030
30"
JXT9036CDP [×T9048CDP
MK7036 MK7048
36" 48"
GUIDE
TABLE OF CONTENTS
Satet', Instructions .................................................... 1
Controls & Features ................................................. 2
Maintenance ......................................................... 3-4
Warranty ................................................................... 5
MK7030
MK7036
MK7048
Form No. A/06/04 Part No. 8_ 10P261-60 ,¢2004 Maytag Appliances Sales (o. litho U.S.A.

IVIODEL$:JXT9030 JXT9036 JXT9048
lostallation
Theinstallationin thismanualisintendedforqualifiedinstallers,servicetechniciansor persons
withsimilarqualifiedbackground.DONOTattempttoinstallthisapplianceyourself.Iniurycould
resultfrominstallingtheunitdueto lackofappropriateelectricalandtechnicalbackground.
All electrical wiring must be properly installed, insulated and grounded. Overly accumulated
greasein old duct work should becleaned out or duct work should be replaced if necessaryto
avoid the possibility of a grease fire. Checkall ioints on duct work to insure proper connection
andall ioints should be properly taped.
Operations
Readall instructions in this manual before operating the appliance. Save these instructions for
future reference.
Always leave safety grills and filters in place. Without these components, operating blowers
could catch on to hair;fingers and looseclothing.
NEVERdisposecigarette ashes, ignitable substances,or any foreign obiects into blowers.
NEVERleavecooking unattended.When frying, oil in the pan can easily overheat andcatch fire.
The risk of self combustion is higher when the oil has been used severaltimes.
Cleaning
The saturation of greasy residue in the blower and filters may cause increased flammability.
Keepunit clean and free of grease and residue build-up at all times to prevent possible fires.
Filters must be cleaned periodically and kept free from accumulation of cooking residue (see
cleaning instructions inside).Oldand worn filters must bereplaced immediately. Donot operate
blowers when filters are removed. Neverdisassemble parts toclean without properinstructions.
Disassemblyisrecommended to be performedby qualified personnelonly. Callourservicecen-
ter for removal instructions. 1-800-JENNAIR(USAand Canada),(1-800-536-6247)
The manufacturer declines all responsibility in the event of failure to observe the instrucz
tions given here for installation, maintenance and suitable use of the product. Themanufacz
turer further declines all responsibility for injury due to negligence and the warranty of the
unit automatically expires due to improper maintenance.
*Please check tot latest specification revisions before any custom work or cutouts.

CONTROLS & FEATURES
CONTROLS& FEATURES
0 15 Minutes Delay Off
rL_ ÷
}l_ Blower On/Off
F_ Lights On/Off/Dim
000000
H
Adjust 6 SpeedLevels
0 Blower On/Off
I<-_ -
By pressing _m ,_neMower is switched Onand Off.
Speed Selection
The 6 speed levels are selected by pressing -- to decrease and _ to increase speedlevel.
The disprayindicates feverserected.
0 Delay Off
This is used for programmed shut down of Mower and rights 15 minutes after the function is actio
rL_
vated.After pressing \j, the hood will compreteryshut down in 15 minutes.
Lights On/Off/Dim
Switch lights Onand Off bypressing -_o once.To dim lights, pressand hold -_- for 2 seconds.

CLEANING
Surface Maintenance:
Cleanperiodically with hot soapy water and dean cotton cloth=Do not use corrosive or abrasive
detergent (e=g=Cometpowder scrub, EasyOff oven deaner), or steerwool/scouring padswhich will
scratch and damage surface.
Forheavier soil use liquid degreaser such as 'Formula 409' or 'Fantastic' brandcleaner.
After cleaning,you may use non abrasivestainless steel polish/cleaners such as 3M or ZEP,
to polish and buff out the stainless luster and grain.Always scrub lightly, with clean cotton cloth,
and with the grain.
Stainless Steel Baffled Filters
The stainless steel baft[edfilters fitted bythe factory are intendedto trap residue and grease from
cooking.Although the filters never need replacement, they arerequired to be kept dean. Filters
should be cleaned after every30 hours of use.
Removing Baffled Filters
1.Pull filter toward back of rangehood using handles.
2. Pivot filter front upward.
3. Removedownwards to the rear.
30:'; 2 filters
36!!: 3 filters
48'! _4 filters

LIGHTS
Replacing LightBulbs
Makesure arl power is turned off and
burbsare not hot.
Removeby turning burb counter-
crockwise.
rfbulbs are difficurt to remove due to pro-
tongeduse, firmly attach a grasssuction cup
(readily avaHaNeat most righting stores)
approximaterythe diameter of the bulb and
turn counter clockwise. Youmay also use a
rubber or ratexgrove to get the same effect.
Replacementburbsare avaHaNeat specialty
rightingstores. Purchasetype GUIO120V
50Whalogenburbs.
Orto order burbs, pleasecall our service
center: 1=800=JENNAIR(1=800=536=6247)
30!' :2 bulbs
36'! _3 bulbs
48" - 4 bulbs
OPTIONALACCESSORIES
Model: J×TgO3OC#P J×TgO36C#P J×TgO48C#P
BackSplash JXAgOO3CDP JXAgOO2CDP JXAgOO1CDP
12"DuctCover JXA903OCDP JXA9036CDP JXA9048CDP

Warranb]:
Full OneYearWarranty =Partsand Labor
Forone (1)yearfrom theoriginalretailpur-
chasedate, any part which fails in normal
homeusewill berepairedor replacedfreeof
charge,
Limited Warranty =Parts Only
Second Year = After the first year from the
original purchasedate, parts which fail in nor-
mal home usewill be repairedor replacedfree
of charge for the part itself, with the owner
payingall other costs, including labor,mileage
and transportation, trip change and diagnostic
charge, if required.
Canadian Residents
Theabovewarranties only coveran appliance
installed in Canadathat has been certified or
listed byappropriate test agencies for compli-
anceto a National Standard of Canadaunless
the appliance was brought into Canadadue to
transfer of residencefrom the United Statesto
Canada.
Tbespecific warrantiesexpressedaboveare,tbe
ONLYwarrantiesprovidedby the manufacturer
Tbesewarrantiesgiveyouspecific/egalrights,and
you may a/sohave other rigbtswhirl7 varyfrom
statetostate.
What is Net Cevered By These Warranties:
1. Conditionsand damages resulting from any of the following:
a. Improper installation, delivery,or maintenance.
b.Any repair,modification, alteration, or adiustment not authorized
bythe manufacturer or an authorized servicer.
c. Misuse,abuse,accidents, or unreasonableuse.
d. Incorrect electric current, voltage, or supply.
e. Improper setting of any control
2.Warranties are void if the original serial numbers havebeen removed,
altered, or cannot be readilydetermined.
3=Light bulbs.
4.Productspurchasedforcommercialor industrialuse.
5.Thecostofserviceor servicecallto:
a.Correctinstallationerrors.
b.Instructtheuserontheproperuseoftheproduct.
c.Transporttheapplianceto theservicer.
6. Consequentialor incidental damagessustained by any person as a
result of any breach of these warranties. Some states do not allow the
exclusionor limitation of consequential or incidental damages, sothe
aboveexclusion may not apply.
if Yeu Need Service
Callthe dealer from whom your appliance was purchased or call
Maytag ServicesaM,Jenn°Air CustomerAssistance at 1-800-JENNAIR
(1-800-536-6247) USAand CANADAto locate an authorized servicer
Be sureto retain proof of pumhase to verify warranty status. Referto
WARRANTYfor further information on owner's responsibilities for warranty
service.
If the dealer or service company cannot resolvethe problem, write to
Maytag ServicesaM,Attn:CAIR®Center,RO.Box2370, Cleveland,TN
37320-2370, or call I=800=JENNAIR(1-800-536-6247) USAand CANADA.
U.S.customers usingTTYfor deaf, hearing impaired or speech
impaired, call 1-800-688-2080.
NOTE: When writing or calling about a service problem, please include the
following information:
aaYourname, address and telephone number;
b. Model number and serial number;
c. Nameand address of your dealer or servicer;
d.A clear description of the problem you are having;
e. Proofof purchase(sales receipt)
User's guides,service manuals and parts information areavailable from
Maytag ServicesaM,Jenn-Air CustomerAssistance.
