Jenn-Air W10549545A User manual

\
JENN-AIR WINECELL,S,R4BODEG,S,/GAVEAVIN
Overlay Model/Modelo recubierto/Modble _panneau d_coratif
USE & CARE GUIDE
For questions about features, operation/performance, parts, accessories, or service, call:
1-800-JENNAIR (1-800-536-6242} or visit our website at www.jennair.com.
In Canada, call: 1-800-JENNAIR (1-800-536-6242}, or visit our website at www.jennair.ca.
MANUALDE USO Y CUIDADO
Si tiene preguntas respecto a las caracteristicas, funcionamiento, rendimiento, partes, accesorios o servicio tecnico, Ilame al:
1-800-JENNAIR (1-800-536-6247} o visite nuestro sitio de internet www.jennair.com.
En CanadA, Ilame al: 1-800-JENNAIR (1-800-536-6247}, o visite nuestro sitio de internet www.jennair.ca.
GUIDE D'UTILISATIONET D'ENTR_I-IEN
Au Canada, pour assistance, installation ou service, composez le 1-800-JENNAIR (1-800-536-6247)
ou visitez notre site web &www.jennair.ca.

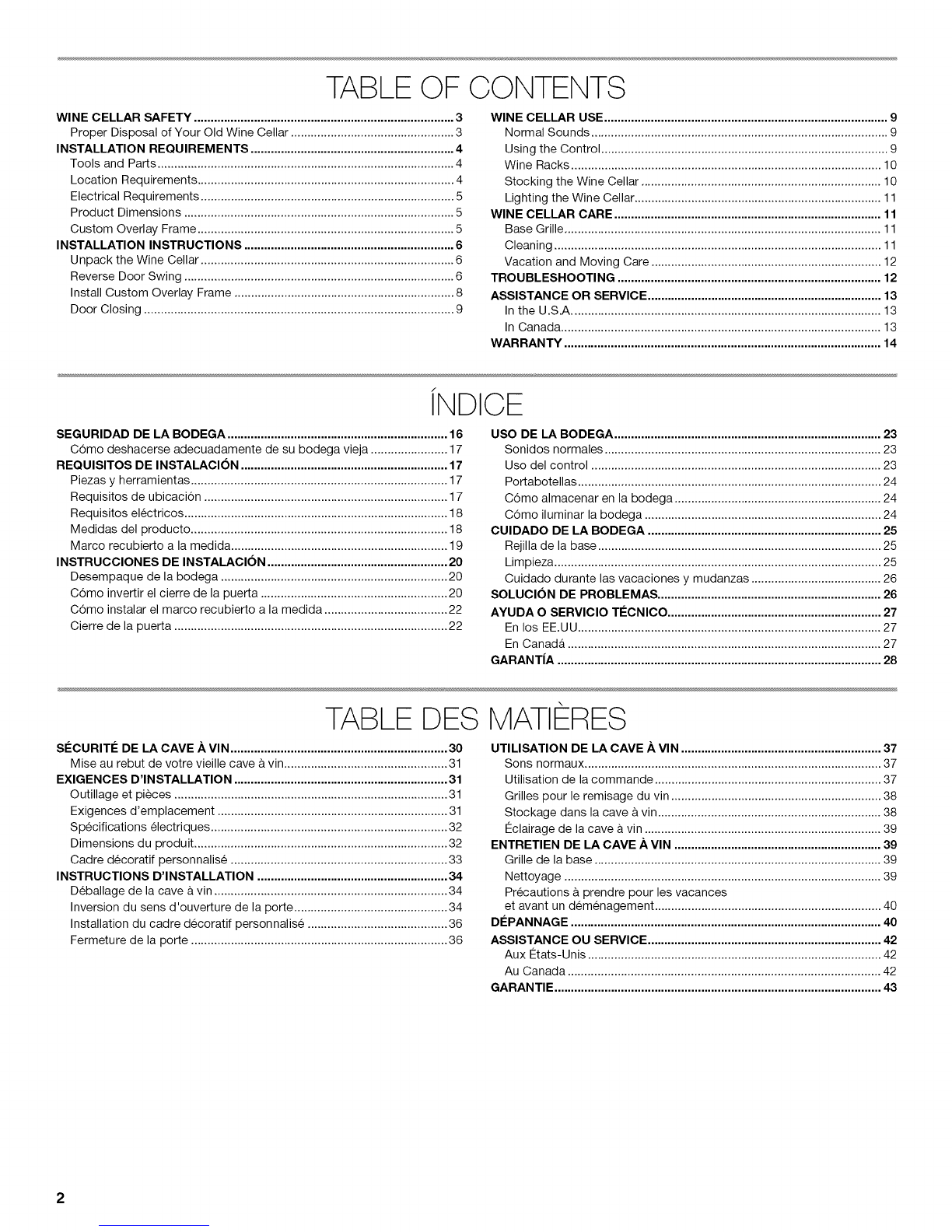

Table of Contents//ndice/Table des matieres ...................................................................................... 2
JENN-AIR °
W10549545A

TABLE OF
WINE CELLAR SAFETY .............................................................................. 3
Proper Disposal of Your Old Wine Cellar ................................................. 3
INSTALLATION REQUIREMENTS ............................................................. 4
Tools and Parts ......................................................................................... 4
Location Requirements ............................................................................. 4
Electrical Requirements ............................................................................ 5
Product Dimensions ................................................................................. 5
Custom Overlay Frame ............................................................................. 5
INSTALLATION INSTRUCTIONS ............................................................... 6
Unpack the Wine Cellar ............................................................................ 6
Reverse Door Swing ................................................................................. 6
Install Custom Overlay Frame .................................................................. 8
Door Closing ............................................................................................. 9
CONTENTS
WINE CELLAR USE ..................................................................................... 9
Normal Sounds ......................................................................................... 9
Using the Control ...................................................................................... 9
Wine Racks ............................................................................................. 10
Stocking the Wine Cellar ........................................................................ 10
Lighting the Wine Cellar .......................................................................... 11
WINE CELLAR CARE ................................................................................ 11
Base Grille ............................................................................................... 11
Cleaning .................................................................................................. 11
Vacation and Moving Care ..................................................................... 12
TROUBLESHOOTING ............................................................................... 12
ASSISTANCE OR SERVICE ...................................................................... 13
In the U.S.A ............................................................................................. 13
In Canada ................................................................................................ 13
WARRANTY ............................................................................................... 14
[NDICE
SEGURIDAD DE LA BODEGA .................................................................. 16
C6mo deshacerse adecuadamente de su bodega vieja ....................... 17
REQUlSITOS DE INSTALACION .............................................................. 17
Piezas y herramientas ............................................................................. 17
Requisitos de ubicaci6n ......................................................................... 17
Requisitos electricos ............................................................................... 18
Medidas del producto ............................................................................. 18
Marco recubierto a la medida ................................................................. 19
INSTRUCCIONES DE INSTALACION ...................................................... 20
Desempaque de la bodega .................................................................... 20
C6mo invertir el cierre de la puerta ........................................................ 20
C6mo instalar el marco recubierto a la medida ..................................... 22
Cierre de la puerta .................................................................................. 22
USO DE LA BODEGA ................................................................................ 23
Sonidos normales ................................................................................... 23
Uso del control ....................................................................................... 23
Portabotellas ........................................................................................... 24
C6mo almacenar en la bodega .............................................................. 24
C6mo iluminar la bodega ....................................................................... 24
CUIDADO DE LA BODEGA ...................................................................... 25
Rejilla de la base ..................................................................................... 25
Limpieza .................................................................................................. 25
Cuidado durante las vacaciones y mudanzas ....................................... 26
SOLUCION DE PROBLEMAS ................................................................... 26
AYUDA O SERVICIO TleCNICO ................................................................ 27
En los EE.UU ........................................................................................... 27
En Canad_ .............................................................................................. 27
GARANTIA ................................................................................................. 28
TABLE DES MATIIeRES
SECURITE DE LA CAVE AVIN ................................................................. 30
Mise au rebut de votre vieille cave &vin................................................. 31
EXlGENCES D'INSTALLATION ................................................................ 31
Outillage et pieces .................................................................................. 31
Exigences d'emplacement ..................................................................... 31
Specifications electriques ....................................................................... 32
Dimensions du produit ............................................................................ 32
Cadre decoratif personnalise ................................................................. 33
INSTRUCTIONS D'INSTALLATION ......................................................... 34
Deballage de la cave &vin ...................................................................... 34
Inversion du sens d'ouverture de la porte .............................................. 34
Installation du cadre decoratif personnalise .......................................... 36
Fermeture de la porte ............................................................................. 36
UTILISATION DE LA CAVE AVIN ............................................................ 37
Sons normaux ......................................................................................... 37
Utilisation de la commande .................................................................... 37
Grilles pour le remisage du vin ............................................................... 38
Stockage dans la cave a vin ................................................................... 38
leclairage de la cave a vin ....................................................................... 39
ENTRETIEN DE LA CAVE AVIN .............................................................. 39
Grille de la base ...................................................................................... 39
Nettoyage ............................................................................................... 39
Precautions a prendre pour les vacances
et avant un dem6nagement .................................................................... 40
DEPANNAGE ............................................................................................. 40
ASSISTANCE OU SERVICE ...................................................................... 42
Aux letats-Unis ........................................................................................ 42
Au Canada .............................................................................................. 42
GARANTIE .................................................................................................. 43
2

WINE CELLAR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your wine cellar, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old wine cellar.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from wine cellar.
• Use two or more people to move and install wine cellar.
SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
Proper Disposal of
Your Old Wine Cellar
Suffocation Hazard
Remove door from your old wine cellar.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned wine cellars are still dangerous
- even if they will sit for "just a few days." Ifyou are getting rid of
your old wine cellar, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Wine Cellar:
• Take off the door.
• Leave the racks in place so that children may not easily climb
inside.
Important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.

INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
TOOLS NEEDED:
• Phillips screwdriver
PARTS NEEDED:
Custom Overlay Frame--See "Overlay Frame--Rear View."
Hardware (Optional)
PARTS SUPPLIED:
• M4 x 14 wood screws (12)
E×plosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from wine cellar.
Failure to do so can result in death, explosion, or fire.
NOTES:
• For the wine cellar to be flush with the front of the base
cabinets remove any baseboards or moldings from the rear of
the opening. See "Product Dimensions" and later in this
section "Opening Dimensions."
• It is recommended that you do not install the wine cellar near
an oven, radiator, or other heat source.
• Do not install in a location where the temperature will fall
below 55°F (13°C). For best performance, do not install the
wine cellar behind a cabinet door or block the base grille.
I!!
Opening Dimensions
• Height dimensions are shown with the leveling legs extended
to the minimum height.
NOTE: When leveling legs are fully extended, add %"
(15.9 mm) to the height dimensions. See "Product
Dimensions."
• If the floor of the opening is not level with the kitchen floor,
shim the opening to make it level with the kitchen floor.
I .........................A
610'n96 ¢m)
24" (60.96 crn) min.
343/8" (87.3 cm) min.
35" (88.9 cm) max.
Critical Dimensions:
A. 14_" (37.5 cm) utility opening
B. 24" (60.96 cm) minimum opening width

_}@_e©_/©@_ _J£@_s_s _+@_@ _'t_as;; Side View (door open 90 °)
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your wine cellar into its final location, it is
important to make sure you have the proper electrical connection.
Recommended grounding method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your wine cellar be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, unplug wine cellar or disconnect power.
• Height dimensions are shown with the leveling legs NOT
extended.
• The power cord is 60" (152.4 cm) long.
Front View
30V8"
(76.6 cm)
34%"
(87.4 cm)
34V8"
(86.8 cm)
,_ 47%" >,
(121.4 cm)
26V8"
(66.4 cm)
Top View
237/8"
(60.6 cm)
21%"
(55.0 cm)
237/8" *
. [(60.7 cm)
*Dimension includes _" thick custom door panel
If you plan to install a custom overlay frame, you will need to
create the frame yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for frame specifications.
IMPORTANT:
• The thickness of the overlay frame must be 3/4"(1.91 cm).
• Overlay frame must not weigh more than 10 Ibs (4.54 kg).
• Overlay frames weighing more than recommended may
cause damage to your appliance.

Overlay Frame - Rear View
Create the custom overlay frame using the dimensions shown.
IMPORTANT: The following graphic shows a custom frame for a
door with the hinges installed on the right-hand side. If your
refrigerator has the hinges installed on the left-hand side, rotate
the custom frame 180 ° so the hinge markings will be on the left.
303/16"
(76.6 crn)
231/2"
(59.6 cm)
2%"
(7.4 crn)
18"
(45.6 cm)
3%"
"(8.5 cm)"
233/4''
(60.3 crn)
A. Drill holes using a '_2" (12 mm) drill bit to a depth of approximately
½" (13 mm) before routing. (4 holes total)
B. Drill holes using a _" (8 mm) drill bit to a depth of approximately
½" (13 mm) before routing. (4 holes total)
C. Drill holes using a Y_" (2.8 mm) drill bit to a depth of approximately
½" (13 mm). (12 holes total)
D. Rout shaded areas for hinges to a '_2" (15 mm) depth.
E. Rout shaded areas for hinges to a ¼" (4 mm) depth.
F. Corner radius of _" (3 mm) using a ¼" drill bit when routing
(5 radiuses total)
INSTALLATION
INSTRUCTIONS
W se
Excessive Weight Hazard
Use two or more people to move and install wine cellar.
Failure to do so can result in back or other injury.
Remove the Packaging
Remove tape and glue residue from surfaces before turning
on the wine cellar. Rub asmall amount of liquid dish soap over
the adhesive with your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your wine cellar. For
more information, see "Wine Cellar Safety."
• Dispose of/recycle all packaging materials.
When Moving Your Wine Cellar:
Your wine cellar is heavy. When moving the wine cellar for
cleaning or service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the wine cellar straight out when moving it. Do not wiggle
or "walk" the wine cellar when trying to move it, as floor
damage could occur.
Clean Before Using
After you remove all of the packaging materials, clean the inside of
your wine cellar before using it. See the cleaning instructions in
"Wine Cellar Care."
The door hinges are factory installed on the right-hand side. If you
want the door to open from the opposite direction, you must
reverse the door.
IMPORTANT: To avoid strain on the hinges, it is recommended
that you use two people to remove the door.
Tools Needed: Phillips screwdriver and a V8"hex key wrench.
Remove the Door
1. Unplug or disconnect power and remove any items that might
be stored inside.
6

2= Open the door completely to 90 °.
3= While one person supports the door, remove the screws
attaching both the top and bottom hinges to the cabinet.
NOTE: After the screws are removed and the door is pulled
away from the cabinet, a plastic spacer, located behind the
bottom hinge, will become free. Set the spacer aside. You will
need this spacer when you reinstall the door.
_f F_ __ ......
4. Remove the door from the cabinet and gently lay it on a flat
surface to avoid damaging the covers attached to the top and
bottom hinges.
Reverse the Door
1=
2.
Remove the screws attaching the black, metal L-beams to the
top and bottom of the door.
Remove the screw attaching the metal light switch plate to the
center of the bottom L-beam. Remove the light switch plate.
NOTE: The light switch plate is attached with both a screw
and adhesive tape. It may require some force to remove it
from the L-beam.
A
B
A. Light switch plate
B. Bottom L-beam
C. Top L-beam
3. Remove the two metal, L-beams from the door noting which
L-beam was on the top and which was on the bottom.
4. Move the L-beams to the opposite ends of the door with the
hinges now on the left-hand side (as you are facing the front of
the door).
5=
6.
A. Hinge cover
B. Custom overlay door frame
Reinstall the screws into the holes remaining after the hinges
are removed from the cabinet.
If a wooden overlay panel has been previously installed,
remove the panel. See "Install Custom Overlay Frame."
5=
6.
A. Bottom L-beam
B. Top L-beam
7=
Using the screws removed in Step 1, reinstall the L-beams, to
their new location on the door.
Using the screw removed in Step 2 and the adhesive tape
included in the door installation kit, reinstall the light switch
plate onto the bottom of the door.
4
Reinstall the overlay panel, if removed earlier. See "Install
Custom Overlay Frame."

Replace the Door
1. Make sure the hinge covers are still attached to the L-beams.
2. Remove the screws from the both the top and bottom of the
opposite side of the cabinet.
3. Align the holes in the hinges with the holes in the cabinet.
4.
5.
A. Hinge screws removed in Step 2
B. Holes in cabinet
Using the screws removed in Step 2, loosely fasten the door
to the left-hand side of the cabinet.
For the bottom hinge only, slide the plastic spacer, with the
slots facing downward, between the bottom hinge and the
cabinet.
NOTE: The slots in the spacer go around the screws.
OA
IM PORTANT:
• Create custom overlay frame according to the specifications
in the "Custom Overlay Frame" section.
• Jenn-Air is not responsible for the removal or addition of
molding or decorative panels that would not allow access to
the appliance for service.
Install Custom Frame
1. Open the door completely to 90°.
2.
J
Using two people, hold the wooden frame so that the holes in
the frame align with the holes at the top and bottom of the
door. Then, fasten the custom frame to the door using six
wood screws at the top and six wood screws at the bottom.
6.
A.Bottom hinge spacer
Fully tighten the screws.
3.
A
A.M4 x 14wood screws
Check that the custom frame is aligned with the door and
completely tighten the 12 screws.
8

l_i;/@S //1;t
Door Closing
Your wine cellar has four leveling legs. If your wine cellar seems
unsteady or you want the door to close more easily, adjust the
wine cellar's tilt using the instructions below.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to folow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
Excessive Weight Hazard
Use two or more people to move and instal wine cellar.
Failure to do so can result in back or other injury.
2.
3. Move the wine cellar into its final location.
Turn the leveling legs to the right to lower the wine cellar or
turn the leveling legs to the left to raise it. It may take several
turns of the leveling legs to adjust the tilt of the wine cellar.
NOTE: Having someone push against the top of the wine
cellar takes some weight off the leveling legs. This makes it
easier to adjust the leveling legs.
4. Open the door and check that it closes as easily as you like. If
not, tilt the wine cellar slightly more to the rear by turning both
front leveling screws to the right. It may take several more
turns, and you should turn both leveling legs the same
amount.
WINE CELLAR USE
Your new wine cellar may make sounds that your old one didn't
make. Because the sounds are new to you, you might be
concerned about them. Most of the new sounds are normal. Hard
surfaces, such as the flooring and surrounding structures, can
make the sounds seem louder. The following describes the kinds
of sounds and what may be making them.
• Your wine cellar is designed to run more efficiently to keep
your wine at the desired temperatures and to minimize energy
usage. The high efficiency compressor and fans may cause
your wine cellar to run longer than your old one. You may also
hear a pulsating or high-pitched sound from the compressor
or fans adjusting to optimize performance.
• Rattling noises may come from the flow of refrigerant or items
stored inside the wine cellar.
As each cycle ends, you may hear a gurgling sound due to the
refrigerant flowing in your wine cellar.
You may hear water running into the drain pan when the wine
cellar is defrosting.
You may hear clicking sounds when the wine cellar starts or
stops running.
The control is located behind the base grille. Lift up on the door in
the center of the grille to access the control.
For your convenience, your wine cellar temperature control is
preset at the factor),. When you first install your wine cellar, make
sure that the control is still preset to the mid-setting as shown.
Adjusting the Control
The mid-setting should be correct for normal usage. The control is
set correctly when the wine is as cold as you like.
If you need to adjust the temperature, wait at least 24 hours
between adjustments and then recheck the temperature.
To make the wine cellar colder, adjust the control to the next
higher setting. To make the wine cellar less cold, adjust the control
to the next lower setting.
NOTE: Adjusting the temperature control raises or lowers the
temperature in both the upper and lower zones (compartments).

Temperature Separator (Temperature Display)
The temperature separator displays the current temperatures
(Fahrenheit or Celsius) for the upper and lower zones
(compartments) of the wine cellar. To adjust the temperature
settings, see "Adjusting the Control" earlier in this section.
3. Replace the rack by inserting the rack into the supports and
sliding it toward the rear of the wine cellar.
A B C D
A. Dimmer
B. Upper zone display C. Lower zone display
D. Fahrenheit/Celsius
Recommended Zone Storing Locations
For best storing and serving temperatures for your bottle of wine,
use the wine producer's recommended temperature setting. See
the wine's label for details. It is recommended to store wine for
short-term (few months) at 55°F (13°C).
WINES ZONES
White Wine Upper zone
Lighter Red Wine Lower zone
Red Wine Lower zone
W se Rseks
Remove and Replace the Top and Middle Racks
1.
2. Pull the rack forward until it stops.
Lift up on the left-hand lever while pressing down on the right-
hand lever to release the rack. Pull the rack forward and lift it
up and out of the rack supports.
Remove and Replace the Bottom Rack
1. Lift the rack (front and back) up and pull straight out to
remove.
J
2. Replace the rack by pushing it straight back and over the
stop. Continue pushing the rack evenly until it is in place.
NOTE: For optimum wine storage, place white wines at the top of
the wine cellar, light red wines in the center and red wines at the
bottom.
To stock the wine cellar
1.
2. Start stocking the wine cellar with the bottom display rack.
Starting on the left-hand side, place the first bottle on the
bottom of the rack with the neck of the bottle facing the front
of the wine cellar.
3. Place the next bottle on its side with the neck of the bottle
facing the back of the wine cellar. Alternate the direction of the
bottles, in this manner, until the display rack is full.
A. Lever
4. Slide the bottom rack into place and pull the next rack
forward.
10

5. Continue stocking each remaining rack as described in the
above steps.
\
B }se
The wine cellar has an interior light that comes on any time the
door is opened. You may also choose to keep the light on at all
times by pressing the left side of the switch, located next to the
temperature control, on the base grille.
NOTES:
• Leaving the light on for an extended period of time will slightly
increase the temperature of the wine cellar.
The light is an LED which does not need to be replaced. If the
LED does not illuminate when the door is opened, call Service
to replace the light. See Assistance or Service for contact
information.
WINE CELLAR CARE
You must remove the base grille to access the condenser coils for
cleaning.
To remove the base grille:
1. Open the wine cellar door.
2. Using a Phillips screwdriver, remove the two screws. Push
both tabs in toward the center to release the base grille from
the wine cellar.
A B A
A. Tabs
B. Screws
3. Remove the base grille.
To replace the base grille:
1. Open the wine cellar door.
2. Position the base grille so that both tabs align and the base
grille snaps into place. Replace the two screws. Tighten the
screws.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Clean the wine cellar about once a month to avoid buildup of
odors. Wipe up spills immediately.
To clean your wine cellar:
1. Unplug wine cellar or disconnect power.
2. Remove all racks from inside the wine cellar.
3. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
• To avoid damaging wooden tines and trim pieces, wipe
them off with a clean sponge or soft cloth and warm water.
Do not use detergent or immerse the entire rack into water
when cleaning.
Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
• To help remove odors, you can wash interior walls with a
mixture of warm water and baking soda (2 tbs to 1 qt
[26 g to 0.95 L] of water).
4. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners, or cleaners containing
chlorine. These can scratch or damage materials. Dry
thoroughly with a soft cloth.
NOTE: To keep your stainless steel wine cellar looking like
new and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel Cleaner
and Polish. To order the cleaner, see "Accessories."
IMPORTANT: This cleaner isfor stainless steel parts only!
Do not allow the Stainless Steel Cleaner and Polish to come
into contact with any plastic parts such as the trim pieces,
dispenser covers or door gaskets. If unintentional contact
does occur, clean plastic part with a sponge and mild
detergent in warm water. Dry thoroughly with a soft cloth.
5.
6. Replace the racks.
Clean the condenser coils regularly. They are located behind
the base grille. Coils may need to be cleaned as often as every
other month. This may help save energy.
• Remove the base grille. See "Base Grille."
• Use a vacuum cleaner with an extended attachment to
clean the condenser coils when they are dusty or dirty.
• Replace the base grille.
7. Plug in wine cellar or reconnect power.
11

fseat Mev Ca Je
Vacations
If you choose to turn the wine cellar off before you leave, follow
these steps.
1. Remove all wine bottles from the wine cellar.
2. Unplug the wine cellar.
3. Clean the wine cellar. See "Cleaning."
4. Tape a rubber or wood block to the top of the door to prop it
open far enough for air to get in. This stops odor and mold
from building up.
Moving
When you are moving your wine cellar to a new home, follow
these steps to prepare it for the move.
1. Remove all wine bottles from the wine cellar.
2. Unplug the wine cellar.
3. Clean, wipe, and dry it thoroughly.
4. Take out all removable parts, wrap them well, and tape them
together so they don't shift and rattle during the move.
5. Tape the doors shut and tape the power cord to the wine
cellar.
When you get to your new home, put everything back and refer to
the "Installation Instructions" section for preparation instructions.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Your wine cellar will not operate
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Is the control set correctly for the surrounding conditions?
See "Using the Control."
Is the door closed completely? Push the door firmly shut. If
it will not shut all the way, see "The door will not close
completely" later in this section.
Are the condenser coils dirty? This obstructs air transfer and
makes the motor work harder. Clean the condenser coils. See
"Cleaning."
Temperature is too warm
Is the door opened often? Be aware that the wine cellar will
warm when this occurs. In order to keep the wine cellar cool,
try to get everything you need out of the wine cellar at once,
keep wine bottles positioned label side up so that they are
easy to find, and close the door as soon as the wine is
removed.
Is the control set correctly for the surrounding conditions?
See "Using the Control."
Is the base grille blocked? For best performance, do not
install the wine cellar behind a cabinet door or block the base
grille.
Is the power supply cord unplugged? Plug into a grounded
3 prong outlet.
Has ahousehold fuse blown, or has acircuit breaker
tripped? Replace the fuse or reset the circuit.
Is the Wine Cellar Control turned to the OFF position? See
"Using the Control."
The motor seems to run too much
Is the temperature outside hotter than normal? Expect the
motor to run longer under warm conditions. At normal
temperatures, expect your motor to run about 40% to 80% of
the time. Under warmer conditions, expect it to run even more
of the time.
Is the door opened often? Expect the motor to run longer
when this occurs. In order to conserve energy, try to get
everything you need out of the wine cellar at once, keep wine
bottles positioned label side up so that they are easy to find,
and close the door as soon as the wine is removed.
There is interior moisture buildup
Is the door opened often? To avoid humidity buildup, try to
get everything you need out of the wine cellar at once, keep
wine bottles positioned label side up so that they are easy to
find, and close the door as soon as the wine is removed.
When the door is opened, humidity from the room air enters
the wine cellar. The more often the door is opened, the faster
humidity builds up, especially when the room itself is very
humid.
Is it humid? It is normal for moisture to build up inside the
wine cellar when the air is humid.
Is the control set correctly for the surrounding conditions?
See "Using the Control."
12

The door is difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Is the gasket dirty or sticky? Clean the gasket and the
surface that it touches. Rub a thin coat of paraffin wax on the
gasket following cleaning.
The door will not close completely
•Are the racks out of position? Put the racks back into their
correct positions. See "Wine Cellar Use" for more information.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Is the gasket sticking? Clean the gasket and the surface that
it touches. Rub a thin coat of paraffin wax on the gasket
following cleaning.
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
"Troubleshooting." It may save you the cost of a service call. If you
still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
only use factory specified replacement parts. Factory specified
replacement parts will fit right and work right because they are
made with the same precision used to build every new Jenn-Air ®
appliance.
To locate factory specified replacement parts in your area, call us
or your nearest designated service center.
Call the Jenn-Air Customer eXperience Center
toll free: 1-800-JENNAIR (1-800-536-6247).
Our consultants provide assistance with:
• Features and specifications on our full line of appliances.
• Installation information.
...._a_@da
Call the Jenn-Air Canada Customer eXperience Centre toll free:
1-800-JENNAIR (1-800-536-6247).
Our consultants provide assistance with:
• Features and specifications on our full line of appliances.
• Use and maintenance procedures.
• Accessory and repair parts sales.
Referrals to local dealers, repair parts distributors, and
services companies. Jenn-Air Canada designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service, anywhere in Canada.
For further assistance
If you need further assistance, you can write to Jenn-Air Canada
with any questions or concerns at:
Jenn-Air Canada
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and service
companies. Jenn-Air designated service technicians are
trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Jenn-Air designated service company in your area,
you can also look in your telephone directory Yellow Pages.
For further assistance
If you need further assistance, you can write to Jenn-Air with any
questions or concerns at:
Jenn-Air Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
13

JENN-AIR®REFRIGERATORWARRANTY
FIRST YEAR LIMITED WARRANTY
For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached
to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "Jenn-Air") will pay for factory
specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was
purchased.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM
In the second through fifth years from the date of purchase, when this major appliance is installed, operated and maintained according to
the instructions attached to or furnished with the product, Jenn-Air brand will pay for factory specified replacement parts and repair labor
for the following components to correct non-cosmetic defects in materials and workmanship in this part that prevent function of the
refrigerator and that existed when this major appliance was purchased:
• Refrigerator/freezer cavity liner if the part cracks due to defective materials or workmanship.
• Sealed Refrigeration system (includes compressor, evaporator, condenser, dryer and connecting tubing).
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THE LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
Service must be provided by a designated Jenn-Air service company. This limited warranty is valid in the United States or Canada and
applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of
the original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in
a manner that is inconsistent to published user or operator instructions and/or installation instructions.
2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair
house fuses, or to correct house wiring or plumbing.
3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance
with electrical or plumbing codes, or use of products not approved by Jenn-Air.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results
from defects in materials or workmanship and is reported to Jenn-Air within 30 days from the date of purchase.
6. Any food or medicine loss due to refrigerator or freezer product failures.
7. Pickup and delivery. This major appliance is intended to be repaired in your home.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized Jenn-Air servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
Jenn-Air's published installation instructions.
11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot
be easily determined.
12. Discoloration, rust or oxidation of stainless steel surfaces.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do
not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the
representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with
this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
If outside the 50 United States and Canada, contact your authorized Jenn-Air dealer to determine if another warranty applies.
If you think you need repair service, first see the "Troubleshooting" section of the Use & Care Guide. If you are unable to resolve the problem
after checking "Troubleshooting," additional help can be found by checking the "Assistance or Service" section or by calling us at
1-800-JENNAIR (1-800-536-6247). 4/13
14

Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
15

SEGURIDAD DE LA BODEGA
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesibn grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesibn grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENCIA: Para reducir el riesgo de incendio, choque electrico, o lesiones personales al usar su bodega, siga estas
precauciones basicas:
• Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
• No quite la terminal de conexi6n a tierra.
• No use un adaptador.
• No use un cable electrico de extensi6n.
• Desconecte el suministro de energia antes de darle servicio.
• Vuelva a colocar todos los componentes y paneles antes de
hacerlo funcionar.
• Remueva las puertas de su bodega vieja.
• Use un limpiador no inflamable.
• Mantenga los materiales y vapores inflamables, tales como
gasolina, alejados de la bodega.
• Use dos o mas personas para mover e instalar la bodega.
GUARDE ESTAS INSTRUCCIONES
Advertencias de la Proposici6n 65 del estado de California:
ADVERTENC(A: Este producto contiene una o mas sustancias quimicas identificadas por el estado de California como
causantes de cancer.
ADVERTENC(A: Este producto contiene una o mas sustancias quimicas identificadas por el estado de California como
causantes de defectos cong6nitos o algOn otro tipo de da_os en la funci6n reproductora.
16

C6mo deshacerse
adecuadamente de
su bodega vieja
Peligro de Asfixia
Remueva las puertas de su bodega vieja.
No seguir esta instrucci6n puede ocasionar la muerte
oda_o al cerebro.
IMPORTANTE: El atrapamiento y asfixia de ni_os no es un
problema del pasado. Las bodegas tiradas y abandonadas son un
peligro, aQn si van a quedar ahi "por unos pocos dias". Si Ud. esta
por deshacerse de su bodega vieja, por favor siga las
instrucciones que se dan a continuacion para prevenir
accidentes.
Antes de descartar su vieja bodega:
• Saque la puerta.
• Deje los portabotellas en su lugar asi los ni_os no pueden
meterse adentro con facilidad.
Informaci6n importante para saber acerca del desecho
de refrigerantes:
Desh&gase del refrigerador siguiendo los reglamentos
federales y locales. Los refrigerantes deber&n ser evacuados
por un t_cnico certificado en refrigeraci6n por EPA (Agencia
de protecci6n del medioambiente) seg_n los procedimientos
establecidos.
REQUISITOS DE
ReQna las herramientas y piezas necesarias antes de comenzar la
instalacion.
HERRAMIENTAS NECESARIAS:
• Destornillador Phillips
PIEZAS NECESARIAS:
Marco recubierto a la medida - Vea "Marco recubierto - Vista
posterior".
Piezas de ferreteria (opcionales)
PIEZAS SUMINISTRADAS:
• Tornillos M4 x 14 (12)
INSTALACION
• No se recomienda instalar la bodega cerca de un horno, un
radiador u otra fuente de calor.
No la instale en un lugar donde la temperatura puede ser
menor de 55 °F (13 °C). Para obtener un optimo
funcionamiento, no instale la bodega detras de la puerta de
un armario ni bloquee la rejilla de la base.
III ii
II -- I c-_.......
Peligro de Explosi6n
Mantenga los materiaJes y vapores inflamables,
tales como gasolina, alejados de la bodega.
No seguir esta instrucci6n puede ocasionar la muerte,
explosi6n, o incendio.
NOTAS:
Para que la bodega quede nivelada con los armarios
inferiores, quite los zocalos y las molduras de la abertura
trasera. Vea "Medidas del producto" y "Medidas de la
abertura" mas adelante en esta seccion.
17

Medidas de la abertura
• Las medidas de altura indicadas consideran las patas
niveladoras extendidas a una altura minima.
NOTA: Si las patas niveladoras estan totalmente extendidas
agregue %" (15.9 mm) a las medidas de altura. Vea "Medidas
del producto."
Si el piso de la abertura no esta nivelado con el piso de la
cocina, ponga calzas en la abertura para que quede nivelado
con el piso de la cocina.
z
2///_61"
0,96 cm)
24" (60,96 cm) min.
.........................A34%" (87,3 cm) min.
36" (88,9 cm) max.
Dimensiones fundamentales:
A. Abertura de use general de 143/4"(37,5 cm)
B. Ancho mfnimo de la abertura de 24" (60,96 cm)
Peligro de Choque El_ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio ochoque el_ctrico.
Antes de mover la bodega a su ubicacion final, es importante
asegurarse de que tiene la conexion electrica adecuada.
M_todo de conexi6n a tierra recomendado
Se requiere una fuente de energia electrica de 115 Voltios, 60 Hz.,
CA solamente y con fusibles de 15 6 20 amperios, debidamente
conectada atierra. Se recomienda que use un circuito separado
solo para su bodega. Use un tomacorriente que no se pueda
apagar con un interruptor. No use un cable electrico de extension.
NOTA: Antes de realizar cualquier tipo de instalacion, limpieza o
de quitar un foco de luz, desenchufe la bodega o desconecte la
fuente de energia.
Las medidas de altura se muestran con las patas niveladoras
SIN extender.
El cable de suministro de energia es de 60" (152,4 cm) de
largo.
Vista delantera
30Ve"
(76,6 cm)
m i
34s/e''
(87,4 cm)
34V_"
(86,8 cm)
18

Vistalateral(puertaabiertaa90°)
47%" >
< (121,4 cm)
261/8"
(66,4 cm)
CU,n, _
Vista superior
<237/8''
(60,6 cm) 21%"
(55,0cm)
*Las dimensiones abarcan el panel del caj6n a la medida
grueso de _" (1,9 cm).
Ma CQ e <8o a IJa ed a
8i va a instalar un marco recubierto a la medida, debera hacerlo
usted mismo o consultar con un carpintero o fabricante de
gabinetes calificado. Para obtener informacion acerca de las
especificaciones del marco, yea los gr_ficos dimensionales.
IM PORTANTE:
•El grosor del marco recubierto debe ser de 3/4' (1,91 cm).
• El marco recubierto no debe pesar m_s de 10 Ibs
(4,54 kg).
• Los marcos recubiertos que pesan mas de I0
recomendado pueden da_ar su electrodomestico.
Marco recubierto -Vista posterior
Cree su marco recubierto a la medida utilizando las medidas que
se muestran.
IMPORTANTE: El siguiente grafico muestra un marco a la medida
para una puerta con las bisagras instaladas del lado derecho. Si
su bodega tiene las bisagras instaladas del lado izquierdo, rote el
marco a la medida 180° para que las marcas de las bisagras
queden a la izquierda.
303/16 "
(76,6cm)
J
231/2''
(59,6 cm)
2%"
(7,4cm)
18"
(45,6cm)
3%"
°(8,_cm)"
233/4'`
(60,3 crn) ,I
A. Taladre los orificios con una broca de _2" (12 mm) hasta
una profundidad de aproximadamente ½" (13 mm) antes
de contomearlos. (4 orificios en total)
B. Taladre los orificios con una broca de _" (8 mm) hasta
una profundidad de aproximadamente ½" (13 mm) antes
de contomearlos. (4 orificios en total)
C. Taladre los orificios con una broca de z/_,,(2.8 mm) hasta
una profundidad de aproximadamente ½" (13 mm) antes
de contomearlos. (12 orificios en total)
D. Contomee las &reas sombreadas para las bisagras hasta
una profundidad de _%2"(15 mm).
E. Contomee las &reas sombreadas para las bisagras hasta
una profundidad de ¼" (4 mm).
F. Contomee un #ngulo con un radio de _" (3 mm) con una
broca de ¼". (5 radios en total)
19

INSTRUCCIONES
PelJgro de Peso Excesivo
Use dos o m_s personas para mover e instalar
la bodega.
No seguir esta instrueci6n puede oeasionar una
lesi6n en la espalda uotto tipo de lesiones.
Cbmo quitar los materiales de empaque
Quite los residuos de cinta y goma de las superficies antes de
encender la bodega. Frote un poco de detergente liquido para
vajillas sobre el adhesivo con los dedos. Limpie con agua tibia
y seque.
No use instrumentos filosos, alcohol para fricciones, liquidos
inflamables o productos de limpieza abrasivos para eliminar
los restos de cinta o goma. Estos productos pueden dafiar la
superficie de su bodega. Para m_s informacion, vea
"Seguridad de la bodega".
• Deshagase de todos los materiales de embalaje o reciclelos.
Cuando mueva su bodega:
Su bodega es muy pesada. Cuando mueva la bodega para
limpiarla o darle servicio, cerci6rese de cubrir el piso con
cart6n o madera para evitar dafios en el mismo. AI mover la
bodega, siempre tire directamente hacia afuera. No menee la
bodega de lado a lado ni la haga "caminar" cuando la trate
de mover ya que podria dafiar el piso.
Limpieza antes del uso
Una vez que usted haya quitado todos los materiales de
empaque, limpie el interior de su bodega antes de usarla. Vea las
instrucciones de limpieza en "Cuidado de su bodega".
'e e
DE INSTALACION
2. Abra la puerta por completo a 90°.
3.
4.
Mientras una persona sostiene la puerta, quite los tornillos
que sujetan las bisagras de la parte superior e inferior del
armario.
NOTA: despu6s de quitar los tornillos y retirar la puerta del
armario, se desprendera un espaciador de plastico ubicado
detras de la bisagra inferior. Ponga el espaciador a un lado. Lo
necesitarA cuando vuelva a instalar la puerta.
Quite la puerta del armario y coloquela con suavidad sobre
una superficie plana para no dafiar las cubiertas de las
bisagras superior e inferior.
Las bisagras de la puerta vienen instaladas de fabrica a la
derecha. Si desea que la puerta se abra en sentido opuesto, debe
invertirle el sentido de apertura.
IMPORTANTE: Para evitar tensionar las bisagras, se recomienda
que quite la puerta con la ayuda de dos personas.
Herramientas necesarias: Destornillador Phillips y Ilave
hexagonal en L de V8".
Cbmo quitar la puerta
1. Desenchufe o desconecte el suministro de energia y quite
todos los elementos que haya dentro.
B
A. Cubierta de la bisagra
B. Marco recubierto de la puerta a la medida
5. Coloque nuevamente los tornillos en los orificios que
quedaron despu6s de haber quitado las bisagras del armario.
6. Si previamente, se instalo un panel de madera recubierto,
quitelo. Consulte "Como instalar el marco recubierto a la
medida".
20
