Jensen MSR2107 User manual

MSR2107
Installation and Operation Manual
MARINE AUDIO SYSTEM
AUDIO
INFO
MSR2107
50Wx4
SEARCH ERASE
Manual del Usuario/Guide d'Utilisateur

MSR2107
2
CONTENTS
Safety Information .............................................................................................. 1
Installation........................................................................................................... 2
Wiring .................................................................................................................. 4
Basic Operation .................................................................................................. 5
Tuner Operation.................................................................................................. 7
Sirius Radio Operation....................................................................................... 8
iPod Operation.................................................................................................... 9
USB or FLASH MP3/WMA Operation.............................................................. 10
Care and Maintenance...................................................................................... 13
Troubleshooting ............................................................................................... 13
Specifications ................................................................................................... 14
CONTENIDO
Información de Seguridad ............................................................................... 15
Instalación......................................................................................................... 16
Cableado ........................................................................................................... 18
Operación Básica ............................................................................................. 19
Operación del Sintonizador............................................................................. 21
Operación de Radio Sirius............................................................................... 22
Operación del iPod........................................................................................... 23
Operación de USB o Flash MP3/WMA ............................................................ 24
Cuidado y Mantenimiento................................................................................ 27
Solución de Problemas.................................................................................... 27
Especificaciones .............................................................................................. 28
TABLE DES MATIÈRES
Informations sur la securite............................................................................. 29
Installation......................................................................................................... 30
Câblage.............................................................................................................. 32
Operation de base ............................................................................................ 33
Operation tuner................................................................................................. 35
Operation radio Sirius...................................................................................... 36
Operation iPod.................................................................................................. 37
Operation USB o FLASH MP3/WMA................................................................ 38
Soin et entretien................................................................................................ 41
Dépannage ........................................................................................................ 41
Specifications ................................................................................................... 42

MSR2107
1
SAFETY INFORMATION
When Boating
Keep the volume level Iow enough to be aware of your surroundings.
Protect from Water
Do not submerge or expose the product directly to water, as this can cause electrical shorts,
fire or other damage.
Protect from High Temperatures
Exposure to direct sunlight for an extended period of time can produce very high temperatures
inside your vessel. Give the interior a chance to cool down before starting playback.
Do not mount radio within close proximity of engine compartment.
Use the Proper Power Supply
This product is designed to operate with a 12 volt DC negative ground battery system.
WARNING:
• DO NOT OPEN, DISASSEMBLE OR ALTER THE UNIT IN ANY WAY. Doing so may
result in fire, electric shock or product damage.
• USE THE CORRECT AMPERE RATING WHEN REPLACING FUSE. Failure to do so
may result in fire, electric shock or product damage.
• DO NOT INSTALL IN LOCATIONS THAT MIGHT HINDER VEHICLE OPERATION. Doing
so may obstruct vision or hamper movement which can result in a serious accident.
• INSTALL THE WIRING SO THAT IT IS NOT CRIMPED OR PINCHED BY SCREWS OR
SHARP METAL EDGES. Route the cables away from moving parts or sharp pointed
edges. This will prevent crimping and damage to the wiring. If the wiring must pass
through a metal hole, be sure to use a rubber grommet to prevent the wire's insulation
from being cut by the metal edge of the hole. It is also recommended to apply sealing
caulk to any opening that may potentially allow water to enter.
• Be sure to choose a location that is flat and has clearance above the unit to prevent any
damage, as well as allow for ventilation.
• Before drilling any holes, carefully inspect the area underneath and behind the mounting
surface where the devices will be mounted to make sure it will not interfere with existing
wires, fuel lines, the fuel tank or any other objects that could be damaged.
• Always disconnect the vehicle negative battery terminal to prevent accidental shorting
during installation.

MSR2107
2
INSTALLATION
Before You Begin
Before you begin, always disconnect the battery negative terminal.
Important Notes
• Before final installation, test the wiring connections to make sure the unit is connected
properly and the system works.
• Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other
modifications to your vessel.
• Install the unit where it does not interfere with driving and cannot injure passengers if
there is a sudden or emergency stop.
• Avoid installing the unit where it will be subject to high temperatures from direct sunlight,
hot air, or from a heater, or where it would be subject to excessive dust, dirt or vibration.

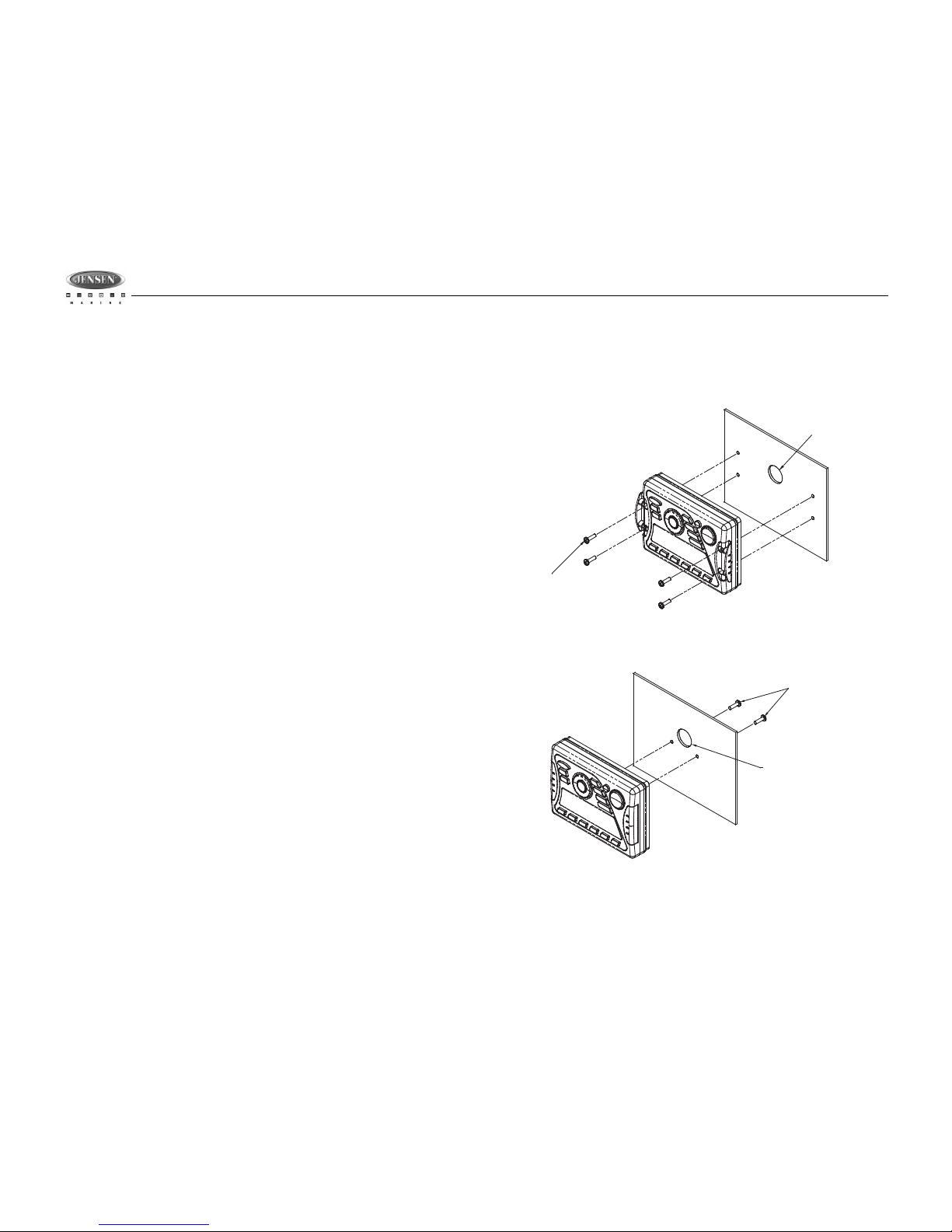

Wired Commander Mounting
1. Choose a mounting area for the wired commander that is clean and flat, allowing the rear
gasket to fully seal to the mounting surface.
2. Secure the wired commander using either of the recommended mounting methods
detailed in the diagrams below.
7/8” HOLE REQUIRED
FOR CABLE
M4 MOUNTING SCREWS (4-PCS)
MINIMUM SCREW LENGTH 1 1/2”
7/8” HOLE REQUIRED FOR CABL
E
M5X8 SCREWS REQUIRED FOR MOUNTING
MAXIMUM SCREW DEPTH IN COMMANDER 1/4”

MSR2107
3

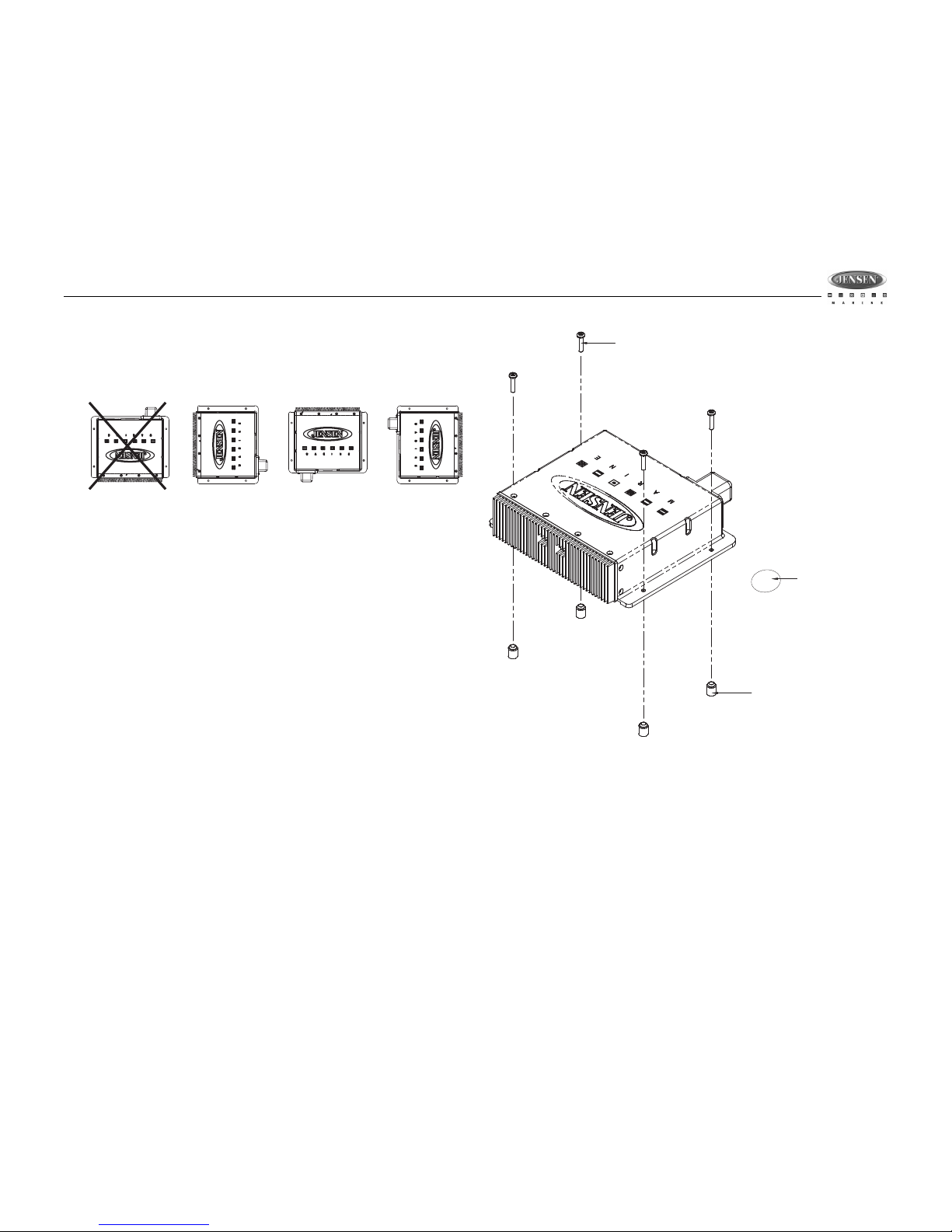

Tuner/Amplifier Mounting
1. Choose a mounting area for the tuner/amp module that will provide plenty of ventilation to
prevent the amplifier from overheating. The tuner/amp module can be mounted in the hor-
izontal or vertical position. Please note that when mounting in vertical position, do not
mount with the harness exit points facing straight up, as water can collect around the
chassis in these areas.
2. Attach the 4 rubber mounting feet, provided, to the bottom of the tuner/amp metal plate.
This will provide clearance from surface moisture and promote good ventilation for the
heat sink.
3. Using the shortest length of the recommended size screws possible, mount the tuner/
amplifier as detailed in the diagram on the right.
4. Route the tuner/ amplifier harness and cable throughout the vessel as required. Keep
some slack in the harness/ cables so it won't be too tight, as this can cause damage to the
wires.
5. Follow the wiring diagram carefully and make certain all connections are secure and
insulated with crimp connectors or electrical tape to ensure proper operation.
6. After completing the wiring connections, reconnect the negative terminal on the battery
and turn the unit on to confirm operation (vessel accessory switch must be on). If the unit
does not operate, disconnect battery, recheck all wiring and refer to the trouble-shooting
guide located in the back of the manual.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
STAINLESS STEEL M4 SCREWS REQUIRED
WITH MINIMUM LENGTH OF 1”
1 1/2” PILOT HOLES FOR SUPPLIED SELF-STARTING SCREWS
180 PILOT HOLES WHEN USING THREADED MACHINE SCREWS
1 3/4” HOLE REQUIRED FOR
CABLE/CONNECTOR
REMOVABLE RUBBER FEET
4 PLACES

MSR2107
4

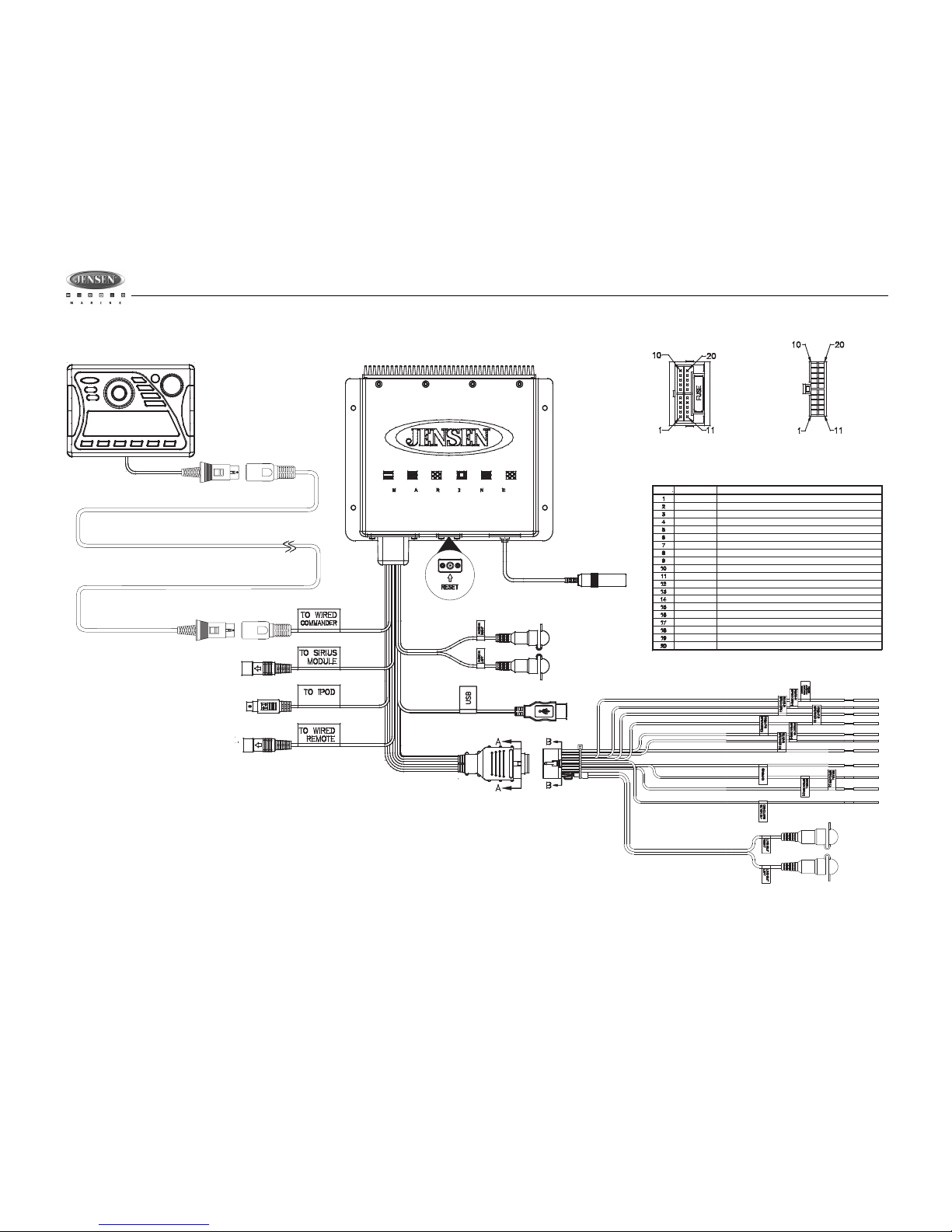

WIRING
WIRED COMMANDER TUNER/AMP MODULE
EXTENSION CABLE
AUX AUDIO INPUTS
ATTENTION: Compatible
with SCC1/MML and
SCVDOC1/M only.
LOW LEVEL
AUDIO OUTPUTS
B
B

MSR2107
5

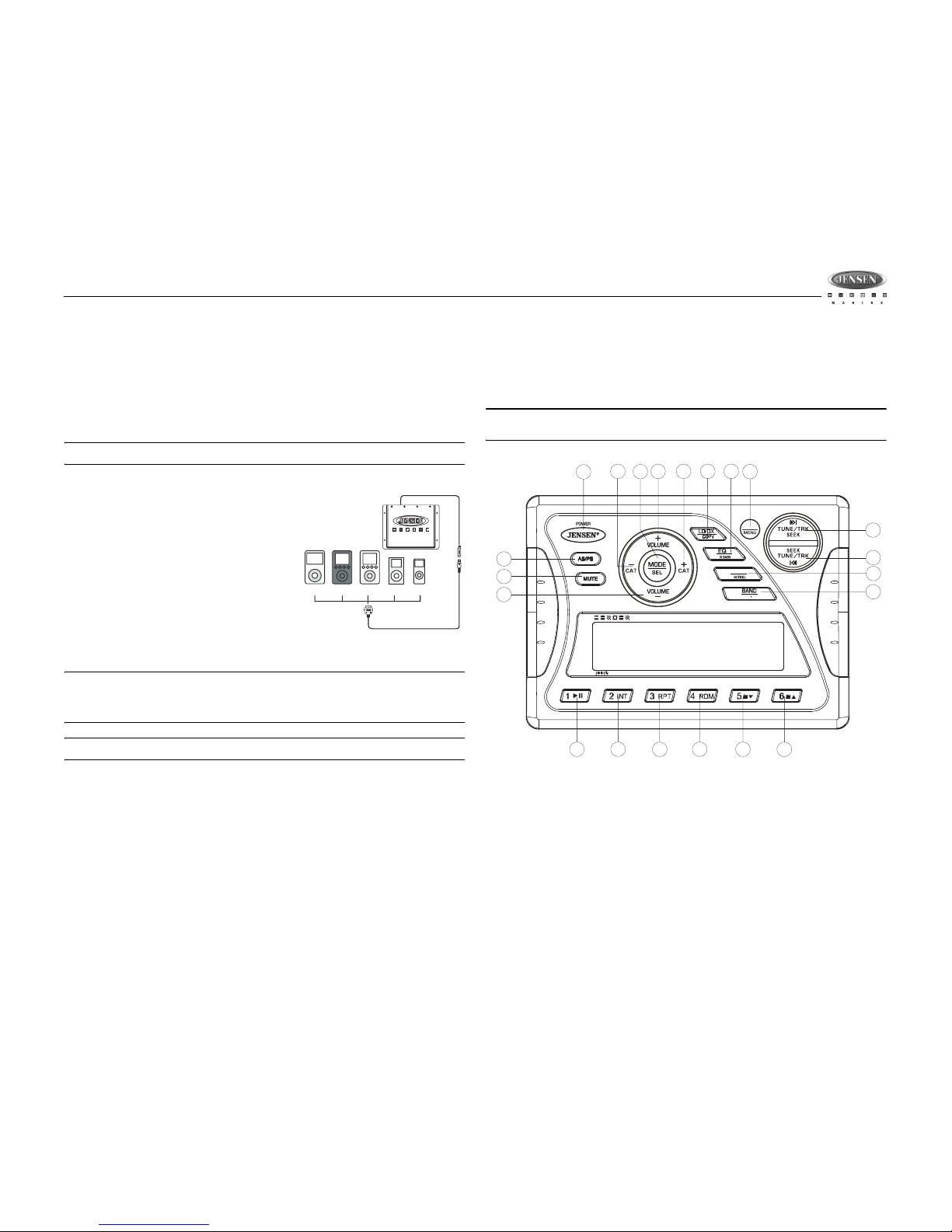

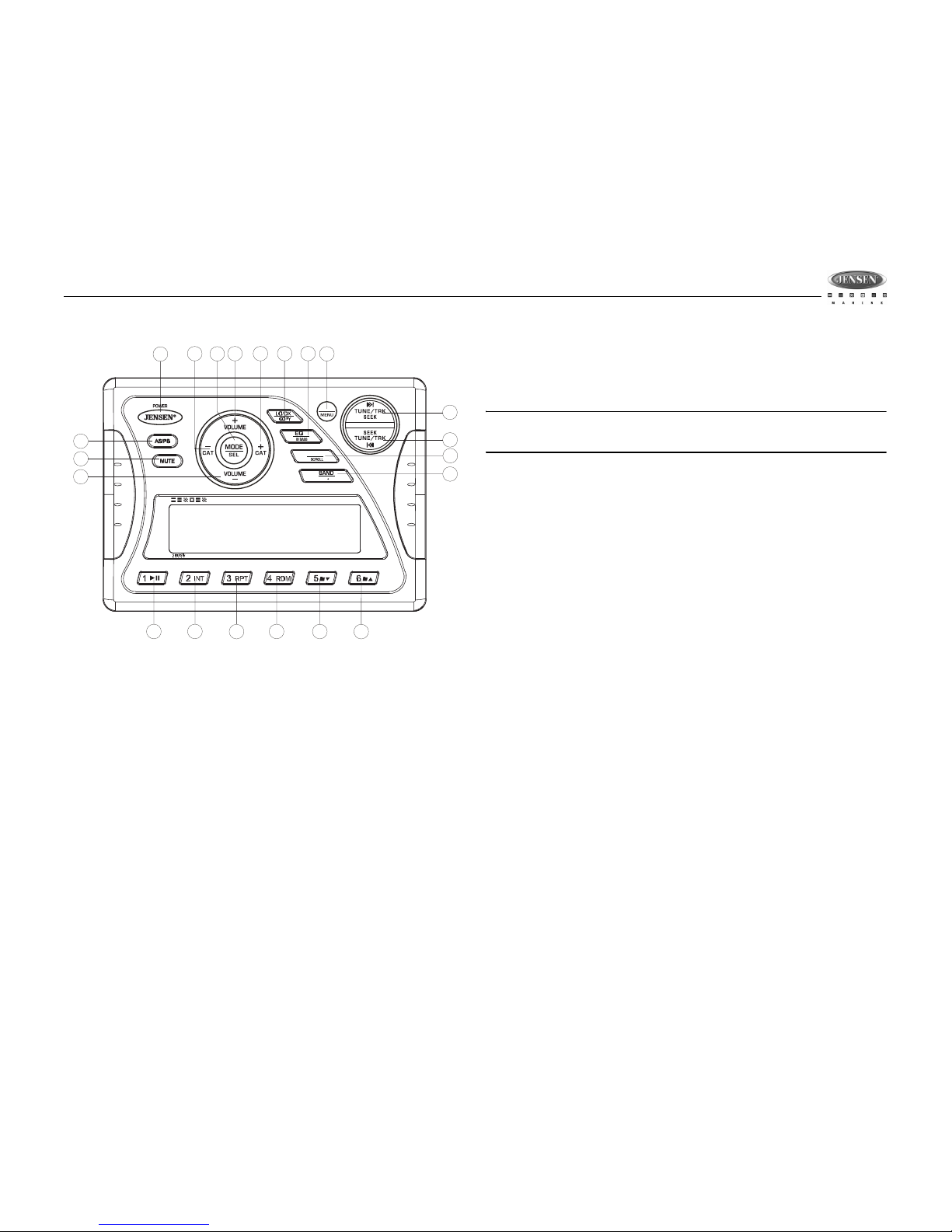

BASIC OPERATION
Power On/Off
Press any button on the front panel to turn the unit on. Press the POWER button (1) to turn the
unit off. The unit will resume the last mode (Tuner, Aux, etc.). The POWER button is illuminated
whenever the +12V DC Switched (red wire) is powered, regardless of whether the unit is on or
off.
Volume Control
To increase the volume, press the VOLUME + button (2a). To decrease the volume, press the
VOLUME - button (2b). The maximum volume level is “46”.
Mute
Press the MUTE button (17) on the control panel to mute the audio output. Press MUTE again
to restore the audio output to the previous level.
Mode
Press the MODE button (4) on the control panel to select a different mode of operation, as
indicated on the display panel. Available modes include Tuner, SIRIUS, iPod and AUX In.
NOTE: iPod and USB mode will be skipped if the module is not installed.
Reset
The reset button should be activated for the following reasons:
• initial installation of the unit when all wiring is completed
• function buttons do not operate
• error symbol on the display
Use a ball point pin or thin metal object to press the RESET button, located on the tuner box.
You can recover factory default settings using the RESUME function located on the system
menu. With “YES” flashing, press the MODE button (4) to activate.
Audio Menu
Press the AUDIO button (3) on the control panel to access the audio menu. You can navigate
through the audio menu items by pressing the AUDIO button repeatedly. Once the desired
menu item appears on the display, adjust that option by pressing the VOLUME +/- buttons (2)
within 5 seconds. The unit will automatically exit the audio menu after five seconds of inactivity.
The following menu items can be adjusted.
Bass Level
Use the VOLUME buttons to adjust the Bass level range from “-6” to “+6”.
Treble Level
Use the VOLUME buttons to adjust the Treble level range from “-6” to “+6”.
Balance
Use the VOLUME buttons to adjust the Balance between the left and right speakers from “L12”
(full left) to “R12” (full right).
Fader
Use the VOLUME buttons to adjust the Fader between the rear and front speakers from “R12”
(full rear) to “F12” (full front).
AUDIO
3
2a
411
12
13 14
15
16
17
1
2b
INFO
18
19
5
6 7
8910
20
MSR2107
50W x 4
SEARCH ERASE
SEARCH ERASE

MSR2107
6

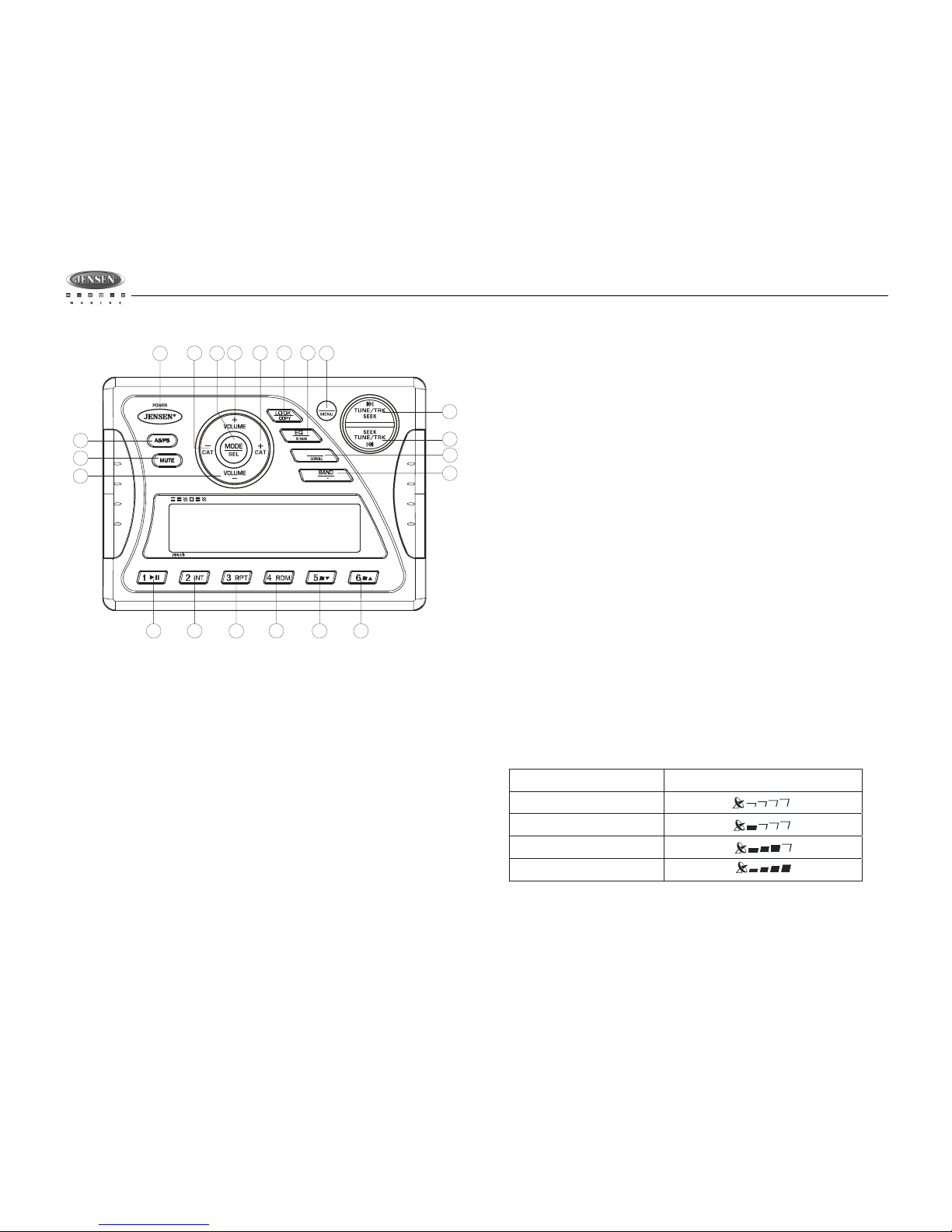

System Menu
1. Press and hold the AUDIO button (3) for more than 3 seconds to enter the system menu.
“MENU” will appear on the display, followed by the first menu item, “CONTRAST.”
2. Press the TUNE/TRK >>| or |<< button (19, 18) or press the AUDIO button repeatedly to
navigate the system menu and select the desired item.
3. Press the VOLUME +/- buttons (2) to adjust the selected menu item.
4. Press the AS/PS button to return to the previous operation immediately or wait for 5
seconds to return automatically.
The following items can be adjusted:
• CONTRAST (0 – 10): Set LCD contrast.
• LOW BATT (ON/OFF): Monitor voltage on ACC line.
• AREA (USA/LATIN/EUROPE/OIRT): Set frequency spacing for various regions.
• VOL PGM (0 – 46): Select an automatic turn-on volume.
• BEEP TONE (ON/OFF): Turn the audible beep ON/OFF (heard when functions/buttons
are selected). NOTE: Beep tone off will not affect LOW BATT audible tone.
• RESUME: Return the EEPROM to factory default set up values and reset the Sirius Tuner
Settings. "Yes" will blink on the LCD to confirm. Press MODE to select.
LOW BATTERY Operation
If LOW BATT is set to “ON”, a alarm will sound (8 beeps every 30 sec) when the voltage drops
to 10.8V (+/- 0.03V). A visual warning (LOBA) will appear flashing (8 flashes every 30 sec) in
the lower left corner of the LCD display.
NOTE: “OFF” is the default setting for LOW BATT. If the audio is muted or the volume is
set to 0, the audible beep will not be heard.
Equalizer
Press the EQ button (11) to turn on the equalization function and select between five pre-
defined bass and treble curves: OFF > POP > JAZZ > CLASSIC > BEAT > ROCK.
iX-Bass
Press and hold the EQ/IX-BASS button (11) toggle loudness on/off. When listening to music at
low volumes, this feature will boost the bass range to compensate for the characteristics of
human hearing.
Auxiliary Input
To access an auxiliary device:
1. Connect the portable audio player to the AUX IN cables on the back of the tuner box.
2. Press the MODE button (4) to select Aux In mode.
3. Press MODE again to cancel Aux In mode and go to the next mode.
Liquid Crystal Display (LCD)
The current frequency and activated functions are shown on the LCD panel (23).
NOTE: LCD panels may take longer to respond when subjected to cold temperatures for
an extended period of time. In addition, the visibility of the numbers on the LCD may
decrease slightly. The LCD display will return to normal when the temperature increases
to a normal range.
Scroll
When the information is too long to be displayed on the LCD, press and hold the INFO/
SCROLL button (12) to view the entire title. The information will scroll twice and then return to
abbreviated text.
Quick Exit Hot Key
In the following modes and conditions, press the AS/PS button < 3 seconds to quickly exit the
current operation without waiting for the system default time out:
• System menu operation
• Searching mode
• Audio menu operation

MSR2107
7
TUNER OPERATION
Select a Band
Press the BAND button (16) to change between three FM bands and two AM (MW) bands.
Manual Tuning
Press the TUNE/TRK >>| or |<< buttons (18, 19) to seek stations up/down step by step.
Auto Seek Tuning
Press and hold the TUNE/TRK >>| or |<< buttons (18, 19) to automatically seek the next or
previous strong station.
Preset Stations
Six numbered preset buttons store and recall stations for each band.
Store a Station
Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two
seconds. The preset number will appear in the display.
Recall a Station
Select a band (if needed). Press a preset button (5-10) to select the corresponding stored
station.
Automatically Store / Preset Scan (AS/PS)
Automatically Store
Select a band (if needed). Press and hold the AS/PS (15) button for more than three seconds
to automatically select six strong stations and store them in the current band. The new stations
replace any stations already stored in that band.
NOTE: During Auto Store (AS), the tuner will default to “Local” mode while scanning the
band initially. After scanning the entire band once, the unit will switch to “Distant” mode
for all subsequent Auto Store tuning.
Preset Scan
Select a band (if needed). Press AS/PS (15) to scan stations stored in the current band. The
unit will pause for ten seconds at each preset station. Press AS/PS again to stop scanning
when the desired station is reached.
Local/Distant Reception (LO/DX)
During radio operation, received signals are usually in stereo mode as indicated by the “ST”
icon. However, when the signals are weak or intermittent, you can activate the Local (LOC)
mode by pressing the LO/DX button (20). This mode favors access to local stations whose
signals are much stronger; thereby improving radio reception. Press the LO/DX button again to
terminate Local receive mode.
AUDIO
3
2a
411
12
13 14
15
16
17
1
2b
INFO
18
19
5
6 7
8910
20
MSR2107
50W x 4
SEARCH ERASE
SEARCH ERASE

MSR2107
8
SIRIUS RADIO OPERATION
Switching to SIRIUS Mode (Requires Optional Sirius Tuner)
Press the MODE button (4) to change the mode to Sirius radio mode.
Accessing your SIRIUS ID
1. In Sirius mode, press and hold the BAND/SEARCH button (16) to select DIRECT mode.
2. Press the MODE button (4) to activate Direct mode.
3. Press the MODE button for each digit to enter “000”.
4. Press MODE again to confirm. This will display the Sirius ID number for your tuner.
5. The Sirius ID number will scroll twice and then freeze with the first 11 digits on the display.
Press the INFO/SCROLL button (12) to display the remaining digit.
Selecting a Band
In Sirius mode, press the BAND button (16) to access the Sirius user-preset channel groups in
the following order: S-1, S-2, S-3.
Category Tuning
1. Press the CAT - /+ buttons (13/14) to change the category. Each category title and song
title will be displayed in increments.
2. While in the category mode, press the CAT - /+ buttons again to view category names.
(The lowest channel number within the chosen category will always be the default first
channel tuned.)
3. Press the MODE button (4) or the TUNE/TRK |<< / >>| buttons (18/19) to choose desired
channels in that category.
4. Press the TUNE/TRK buttons to select a channel within the chosen category.
5. Press MODE to confirm channel selection.
Channel Up/Down Tuning
Press the TUNE/TRK |<< / >>| buttons (18/19) to search for a channel. Press and hold the
TUNE/TRK buttons to fast search.
Storing Preset Channels
The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your
favorite channels.
Programming Channels
1. Select the channel you want to store in memory.
2. Press and hold a preset button (5-10) until the corresponding preset button number
appears.
3. Repeat steps 1 and 2 to program additional channels.
Quick Tuning
Press one of the six preset buttons (5-10) to select a preset channel directly.
Channel Direct Access Searching
1. Press and hold the BAND/SEARCH button (16) to access Direct Tune mode. “DIRECT-T”
appears on the display for a few seconds.
2. Press the MODE button (4) to confirm.
3. Press the TUNE/TRK |<< / >>| buttons (18/19) to move between the three digits.
4. Use the VOLUME +/- buttons (2) to select a number for each position.
5. Press the MODE button to confirm each digit.
6. Press the MODE button again to tune to the selected file.
Alternate Display Information
Press INFO/SCROLL button (12) to change the display information in the following order:
ARTIST NAME > SONG TITLE > CATEGORY > CHANNEL NAME.
Satellite Signal Strength
The display will indicate satellite reception strength as shown below.
AUDIO
3
2a
411
12
13 14
15
16
17
1
2b
INFO
18
19
5
6 7
8910
20
MSR2107
50Wx4
SEARCH ERASE
Signal Strength Strength Display
No Signal
Weak
Good
Excellent

MSR2107
9
iPod OPERATION
This unit is equipped with an iPod ready function that will allow you to control your iPod (if
compatible) using the control panel control buttons. The following iPod versions are supported:
• iPod 3G (firmware version 2.2 only)
• iPod Mini
• iPod 4G
• iPod Photo
• iPod Nano (1st, 2nd and 3rd generation)
• iPod 5G (Video)
NOTE: iPod Touch and iPhone are not supported. iPod and iPod Cable sold separately.
Accessing iPod Mode
The unit will automatically switch to iPod mode
when an iPod is plugged into the iPod cable.
To return to the iPod menu from any other source,
press the MODE button (4) on the control panel or
remote control until “iPod” appears on the display.
Turning the iPod On/Off
The iPod power turns on automatically when an
iPod is connected to 30-pin iPod cable, as long as
the vehicle ignition is turned on. You can turn the
iPod off by disconnecting it from the cable or by
turning the ignition off. When the ignition is turned
off, the iPod will pause and then enter sleep mode after 2 minutes. While the iPod is
connected, the power cannot be turned on or off from the iPod itself.
NOTE: The iPod will continuously recharge when connected to the unit, as long as the
vehicle ignition is turned on. Please note that the MSR2107 will not support charging of
the iPod Nano 4th generation (Chromatic) or any iPod models released after September
2008.
NOTE: iPod Connectivity through the USB is not supported.
Controlling Playback
Pausing Playback
During playback, press the 1/>|| button (8) to pause the iPod player. “Pause” will appear on the
LCD. Press 1/>|| again to resume playback.
Repeat Play
During playback, press the 3/RPT button (5) to repeat the current song. “Repeat” will appear
on the LCD. Press 3/RPT again to stop repeat playback.
Random Play
During playback, press the 4/RDM button (7) to play all songs in the current category in
random order. Random play will begin once the current song has finished playing. “Shuffle” will
appear on the LCD. Press 4/RDM again to stop random playback.
Selecting Tracks
During playback, press the TUNE/TRK |<< / >>| button (18/19) to play the previous or next
track in the current category. Press the TUNE/TRK |<< button (18) once to play the song from
the start position or press TUNE/TRK |<< twice to play the previous track.
Press and hold the TUNE/TRK |<< / >>| button (18/19) to fast reverse/forward the song.
NOTE: If you press and hold the TUNE/TRK |<< / >>| button to change the current song
to the previous/next song, you will exit fast reverse/forward mode.
Alternate Display Information
Press INFO/SCROLL button (12) to change the display information in the following order:
ARTIST NAME > SONG TITLE > FOLDER NAME.
Search Mode
Press and hold the BAND/SEARCH button (16) to enter iPod search mode. Press BAND/
SEARCH again to access Playlist, Artist, Album, Genre, Song, or Composer (consecutively).
When search mode is selected, press the MODE button (4) to confirm selection. Use the
VOLUME +/- buttons (2) to navigate through various list selections. Press MODE (4) to make
your final selection.
iPod CABLE
iPod
iPod iPod
mini
iPod
nano
iPod
Video
MA IRNE
AUDIO
3
2a
411
12
13 14
15
16
17
1
2b
INFO
18
19
5
6 7
8910
20
MSR2107
50W x 4
SEARCH ERASE
SEARCH ERASE

MSR2107
10
USB OR FLASH MP3/WMA OPERATION
This unit supports the USB host function. It can play MP3 and WMA audio format files stored
on USB flash memory and most USB music devices. This unit can also play files copied from a
USB device to internal FLASH memory (see “Copying Music Files to FLASH Memory” on
page 11).
NOTE: This unit does not support portable hard disks.
NOTE: Exposure to direct sunlight or high temperatures may cause deformation or
other malfunction of the USB device.
NOTE: Do not remove the USB device during play, as this may result in loss or damage
to data. Always back up and save important data to your computer.
Accessing USB Mode
Press the MODE button (4) to access USB mode.
• When a USB device is inserted into the USB connector, the unit will automatically switch
to USB HOST mode from current playing mode.
• If there are no music files stored on the USB device, the LCD will display "No File" for 3
seconds and then switch to the previous mode.
• If the unit cannot play the file, the LCD will display "Read Error" for 3 seconds, and then
switch to the previous mode automatically.
• If a USB device is not inserted, USB mode will be skipped when pressing the MODE
button.
• During USB mode playback, if the user removes the USB device from main unit, the unit
will automatically switch to FM mode.
Accessing FLASH Mode
Press MODE button (4) to switch to FLASH mode.
• If there are no music files stored in the built-in flash memory, the LCD will display "No File"
for 3 seconds and then switch to the previous mode.
• If the unit cannot play the file, the LCD will display "Read Error" for 3 seconds, and then
switch to the previous mode.
Controlling Playback
This unit can play MP3/WMA files stored in the internal Flash Memory or on a USB Memory
device.
File/Folder Intro Play
•Press and hold the 2 INT button (6) for more than 3 seconds while playing MP3/WMA files
to "intro play" all files in the current folder.
• Press the 2 INT button (6) to "intro play" all files.
• Press the 2 INT button again to disable file or folder "intro play".
File/Folder Repeat Play
•Press and hold the 3 RPT button (5) for more than 3 seconds while playing MP3/WMA
files to "repeat play" all files of the current folder.
• Press the 3 RPT button (5) to "repeat play" the current file.
• Press the 3 RPT button again to disable file or folder “repeat play".
File/Folder Random Play
•Press and hold the 4 RDM button (7) for more than 3 seconds while playing MP3/WMA
files to "random play" all files of the current folder.
• Press the 4 RDM button (7) to "random play" all files.
• Press the 4 RDM button again to disable file or folder "random play".
Folder/File Down
• In USB mode, press the preset 5 \/ button (9) to move one folder down.
• In USB mode, press and hold to move 10 folders down.
• In FLASH mode, press and hold to move 10 files down.
Folder/File Up
• In USB mode, press the preset 6 /\ button (10) to move one folder up.
• In USB mode, press and hold to move 10 folders up.
• In FLASH mode, press and hold to move 10 files up.
USB Device File or Folder Navigate/Searching Method
1. During USB playback mode, press the BAND button (16) once to access the navigation
function. The LCD will display "Navigate".
2. Press the VOLUME +/- buttons (2) to navigate through all folders and sub-folders. The
folder names will be displayed on the LCD.
AUDIO
3
2a
411
12
13 14
15
16
17
1
2b
INFO
18
19
5
6 7
8910
20
MSR2107
50W x 4
SEARCH ERASE

MSR2107
11
3. Within 3 seconds, press the MODE/SEL button (4) to access the selected folders.
4. Press the VOLUME +/- buttons to navigate
5. Press the MODE/SEL button to confirm file play.
NOTE: During navigation search, press the AS/PS button (15) to back out of search
mode and reverse navigate the folders.
Internal Flash Memory MP3/WMA File Searching Method
1. Press the BAND button (16) to access the navigation function. The LCD will display "Nav-
igate".
2. Press the MODE/SEL button (4) to access the first song file and then press the VOLUME
+/- buttons (2) to navigate through all available song files. The file names will be
displayed on the LCD.
3. Press the MODE/SEL button to select the song file for playback.
NOTE: This device does not support folders structure for Internal Flash Memory. All
files will be stored in the root folder.
NOTE: Press the BAND button to exit the MP3/WMA File/Folder Navigate Search mode
during searching.
ID3 Information Display
This unit supports ID3 tag versions 1.0 and 1.1.
If an MP3/WMA file contains ID3 Tag information, the ID3 information such as Album title,
Track title, Artist Title will be displayed and scroll sutomatically across the LCD while the file is
playing. Press the INFO button (12) repeatedly to view the ID3 tag information manually.
Copying Music Files to FLASH Memory
This unit has built-in flash memory, which allows user to store music files by transferring up to
1Gb from a USB memory device. The unit can then play back the stored music files from the
built-in flash by pressing the MODE button (4) to access FLASH mode.
Copy File During Normal Playing Mode
This operation only can be performed when playing an MP3/WMA music file stored on a USB
device.
1. During MP3/WMA music file playback, press the COPY button (20) once to activate
COPY FILE mode.
2. Press the MODE/SEL button (4) to begin file copy.
Copy Folder During Normal Playing Mode
This operation can only be performed during folder Navigate Search of a USB device.
1. During MP3/WMA music file playback, press the COPY button (20) twice to enter COPY
FOLDER mode.
2. Press the MODE/SEL button (4) to begin folder copy.
NOTE: Press the COPY button a 3rd time to return to current playing status.
COPY ALL (Entire Device)
To copy all files on a USB device to internal FLASH memory, perform the following steps:
1. During MP3/WMA music file playing status, press and hold the COPY button (20) to
access “COPY ALL” mode.
2. Press the MODE/SEL button (4) to begin the "COPY ALL" function.
NOTE: Do not remove the USB device during the copy or read process as this could
result in the corruption of Flash memory. If this happens, it may be necessary to format
the Flash memory, as described in “Erase Music File/ Folder Operations” on page 11.
NOTE: Copy happens only on the condition of unit in music playing status. There is no
access to do COPY if USB is not inserted.
NOTE: During the process of COPY, user can press COPY button to stop COPY
processing and all other buttons has no function when unit is in COPYING .
NOTE: If Copy from USB to Flash, unit cannot copy normally or Flash has no free space,
the LCD will display " Write Error" or "Memory Full" for 3 seconds, then go to next song
& start playing.
Erase Music File/ Folder Operations
Erase in Normal Playing Mode
1. During MP3/WMA music file playback, press and hold the BAND button (16) to activate
“ERASE FILE” mode.
2. Press the BAND button for the 1st time to select “ERASE FOLDER”.
3. Press the BAND button a 2nd time to select “ERASE ALL” (in FLASH mode, the function
is “FORMAT FLASH”). (Press BAND for the 3rd time to return to current playing status.)
4. After performing step 2 or step 3, press the MODE/SEL button (4) to begin erasing.
Erase File/Folder During Navigate Search
1. During MP3/WMA music file playback, press the BAND button (16) to enter Navigate
search mode.
2. While the LCD displays the folder name, press and hold the BAND button to activate the
erase folder mode.
3. Press the BAND button for the 1st time to select “ERASE FILE”.
4. Press the BAND button a 2nd time to select “ERASE ALL”. (Press BAND a 3rd time to
return to current playing status.)
5. After performing step 2 or step 3, press the MODE/SEL button (4) to begin erasing.
NOTE: Once ERASE operation starts, there is no access to stop the erase process.
NOTE: In order to prevent unintentional erasing of external USB device, always confirm
that you are in FLASH mode before performing ERASE function.

MSR2107
12
Checking Available Free Memory
USB Device Memory
During USB mode playing status, press the MENU button (3) and select "ROM" option, press
VOLUME +/- button to select between "FREE USB" and "FREE Flash", and then press the
MODE/SEL button (4) to see the amount of free USB memory.
FLASH Memory
During FLASH mode playing status, press the AUDIO/MENU button (3) and select the "ROM"
option, press VOLUME +/- button to select "FREE USB" and "FREE Flash", and then press the
MODE/SEL button (4) to see the amount of free FLASH memory.

MSR2107
13
CARE AND MAINTENANCE
• Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain
minerals that can corrode the electronic circuits.
• Keep the product away from dust and dirt, which can cause premature wear of parts.
• Handle the product gently and carefully. Dropping it can damage circuit boards and
cases, and can cause the product to work improperly.
• Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or strong detergents to clean the product.
• Use and store the product only in normal temperature environments. High temperature
can shorten the life of electronic devices, damage batteries, and distort or melt plastic
parts.
Ignition
The most common source of noise in reception is the ignition system. This is a result of the
radio being placed close to the ignition system (engine). This type of noise can be easily
detected because it will vary in intensity of pitch with the speed of the engine.
Usually, the ignition noise can be suppressed considerably by using a radio suppression type
high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ
this wire and resistor but it may be necessary to check them for correct operation.) Another
method of suppression is the use of additional noise suppressors. These can be obtained from
most CB/A radio or electronic supply shops.
Interference
Radio reception in a moving environment is very different from reception in a stationary
environment (home). It is very important to understand the difference.
AM reception will deteriorate when passing under a bridge or when passing under high voltage
lines. Although AM is subject to environmental noise, it has the ability to received at great
distance. This is because broadcasting signals follow the curvature of the earth and are
reflected back by the upper atmosphere.
TROUBLESHOOTING
Symptom Cause Solution
No power The vessel’s accessory
switch is not on If the power supply is properly connected to the vessel’s acces-
sory terminal, switch the ignition
key to “ACC”
The fuse is blown Replace the fuse
No sound Volume is too low Adjust volume to audible level
Wiring is not properly con-
nected Check wiring connections
The operation keys do
not work The built-in microcomputer is not operating properly
due to noise
Press the RESET button
Cannot tune to radio sta-
tion, auto-seek does not
work
The antenna cable is not
connected Insert the antenna cable firmly
The signals are too weak Select a station manually

MSR2107
14
SPECIFICATIONS
FM Radio
Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz
Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz
Sensitivity (S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4µV
Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >45 dB
Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB
AM/MW
Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz
Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz
Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 dB
General
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 Volts
Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground
Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8 ohms per channel
Tone Controls:
Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : ±10 dB
Treble (at 10 kHz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : ±10 dB
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W x 4
Current Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Ampere (max.)
Commander Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.15” (W) x 1.2” (D) x 3.7” (H)
Tuner/Amp Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.35” (W) x 6.55” (D) x 2.4” (H)

MSR2107
15
INFORMACIÓN DE SEGURIDAD
Cuando Navegue
Mantenga el volumen lo suficientemente bajo para escuchar a su alrededor.
Protéjalo del Agua
No sumerja o exponga el producto directamente al agua, pues puede causar cortos eléctricos,
incendios o daños.
Protéjalo contra las Altas Temperaturas
Exposición a luz solar directa por un periodo extendido de tiempo puede producir muy altas
temperaturas dentro de su buque. Deje que el interior se enfríe antes de iniciar la
reproducción.
No monte un radio en las proximidades del compartimiento del motor.
Utilice la Alimentación de Energía Adecuada
Este producto está diseñado para operar con un sistema de baterías de 12 voltios de Corriente
Continua negativa conectado a tierra.
ADVERTENCIA:
• NO ABRA, DESARME O ALTERE LA UNIDAD DE NINGUNA FORMA. Hacerlo puede
provocar fuego, choque eléctrico o daños.
• USE EL AMPERAJE CORRECTO CUANDO REEMPLACE UN FUSIBLE. No hacerlo
puede provocar fuego, choque eléctrico o daños.
• NO INSTALE EN LUGARES QUE PUEDAN OBSTRUIR LA OPERACIÓN DEL
VEHÍCULO. Hacerlo puede obstruir la visión u obstaculizar movimientos y puede
provocar accidentes serios.
• INSTALE EL CABLEADO DE TAL FORMA QUE NO SE DOBLE O PUNCE CON
TORNILLOS O FILOS. Coloque los cables lejos de partes movibles o con bordes filosos
o con punta. Esto prevendrá doblar o dañar el cableado. Si el cableado debe pasar por
un agujero de metal, asegúrese de usar un reborde de goma para prevenir que se corte
el cable con el borde metálico del agujero. También se recomienda aplicar sellador en
cualquier apertura que potencialmente pueda permitir el ingreso de agua.
• Asegúrese de elegir una ubicación que sea plana y tenga lugar arriba de la unidad para
prevenir cualquier daño, como así también permitir la ventilación.
• Antes de realizar algún agujero, cuidadosamente inspeccione el área debajo y detrás de
la superficie de montaje donde los dispositivos se fijarán, para asegurarse que no
interferirán con cables, tubos o tanques combustibles o cualquier otro objeto que pueda
ser dañado.
• Siempre desconecte el terminal negativo de la batería del vehículo para prevenir cortos
accidentales durante la instalación.

MSR2107
16
INSTALACIÓN
Antes de Empezar
Antes de empezar, siempre desconecte la terminal negativa de la batería.
Notas Importantes
• Antes de la instalación final, pruebe las conexiones de cables para asegurarse de que la
unidad esté conectada adecuadamente y el sistema funcione.
• Utilice solamente las partes incluidas con la unidad para asegurarse la instalación
adecuada. El uso de partes no autorizadas puede causar mal funcionamiento.
• Consulte su revendedor más cercano si la instalación requiere taladrar agujeros u otras
modificaciones a su buque.
• Instale la unidad donde no interfiera con el manejo y no pueda herir a ningún pasajero si
se frena repentinamente o de emergencia.
• Evite instalar la unidad donde sea sometida a altas temperaturas debido a luz directa del
sol, aire caliente o del calentador, o donde reciba polvo, suciedad o vibración en exceso.
Montaje del Comando Cableado
1. Elija un área de montaje para el comando cableado que sea limpio y plano, permitiendo
que la junta trasera se selle completamente contra la superficie de montaje.
2. Asegure el comando cableado usando uno de los métodos de montaje recomendados en
detalle en los diagramas de abajo.
TORNILLOS DE MONTAJE M4 (4 PIEZAS)
LARGO DE TRONILLO MÍNIMO DE 1½”
AGUJERO DE 7/8" REQUERIDO
TORNILLOS M5X8 REQUERIDOS PARA MONTAJE
PROFUNDIDAD DE TORNILLO MÁXIMA EN COMANDO DE ¼”
PARA CABLE
AGUJERO DE 7/8" REQUERIDO
PARA CABLE

MSR2107
17
Montaje de Radio/Amplificador
1. Elija un área de montaje para el módulo de radio/amplificador que provea mucha venti-
lación para prevenir que el amplificador se recaliente. El módulo de radio/amplificador
puede ser montado en posición horizontal o vertical. Por favor, note que cuando monte
en posición vertical, no realice el montaje con los puntos de salida del arnés hacia arriba
pues se puede juntar agua alrededor del chasis en éstas áreas.
2. Fije los 4 pies de montaje de goma provistos, a la parte baja del plato de metal del radio /
amplificador. Esto brindará espacio de la humedad de la superficie y promueve buena
ventilación al lavabo del calefactor.
3. Usando los tornillos recomendados más cortos posibles, monte el radio / amplificador
como se detalla en el diagrama a la derecha.
4. Coloque el arnés y el cable del radio / amplificador a través del buque como sea
necesario. Mantenga el arnés / cables algo flojo para que no esté demasiado ajustado
causando daños a los cables.
5. Siga el diagrama de cableado detalladamente y asegúrese de que todas las conexiones
estén seguras y aisladas con conectores crimpados o cinta aisladora para asegurar la
instalación adecuada.
6. Luego de completar las conexiones del cableado, conecte nuevamente el terminal
negativo en la batería y encienda la unidad para confirmar su operación (la llave
accesoria del buque debe estar encendida). Si la unidad no opera, desconecte la batería,
verifique nuevamente todo el cableado y lea la guía de solución de problemas que está al
final del manual.
Reconecte la Batería
Cuando el cableado se complete, reconecte el terminal negativo de la batería.
TORNILLOS M4 DE ACERO INOXIDABLE REQUERIDOS
CON LARGO MÍNIMO DE 1”
AGUJEROS PILOTO DE 1 ½” PARA LOS TORNILLOS AUTO INICIO PROVISTOS
AGUJEROS PILOTO DE 180 CUANDO SE UTILICE TORNILLOS ROSCADOS DE MÁQUINA
AGUJERO DE 1 ¾" REQUERIDO
PARA CABLE/CONECTOR
PIE DE GOMA REMOVIBLE
4 LUGARES

MSR2107
18
CABLEADO
COMANDO CABLEADO MÓDULO DE RADIO / AMPLIFICADOR
CABLE DE EXTENSIÓN
ENTRADAS DE
AUDIO AUXILIAR
CONECTOR
SIRIUS
CONECTOR
DE IPOD
REMOTO
EXTERNO
NEGRO
GRIS
BLANCO
NEGRO
NEGRO
AMARILLO
FICHA DE LAANTENAE
CONECTOR RCA ROJO
CONECTOR RCA BLANCO
GRIS/NEGRO
GRIS
VIOLETA
VIOLETA/NEGRO
VACÍO
VERDE
VERDE/NEGRO
NEGRO/SHIELD
ROJO
BLANCO
BLANCO/NEGRO
AZUL
ROJO
NEGRO
BLANCO
VACÍO
VACÍO
VACÍO
VACÍO
VACÍO
PIN DESCRIPCIÓNCOLOR ALAMBRE
SALIDAS DE AUDIO
DE BAJO NIVEL
ALTAVOZ DELANTERO DERECHO (-)
(+)
ALTAVOZ TRASERO DERECHO (+)
ALTAVOZ TRASERO DERECHO (-)
SIN CONEXIÓN
ALTAVOZ TRASERO IZQUIERDO (+)
ALTAVOZ TRASERO IZQUIERDO (-)
SALIDA DE AMPLIFICACIÓN PREVIA TRASERA COMÚN
SALIDA DE PREAMPLIFICACIÓN DERECHATRASERA
ALTAVOZ DELANTERO IZQUIERDO (+)
ALTAVOZ DELANTERO IZQUIERDO (-)
SIN CONEXIÓN
ANTENA DE ENERGÍA
IGNICIÓN ACCESORIA
TIERRA
SALIDA DE PREAMPLIFICACIÓN IZQUIERDATRASERA
ALTAVOZ DELANTERO DERECHO
SIN CONEXIÓN
SIN CONEXIÓN
SIN CONEXIÓN
SIN CONEXIÓN
VISTA- A
MOSTRADA DESDE EL PIN
VISTA B-B
VISTA DE INSERCIÓN DE CABLE
ATENCIÓN: Compatible con
SCC1/MML y SCVDOC1/M
solamente.
