Jet EQUIPMENT & TOOLS JSJ-3X User manual

OWNER'S MANUAL

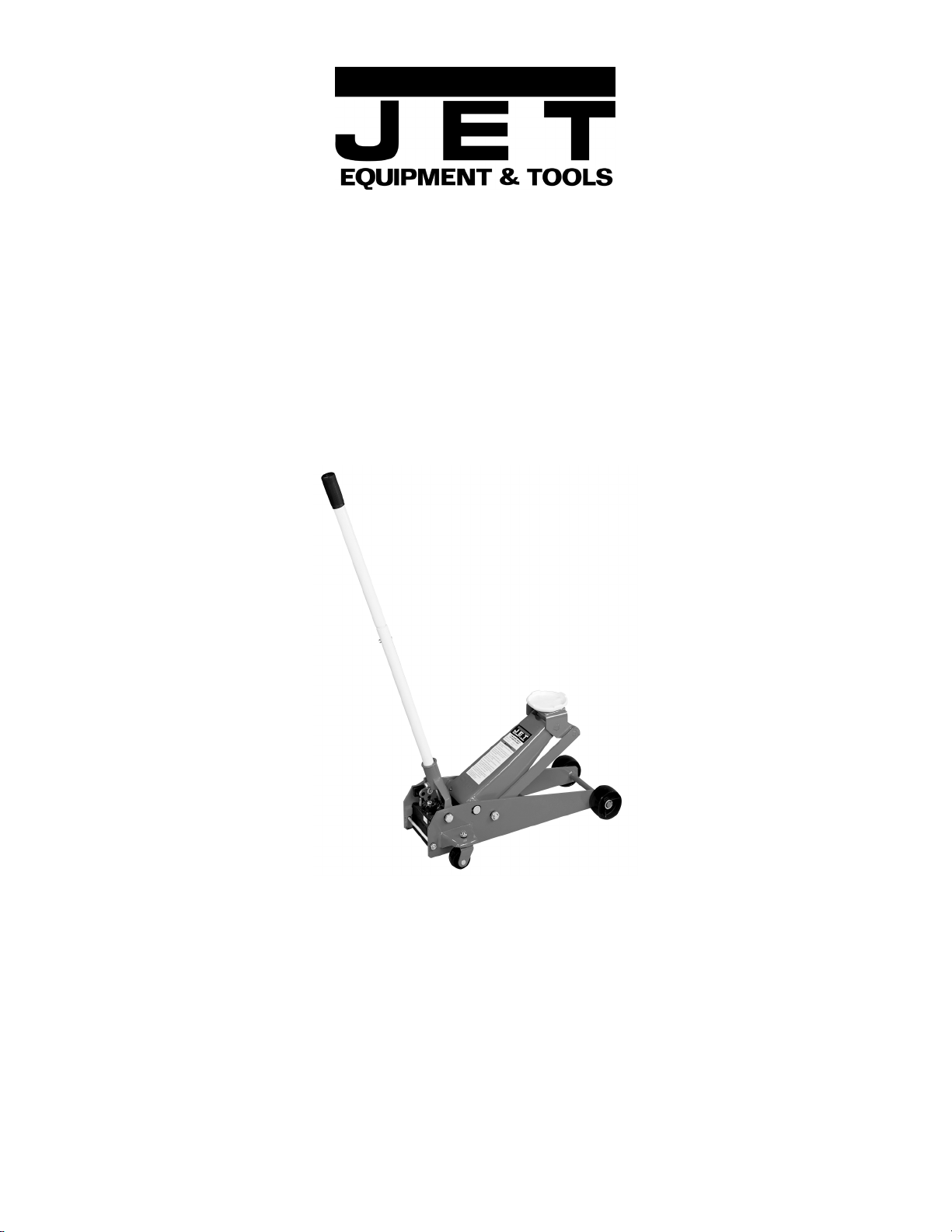

JSJ-3X Short Service Jack
JET EQUIPMENT & TOOLS, INC. P.O. BOX 1349 253-351-6000
A WMH Company Auburn, WA 98071-1349 Fax [phone]
www.jettools.com e-mail [e-mail] M-454223 10/01

2
Important Information
1-YEAR JET offers a one-year limited
LIMITED WARRANTY warranty on this product
REPLACEMENT PARTS
Replacement parts for this tool are available directly form JET Equipment & Tools.
To place an order, call 1-800-274-6848. Please have the following information ready:
1. Visa, MasterCard, or Discover Card number
2. Expiration date
3. Part number listed within this manual
4. Shipping address other than a Post Office box.
REPLACEMENT PART WARRANTY
JET Equipment & Tools makes every effort to assure that parts meet high quality and durability
standards and warrants to the original retail consumer/purchaser of our parts that each such part(s) to be
free from defects in materials and workmanship for a period of thirty (30) days from the date of purchase.
PROOF OF PURCHASE
Please retain your dated sales receipt as proof of purchase to validate the warranty period.
LIMITED TOOL AND EQUIPMENT WARRANTY
JET makes every effort to assure that its products meet high quality and durability standards and warrants to the
original retail consumer/purchaser of our products that each product be free from defects in materials and
workmanship as follows: 1 YEAR LIMITED WARRANTY ON THIS JET PRODUCT. Warranty does not apply to
defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our
facilities or to a lack of maintenance. JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED
ABOVE FROM THE DATE THE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY
IMPLIED WARRANTIES OR MECHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR
PROPERY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING FROM
THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. To take advantage of this warranty, the product or part must be returned for examination,
postage prepaid, to an authorized service station designated by our Auburn office. Proof of purchase date and an
explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, JET will either
repair or replace the product or refund the purchase price, if we cannot readily and quickly provide a repair or
replacement, if you are willing to accept such refund. JET will return repaired product or replacement at JET’s
expense, but if it is determined there is no defect, or that the defect resulted from causes not within the scope of
JET’s warranty, then the user must bear the cost of storing and returning the product. This warranty gives you
specific legal rights, and you have other rights, which vary, from state to state.
JET Equipment & Tools •
••
•P.O. Box 1349, Auburn, WA 98071-1349 •
••
•[phone]

 WARNING
1. This is a lifting device only. Do not move or dolly the vehicle while on the jack. The load shall be
supported immediately by other appropriate means.
2. Do not overload. Overloading can cause damage to or failure of the jack.
3. Lift only on areas of the vehicle specified by the vehicle manufacturer.
4. This jack is designed for use on hard, level surfaces capable of sustaining the load. Use on other
than hard, level surfaces can result in jack instability and possible loss of load.
5. Do not get under vehicle while jack is being used as the only support.
6. If jack needs service, contact your local JET distributor for the location of the closest JET Service
Station.
7. Use only factory replacement parts when replacement of parts is necessary.
8. Failure to comply with all of these warnings may result in loss of load, damage to jack, and/or failure
resulting in personal injury or property damage.
Specifications: JSJ-3X
Stock Number................................................................................................................................ 454223
Rated Capacity.................................................................................................................................3 Ton
Minimum Height ...............................................................................................................................5-1/2”
Maximum Height ..................................................................................................................................21”
Saddle..............................................................................................................................................5-1/8”
Overall Length......................................................................................................................................26”
Overall Width.......................................................................................................................................13”
Handle Length................................................................................................................................373/4”
Net Weight (approx.) ........................................................................................................................86 lb.
Shipping Weight (approx.)................................................................................................................90 lb.
Assembly
Note: For parts identification, refer to parts list.
1. Insert upper handle (34, page 5) into lower handle (32, page 5) and fasten with hex cap bolt (31,
page 5).
2. Remove handle bolt (25, page 5).
3. Insert handle assembly into handle socket (27, page 5). Make sure handle assembly engages gear
shaft (29, page 5) by turning handle back and forth and observing movement of handle socket gear
(14, page 7).
4. Install handle bolt (25, page 5) to secure handle assembly.

4
Lubrication
Note: Before initial operation, lubricate the jack.
1. Handle - use #2 tube grease on release valve gears below handle and lightly grease handle at point
where it fits into socket.
2. Lifting Arm - inject #2 tube grease into grease fitting.
3. Plunger - use #2 tube grease to lubricate pump plunger.
4. Lubricate pivoting and moving parts with a 30W oil.
Lubrication Points
Operating Instructions
Important: Sometimes during shipment and handling, air gets into the hydraulic system, causing poor
lifting performance. Before initial operation, purge any air from the system by fully opening release (turn
handle counter-clockwise). Then, while holding the saddle down, pump handle rapidly several times.
Raising the Jack
1. Turn handle clockwise, until resistance is felt, to close release valve. Do not over tighten.
2. Place jack directly under object to be lifted. Make sure saddle takes up weight firmly, and centrally.
Check positioning under slight load to confirm jack or load will not slip.
3. Raise jack by pumping handle until desired height is reached. After lifting, secure load by
appropriate means. Do not use jack as the only means of support.
Lowering the Jack
1. Slowly turn handle counter-clockwise. Speed of descent is controlled by how much the release valve
is turned.
Always store jack in the fully lowered position.
Troubleshooting
If jack fails to raise to its limit, remove oil fill plug (7, page 7). Fill with just enough quality hydraulic jack
fluid so that the jack raises to its limit.

5
Main Body Assembly

6
Main Body Assembly
Index Part
No. No. Description Size Qty.
1..........JSJ3S-01......................... Retainer Ring*............................................... ...................................2
2..........JSJ3S-02......................... Washer.......................................................... ...................................2
3..........JSJ3S-03......................... Front Wheel*................................................. ...................................2
4..........JSJ3S-04......................... Side Plate Assembly...................................... ...................................1
5..........JSJ3S-05......................... Lock Washer................................................. ...................................2
6..........JSJ3S-06......................... Nut................................................................ M16............................2
7..........JSJ3S-07......................... Caster Assembly* (inclds: #7-10).................. ...................................2
8.......... ........................................ Ball Ring........................................................ ...................................2
9.......... ........................................ Ball Bearing................................................... .................................38
10........ ........................................ Ball Cover..................................................... ...................................2
11........JSJ3S-11......................... Lock Washer................................................. ...................................4
12........JSJ3S-12......................... Socket Head Cap Screw................................ M12x25......................2
13........JSJ3S-13......................... Arm Shaft...................................................... ...................................1
14........JSJ3S-14......................... Retainer Ring................................................ ...................................2
15........JSJ3S-15......................... Nut................................................................ M10............................3
16........JSJ3S-16......................... Lock Washer................................................. ...................................3
17........JSJ3S-17......................... Shaft ............................................................. ...................................1
18........JSJ3S-18......................... Nut................................................................ M12............................2
19........JSJ3S-19......................... Bolt................................................................ ...................................2
20........JSJ3S-20......................... Lock Washer................................................. ...................................2
21........JSJ3S-21......................... Pin................................................................. ...................................1
22........JSJ3S-22......................... Washer.......................................................... ...................................1
23........JSJ3S-23......................... Gear.............................................................. ...................................1
24........JSJ3S-24......................... Pump Pin ...................................................... ...................................1
25........JSJ3S-25......................... Bolt................................................................ ...................................1
26........JSJ3S-26......................... Torsion Spring*.............................................. ...................................1
27........JSJ3S-27......................... Handle Socket............................................... ...................................1
28........JSJ3S-28......................... Washer.......................................................... ...................................1
29........JSJ3S-29......................... Gear Shaft..................................................... ...................................1
30........JSJ3X-30......................... Power Unit Assembly..................................... ...................................1
31........JSJ3S-31......................... Bolt*.............................................................. M6x35 ........................1
32........JSJ3S-32......................... Lower Handle*............................................... ...................................1
33........JSJ3S-33......................... Handle Grip*.................................................. ...................................1
34........JSJ3S-34......................... Upper Handle*............................................... ...................................1
35........JSJ3S-35......................... Bolt................................................................ ...................................2
36........JSJ3S-36......................... Lifting Arm Assembly..................................... ...................................1
37........JSJ3S-37......................... Saddle* ......................................................... ...................................1
38........JSJ3S-38......................... Retainer Ring................................................ ...................................2
39........JSJ3S-39......................... Grease Fitting................................................ ...................................1
40........JSJ3S-40......................... Cross Head ................................................... ...................................1
41........JSJ3S-41......................... Pin................................................................. ...................................1
42........JSJ3S-42......................... Return Spring*............................................... ...................................1
* Indicates normal stocked part. Other parts may be purchased on a special order basis only.
Contact JET Equipment & Tools (1-800-274-6848) for details.

7

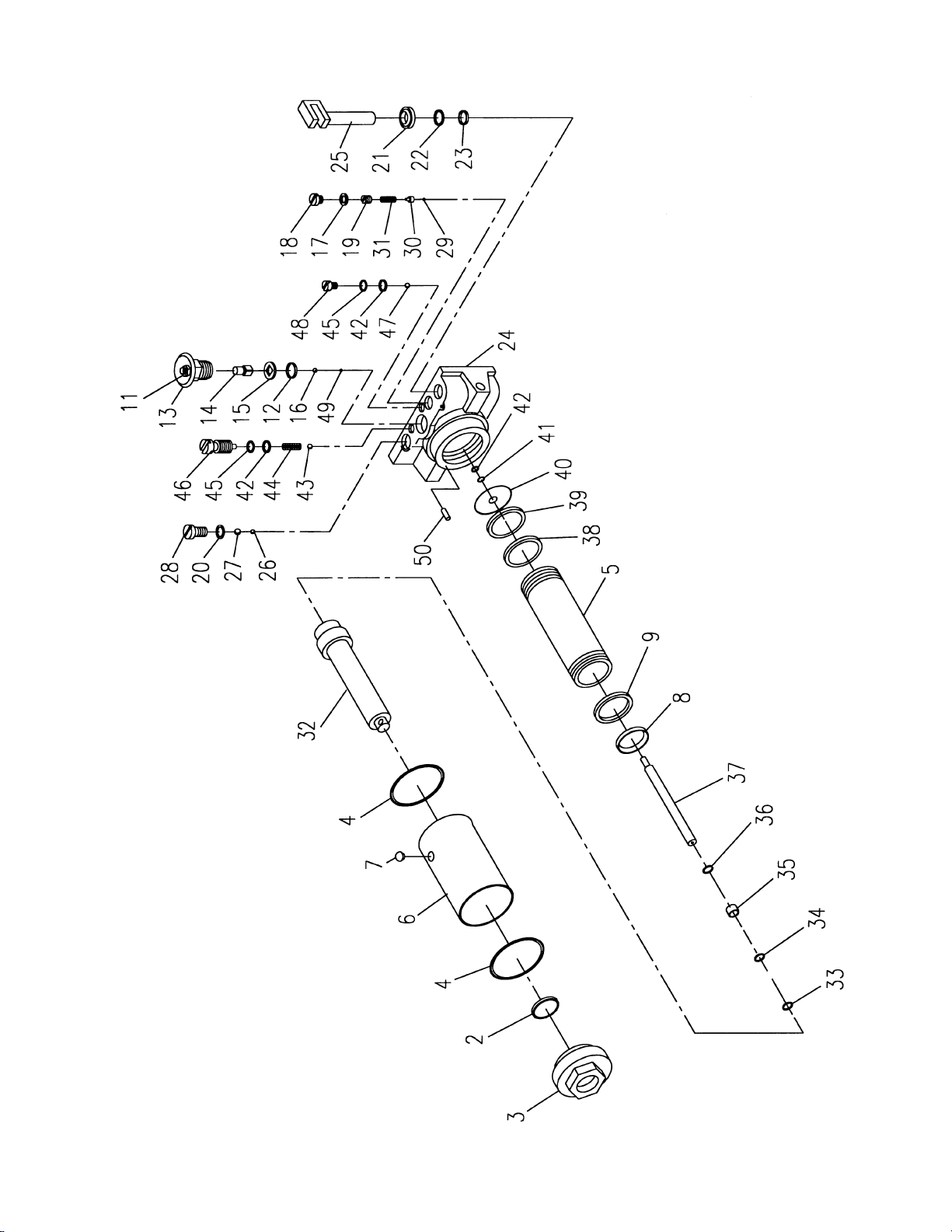

Power Unit Assembly

8
Power Unit Assembly
Index Part
No. No. Description Size Qty.
2..........JSJ3X-P02....................... O-Ring ** ...................................................... 30x3.55 ......................1
3..........JSJ3X-P03....................... Tank Nut ....................................................... ...................................1
4..........JSJ3X-P04....................... O-Ring ** ...................................................... ...................................2
5..........JSJ3X-P05....................... Cylinder......................................................... ...................................1
6..........JSJ3X-P06....................... Oil Tank ........................................................ ...................................1
7..........JSJ3X-P07....................... Oil Fill Plug ** ............................................... ...................................1
8..........JSJ3X-P08....................... U-Cup ** ....................................................... ...................................1
9..........JSJ3X-P09....................... O-Ring ** ...................................................... 33x3.55 ......................1
11........JSJ3X-P11....................... Gear Retaining Nut........................................ M8..............................1
12........JSJ3X-P12....................... O-Ring ** ...................................................... 16x2.4........................1
13........JSJ3X-P13.JSJ3S-P15.... Release Valve Assembly *............................. ...................................1
14........JSJ3X-P14....................... Valve Stem ................................................... ...................................1
15........JSJ3X-P15....................... Guide Plate................................................... ...................................1
16........JSJ3X-P16....................... Ball................................................................ 6.................................1
17........JSJ3X-P17....................... Seal Washer ** ............................................. ...................................1
18........JSJ3X-P18....................... Screw............................................................ ...................................1
19........JSJ3X-P19....................... Adjustment Screw.......................................... ...................................1
20........JSJ3X-P20....................... Seal Washer ** ............................................. ...................................1
21........JSJ3X-P21....................... Wiper ** ........................................................ ...................................1
22........JSJ3X-P22....................... Back Up Ring **............................................. ...................................1
23........JSJ3X-P23....................... O-ring ** ....................................................... 16x2.4........................1
24........JSJ3X-P24....................... Base.............................................................. ...................................1
25........JSJ3X-P25....................... Piston Pump.................................................. ...................................1
26........JSJ3X-P26....................... Ball................................................................ 4.................................1
27........JSJ3X-P27....................... Ball................................................................ 6.................................1
28........JSJ3X-P28....................... Screw............................................................ ...................................1
29........JSJ3X-P29....................... Ball................................................................ 4.................................1
30........JSJ3X-P30....................... Adapter ......................................................... ...................................1
31........JSJ3X-P31....................... Spring............................................................ ...................................1
32........JSJ3X-P32....................... Ram.............................................................. ...................................1
33........JSJ3X-P33....................... O-ring ** ....................................................... 14x2.4........................1
34........JSJ3X-P34....................... Washer.......................................................... ...................................1
35........JSJ3X-P35....................... Back Up Ring................................................ ...................................1
36........JSJ3X-P36....................... Spring............................................................ ...................................1
37........JSJ3X-P37....................... Ram.............................................................. ...................................1
38........JSJ3X-P38....................... Back Up Ring ** ............................................ ...................................1
39........JSJ3X-P39....................... O-ring ** ....................................................... 50x2.4........................1
40........JSJ3X-P40....................... Cylinder Gasket ** ........................................ ...................................1
41........JSJ3X-P41....................... Spring............................................................ ...................................1
42........JSJ3X-P42....................... O-ring ** ....................................................... 6x3.............................3
43........JSJ3X-P43....................... Ball................................................................ 6.................................1
44........JSJ3X-P44....................... Spring............................................................ ...................................1
45........JSJ3X-P45....................... Back Up Ring ** ............................................ ...................................2
46........JSJ3X-P46....................... Screw............................................................ ...................................1
47........JSJ3X-P47....................... Ball................................................................ 6.................................1
48........JSJ3X-P48....................... Screw............................................................ ...................................1
49........JSJ3X-P49....................... Ball................................................................ 3.................................1
50........JSJ3X-P50....................... Pin................................................................. ...................................1
............JSJ3S-SK ........................ Seal Kit * (inclds parts marked with an “**”).... .....................................
............JSJ3X-30......................... Power Unit Assembly (inclds: index numbers 2-50) .............................
* Indicates normal stocked part. Other parts may be purchased on a special order basis only.
Contact JET Equipment & Tools (1-800-274-6848) for details.
TG

9
JET EQUIPMENT & TOOLS, INC. 2415 West Valley Highway N Fax: [phone]
A WMH Company P.O. Box 1349 Phone: [phone]
www.jettools.com Auburn, WA 98071-1349 e-mail: [e-mail]
