Jetmaster 700 Installation instructions

INSTALLATION AND OWNERS MANUAL
DOUBLE SIDED UNITS
OPEN FIREPLACES
INSTALLATIONS TO COMPLY WITH
AS/NZS2918:2018 AND WILL REQUIRE A
BUILDING CONSENT
IMPORTANT: Read all instructions carefully before starting installation Failure to follow these
instructions may result in a re hazard and will void the warranty
WARNING
Fire Risk.
For use with solid wood fuel only
Other fuels may over re and generate poisonous
gases (i e carbon monoxide)
• Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or
any other appliance
• Do not over re - If appliance or chimney connector glows, you are over ring Over ring will
void your warranty
• Comply with all minimum clearances to combustibles as specied Failure to comply may
cause a house re
If the information in these instructions is not followed exactl , a re could result causing
propert damage, personal injur , or death.
!
WARNING

Page 1
Contents
Page Section Information
2-3 1 Getting started
42 Components and specications Unit and Gather
52 Components and specications Surround, Cowl, Logpan and Screen
63 Timber framing specs 700 and 1050 DSU
74 Clearance requirements Hearth
84 Clearance requirements Enclosure construction
95 Flue & Chimney requirements General requirements
10 5 Flue & Chimney requirements Installation
11 6 General use Attaching rescreen, lighting a re
12 6 General use Fuels, Cleaning, Maintenance & Safety
12 AS/NZS 2918:2018 General notes
Thank you for purchasing a Jetmaster replace Please read this manual carefully to ensure the correct installation
There are dierent methods of installing a Jetmaster replace depending on the unit size Before conducting any
works, please go to the relevant section of this installation manual
Warning! Please read these instructions carefully Failure to adequately follow the instructions can
result in serious injury or death
Introduction and contents
!
WARNING

Page 2
Install Guide
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trac ow
• Chimney and ue requirements
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. If you are not
using an existing chimney, place the appliance where there
will be a clear passage for a factory-built listed chimney
through the ceiling and roof.
We recommend that a qualied building inspector and your
insurance company representative review your plans
before and after installation.
If this appliance is in an area where children may be near
it is recommended that you purchase a decorative barrier
to go in front of the appliance.
Remember to always keep
children away while it is operating and do not let anyone
operate this appliance unless they are familiar with these
operating instructions.
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult insurance carrier, local building, re
ocials or authorities having jurisdiction about
restrictions, installation inspection, and permits.
CAUTION
NOTICE: JETMASTER ASSUMES NO
RESPONSIBILITY FOR THE IMPROPER
PERFORMANCE OF THE APPLIANCE
SYSTEM CAUSED BY:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney
minimum 4.6 metres as per AS/NZS 2918:2018.
C. Negative Pressure
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close to
the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with the
appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
In the event of a chimney re:
a. Evacuate the house immediately
b. Notify the re brigade.
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and carbon
monoxide.
• Appliance needs to draft properly for
safety.
WARNING
Asphyxiation Risk.
• Do NOT connect this appliance to a
chimney ue servicing another appliance.
• Do NOT connect to any air distribution
duct or system.
May allow ue gases to enter the house.
1. Getting Started

Page 3
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw
Hand saw
Framing material pliers
High temp caulking material
Hammer
Gloves
Phillips screwdriver
Framing square 1/2-3/4 in.
length, #6 or #8 self-drilling screws
Touch up paint - Stove bright satin black
E. Inspection of Appliance and Components
• Remove appliance and components from packaging and inspect for damage.
• Report to your dealer any parts damaged in shipment.
Due to the nature of thick welded steel, it is normal and expected for some imperfections and slightly out of square components
It is recommended to not begin construction of cavity or ue penetration points until after the unit is in place on site
Surface scratches can and will occur during installation - it is normal to expect to touch these visible surfaces up with Stove Bright
Satin black Deep scoring may require a light sand and respray This is normal and not covered by warranty
• Read all the instructions before starting the installation. Follow these instructions carefully during the
installation to ensure maximum safety and benet.
To minimize the eects of negative air pressure:
• Ensure adequate ow of outdoor air for all
combustion appliances and exhaust equipment
• Ensure cental heating and air conditioning return
vents are not located in the vicinity of the appliance
• Avoid installing the appliance near doors, walkways
or small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
WARNING
Fire Risk.
JETMASTER VIC disclaims any responsibility
for, and the warranty will be voided by, the
following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by
JETMASTER VIC.
• Installation and/or use of any component part not
approved by JETMASTER VIC.
• Operating appliance without fully assembling all
components.
• Do NOT Over re - If appliance or chimney
connector glows, you are over ring.
Any such action that may cause a re hazard.
Flat blade screwdriver Electric drill and bits
Plumb line
Safety glasses
Level
Tape measure
Misc. screws and nails
10mm socket or wrench
R3.5 Fibreglass insulation (if required)
75mm Hebel Powerpanel (if required)
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

Page 4
Gather
Unit
2. Components and specifications - dou le sided
50mm
20mm
MODEL A B C D E F
700 double sided 850 800 610 700 300 220
1050 double sided 1205 1150 600 770 450 220
A
B
C
D
E
F
• Measurements are in mm and provided as a reference only
• Due to the nature of thick welded steel, it is normal and expected for some imperfections and slightly out of square components It is recommended to not
begin construction of cavity or ue penetration points until after the unit is in place on site
50mm - 1050DSU
105mm - 700DSU
Gather must be securely bolted to the unit
Optional 3 and 4 sided 70mm surrounds are available to ll in between unit and outer Hebel box
Add 40mm to B measurement for coverage
Fitting instructions on following page.

Page 5
2. Components and specifications
Bird cowl
AB
MODEL A B C D
700 double sided 685 533 695 500
1050 double sided 1035 530 1045 590
Logpan Firescreen - optional
For solid fuel applications only
, a rotating bird cowl will assist in
preventing the eects of downdraft as it turns with the direction
of wind
Other solid fuel cowls may be desired to achieve a visual design
and such cowls can be used but must not restrict airow from the
ue pipe casings
For gas applications
an AGA approved cowl must be used
C
D
• Measurements are in mm and provided as a reference only
• Due to the nature of thick welded steel, it is normal and expected for some imperfections and slightly out of square components It is recommended to not
begin construction of cavity or ue penetration points until after the unit is in place on site
Optional 70mm surround
The surround should e installed efore sliding the
unit into it’s final position.
Lift the surround a ove the fireplace outer flange and
locate the external ta s over the flange and lower
into place. Ensure the top folds clip on securely.
Ta s secure to outer flange

Page 6
A
B
C
UNIT A - HEIGHT B - WIDTH C - DEPTH
700 DSU 1325 1050 610
1050 DSU 1395 1405 700
3. Tim er framing specification
Note:
Tim er framing should e constructed using normal framing methods. Image a ove is an example only.
Do not install finishing materials around the cavity until after the fireplace has een installed.
Frame height is from top of the 100mm he el hearth ase.
Refer to the following page for hearth requirements

Page 7
50mm min. flue
clearance to
com usti les
75mm He el
powerpanel 600mm
min. a ove fire ox.
50mm
500mm
Minimum 1200mm - 700DSU
Minimum 1450mm - 1050DSU
*100mm
200mm
Non-com usti le material to cover He el
areas if desired.
Framing noggins may e anchored to He el
with appropriate fixing screws
Com usti le cladding materials joining to
non-com should not e floating. Join in the
middle of studwork outside He el enclosure
4. Clearance requirements -
He el installation dou le sided
500mm
clearance to side
wall projection
Ensure lower air intake is
not o structed
Minimum thickness can include nishing material as long as the total thermal resistivity is not less than 0 65m2K/W
1050 DSU unit - Hearth
A minimum 610mm deep x 1330mm wide x 100mm thick floor protector (He el locks) should e used under the appliance, a
Minimum 1450mm wide x 500mm deep x 100mm thick floor protector (He el locks) must e used in front of the appliance ase on
oth sides when installing the appliance (see joint AS/NZS 2918:2018 3.3.2).
The floor protector should extend 500mm in front of each of the appliance openings and e placed centrally in the 1450mm width.
100mm thick floor protector projection can consist of multi-layered non-com usti le materials.
700 DSU unit - Hearth
A minimum 610mm deep x 1150mm wide x 100mm thick floor protector (He el locks) should e used under the appliance, a
Minimum 1200mm wide x 500mm deep x 100mm thick floor protector (He el locks) must e used in front of the appliance ase on
oth sides when installing the appliance (see joint AS/NZS 2918:2018 3.3.2).
The floor protector should extend 500mm in front of each of the appliance openings and e placed centrally in the 1200mm width.
100mm thick floor protector projection can consist of multi-layered non-com usti le materials.
The Thermal resistivity of the floor protector is 0.65m².K/W for 100mm thick He el Blocks. The Thermal resistivity for 75mm PowerPanel
is 0.59m².K/W
Fig 3.6

Page 8
4. Clearance requirements -
He el installation dou le sided
Fill entire cavity up to the outer
casings with 100mm R3.5 fi reglass
insulation to 200mm a ove the top
of the gather
The appliance and Flue Combination should be installed at the following clearances:
• The mantle shelf clearances should e 1000mm a ove as per clause 3.4.1.3( ) of AS/NZS 2918:2018
• The fronts and sides of enclosure must consist of 75mm He el PowerPanel.
• The He el PowerPanel sides of the enclosure can e placed against the appliance with 100mm R3.5 insulation compressed to
50mm either side of the air ox etween the PowerPanel and the appliance.
• The He el PowerPanel front walls must e installed minimum of 25mm from the appliance gather with 100mm R3.5 insulation
compressed to 25mm etween the appliance and He el PowerPanel.
• The appliance front wall, the gather, sides and all other external parts of the appliance must e wrapped in 100mm R3.5 insulation
etween the PowerPanel enclosure up to the height of 200mm a ove the top of the gather.
• The Flue penetration through the ceiling must have a 50mm gap in all directions around the outer casing of the flue from
com usti les and minimum ventilation of 158,788mm2 through the ceiling.
• The front walls of the enclosure must e made of He el PowerPanel to a height of 1280mm a ove the hearth and must extend to
75mm either side of the appliance.
• The first internal wall noggin at the front of the appliance can sit on the top of the PowerPanel enclosure.
• Internal Noggins must not e closer than 50mm from the outer flue casing.
• The External side wall of the PowerPanel Enclosure can e placed against a com usti le wall.
75mm He el powerpanel
against insulation and fire ox
air ox - compress 100mm
R3.5 insulation to 50mm
500mm
500mm
610mm
Tim er header on edge
a ove He el/Brick ox.
50mm clearance to flue
required.
Non-com cladding
only to He el ox
1050 Unit will e recessed on
oth sides y 50mm using
75mm He el Powerpanel.
Use supplied 70mm surround to
cover insulation.
Fig 3.7

Page 9
5. Flue & chimney requirements

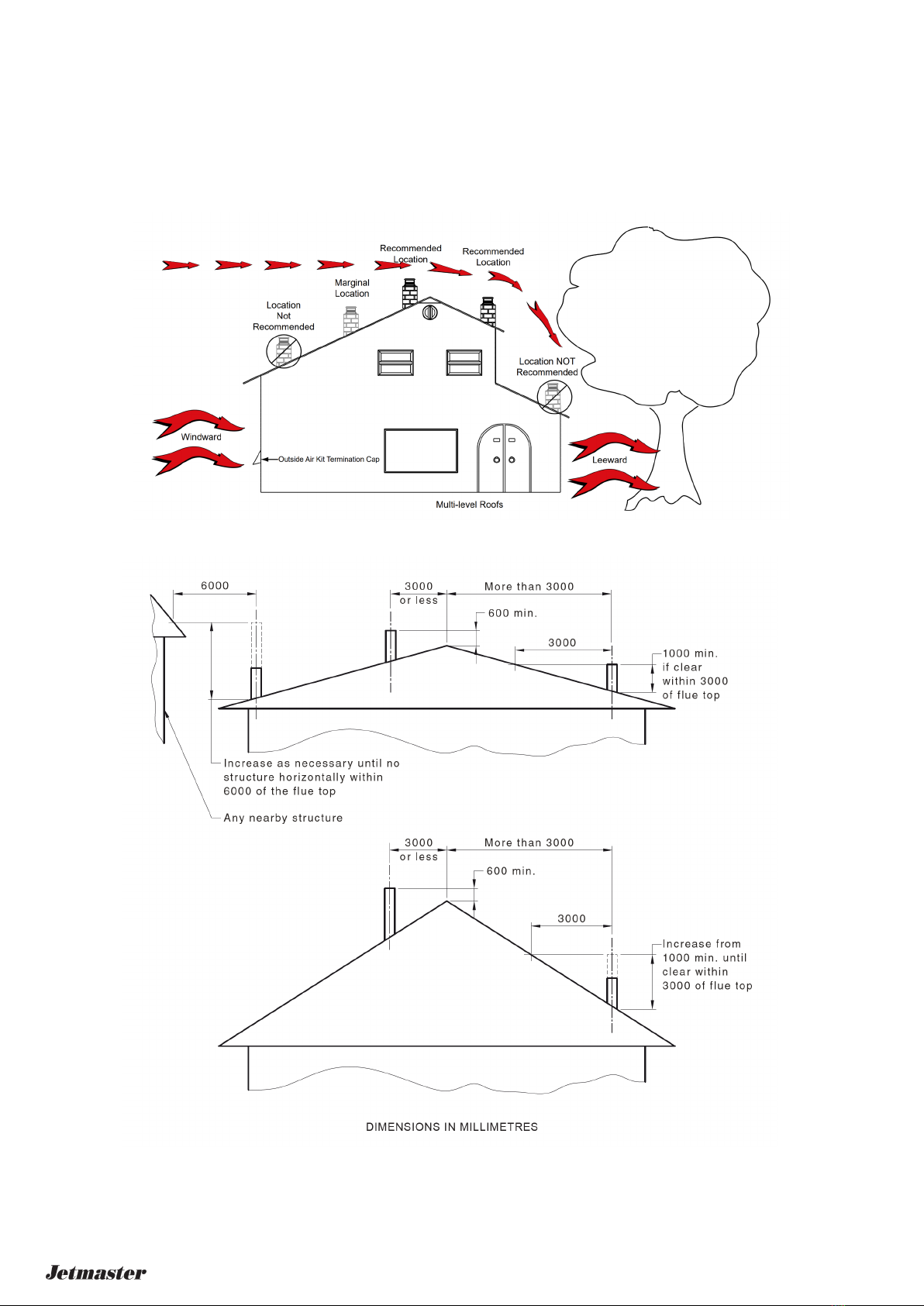

Location of the appliance and chimney will aect
performance As shown in Figure below the chimney should:
• Install through the warm space enclosed by the building
envelope This helps to produce more draft, especially
during lighting and die down of the re
• Penetrate the highest part of the roof This minimizes the
aects of wind turbulence and down drafts
• Consider the appliance location in order to avoid oor and
ceiling attic joists and rafters
• Locate termination cap away from trees, adjacent structures,
uneven roof lines and other obstructions
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem
Minimum height of flue system exit
Solid fuel AS/NZS 2918:2018
NOTICE:
• Chimney performance may vary
• Trees, buildings, roof lines and wind conditions aect
performance
• Chimney height may need adjustment if smoking or
overdraft occurs
NOTICE: Locating the appliance in a basement or in a location
of considerable air movement can cause intermittent smoke
spillage from appliance
Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns

Page 10
5. Flue & chimney requirements cont...
Ceiling penetration
clearances
Existing chimne s should be inspected and cleaned by a qualied
professional prior to installation The chimney must not have cracks,
loose mortar or other signs of deterioration and blockage Jetmaster
recommends a certied professional or a technician, under the
direction of a certied professional
Single skin ue (stainless steel) must be completely enclosed with
single skin brickwork, concrete, or autoclaved aerated concrete
block A chimney plate will be used to weather seal the chimney
Twin skin ues (stainless steel inner, and galvanised outer) can
either be left exposed or enclosed with stud walls and sheet plaster
or timber A minimum of 50mm clearance must be maintained
between the outer ue and any combustibles within the chase or
ceiling cavity (Fig 5.1)
Position an active starter ue with two female ends to gather to
allow second length to have crimp facing down (Fig 5.2)
Glass tape may be required to ensure a snug t
The outer ue is then installed outside active ue with crimp facing
up to ensure water penetration on ue above roof runs out
Rivet active ues together at crimped joins
Fix outer non-active ues to active inner ues use 3 x 25mm self-
tapping screws through outer ue at bottom at each join and on top
at each join As an alternative, rivet 4 x 25mm conduit saddles at
each join top and bottom
Cowl
For solid fuel applications only
, a rotating bird cowl will assist in
preventing the eects of downdraft as it turns with the direction
of wind (Fig 5.3)
Other solid fuel cowls may be desired to achieve a visual design
and such cowls can be used but must not restrict airow from
the ue pipe casings
For gas applications
an AGA approved cowl must be used
Fig 5.2
Fig 5.3
Fig 5.1
Com usti le ceiling Com usti le ceiling
Support angles
50mm gap from
Com usti le materials
Outer Gal casing
Active stainless steel
Active stainless steel
Outer Gal casing
Crimped end down
From second length
Gather
Trim the crimp off first
length stainless pipe
Stainless Bird
Cowl
Cover cone

Page 11
6. General use
Attaching optional re screen

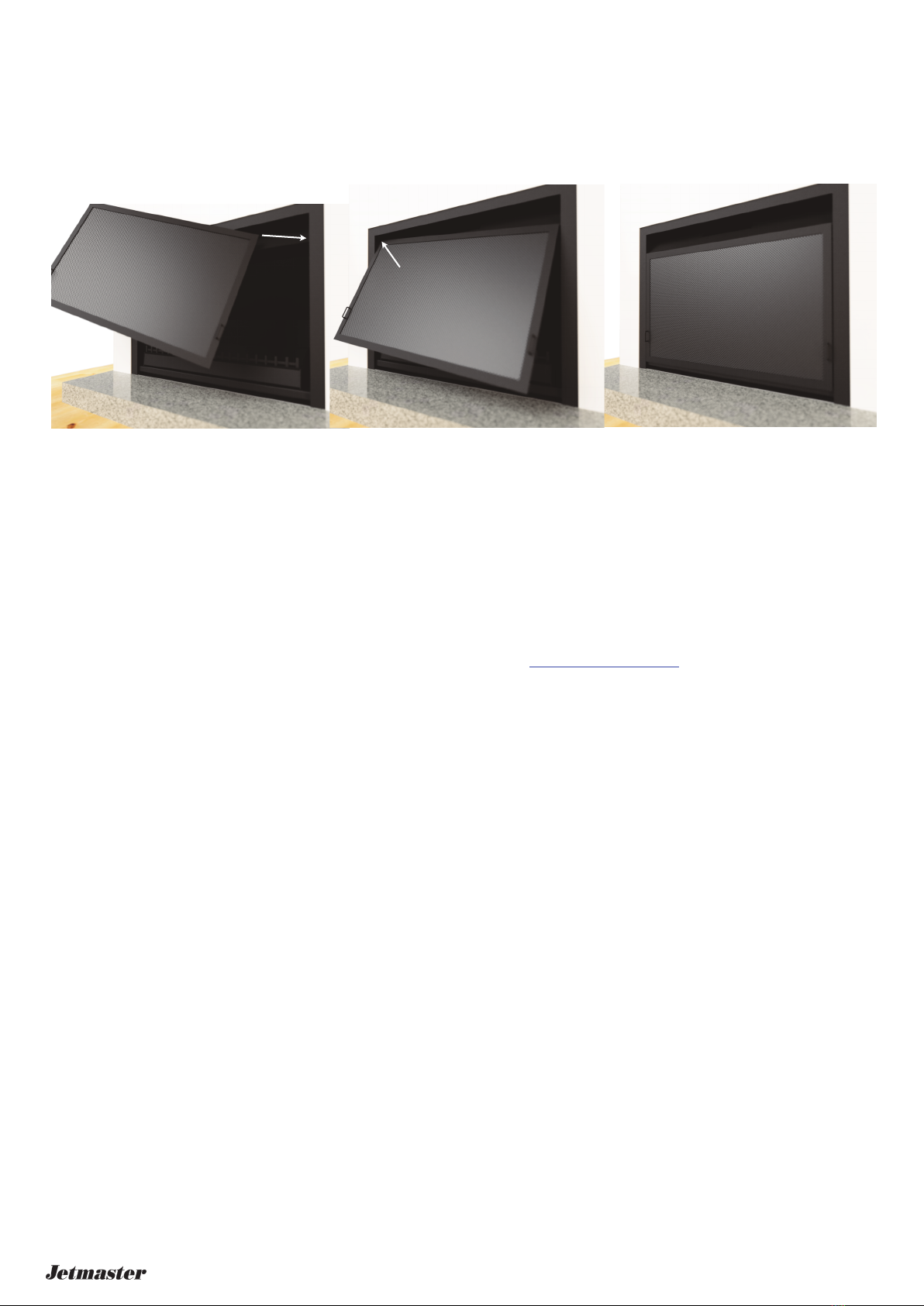

To attach the firescreen, 1. place either the left or right side hook in etween the outer flange and the lowest part of the upper
deflector where it meets the flange. 2. Raise the opposite side to the top corner of the upper corner to locate the alternate hook inside
the flange. 3. Lower into place. For removal, follow the opposite of this instruction.
General usage info
How to use the wood replace
Your Jetmaster fireplace is designed not to spill smoke and y following a few instructions you will achieve optimum heat output,
convenience and fuel economy. Please note that during the first fire the paint goes through a onding process called curing which
may emit odours. This is normal and it is recommended to open windows to outside to allow the fumes to disappate.
Lighting a re
There are many different ways to successfully light and run a fire all of which require an even alance of the 3 elements of com ustion.
Fuel, Heat (ignition source) and Oxygen - if your fire is not operating cleanly it will e due to one of these elements eing
compromised. Jetmaster recommends the Home Heating Association we site www.homeheat.com.au as a terrific resource for further
information on tips and FAQ’s on solid fuel trou leshooting.
1 Ensure the damper is in the full open position Pull the handle on the left side towards you with the steel handle provided
2 In rebox lay your re lighters 10 to 15 centimetres apart, depending on the size of your rebox Do not use newspaper as a
re lighter On units that are installed with a dual spigot gather, it is recommended to light 2 res directly underneath the two
separate ues
3 Add soft wood kindling in a criss cross pattern above the relighters Softwood kindling allows for re to light quicker and
burn hotter
4 Light re with match or gas lighter Leave for 5-10 minutes maximum and do not leave unattended
5 Load pieces of hardwood that are no wider than a drink can in a criss cross pattern
6 After 30 minutes add the large pieces of hardwood These pieces should be no bigger than a loaf of bread You may attach
your screen now if desired
7 After 45 minutes you can adjust the damper to slightly slow the re down The amount you can close it will depend on the
type of wood used and general weather conditions
If the fire egins to spill smoke, adjust the damper to a more open position. Do not close the damper more than 50% when the fire is in
operation. Once the fire is extinguished, closing the damper will reduce cold drafts and heat loss associated with the open flue.
Always leave a ed of ashes up to the centre crest of the logpan for ease of lighting and to prolong the life of and protect the logpan.
Excess ashes should e removed when necessary, placed in a non-com usti le container with a tightly fitting lid and moved outdoors
immediately to a location clear of com usti le materials.
123

Page 12
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE
APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF
AS/NZS 4013 WHERE REQUIRED BY THE REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A
COMPLIANCE PLATE WITH THE MARKING‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS
CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE DIMENSIONAL
SPECIFICATION OF COMPONENTS MAY RESULT IN HAZARDOUS CONDITIONS WHERE SUCH ACTION IS CONSIDERED, THE
MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH CRACKED AND BROKEN COMPONENTS, e g GLASS PANELS OR
CERAMIC TILES, MAY RENDER THE INSTALLATION UNSAFE
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING
AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: OPEN AIR CONTROLS AND DAMPER WHEN FITTED BEFORE OPENING FIRING DOOR.
WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY “FRONT TO REAR” IN PREFERENCE TO
LAYING ACROSS THE WIDTH OF THE FIREBOX. SPACES SHOULD BE LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET
TO AS MUCH OF THE SURFACE OF THE FUEL AS POSSIBLE.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS
AS/NZS 2918 General notes
Fuels
The quality of firewood is extremely important. How long a tree
has een felled or dead for does not indicate how dry the wood
is.
The est way to dry wood is to split it and expose the inner core
allowing the sun to dry the wood naturally.
Good wood merchants will split the wood for you, ut may not
season it for you.
The amount of you pay for your wood does not justify how dry
the wood is. The only way to know how dry your wood is, is to
use a moisture meter measuring from the inner core of the
wood.
Only urn wood under 20% moisture. Anything over 20% and
your wood heater will not work efficiently. The energy from the
fire will e used to reduce moisture in your wood and not
produce heat for your house.
Store your wood for at least 12 months after your have
purchased it. Your wood should e at a perfect moisture level, of
around 15 to 20%. Never urn treated wood or painted wood.
Cleaning
The Jetmaster Log Pan is designed to give greater heat and fuel
efficiency. For the duration of the cold season the Log Pan
should never e emptied. The resulting ed of ash and coals
from previous fires will soon ecome a heat ank generating
more heat than the urning logs. This ash ed also insulates and
greatly extends the life of the Log Pan. This is why an ash ed
must e maintained at all times.
When the level of the ash ed ecomes too high, the top layer
can e removed. Depending on frequency of use and quality of
wood, this skimming procedure should not e required more
than once or twice a Season!
To prevent chimney fires as well as ena ling the chimney to
draw properly, the chimney/flue should e swept at least once a
season,su ject to the quality of tim er used in the fire.
General Maintenance
The visi le parts of your Jetmaster can e cleaned with a damp
cloth or soft rush. Should you wish you could repaint the unit
with a heat resistant paint?
Safet
The Jetmaster is a safety-tested unit, however, you must never
leave an open fire unguarded. Jetmaster has a screen that is
designed to prevent sparks leaving the fireplace and very
resistant to eing accidentally knocked over y young children.
