TECHNICAL DATA

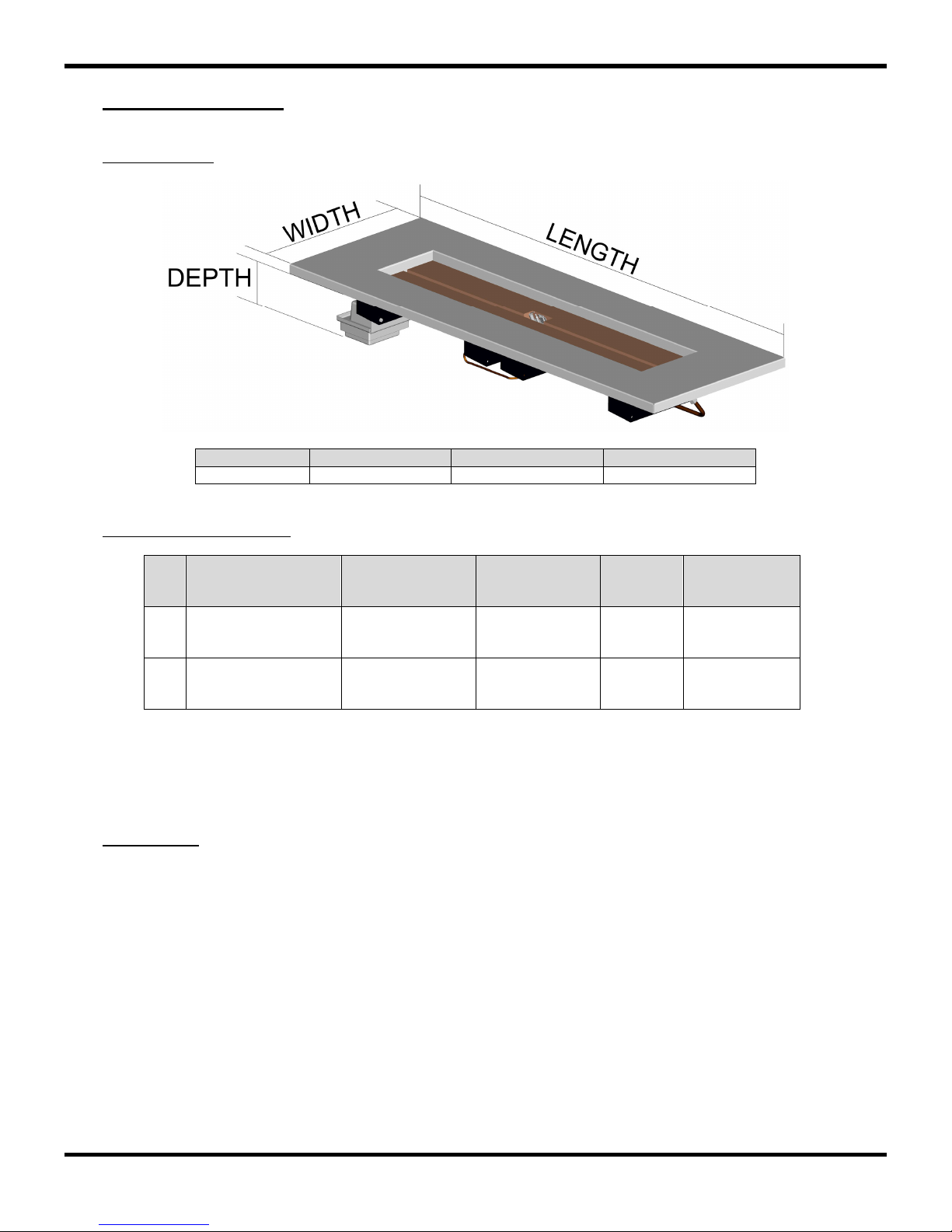

DIMENSIONS
MODEL Width Length Depth
DROP IN 1020
360mm 1020mm 160mm
GAS SPECIFICATIONS
MODEL
GAS
CONSUMPTION
Max rate
GAS
CONSUMTION
Min rate
injector Gas supply
pressure
DROP IN 1020 CST
43 MJ/hour
12 kW
0.8 kg/h
28 MJ/hour
8.0 kW
0.6 kg/h
1.7mm #12.8 kPa
DROP IN 1020 HV
43 MJ/hour
12 kW
0.8 kg/h
28 MJ/hour
8.0 kW
0.6 kg/h
1.8mm #12.8 kPa
#1 – The appliance must be installed using an appropriate regulator that can maintain the operating gas
supply pressure during use and that complies with the requirements of SANS 1237.
NOTE:
We suggest that you check the Data Plate on your Gas Burner and verify the Model on the above table, for future
reference.
WARNINGS
•Do not place articles on or against this appliance
•Do not use or store flammable materials near this appliance
•Do not spray aerosols in the vicinity of this appliance while it is in operation
•These units incorporates a live fuel effect and is designed to burn with luminous flames and as such may
exhibit slight carbon deposits (soot)

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 5
Revision 02 @ 04/09
INSTALLATION INSTRUCTIONS
GENERAL
All relevant codes and regulations laid down by the Gas Supply Authorities, Uniform Building Regulations and
requirements of Local Municipal Authorities must be adhered to.
ONLY a registered gas installer, whom must be accredited by JETMASTER, can perform the installation.
All gas installations must comply with the requirements of the national standard SANS 10087-1
Installation and use of this fire must be in accordance with these instructions.
Any appliances incorporating a live fuel effect and designed to operate with luminous flames, may exhibit slight
carbon deposition.
CLEARANCE DISTANCES AND MATERIALS
Heat is radiated from the fireplace. It is therefore important to take special care that no combustible material is
placed close to the fireplace. No combustible materials e.g. wooden furniture, cupboards and fittings should be
placed within the following dimensions:
Long sides Short sides Above
700mm 700mm 1200mm
The platform into which the unit will be fitted must be constructed of a non-combustible material and must conform
to all National Building Regulations.
NOTE:
The hot air that rises from the unit can cause damage to heat sensitive materials like plastics and electronic
appliances. Any item placed directly or indirectly above the unit must be protected against the heat generated.
VENTILATION
Fire uses oxygen to burn; thus it's important to provide enough fresh air for the combustion process. In addition to
that fireplaces without a flue release all combustion products back into the room. This increases the need for
adequate ventilation.
As part of the combustion products released into the room moisture is also released into the room. This will raise
the humidity of the room.
NOTE: Should excessive moisture be noted in the room, additional ventilation must be provided and
mechanical drying might be required.
To ensure efficient performance of the unit, and the safety of the occupants in the room ensure that at least the
following aeration is provided in the room. These openings must be of a permanent nature.
Ventilation must be provided both on floor level as well as on ceiling level, to allow for fresh air to move in through
the floor level opening, and out through the ceiling level opening.
Both floor and ceiling level openings must be at least 300cm2. For instance a opening of 25cm x 12cm.
These ventilation requirements are applicable for all rooms including bedrooms, living areas kitchens etc.
NOTE: This appliance may not be installed in a separately enclosed bathroom or any other separately
enclosed room.

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 6
Revision 02 @ 04/09
GAS SUPPLY PIPE INSTALLATION
The nature of a drop in gas fireplace is such that for most applications it would be necessary to route the gas
supply line through the floor. All relevant codes and regulations laid down by the Gas Supply Authorities, Uniform
Building Regulations and requirements of Local Municipal Authorities must be adhered to. This must comply with
the requirements of the national standard SANS 10087-1
It is recommended that the installation of the gas supply line be completed before attempting to install the gas
burner.
INSTALLING THE FRAME
NOTE: Before starting preparations for installing the frame, the position of the unit should be planned. Do not start
any installation until the complete manual has been studied. Special attention should be paid to:
•Clearance distances.
•Routing of gas supply pipes.
An example of a typical installation into a bricked platform is used to explain all installation requirements. The same
distances and guidelines apply to all other installation layouts.
STEP 1
Prepare the structure to allow for a cavity of at least the dimensions specified in the table below:
Length Width Depth
Minimum 910 300 200
Maximum 970 330 N/A
The structure into which the unit is installed must be equipped with an air opening to supply fresh air to the base of
the burner. A minimum opening of at least 2cm3must be provided. (E.g. a round hole of Ø50mm)
FAILING TO PROVIDE A FRESH AIR OPENING TO THE BASE OF
THE BURNER WILL RESULT IN THE BURNER PRODUCING TOXIC
FUMES INTO THE ROOM.

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 7
Revision 02 @ 04/09
STEP 2
Centrally locate the frame, into the hole provided. It is recommended that clear silicone be used to glue the frame
onto the surface. This will allow for removal of the frame at a later stage, without damaging of the surface or the
frame.
NOTE: The Infra red sensor for this unit is located at one of the short sides of the burner. This should be located at
the same side as the electronic control board. It is thus important to make sure that the tray is placed with the
control module on the side that would be best suited to have the IR sensor.
THE GAS CONNECTION
STEP 1
The gas supply line must now be connected to the appliance. The following components must be connected as
illustrated below:
•8mm copper pipe to the valve inlet
•In line test point to the 8mm copper pipe
•The 8mm copper pipe which is the gas supply line to the unit.
After connecting the gas supply line, a leakage test must be performed. It is the responsibility of the gas installer to
ensure that a leak testing method, suitable for the specific installation is being used.
NOTE: Before commissioning, gas leaks can be detected only between the supply point and the inlet to the
appliance. Once the appliance is operational, and additional check must be done for leaks inside the appliance.

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 8
Revision 02 @ 04/09

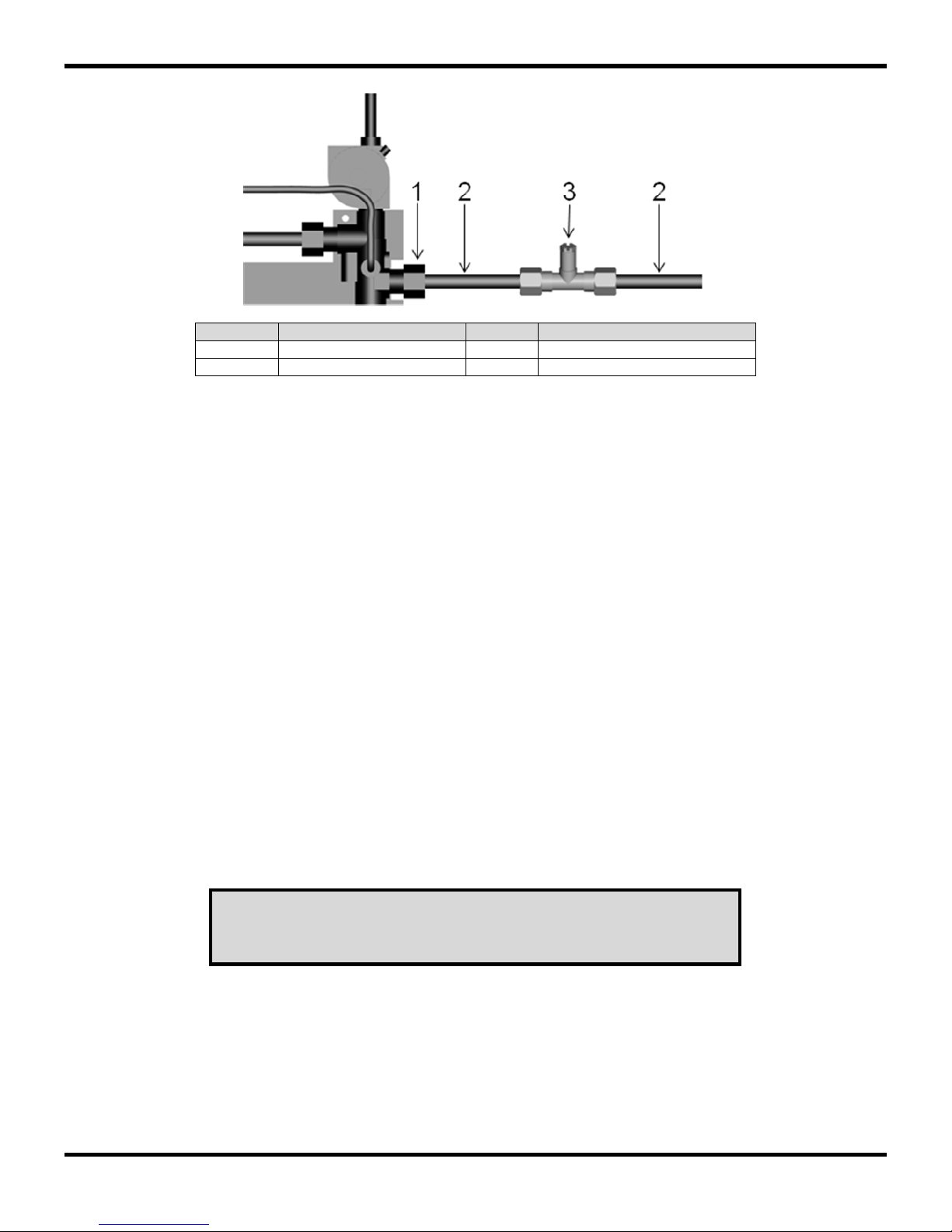

Item Description Item Description
1 Valve inlet connection 2 8mm Copper pipe
3 In line test point
STEP 2
Before fitting the rest of the components, it is advisable to verify that the unit functions acceptable.

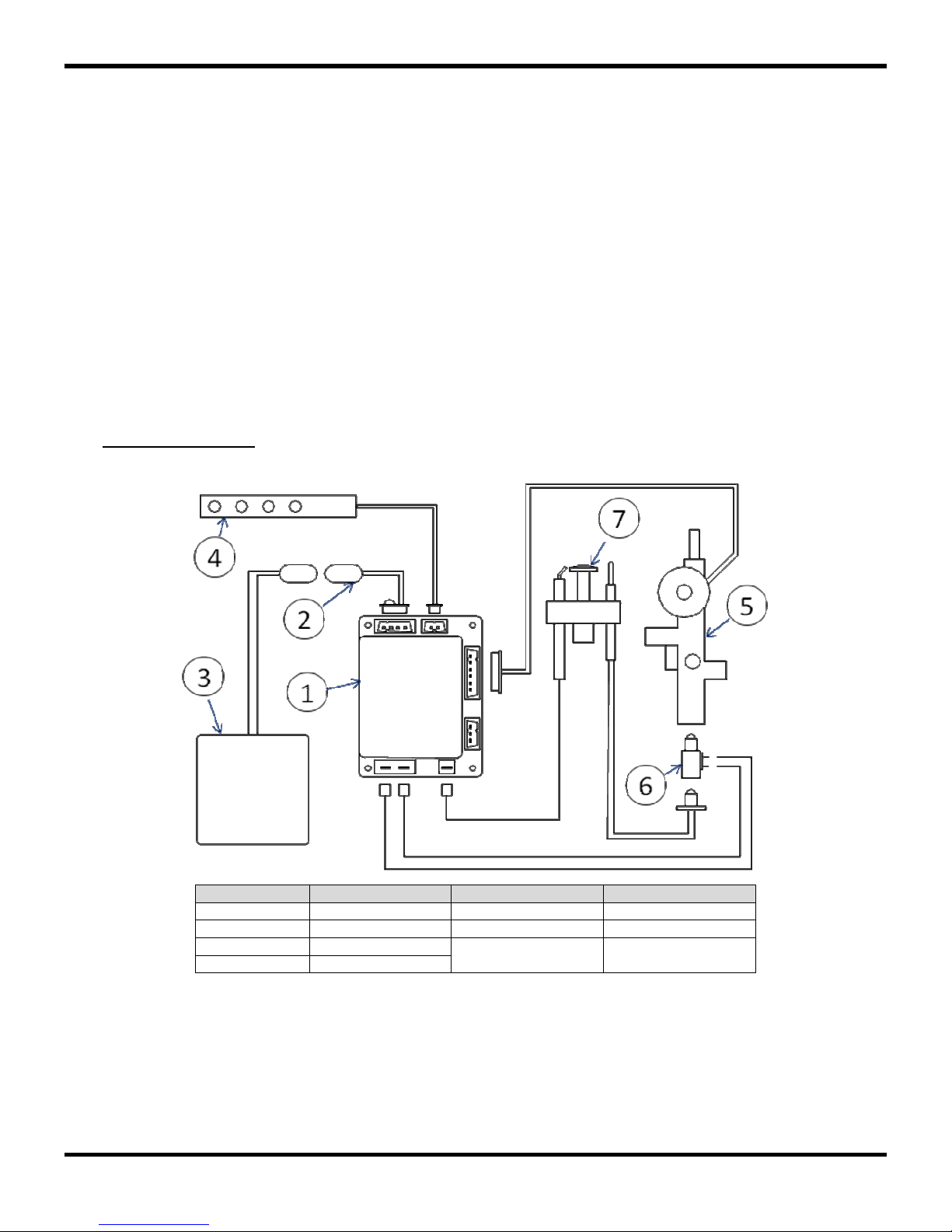

Connect all electronic components as indicated in the wiring diagram.
The battery for the unit must be placed on top of the bracket holding the control module.
NOTE: For initial tests the IR sensor will have to be placed some ware accessible to establish a line of sight
between the sensor and the remote control handset.
Air can be purged from the gas supply line, by temporarily removing the sealing screw of the test point fitted before
the gas valve.
Thereafter follow the following steps:
•Connect a pressure gauge (manometer) to the inlet test point
•Switch on the burner (on initial ignition the process might have to be repeated before all air is purged from
the burner itself)
•Check for gas leaks on all the joints of the burner itself.
•Set the burner to its maximum flame setting.
•Verify that the inlet gas pressure is 2.8 kPa while the unit operates on maximum flame setting.
•If necessary make adjustments to the gas supply until the 2.8 kPa is maintained at maximum flame setting.
•Switch off burner.
NOTE: At this stage of the installation the flame pattern will be different from the final flame. Flames that lift
drastically from the burner tube are normal at this stage.
THE BURNER TUBE AND OTHER COMPONENTS MIGHT
BECOME VERY HOT DURING THIS PHASE. DO NOT TOUCH
WITH BEAR HANDS

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 9
Revision 02 @ 04/09
FITTING FINISHING COMPONENTS
STEP 1
The top cover can now be fitted over the steel frame.
First connect the Infra Red sensor (IR Sensor) to the outer cover. The connection point is on the inside of one of
the short sides of the top cover.
Lift the spring loaded clip, and slide the sensor into place. The raised section of the sensor must be located in the
cut-out section in the cover, with the spring loaded clip, holding it in place.
Viewed from outside
Viewed from inside

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 10
Revision 02 @ 04/09
Now, drop the cover over the steel frame.
The inner flanges of the cover must be located on the outside of the steel ribs of the frame,
Secure the top cover in place using M4 bolts and nuts.
STEP 2
The base of the burner must be covered with the V-Board panels provided. These panels can simply be dropped in
place so that it rests on the ribs of the steel frame.
Locating ridges are provided on the steel ribs of the frame to control the exact distance between the front and back
v-board panels. It is important to ensure that the panels does not protrude over there ridges.

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 11
Revision 02 @ 04/09
STEP 7

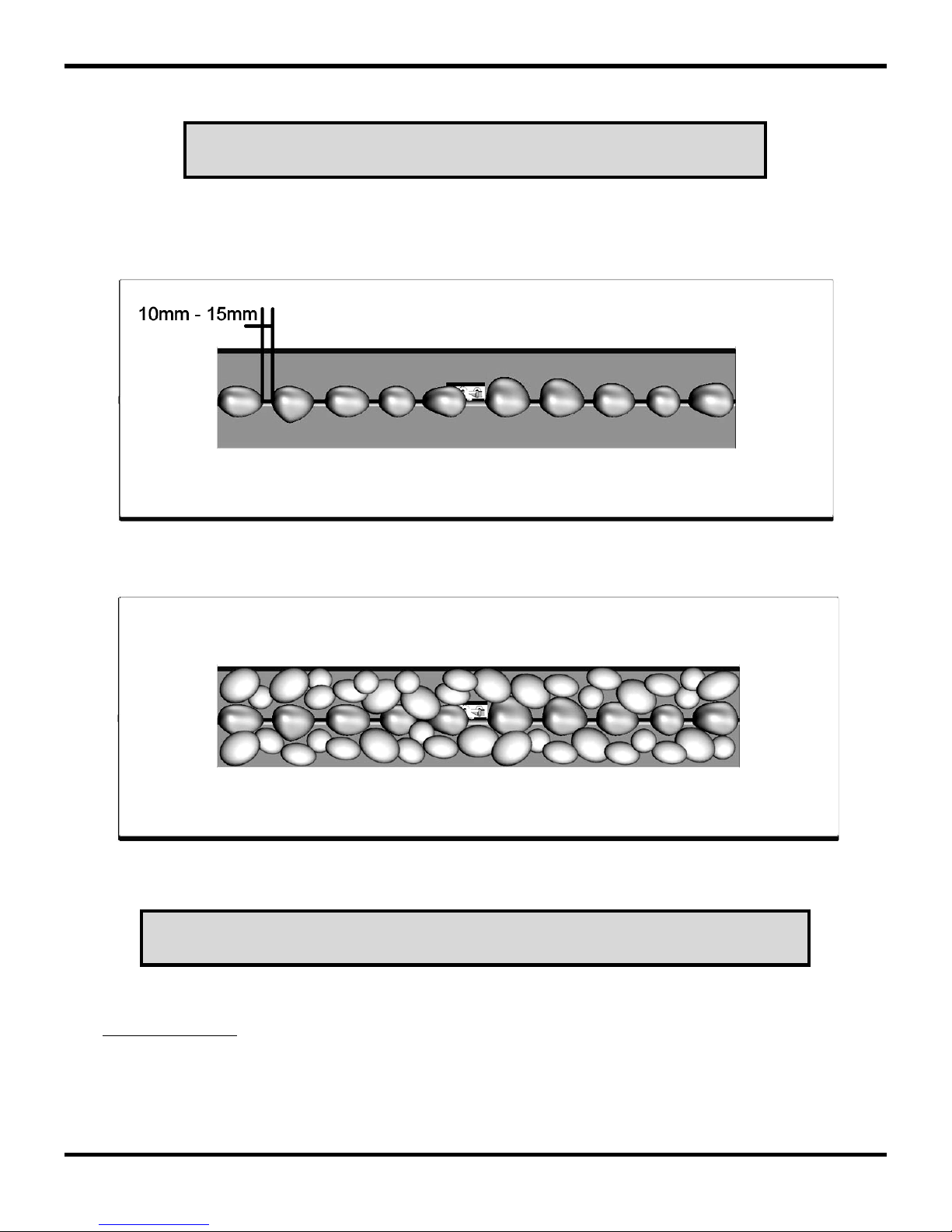

Place a row of pebbles directly above the burner opening between the front and back V-board panels. These
pebbles must be spaced 10mm – 15mm apart. Pay attention to the pebbles placed in front of the pilot flame, so
that the pilot flame will not be obstructed by any pebble.
Now cover the rest of the panels with pebbles in a visually acceptable manner.
NOTE: The pebbles must always remain on one level only. Do not place any pebble on top of any other pebble,
except for the edges of the fray where flames cannot reach.
COMMISIONING
At this stage of the installation the unit have already been tested for any gas leaks and for the correct dynamic gas
supply pressure to the unit. Should there be any doubt about leaks or the supply pressure, remove all pebbles, &
V-Board panels and repeat the checks as described in this manual.
INCORRECT PEBBLE PLACEMENT WILL RESULT IN
UNACCEPTABLE AND POTENTIALLY DANGEROUS CONDITIONS.
NEVER SUBSTITUTE THE PEBBLES, GLASS OR GRA
NULAR VERMICULITE
WITH ANYTHING OTHER THAN WHAT IS SUPPLIED BY JETMASTER

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 12
Revision 02 @ 04/09
The final phase of the installation is to verify the flame pattern, and to confirm that the unit functions correctly.
Switch on the unit and monitor the flame pattern.
Now that the pebbles are fitted, the flame pattern will be different from before. Stable flames should extend through
the openings between the pebbles on the central row of pebbles.
If soot is forming on any pebble, it can be moved away from the impinging flame slightly, to reduce soot.
Verify that the unit functions properly while switching between all settings being:
•ON
•OFF
•High Flame
•Low Flame
•Stand Bye.
NOTE: The “FAULT FINDING” guide in this manual provides guidance on how to address any doubtful flame
patterns.
WIRING DIAGRAM
Item Description Item Description
1 Control module 2 Power cable
3 Battery 7.2V 4 Wall control panel
5 Control valve 6 Thermocouple
interrupt
7 Pilot assembly

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 13
Revision 02 @ 04/09
OPERATION INSTRUCTIONS
GENERAL
Whenever a gas smell is detected, follow the following steps:
•Switch the unit OFF.
•Switch off the gas supply to the unit
•Consult the fault finding guide in this manual
Refer to the following diagram of the controls for this unit:
TURNING ON
Push and hold both the on/off (a) and pilot (b) buttons on the remote. The buttons must be held for at least 3
seconds until the control module sounds a beep.
The unit will do the following:
•The gas valve opens, and closes
•The sparks are generated at the pilot flame.
•As soon as the flame is detected, the sparks stop and there is a short stabilisation period.
•The valve is opened to the maximum open setting.
NOTE: If any problems or malfunction is detected by the system, it will shut off the gas supply.
This function can also be achieved by pressing the ON/OFF button (e) on the switch panel
If a gas smell is detected either when the unit is OFF or ON,
action must be taken immediately

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 14
Revision 02 @ 04/09
SETTING BURNER SIZE
Press and release (+- 1 s) the max flame button (c). The valve will open fully for maximum flame
Press and release (+- 1 s) the min flame button (d). The valve will reduce to the minimum flame setting.
Press and hold the max flame button (c). The valve will start to open with small increments. The valve will stop
adjusting as soon as the button is release.
Press and hold the min flame button (d). The valve will start close with small increments. The valve will stop
adjusting as soon as the button is release.
These functions can also be achieved by pressing the max (g) and min (h) buttons on the switch panel
SWITCHING TO STAND-BYE (pilot burner only)
This option can be used if you wish to switch off the burner temporarily. Switching on thereafter will be faster than
switching on from start.
Push the pilot button (b) on the remote, or the pilot button (f) on the switch panel.
SWITCHING OFF
Push the on/off button (a) on the remote or the on/off button (e) on the switch panel.
MAINTENANCE
SCHEDULED MAINTENANCE
It is recommended that the unit be inspected annually. It is advisable to do this inspection shortly before the winter
season.
During this inspection the following should be checked:
•Check for gas leaks in the supply line and on the burner itself.
•Ensure that granular vermiculate is not clogged or restricted with dust. (Replace if necessary)
•Ensure that coal layout is correct.
•Remove excess dust from the unit.
•Check soundness of spark cable. Verify that the spark is generated on the pilot unit.

Installation & Operation manual of Jetmaster Vent Free Drop In Fireplace
Page 15
Revision 02 @ 04/09
FAULT FINDING
The following table lists typical symptoms and supply the actions to be taken. Should these actions not resolve the
problem then a Jetmaster service technician must be consulted.
SYMPTOM
ACTION TO BE TAKEN
Gas smell •Immediately close the gas supply to the unit.
•Contact a service technician
Unit does not ignite after several
spark attempts
•Check that gas supply is open.
•Ensure that gas supply line has been purged from air in line.
•If problem persist, contact service technician.
No spark is generated when unit is
switched ON.
•Ensure that the igniter cable is connected tightly to the pilot burner
•Ensure that the igniter cable does not make contact with metal
surfaces. This could lead to a spark at a wrong point.
Flame does not travel to either end
of the burner tray.
•Check that the DYNAMIC gas supply pressure is correct, while the
burner is operating.
•Check that the granular vermiculite is not compressed in lumps that
do not allow flame travel. Loosen vermiculite and replace.
Flame is weak or;
Very high flame
•Check that the DYNAMIC gas supply pressure is correct, while the
burner is operating.
Pilot switching off during operation
(The main burner will also be
extinguished)
•Immediately close main gas supply and turn control knob to the off
position.
•Immediately open doors and windows to allow fresh air into the
room.
•Before re-igniting verify that all permanent ventilation openings in the
room is open and free from obstruction.
•If problem persist, do not use, and contact a service technician.
The unit burns back.
(The flame burns at the bottom of
the tray. The flame will typically
make an audible noise)
•Immediately close main gas supply and turn control knob to the off
position.
•Allow 5min for gas to dissipate and ignite again.
•If problem persist, remove all vermiculite, glass & pebbles, and re
pack as described in this manual.
•If problem persist, contact service technician.
WARRANTEE
Jetmaster warrants that the burner and controls will be free from defects in workmanship or materials under normal
use and service for a period of one year from the invoiced date of purchase.
Jetmaster warrants that the firebox will be free from defects in workmanship or materials under normal use and
service for a period of ten years from the invoiced date of purchase.
This warranty is only effective if:
•At the time of the claim the then owner of the Burner or firebox produces documentary evidence to prove
the date of purchase e.g. The original or a true copy of the invoice.
•The warranty card was fully completed and returned to Jetmaster by mail or by fax within 30 days of
purchase.
•A registered installer installed the Burner.
•No unauthorised adjustments have been made to the burner.
•The installation, operation and maintenance of the Burner or firebox was, in the opinion of Jetmaster,
carried out in accordance with the installation and Operating Instructions current at the time of purchase.
When a valid claim arises under this warranty, Jetmaster will, at its sole option, either repair or replace the Burner
or firebox
Under no circumstances will Jetmaster be liable for any consequential loss or damage or injury arising out of, or in
connection with the use or operation of the Burner or firebox, resulting from the failure to follow the Installation and
Operating Instructions, or from a breach of the Warranty conditions.
