Jetmaster Universal 500 User manual

IMPORTANT:
Ensure allowance made for firebox to sit on Finished Floor Protector Level
ALL INSTRUCTIONS TO COMPLY WITH AS/NZS2918:2001
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these instructions
may result in a fire hazard and will void the warranty.
THE JETMASTER UNIT IS TO BE INSTALLED BY A CERTIFIED FIREPLACE INSTALLER OR AN APPROVED
NZHHA INSTALLATION TECHNICIAN.
See www.homeheat.co.nz/members for a Certified NZHHA SFAIT installer in your area.
The flue system must be cleaned every 12 months.
ALERT: For Outdoor Jetmaster fires into timber framing, please refer to The Fireplace for recess
allowances and provision for the Stainless Steel Weather Cover.
Fig. 1
Hebel Block
Margin Lintel
Hebel Block
Margin Leg
Floor Protector
min. 75mm thick Hebel Block for wooden floor
(see Table 4 for Floor Protector dimensions)
min. 100mm thickness required for poured
concrete
min. 200mm over
internal opening
Timber Framing
Air Vents required for cavity
ventilation - connect to
outdoor where possible
Lintel Bar where
necessary
Heat Shield
OPTIONAL
Bird proof netting over the top &
down sides. Cut penetration for
flue pipe
Due to continued product improvement, The Fireplace Ltd reserves the right to change product specifications without prior notification
Vents for
Air Replacement
Please check to ensure you have the latest installation instructions
TYPICAL JETMASTER IN-BUILT TIMBER FRAME INSTALLATION INSTRUCTIONS
- WOOD -
7/2013
5.TW.1A

MODEL A B C
500U 960 *1200 525
600U 960 *1200 525
700 LOW/SH 960 1200 525
700D 960 1200 525
850L 1110 1200 560
1050LL 1310 1350 610
1200 1500 1620 785
1500 1800 1620 810
(*) Measurement may be reduced on request if needed. Please consult The Fireplace Ltd or your nearest agent.
Please note that these dimensions (based on Hebel Block margins) are the absolute minimum sizes - widths (A & C)
maybe increased if desired.
It is important to ensure the Jetmaster firebox is seated on top of the finished floor protector level.
Gather
D
E
C
A
A1
B
F
A2
Y
Front Back
Gather
MODEL A A1 A2 B C D E F Y Off-set
Gather
500 500 600 550 350 650 200/300 200 630 325** -
600 600 700 650 350 650 200/300 200 630 330** -
700 SH 700 800 750 350 650 200/300 200 630 340** -
700 SH L 700 800 750 350 600 200/300 200 580 340** -
700 D 700 800 750 400 700 225/325 200 680 295 395
850 L 850 950 900 450 700 250/350 220 680 322 422
1050 LL 1050 1150 1100 500 700 300/400 240 680 345 445
1200 * 1200 1300 1250 600 1020 400/500 400 1000 435 -
1500 * 1500 1600 1550 600 1020 450/550 410 1000 435 -
B
AC
Table 1
Table 2
Fig. 2 Fig. 3
Fig. 4
* Refer to separate detail drawing
** Standard Offset Gather required
Air
Vents
All front
nogs
to be
installed
on edge

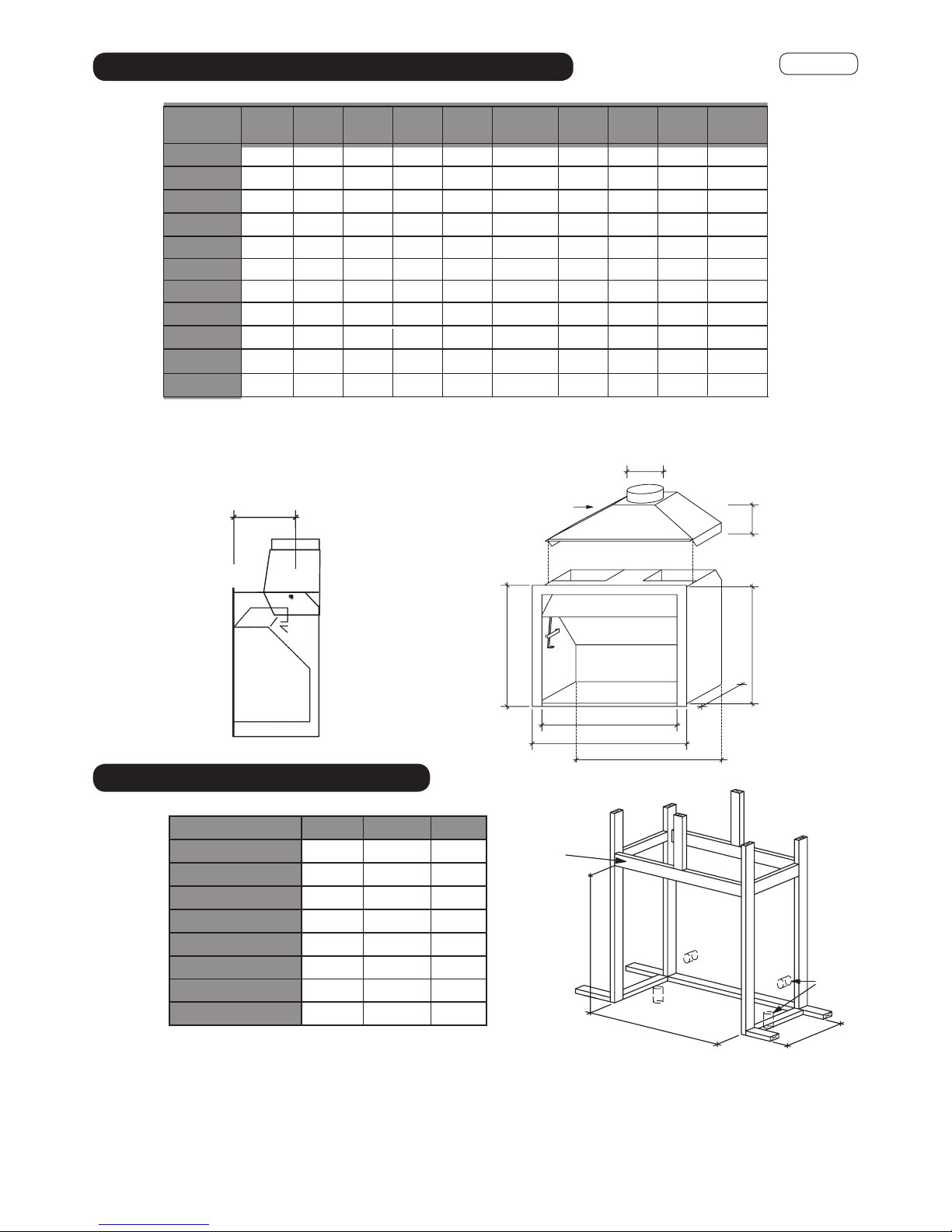

TRIM OUT DIMENSIONS
JETMASTER WOOD BOX DIMENSIONS 5.TW.1B
850 U850 950 900 450 750250/350 220 680 322 422
1050 U1050 1150 1100 500 800 300/400 240 680 345 445

All Hebel Block margins have been made to fit firebox timber frame trim out dimensions (see Table 2).
Suggested method to cut Hebel Block - skill saw fitted with masonry blade.
Under no circumstance is the width of the vertical margin legs to be less than 90mm and the height of the
margin lintel to be less than 300mm (see Fig 5).
Where an internal wall board finish is required around the fire, ensure allowance is made to place non-combustible
internal wall lining (eg: Promina, Supalux, Eterpan) to cover the extent of the Hebel panel surround (shown shaded).
Directly touching the firebox with any board or plaster finish will cause cracking from heat expansion. Allow 2mm
minimum space away from the firebox.
Jetmaster
Fig. 5
Fig. 6 Fig. 7
Margin Lintel
min 300mm
Timber Framing
75mm min Hebel Block or
100mm Concrete
Note: Ensure allowance
made for firebox to sit
on top of finished Floor
Protector level
Margin leg to be no less than
90mm wide
Fix with 3
rivets vertically
Frame Stud Hebel Block
Fix with 3
rivets vertically
Adjust to suit
rivet fix
Bond Hebel Block together using appropriate adhesive eg: Gorilla Grip or
similar (non-solvent based) & secure with screws for added strength
Securing Flaps
25mm Clearance Tabs
Cold Air
Hot Air
METAL HEAT SHIELD
MARGIN SET 5.TW.1C
Non Combustible Board

1. All dimensions shown for the framing trim out and metal heat shields, are based on a maximum frontal clearance
between the timber framing and the rear of the firebox fascia, being not more than 15mm.
2. Locate floor protector in trim out cavity. If on a concrete floor, suggest a mortar screed to the underside of the floor
protector. If on a wooden floor, screw or dynabolt in place.
3. Locate stud openings on both sides.
4. Position and ensure a strip of glass rock wool insulation is between the inner hebel leg face and the firebox. Nail
through stud into hebel leg to secure in place.
5. Locate and position firebox, fit and seal gather in cavity (refer to Cross Section). Earthquake restraints may be
positioned by drilling through firebox into the floor protector, in a position midway beneath the log-pan. Two 12mm
dynabolts or similar will suffice. Do not over tighten and deform firebox.
6. Attach rock wool to the sides & back of the firebox and gather. DO NOT BLOCK OFF the air entry between the inner
flue pipe and flue pipe casing or the air circulation between the vent holes in the cavity.
7. Once the flue system is installed, place a minimum 300mm hebel block over the top of the firebox (see Fig. 8).
Ensure the hebel block does not rest on top of the firebox. A Lintel Bar may be required.
100
Y
min
75
25
25
B
Refer to the minimum framing dimensions as per table 2. Allow a temporary lintel height (see table 2 ‘B’) from the
finished floor protector level until the firebox and flue system is installed. Install front nogs on edge to increase chimney
chase dimension.
Ensure suitable air vents (2 x 80mm diameter or equivalent) in place to vent firebox space - these maybe located in the
floor or in the side wall space. Ensure vents must be bird and vermin proofed.
Note: Wood Installations can be converted to Gas at a later date. or have a gas ignition system fitted. Consider running
a gas supply to firebox cavity at the time of construction.
Fig.8
Flue Pipe Casing
S/S Flue Pipe
Heat Shield
Rock Wool
Insulation
min 25mm from flue pipe casing to combustible material
Note: All external air vents
& ceiling penetrations must
be bird & rodent proofed
with permanently fixed
screens
Gib Board
Hebel Block
Non combustible material
(Promina, Eterpan LD, Supalux)
Lintel Bar
Rock Wool insulation
(see Table 2)
Secure the firebox with 2 x
12mm Dynabolts in a midway
position beneath the log pan
Maintain the air intake
unobstructed
Rebate to suit tiles or other non com-
bustible material on Floor Protector
Floor Protector
see Table 4
It is important to ensure the Jetmaster firebox is seated at the
required finished Floor Protector level
min 2 x 80mm dia
or equal square or
rectangle shaped air
vents to be wall or
floor mounted
Drawing Not To Scale

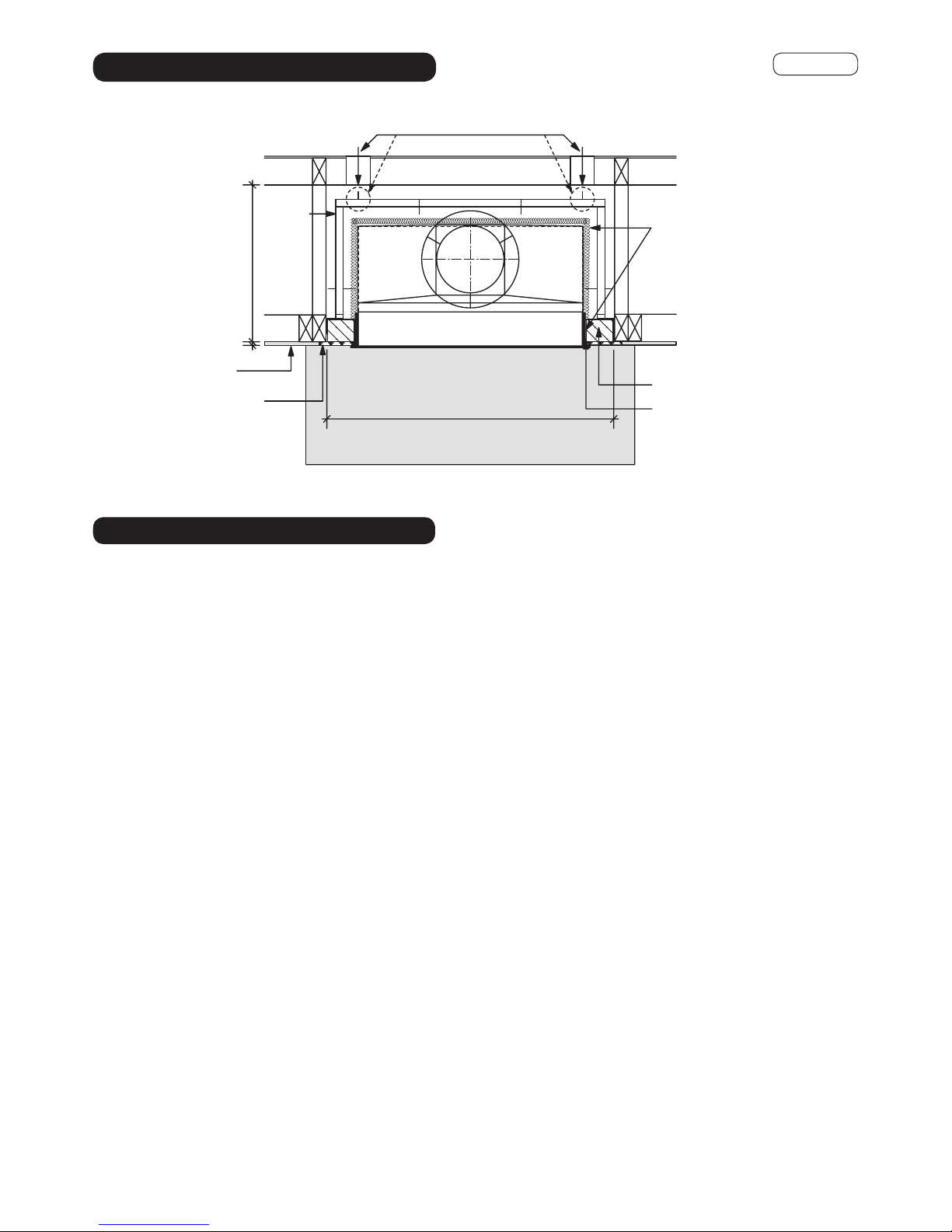

CROSS SECTION
FIREBOX INSTALLATION
CAVITY / FRAMING PREPARATION 5.TW.1D

1. Install first length of flue pipe crimped end down, inside gather collar. Rivet flue pipe in 3 places around gather collar.
Place bottom flue spider bracket around gather flue pipe collar, secure in position by tightening up coach bolt/screw
(supplied).
2. Install second length of the flue pipe crimped end down and fix by riveting in at least 3 places around the flue pipe
joint.
3. Install first length of the flue pipe casing by positioning on installed bottom flue spider bracket crimped end up.
4. Position flue spacer at the flue pipe joint.
5. Repeat steps 1 - 4 to the required flue height. As per AS/NZS2918:2001 4.9.1
a. “the flue pipe shall extend not less than 4.6m above the top floor protector”.
b. “the minimum height of the flue system within 3m distance from the highest point of the roof shall be
600mm above that point”.
c. “the minimum height of a flue system further than 3m from the highest point of the roof shall be” a minimum
“1000mm above roof penetration”.
d. “no part of any building lies in or above a circular area described by a horizontal radius of 3m about the flue
system exit”.
6. The last length of flue pipe needs to extend past the flue pipe casing by at least 150mm or flush with the top of
the casing cover spigot when fitted - sizing/measuring and cutting down should be carried out prior to the flue pipe
casing being fitted over the flue pipe.
7. Before fitting casing cover, place the spider in opposition with the spider post facing down between the flue pipe
and flue pipe casing. Secure spider in position. Place the casing cover over the flue pipe, press down firmly onto
the spider. Check airway around the casing cover is clear, then secure in position using three stainless steel rivets.
8. Fit cowl to top of flue - DO NOT RIVET IN POSITION. In high wind areas, it is recommended that the cowl be
secured in position with a stainless steel self tapping screw, this will enable the cowl to be removed for cleaning.
Discuss Bird Proofing needs with your installer. N.B. in extreme wind areas it may be necessary to consult The
Fireplace Ltd or your local agent for further technical assistance Ph: 0800 843 3473.
9. If flue is concealed in a chase, allow for air vents (2 x 80mm diam. or equivalent) at the highest possible point on the
chimney chase or alternatively, allow a min 25mm air space between the casing cover spigot and the outer casing.
Refer to Figure 12, 13, 14.
Floor Protector
A
C
Fig. 9
Rock wool insulation
(glue rock wool using fire
cement to the firebox &
gather)
Hebel Block
Inner Leg Face
Gib Board
Non combustible material
(Promina, Eterpan LD,
Supalux)
Heat
Shield
(see Table 2)
(see Table 2)
min 2 x 80mm dia or equal square or rectangle
shape area wall or floor mounted air vents
Drawing Not To Scale
FLUE INSTALLATION
PLAN 5.TW.1E

min 2 x 80mm diam. or equal square or rectangle shaped
air vents to be wall or floor mounted
Heat Shield
Hebel Block
Gib Board
Maximum 100mm recess
Floor Protector (refer to Table 4)
A1 (refer to Table 1) + 200mm + plaster or
Non Combustible lining
Rock Wool
Insulation
(Glue rock wool
using fire cement
to the firebox &
gather)
C+ recess value
(refer to Table 2)
A (refer to Table 2)
Non Combustible material
(Promina, Eterpan LD or
Supalux)
100
min
75
2525
Flue Pipe Casing
S/S Flue Pipe
Heat Shield
Rock Wool
Insulation
(Glue rock wool
using fire cement
to the firebox &
gather)
Hebel Block
Gib Board
Non Combustible material
(Promina, Eterpan LD or
Supalux)
Maximum 100mm recess
Secure firebox with 2 x12mm
dynabolts for earthquake
retraints
Maintain the air intake
unobstructed
Floor Protector
Fig. 10
Fig. 11
B (see Table 2)
Note: All external air vents & ceiling penetrations must
be bird & rodent proofed with permanently fixed screen
Rebate to suit tiles or other non
combustible material on Floor
Protector
It is important to ensure the Jetmaster firebox is seated at the
required finished Floor Protector level
see Table 4
min 25mm from flue pipe casing to combustible material
Note: Fig. 10 & Fig. 11 refers to installations where the firebox is recessed. Maximum recess = 100mm
Drawing Not To ScaleDrawing Not To Scale
Optional
Finishing:
Stone, Brick,
Plaster on
Brick
min 2 x 80mm dia
or equal square or
rectangle shaped air
vents to be wall or
floor mounted
CROSS SECTION - RECESS DETAIL
PLAN - RECESS DETAIL 5.TW.1F

Projection (mm)
50 25
25
Air Ventilation Through Chimney Chase Air Ventilation Through Top Flashing
Drawings Not To Scale
Air Vent
min 2 x 80mm diam. or equal square or rectangle shaped area
Non combustible material
Hebel Block or
12 mm Promina board
or similar under the flashing
Oversized casing cover
is necessary
150 mm
minimum
150 mm
minimum
Spigot flashing to suit
flue pipe casing
Note: All external air vents & ceiling penetrations must be bird & rodent proofed with permanently fixed screens
Drip
Line Drip
Line
Projection (mm)
flue pipe
flue pipe casing
25
25
Fig. 12
Typical Cowl
Casing Cover
Air Gap
Top Spider
Approved
Flashing
Air
Vents
min 2 x 80mm dia
or equal square or
rectangle shaped
area
min 25mm gap between flue
pipe casing & combustible
surface

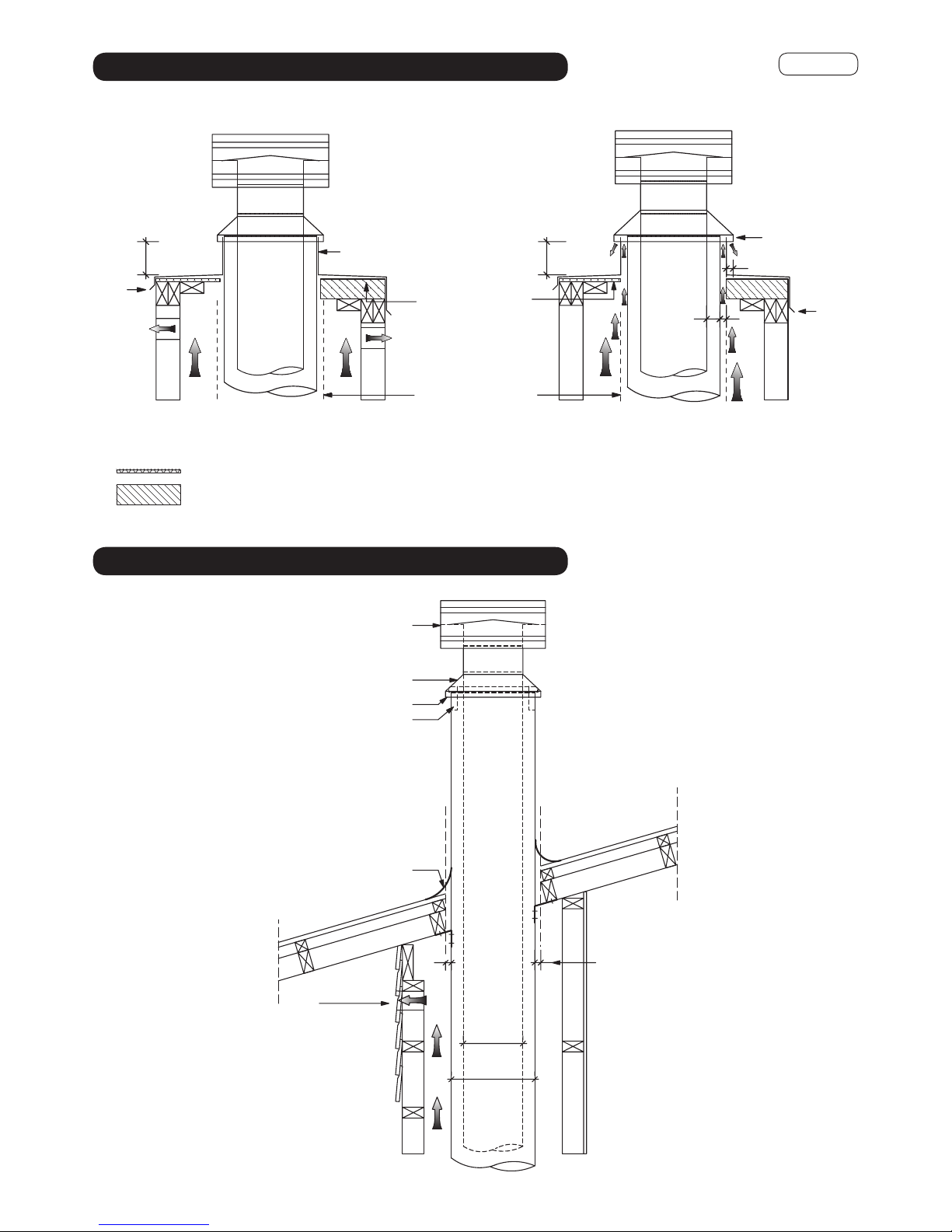

EXTERNAL REQUIREMENTS
Refer to AS/NZS2918:2001; 4.9.1
Note: All external air vents &
ceiling penetrations must be bird
& rodent proofed with permanently
fixed screens
Drawing Not To Scale
Minimum 25mm gap between
flue pipe casing
& combustible surface
Hebel Block
Promina Board or similar
Fig. 13
Fig. 14
FLUE PENETRATION
CHIMNEY CHASE AIR VENTILATION 5.TW.1G

X
Y
X
Y
Flue Pipe
Min. 25mm Clearance
Min. 25mm Clearance
Flue Pipe Casing
Fig. 16
MODEL FLUE SYSTEM MINIMUM TRIM OUT DIMENSION
X (min) Y (min)
500 - 700 SH/SH L 200/300 350 350
700 D 225/325 375 375
850L 250/350 400 400
1050LL 300/400 450 450
1200 400/500 550 550
1500 450/550 600 600
Table 3
Note: A minimum 25mm clearance from flue pipe casing to combustible material must be maintained.
A Minimum clearance of 200mm above Heat Shield must be maintained.
Dimensions in mm
3000
or less
3000
More than 3000
600 min.
3000
Any nearby structure
increase from 1000mm
minimum until clear within
3000mm of flue top
increase as necessary
until nothing within
3000mm of flue top
Fig. 15
MINIMUM HEIGHT OF FLUE SYSTEM EXIT
As per AS/NZS 2918:2001 4.9.1 Fig 4.9
CHIMNEY CHASE MINIMUM TRIM OUT
5.TW.1H

MODEL A B C *
500U 900 300 75
600U 1000 300 75
700 SH 1100 400 75
700 SH Low 1100 400 75
700D 1100 400 75
850 Low 1250 450 75
1050 Low Low 1450 600 75
1200 1600 750 75
1500 1900 850 75
A
B
C
Dimensions in mm
Table 4
Fig. 17
* A minimum 75mm thickness refers only to Hebel Block.
Minimum 100mm thickness required if poured concrete.
MODEL MINIMUM VENT SIZE (x2)
Square Design (L x H) Rectangle Design (L x H)
500 - 700 100 x 100 200 x 50
850 125 x 125 250 x 50
1050 150 x 150 250 x 100
1200 175 x 175 350 x 100
1500 200 x 200 400 x 100
A
B
C
D
C
B
A
Dimensions in mm
Table 5

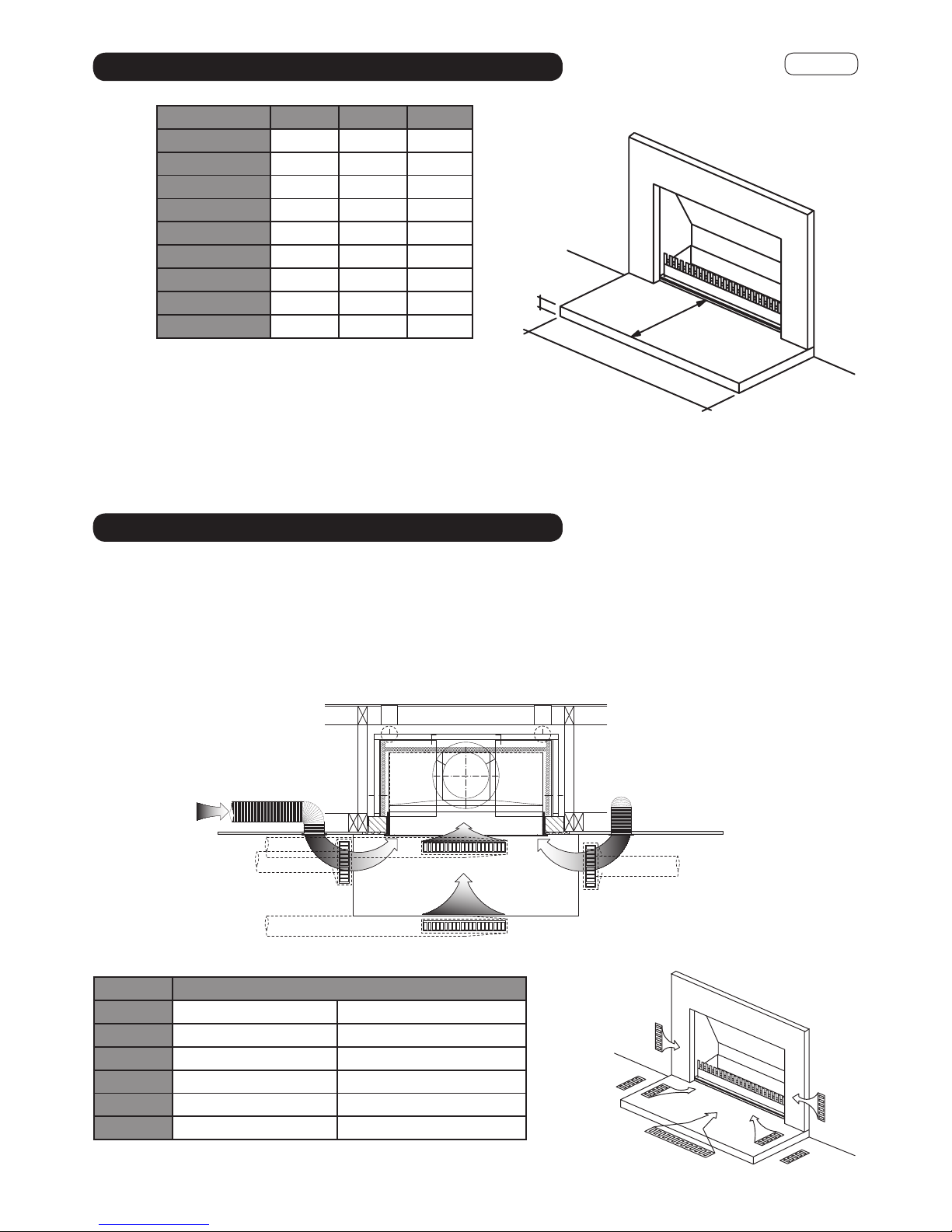

The Fireplace Ltd specifies that allowances MUST be made for air replacement vents to be located near the fireplace,
to aid combustion and reduce the incidence of back venting. Refer below for air vent sizing and suggested location.
Fig. 19 - Location points A,B,C,D are suggested combinations. A minimum of one pair of air vents is recommended
or one large vent, as per location point D. Allowance to be made for minimum 2 inlet ducts from outside to internal vent
location.
Note: DO NOT USE FIREPLACE CAVITY VENTILATION AS A METHOD OF AIR REPLACEMENT.
Note: Table 5 dimensions are internal dimensions only, does not include vent flange
Fig. 18
MINIMUM FLOOR PROTECTOR SIZE
AIR REPLACEMENT PREPARATION
5.TW.1I
(from the outside through the side wall)
Floor Protector
(from the outside through the floor)
Air Replacement Ducts
Fig. 19

0
25
45
50
90
100 150
170
200 250 300
350
100
200
300
400
500
230
320
380
425
460
483
X
Y

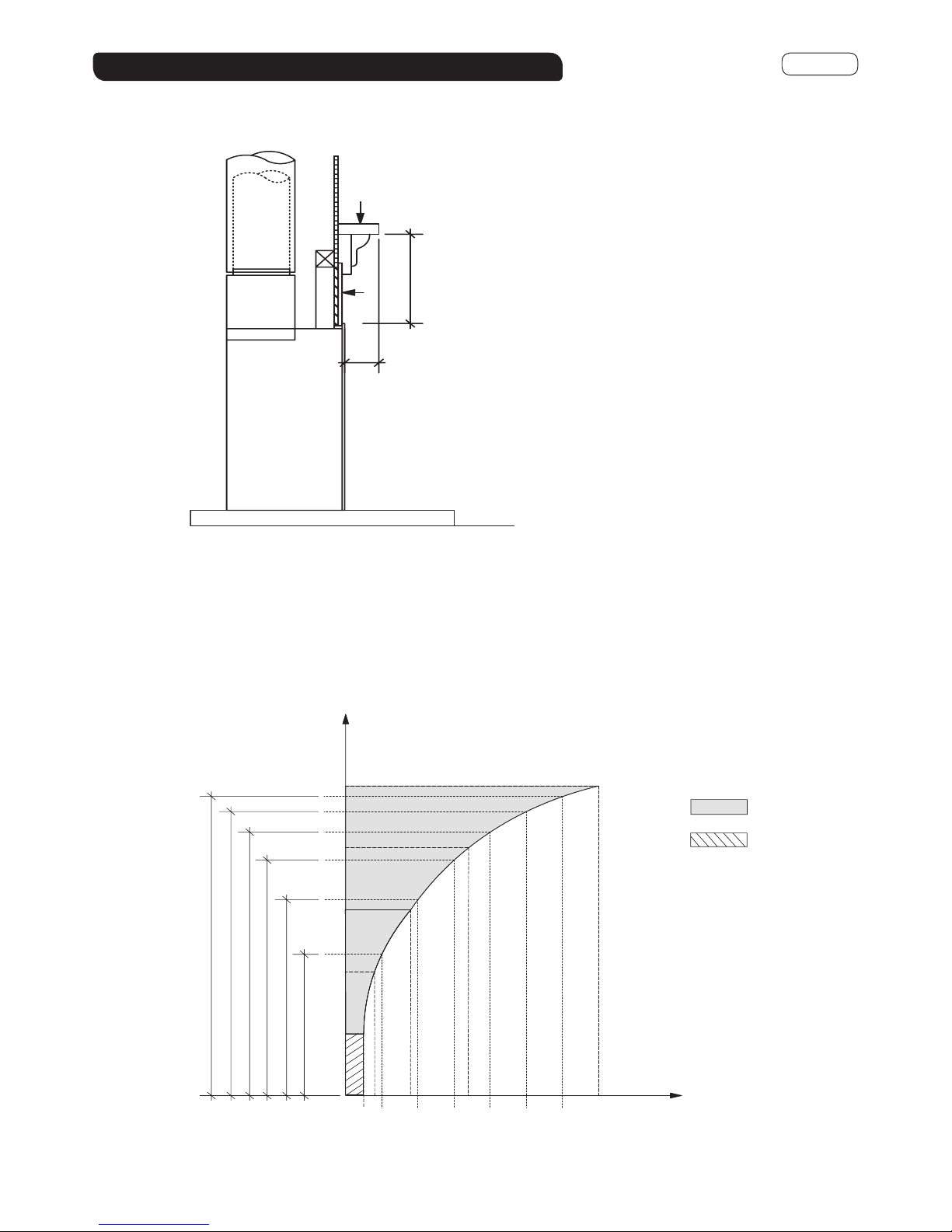

Mantel / Surround projection from wall
Top Clearance (mm)
Height from top of firebox to underside of mantel/surround
Fig. 21
If you are using a decorative surround constructed of combustible material, it must be located within the shaded area
defined in Fig. 21
Projection (mm)
Combustible
Materials
Non-Combustible
Materials
X
Y
1
23
4
5
6
Notes:
1. Mantel / Surround
2. Tile or margin facing (non combustible material)
3. Hebel Block
4. Firebox
5. Gather
6. Flue
X See Fig. 21
Y See Fig. 21
Fig. 20
Drawing Not To Scale
CLEARANCE TO COMBUSTIBLE MANTELS 5.TW.1J
Drawing Not To Scale

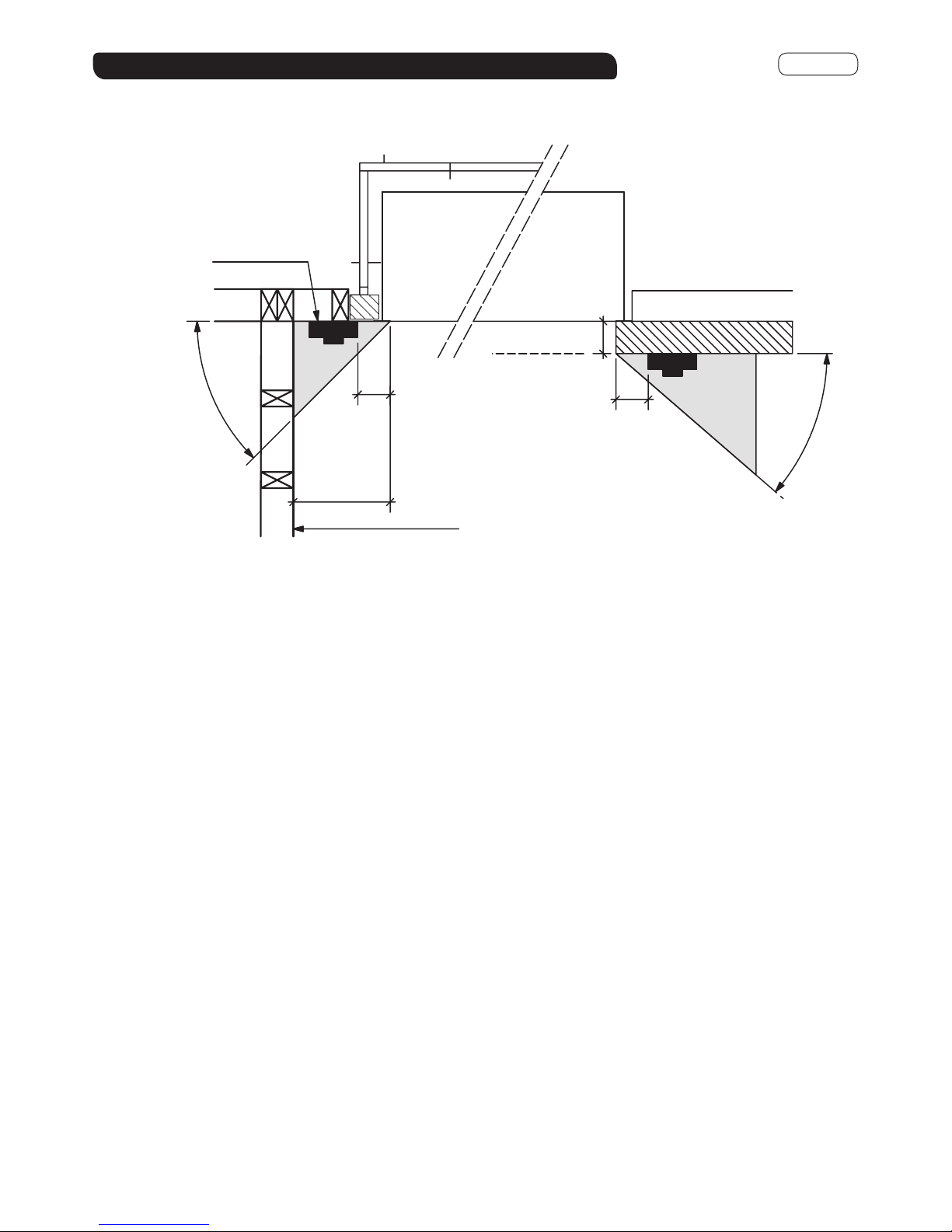

Note: Adjacent combustible side walls must be located a minimum of 300mm from the fireplace opening.
min 300
100
min
100
min
max. recess = 100mm
45°
Surround Leg Jetmaster Firebox
Fig. 22
Drawing Not To Scale
Combustible Side Wall
40°
CLEARANCE TO COMBUSTIBLE MANTELS (cont.) 5.TW.1K

AS/NZS2918:2001 GENERAL NOTES
WARNINGS:
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS2918
AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR
MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT IN HAZARDOUS CONDITIONS.
WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST
INSTANCE.
CAUTIONS: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES, MAY RENDER
THE INSTALLATION UNSAFE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: WHEN OPERATING THIS APPLIANCE AS AN OPEN FIRE USE A FIRE SCREEN.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH
THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE
HAZARDOUS.
CAUTION: IF INSTALLED IN A COMMERCIAL SETTING A SACRFICIAL PLATE MUST BE FITTED TO THE BACK OF
THE FIRE TO COMPLY WITH JM FIREBOX WARRANTY CONDITIONS.
5.TW.1L
Head Office & Showroom
12 Tawari St, Mt Eden, Auckland
Ph: 09 623 6990
thefireplace.co.nz
