JETWAY HM-1000 Series User manual

HM-1000 Series User Manual
NO. G03-HM1000-F
Revision: 2.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 PRODUCT FEATURES...............................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 MAIN BOARD DIAGRAM ...........................................................................................4
CHAPTER 2 HARDWARE INSTALLATION
2-1 LOCATION OF INTERNAL JUMPER AND CONNECTOR .......................................6
2-2 INTERNAL JUMPER AND CONNECTOR SETTING.................................................7
2-2-1 CONNECTORS .............................................................................................8
2-2-2 HEADERS .....................................................................................................10
CHAPTER3HARDWARE EXPANSION
3-1 EXPANSION SLOT.....................................................................................................13
3-2 EXTENSION SLOT .....................................................................................................14
CHAPTER 4 INTRODUCING BIOS
4-1 ENTERING SETUP .....................................................................................................15
4-2 BIOS MENU SCREEN ................................................................................................16
4-3 FUNCTION KEYS .......................................................................................................16
4-4 GETTING HELP ..........................................................................................................17
4-5 MEMU BARS...............................................................................................................17
4-6 MAIN MENU................................................................................................................18
4-7 ADVANCED MENU.....................................................................................................19
4-8 CHIPSET MENU..........................................................................................................24
4-9 BOOT MENU...............................................................................................................28
4-10 SECURITY MENU.......................................................................................................30
4-11 TURBOOC MENU.......................................................................................................31
4-12 SAVE & EXIT MENU...................................................................................................34
TABLE OF CONTENT

iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition October 1, 2019
Item Checklist
Motherboard
Cable(s)
I/O Back panel shield

1
Chapter 1: Introduction
1-1 Product Features
Intel® LGA 1150 Socket Core i7/i5/i3 Processor (Max 54W)
Onboard 4G DDR3L/1600Mhz DRAM (Max 8GB)
2 x Intel® i211AT 10/100/1000Base-T Ethernet
2 x RS-232/422/485 ports with automatic flow control
VGA,HDMI,DP support 3 x independent displays
Audio with MIC, Line in, Line out
6 x USB ports (4 x USB3.0)
1 x PCI-E x16 slot, 2 x PCI slots, 1 x extend slot
The extend slot can be used to extend 14 x USB3.0 or 4 x Giga LAN or other
functional interfaces
Thumb screw for easy maintenance and expansion card installation
The lead switch is convenient for the actual field operation
9~36V wide input voltage can meet the needs of different industries

2
1-2 Specification
Spec
Description
CPU
Intel®LGA 1150 Socket Core i7/i5/i3 Processor (Max 54W)
Intel® Haswell Q87 chip (HM-1000) / Intel® Haswell H81
chip (HM-1100)
Memory
1* DDR3L SO-DIMM slot
Support DDR3L 4GB DDR3L/1600 MHz SDRAM, expandable to
8GB
Expansion Slot
1* Full-size Mini-PCIE slot
Storage
1* built-in 2.5” SATA HDD bracket
LAN Chip
2* Intel® i211AT GbE
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip
Realtek ALC662 HD Audio Codec integrated
Audio driver and utility included
BIOS
AMI 64MB Flash ROM
Rear I/O
1* 3 Pin power connector, terminal Block with lock
2* RS-232/422/485 with DB9 connectors, automatic RS-
485 data
flow control
1* DP 1.2 support 1920 x 1080@60Hz
1* HDMI 1.4a support 1920 x 1080@60Hz
1* VGA support 1920 x 1200@60Hz
1* PS/2 Keyboard & Mouse port
4* USB3.0, 2* USB2.0 ports
2* RJ45, 10/100/1000 Mbps
1* MIC, Line-in, Line-out port

1* Power Button, 1* Reset Button
Internal I/O
1* USB 2.0 header
1* CPU / Chassis Fan connectors
1* 2-pin HDMI header

1* Audio header

3
1* Mini PCIe connector
1* PCIe x16 connector
1* M.2 Connector(2260/80)
2* SATA3 Connector
1* AT_ATX Mode header
1* Front panel header

1* SIM Card socket

4
1-3 Main Board Diagram: Front
Intel CPU
9~36V
DC-in
Connector
Top:
DP
Bottom:
HDMI
Top:
PS/2 Connector
Middle/Bottom:
USB 2.0 Ports
Top:
RJ-45
LAN Port2
Middle/Bottom:
USB3.0 Ports
Top: Line-In
Middle: Line-Out
Bottom: MIC
Power
ON/OFF
CPUFAN Header
Top:
COM1
Bottom:
COM2
Top:
RJ-45
LAN Port1
Middle/Bottom:
USB3.0 Ports
VGA
Connector
SYSFAN1 Header
JW_FP Header
AT_ATX_MODE
Header
F_USB1 Header
HDMI_SPDIF
Header
FP_AUDIO Header
SIM Card Socket

5
Main Board Diagram: Back
Mini PCIe
Connector
M.2
Connector
SATA3
Connector
PCIe
Connector

6
Chapter 2
Hardware Installation
2-1 Location of Internal Jumper and Connector
Intel CPU
9~36V
DC-in
Connector
Top:
DisplayPort
Bottom:
HDMI
Top:
PS/2 Connector
Middle/Bottom:
USB 2.0 Ports
Top:
RJ-45
LAN Port2
Middle/Bottom:
USB3.0 Ports
Top: Line-In
Middle: Line-Out
Bottom: MIC
Power
ON/OFF
CPUFAN Header
Top:
COM1
Bottom:
COM2
Top:
RJ-45
LAN Port1
Middle/Bottom:
USB3.0 Ports
VGA
Connector
SYSFAN1 Header
JW_FP Header
F_USB1 Header
HDMI_SPDIF
Header
FP_AUDIO Header
SIM Card Socket
JP1
AT_ATX_MODE
JBAT

7
2-2 Internal Jumper and Connector Setting

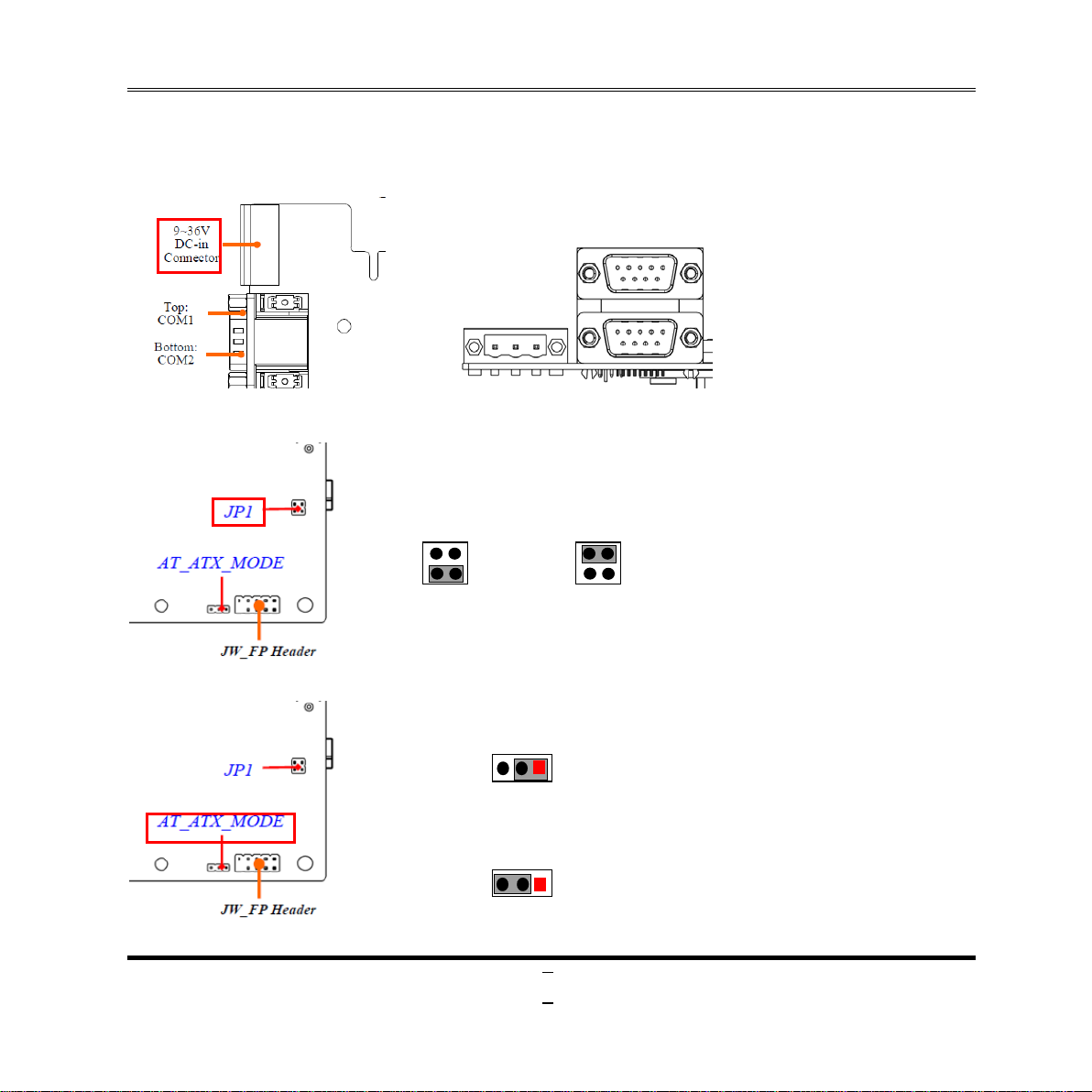

(1) DCIN936 (3-pin): 9~36V Power Select
(2) JP1 (4-pin): COSE_OPEN and PWROK_DISABLED Select
3-4 PWROK_DISABLED.
1-2 COSE_OPEN;
3
4
2
1
3
4
2
1
(3) AT_ATX_MODE (3-pin): AT/ATX Mode Select
V+
V-
GND
2-3 Close: AT_Mode.
1-2 Close: ATX_Mode (Default);
3
1
3
1
*ATX Mode Selected
: Press
power button to power on after
power input ready;
AT Mode Selected: Directly
power on as power input ready.

8
(4) FPW_SW (2-pin): Power ON/OFF Select
2-2-1 Connectors
(1) Rear I/O Connectors
Icon Name Function
9~36V DC-in P
ower
Co
nnector
For user to connect compatible power
adapter to provide power supply for the
system.
COM1
Blue:Line-IN
Green:
Line-OUT
Pink:MIC
9~36V
DC-in
Connector
PS/2
HDMI
VGA
GND
FP SPSW
COM2
USB 3.0
Port
DP
USB 2.0
Port
RJ-45
LAN
1 Port
RJ-45
LAN
2 Port
Power
ON/OFF

9
Serial Port Mainly for user to connect external MODEM
or other devices that supports
Serial Communications Interface.
DP To the system to corresponding display
device with compatible DP cable.
(Max. resolution Support : 1920*1080
@60
Hz)
HDMI Port To connect display device that support HDMI
specification.
(Max. resolution Support : 1920*1080
@60Hz)
PS/2 Port Keyboard and Mouse port.
USB 2.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification.
RJ-45 LAN Port This connector is standard RJ-45
LAN jack
for Network connection.
USB 3.0 Port To
connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 ports supports up to
5Gbps data
transfer rate.
RJ-45 LAN Port This connector is standard RJ-45
LAN jack
for Network connection.
Audio Connectors
BLUE : Line-in Connector
GREEN : Line-out Connector
PINK : MIC Connector

10
VGA Port T
o connect display device that support VGA
specification.
Power ON/OFF To select power ON and OFF.
2-2-2 Headers

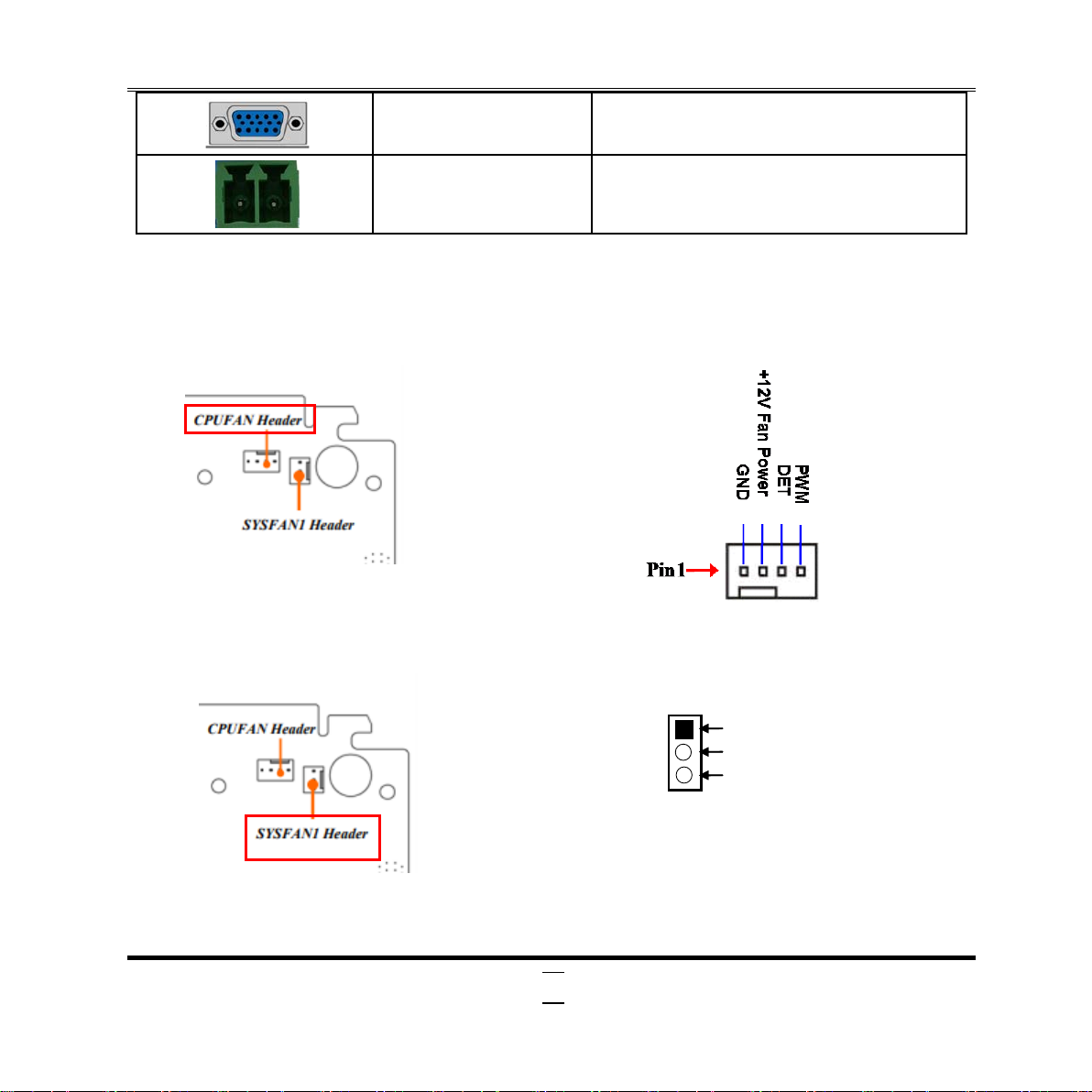

(1) CPUFAN (4-pin): CPUFAN Header
(2) SYSFAN1 (3-pin): System Fan Header
1
SYS FAN1
3
Fan Clock
+12V Fan Power
GND

11
(3) JW_FP1 (9-pin): Front Panel Header
GND
HDD LED
-
GND
RSSET-
PWRSW-
VCC
PWR LED+
PWR LED-
HDD LED+
Pin 1
(4) F_USB1 (9-pin): USB Port Header
Pin 1
SBV1
L_USBP7-
GND
L_USBP7+
SBV1
NC
L_USBP6-
GND
L_USBP6+
Pin 2

12
(5) HDMI_SPDIF (2-pin): HDMI-SPDIF Out header
Pin1
SPDIF
GND
(6) FP_AUDIO (10-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Pin 1
MIC2-L
LINEOUT2-L
MIC2-R
LINEOUUT2-R
SENSE_B
GND
NC
AUD_JD
2
9
10
NC

13
Chapter 3
Hardware Expansion

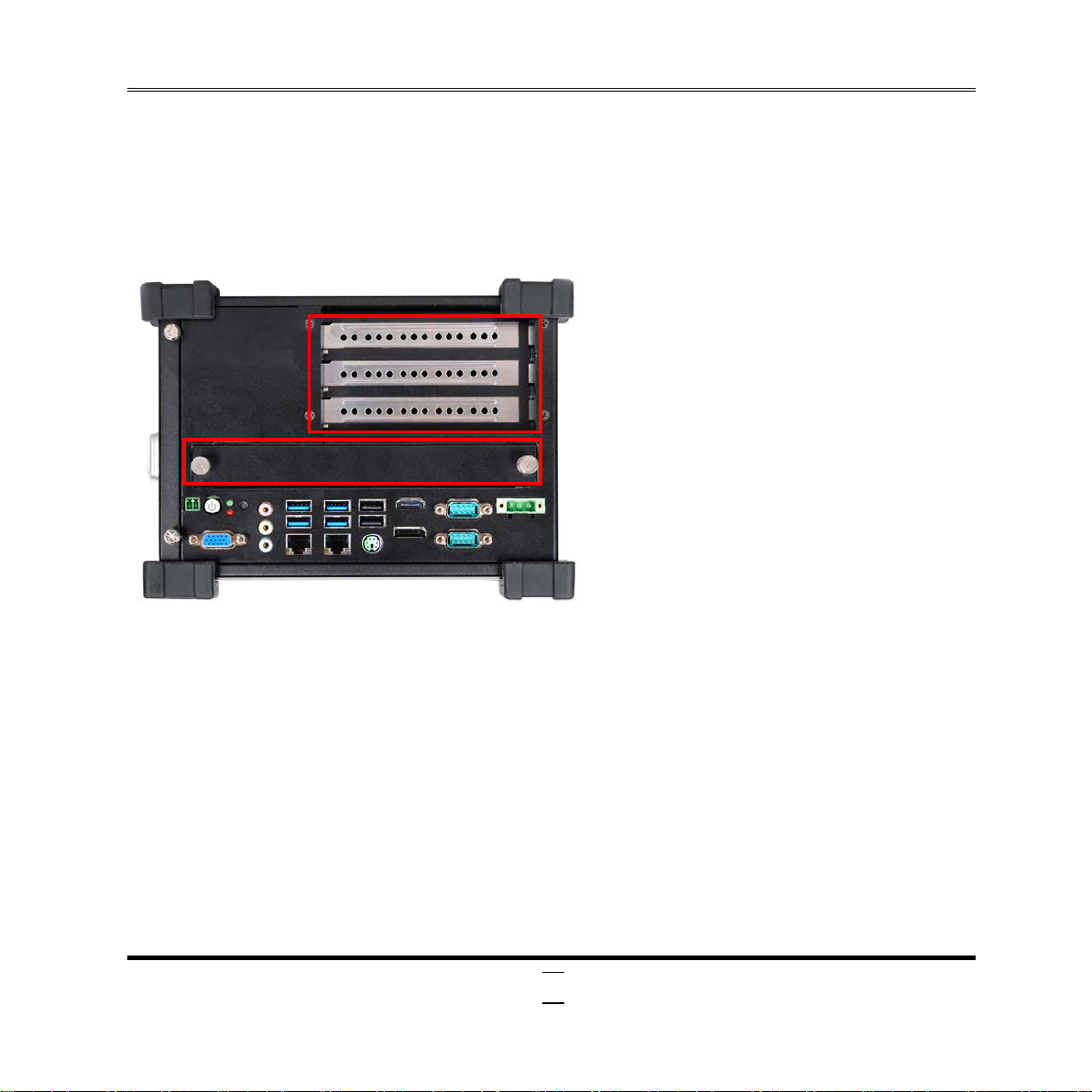

3-1 Expansion Slot
HM-1000 series offer 4* PCIex1 and 2 * COM expansion slots.
Expansion Slot 1
Expansion Slot 2
Expansion Slot 3
Expansion Slot 4

14
3-2 Extension Slot
HM-1000 series offer 1* PCIex16, 2 * PCI and 1 * USB2.0 extension slots.
1 * USB2.0
1 * PCIex16
2 * PCI

15
Chapter 4
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS screens
in manuals are usually the first BIOS version when the board is released
and may be different from your purchased motherboard. Users are
welcome to download the latest BIOS version form our official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test called
POST (power on self test) for all the necessary hardware, it detects the entire hardware
device and configures the parameters of the hardware synchronization. Only when
these tasks are completed done it gives up control of the computer to operating system
(OS). Since the BIOS is the only channel for hardware and software to communicate, it
is the key factor for system stability, and in ensuring that your system performance as
its best.
4-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press <Del> to enter Setup
