Jikel MARS User manual

USER MANUAL
Carseat
MARS
IMPORTANT
Retain for Future Reference & Read Carefully
www.jikelbaby.com

1
User Instruction
Warning
Please read this instruction and the relative part of your vehicle manual. Please follow this instruc-
tion while installiing and using this baby car seat. Not following this instruction may lead to a sever
injury or death to your child. Please keep this instruction in safety place in case of future reading.
Notice
1. This is a"Universal" children restraint system (CRS) which is approved to ECE Regulation
No.44/04 series of amendments and GB27887-2011，for general use in vehicles and it will
fit most,but not all，car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that
the vehicle capable of accepting a "Universal" child restraint for this age group.
3. This child restraint has been classified as "Universal" under more stringent conditions than
those which applied to earlier designs which do not carry this notice.
4. If in doubt，consult either the child restraint manufacturer or the retailer.
Note: this manual is only for reference,please prevail in kind!

2
Content
1 Application scope 03
2 Using note 03
3 Part List 06
4 Baby car seat assembling and functions 07
5.Usage of Group 1 Installed 08
5.1 Belt installation 09
5.2 Fixation of Group I Children 10
5.3 Fixation of 5-point harness 10
6.Usage of Group 2 - 3 Installed 12
7.Usage of Group 3 Installed 13
8.Maintainance 14
8.1 Attention 14
8.2 Cover cleaning 14
8.3 Removal of the fabric cover 14
8.4 Installation of the fabric cover 15

3
Warning
● Please read this instruction very carefully before using this car seat.Not following this
instruction may leads to a injury to your baby.
● Using car seat correctly is very important to your baby.
● Please keep the instruction and collection bag well of convenience in the future.
● Do not leave your baby alone in this baby safety seat in your car.
● Installeing to a seat of your car which has a SRS system is forbidden..
1. Application scope
Certificated by ECE R44/04 and GB27887-2011, this baby safety seat is applicable for Group 1-2-3.
2.Using note
Certification
● This baby safety seat is designed and tested with the European Children Ristraint System standard
(ECE R44/04) and the Chinese Children Ristraint System standard (GB27887-2011). The certification
stamp E mark (in the round circle) with approval number.
● Any modification of this seat by you will lead to invalidity of the certification. Nobody is authorized to
modify baby safety seat unless thebaby safety seat manufacturer.
Baby safety Seat
Mars
Group
1-2-3
Range of baby weight
9-36kg

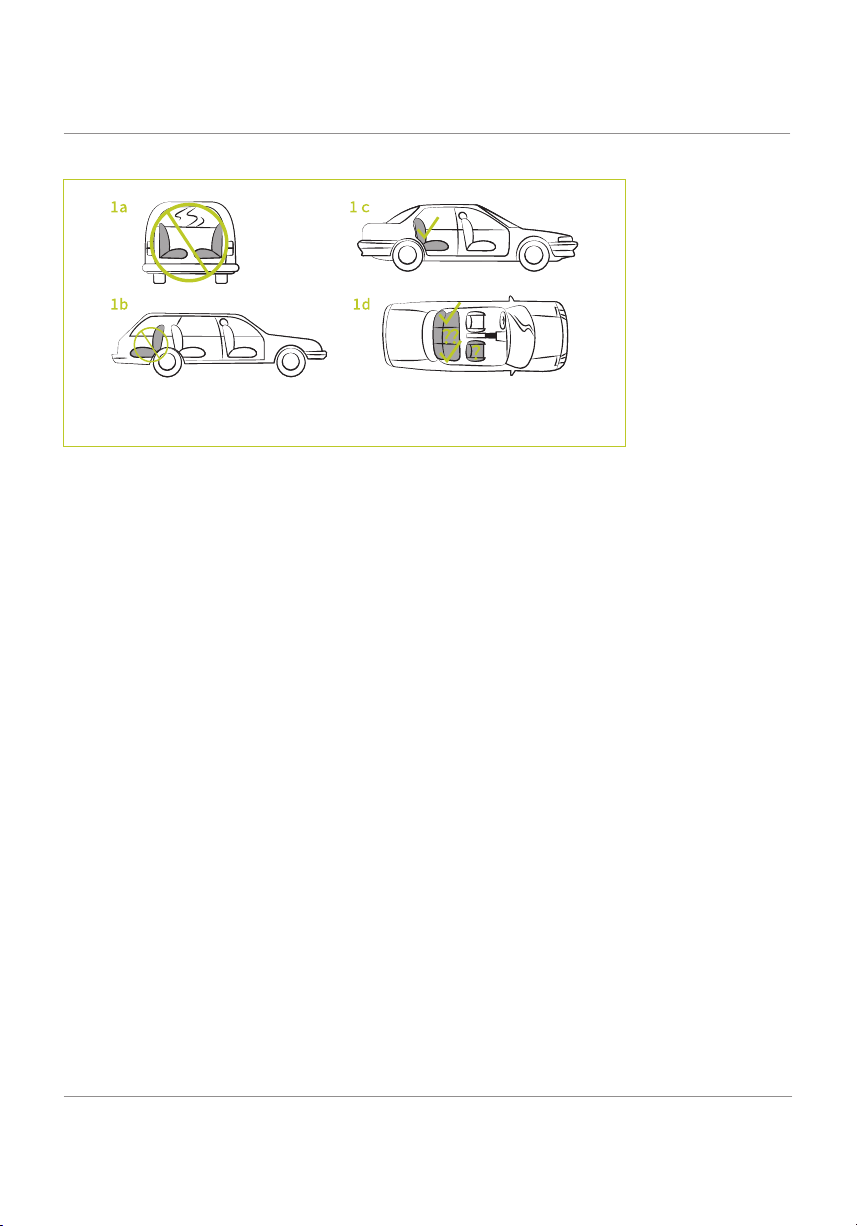

●DO NOT use this seat on side-facing or rear-facing car seats(image 1a,1b).Only applicable for
front-facing car seats.Crash statistic shows that children are safer in back row seats.(image 1c,1d)
● Do not use this car seat in seating positions where an active frontal airbag installed,better
install to the back seat of the car.
● Only suitable if the approved vehicles are fitted with 3 point safety-belts with retractor,
approved to UN/ECE Regulation Np.16 or other equivalent standards.
● After crash accident, the damage of the the baby car seat may not be found instantly, but it is
not safe any more, therefore, please change a new one.
● The car seat must be fixed well, even there is no baby in the car, because it may hurt other
passengers in case of crash or a sudden brake.
● Do not use any lubricant to the moving parts of the car seat.
● Do not use the car seat without cloth cover. Please return the cloth cover to the original state
after leaning.
● Do not refit the car seat, because it will change the safety performance of the carseat.
● Do not expose the car seat to burning sun, the metal and plastic parts of the car seat may be
brning hot. Please check the temperature of the car seat before fixing baby to avoid hurting baby.
Also burning sun may fake the color.
● Please tell your baby not to play with the buckle.
? optional：Only applicable for seat with no airbags（1d）.
?? optional：Only applicable for seats with 3-point safety belt (1d).
4

● 2-point car belt is forbidden to fix your baby.
● Please install the car seat and parts correctly according to the User Instruction, to ensure car
seat not stuck by the door or seat of car.
● Belt should be installed correctly, ensure the belt be in the pelvis.
● No twine or twisting of the belts.
● Car seat must be changed after strong crash.
● Car seat without our certification and user instruction or refitted is very dangerous.
● Do not leave baby alone on the car seat.
● Luggage and other items should be properly placed after car crash.
● Car seat without cloth cover cannot be used, cloth cover not provided by manufacturer cannot
be used, it influences the performance of car seat.
● Force bearing point unmarked cannot be used when installing, any doubt please contact
manufacturer or the ratailer.
5
Danger

1-Headrest
2- Central adjuster button
3- Shoulder pad
4- safety belt
5- Buckle
6- Crotch pad
7- car seat belt guide groove
8- Central adjuster button
9- adjusted belt
10- Headrest adjuster
11- Upper elastic strap
12- Polypropylene shoulder
strap mounting clamp
13- Strap connecting plate
6

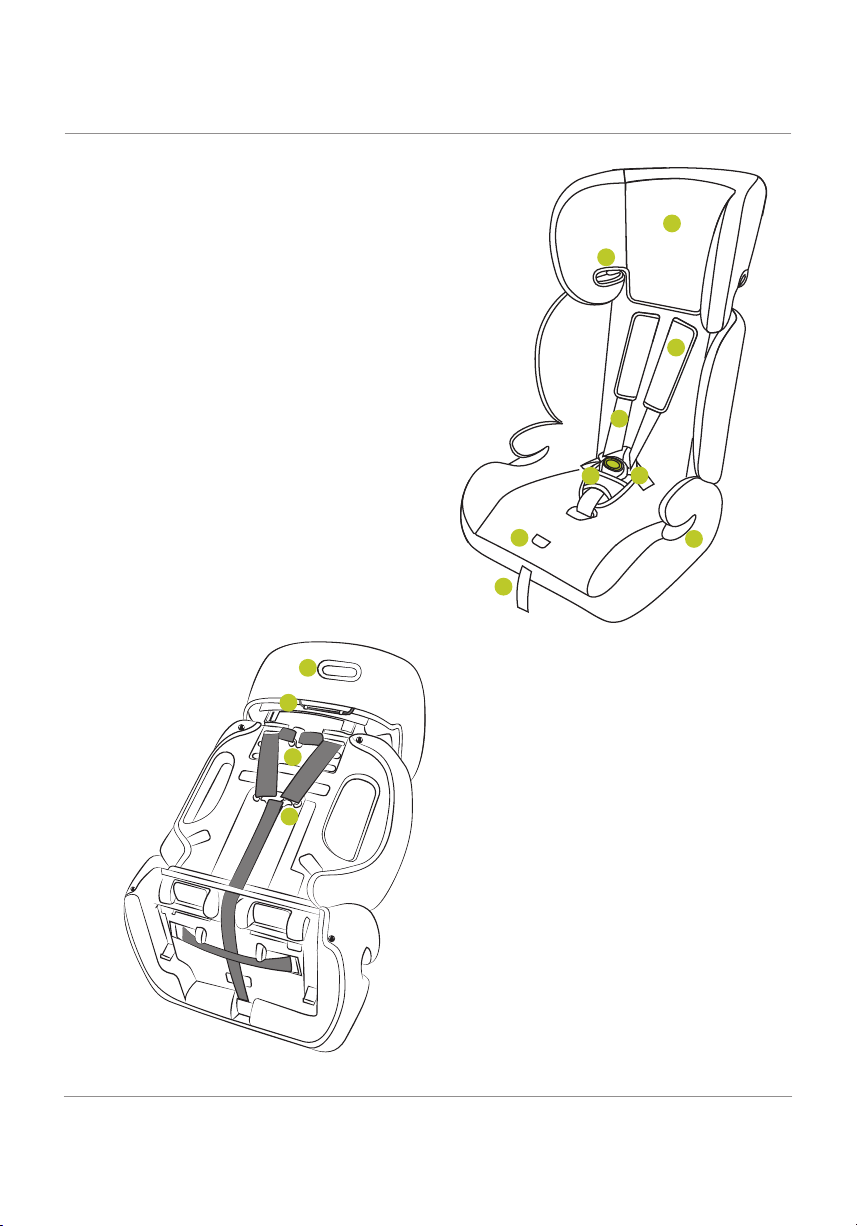

3.Part List
10
11
12
13
1
3
2
7
8
9
4
5
6

7

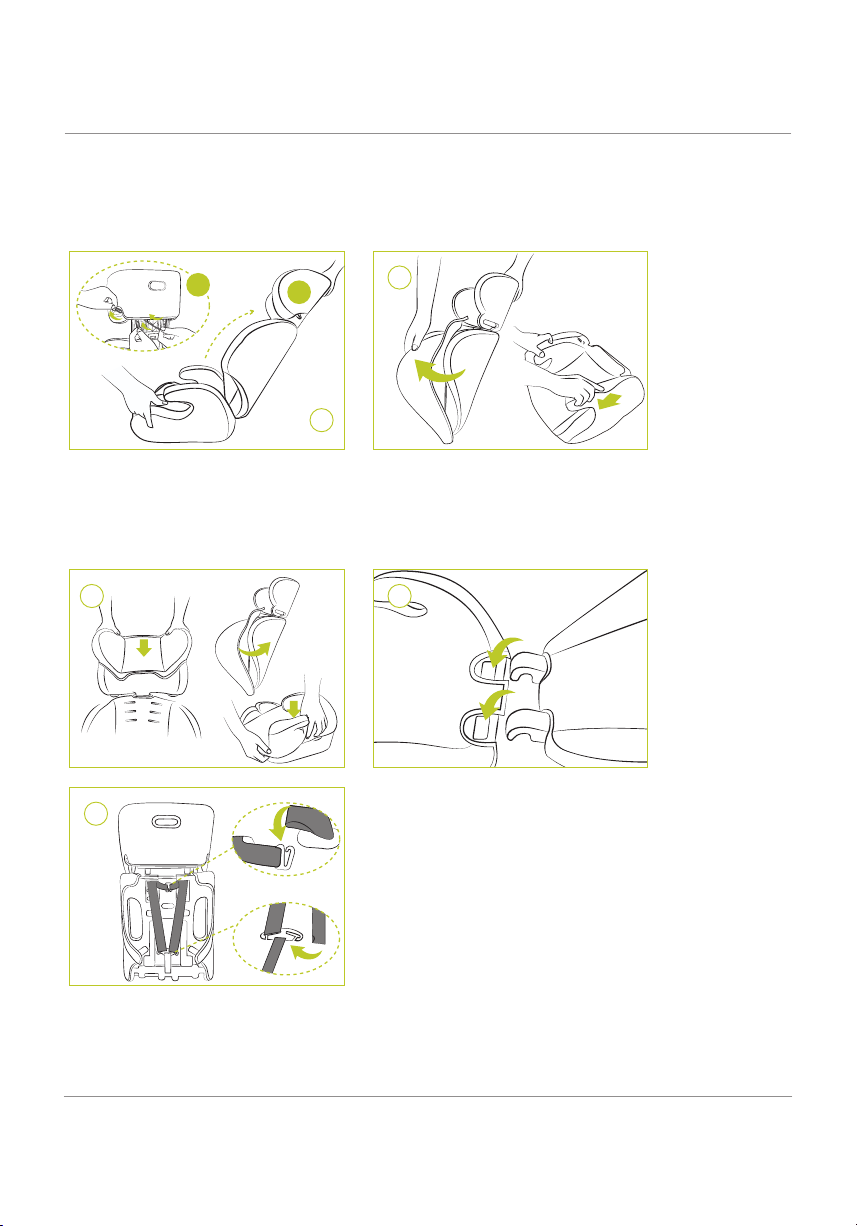

1- To assemble the seat, insert
the headrest into the slot on top
of backrest (Figure a)
2- Hold the backrest and put the
two hooks on backrest to the
slots in the base
(Figure b), then push the
backrest till vertical(Figure d).
3- To disassemble the seat,
simply push the backrest
backward(Figure c).
Note: Fold the seat when not
using it for space saving.
Use the headrest adjuster to lift the
headrest into an appropriate height.
(Figure e)
Caution:
1- The headrest height has 6 levels.
2-Before use the baby car seat,
please adjust the headrest until of the
upper belt rout guider and the child's
shoulder are at same level.
4.Baby car seat assembling and functions
b
a
b
c
d
a
1
2
3
4
5
6
e
e

8
5.Usage of Group 1 Installed
(Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation
f
g
f
r
s
g
r

9

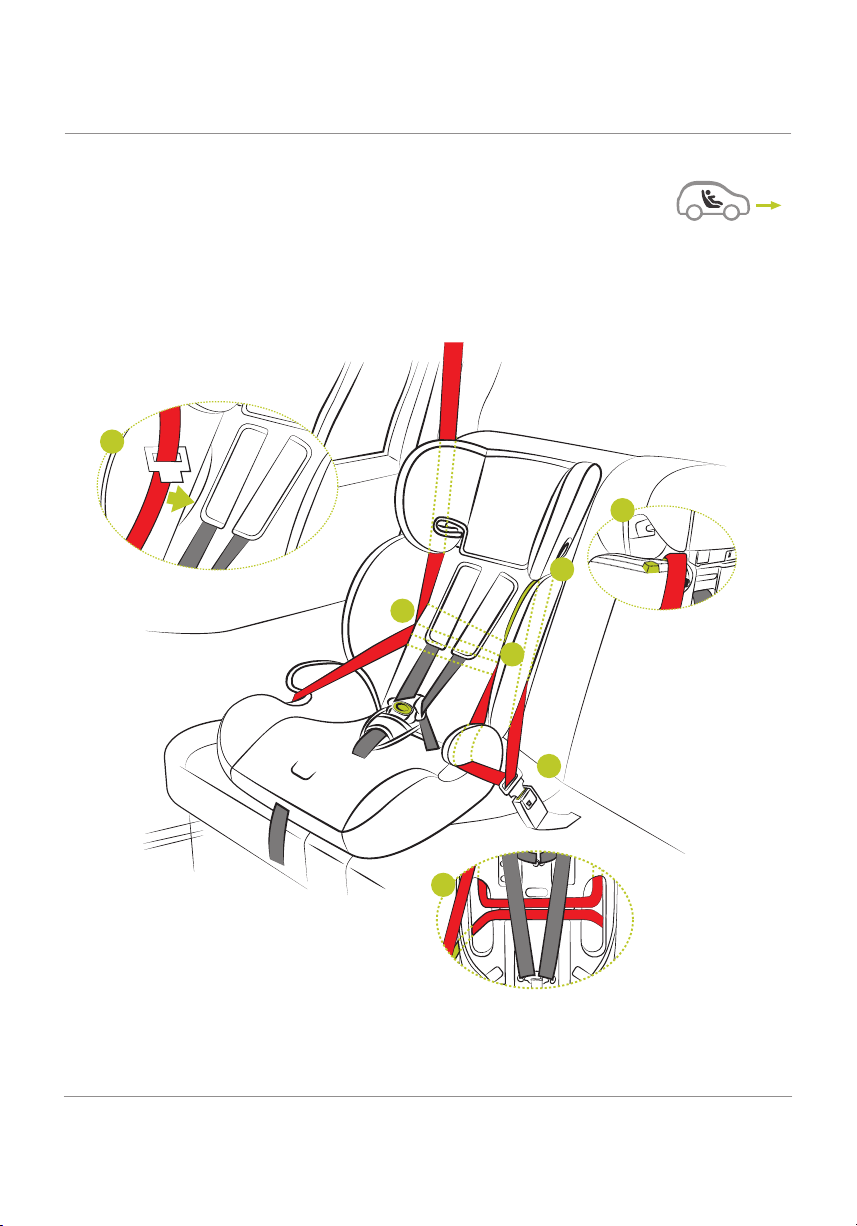

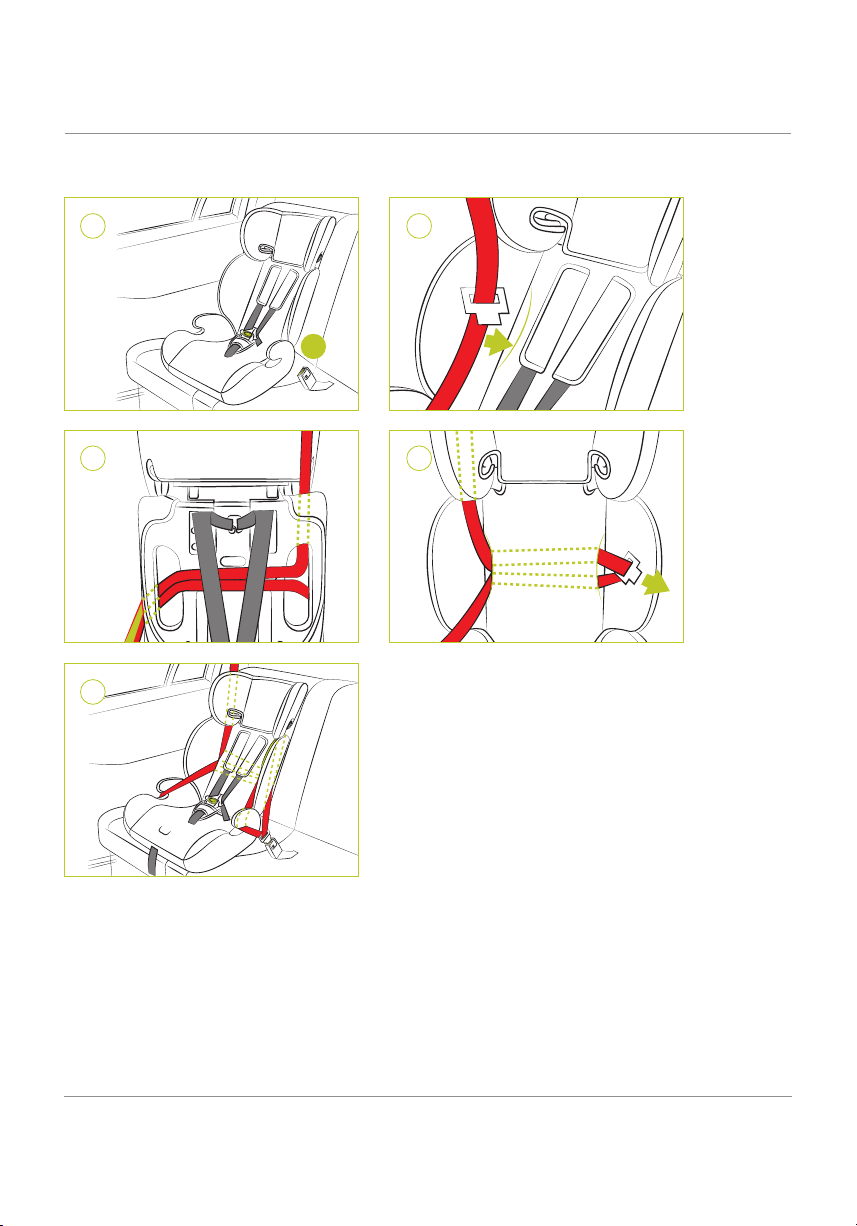

5.1 Belt installation
● Put the baby car seat onto viechle seat.(Figure 1)
● Pull out the car belt, let the belt tongue go through the belt passage at
near-end (Figure 2).
● let the belt go through backside of
the backrest and draw it out of the belt
passage on the other side (Figure 3,4).
Note: The car belt must go under the
straps of harness system.
● Make sure the car belt go through the
belt guide groove, then buckle it on and
fasten (Figure 5).
2
34
1
5
s

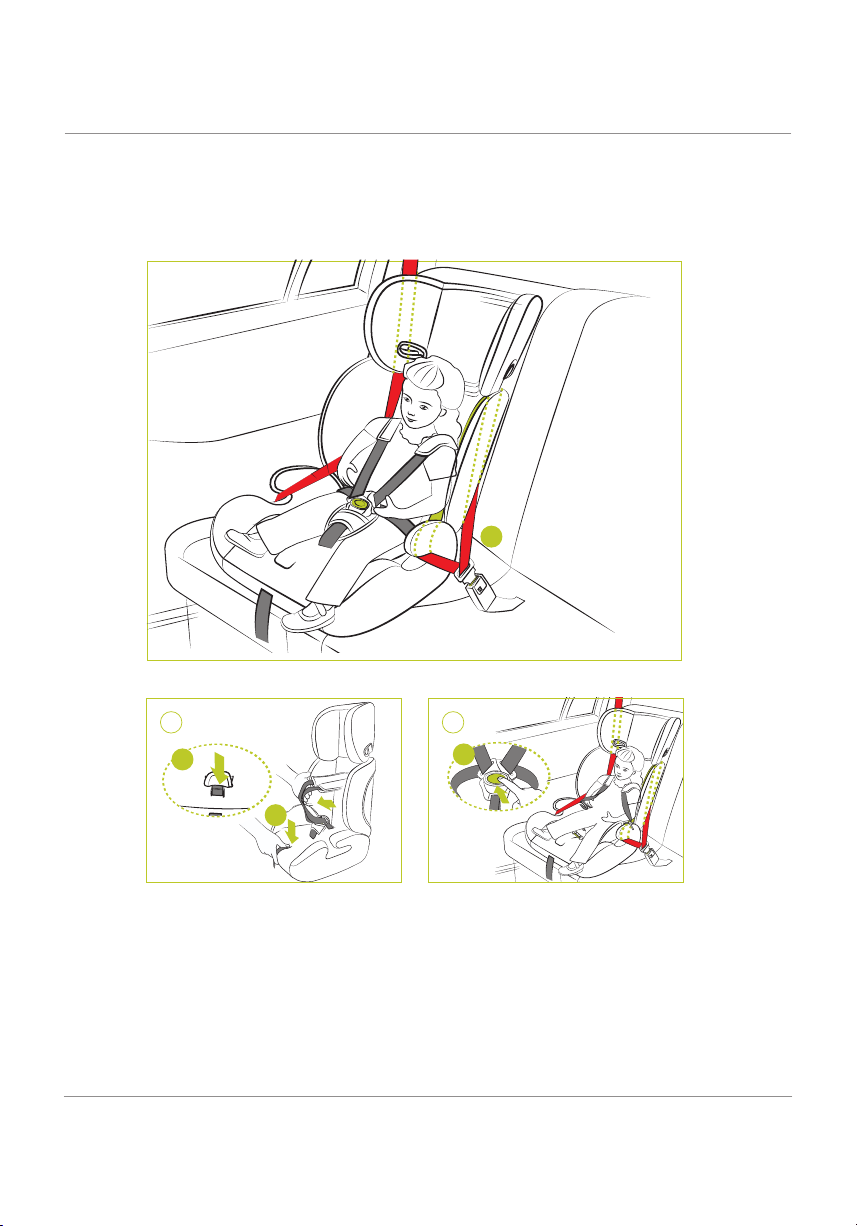

● Extend the safety belt ------ Push the central adjuster with one hand (Figure 6 h), pull
outward the safety belts with the other hand (caution! do not pull the shoulder pad)
● Press the red button on the buckle to release it until hearing the "click" sound(Figure 7i) ,put the child into
the baby car seat, let his/her arms go through the safety belt.(Figure 7)
10
5.2 Fixation of Group I Children
(Suitable to 9-18kg, 9 months-4 years' baby)
5.3 Fixation of 5-point harness
6
h
h
7
i
s

11
● Put the two buckle tongues together and insert into the buckle until you hear a "click"
sound. (Figure 8)
● Draw the adjusting strap forwardly to fastenthe harness system(Figure 9 j).
Caution: The proper tightness is one finger space between the safety belt and the child's
body. Correct position of the buckle is ate the crotch of the child not his/her belly.
● Remove the straps from strap
connecting plate (Figure 10 l). Detach the
shoulder strap from the connecting clamp.
● Pull out and re-install the belt and
shoulder straps in the slot at
appropriate level. (Figure 11)
● Make sure the shoulder belt is even
and a little bit lower than the child's
shoulders. (Figure 12)
1
2
3
89
j
j
11
10
k
l
12

Caution:5-point harness system must be removed in group 2 - 3usage.
(Refer to Page 14 Figure 13,14)
12
6.Usage of Group 2 - 3 Installed
(Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation
m
m
n
n

13
Caution:5-point harness system must be removed in group 3 usage (Refer to Page 14 Figure 13,14).
Backrest and headrest must be removed (Refer to Page 15 Figure 15) as well.

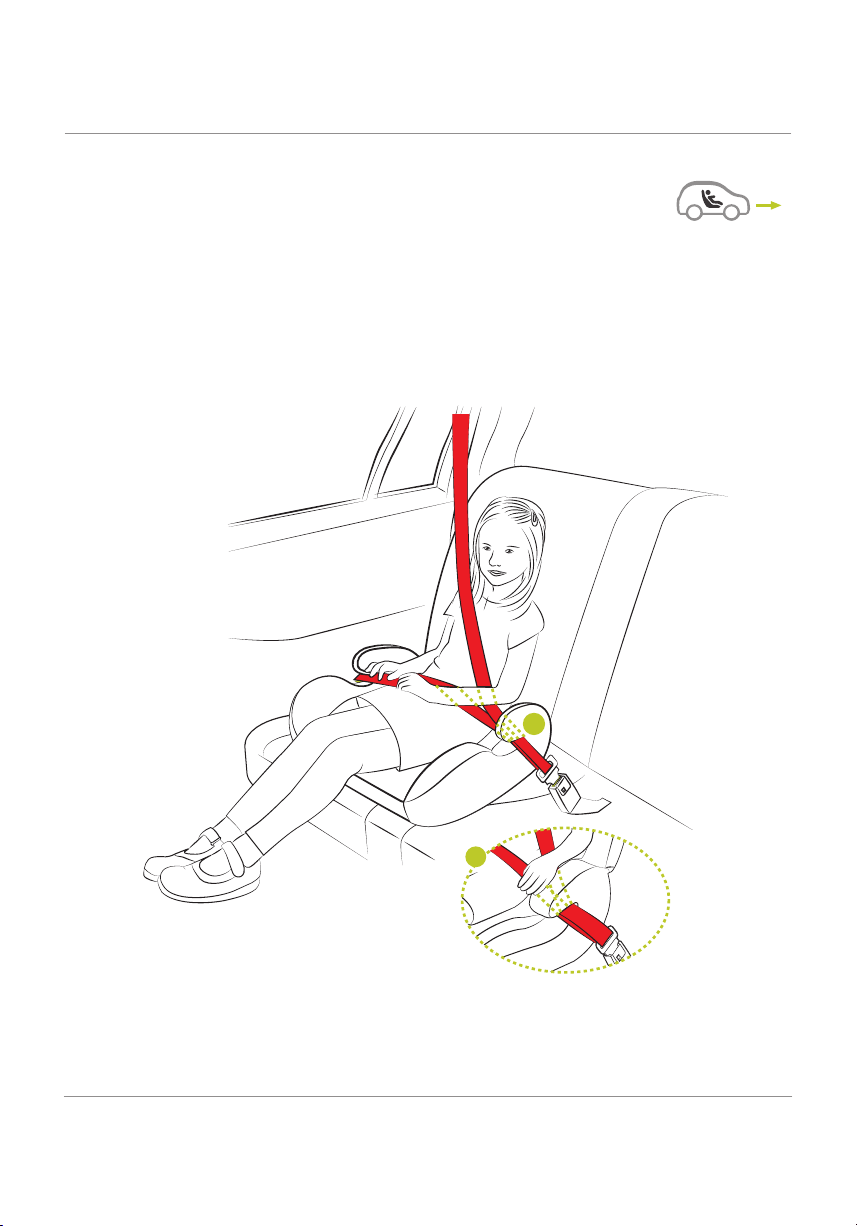

7.Usage of Group 3 Installed
(Suitable to 9-18kg, 9 months-4 years' baby) Forward facing installation
o
o

14
Do not use baby car seat without cloth cover.
8.1 Attention
● Accidents happened when the car speed higher than 10km/h,may cause invisible damage to the baby
safety seat.Please change your baby safety seat after crash accident.
● Check all important parts regularly, make sure all mechanism functions properly.
● Do not lubricate any part with lubricants.
● To avoid damage, make sure no part of this baby seat is stuck by car door, foldable car seat or any other objects.

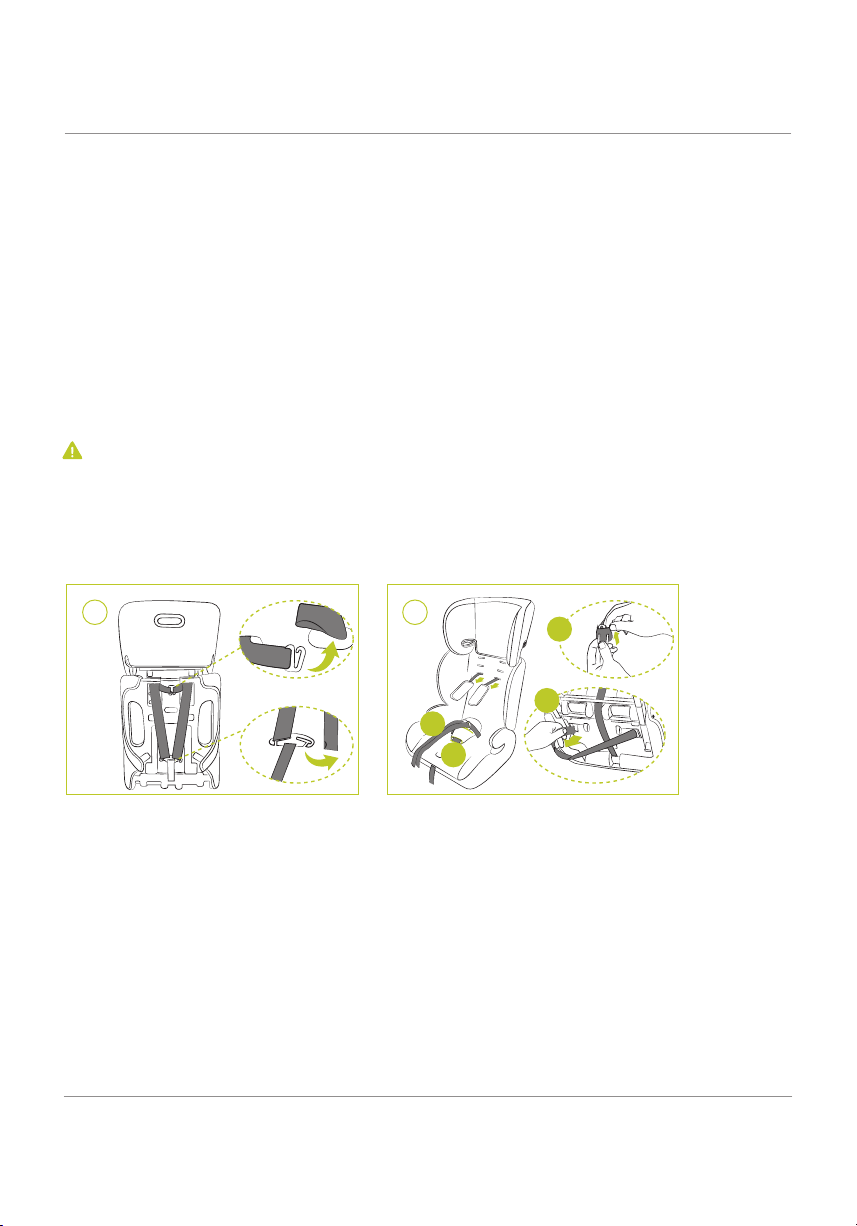

8.3 Removal of the fabric cover
● Remove the straps from strap connecting plate . Detach the shoulder strap from the connecting
clamp.(Figure 13)
● Pull out the shoulder pad and belts on front side, then remove all ladder buttons of the crotch strap in
bottom.(Figure 14)
8.2 Cover cleaning
● Cloth cover can be removed.Wash it with a mild detergent in warm water(water temperature does not
exceed 30C), natural dry, not dehydration.
● Plastic parts can be cleaned with soap and water, do not use strong detergents (such as solvent).
● Shoulder strap can be removed with mild soap water to clean.
8.Maintainance
14
p
p
qq
13

15
8.4 Installation of the
fabric cover
● Put the cover back onto the shell and
fasten it (Figure 17).
● put the two hooks on backrest to the
base slots, then push the backrest till
vertical(Figure 18).
● Attach the belts onto the connecting
plate and connecting clamp(Figure 19).
● Release the black elastic bands (Figure 15 r). To disassemble the seat, press and fix the base with one
hand and push the backrest with the other hand (Figure 15).
● Open the snap buttons on fabric cover to remove the whole cover(Figure 16).
17
15
r
16
19
r
r
18
