Jikel PLUTO User manual

USER MANUAL
Carseat
PLUTO
IMPORTANT
Retain for Future Reference & Read Carefully
www.jikelbaby.com
FRANCE DESIGNED
0-13Kg
ECE R04 /44
+0

1
User Instruction
Content
1 Application scope 02
2 Important notes 02
3 Vehicle related notes 03
4 Assembly indicator 04
4.1 Handle adjustment 05
4.2 Seat cushion and Canopy 05
4.3 Baby fixation and notes 06
4.4 Y-belt position adjustment 06
4.5 Installation in vehicle 07
4.6 Check the belt and make sure its route goes on correctly 07
5 Fabric covers Notes 08
5.1 Remove the canopy and fabric cover 08
5.2Fabric cover installation 09
6 Maintainance 09
6.1 Attention 09
6.2 Cover cleaning 10

2
1.Application scope
Certificated by ECE R44/04 , this baby safety seat is applicable for Group 0+ infants.
Baby safety seat
BC100B
Group
0+
Range of baby weight
0-13kg
Certification
●This baby safety seat is designed and tested with the European Children Ristraint System standard
(ECE R44/04) . The certification stamp E mark (in the round circle) with approval number and (in the
ellipse circle) can be found on the labels (in the bottom side of this seat)
●Any modification of this seat by you will lead to invalidity of the certification. Nobody is authorized to
modify baby safety seat unless the baby safety seat manufacturer.
2.Important notes
To protect the baby
●Important! Due to problem at birth, some baby might be underweight, please confirm with the
doctor before using this seat.
●Important! Do not use any accessory which is not shown in this instruction.
●Important! Do not fix this seat in ways that are not shown in this instruction.
Caution
Please read this instruction carefully and keep it well for future reference unless you will not use this
product any more. If this product is given to another person, please enclose this instruction along with
the product. Not following this instruction to

3.Vehicle related notes
●Use 2-point car belt to fix your baby
safety seat may lead to severe injury or
death to your child if crash happened.
●By placing the baby car seat on it, abrasive marks might
be found on car seats made of sensitive materials such as
silk and leather.
3
Operate the product may cause safety risk and put your child into dangers.
●Please follow the instruction to install this product. Make sure all parts are correctly assembled or stored.
When using on a normal vehicle, please make sure the baby car seat is not stuck by car seat or vehicle door.
●The car belt and baby car seat harness system must be fastened tight and adjusted according to the
child’s height. Not twisting of any strap.
●The waist strap of car belt must be used correctly. Make sure the waist strap can restraint the child’s
pelvis properly.
●After any impact or collision caused by a traffic accident, the baby car seat must be changed to a new one.
●If no fabric covers the surface of baby car seat, please do not expose the baby car seat into direct sunlight,
or the child might be burned by the hot product surface.
●Do not left you child alone on the baby car seat without any guardian.
●The luggage and objects which can cause injuries during an accident must be stored properly.
●Modified and uncertified products are dangerous. Products without manufacturer’s instruction are
also dangerous.
●Baby car seats without fabric cover are forbidden to use. The fabric cover material must not be other
materials other than the manufacturer’s recommendation. The fabric material will influence the overall
seat performance.
●Additional connection point is forbidden. Use the connection points indicated by the instruction only. Any
doubt on the connection point, please consult with the manufacturer.
To protect passengers on board
●All heavy or sharp items must be fixed well.
●All passengers must fasten their seat belts.
●Make sure the baby safety always fixs well even no baby inside.
Danger

Adjustor button
Insert pad
Shoulder pad
Y-shaped belt
Crotch pad
Y-shaped belt
adjusting belt
Central Adjuster
Handle
Canopy
Belt route
guider
Handle adjustment
button
4
● Do not use this seat on side-facing or rear-facing car seats ( 1a 1b in drawing below). Only applicable for
front-facing car seats. Crash statistic shows that children are safer in back row seats.
● Make sure the baby car seat is not stuck by foldable or movable seat and door.
? optional：Only applicable for seat with no airbags（1d）.
?? optional：Only applicable for seats with adult 3-point safety belt (1d).
● Put the car belt into lowest position if its height is adjustable.
● Always fix this seat even if no baby inside. Unfastened baby safety seat may injure the passengers on
board. Check other objects like luggage or books due to simillar reason.
● The belt must be certificated by ECE R16/GB14166 or equivelant(please check the label with letter“ e”
on seat belts).
● Do not let the child adjust or play with this seat. Check the belt fasten status every time when using this seat.
● Do not use the same car belt together with your child.
● Do not let the child adjust or play with this seat. Check the belt fasten status every time when using this seat.
● Do not use the same car belt together with your child.
4.Assembly indicator

4.2 Seat cushion and Canopy
● The Seat cushion supports and protects your baby’s head and back. The waist cushion ( Figure 3 E
behind the head and back cushion) can reduce the pressure on baby’s waist ( After your baby grows up,
the cushions can be removed to provide more inner space).
● The function of canopy is to prevent the light from shining on children's face. You can choose to use
it according to the situation (Figure 4).
5
1 2
A
B
C
D
4.1 Handle adjustment
Level adjustment：
● Push the handle adjustment button on both sides ( Figure 1 A ) at the same time.Then rotate the
handle towards the wanted position.Release the button when near the ideal position,adjust the handle
slightly until you hear the ＂click＂.
Level description (Figure 2 ):
D .Balance position —— balance the seat on the ground.
C .Cradle position —---— function as a cradle.
B .Carrier position —--— installation in cars or function as a baby carrier.
34
E

6
C
7
83
2
1
9
5
1 1
2
4.4 Position adjustment
Y-belt position adjustment
● As your baby grows up, Y-shaped belt can be removed
from the metal splitter plate ( on the back side of this
seat ) and relocated from slot F to slot G ( Figure 10 ).
●Make sure the y-belt is flat and slightly below the
baby's shoulders (Figure 11).
6
4.3 Baby fixation and notes
Length adjustment:
● Extend the Y-shaped belt——press the adjusting button( Figure 5), mean while stretching out the belt.
Note: Do not put shoulder pad.
● Push the red button on buckle to release Y-shaped belt.
● Put aside the buckle tongues seperately ( Figure 6 ).
● Put your baby into the baby safety seat, then put Y-shaped belt onto baby’s shoulder gentely ( Figure 7 ).
Note：Do not twist or cross Y-shaped belt.
●To lock Y-shaped belt , place the two buckle tongues together properly, then plug it into the buckle slot.
A“ click”sound can be heard as a sign of locked（Figure 8 ）.
Note：the proper loaction of the buckle is near your baby’s crotch rather than his/her belly.
●Pull the adjuster strap through the arrow direction ( Figure 9 ) to fasten the Y-shaped belt. The proper
tightness is a two-finger space between Y-shaped belt and your baby’s chest.
10
11
G
F

16
12 13
waist belt
shoulder
belt
4.6 Check the belt and
make sure its route
goes on correctly
● Do not place your baby car
seat too close to the car seat
belt buckles( Figure 17-18 ).
7
4.5 Installation in vehicle
1）Switch the seat handle to “carrier position”,then place this seat onto the back row car seat near
the vertical cushion. The seat should be opposite to the driving direction ( Figure 12 ).
2）Pull out the car belt as long as possible. Place the lap belt over this seat and lock the car belt.
Then put the lap belt into the belt route guider(Figure 13).
Note：No twisting or slipping of the car belts.
3）Drag the shoulder belt over the baby seat.put the shoulder belt into the blue belt route guider
(Figure 14-15).
Note：No twisting or slipping of the car belts.
4）Fasten the car belt (Figure 16)
●push the baby seat to the car seat.
●pull the lap belt horizontally to fasten it.
●Pull the upper shoulder belt to fasten the rest parts and the whole car belt.
Note：Make sure the baby safety seat is fixed well.
14
15
C
17 18

●Using the tool,pull the canopy button outward,pull the canopy rod upward,remove the canopy
（Figure 21）.
●Remove the safety belt from the T-buckle (Figure 22).
●Unfasten the fabric cover fixed hook (Figure 23).
●Remove the safety belt guider covers,loosen the edge of the fabric cover,pull the fabric cover
upward,remove the fabric cover (Figure 24,25)
8
5.Fabric covers notes

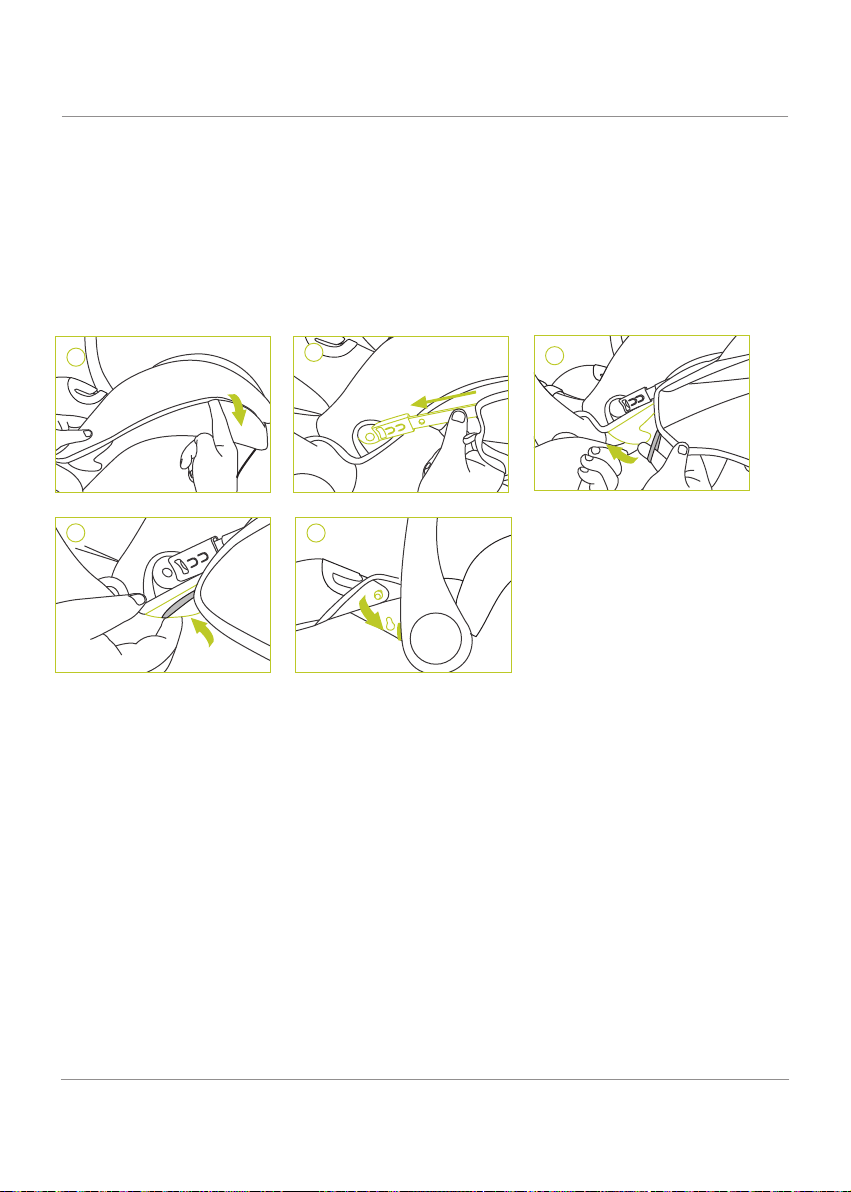

5.1 Remove the canopy and fabric cover
●Pull out the fabric cover fixed PP board (Figure 19).
●Loosen the canopy fixed black elastic (Figure 20).
22
24 25
23
20
PP board
21
Canopy rod fixed button
19

30
26 27 28
29
6.Maintainance
6.1 Attention
●Accidents happened when the car speed higher than 10km/h,may cause invisible damage to the baby
safety seat.Please change your baby safety seat after crash accident.
●Check all important parts regularly, make sure all mechanism functions properly.
●To avoid damage, make sure no part of this baby seat is stuck by car door , foldable car seat or any
other objects.
●Do not lubricate any part with lubricants.
●Store your baby car seat in safe place when not using. Avoid heavy objects, direct sunshine or direct heat on it.
9
5.2Fabric cover installation
●Put the fabric cover on the plastic shell ,insert the cover along the edge of the car seat shell ,and fix
well the safety belt guider cover(Figure 26) Insert the canopy rod into the fixed slot(Figure 27).
●Fix the canopy black elastic on the fabric cover PP board and insert it into the shell edge(Figure 28,29).
●Fix the fabric cover hook, finish the fabric cover installation (Figure 30).

6.2 Cover cleaning
Baby safety seat must not be used without cover.
●The cover can be removed. Clean the cover in warm water ( lower than 30 ℃) with mild detergent, dry
naturally. No drying.
●Plastic parts can be cleaned with soap water. Do not use strong detergent ( for example, dissolvant ).
●straps and tethers can be cleaned in soap water.
●Shoulder pad can be removed and cleaned in soap water.
10
Please read this instruction and relative parts of your vehicle manual. Please follow this instruction
when installing and using this baby car seat. Not following this instruction may lead to a severe injury
or death to your child. Please keep this instruction in safety place in case of future reading.
Note: The picture is for reference only,subject to the actual products please.
1. This is a “universal” children restraint system (CRS) which is approved to ECE Regulation No.
44, 04 series of amendments , for general use in vehicles and it will fit most, but not all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the
vehicle is capable of accepting a "Universal" child restraint for this age group.
3. This child restraint has been classified as "Universal" under more stringent conditions than those
which applied to earlier designs which do not carry this notice.
4. Only suitable if the approved vehicles are fitted with 3 point safety-belt approved to UN/ECE
Regulation No. 16 or other equivalent standards.
5. If in doubt, consult either the child restraint manufacturer or the retailer.
Thanks for buying BC100B baby safety seat！
