JIMCO MAC500s User manual

User Guide
Multi Air Cleaner

English
Description
MAC500s produces UV-C light under controlled conditions. Different UV-C wavelength has different
properties. The MAC500s uses two wavelengths. One is a powerful sterilizer when it is in direct contact with
pathogens and the other wavelength uses the available oxygen (O2) to naturally produce a low level of
ozone (O3). The low level of ozone recreates the fresh air from outside in nature inside your home or office.
This method is called photolytic oxidation and JIMCO A/S has won EU environmental Award for
Developing a Cleaner Technology.
The purpose with the MAC500s is to purify the air you breathe.
•Read the user instructions carefully before using the unit.
•Keep the user instructions for future reference.
•Connect the instrument to a suitable plug socket.
•Place the machine on a solid surface. Profitable high for the best effect
•For wall mounting, you can attach the appliance by means of the punched mounting holes
•Never immerse the appliance in water
Intended use
The MAC500 is intended to be used 24 hours a day. The recommended room size is 60 m3 (24 m2 with a
ceiling height of 2,5 m). The unit should not be operated while situated on the floor but should be placed as
high as possible for maximum efficiency.
The unit must not be operated without cover.
When more units are placed in a room they must be placed as far from each other as possible to get an
even distribution of the area they cover.
Function
Photolytic oxidation makes a cold incineration with airborne pathogens and organic particles such as fungal
spores, virus, bacteria, yeast, ethylene gasses, nicotine etc. The process is environmentally friendly and the
cold incineration will reduce the airborne pathogens and organic particles significantly.
The MAC500s can be operated in temperatures between 4-45 degrees Celsius. The unit can be used in
refrigerators to reduce ethylen gasses, bacteria and fungal spores, which will extend the shelf life of food,
fruit and vegetables.
The MAC500s will effectively reduce odor from rooms deposited in walls, carpets, textiles, furnitures etc.
WARNING!!!
Before opening the appliance, it must be switched off, and unplugged from the socket.
When the device is open, there is a risk of radiation from the UV-C light
– This can lead to painful corneal inflammation (conjunctivitis)

Lifetime of the lamps
The lifetime of the JIMCO special lamp is 8,000 operating hours. When the lamp has been used for 8,000
operating hours, the efficiency of the lamp will be reduced, which means if the smell is not reduced as usual then
the lamp should be replaced.
8,000 operating hours, equals to approximately a year of operation (21.9 hours per day). If the effect of the device
drops before the end of 8,000 operating hours, you should check, if the JIMCO Special lamp is dirty with e.g. dust
particles.
Is this the case? Then follow the maintenance instructions.
Maintenance
To maintain the optimal performance of the MAC500, we recommend – for regular use – to clean the lamp and fan
about every 3 month. When it is used in heavily soiled/dusty rooms, this should be done more often.
Cleaning the appliance:
Turn off the appliance and then unplug the appliance from the socket
Clean the outside of the appliance with a damp cloth, use a little detergent if necessary (Follow the instructions of
the detergent).
Clean the lamp and fan with a clean and soft cloth, use a little ethyl alcohol if necessary.
Note the date of cleaning.
Make sure the lamp is clean. If any part of the lamp is covered,
then that piece of the lamp will not work anymore.
Warranty Regulations
On the MAC500, JIMCO A/S provides 24-month warranty. Guarantee period is 12 months. The warranty is calculated from
the date of sale from your JIMCO dealer. To provide this, a receipt must be kept. Within the stated warranty period, JIMCO
A/S will cover, without charge, every defect that are subject to material or manufacturing defects and, at your option, provides
warranty repair or replacement of the MAC 500.
Prerequisite for the guarantee benefit is that the appliance is used according to its purpose and in accordance with the
operating instructions.
Excluded from the warranty are damages caused by improper use, wear or interference on the part of the owner or third
parties. The warranty does not cover consumables – For example lamps – Or wear objects as a fan and lacking which only
negatively affect the value or usefulness of the MAC 500.

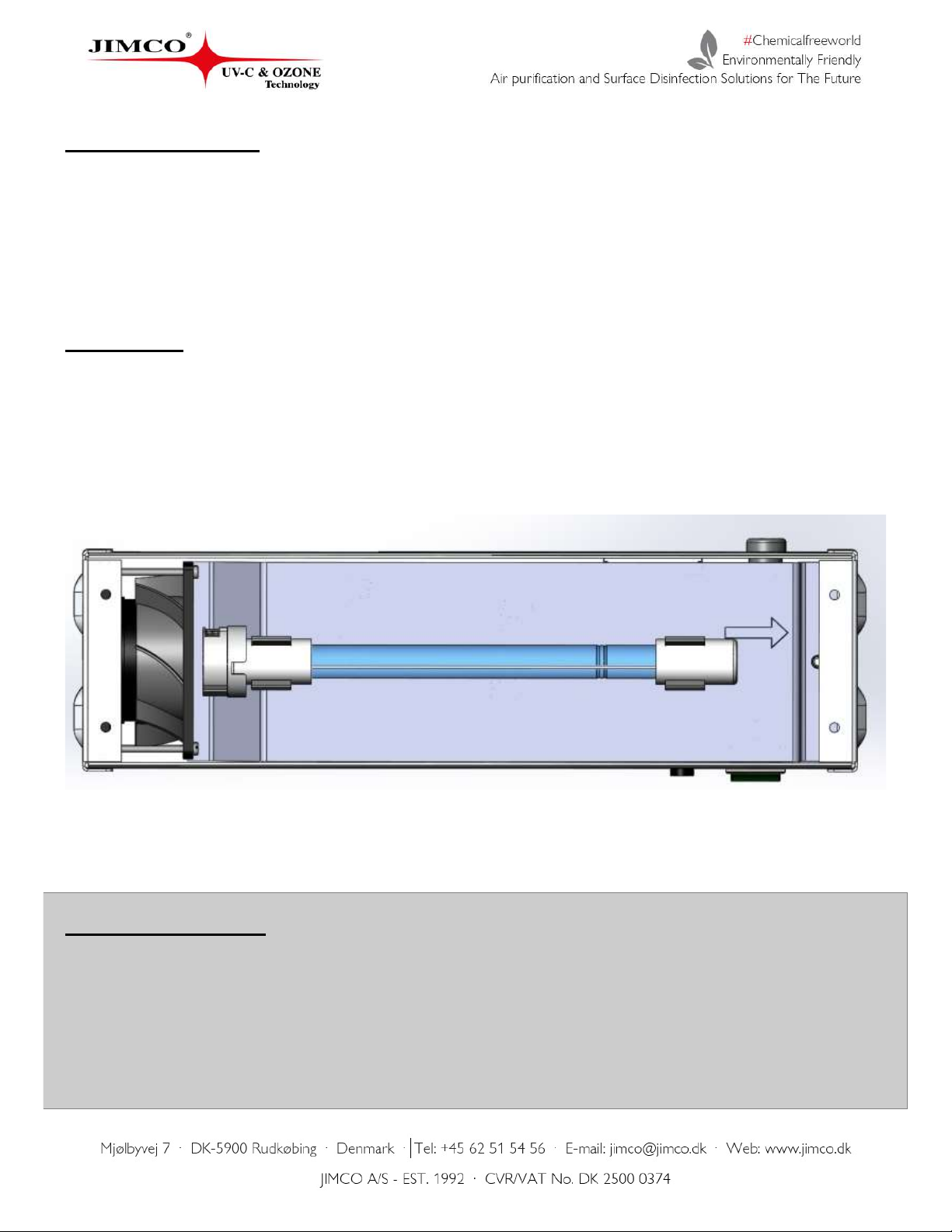

1.1 Fig.1
A: Cabinet
B: Push buttons/control lights
C:Enclosure access screws
1.2 Fig.2
D: Power cable
E:JIMCO-Special lamp
F: Lamp socket
G:Lamp clips
H: Fan
Technical Data:
UV lamp 1x8 w Operating hours 8000 timer
Voltage 120V 50/60Hz Length 310 mm
Power consumption 23 w Height 90 mm
Room area 60 m3Width 90mm
A: B: C: H: F: G: E: D:
Operation
3:Timer 2:Fan 1:On/Off
High / Low
-Switch the appliance on and off with the On / Off switch
(1) The red lamp lights to indicate that the appliance is
now switched on
-The pushbutton (2) can switch between high and low
speed. The red light on the button lights when the fan is
running at high speed. The appliance always starts at
High speed when switched on.
-Pressing the Timer button (3) sets the unit to Timer
mode. When the Timer button is pressed, the fan will run
at the current speed for 8 hours, then switches speed for
16 hours. This cycle continues until the timer button (3) is
pressed again or the unit is switched off. The red light on
the button indicates that the unit is in Timer mode
-When there are 500 operating hours left, the On / Off
lamp will start to flash. When the appliance has been in
operation for more than 8000 hours, all 3 red lights start
flashing and an acoustic signal is heard around every 30
minutes. The lamp must now be replaced.
-When the lamp is replaced Reset the Timer by holding
down the Timer button (3) and the Fan button (2) for
more then 5 seconds. 5 quick beeps are heard, and the
unit is ready for use again.
Timer conditions
8h 8h 8h
16h 16h
Timer
start
high
low

Lamp change:
Disconnect the power to the MAC500 by
unplugging (position 2) from the wall
socket
Remove the four screws (position 3)
and remove the cover (position 4)
Lift the lamp (position 5) out of lamp
clip A (position 6) and lamp clip B
(position 7)
Pull the lamp (position 5) out of the
socket (position 8)
Insert the new lamp (position 11) into
the socket (position 8) Push the lamp (position 11) down into
lamp clip B (position 7) and lamp clip A
(position 6)
Attach the lid (position 4) and install
the four screws (position 3)
Step: 1 Step: 2
Step: 3 Step: 4
Step: 5 Step: 6
Step: 7
