JL Audio Stealthbox SB-GM-CFMINI/10W3v2 User manual

➔
➔
➔
Stealthbox®
INSTALLATION GUIDE
SB-GM-CFMINI/10W3v2, JL AUDIO, Inc 2004 Sheet SKU#011115 Revision8/2/2004Page 1
for the
SB-GM-CFMINI/10w3v2
(1993-’02 Chevrolet Camaro &
Pontiac Firebird)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
STEP 1:
Remove the driver’s side trim panel,
disconnect the speaker wires, if applicable.
STEP 2:
Remove the driver’s side carpet
from the cubby-hole in the corner of the
hatch. this piece of carpet will not be used in
the installation.Vehicle owner should keep this
carpet for possible future use, when removing
the Stealthbox.
STEP 3:
Insert the enclosure into the cubby-
hole, taking care to loft and tuck the wiring
harness above the enclosure as you slide as
you slide it in. Push the enclosure firmly into
place
Make sure the enclosure is all the way
in!!!
STEP 4:
Using the supplied four self-tapping
screws. Seucre the enclosure’s moutning
bracket to the flooring of the vehcile.
Appling black paint to the tops of the screw
heads, just make this isntall that much more
speacial.
Important: Once the screws are thight-
ened, spray under coating onto the
screw tips underneath the car to pre-
vent rust and leaks. Failure to do so
may result in corrosion and could ore-
sent a saftly hazard over time.
STEP 5:
Run speaker wires to the enclosure.
At this time, check the woofer for proper
operation.
START
HERE
Continued on Next Page ➔
www.jlaudio.com
➔
➔
Specifications:
Enclosure Type: Sealed
Driver Type: 10W3v2-D2
Nominal Impedance: 4Ω
Cont. Power Handling: 300Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.
Included Hardware:
(4) #10 x 5/8” pan head self tap
10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111
JL AUDIO 250/1
monoblock subwoofer amplifier
Amplifier Input Section
Input Sens.
Input Voltage
Low/High
Left Ch. Right Ch.
Signal Sensing
Off/On
Output Mode
Full-Range/Low-Pass/High-Pass
Left Ch. Right Ch.
Amp LP Filter
Mode/Slope
Off/12dB/24dB
Filter Freq. (Hz)
Bass Control
LF Boost (dB)
Off/30Hz
Infrasonic Filter
+1 +13
+3
+7
+10
Preamp Output Section
+12VDC Ground Remote
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for detailed information
about installing and tuning this amplifier.
➔
STEP 8: Reconnect the factory speaker wires
and replace the driver’s side trim panel over the
enclosure.
➔
SB-GM-CFMINI/10W3v2, JL AUDIO, Inc 2004 Sheet SKU#011115 Revision8/2/2004Page 2
www.jlaudio.com
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
ZR650-CSi
XR650-CXi
Front Location Driver Size:
6.5”
Applicable JL Audio Products:
TR,VR,XR & ZR 650-CSi/CXi
Rear Location Driver Size:
6.5”
Applicable JL Audio Products:
TR,VR & XR650-CXi
Cont.
From
Previous
Page
Difficulty Of Installation:

This manual suits for next models

1

Other JL Audio Subwoofer manuals

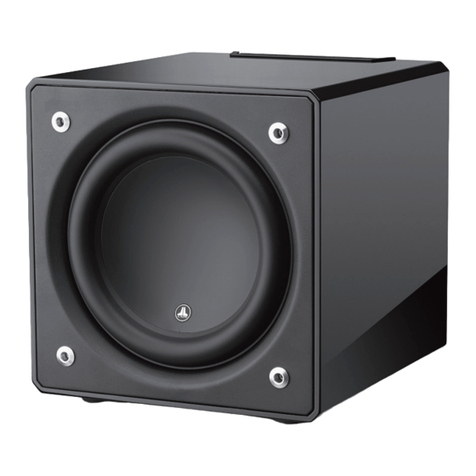

JL Audio e110 User manual

JL Audio

JL Audio e110 User manual

JL Audio 8W1v3-4 User manual

JL Audio

JL Audio 8W1v3-4 User manual

JL Audio 8WI-4 User manual

JL Audio

JL Audio 8WI-4 User manual

JL Audio Stealthbox SB-H-CIVSDN/10W6v2 User manual

JL Audio

JL Audio Stealthbox SB-H-CIVSDN/10W6v2 User manual

JL Audio Stealthbox SB-D-TRKCTR/12W3v3 User manual

JL Audio

JL Audio Stealthbox SB-D-TRKCTR/12W3v3 User manual

JL Audio 10TW3 User manual

JL Audio

JL Audio 10TW3 User manual

JL Audio 10W6v3 User manual

JL Audio

JL Audio 10W6v3 User manual

JL Audio gotham v2 User manual

JL Audio

JL Audio gotham v2 User manual

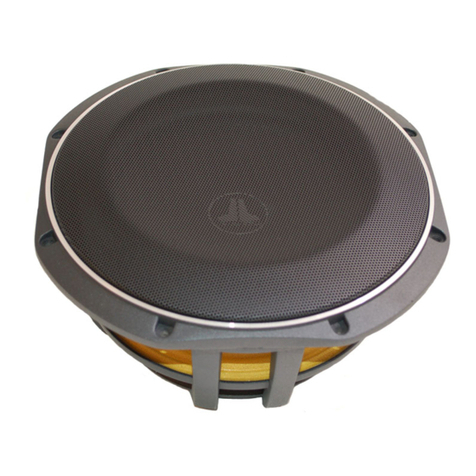

JL Audio 10TW1-2 User manual

JL Audio

JL Audio 10TW1-2 User manual

JL Audio Stealthbox SB-P-987C/13TW5v2 Operating and maintenance instructions

JL Audio

JL Audio Stealthbox SB-P-987C/13TW5v2 Operating and maintenance instructions

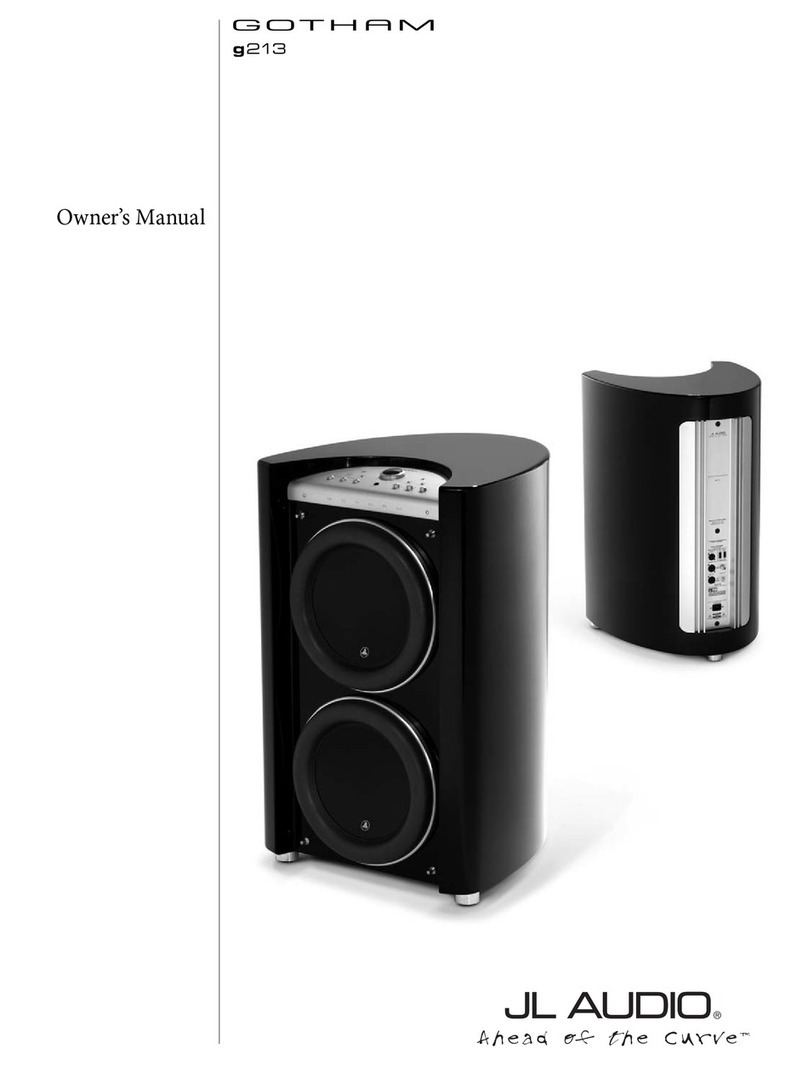

JL Audio Gotham g213 User manual

JL Audio

JL Audio Gotham g213 User manual

JL Audio 10TW1-4 User manual

JL Audio

JL Audio 10TW1-4 User manual

JL Audio Stealthbox SB-GM-BURBCNSL/10W3v2 User manual

JL Audio

JL Audio Stealthbox SB-GM-BURBCNSL/10W3v2 User manual

JL Audio Stealthbox SB-M-3-SPD/10W3v3 User manual

JL Audio

JL Audio Stealthbox SB-M-3-SPD/10W3v3 User manual

JL Audio MX10IB3 User manual

JL Audio

JL Audio MX10IB3 User manual

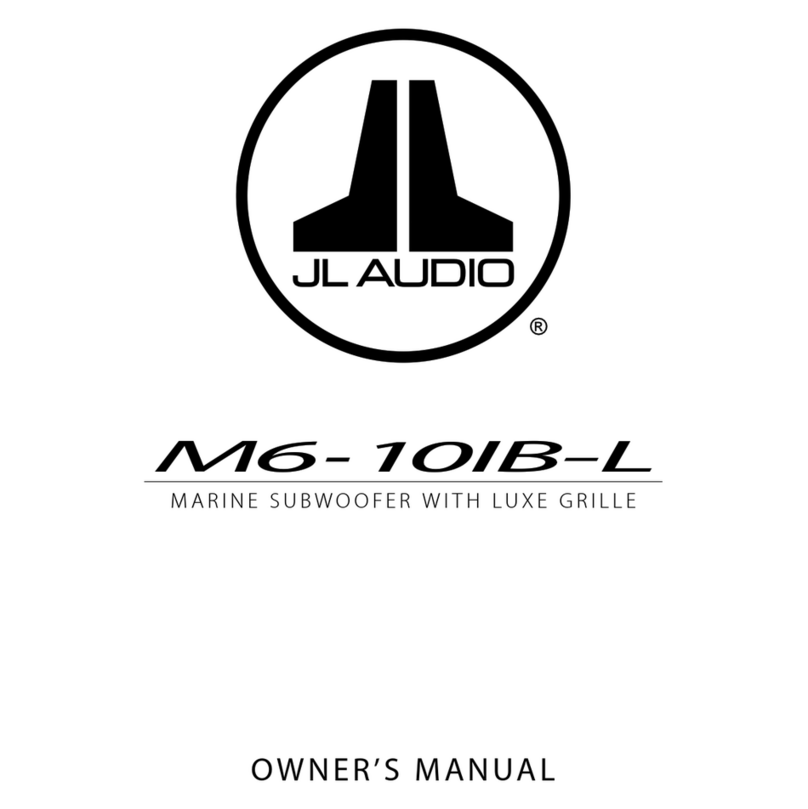

JL Audio M6-10IB-L User manual

JL Audio

JL Audio M6-10IB-L User manual

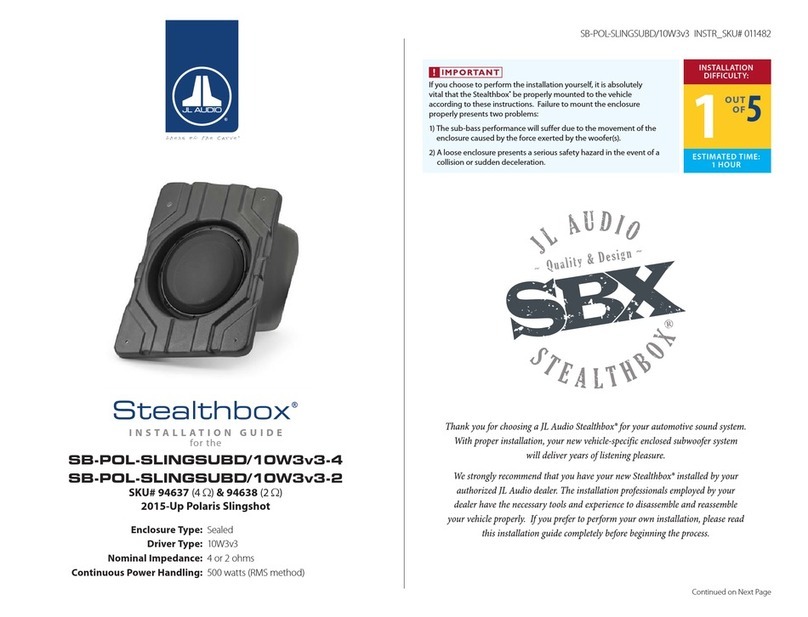

JL Audio Stealthbox SB-POL-SLINGSUBD/10W3v3-4 User manual

JL Audio

JL Audio Stealthbox SB-POL-SLINGSUBD/10W3v3-4 User manual

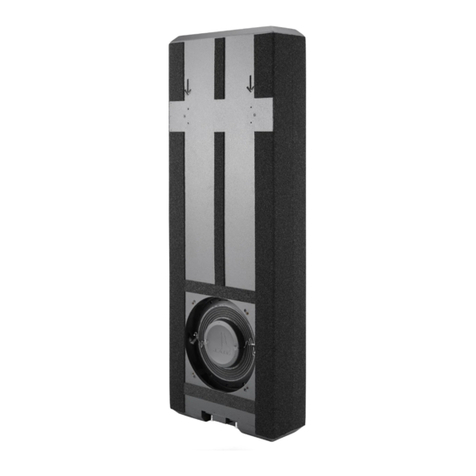

JL Audio FATHOM ICS-SYS-108 User manual

JL Audio

JL Audio FATHOM ICS-SYS-108 User manual

JL Audio Stealthbox SB-H-PIO1K/10TW3 User manual

JL Audio

JL Audio Stealthbox SB-H-PIO1K/10TW3 User manual

JL Audio 94606 User manual

JL Audio

JL Audio 94606 User manual

JL Audio Stealthbox SB-GM-CLREXT/10W3v2 User manual

JL Audio

JL Audio Stealthbox SB-GM-CLREXT/10W3v2 User manual

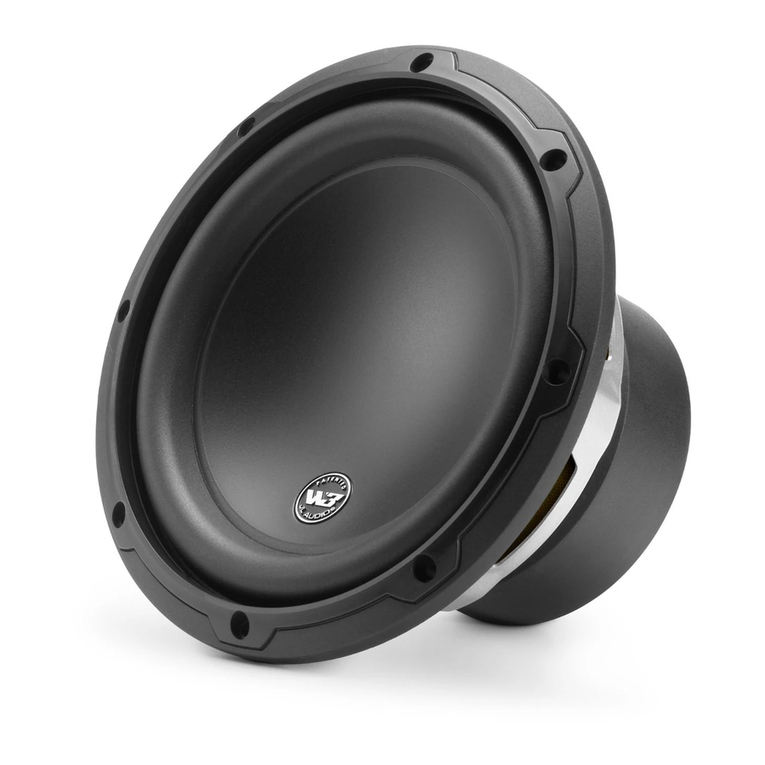

JL Audio 10W3 User manual

JL Audio

JL Audio 10W3 User manual

JL Audio 10WX User manual

JL Audio

JL Audio 10WX User manual

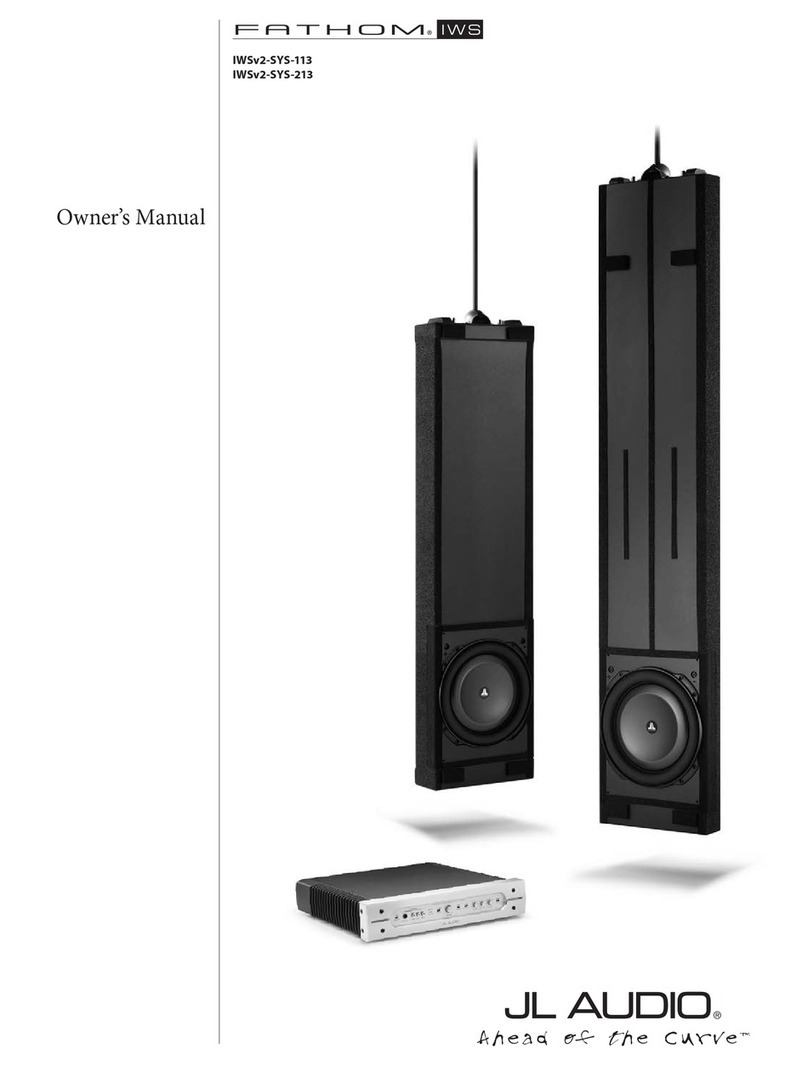

JL Audio Fathom IWSv2-SYS-113 User manual

JL Audio

JL Audio Fathom IWSv2-SYS-113 User manual

Popular Subwoofer manuals by other brands

Panasonic SBAS500 - SPKR,ACTIVE SUBWOOFE operating manual

Panasonic

Panasonic SBAS500 - SPKR,ACTIVE SUBWOOFE operating manual

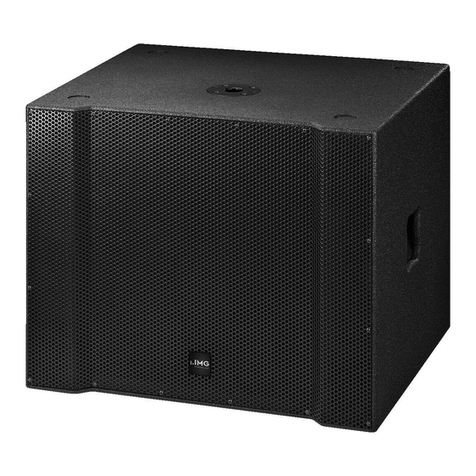

Monacor IMG STAGELINE MEGA-118SUBAK manual

Monacor

Monacor IMG STAGELINE MEGA-118SUBAK manual

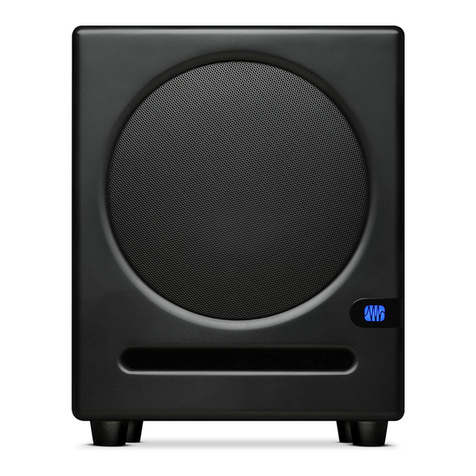

PRESONUS Eris Sub8 owner's manual

PRESONUS

PRESONUS Eris Sub8 owner's manual

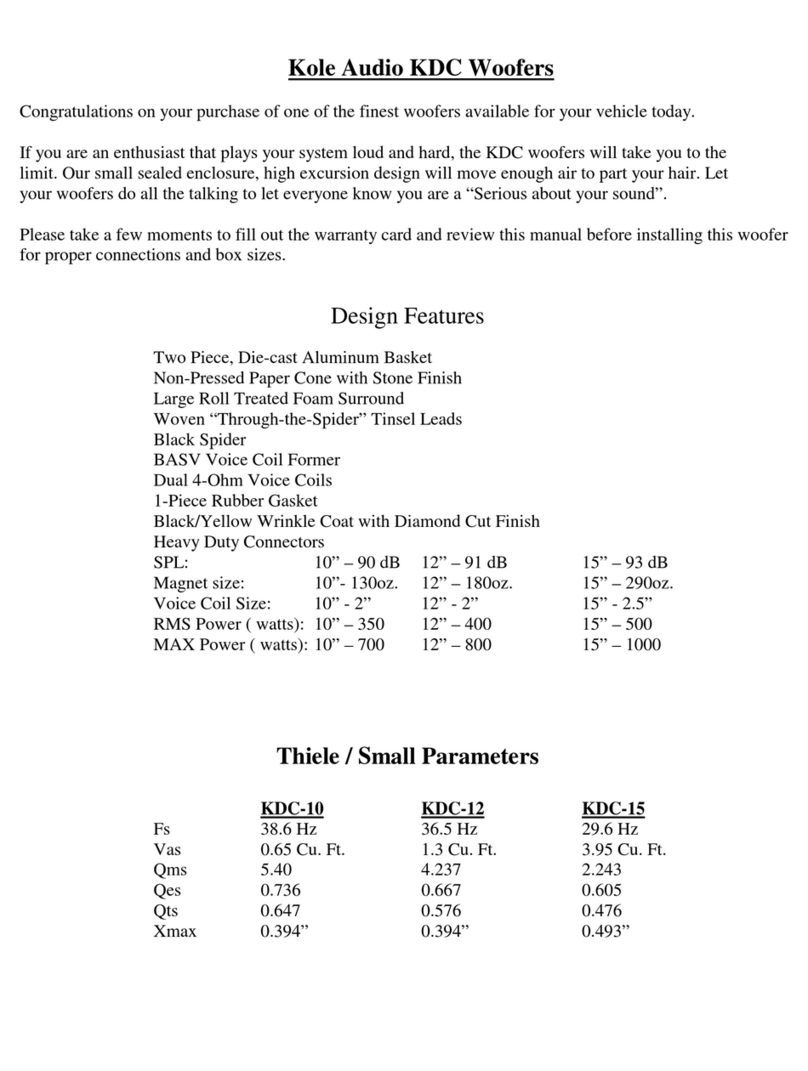

Kole Audio KDC-10 user guide

Kole Audio

Kole Audio KDC-10 user guide

Extron electronics SF 10C SUB user guide

Extron electronics

Extron electronics SF 10C SUB user guide

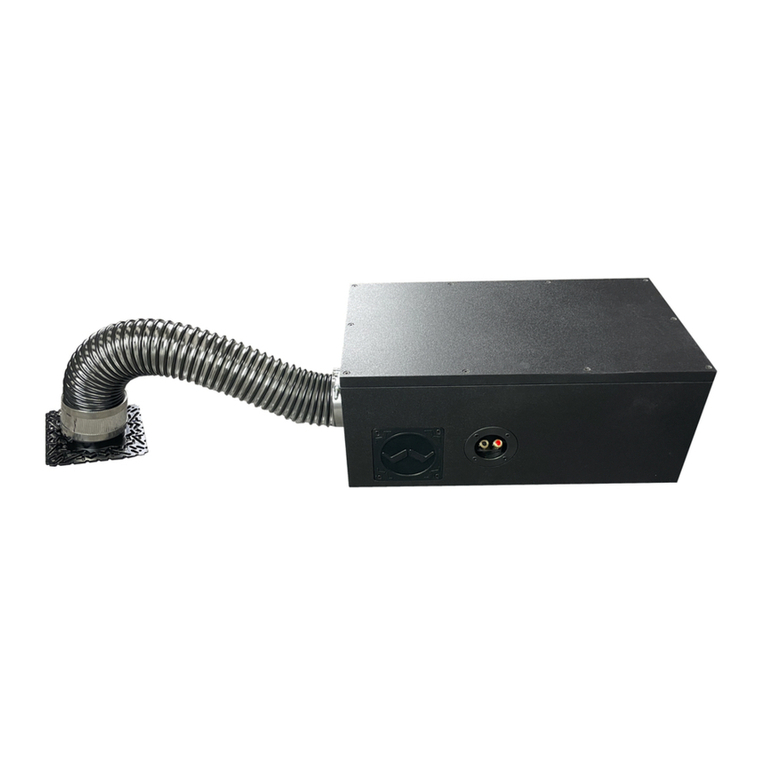

Wisdom Sage Cinema Series Installation and owner's manual

Wisdom

Wisdom Sage Cinema Series Installation and owner's manual

SVS STA-800D quick start guide

SVS

SVS STA-800D quick start guide

Nissindo WS-310 operating instructions

Nissindo

Nissindo WS-310 operating instructions

Pyle PLMRSBA10 user manual

Pyle

Pyle PLMRSBA10 user manual

Audio Pro Sub Focus datasheet

Audio Pro

Audio Pro Sub Focus datasheet

Kenwood KFC-W1010 instruction manual

Kenwood

Kenwood KFC-W1010 instruction manual

Vibe BlackDeath 15 SPL instruction manual

Vibe

Vibe BlackDeath 15 SPL instruction manual

Sony SA-W3800 Specifications

Sony

Sony SA-W3800 Specifications

Virtual Reality VR3 VRA1.0PSW manual

Virtual Reality

Virtual Reality VR3 VRA1.0PSW manual

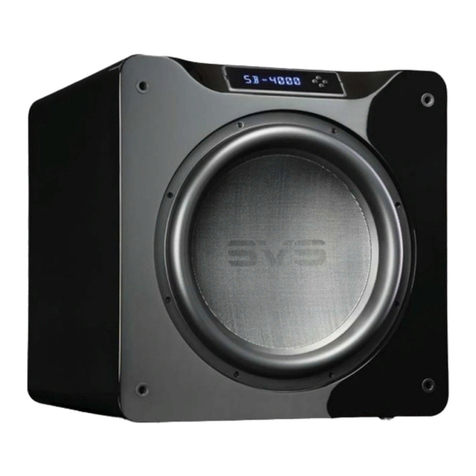

SVS SB-4000 quick start guide

SVS

SVS SB-4000 quick start guide

Blitz BZFW104D Specifications

Blitz

Blitz BZFW104D Specifications

DaytonAudio MKSX4 user manual

DaytonAudio

DaytonAudio MKSX4 user manual

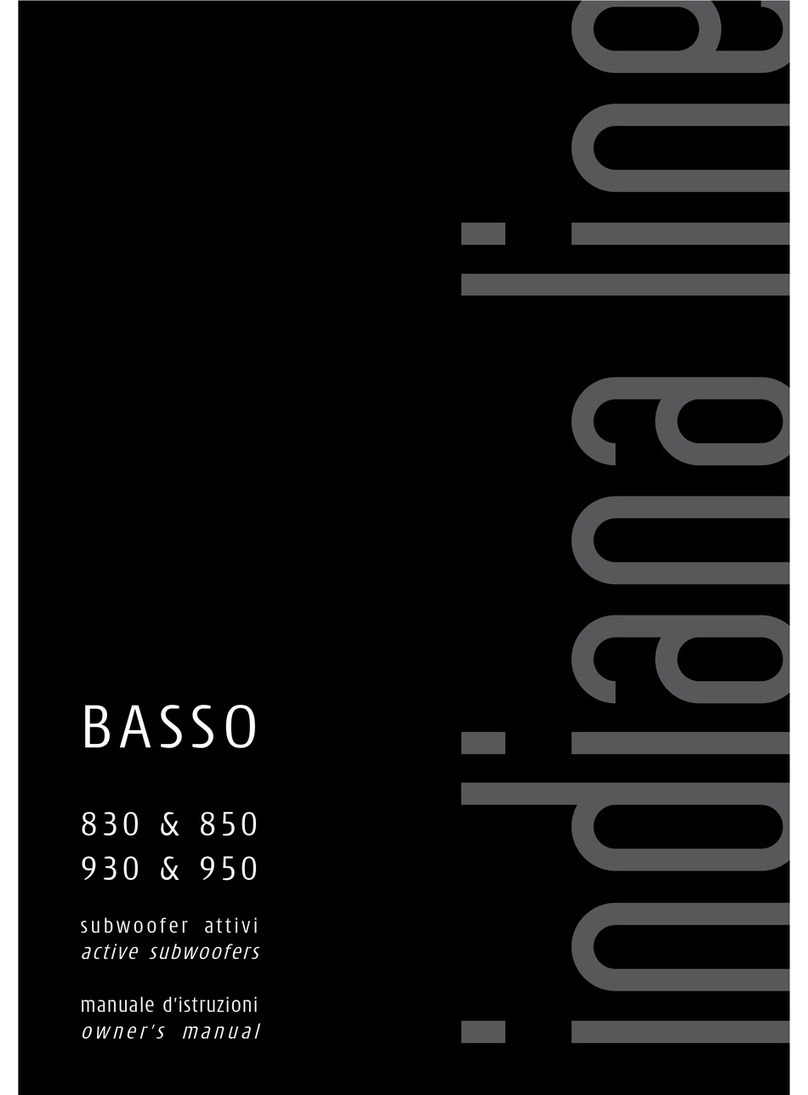

Indiana Line Basso 830 owner's manual
