Introduction
The JLCooper ES-450J RS-422 is a remote control for VTRs and other
machines that support Sony 9 Pin "P2" protocol.
The ES-450J controls professional analogue and digital VTRs, modular
digital multitrack and disk-based VTR emulators.
The ES-450J features a smooth, weighted and optically encoded jog shuttle
wheel with concentric shuttle ring, and transport and function keys.
ES-450J Features
The ES-450J allows the following control of your video recorder:
•Play
•Reverse Play
•Pause*
•Stop
•Record
•Jog Forward/Reverse
•Shuttle Forward/Reverse
•Rewind and Fast Forward
•Frame Advance
•Jump to Next/Previous Clip*
•Jump Ahead/Back 10 seconds*
•One touch instant recall
•Goto Manual Location
* Depends on the recorder detected by the ES-450J.
ES-450J RS-422 User’s Manual
!August 24, 2018!4

Connecting The ES-450J!
Connecting the ES-450J in your system is rather straightforward and easy.

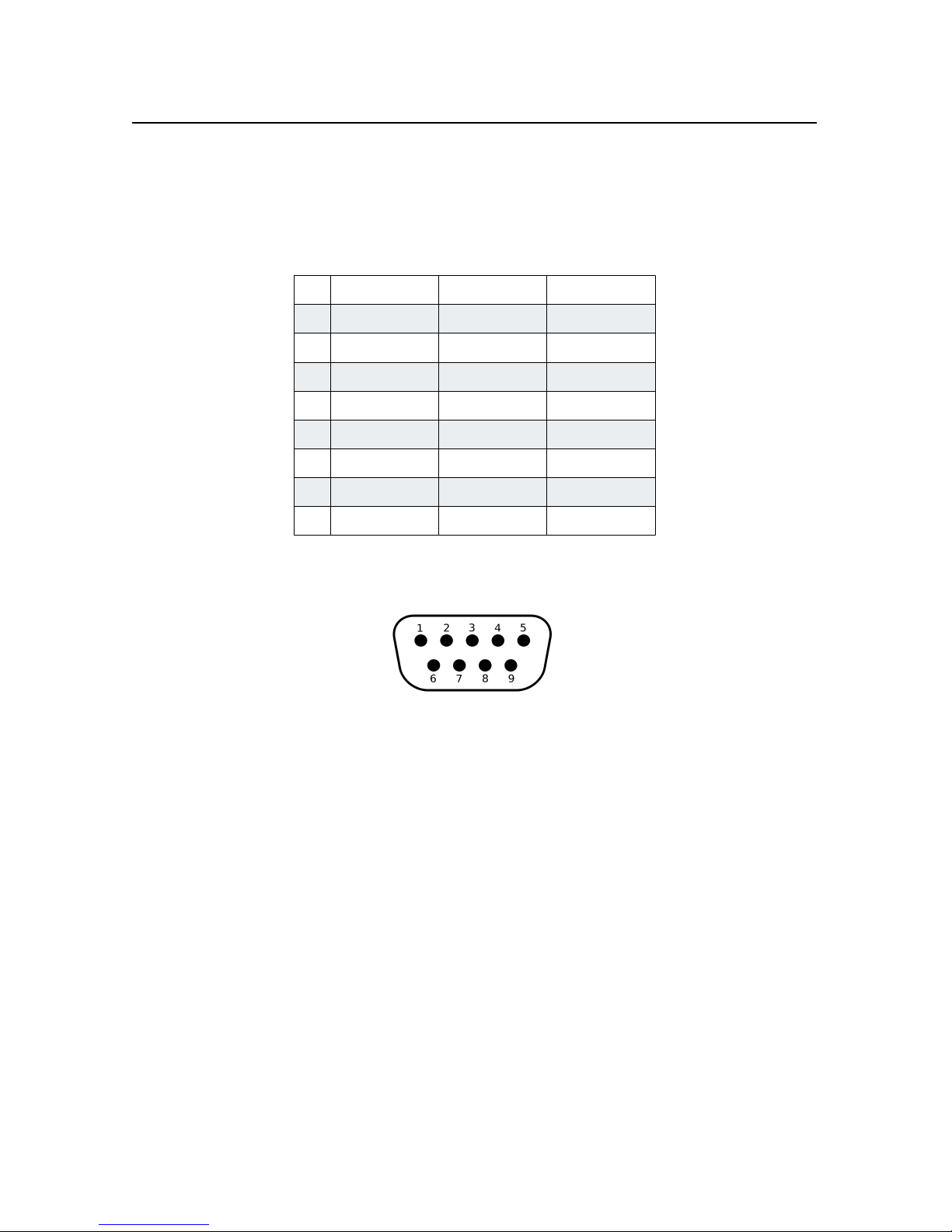

The ES-450J comes with an attached breakout cable. The end has 1

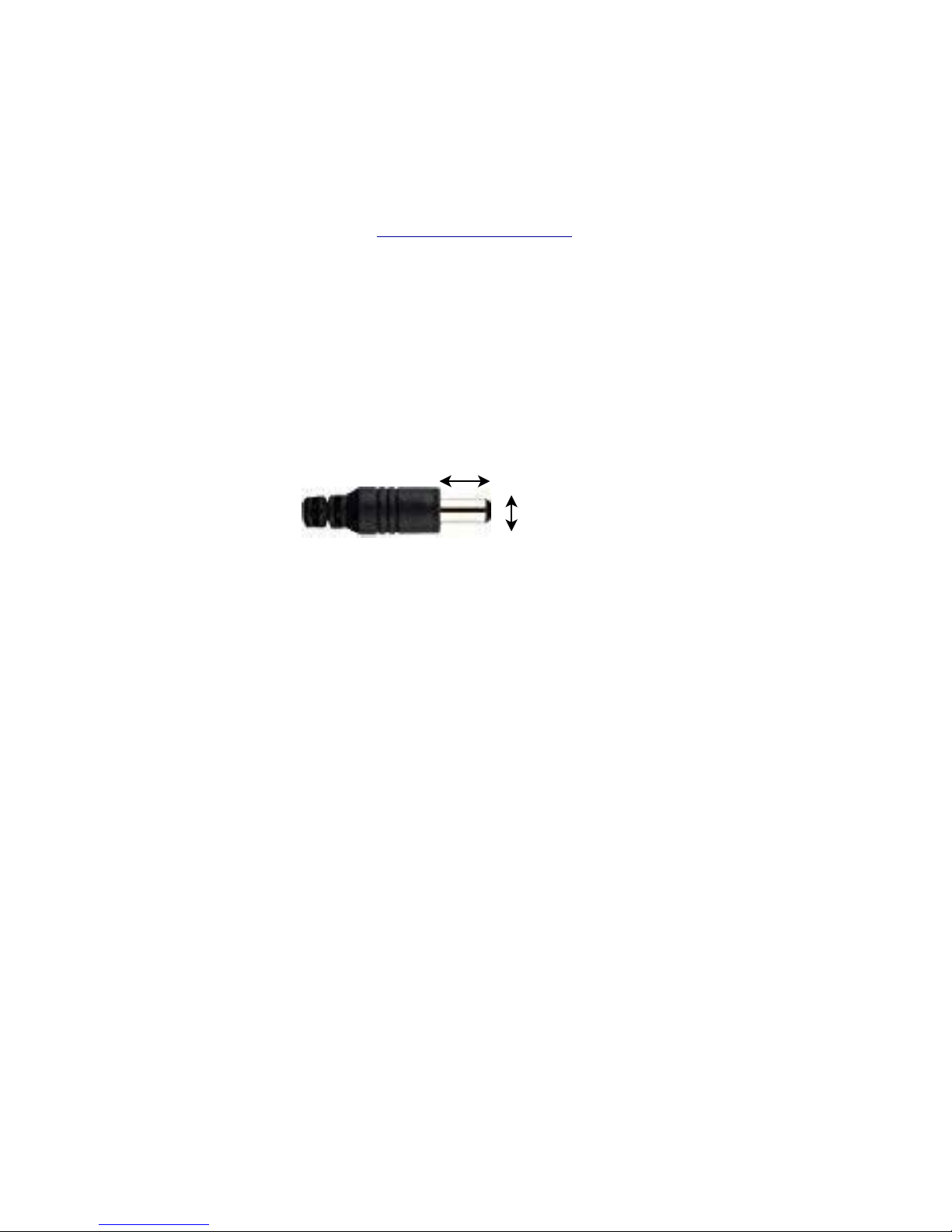

connector that connects directly to a video recorder. A power connector
allows the connection of an AC power adapter.
ES-450J RS-422 User’s Manual
!August 24, 2018!5

Using Your ES-450J
Identifying Your Recorder
As soon as the ES-450J is powered up, the controller continuously asks the
recorder for its Device ID. The ES-450J uses this response to adjust its
behavior to specific recorders.
The ES-450J also uses this Device ID to determine the frame rate of the
recorder. This is used for the Frame+1/Frame-1 function.
The ES-450J currently has specific functionality for the following recorders:
•Blackmagic Design HyperDeck Studio Series
•Aja Ki Pro Series
•Fast Forward Video Recorders
•VideoDevices PIX Series
•Datavideo HDR-60/70
•Sony XDCAM Series
•Atomos Shogun Studio
If the recorder responds with any other Device ID, the unit controls the
recorder as a generic Sony Betacam (BVW-75) recorder.
Timecode Display
The ES-450J continuously asks the recorder selected for tally for its
position. The ES-450J will display the recorders position in the Timecode
display on the controller.
Nondrop frame timecode is indicated
without a period before the timecode as
shown in the screenshot at right.
Drop frame timecode is indicated with a
period before the timecode as shown in the
screenshot at left.
TC= 01:26:43:15
TC=.01:26:43:15
ES-450J RS-422 User’s Manual
!August 24, 2018!6

Using The ES-450J
F-PLAY
Pressing the F-PLAY button causes the ES-450J to send the Play
command.
RECORD
Pressing the SHIFT + F-Play button causes the ES-450J to send the Record
command. This also known as Crash Record. When the recorder enters
the record mode, the recorder will respond accordingly and the ES-450J will
illuminate the Record indicator. Conversely, when the recorder exits the
record mode, the recorder will respond accordingly and the ES-450J will
extinguish the Record indicator.
Note: Only the recorder selected for tally is used to illuminate the Record indicator.
When the recorder is in Record mode, pressing the STOP button causes the
ES-450J to command the recorder to stop recording.
R-PLAY
Pressing the R-PLAY button causes the ES-450J to send the Variable
Reverse 1x command.
F-FWD, REWIND
Pressing the F-FWD/Rewind buttons causes the ES-450J to send the Fast
Forward and Rewind commands respectively.
STOP
Pressing the STOP button causes the ES-450J to stop the playback of
video. If the recorder is in Record mode, the ES-450J commands the
recorder to stop recording.
For the Atomos Shogun Studio, ES-450J sends the Stop command.
For all other recorders, ES-450J sends the Shuttle Forward 0x command.
This is also known as Pause or Still.
FRAME+1, FRAME-1
Pressing the Frame+1/Frame-1 buttons cause the ES-450J to retrieve the
current timecode from the recorder selected for tally, adds or subtracts one
frame from the timecode and commands the recorder to goto that new
position.
ES-450J RS-422 User’s Manual
!August 24, 2018!7

CLIP/10 SEC+, CLIP/10 SEC-
For the Ki Pro, Sony XDCAM and VideoDevices PIX Series recorders,
pressing the Clip/10 Sec+ button causes the ES-450J to command the
recorder to load the next clip. Pressing the Clip/10 Sec- button causes the
ES-450J to command the recorder to load the previous clip.
For all other recorders, pressing these buttons causes the ES-450J to
retrieve the current timecode from the recorder selected for tally, adds or
subtracts ten seconds from the timecode and commands the recorder to
goto that new position.
2/4/8/16X+, 2/4/8/16X-
Pressing the 2/4/8/16x+, 2/4/8/16x- buttons cause the ES-450J to send the
Shuttle Forward or Reverse 2x command. Subsequent presses cause the
ES-450J to increase the speed to 4x, 8x and 16x.
+1/2X SPEED
Pressing the 1/2x Speed button at the top left corner of the ES-450J will
cause the ES-450J to send the Shuttle Forward 1/2x command.
JOG WHEEL
Turning the center Jog wheel causes the recorder to play video slowly
(slower than play speed). Turning the Jog wheel clockwise causes the video
to move forward. Conversely, turning the Jog wheel counterclockwise
causes the video to move backwards. The Jog wheel has a range of
forward 1/2x play speed to reverse 1/2x play speed.
When the Jog wheel ceases moving, the ES-450J pauses the video
playback. The ES-450J also retrieves the current timecode from the
recorder selected for tally and commands all the selected recorders to goto
that new position. This allows all the selected recorders to pause at the
same location.
As the Jog wheel is turned, the direction indicators above the Jog wheel will
illuminate based on the direction that the Jog wheel is being turned. Turning
the Jog wheel clockwise causes the right facing direction indicator to
illuminate. Conversely, turning the Jog wheel counterclockwise causes the
left facing direction indicator to illuminate. When the Jog wheel ceases
moving, both direction indicators are extinguished.
ES-450J RS-422 User’s Manual
!August 24, 2018!8

SHUTTLE RING
Turning the outer Shuttle ring causes the recorder to play video quickly
(faster than play speed). Turning the Shuttle ring clockwise from the center
detent position causes the video to move forward. Conversely, turning the
Shuttle ring counterclockwise from the center detent position causes the
video to move backwards. The Shuttle ring has a range of forward 10x play
speed to reverse 10x play speed.
When the Shuttle ring is moved to the center detent, the ES-450J pauses
the video playback. The ES-450J also retrieves the current timecode from
the recorder selected for tally and commands all the selected recorders to
goto that new position. This allows all the selected recorders to pause at
the same location.
As the Shuttle ring is turned, the direction indicators above the Shuttle ring
will illuminate based on the direction that the Shuttle ring is being turned.
Turning the Shuttle ring clockwise causes the right facing direction indicator
to illuminate. Conversely, turning the Shuttle ring counterclockwise causes
the left facing direction indicator to illuminate. When the Shuttle ring is
brought to the center detent, both direction indicators are illuminated.
Note: The ES-450J uses the center detent position to calibrate the Shuttle ring. If
the ES-450J is powered up with the Shuttle ring out of the center detent position,
the Shuttle ring may not work as expected.
ON/OFF
This button allows the Jog wheel and Shuttle ring to be enabled or disabled.
Tap the button once to disable the Jog wheel and Shuttle ring. Tap the
button again to enable the Jog wheel and Shuttle ring.
ES-450J RS-422 User’s Manual
!August 24, 2018!9

GOTO
The ES-450J has the ability to cue the recorder to any arbitrary location that
is valid for the recorder. The ES-450J has two ways to cue the recorder.
•Manual Timecode Entry
•One Touch Preset and Recall
Manual Timecode Entry
The Manual Timecode Entry method allows you to manually enter a
timecode and have the ES-450J command the recorder(s) to go to that
location.
To use the Manual Timecode Entry method, simply perform the following:
1. Press the GOTO button.
2. Enter the desired timecode using the
blue numbered buttons.
Note: Any leading zeros do not need to be
entered.
3. To compete the locate operation,
press the ENTER button. The
ES-450J will command the
recorder(s) to go to that location.
Goto : : :
Goto 02:15:37:16
Goto Locate
ES-450J RS-422 User’s Manual
!August 24, 2018!10

One Touch Preset And Recall
The One Touch Preset and Recall method allows you to store a location and
later recall that location. When the location is recalled, the ES-450J will
command the recorder(s) to go to that location. Up to 7 locations can be
stored. Locations can be stored regardless of the mode that the recorder is
in. Locations will be remembered even after the ES-450J is powered off.
Storing a Preset Location
To store a location for later recall, press and
hold the SHIFT button, then tap one of the
location buttons (LOC1 - LOC7).
Recalling a Preset Location
To recall a location, press the GOTO button,
then tap one of the location buttons (LOC1 -
LOC7).
Store Locate #5
Goto Locate #5
ES-450J RS-422 User’s Manual
!August 24, 2018!11

Technical Information
Pinout
The pinout of the 9 pin D Subminiature connectors is shown in the following
table.
ES-450J
Direction
Recorder
1
Ground
Ground
2
Receive A (-)
←
Transmit A (-)
3
Transmit B (+)
→
Receive B (+)
4
Ground
Ground
5
Not used
Not used
6
Ground
Ground
7
Receive B (+)
←
Transmit B (+)
8
Transmit A (-)
→
Receive A (-)
9
Ground
Ground
Pinout of 9 Pin D-Subminiature Connectors
Pinout of 9 Pin D-Subminiature Connectors
Pinout of 9 Pin D-Subminiature Connectors
Pinout of 9 Pin D-Subminiature Connectors
Pin Identification of 9 Pin D-Subminiature
Connectors
ES-450J RS-422 User’s Manual
!August 24, 2018!12

Command Reference
The table below lists the various command messages that the ES-450J
sends to the recorder. The specific messages may vary based on the actual
recorder detected.
Function
Command
STOP
21 13 00
F-PLAY
20 01
R-PLAY
21 22 40
F-FWD
20 10
REWIND
20 20
RECORD
20 02
FRAME+/-1
24 31 <ff> <ss> <mm> <hh>
+/-10 SECONDS
24 31 <ff> <ss> <mm> <hh>
+2/4/8/16X
21 13 <speed>
-2/4/8/16X
21 23 <speed>
JOG FORWARD
21 11 <speed>
JOG REVERSE
21 21 <speed>
SHUTTLE FORWARD
21 13 <speed>
SHUTTLE REVERSE
21 23 <speed>
GOTO
24 31 <ff> <ss> <mm> <hh>
TIMECODE REQUEST
61 0C 03
STATUS REQUEST
61 20 11
DEVICE ID REQUEST
00 11
Function Commands
Function Commands
ES-450J RS-422 User’s Manual
!August 24, 2018!13

Replacement Parts
If replacement parts are needed, you can order them directly from JLCooper
Electronics.
You can contact us at the following email address:
[e-mail]
You can also contact us at the following phone number:
[phone]
Power Supply
The ES-450J uses a power supply that is rated at 9 volts DC at 500mA. The
connector is a barrel connector that is 11mm long, has a outer diameter of
5.5mm and center diameter of 2.1 mm. Connector is positive polarity.
If you you need to order a replacement, you can order it directly from us.
The JLCooper part number is 561036.
Care And Service
If properly cared for, your ES-450J should provide years of trouble-free
performance. While the ES-450J is built in a rugged metal enclosure, please
avoid dropping the ES-450J or hard banging on the keys.
Clean with a soft cloth dampened with window cleaner. Do not allow liquids
or foreign matter to get inside the unit.
There are no user-serviceable parts in the ES-450J. Please refer to the
really fine print following for detailed warranty and service information.
11mm
5.5mm outside
2.1mm inside
ES-450J RS-422 User’s Manual
!August 24, 2018!14

JLCooper Electronics Limited Warranty
JLCooper Electronics ("JLCooper") warrants this product to be free of defects in materials or
workmanship for a period of 12 months from the date of purchase. This warranty is non-
transferable and the benefits apply only to the original owner. Proof of purchase in the form of an
itemized sales receipt is required for warranty coverage. To receive service under this warranty,
customers in the United States should contact the JLCooper factory at [phone] and talk to
a service technician. If necessary, a Return Authorization number may be issued. For our customers
outside the United States, it is recommended that you first contact your Dealer or Distributor, since
they may offer their own service or support policy. If local support is not obtainable, please send a
FAX to JLCooper's Service Department at [phone] with a detailed description of the
service required. Upon issuance of return authorization, the product should be packed in the
original shipping materials and shipped prepaid and insured to: Service Department, JLCooper
Electronics, 142 Arena Street, El Segundo, CA 90245. Please include the following: copy of the
sales receipt, your name and address (no P.O. Boxes, please), a brief description of the problem,
and any other related items discussed with the service department and considered necessary to
evaluate the product or effect a repair. The return authorization number must be clearly written on
the outside of the package. JLCooper will at its option, without charge for parts or labor, either
repair or replace the defective part(s) or unit. Carriage, insurance, customs duties, impounds,
tariffs, taxes, surcharges, brokerage fees and other shipping costs are not covered by this warranty.
JLCooper's normal repair turn around time at the factory is approximately 15 business days from
receipt of product to shipping. Your actual turn around time will include return shipping. Actual turn
around time will vary depending upon many factors including the repeatability of the customer's
reported complaint, the availability of parts required for repair, the availability of related products
needed to evaluate the product if necessary. Priority services are available at additional cost. These
should be discussed with the service technician at the time the return authorization is issued. This
warranty provides only the benefits specified and does not cover defects or repairs needed as
result of acts beyond the control of JLCooper including but not limited to: abuse, failure to operate
in accordance with the procedures outlined in this owner's manual; nor does it cover damage from
accident, negligence, using incorrect power supply, modification, alteration, improper use,
unauthorized servicing, tampering, ingress of foreign matter; nor for damage from natural or man-
made events such as, but not limited to flooding, lightning, electrostatic discharge, tornadoes,
earthquake, fire, civil unrest, war, terrorism, etc.
THE DURATION OF ANY OTHER WARRANTIES, WHETHER IMPLIED OR EXPRESS, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTY HEREIN. JLCOOPER HEREBY EXCLUDES
INCIDENTAL AND CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO: LOSS OF
TIME, INCONVENIENCE, DELAY IN PERFORMANCE OF THIS WARRANTY, THE LOSS OF USE OF
THE PRODUCT OR COMMERCIAL LOSS, AND FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY OF MERCHANT-
ABILITY APPLICABLE TO THIS PRODUCT. JLCOOPER SHALL NOT BE LIABLE FOR DAMAGES
OR LOSS RESULTING FROM THE NEGLIGENT OR INTENTIONAL ACTS OF THE SHIPPER OR
HIS CONTRACT AFFILIATES. THE CUSTOMER SHOULD CONTACT THE SHIPPER FOR PROPER
CLAIMS PROCEDURES IN THE EVENT OF DAMAGE OR LOSS RESULTING FROM SHIPMENT.
THIS WARRANTY SHALL BE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA.
ES-450J RS-422 User’s Manual
!August 24, 2018!15
