JLL IC200 PRO Indoor Cycling User manual

INSTRUCTION MANUAL
Please read this book thoroughly before operating the bike
Scan For YouTube Assembly Videos

CONTENTS
1. SAFETY INSTRUCTIONS
User safety precautions
Prior to use
During use
Exercise safety precautions
Facility safety precautions
Warning stickers
2. ASSEMBLY
Preparing the site
Diagram
Content listing
Box contents
Tools pack
IC200 PRO assembly
Monitor conguration
Testing the bike operation
Specications
Emergency stop function
Data readouts
Tension adjustment
Pedal strap adjustment
Seat adjustment
Handlebar adjustment
Transporting the bike
3. OPERATION
Preventive maintenance activities
Exercise bike cleaning
Bike balance
4. MAINTENANCE
p. 6
p. 6
p. 6
p. 6
p. 7
p. 7
p. 8
p. 8
p. 9
p. 9
p. 9
p. 10
p. 12
p. 13
p. 13
p. 14
p. 14
p. 14
p. 15
p. 15
p. 15
p. 16
p. 17
p. 18
p. 19
Exploded diagram
Parts list
p. 4
p. 5

Contact information
Disclaimer
5. ADDITIONAL INFORMATION
p. 20
p. 20
3

4
1

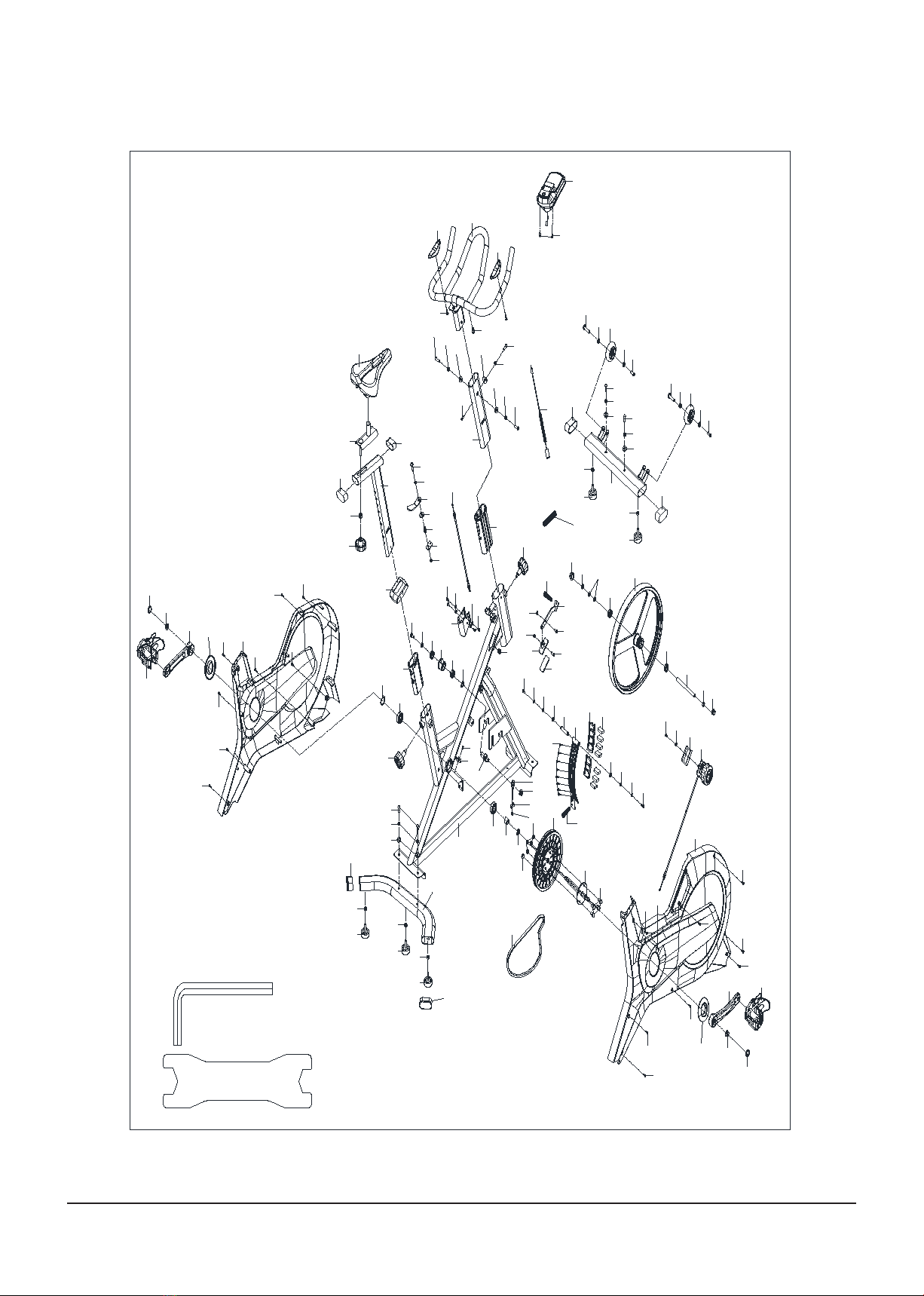

EXPLODED DIAGRAM
6
7
6
5
8
6
7
6
5
8
9
10
11
4
2
31
4
13
4
12
4
9
10
11
#A S6
#B S13*15
2
3
2
3
2
3
9
10
11
14
15
16
16
17
18
19
20
21
22
23
23
23
23
24 252627
26 28
29
32
31
30 32
33
34
35
36
44
45
37
38
39L
41 41
42
42
43L
42
42
42
39R
38
43R
50
49
48
42
41
42
42
13
45 46
41
10
11
10 11
52
50
53
54
55
56
57
50 5354 55
60
61
58
59
51
47
61
64
64
62
63
65
11
74
75
76
76
85
78
84
84
86
76
10
88
81
41
89
86
82
83
37
40L
40R
42
41
42
41
41
87
16
90
91
93 93
92
2
3
26
26
66
70
73
7766
72
68
67
69
71
94
94
77
95

5

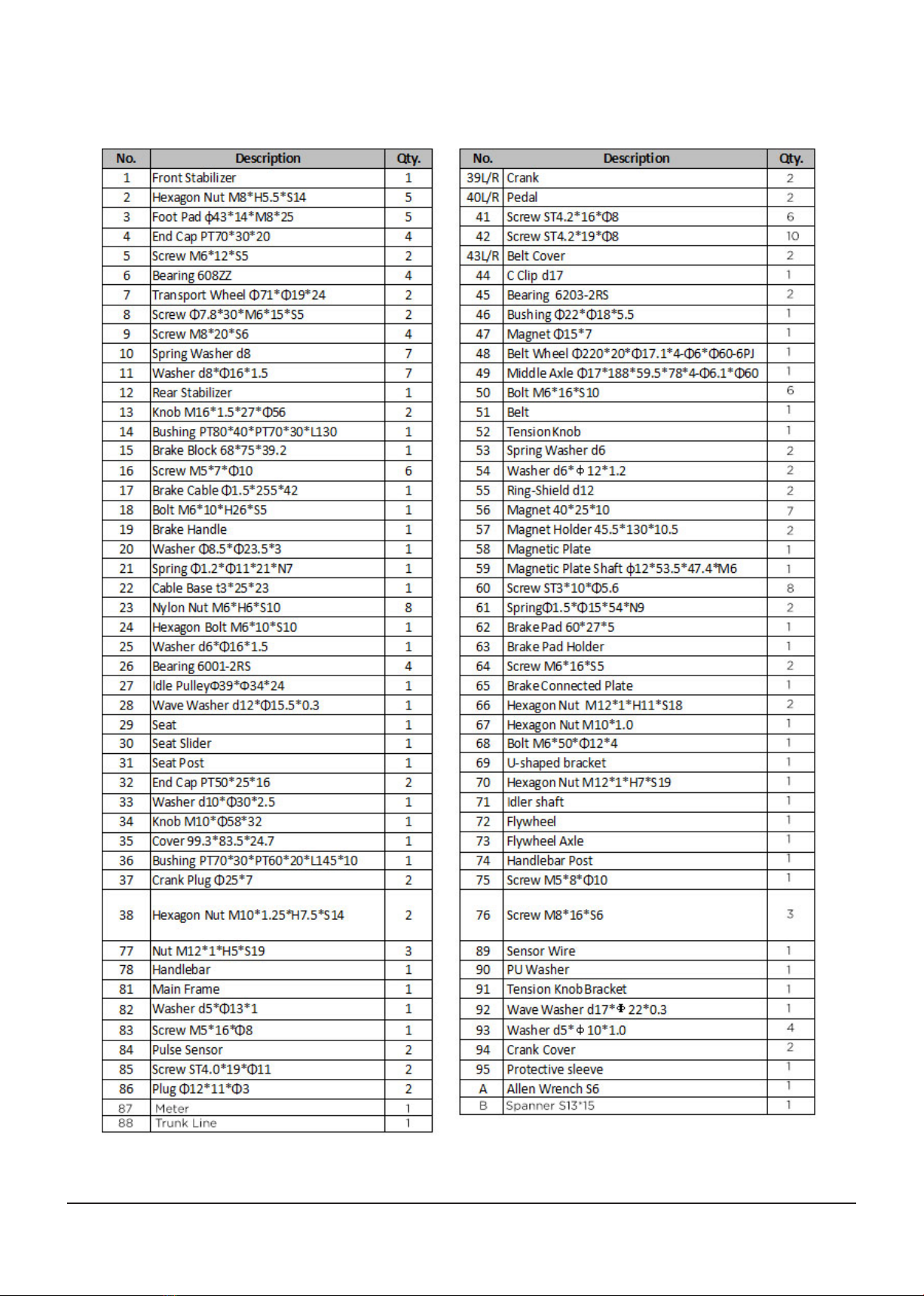

PARTS LIST
6
7
6
5
8
6
7
6
5
8
9
10
11
4
2
31
4
13
4
12
4
9
10
11
#A S6
#B S13*15
2
3
2
3
2
3
9
10
11
14
15
16
16
17
18
19
20
21
22
23
23
23
23
24 252627
26 28
29
32
31
30 32
33
34
35
36
44
45
37
38
39L
41 41
42
42
43L
42
42
42
39R
38
43R
50
49
48
42
41
42
42
13
45 46
41
10
11
10 11
52
50
53
54
55
56
57
50 5354 55
60
61
58
59
51
47
61
64
64
62
63
65
11
74
75
76
76
85
78
84
84
86
76
10
88
81
41
89
86
82
83
37
40L
40R
42
41
42
41
41
87
16
90
91
93 93
92
2
3
26
26
66
70
73
7766
72
68
67
69
71
94
94
77
95

6
Safety Instructions
Please pay attention to the following instructions before operating this bike.
USER SAFETY PRECAUTIONS
PRIOR TO USE
• Assemble the bike according to the instruction manual.
• Consult your doctor before beginning any exercise program.
• Read instructions.
• Read warning labels.
• Read emergency stop procedures.
• Maximum user weight is 100kg/ 15.7 St.
• Inspect unit. If damaged, DO NOT USE.
• Ensure every bolt and screw is securely tightened.
DURING USE
• DO NOT use for stretching and DO NOT attach straps or other devices.
• DO NOT allow children aged 12 or younger to be on or near the machine.
• Stop exercising if you feel faint, dizzy, or encounter pain.
• Keep all clothing and accessories clear of moving parts.
• DO NOT jump onto the exercise bike.
• Keep water and liquids away from electrical parts.
EXERCISE SAFETY PRECAUTIONS
• Use sports clothes and gym shoes.
• DO NOT use with bare feet.
• This model should only be used at home, DO NOT use for commercial purposes.
WARNING
1

7
• DO NOT operate this bike in damp or wet locations.
• Use caution when getting on or off the bike.
• Check the exercise bike for worn or loose components before each use. DO NOT use
until worn or damaged parts are replaced.
• Maintain regularly. Refer to Preventive Maintenance chapter.
• DO NOT use the bike if: (1) the bike is not working adequately or (3) the bike has
been dropped or damaged.
• DO NOT use the exercise bike outdoors.
• Read the instruction manual completely before using the bike.
• Ensure all users wear appropriate footwear on JLL®equipment.
• Set up and operate the bike on a level surface. DO NOT operate in small
restricted areas or on plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2 m at
the back. Be sure your exercise bike is clear of walls, equipment and other hard
surfaces.
• DO NOT modify the bike in any way. Any modifications will void the warranty.
• All the data displayed by the monitor is for reference purposes only.
FACILITY SAFETY PRECAUTIONS
Warning stickers indicate a potentially hazardous situation which, if not avoided, could
result in death or serious injury. Carefully read the following caution and warning labels
before using the unit.
WARNING STICKERS
It is strictly forbidden to touch any moving parts of the bike.
Keep small children and pets a safe distance from bike when in use.
WARNING
WARNING

8
DIAGRAM
Handlebar
Monitor
Front Stabilizer
Flywheel
Right Pedal
Rubber Feet
Rear Stabilizer
Seat Post
Left Pedal
Transport Wheel
Saddle
Handlebar Post
Spring Loaded Knob
Resistance Dial
Plastic Casing
Assembly
2
To find the ideal location to set up this bike, ensure that:
• Area is well illuminated and well ventilated.
• Surface is level.
• There is enough space to access the unit and emergency dismount. If it is possible,
keep the following clearances: 0.5 m at each side and 2 m at the back.
• The bike is placed in an environment with a relative humidity range of 30-50%.
Please ensure the temperature is kept constant. Do not use in a moist or damp
environment as this may impact on the integrity and performance of the machine.
PREPARING SITE

9
CONTENT LISTING
2TOOLS PACK
See diagram (left) and content listing (below) for the exercise bike box contents. See
Customer Service chapter for contact information if any parts are missing.
BOX CONTENTS
D10 Flat
Washer
x1
Exercise Bike Base
Tools Pack2
Front and Rear
Stabilizers
Manual
Pedals x2 Handlebar Post
Spanner
x1
Hex Allen Key
x1
Saddle
Handlebars
M8*20 Bolts
x4
M10 Knob
x1
d8 Bolts
x7
d8*16 Bolts
x7
M8*16
x3

10
IC200 PRO ASSEMBLY
The bike has been assembled and tested at the factory, so you shouldn’t have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Multi-tool, Washers and Bolts). See previous page.
To assemble your JLL IC200 PRO please follow these easy steps:

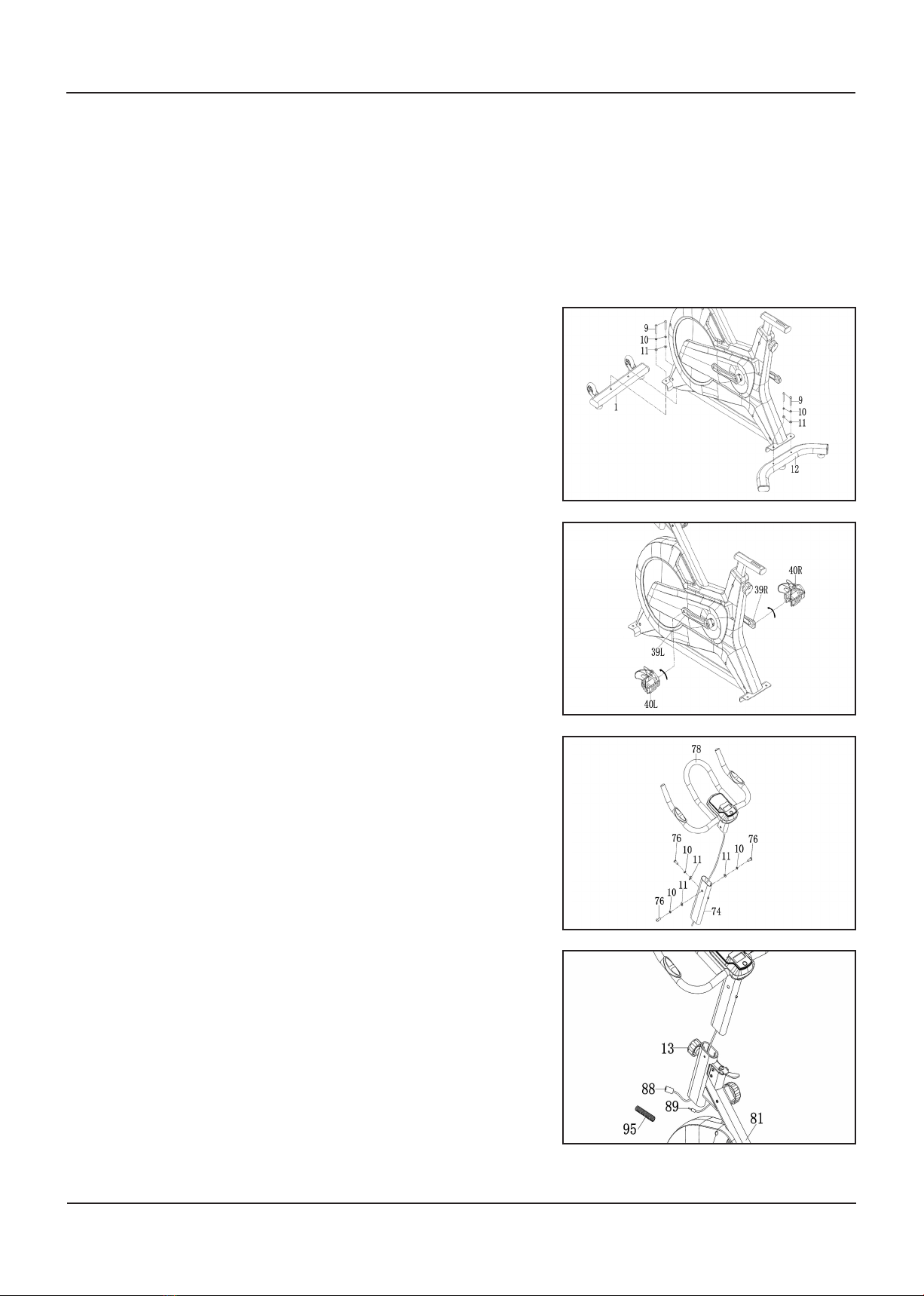

STEP 1
Attach the front and rear stabilizers to the main
frame using 4 x M8*20 Screws (Part 9), 4 x spring
washers and 4 x flat washers.
STEP 2
Attach the right and left pedals to their
corresponding cranks, turn the right pedal clockwise
and the left anti-clockwise.
STEP 3
Attach the handlebars to the handlebar post by
feeding the wire through the post and securing
using 3 x M8*16 Screws, 3 x spring washers and 3 x
flat washers.
STEP 4
Loosen the adjustment knob on the front of the bike
and insert the handebar post into the frame also
feeding the wire through.
Then tighten the knob back up.

11
STEP 5
Make sure the sensor wire feeds through the
protective sleeve and connect to the other end of
the wire from the frame.
STEP 6
Attach the saddle to the seat post and secure using
a large washer and the M10 knob.
• It is recommended that at least two people lift, move and assemble the bike.
• Use safe lifting methods.
WARNING: HEAVY EQUIPMENT

12
MONITOR CONFIGURATION
2
3
1Button 3Stand
2Display Screen
1

13
Use the following instructions to test the resistance and correct operation of the bike.
1. Without anyone on the bike, turn the resistance dial both clockwise and
anti-clockwise and check to see if the brake pad moves closer or further away from
the flywheel.
2. Now sit on the bike and begin to pedal, again turn the resistance dial in both
directions and check to feel the difficulty of pedalling changing.
3. Whilst pedalling press down the resistance dial to check the emergency stop
function.
4. Whilst pedalling on the bike make sure there are no noise issues or wobbling
coming from the bike.
TESTING THE BIKE OPERATION
SPECIFICATIONS
Display LCD Displays: Time, speed, distance, calories, pulse and scan mode.
Transport Built-in wheels.
Flywheel 7kg Flywheel
Resistance 8 levels of magnetic resistance
Safety Emergency stop friction pad
Working Temperature 5° C - 40° C
Crank 3 piece crank system on the pedals making it stronger and more reliable.
Seat 8 levels of adjustable seat height.
Pedals Fitted pedals with foot cage
Handlebars 5 levels of adjustable height
Maximum User Weight 100kg, 15.7 St or 220 lb
Occupying Area 119.5 cm (Length) x 55.5 cm (Width) x 110.5 cm (Height)
Packaging Dimensions Box 1: 107 cm (Length) x 25 cm (Width) x 87.5 cm (Height)
Box 2: 50 cm (Length) x 48 cm (Width) x 19 cm (Height)
Gross Weight Box 1: 29kg Box 2: 8.7kg
Net Weight Box 1: 25.8kg Box 2: 6.2kg

14
3
Operation
Read all instructions, warnings and safety procedures located in the Safety chapter
before using the bike.
EMERGENCY STOP FUNCTION
The resistance dial also functions as the emergency stop. In an emergency situation,
press down firmly on the dial, this will cause the flywheel to come to a stop.
DATA READOUTS
As you exercise, the bike keeps track of the following data:
• Time: The total time you have been working out. Display time as hours : minutes .
• Speed: Your current speed, displayed in kilometres per hour (km/h).
• Distance: The total accumulated distance, in kilometres during your workout.
• Calories: The total accumulated calories burned during your workout.
• Pulse: Your current pulse rate during your workout.
• Scan Mode: Displays each function continuously one after another.
TENSION ADJUSTMENT
To increase the tension, rotate the knob
clockwise. To decrease the tension, rotate
the knob anti-clockwise. 1 will indicate the
lowest and 8 being the hardest tension.
The red brake handle is the emergency
brake. Use this safety feature in any situation
where you need to get off the bike quickly
or stop the bike’s flywheel.
Simply press down on the handle firmly.

15
PEDAL STRAP ADJUSTMENT
SEAT ADJUSTMENT
HANDLEBAR ADJUSTMENT
If the strap is loose, press down the buckle
and pull the strap down to secure it tighter.
(Figure B)
If the strap is too tight, press down the
buckle and pull the strap up to loosen it.
(Figure A)
To adjust the seat height loosen the knob
on the back of the bike and pull it out. This
knob will be spring loaded. Raise or lower
your seat and then reinsert the knob and
secure in place.
To adjust the seat forward or back loosen
the knob underneath the saddle, slide it to
your desired position and tighten back up.
To adjust the handlebars loosen the knob
on the front of the bike and pull it out. This
knob will also be spring loaded. Then slide
the handlebar post up or down and secure
the knob back in place.

16
TRANSPORTING THE BIKE

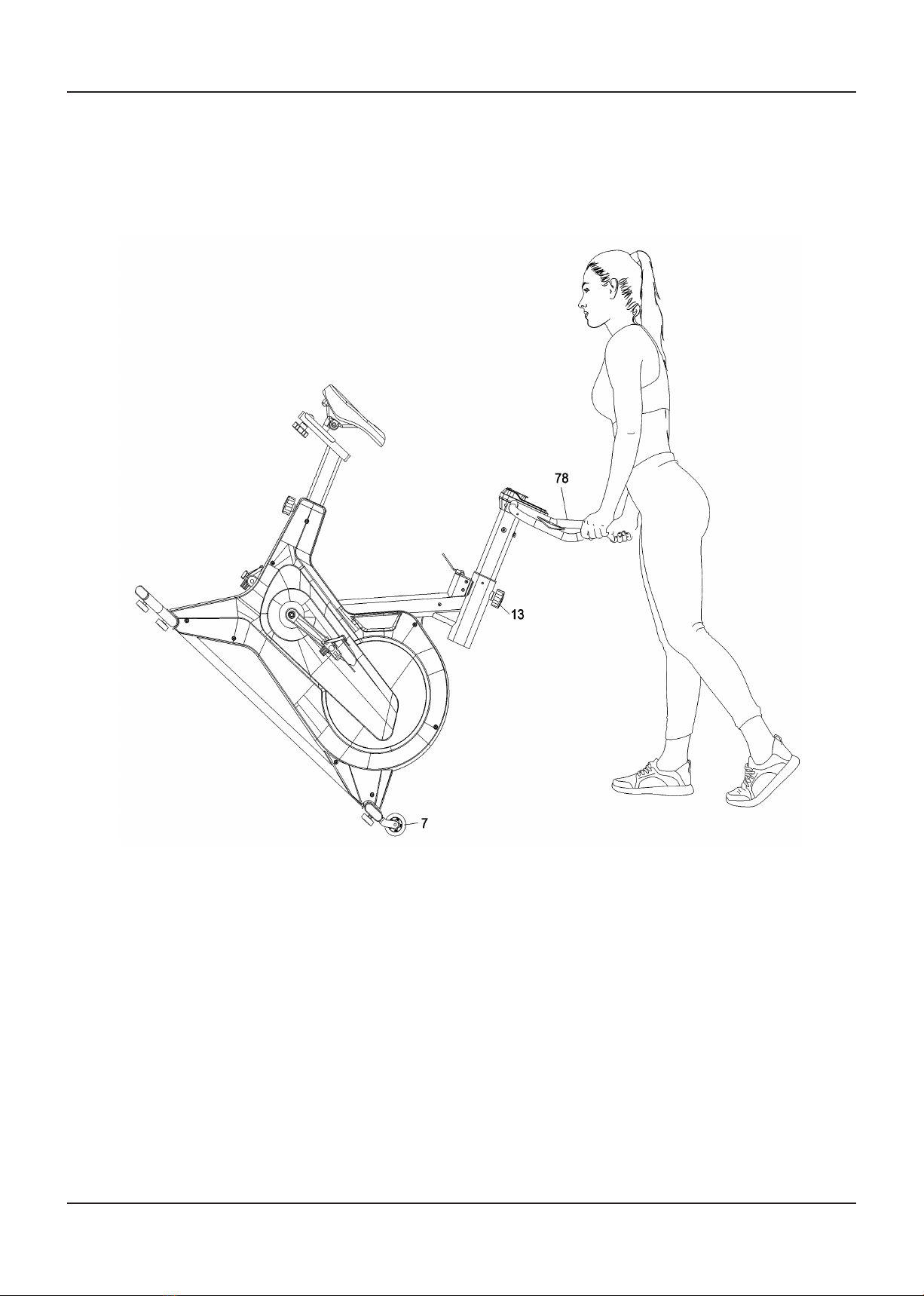

To move the bike first make sure the handlebars are secure, then stand in front of the
bike and firmly grab hold of the handlebars and tilt the bike towards you. Make sure the
transport wheels are touching the ground and then you can roll the bike to your desired
location.

17
Maintenance
4
Maintenance must be performed on a regular basis. Performing maintenance actions can
aid in providing safe and trouble-free operation of all JLL®equipment.
JLL®are not responsible for performing regular inspection and maintenance actions for
your machine. JLL®representatives are available to answer any questions that you may
have on [phone].
PREVENTIVE MAINTENANCE ACTIVITIES
Every JLL®bike that comes from the factory is already maintained, however, you just
need to follow simple steps to maintain it. Keeping the bike in a clean state will help to
prolong its life. Perform regular preventive maintenance to ensure
normal operation of the unit. Keep a log of all maintenance actions to assist in staying
current with all preventive maintenance activities. JLL®is not responsible for
performing regular inspection or maintenance.
Read all instructions and warnings listed both in this chapter and in the
Safety chapter. Contact JLL®Customer Service on [phone] for any
maintenance or service concerns.
Requirements:
• Water
• Dry cloth
• Vacuum
1. Only use water to clean and dust. Do not use any cleaning product because they
may damage the bike.
2. Be careful not to spill or get excessive moisture between the edge of the
monitor, as this might create an electrical hazard or cause failure of the
electronics.
3. Direct spraying could cause damage to the electronics and may void the
warranty.
WARNING

18
Depending on where the bike is placed, you may experience dry air, causing a
common experience of static electricity. You can notice that by walking across a carpet
and then touching a metal object. On your bike you may experience a shock due to the
build-up of static electricity on your body and the discharge path of the bike.
If you experience this type of situation, you may want to increase the humidity to a
comfortable level through the use of a humidifier.
Check your machine regularly for rust. If rust starts to appear on the screws it means
the item is not housed in the correct environment and will need to be moved to a more
suitable room. Any rust will indicate there may be moisture in the air and as a result this
could impact on the integrity and performance of your machine.
1. Use only JLL®replacement parts.
2. Keep water and liquids away from electrical parts.
3. If you allow your machine to become rusty, this will affect your warranty.
EXERCISE BIKE CLEANING
Keep the pedals free of dust and debris for smooth running and preventing
injuries. Dust/debris may cause damage to the chain and other moving parts.
After every workout use a neat, dry cloth for cleaning the bike and the handlebars to
prevent the item of corrosion. Wipe away any sweat that may have dripped onto the
bike. Avoid scratching the display by using a soft cloth.
Vacuum or sweep the floor underneath and around the bike. A treadmill mat can help
to reduce dust.
For further cleaning, use a soft cloth or paper towel dampened with water. Do not use
abrasive or chemical cleaning agents.
WARNING

19
To avoid serious injury or death:
• Replace worn or damaged components immediately and do not use until repair
is completed.
WARNING: EQUIPMENT HAZARD
EXERCISE BIKE BALANCE

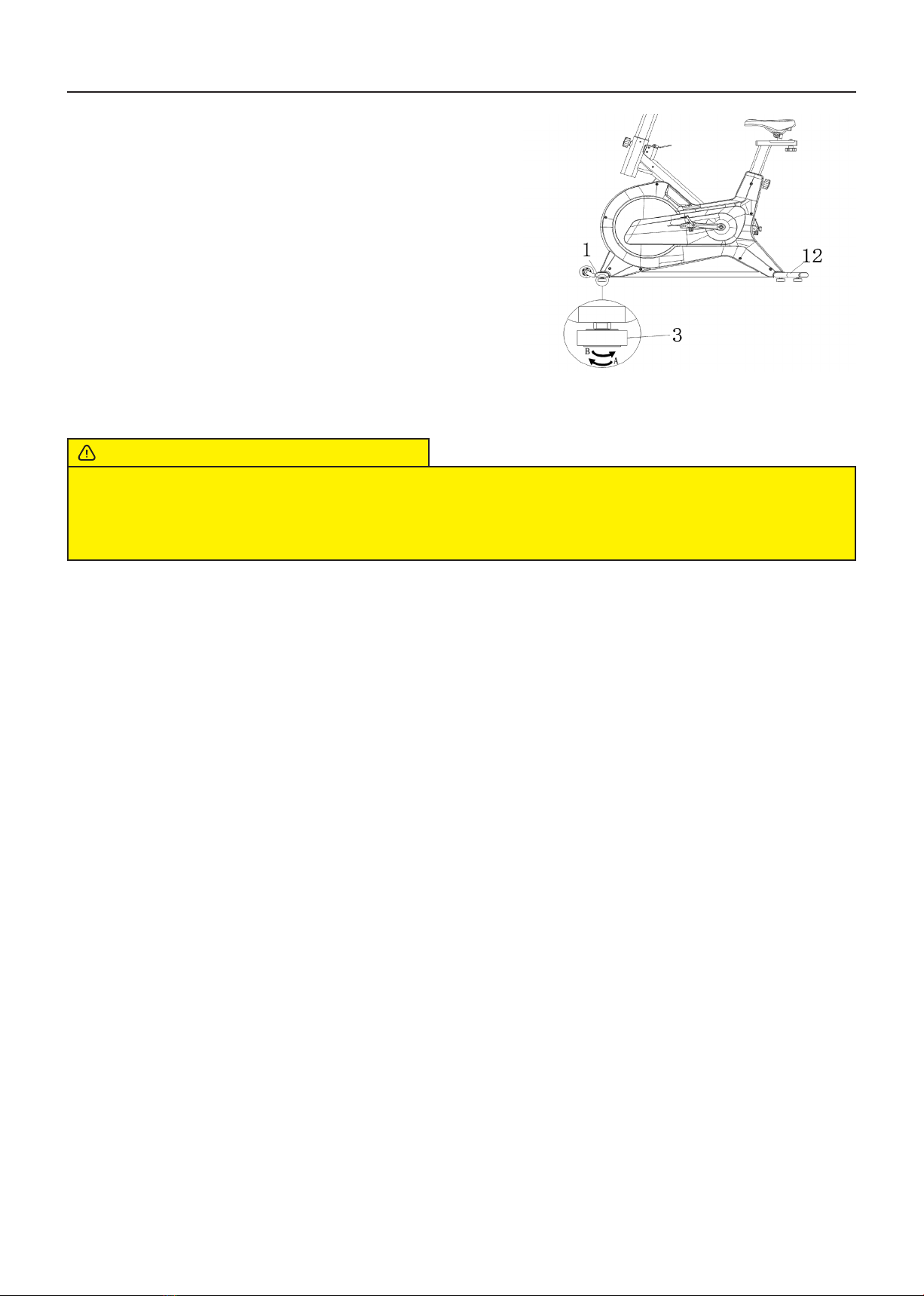

Place the bike on a level floor to avoid it
being off-balance. If that is not possible,
level the bike by adjusting the rubber feet
located underneath the stabilizers.
Check if the bike is balanced:
1. Stand in front of the unit with your
hands on the handlebars.
2. Gently rock the bike from side to side
checking for any movement.

In case any issues arise, please do not hesitate to contact our Customer Service team on
[phone] or email us at [e-mail]
You can also visit our support centre at SUPPORT.JLLFITNESS.CO.UK for maintenance and
assembly articles & videos.
Additional Information
5
CONTACT INFORMATION
• You should consult your physician, doctor or other health care professional before
starting or taking part in any of our workout guides. It is your responsibility to
evaluate your own health before taking part or performing any physical activity you
may see associated with JLL Fitness Ltd.
• Always seek professional advice before changing your diet or starting any exercise
program.
• JLL Fitness Ltd is not liable for any injuries or damages that may occur when
assembling or using this exercise bike.
• By reading this you assume full responsibility for any injuries or changes to your
physical well-being. You waive all rights and release JLL Fitness Ltd of blame from
any injuries or damages to property that may occur whilst following our advice.
• This manual offers specific instructions on how to assemble and maintain your
bike. Failure to follow these directions may result in your warranty being void.
DISCLAIMER
