JMC ANALOG/DVI2SDI/HDMI User manual

JMC Systems Engineering AB www.jmc.se [phone]
ANALOG/DVI2SDI/HDMI
User Manual
Rev1.0

JMC Systems Engineering AB www.jmc.se [phone]
Content
Feature ...................................................................................3
Front Panel...............................................................................4
Rear Panel................................................................................4
Side Panel ................................................................................5
DipSwitch/LED Control .................................................................6
Installation ............................................................................. 12
Specifications.......................................................................... 13

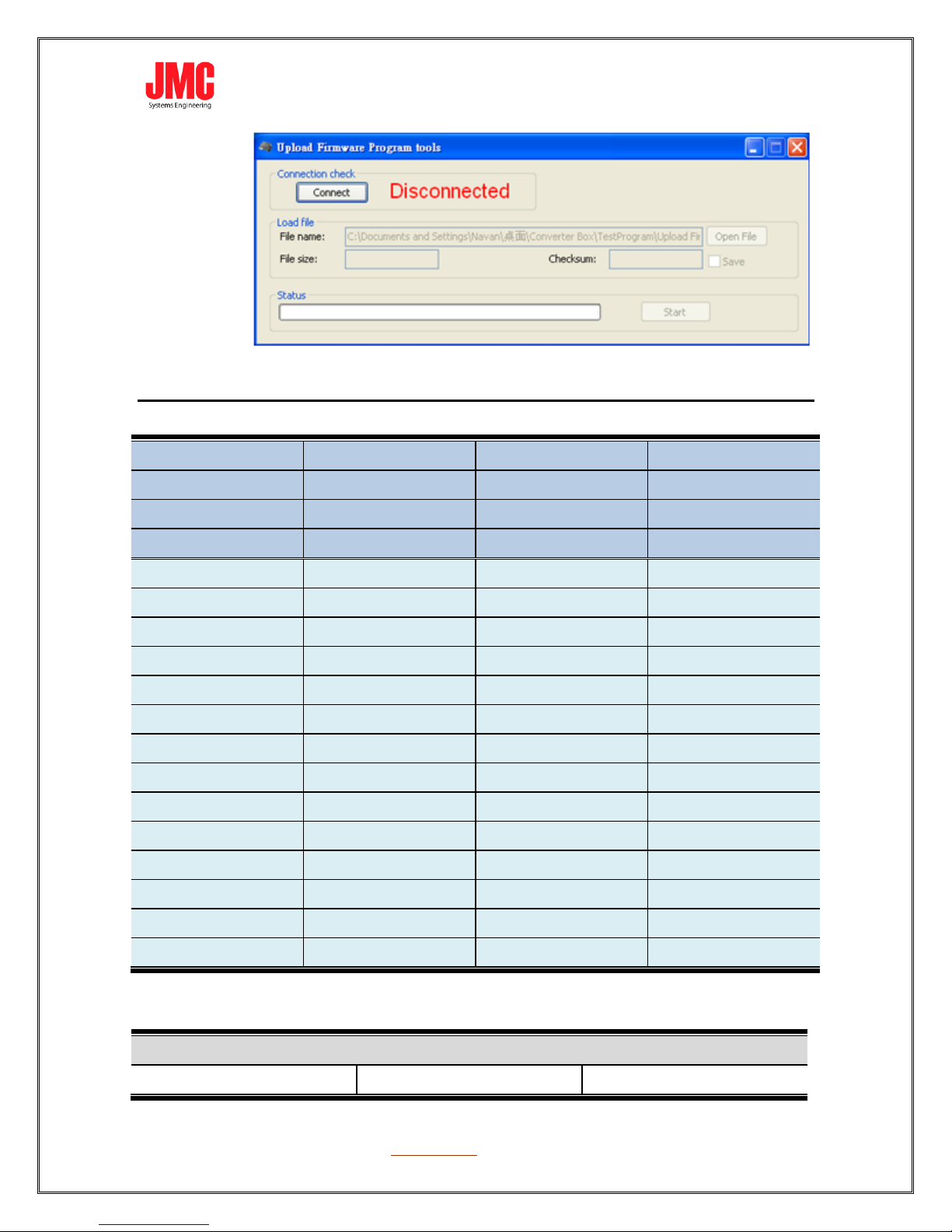

Firmware Upload ...................................................................... 14
Appendix Table A ..................................................................... 14

JMC Systems Engineering AB www.jmc.se [phone]
Feature
SDI Supports HD formats :
720p50 & 60
1080i50 & 60
1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
Auto 3G/HD/SD-SDI detection
Can be split one 3G-SDI displays simultaneously.
Frame rate conversion(1.000/1.001)
External Dipswitch and Usb Configuration
Firmware is upgradable in the field using the integrated USB port
The converter is Plug-and-Play
Support DVI-D, DVI-A, Component, CVBS and S-Video Input0
Support Embedded audio and stereo audio( L/R Audio )

JMC Systems Engineering AB www.jmc.se [phone]

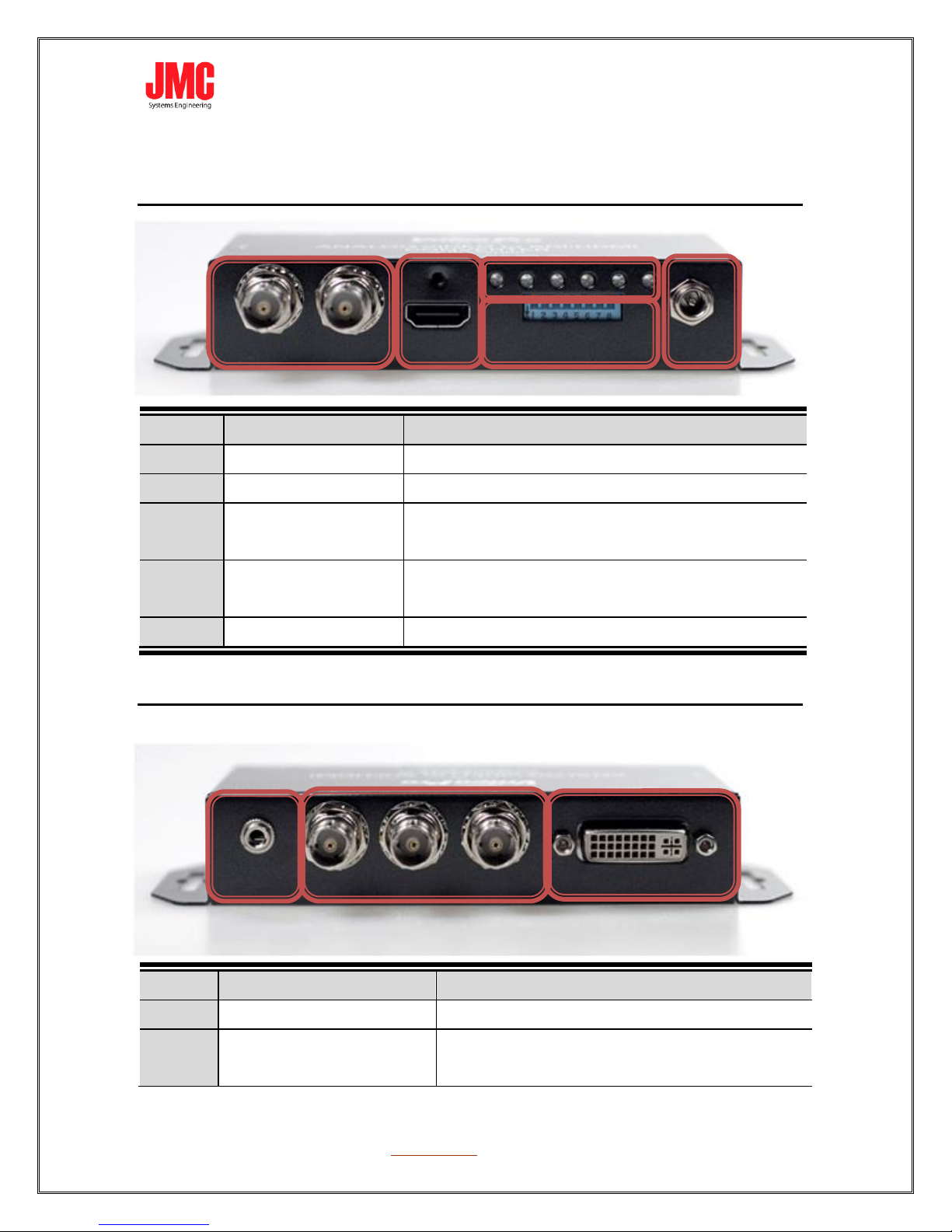

Front Panel
NO
Component
Function
1
SDI Output Port
From your SDI Display Device plug into this ports
2
HDMI output Port
From your HDMI Display Device plug into this port
3
Input Port/ Audio
source LED
The LEDs are indicate Input Ports and Audio
Source
5
Dipswitch
Control the Box ( Input Port/Audio/Output
Format)
6
Power Jack
The Power adapter plug into here
Rear Panel
NO
Component
Function
1
Phone Jack
From you Audio Device plug into this port
2
Component/CVBS/S-Video
Input Port
From your YPbPr/CVBS/S-Video Device plug
into this port
1
3
1
5
2
2
3
4

JMC Systems Engineering AB www.jmc.se [phone]
3
DVI-D/DVI-A Input Port
From your DVI-D/DIV-A Device plug into this
port

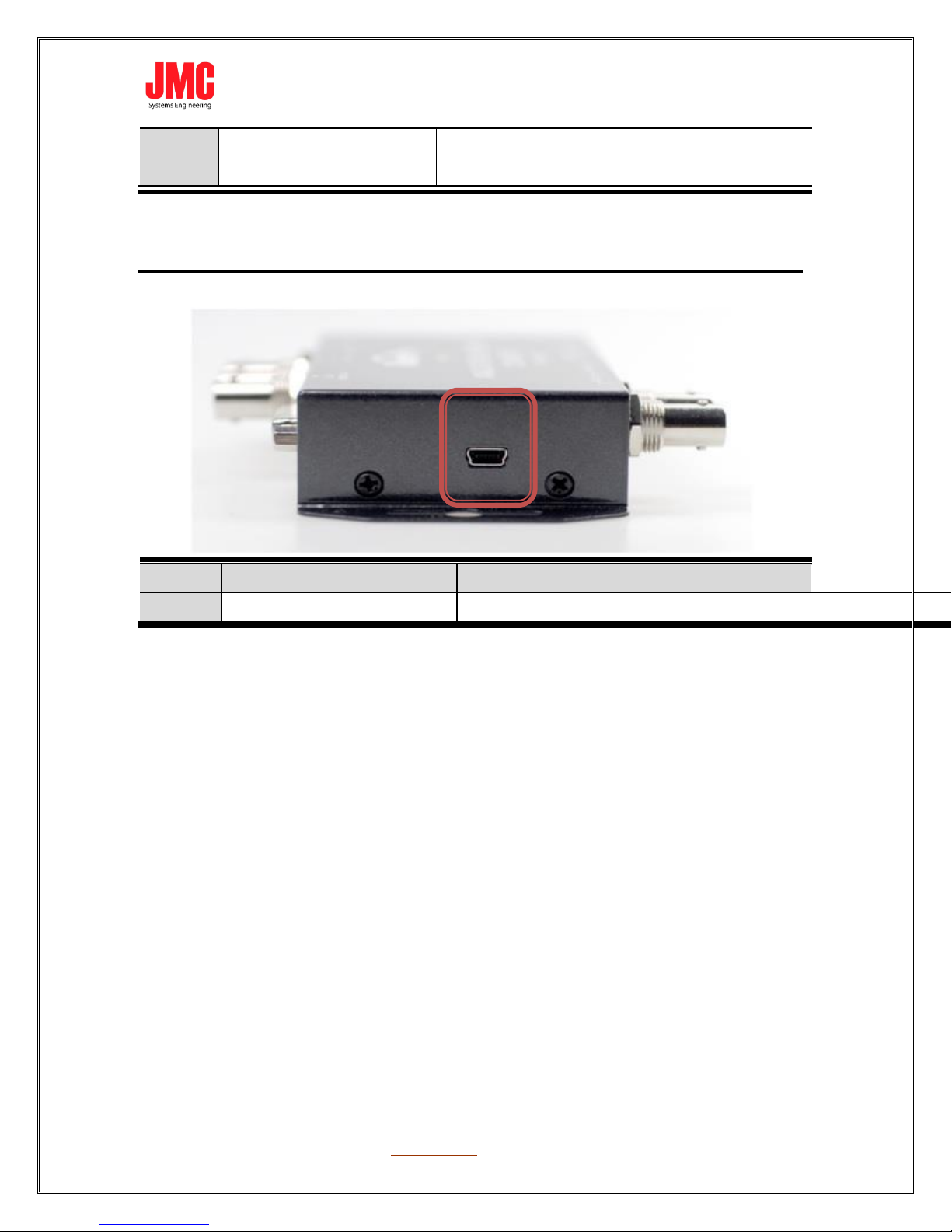

Side Panel
NO
Component
Function
1
USB Port
Upgrade firmware/Control Box From PC
1

JMC Systems Engineering AB www.jmc.se [phone]

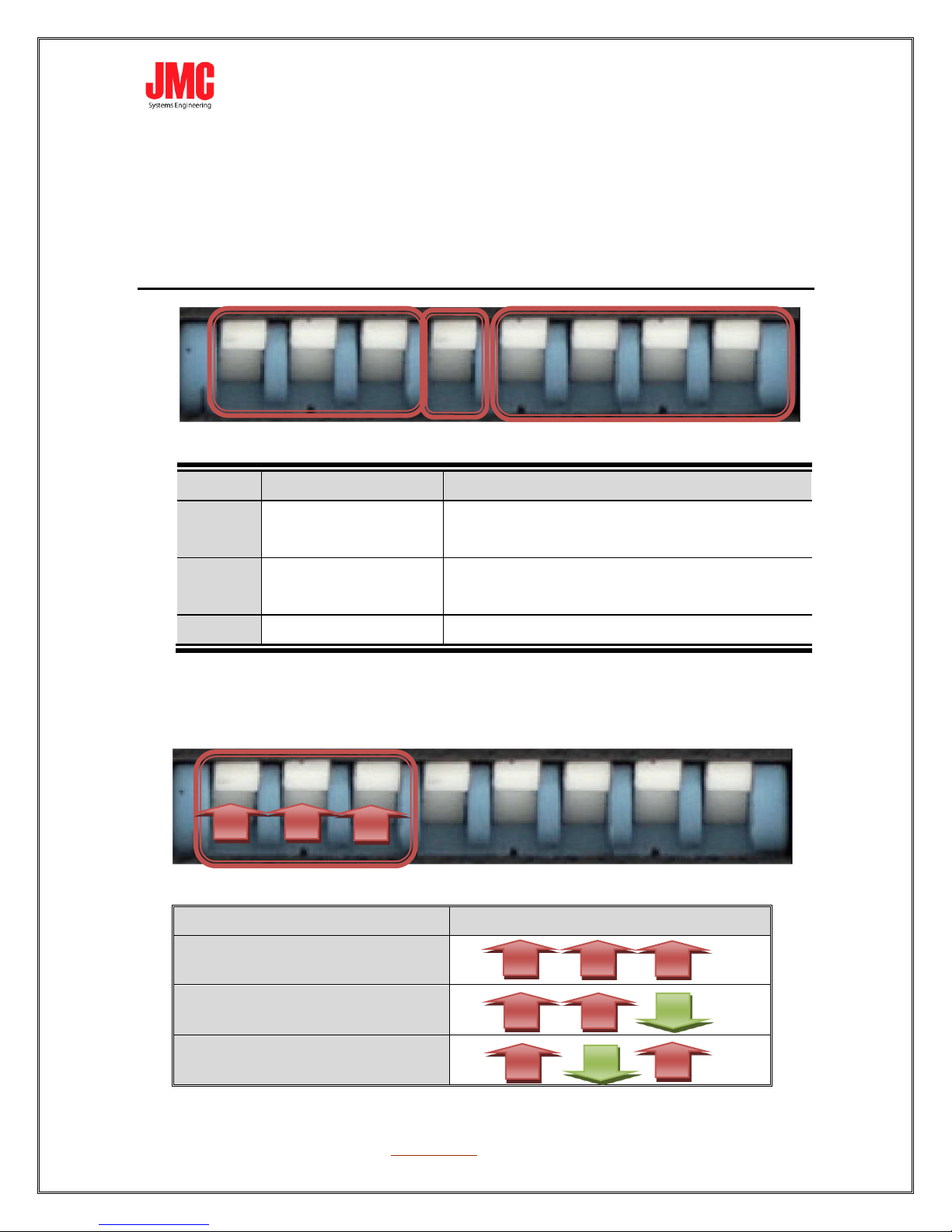

DipSwitch/LED Control
NO
Component
Function
1
Input Source
Five of kinds input source be support
( DVI-D/DV-A/YPbPr/CVBS/S-Video)
2
Audio Source
Two of kinds Audio input source
(Embedded audio/L/R Audio)
3
Output format
Control Box to switch Output Format.
Input Source:
VPC-MX1 Box can choose one of three standard inputSource by DipSwitch.
Input Source
Dipswitch Indicates
DVI-D(HDMI)
DVI-A(VGA)
YPbPr
1
2
3

JMC Systems Engineering AB www.jmc.se [phone]

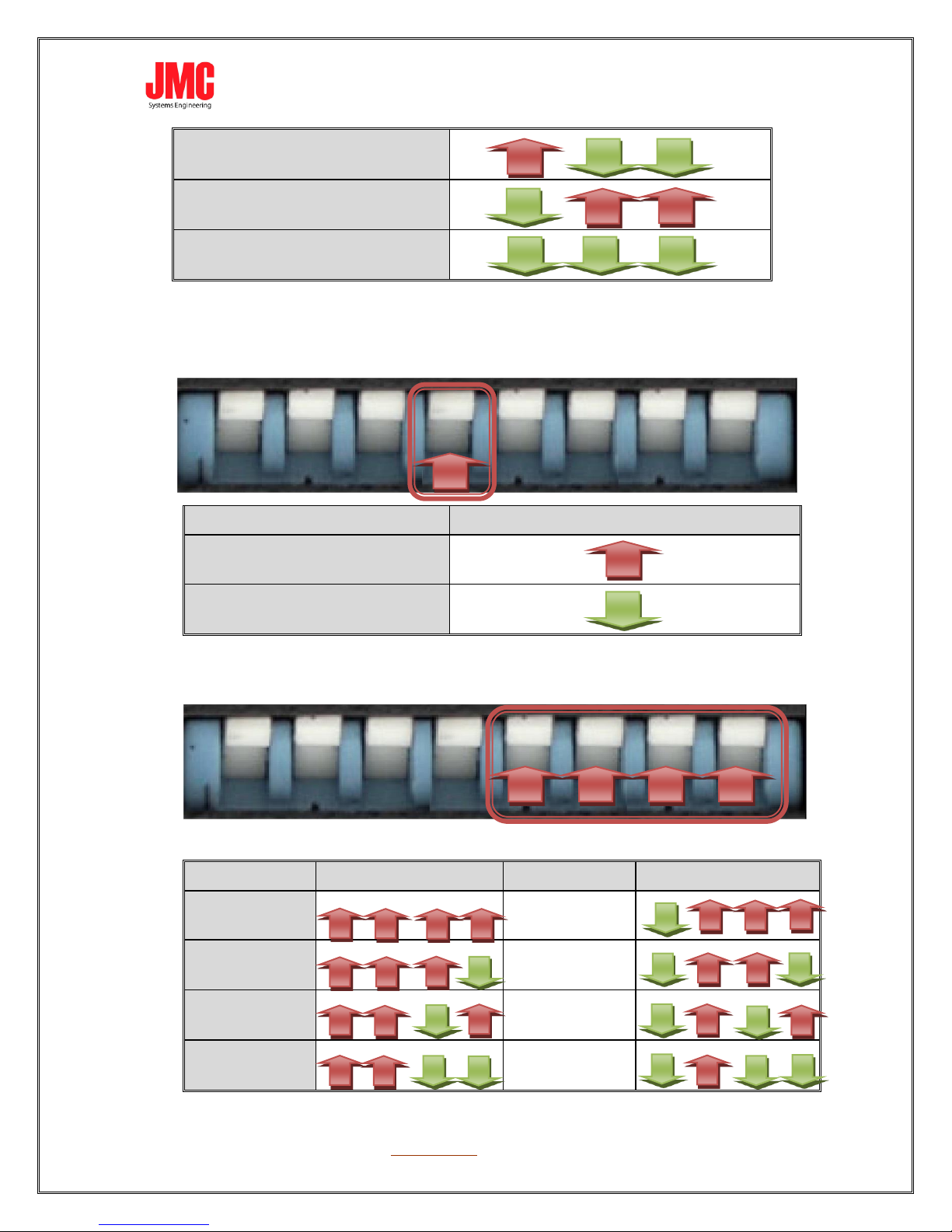

CVBS
S-Video(YC)
USB Control
Audio Source:
VPC-MX1 Box can be select audio source from L/R Audio.
Resolution
Dipswitch Indicates
Internal (Default)
L/R Audio
Output Format:
VPC-MX1box can be select 16 of kinds output format.
Resolution
Dipswitch Indicates
Resolution
1920x1080p60
1920x1080i60
1920x1080p59
1920x1080i59
1920x1080p50
1920x1080i50
1920x1080p30
1280x720p60

JMC Systems Engineering AB www.jmc.se [phone]
1920x1080p29
1280x720p59
1920x1080p25
1280x720p50
1920x1080p24
720x480i59
1920x1080p23
720x576i50
LED Indicate:
NO
Component
Function
1
Internal/L/R Audio
The LED is indicate Audio Source
indicate
2
DVI-D(HDMI)
The LED is indicate DVI-D Signal indicate
3
DVI-A(VGA)
The LED is indicate DVI-A Signal indicate
4
YPbPr
The LEDs is indicate YPbPr Signal
indicate
5
CVBS
The LED is indicate CVBS Signal indicate
6
S-Video
The LEDs is indicate S-Video Signal
indicate
1
6
2
3
4
5

JMC Systems Engineering AB www.jmc.se [phone]

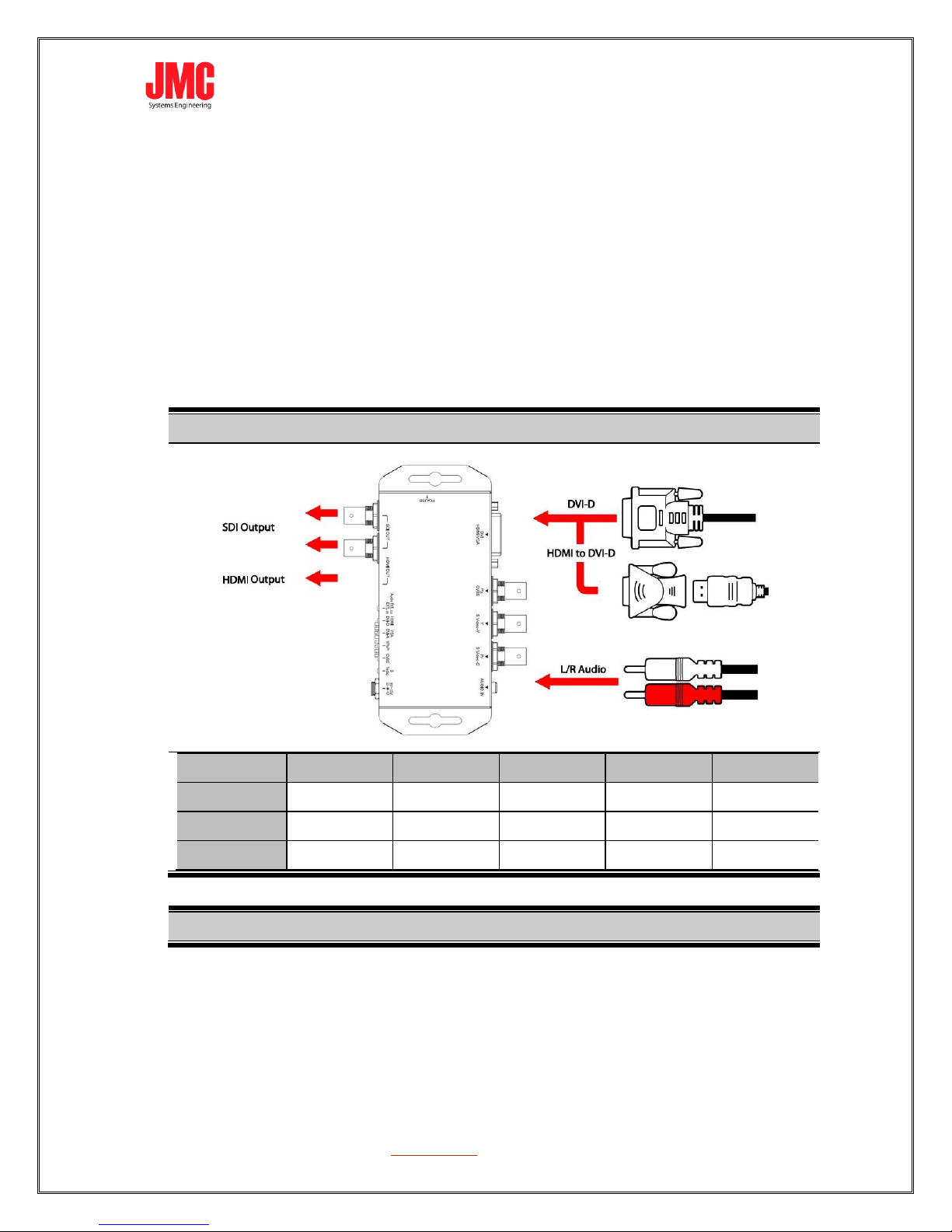

1. DVI-D + L/R Audio:
DVI-D + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
●
○
○
○
○
Un-locked
●
○
○
○
○
MicroVision
●(Blinking)
○
○
○
○
2. DVI-A+ L/R Audio:
DVI-A + L/R Audio

JMC Systems Engineering AB www.jmc.se [phone]
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
●
○
○
○
Un-locked
○
●
○
○
○
3. YPbPr + L/R Audio:
YPbPr + L/R Audio
DVI-D
DVI-A
YPbPr
Cvbs
S-Video
Locked
○
○
●
○
○
Un-locked
○
○
●
○
○
4. Composite (CVBS) + L/R Audio:
