1. PRODUCT INTRODUCTION
1.1. Product Brief
SC6D0N4 HDMI provides 4 x HDMI input for HDMI multiviewer with PGM
output feature in one, it can receive 4 HDMI inputs and has 2 HDMI outputs.
HDMI output 1 provides a monitoring interface for local monitor usage.
HDMI/PGM output 2 provides PGM feature and transfer it to broadcasting or
other equipment. It provides also 4 x 3.5mm analog audio input for audio
embedding and a 3.5mm analog audio output with audio deembedded.

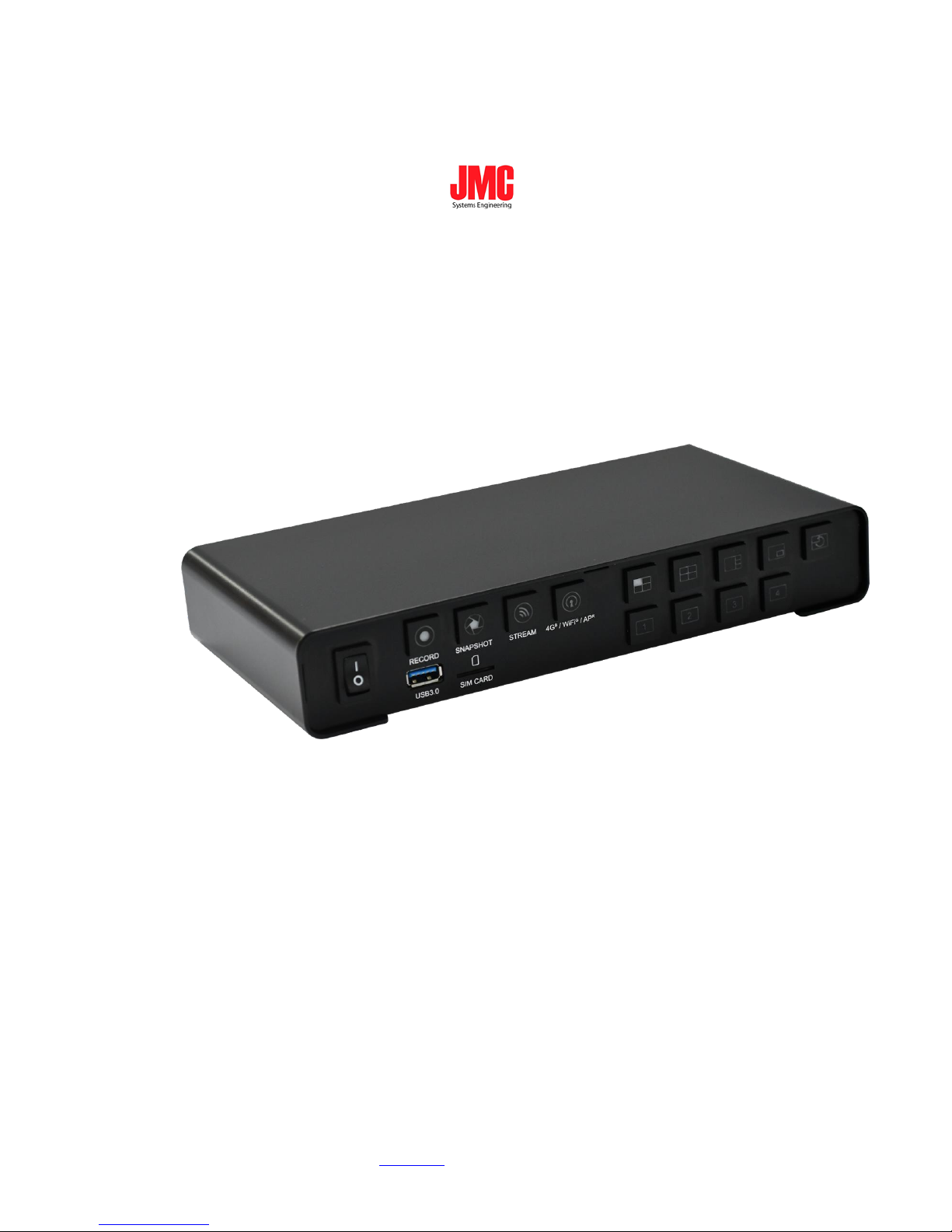

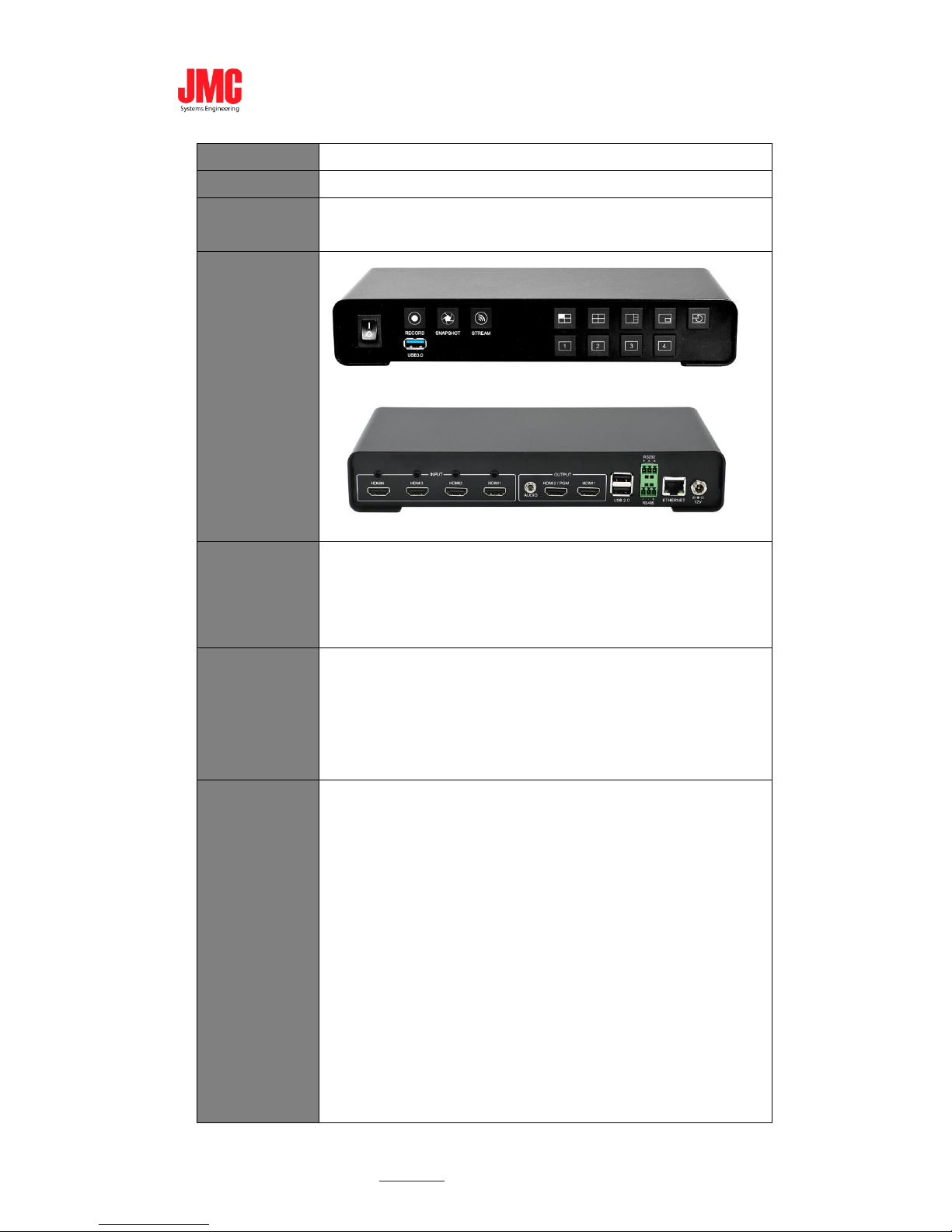

Front panel
The front panel of SC6D0 provides PGM / feature button for user to control it
locally. USB3.0 interface provides user to record input in various format. It also
provides record / snapshot / stream / connectivity button in front panel.
Back panel

JMC Systems Engineering AB www.jmc.se [phone]
In back panel, SC6D0 provides RJ45 for internet connectivity. It also provides
RS232 and 2 USB2.0 for user to connect with industrial / commercial
controlling method. User can connect USB keyboard and mouse to access
SC6D0 internal control interface.

JMC Systems Engineering AB www.jmc.se [phone]
1.2. Specification
Model
SC6D0N4 HDMI
Max. FPS
1920×1080p@300fps(4 HDMI + 1 PGM Channels)
Recording
Mode
Hardware Compression
Product
Input
Interfaces
⚫Video
➢4×HDMI
⚫Audio
➢4×3.5mm
Output
Interface
⚫Video
➢1×HDMI ( Multiview / PGM )
➢1×HDMI ( PGM )
⚫Audio
➢1×3.5mm
Video
Feature
⚫H.264/AVC, Baseline/Main/High Profile
⚫Configurable Bit Rate Up to 64Mbps
⚫Support input resolutions
➢1920×1080
( P60/P50/P30/P25/P24/i60/i50 )
➢1280×720 ( P60/P50), 1280×1024 ( P60 ),
1280×960 ( P60 )
➢1024×768 ( P60 ), 800×600 ( P60 ),
720×480 ( P60/i60 )
➢640×480 ( P60 ), 720×576 ( P50/i50 )
⚫Support output resolutions

JMC Systems Engineering AB www.jmc.se [phone]
➢Resize Range from 160×120 to 1920×1080
( P60 )
Audio
Feature
⚫AAC-LC
⚫Configurable bit rate range from 32Kbps to
384Kbps
⚫Sample rate : 48KHz, 16bit
Network
Feature
⚫1×RJ45 for 10/100/1000Mbps Ethernet
⚫DHCP client
Support
Streaming
protocol
⚫RTSP over UDP/TCP/Multicast/HTTP
⚫RTMP ( Publish )
⚫TS over IP
⚫HLS
Misc.
Features
⚫Web UI for system configuration
⚫Firmware upgradable
⚫LED indicator
⚫Status with Power Recycle
⚫2×USB2.0 (For Keyboard and mouse usage)
⚫1×USB3.0 (For external storage usage)
⚫1×RS232 + 1×RS485
⚫Main function switch
➢Record
➢Snapshot
➢Stream
⚫PGM mode switch
➢Full screen
➢Quadview
➢Picture by picture
➢Picture in picture
➢PGM Loop
⚫Full screen switch
➢Channel 1
➢Channel 2
➢Channel 3
➢Channel 4
Record
Format
MP4 / TS / AVI / MOV

JMC Systems Engineering AB www.jmc.se [phone]
2. HARDWARE INSTALLATION
2.1. Package Contents
Item
Amount
SC6D0N4 HDMI
1
Adapter
1
2.2. Device Size
Figure below is the device size of SC6D0N4 HDMI.
Device Size Diagram

JMC Systems Engineering AB www.jmc.se [phone]

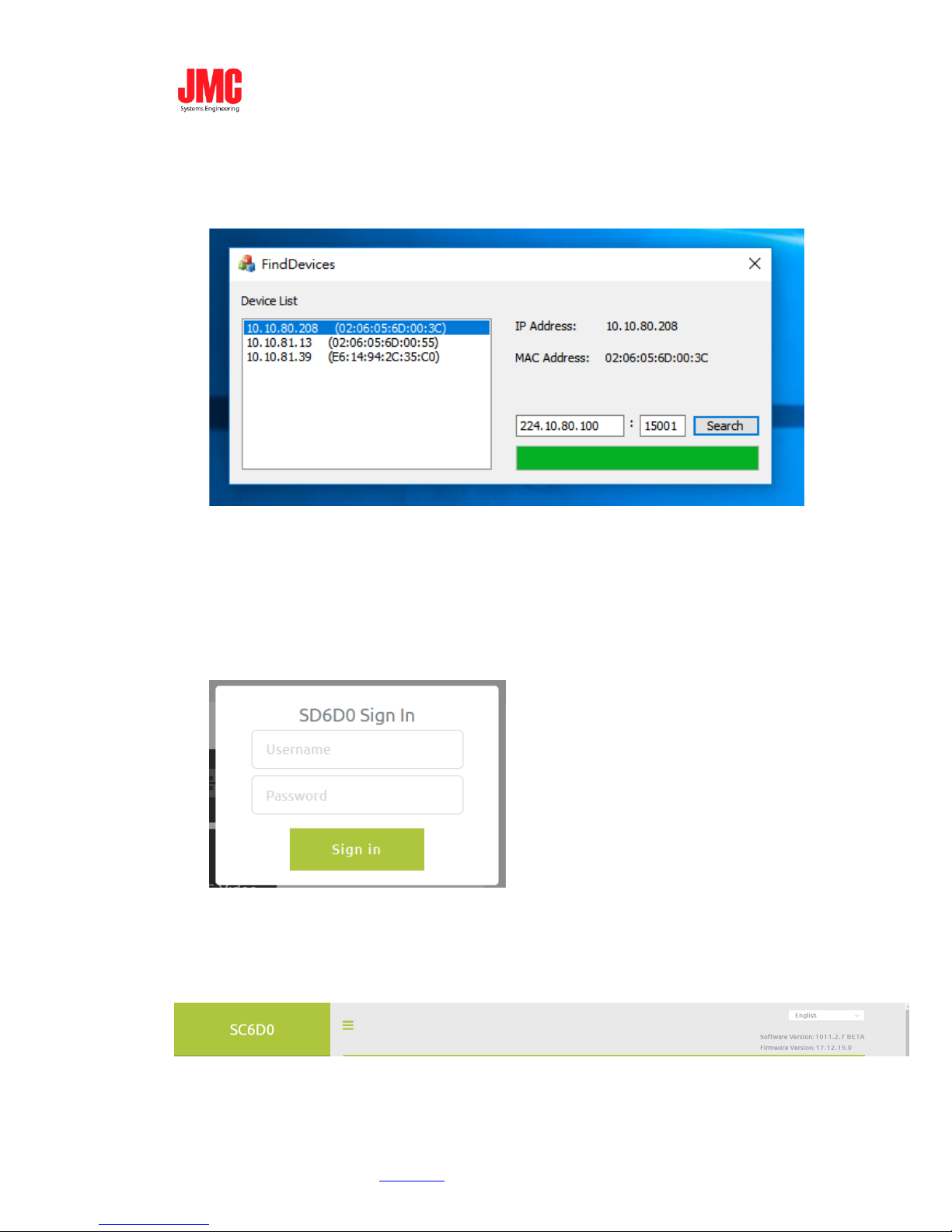

3. IP Finder
For using SC6D0 Web UI, please open IP finder and search for the ip address to
open control interface. The correct ip address can be distinguish by MAC address.
4. WEB UI
Web UI is the internet interface for user to control SC6D0 more convenient, users
can control them via normal PC or portable devices (EX: Android, iPhone,
iPad…etc.)
Username: admin
Password: 0000
4.1. Language / Firmware
On the top, here are web UI language selection and Firmware version / MCU
version. User can change Web UI language here.

JMC Systems Engineering AB www.jmc.se [phone]

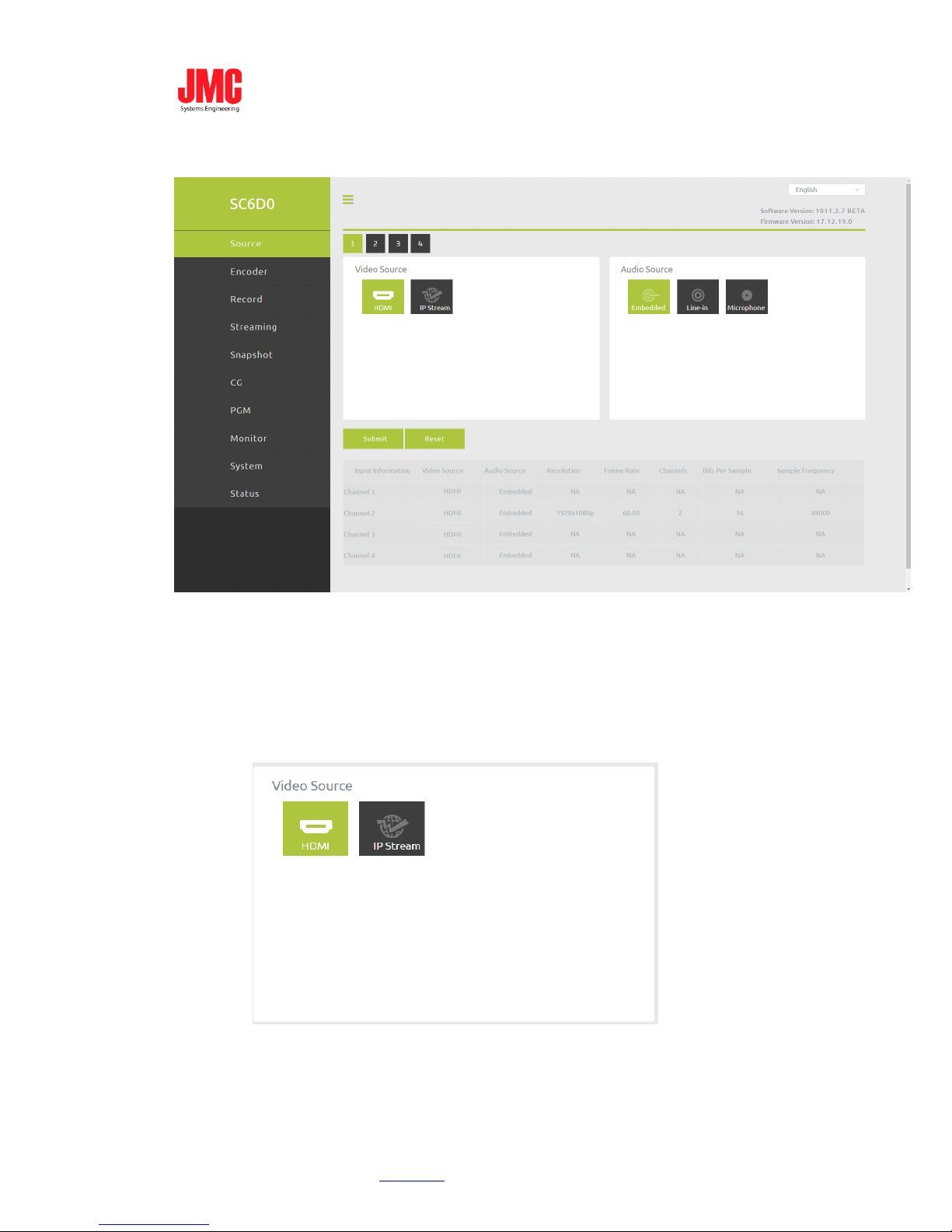

4.2. Source
This page contains input signal status, input Video Source and Audio Source
selection. Users can change input video property, source and check input video
information here. User can select on the top 1/2/3/4 icons to change the channel
that willing to adjust.
4.2.1. Video Source (Local)
User can change video source here.

JMC Systems Engineering AB www.jmc.se [phone]
4.2.1. Video Source (Streaming)
For SC6D0 up streaming, please follow the following information (The IP
address will vary by environment, please check IP finder to make sure the
IP address.).
RTSP format listed as below.
rtsp://(Account):(Password)@(SC6D0 IP address):(RTSP port)/(Session
name)
After the setting as above, the streaming address will be
rtsp://root:[email protected]:554/session0.mpg

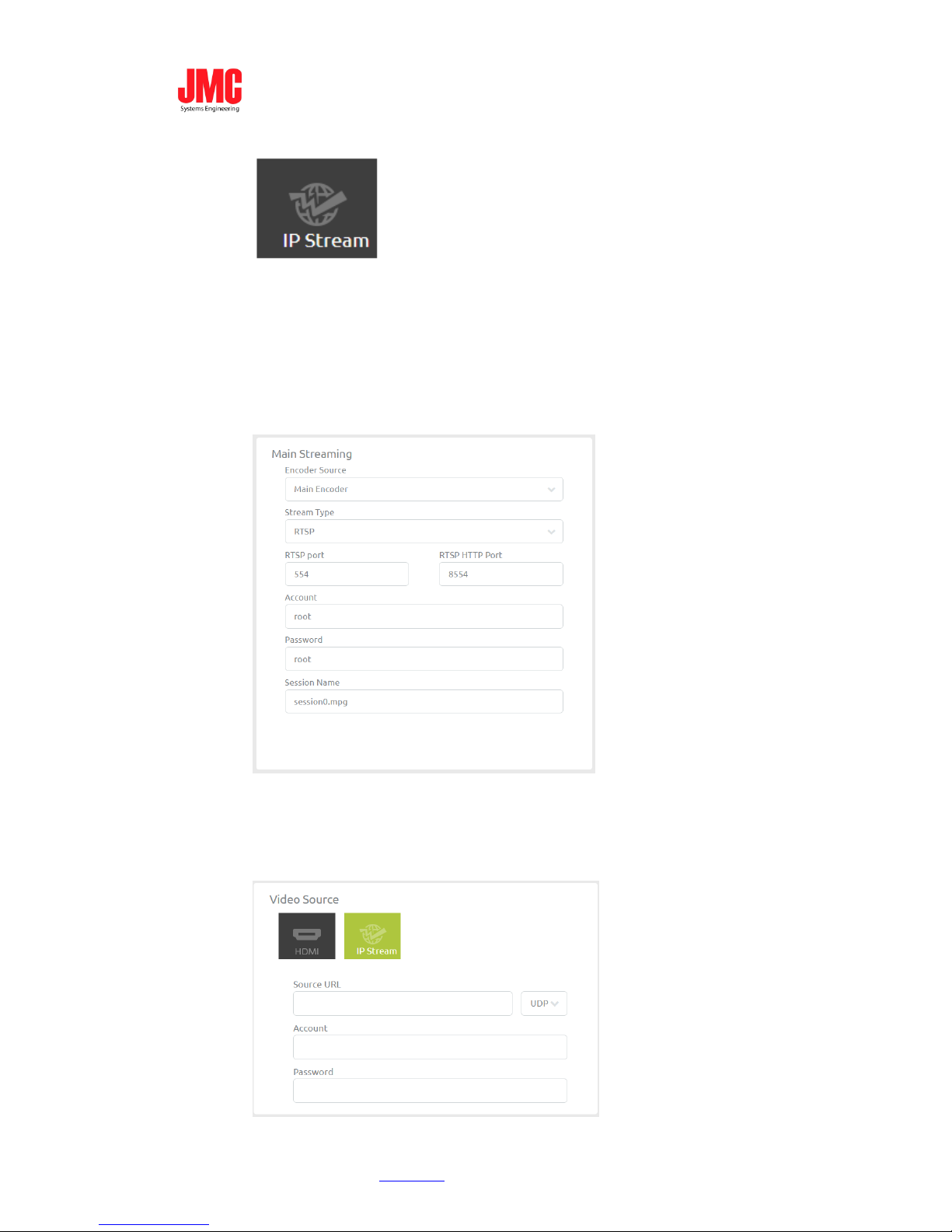

For down streaming side, please enter source->video source->IP Stream

JMC Systems Engineering AB www.jmc.se [phone]
After enter the Web UI, please setting as below (The IP address will vary by
environment, please check IP finder to make sure the IP address.).
Source URL : rtsp://192.168.1.200:554/session0.mpg
Account : root
Password : root

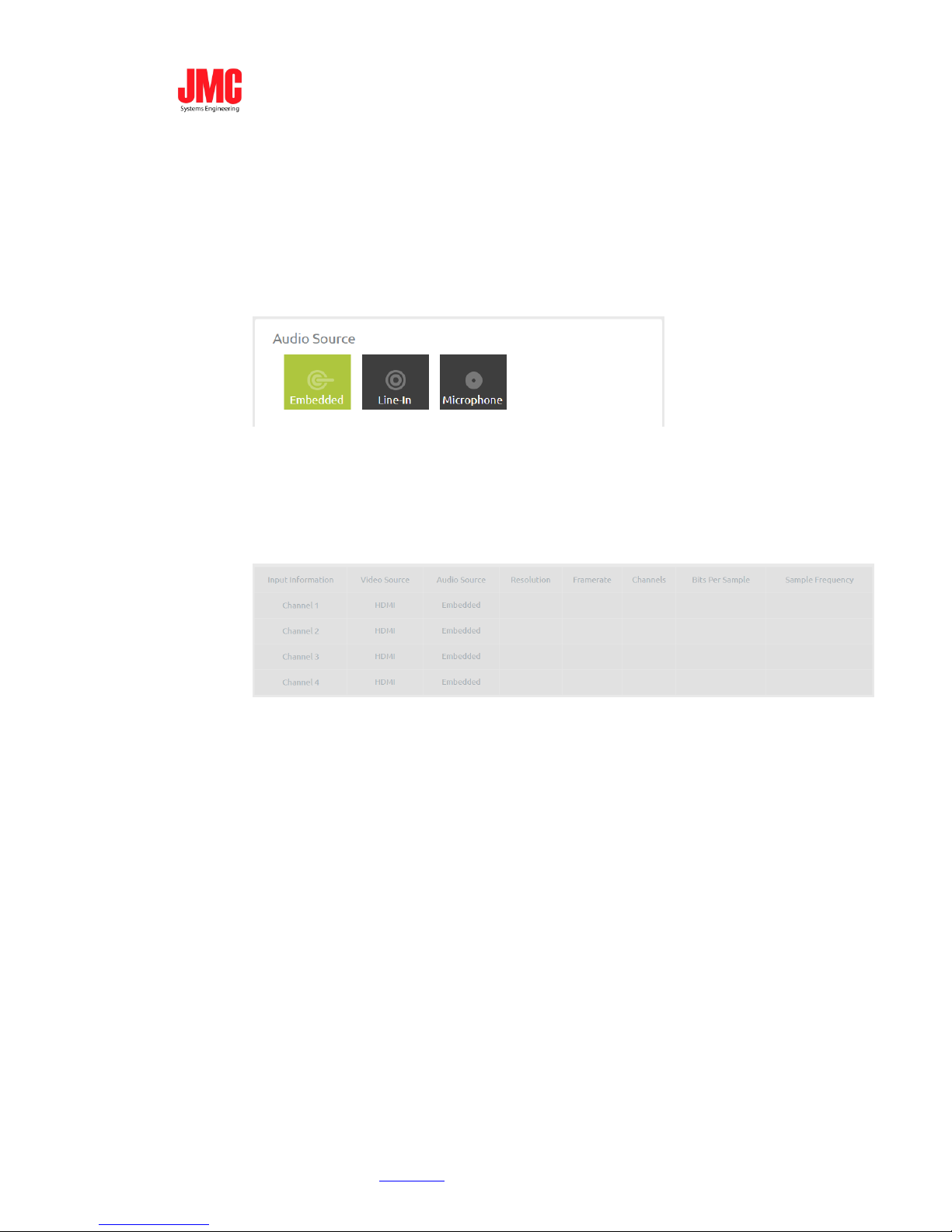

4.2.2. Audio Source
In audio source block, user can select audio input source from Embedded
HDMI audio, 3.5mm audio Line-in and Microphone input.
4.2.3. Input Signal Status
In input information block, user can check signal status and signal format.

JMC Systems Engineering AB www.jmc.se [phone]
4.3. Encoder
Encoder page contains Main Encoder and Sub Encoder 2 parts, which allows
user to change video and audio encode, this page also provides user to change
sub streaming encoder.
4.3.1. Main Encoder/Sub Encoder

JMC Systems Engineering AB www.jmc.se [phone]
Resolution: For encoders here, we provide Same as input, 1920*1080,
1280*720 and 720*576, 720*480, 640*480, 320*240, and 160*120
resolutions
Framerate: SC6D0 have Same as input, 60, 50, 30, 25, 20, 15, 12.5, 10, 5,
and 1 framerates for user to select
Profile: User can adjuse here for H.264 profile selection, it supports high,
main and baseline.

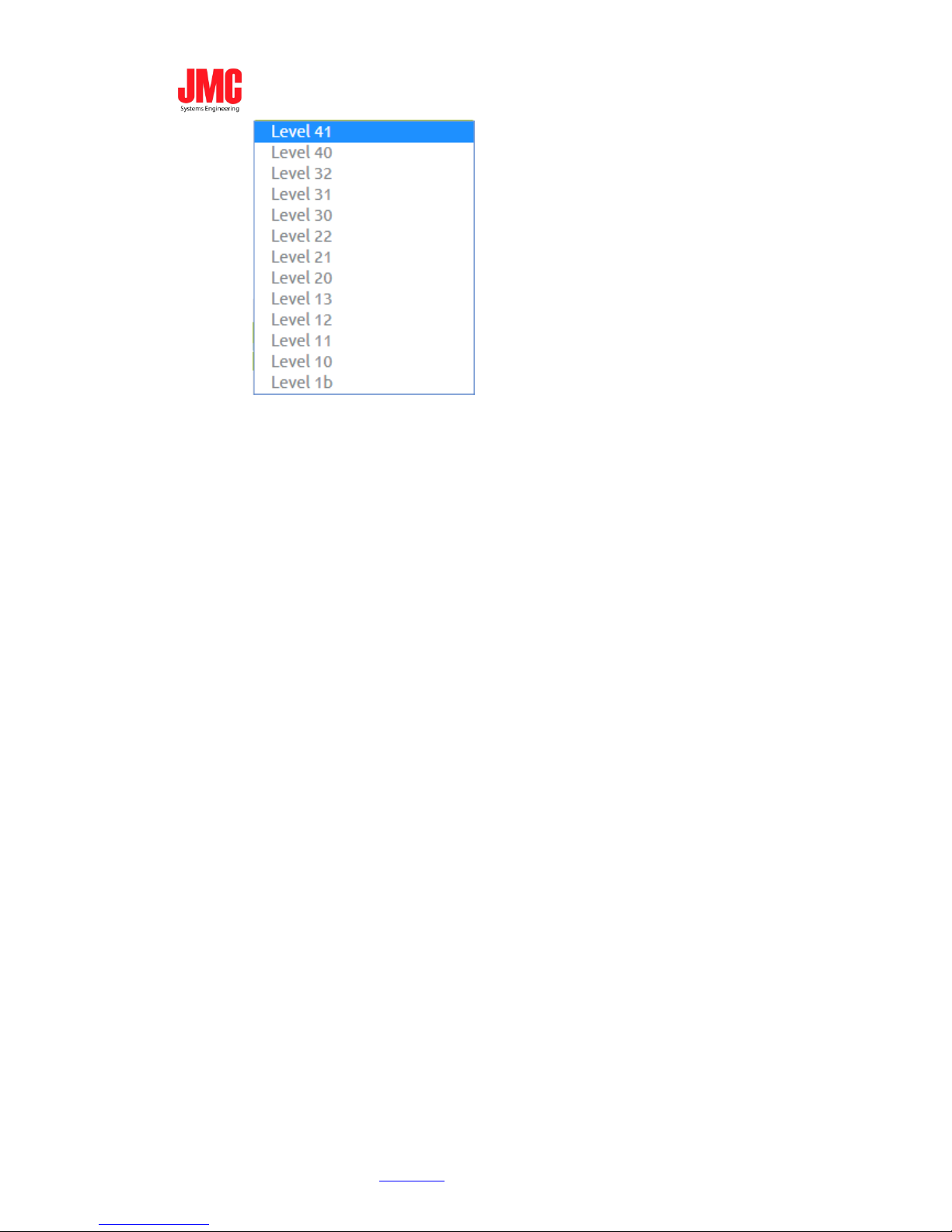

Level: H264 level support, SC6D0 provides 41, 40, 32, 31, 30, 22, 21, 20,
13, 12, 11, 10, and 1b.

JMC Systems Engineering AB www.jmc.se [phone]
Entropy: Entropy encoding selection, SC6D0 can support both CAVLC
and CABAC.

JMC Systems Engineering AB www.jmc.se [phone]

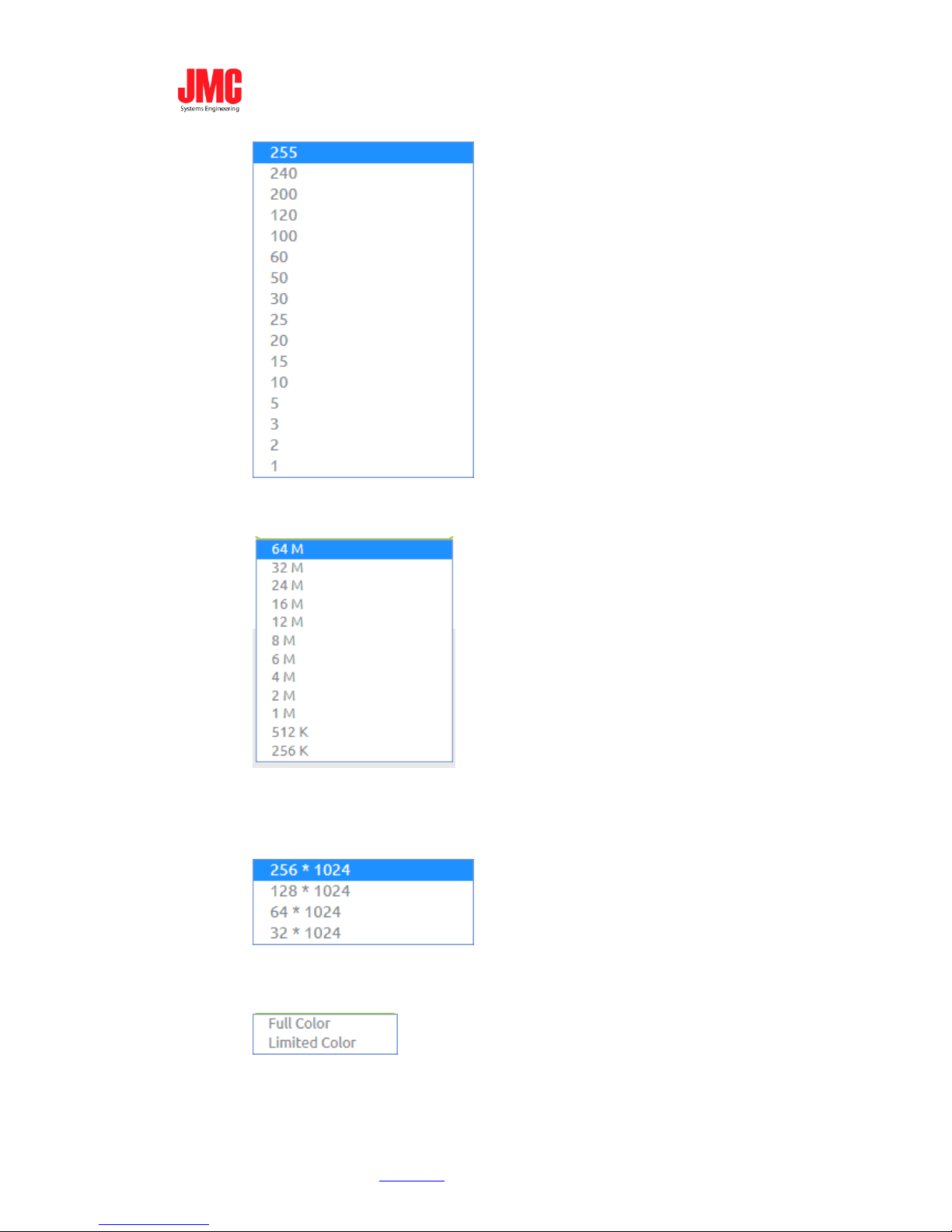

GOP: H264 group of pictures setting (from 255~1).
Video Bitrate (bps): Video bitrate select (512K~64M)
Audio Bitrate (bps): Audio bitrate select (from 256*1024~32*1024)
ColorRange: Select between Full Color or Limited Color.

JMC Systems Engineering AB www.jmc.se [phone]

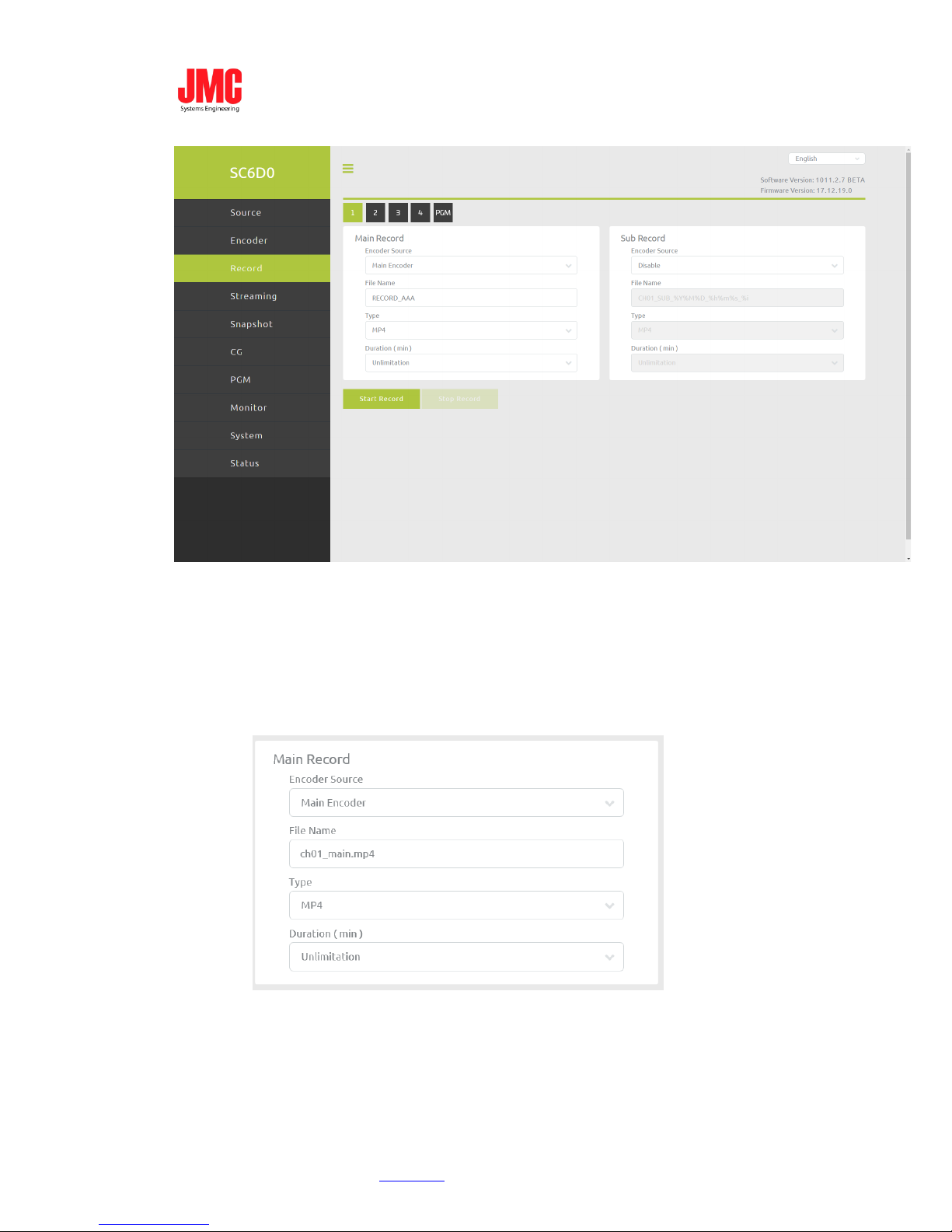

4.4. Record
Record page allows user to change the video format that recorded to USB3.0
disk drive.
On the top 1/2/3/4/PGM is the channel that desired to record; and the 2 block in
the middle is the main/sub record format.
4.4.1. Main Record/Sub Record
Here are the parameters that allow user to adjust their record format.
Encoder source: Select the encoder that willing to record, here are Main
Encoder, Sub Encoder and disable selections.
File name: The file name setting, this would be the file name recorded.
Type: Decide needed file type, we offer MP4, TS and AVI at present time

JMC Systems Engineering AB www.jmc.se [phone]
Duration: Setting recording time, here are Unlimitation, 60, 30, 5, and 1
minutes for uset to set. Recording will automatically stopped when the time
is up.

JMC Systems Engineering AB www.jmc.se [phone]

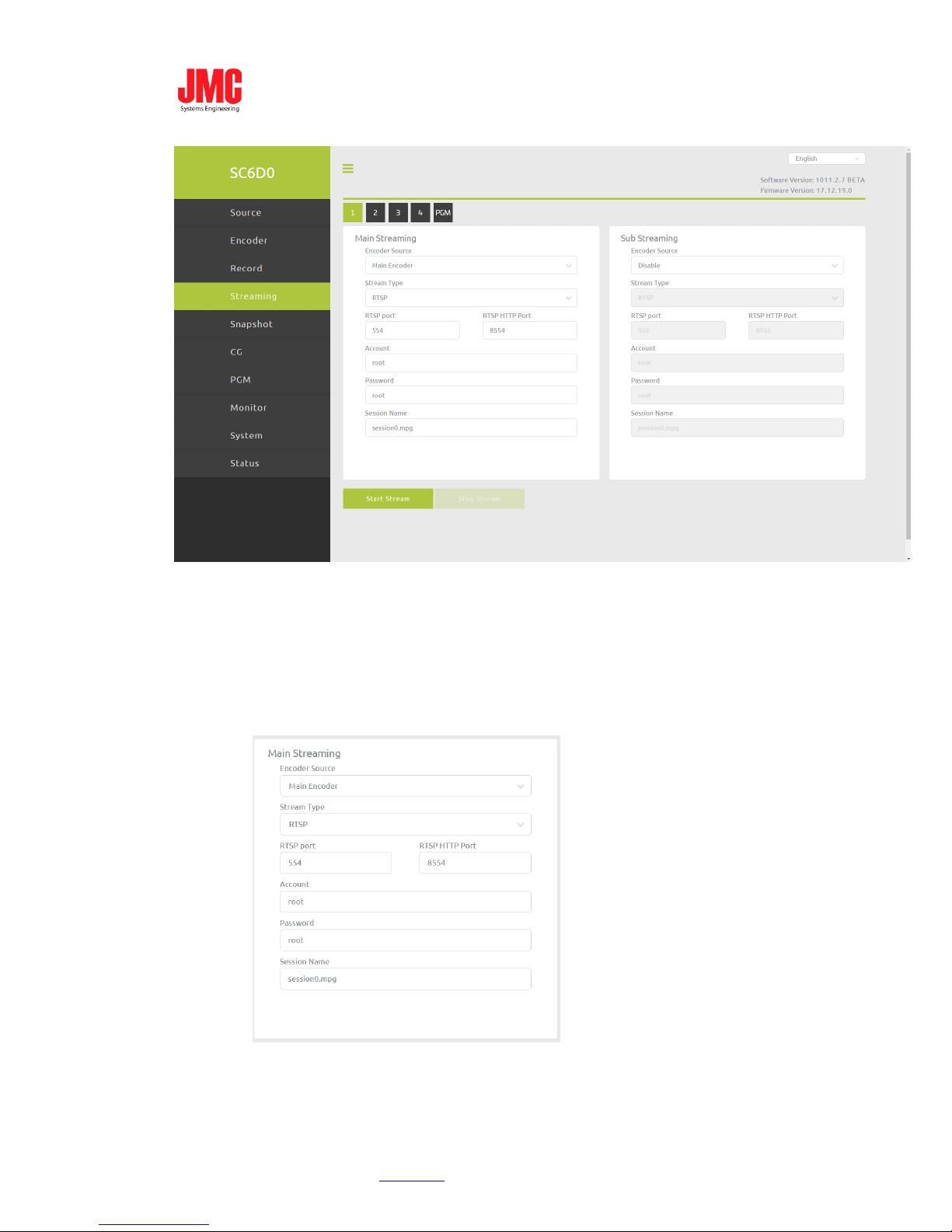

4.5. Streaming
This page contains SC6D0 streaming settings; user can decide which encoder’s
stream will send out and select streaming type here.
On the top 1/2/3/4/PGM is the channel that desired steaming; and the 2 block in
the middle is the main/sub streaming format.
4.5.1. Main Streaming/Sub Streaming
Encoder Source: User can select between main encoder and sub encoder.
Streaming Type: Here are RTSP, RTMP, and TS streaming type SC6D0
available.

JMC Systems Engineering AB www.jmc.se [phone]
RTSP port: RTSP server port
RTSP HTTP Port: RTSP HTTP server port
Account: RTSP account, setting this for other users to link with RTSP
mode.
Password: RTSP password, setting this for other users to link with RTSP
mode.
Session Name: RTSP Session name.

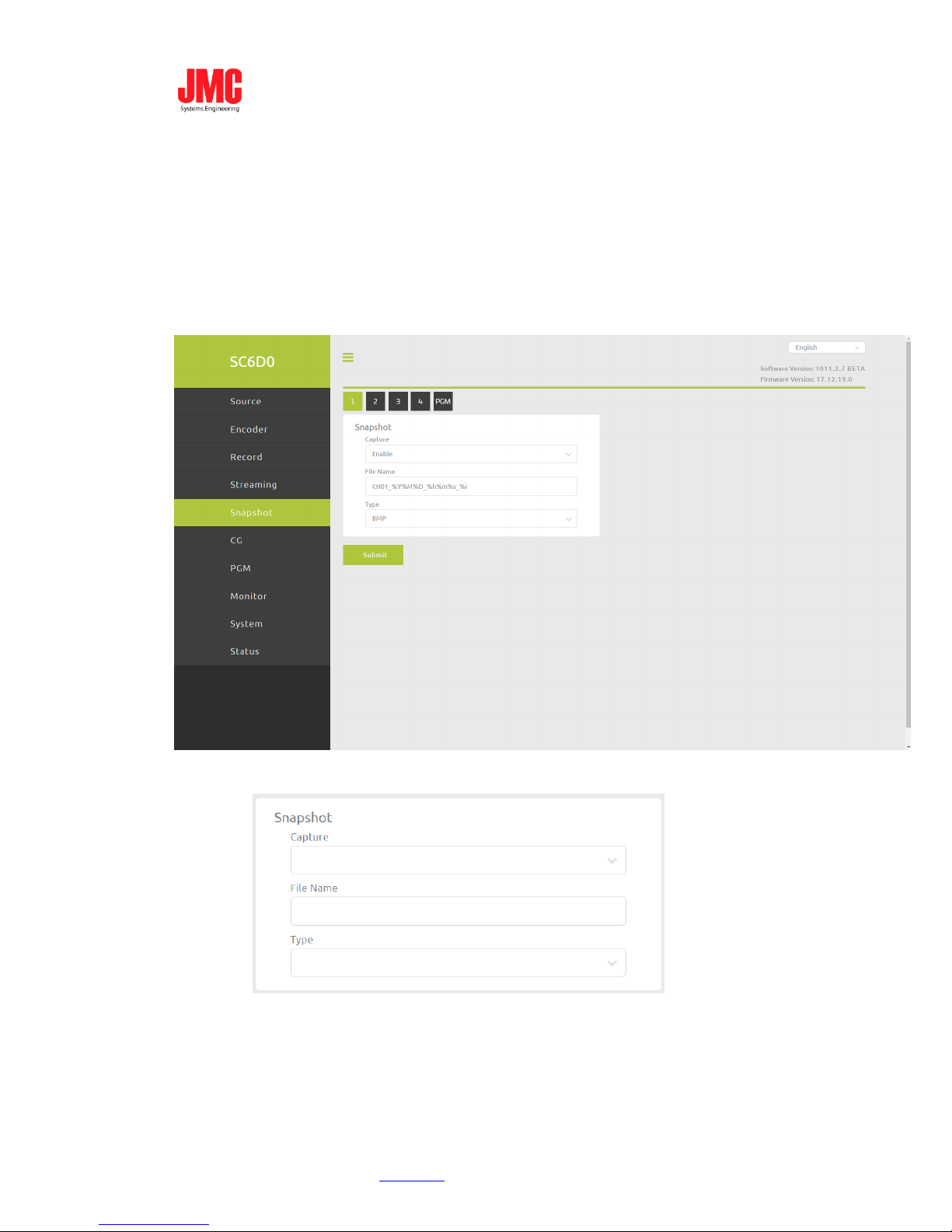

4.6. Snapshot
4.6.1. Snapshot
Capture: Select Enable or Disable capture feature.
File Name: User may decide willing capture file name.
Type: Select snapshot file format, SC6D0 provides BMP and JPEG for user
to select
