PRODUCT INTRODUCTION
PRODUCT BRIEF
Application
SC6C0N1 Mini provides 1 x 3G-SDI and 1 x HDMI for video signal input with
audio embedded feature, it also provided a 3.5mm audio jack for stereo analog
audio input

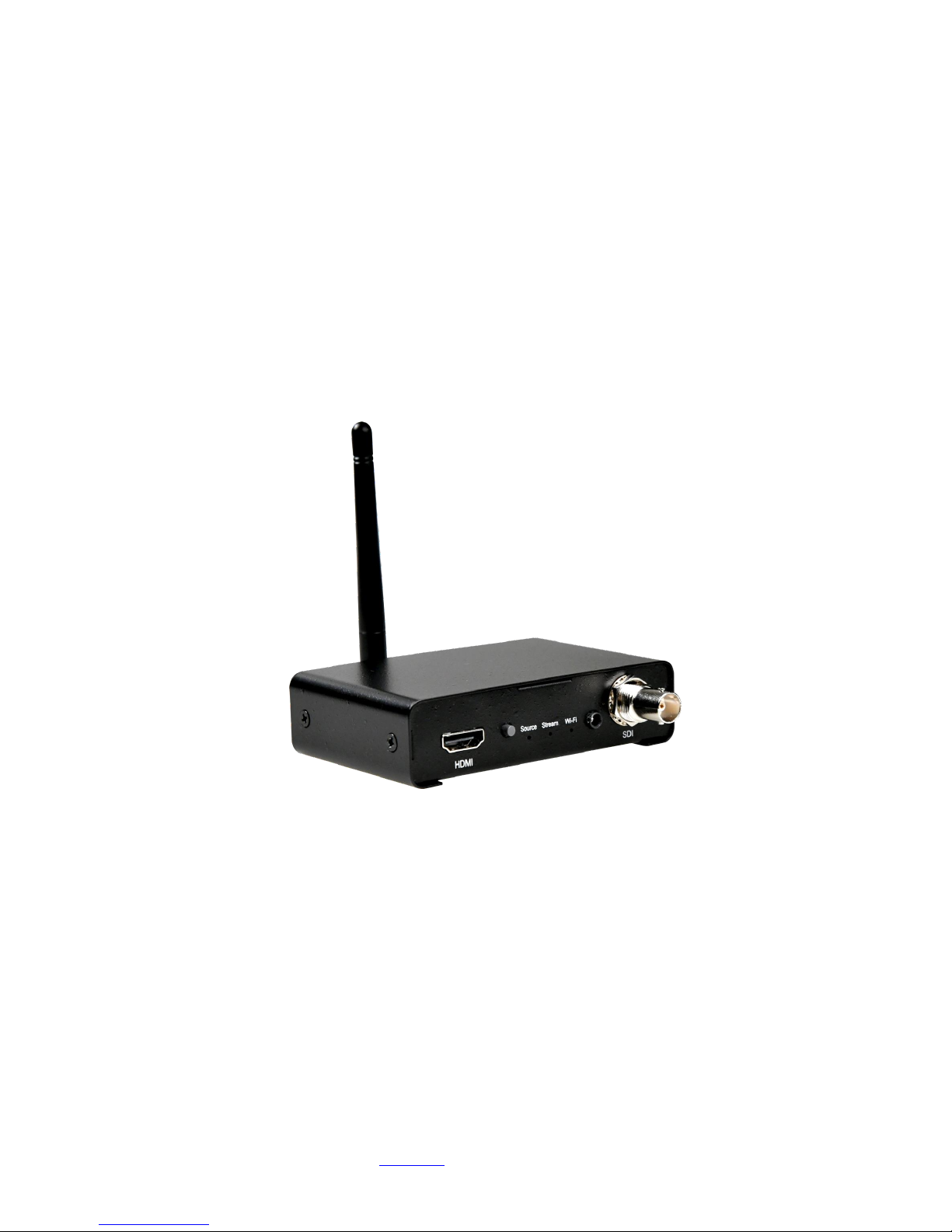

Front panel
1

JMC Systems Engineering AB www.jmc.se [phone]
Back panel
In front panel, SC6C0N1 Mini provides 1 control button and SDI / HDMI /
3.5mm audio jack for AV signal input.
In back panel, SC6C0N1 Mini provides Wi-Fi / RJ45 for internet connectivity.
Here are the control button press times and LED color meanings.
Control Button Press Times
Single press
Wi-Fi AP / Client Mode Selection
⚫Green LED: AP Mode
⚫Red+Green LED: Client Mode
Double
press
Streaming Enable / Disable
⚫Green LED: Streaming enable.
⚫LED off: Streaming disable.
Triple press
Source Selection
⚫Green LED: HDMI Signal Locked.
⚫Red LED: Signal Unlocked.
⚫Red+Green LED: SDI Signal Locked.

JMC Systems Engineering AB www.jmc.se [phone]
SPECIFICATION
Model
SC6C0N1 Mini
Max. FPS
60/50fps @ 1920x1080p
Recording
Mode
Hardware Compression, Real-Time Mode
Input
Interfaces
Video
⚫1 x HDMI
⚫1 x SDI
Audio
⚫1 x 3.5mm stereo analog audio
⚫SDI/HDMI embedded audio
Video
Feature
H.264/AVC , Baseline / Main / High Profile
Configurable bit rate up to 10Mbps
Supported Resolutions
⚫Input:
➢1920x1080
(P60/P50/P30/P25/P24/i60/i50)
➢1280x720 (P60/P50), 1280x1024
(P60),1280x960 (P60)
➢1024x768 (P60),800x600 (P60), 720x480
(P60/i60)
➢640x480 (P60), 720x576 (P50/i50)
⚫Output:
➢Resize Range from 128x128 to
1920x1080(P60)
➢*Output Include Down Scaling.
Audio
Feature
⚫AAC-LC
⚫Configurable bit rate range from 32Kbps to
384Kbps
⚫Sample rate : 48KHz, 16bit
Network
Feature
⚫1x RJ45 for 10/100Mbps Ethernet
⚫DHCP client
Wifi:
⚫802.11b/g/n
⚫Support 150Mbps PHY rate
Support
Streaming
protocol
⚫TS over TCP/UDP/HTTP (unicast & multicast)
⚫RTSP over HTTP/TCP/UDP (RTSP
Elementary Stream)

JMC Systems Engineering AB www.jmc.se [phone]
⚫RTMP(Publish)
⚫HLS
Peripheral
Features
⚫Dynamic Parameter setting
⚫Web UI for system configuration
⚫Firmware upgradable
⚫LED indicator
System Requirement
Power
Supply
⚫DC 12V (With DC Adapter)
Device Size
100(W)*26(H)*65.6(D)mm

JMC Systems Engineering AB www.jmc.se [phone]
WEB UI
IP FINDER
In the beginning, user can execute IP Finder to find SC6C0N1 Mini, please
make sure host (PC) and target (SC6C0N1 Mini) are in the same subnet
(netmask) to make sure host platform and target platform can find each other.
After double click the MAC address (The MAC address is provided in the
bottom of SC6C0N1 Mini), the user will open the web browser automatically,
please provide default user name and password to login the SC6C0N1 Mini.

JMC Systems Engineering AB www.jmc.se [phone]
Default user name: admin
Defaule password: 000000
After login the system, the web UI will display inside browser automatically.
SOURCE
In source page, user can decide input interface and finetune video format.
Video Tuning
Default
Range
brightness
128
0~255
contrast
128
0~255
hue
128
0~255
saturation
128
0~255
sharpness
128
0~255

JMC Systems Engineering AB www.jmc.se [phone]

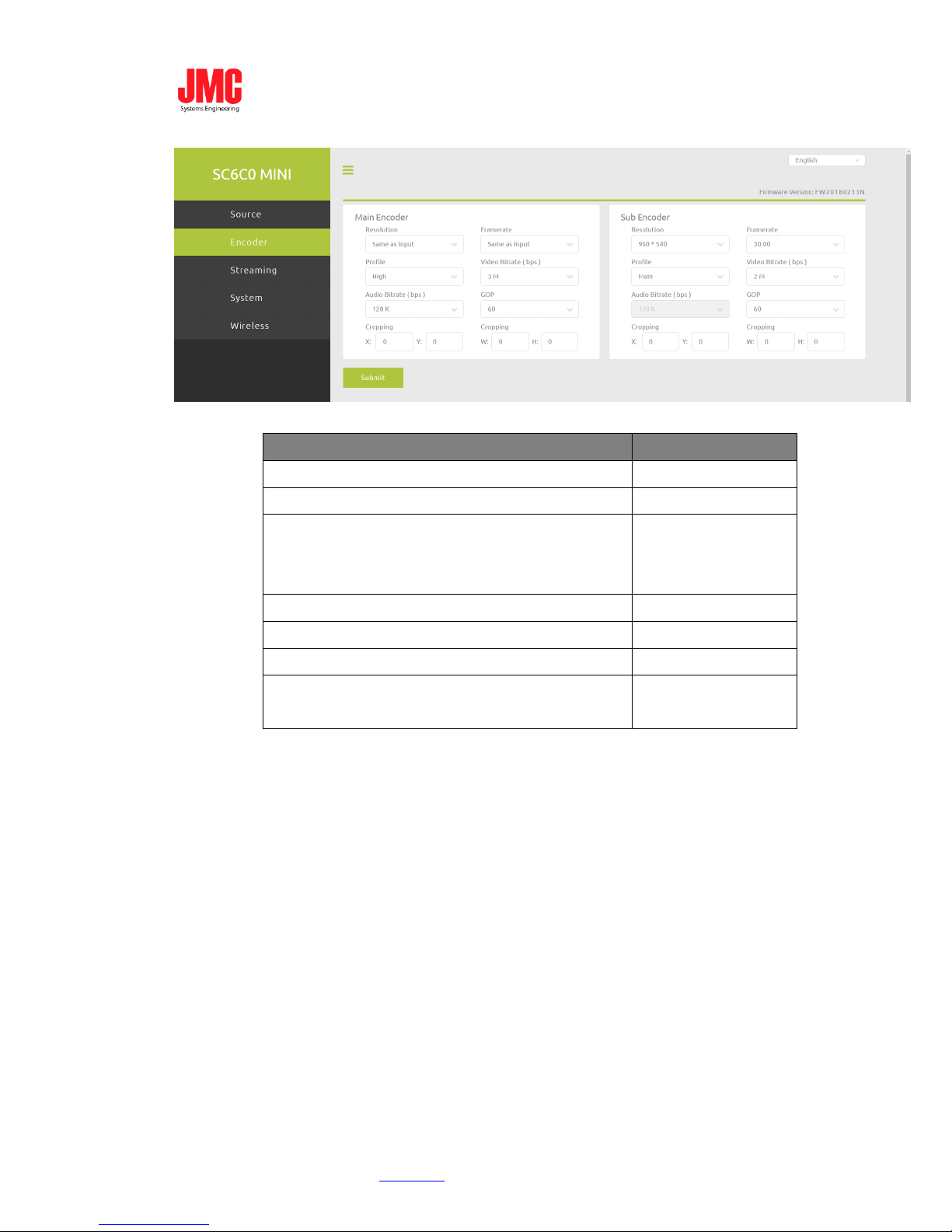

ENCODER
In encoder page, user can change encode parameters here.
Parameter
Range
Resolution
1920*1080~160*128
Framerate
60~1
Profile
Baseline
Main
High
Video Bitrate ( bps )
16M~256K
Audio Bitrate ( bps )
384K~32K
GOP
180~1
Cropping (X,Y,W, H)
Depending on screen
size
H.264 Encode: User can adjust here for H.264 profile selection, it supports
high, main and baseline.
Cropping: The place and size of cropping are listed as below. The cropped
area will displayed in keep aspect ratio mode.
Default value (X, Y, W, H) = (0, 0, 0, 0)
W Range : 128~1920
Y&H Range: 128~1080

JMC Systems Engineering AB www.jmc.se [phone]
※Please remind, if user had use only main stream, the SC6C0N1 Mini
can streaming 1080P60, but if activate main and sub streaming, the
main streaming cannot exceed to 1080P30, sub streaming cannot
exceed to 960*540P30.

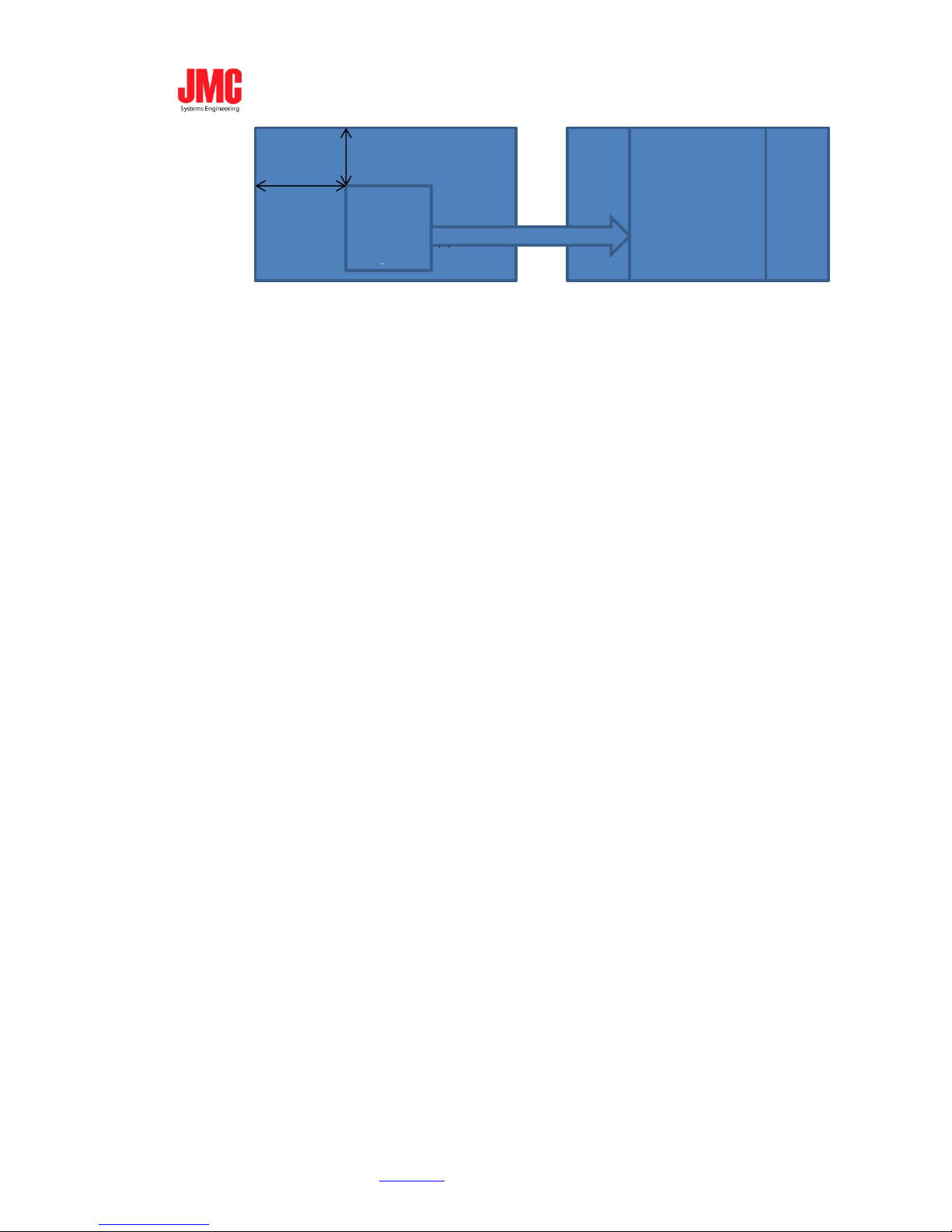

Crop
ping
X
Y
W
H
Resize &
Keep
aspect

JMC Systems Engineering AB www.jmc.se [phone]

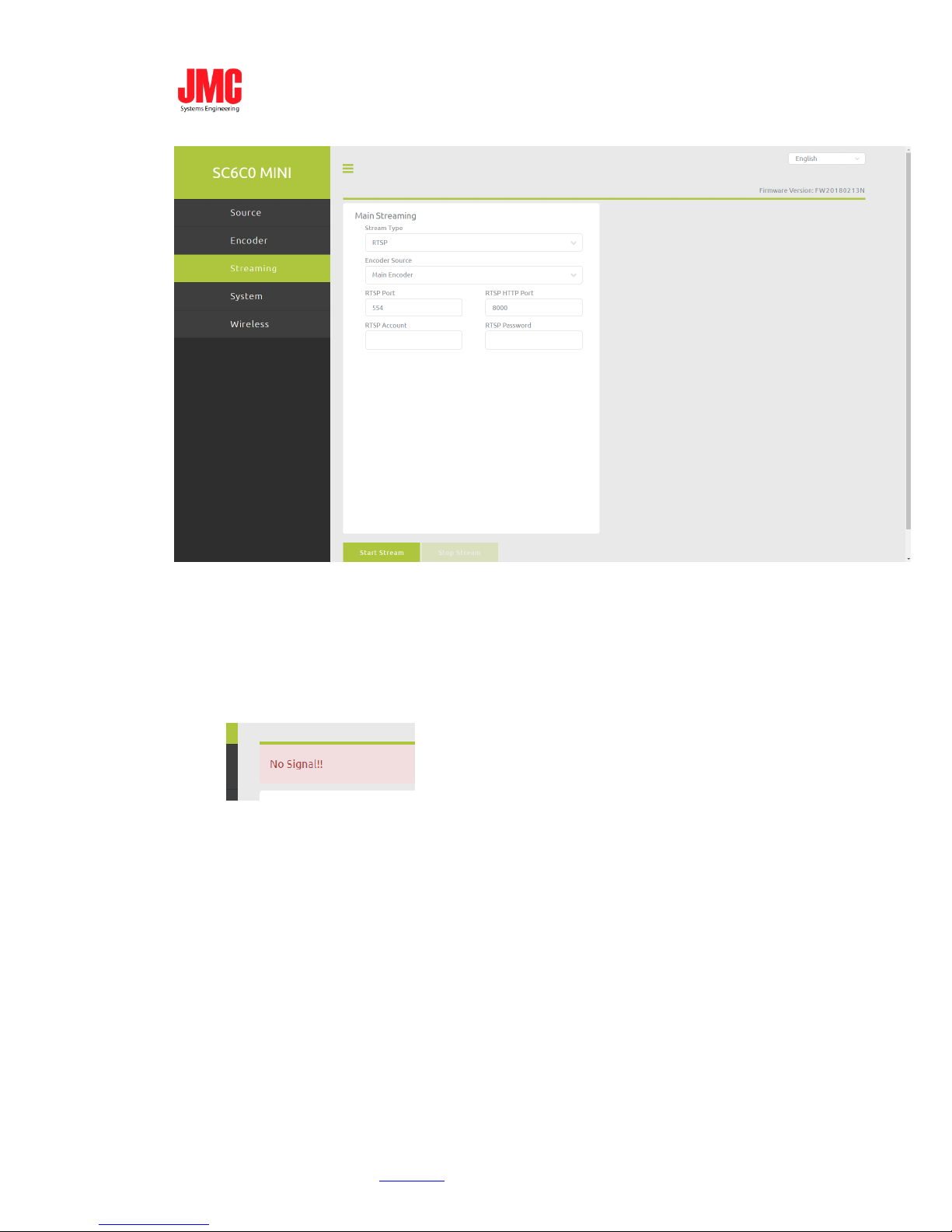

STREAMING
For streaming, here are RTSP / RTMP / TS streaming methods available.
Streaming server function can be only activating when the AV signal is already
input to SC6C0N1 Mini.
When the signal is not connect, SC6C0N1 Mini will generate an error message
to remind user to connect the signal.

JMC Systems Engineering AB www.jmc.se [phone]

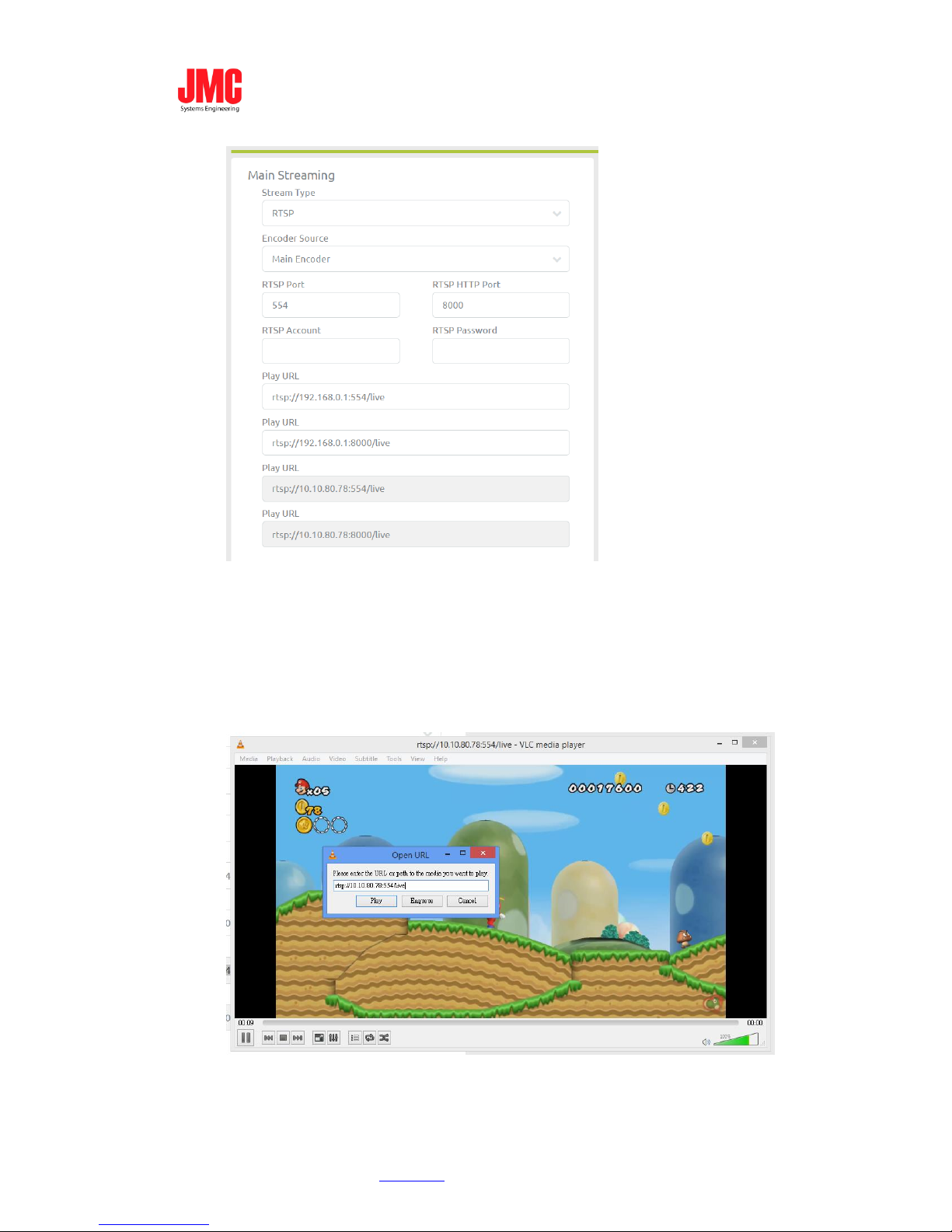

EXAMPLE: RTSP
After selecting Stream Type to RTSP, the SC6C0N1 Mini will generate Play
URL for user to receive RTSP stream.
Open VLC media player→[Media]→[Open Network Stream] or direct press
[Ctrl]+[V] to print streaming to VLC media player

JMC Systems Engineering AB www.jmc.se [phone]

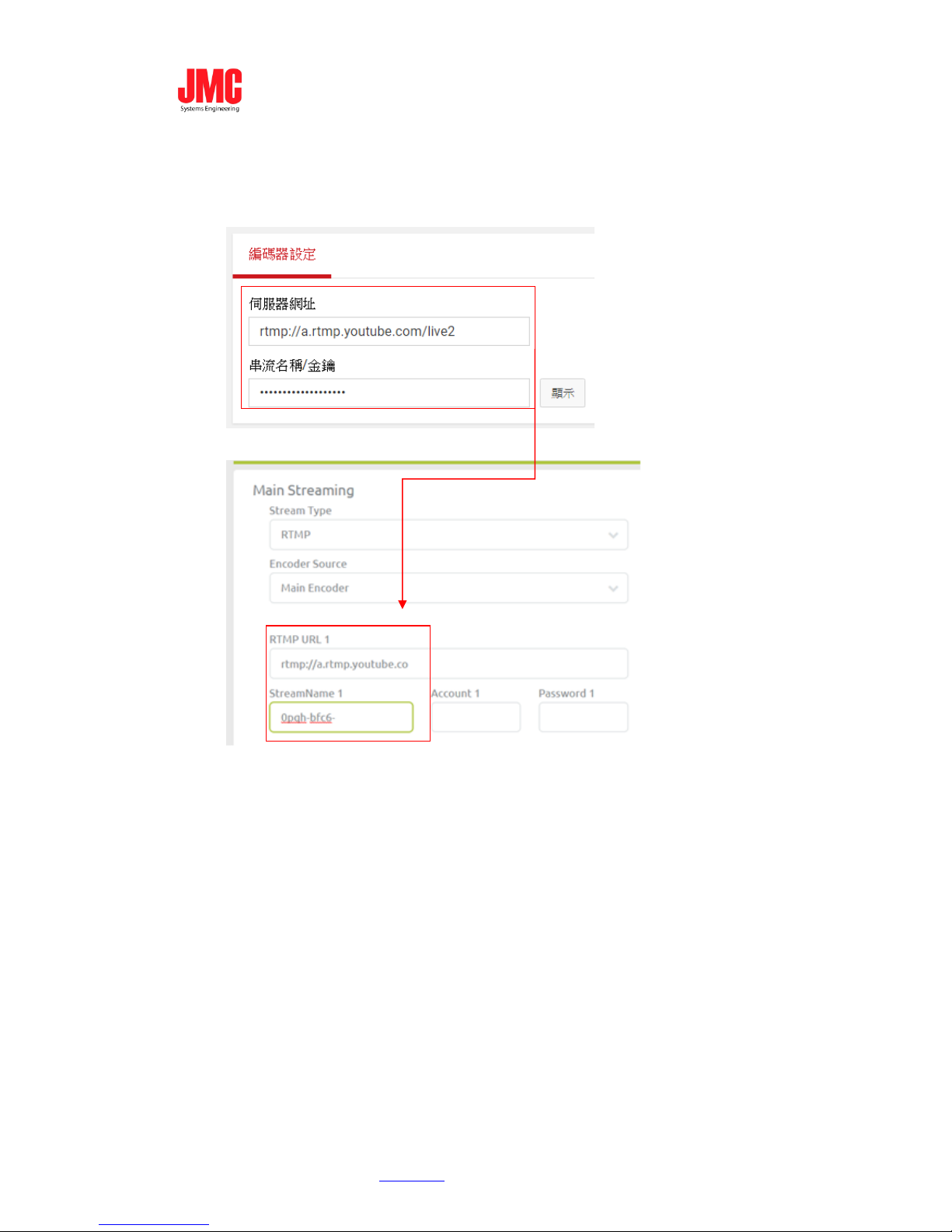

EXAMPLE: RTMP
RTMP can use for streaming live video to facebook, youtube, and etc.
Please enter youtube live and copy server URL to SC6C0N1 Mini for
SC6C0N1 Mini to streaming video.

JMC Systems Engineering AB www.jmc.se [phone]
SYSTEM
NETWORK SETTING
User can decide disable or enable DHCP mode, when disable DHCP mode,
please remember assign all necessary infroamtion for SC6C0N1 Mini.

JMC Systems Engineering AB www.jmc.se [phone]
TIME SETTING
User can update system time in this block.
FIRMWARE UPDATE
User can update firmware and check firmware version in this block; please
don’t turn off system when the firmware update is in the process!!!
ACCOUNT SETUP
User can create account for usage
SYSTEM RELATED
User can restore SC6C0N1 Mini to default by press Restore to Default
button, the whole system will return to factory default.
User can reboot SC6C0N1 Mini to default by press Reboot button, the
whole system will reboot.

JMC Systems Engineering AB www.jmc.se [phone]
WIRELESS

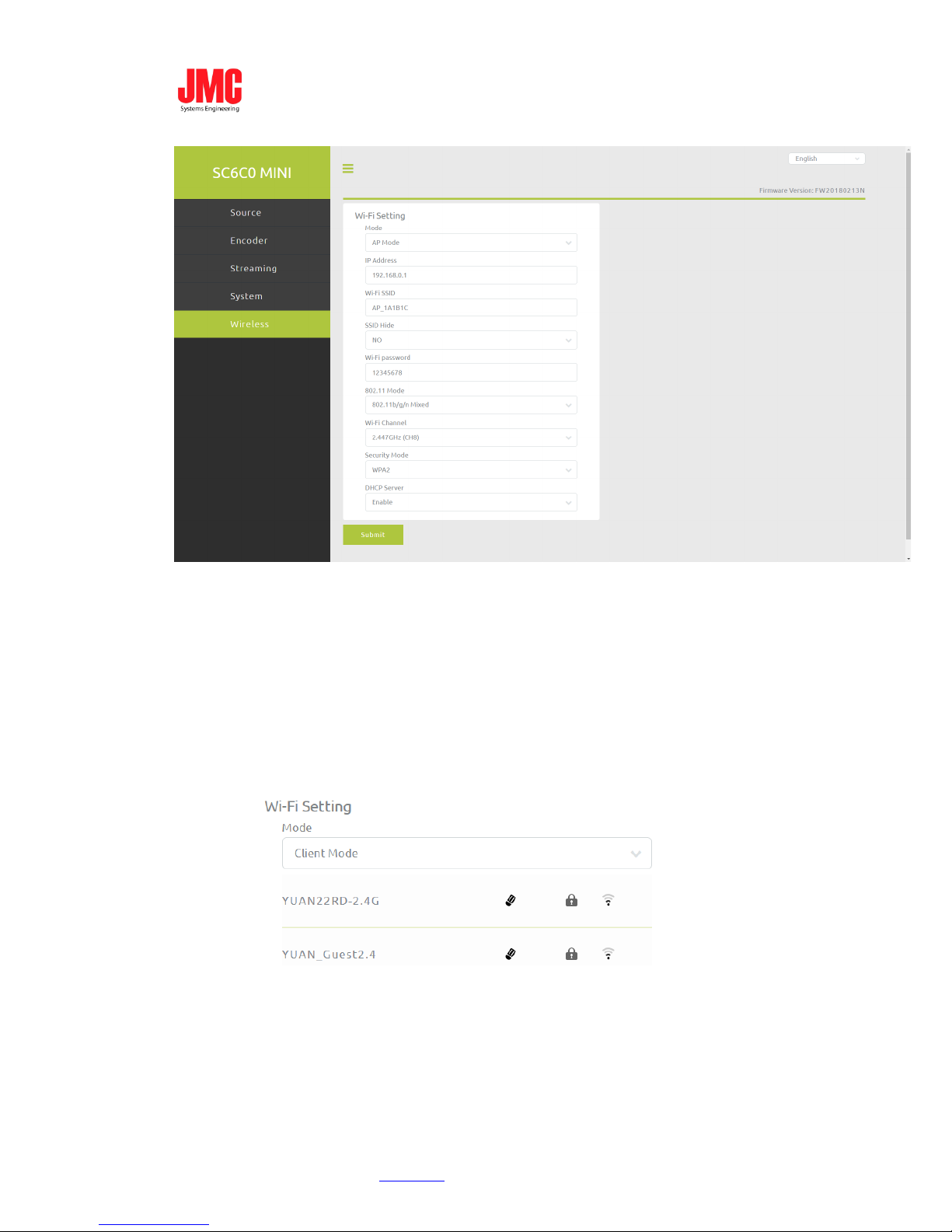

WI-FI SETTING
User can set SC6C0N1 Mini as Client mode or AP mode inside Wi-Fi
Settings block; here are the difference between them.
Client mode: When setting as Client mode, SC6C0N1 Mini can connect to
other Wi-Fi AP, so user can use their Wi-Fi device ( Example: Cell phone,
tablet PC or laptops ) to connect to the same Wi-Fi AP then controls
SC6C0N1 Mini.

JMC Systems Engineering AB www.jmc.se [phone]
AP mode: When setting as AP mode, user can use Wi-Fi devices to connect
to SC6C0N1 Mini and control directly, such as PDA, smartphones.
user can turn on wifi and connect to SC6C0N1 Mini Wi-Fi (SSID) first
(Default password: 12345678, Default SSID is AP_6C****, **** is the
last 4 numbers of MAC Address, User can also get the value under IP
Finder. ), then fill IP address into browser, and finally user can connect
SC6C0N1 Mini with Wi-Fi devices.

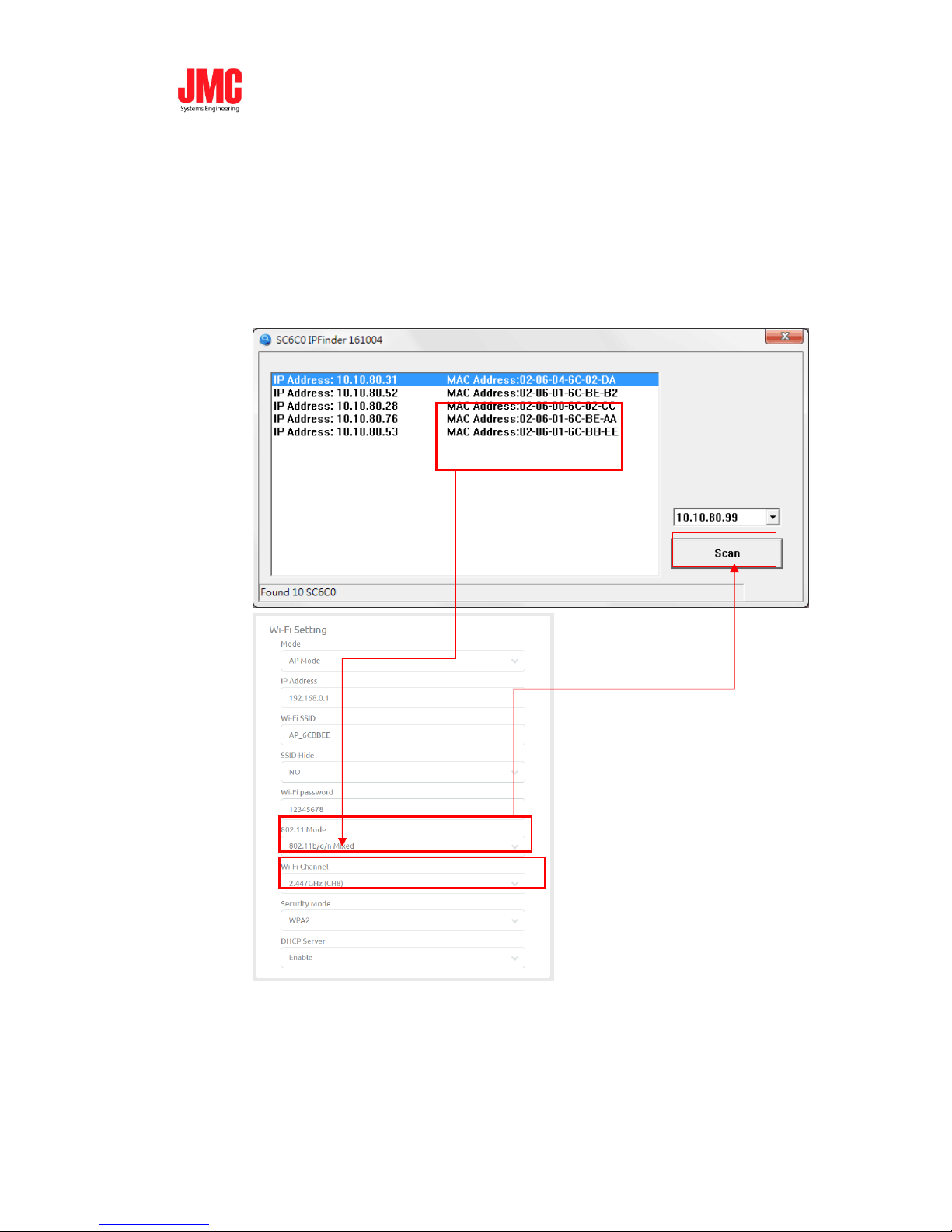

Get MAC Address
IP Address(Changable)
Default Wi-Fi SSID

JMC Systems Engineering AB www.jmc.se [phone]
Example: When using cellphone to connect to SC6C0N1 Mini, user will
see SC6C0N1 Mini WebUI interface looks like above.
PACKAGE CONTENT
Product Name
Quanties
SC6C0N1 Mini
1
VERSION
VERSION 1.0
⚫Initial version.
VERSION 1.1
⚫Update to FW20180213N
