JMC SDI2Multi User manual

SDI2MULTI
User Manual
2013.11.21

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
Content
Front Panel...............................................................................3
Rear Panel................................................................................3
Top Panel.................................................................................4
Side Panel ................................................................................4
Button/LED Indicate ....................................................................4
Installation ...............................................................................9
Package Contents ..................................................................... 10
Specifications.......................................................................... 10
Firmware Upload ...................................................................... 11
Update List............................................................................. 13
Appendix Table A ..................................................................... 14

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
Feature
SDI Supports HD formats :
720p50 & 60
1080i50 & 60
1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
Auto 3G/HD/SD-SDI detection
Can be split one 3G-SDI displays simultaneously.
Frame rate conversion(1.000/1.001)
External Button Configuration
Firmware is upgradable in the field using the integrated USB port
The converter is Plug-and-Play
Support DVI-D, DVI-A, Component, CVBS and S-Video output

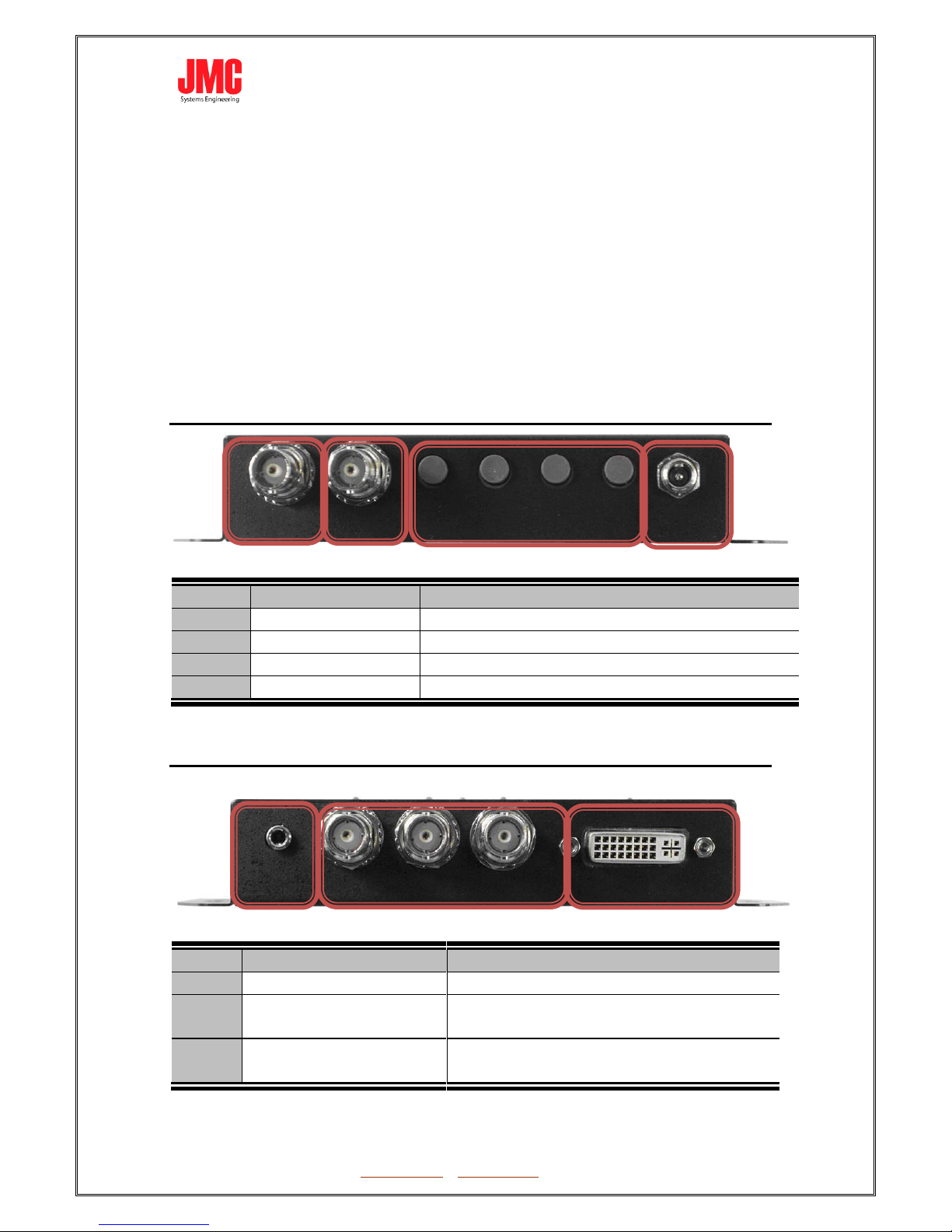

Front Panel
NO
Component
Function
1
SDI Input Port
From your SDI Source plug into these ports
2
SDI Output Port
From your SDI Display Device plug into this ports
3
Mode Buttons
Select Format/Output Port
4
Power Jack
The Power adapter plug into here
Rear Panel
NO
Component
Function
1
Phone Jack
Form you Audio Device plug into this port
2
Component/CVBS/S-Video
Output Port
From your YPbPr/CVBS/S-Video Device plug
into this port
3
DVI-D/DVI-A Output Port
From your DVI-D/DIV-A Device plug into this
port
1
3
1
3
4
2
2

JMC Systems Engineering AB www.jmc.se [email protected] [phone]

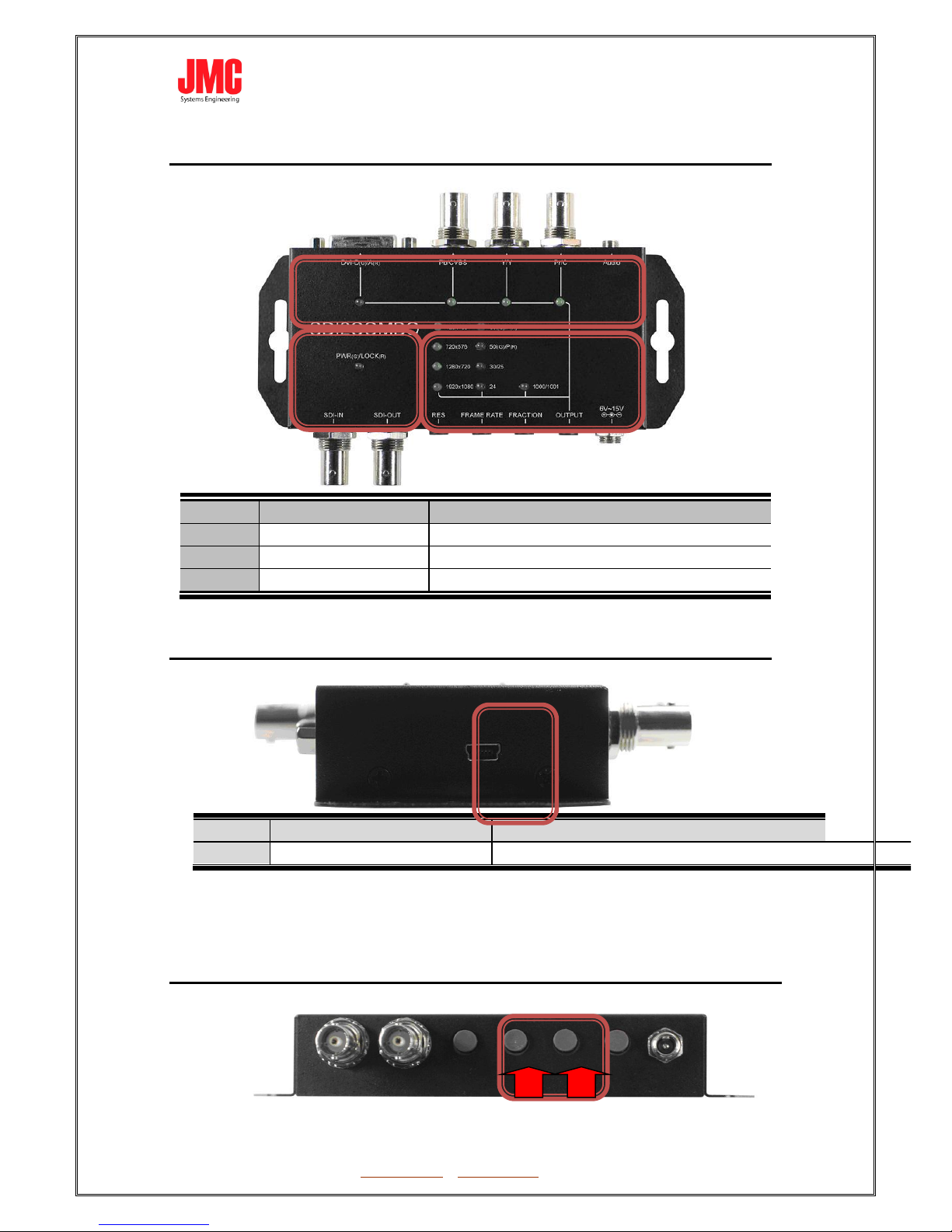

Top Panel
NO
Component
Function
1
Output Source LED
The LEDs are indicate main output of source
2
Power and Lock LED
The LEDs is indicate power and signal locked.
3
Main Format LED
The LEDS are indicate main output of format
Side Panel
NO
Component
Function
1
USB Port
Upgrade firmware/Control Box From PC
Button/LED Indicate
1. Firmware Mode:
Hold on the 3 and 2 button, the display is showed firmware version on display
1
1
2
3

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
of left upper.
FIRMWARE VERSION
0.1.0.1
2. Default Mode:
Pull all button (1, 2 and 3) at same time, the box auto reset to default.
3. Ouput Source Mode:
Pull button 4 change to output source mode. The button 3 and 4 can be switch
output source.
DVI-D/DVI-A
Pb/CVBS
Y/Y
Pr/C
DVI-D
●
○
○
○
DVI-A
●
○
○
○
YPbPr
○
●
●
●
CVBS/YC
○
●
●
●
a. DVI-D Output: (DVI-D + YPbPr)

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
Pull button 1 change to format mode, frame rate and Fraction by button 2 and
3.
Button 1
Button 2
Button 3
720x480
60i
59.94i
60p
59.94p
720x576
50i
50p
1280x720
60p
59.94p
50p
1920x1080
60i
59.94i
50i
60p
59.94p
30p
29.97p
25p
24p
23.98p
b. DVI-A Output: (DVI-D + DVI-A)
Pull button 1 change to format mode, button 1 and 2 is change format
1
2
3
1
2

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
Button 1
Format
Button 2
1920x1080 p60
1680x1050 p60
1600x1200 p60
1440x900 p60
1400x1050 p60
1366x768 p60
1280x1024 p60
1024x768 p60
800x600 p60
c. YPbPr Output：(YPbPr + DVI-D)
Pull button 1 change to format mode, frame rate and Fraction by button 2 and
3.
Button 1
Button 2
Button 3
720x480
60i
59.94i
60p
59.94p
720x576
50i
50p
1280x720
60p
59.94p
50p
1920x1080
60i
59.94i
1
2
3

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
50i
60p
59.94p
30p
29.97p
25p
24p
23.98p
d. CVBS/S-VIDEO Output：
Pull button 1 change to format mode, frame rate and Fraction by button 2 and
3.
Button 1
Button 2
Button 3
CVBS/SVIDEO
720x480
60i
59.94i
NTSC
60p
59.94p
720x576
50i
PAL
50p
1280x720
60p
59.94p
NTSC
50p
PAL
1920x1080
60i
59.94i
NTSC
50i
PAL
60p
59.94p
NTSC
30p
29.97p
NTSC
25p
PAL
24p
23.98p
NTSC
1
2
3

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
4. Pattern Genertor Mode:
input signal is plug out, the Box auto change to Pattern Genertor
mode. It is proivded the 13 of Mode
Button 2
Format
Button 3
BLUE
GREEN
RED
DIAGONAL
WV RAMP
WH RAMP
H RAMP
WINDOW
GRAY
COLOR BAR
HATCH
CROSS
WHITE
Installation
SDI2Multi installation consists of the following:
1. Disconnect +12DC adaptor to converter.
2. Connect Video Source (SDI) to the SDI Connector.
3. Connect Equipment to the output’s connector

JMC Systems Engineering AB www.jmc.se [email protected] [phone]
4. Connect the +12DC adaptor to the converter.
Package Contents
The SDI2Multi package contains the following items:
User Manual x 1
+12 DC Adapter x 1
SDI2MultiConverter x 1
Specifications
DESCRIPTION
SDI Format
SD-SDI, HD-SDI & 3G-SDI
SDI Transition Rate
2.970Gb/s, 10485Gb/s and 270Mb/s
Audio Support
Stereo 2-Channel (L/R Audio)
Coaxial Cable Type
RG6/RG59(75Ω)
Cable Equalization
3G: 120m of RG6/ 100m of RG59
HD: 200m of RG6/ 140m of RG59
SD: 400m of RG6/ 280m of RG59
*1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable
*2 Cable Length Performance: Depending on SDI Signal and
Cable Quality
Input Format Support
Appendix Table A
Output Format Support
Appendix Table A
Firmware Updates
Via Mini-USB
Input
1 x BNC [SDI]
Output
1 x BNC [SDI]
