Jobsite S-4VC User manual

S-4VC/S-6VC
For Connecting Four/Six
Pairs of Speakers to an
Amplifier or Receiver,
with Precise Volume
Adjustment in any Zone
INSTALLATION & USER GUIDE
SPEAKER SELECTORS WITH VOLUME CONTROLS

S-4VC / S-6VC
SPEAKER SELECTORS WITH VOLUME CONTROLS
TABLE OF CONTENTS
Features............................................................................................................................1
Product Overview...........................................................................................................2
Package Contents ..........................................................................................................3
Preparing for Installation..............................................................................................3
Installation.......................................................................................................................3
Operation..........................................................................................................................5
Specifications.................................................................................................................6
Warranty...........................................................................................................................7

1
FEATURES
nS-4VC: Safely connect up to four speaker pairs to a single amplifier or receiver
nS-6VC: Safely connect up to six speaker pairs to a single amplifier or receiver
n12-step make before break volume control
nHigh power handling capability
nBuilt-in protection circuit
nCompatible with all 4-ohm capable amplifiers or receivers
nNon-skid feet for unit stability
nIncludes customized room labels
Installation friendly design:
nAccepts up to 10 gauge wire
nRemovable connector secures wire in place

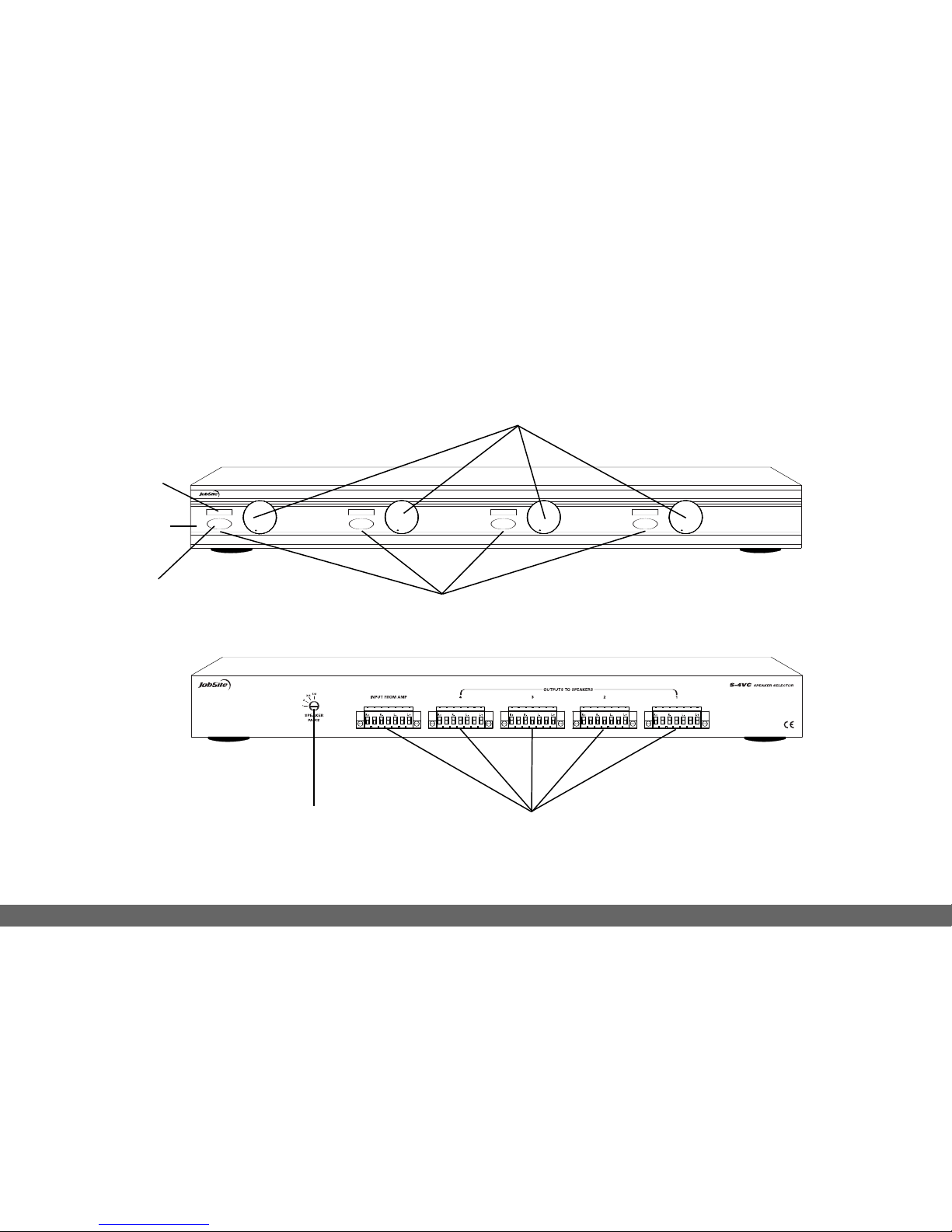

PRODUCT OVERVIEW
2Figure 1
1234
S
-4VC
SPEAKER SELECTOR/VOLUME CONTROL
12 position volume control
provides greater attenuation than
conventional 10 position designs.
Recessed areas
for custom room
labels.
Attractive low-
profile design.
Simple push-button
operation. Connect up to two pairs of
speakers.
Removable
Connectors.
Impedamce
Magnification
Selection.

3
PACKAGE CONTENTS S-4VC
nS-4VC x 1
nRoom/Zone labels x 1
PACKAGE CONTENTS S-6VC
nS-6VC x 1
nRoom/Zone labels x 1
PREPARING FOR INSTALLATION
The speaker wires and amplifier wires must reach
the proposed location of the S-6VC speaker selector.
Mark the cables with Wire labels, describing where
the cables originate from, rather than where they
will terminate.
Tools Required
n1/8" Slotted screwdriver nWire stripper
nWire labels
INSTALLATION
1. Select an appropriate location for the S-4VC/
S-6VC.
2. Run all the necessary wiring to the S-4VC/S-6VC.
Label the wires for future reference.
3. Strip 1/4" of insulation from the end of each wire.
Tightly twist the end of each wire until no frayed
ends remain.
4. Locate the connector plugs and remove them if
they are plugged in.
5. Insert each wire into the appropriate hole on the
removable connector plug.
6. Use a small flathead screwdriver to tighten each
wire in place. See Figure 2.
7. Insert the connector plug into the S-4VC/S-6VC
socket and lock it in place, by tightening the
screws on each side of connector.

4
8. Connect the receiver or amplifier to the
connector terminal labeled AMPLIFIER.
9. Connect the speakers to the connector
terminals labeled SPEAKERS. Be sure to
observe proper polarity.
10. Locate the pre-printed Room Labels. Affix the
appropriate label to the recessed area over each
on/off selector button.
See installation diagram.
INSTALLATION DIAGRAM
Figure 2
Connecting the wires S-4VC
Stereo Receiver
JobSite S-4VC Back
Speaker
Pair 4 Speaker Pair 3 Speaker Pair 2 Speaker Pair 1
S-4VC
Connecting the wires
S-4VC

Calculating the Impedance
Magnification Setting
Use the following instructions to select the correct
switch setting for the number and type of speakers in
your system.
1. Count the number of pairs of speakers you are
connecting to the system.

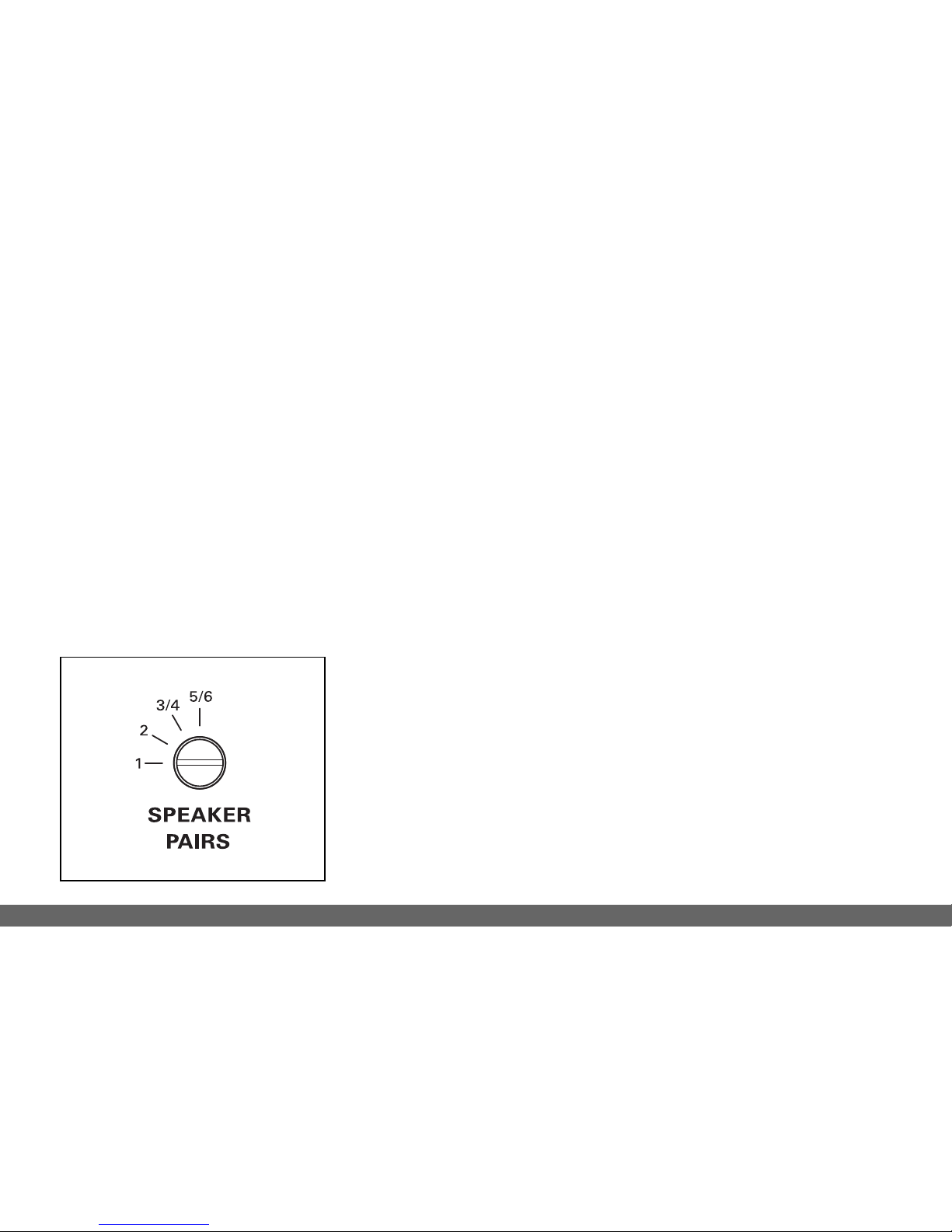

2. Set the Speaker Pairs switch on the rear panel of
the S-4VC/S-6VC to match the number of pairs of
speakers (1, 2, 3/4, 5/6). See Figure 3.
OPERATION
1. Make sure the amplifier or receiver power is OFF
and set the volume to minimum.
2. Set the volume control for the speaker pair you
wish to play to maximum (fully clockwise).
3. Locate the on/off button, which corresponds to the
speaker pair you wish to play. Set it to the ON
position by pushing the button in.
4. Turn on the amplifier or receiver and select as
source, such as the tuner or CD player.
5. Slowly turn up the amplifier or receiver volume and
set it to a comfortable (not maximum) listening
level. Be careful not to overdrive or “clip” your
amplifier.If the sound becomes muddy or distorted,
you have reached the limit of your amplifier's
volume capability and should quickly reduce the
volume to avoid damaging your speakers.
5
Figure 3

6
6. Using the appropriate volume control on the front
of the speaker selector, adjust the volume of the
speakers to the desired listening level.
7. You can turn off the speakers by turning the
appropriate volume control on the S-4VC/S-6VC
fully counter-clockwise, or by pressing the
on/off button.
SPECIFICATIONS
Power handling:
100 watts per channel
Frequency response:
+/- 1.2 dB from 20Hz to 20kHz
Attenuation:
12 step control with maximum of 54dB attenuation
Wiring requirements:
Individual runs of 2-conductor speaker wire to each
speaker
Removable connectors accommodate 10-22 gauge wire
(16-gauge recommended)
Mounting:
Tabletop component
Dimensions:
S-4VC: 17" wide x 2" high x 9-1/8" deep
S-6VC: 17" wide x 2” high x 9-1/8" deep
Warranty:
10 year limited

7
LIMITED WARRANTY
JobSite Systems (“JOBSITE”), a Niles Audio
Corporation company, warrants its passive products
(those not requiring AC or battery power) to the
original purchaser to be free of manufacturing
defects in material and workmanship for a period of
ten years from date of purchase.
JOBSITE warrants its passive loudspeaker products
(those not requiring AC or battery power) to the
original purchaser to be free of manufacturing
defects in material and workmanship for a period of
five years from date of purchase.
JOBSITE warrants its indoor/outdoor loudspeaker
products to the original purchaser to be free of
manufacturing defects in material and workmanship
for a period of two years from date of purchase.
JOBSITE warrants its all weather rock loudspeaker
products to the original purchaser to be free of
manufacturing defects in material and workmanship
for a period of five years from date of purchase.
JOBSITE warrants its active products (those
requiring AC or battery power) to the original
purchaser to be free of manufacturing defects in
material and workmanship for a period of two years
from date of purchase.
This Warranty is subject to the following additional
conditions and limitations. The Warranty is void and
inapplicable if JOBSITE deems that the product has
been used or handled other than in accordance with
the instructions provided by the manufacturer,
including, but not limited to, damage caused by
accident, mishandling, improper installation, abuse,
negligence, or normal wear and tear, or any defect

8
caused by repair to the product other than by
JOBSITE or an authorized JOBSITE wholesale
distributor. To obtain warranty service, you must
write to JOBSITE: Include your name, address,
telephone number, model number and serial number
of your unit, and a brief description of the problem.
Afactory Return Authorization Number will be sent
to you. DO NOT RETURN ANY UNIT WITHOUT FIRST
RECEIVING WRITTEN AUTHORIZATION AND
SHIPPING INSTRUCTIONS FROM JOBSITE.
If the above conditions are met, the purchaser’s sole
remedy shall be to return the product to JOBSITE, in
which case JOBSITE will repair or replace, at its sole
option, the defective product without charge for
parts or labor. JOBSITE will return the unit repaired
or replaced under warranty by shipping it by its usual
shipping method from the factory (only) at its
expense within the United States of America.
THERE ARE NO OTHER WARRANTIES, INCLUDING,
WITHOUT LIMITATION, EITHER EXPRESS OR
IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, WITH
RESPECT TO THE PRODUCT.
REPAIR OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER/PURCHASER. NILES SHALL NOT
BE RESPONSIBLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES EXCEPT TO THE
EXTENT PROVIDED (OR PROHIBITED) BY
APPLICABLE LAW.
Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the
above limitation may not apply to you. This warranty
gives you specific legal rights, and you may also
have other rights, which vary from state to state.

9
For the name of the nearest authorized JOBSITE
wholesale distributor, contact:
JobSite Systems
12331 S.W.130 Street, Miami, Florida 33186
WWW.JOBSITESYSTEMS.COM

JOBSITE SYSTEMS
12331 S.W. 130 STREET, MIAMI, FLORIDA 33186
P866.4JB.SITE (866.452.7483) – F 305.238.0185
WWW.JOBSITESYSTEMS.COM
© 2004 JobSite Systems. All rights reserved. JobSite, Pure Custom and Niles are registered trademarks of Niles Audio Corporation and the JobSite Logo
is a trademark of Niles Audio Corporation. All other trademarks are the property of their respective owners. Some JobSite products (or components
thereof) are manufactured under one or more U.S. Patents, foreign equivalents and/or pending patents (see product for details). Because we constantly
strive to improve our products, JobSite reserves the right to change product specifications, descriptions, and prices without notice. The technical and
other specifications of information contained herein are not intended to set forth all technical and other specifications of JobSite products. Additional
information can be obtained at WWW.JOBSITESYSTEMS.COM or by calling JobSite at 866.452.7483. Printed in China. 7/04 DS00371BCN
