SIX ZONE SPEAKER SELECTOR WITH VOLUME CONTROLS S-6VC
DATA SHEET

S-6VC
SIX ZONE SPEAKER SELECTOR WITH VOLUME CONTROLS
FEATURES
• Safely connect up to six speaker pairs to a single amplifier or receiver
• Individual room on/off switches
• 12 step make before break volume control switch design
•High power handling capability
• Built-in protection circuit
• Compatible with all 4 ohm capable amplifiers or receivers
• Non skid feet for unit stability
• Includes customized room labels
INSTALLATION FRIENDLY DESIGN:
• Accepts up to 10 gauge wire
• Removable connector secures wire in place
SPECIFICATIONS:
• Power handling: 100 watts per channel
• Frequency response: +/- 1.2 dB from 20Hz to 20kHz
• Attenuation: 54dB maximum with 12 step control
WIRING REQUIREMENTS:
• Individual runs of 2-conductor speaker wire to each speaker
• Removable connectors accommodate 14-22 gauge wire (16 gauge
recommended)
MOUNTING:
• Table-top
DIMENSIONS:
• 17” wide x 2” high x 9-1/8” deep
WARRANTY:
• 10 year limited
SIX ZONE SPEAKER SELECTOR WITH VOLUME CONTROLS S-6VC
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM

SIX ZONE SPEAKER SELECTOR WITH VOLUME CONTROLS S-6VC
PREPARING FOR INSTALLATION:
The Speaker wires and Amplifier wires must reach the proposed location of the
S-6VC speaker selector. Mark the cables with Wire labels, describing where the
cables originate from, rather than where they will terminate.
INSTALLATION:
1. Select an appropriate location for the S-6VC.
2. Run all the necessary wiring to the S-6VC. Label the wires for future
reference.
3. Strip 1/4" of insulation from the end of each wire. Tightly twist the end of
each wire until no frayed ends remain.
4. Locate the connector plugs and remove them if they are plugged in.
5. Insert each wire into the appropriate hole on the removable connector plug.
6. Use a small flathead screwdriver to tighten each wire in place.
7. Insert the connector plug into the S-6VC socket and lock it in place, by
tightening the screws on each side of connector.
8. Connect the Receiver or Amplifier to the connector terminal labeled
AMPLIFIER.
9. Connect the Speakers to the connector terminals labeled SPEAKERS.
10. Locate the pre-printed Room Labels. Affix the appropriate label to the
recessed area over each on/off selector button.

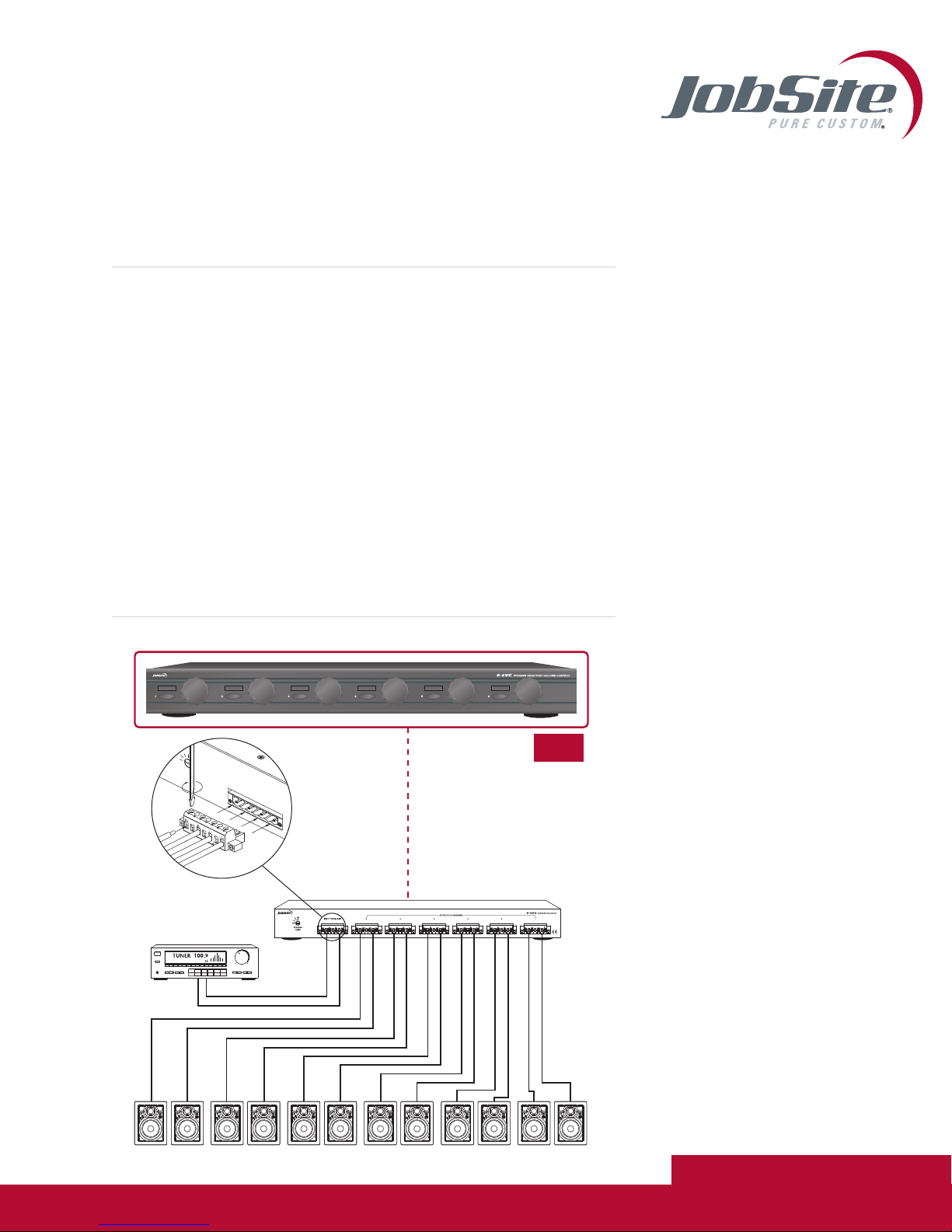

S-6VC INSTALLATION DIAGRAM
Niles Audio Corporation Miami, Florida USA
AMPLIFIER SPEAKER 4 SPEAKER 3 SPEAKER 2 SPEAKER 1
1
SPEAKER PAIRS
5/6
2
3/4
Stereo Receiver
JobSite S-6VC Back
Speaker
Pair 4
Speaker
Pair 3
Speaker
Pair 2
Speaker
Pair 1
S-6VC
Connecting the wires
S-6VC
Speaker
Pair 6
Speaker
Pair 5
JOBSITE SYSTEMS
12331 SW 130 STREET
MIAMI, FL 33186
P866.4JB.SITE (866.452.7483)
F305.238.0185
WWW.JOBSITESYSTEMS.COM
©2004 Niles Audio Corporation. JobSite,
Pure Custom and Niles are registered
trademarks of Niles Audio Corporation
and the JobSite Logo is a trademark of
Niles Audio Corporation. JSS6VCPDF
