John Greenleaf 384W User manual

Model #
384W
Rustic Sideboard
Assembly Instructions
10/05
For normal household use only.
recommended for commercial use.
Congratulations!
This fine piece of furniture will make a handsome
addition to your home. For the best results, start by
reading both the Assembly Instructions and
Finishing Hints before you begin your project.
Do not climb, sit or stand on this piece of
furniture.
Unload items from this unit prior to moving.
Do not overload shelves and drawers on this unit.
Before loading or moving this unit, check all screws
and supports for tightness.
For maximum stability, attach unit to the wall using
the enclosed hardware as per instructions.
Production Code:
Read both the Assembly Instructions and Finishing
Hints completely before beginning.
Store the parts: 1) in their box; 2) in a dry place; 3) in
temperatures ranging from 40° to 90°. (Not on a cold,
possibly damp, cement floor.)
Inspect your furniture periodically for any loose glue
joints or screws, or any other problem which may
be affecting the stability of your furniture. Tighten or
repair as needed.
Service Policy: We will replace any parts
which are defective, missing or damaged
during assembly. Please contact Whittier
Wood Products customer service department
directly (by phone, fax, mail or email) for
replacement parts.
Hours: Our friendly customer service staff
can be reached Monday-Friday 7:00 a.m. to
5:00 p.m. (Pacific Time). A message can be
left 24 hours a day, 7 days a week.
To Order: Provide the complete furniture
model number (upper left corner of this
page), part letter, production code, quantity
needed, reason for replacement and your full
name and address along with a telephone
number in case we need to contact you.
Parts ship from our Eugene, Oregon factory
within 1 or 2 business days from the time
we receive the request. Please allow 5-10
business days for delivery.
Outside U.S. or Canada: 541-687-0213
Fax: [phone] • Email: [e-mail]
Mail: P.O. Box 2827 • Eugene, Oregon 97402, U.S.A.
P.O. Box 2827
Eugene, OR 97402 USA
Natural characteristics
such as knots provide a
natural feel.

Page 2 — 384W
384W Rustic Sideboard — Parts List
BEFORE BEGINNING ASSEMBLY,
check that the quantities of the parts received match those on the parts list below.
A — Bottom Shelf — Qty. 1
B — Base — Qty. 1
C — Left Side Assembly — Qty. 1
D — Sleeper — Qty. 2
E — Right Side Assembly — Qty. 1
F — Top — Qty. 1
L — Adjustable Shelf — Qty. 1
H — Drawer Side — Qty. 2
I — Drawer End — Qty. 1
J — Drawer Bottom — Qty. 1
K — Drawer Face — Qty. 1
M — Door — Qty. 2
G — Back — Qty. 2

384W — Page 3
If a top panel should become cupped, do not be alarmed. The top was flat when it was manufactured. It is a
natural characteristic of wood in an unfinished state to cup from uneven moisture conditions. The figure at the
right shows an exaggerated view of what could happen. This only means that the convex
side has absorbed moisture, or the concave side has dried out.
Usually a cupped panel will equalize and straighten out if both sides are exposed to
similar conditions for a day or so.

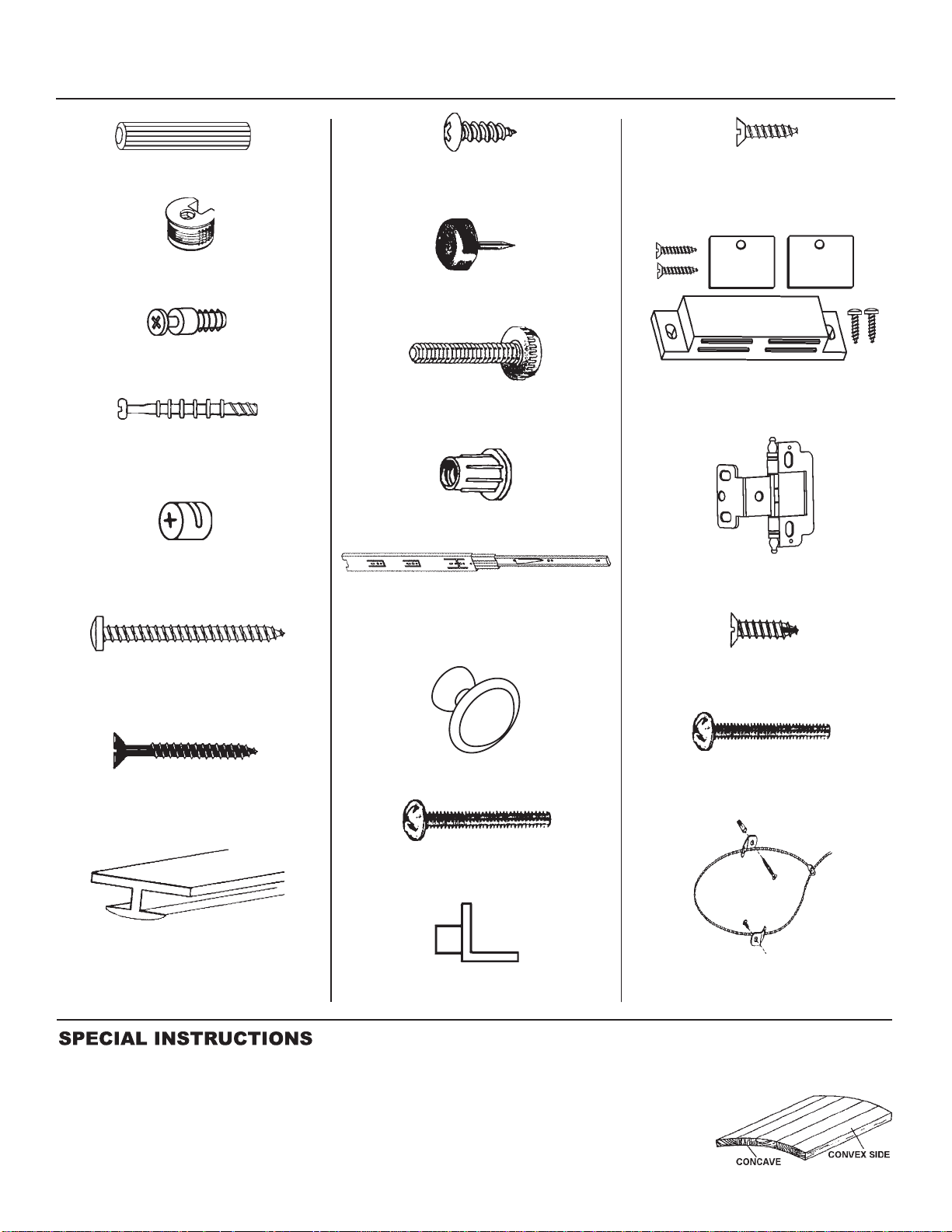

N — Wood Dowel — Qty. 6
384W Rustic Sideboard — Parts List (cont.)
O — Rafix Cam — Qty. 4
P — Rafix Bolt — Qty. 4
T — #8x1¼" Black Screw
— Qty. 12
V — #6x1/2" Philtruss Screw
— Qty. 28
X — Tack Glide — Qty. 2
Z — Plastic Insert — Qty. 2
Y —Adjustable Glide
— Qty. 2
ZD — Shelf Bracket — Qty. 4 ZJ – Tipping Restraint Kit
– Qty. 1
ZE — #6x1/2" Undercut
Screw — Qty. 4
Q — 3/4" Cam Connector
— Qty. 8
R — 1/2" Cam Housing
— Qty. 8
S — #8x1¾" Pan Head Screw
— Qty. 4
U — Plastic “H” Channel
— Qty. 1
ZB — Knob — Qty. 4
ZC — #8x1½" Machine
Screw — Qty. 2
ZA — 14" Ball Bearing
Slides — Qty. 2
(pre-attached to side assemblies)
ZI — #8x1¼" Machine Screw
— Qty. 2
ZF — Double Magnetic Catch
Kit — Qty. 1
ZH — #5x5/8" Flat Head
Screw — Qty. 20
ZG — Minaret Hinge — Qty. 4

Page 4 — 384W

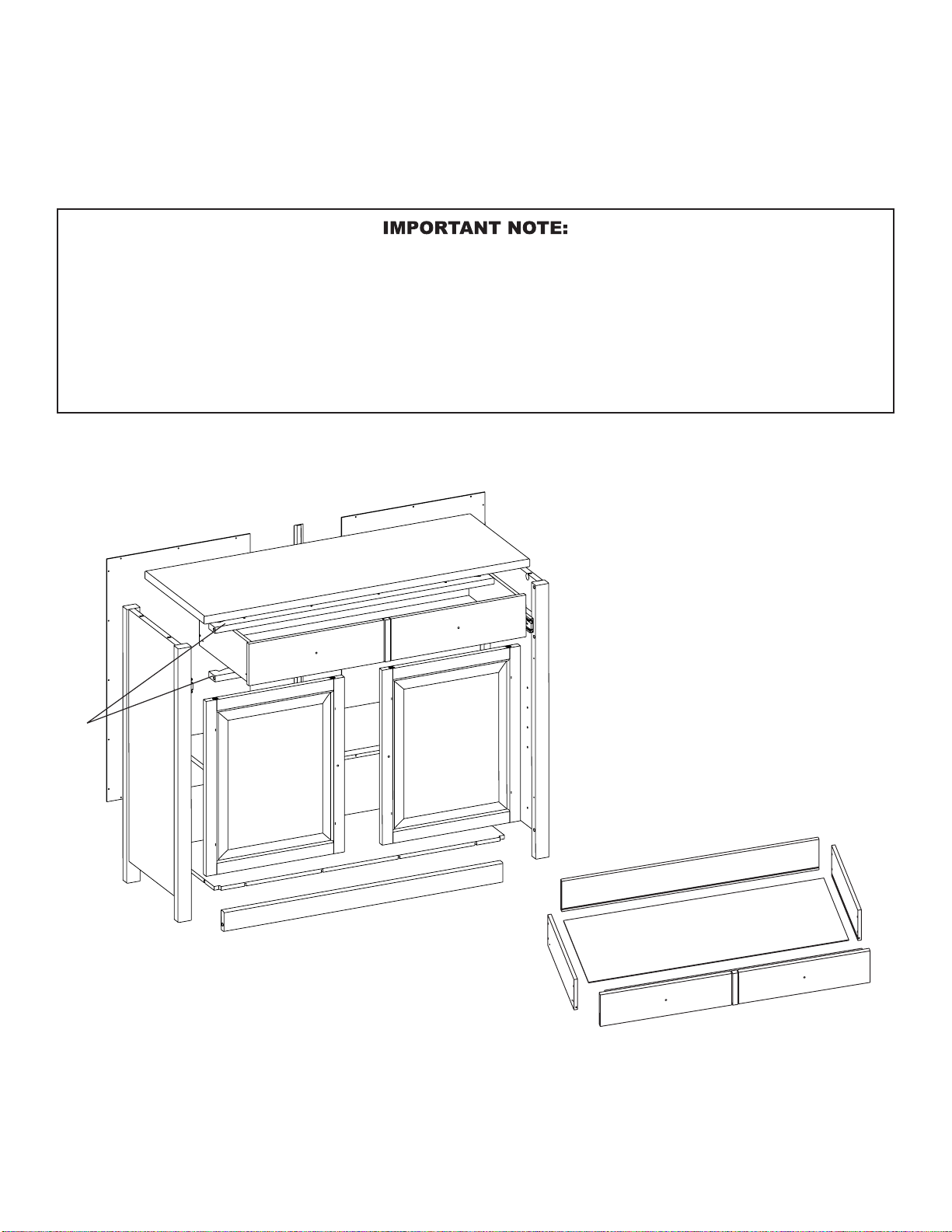

TOOLS REQUIRED:
Phillips Head Screwdriver, Mallet or Padded Hammer, Wood Glue, Tape Measure
WE RECOMMEND FINISHING THE UNIT BEFORE FINAL ASSEMBLY.
Before finishing, read enclosed finishing hints.
NOTE: Due to the fact that more than one type of hardwood is used, we recommend
testing for desired color.
To test stain for desired color on:
a) Veneer parts – apply stain to unexposed portion of Bottom Shelf (A). See FIGURE 3.
b) Alder pieces – apply stain to back of Base (B). See FIGURE 3.
384W Rustic Sideboard
ASSEMBLY INSTRUCTIONS
1. Lay out the wood parts in their approximate location to aid in the identification and assembly.
FIG. 1
C
D
E
H
I
K
LM
GG
F
M
A
BJH

384W — Page 5

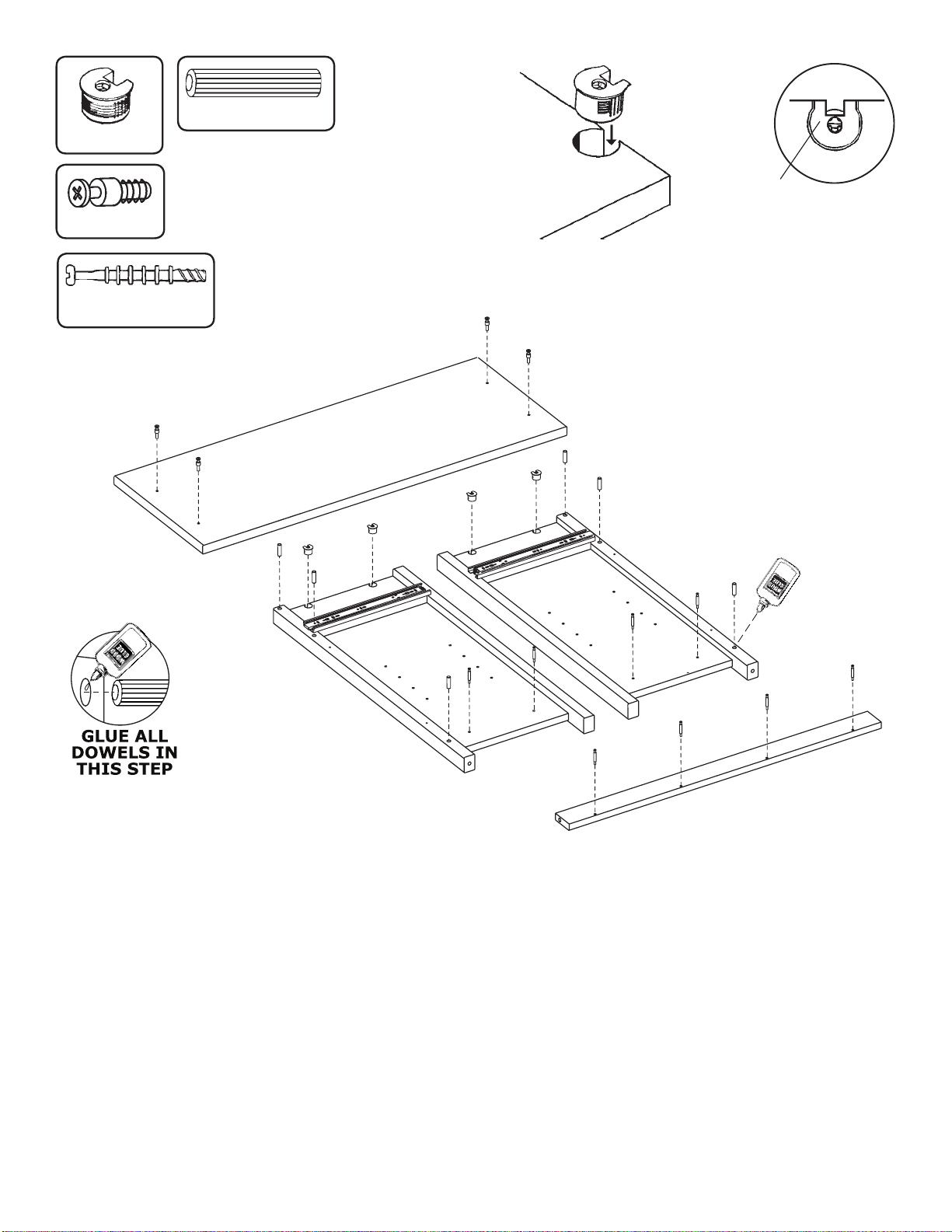

2. Glue three Wood Dowels (N) in each Side
Assembly (C & E).
Tap in two Rafix Cams (O), with notch facing
the edge, into the larger holes near the top
edge of each Side Assembly (C & E).
Screw four Rafix Bolts (P) into the Top (F).
Screw Cam Connectors (Q):
• Two in each Side Assembly (C & E)
• Four in the Base (B)
FIG. 2
TOP VIEW
O
Ox4
Px4
READ CAM-LOCK INSTRUCTIONS AND RAFIX ATTACHMENT SYSTEM
INSTUCTIONS NOW.
Nx6
Qx8
F
Q
CE
Q
Q
Q
N
N
N
NN
N
B
P
PP
OO
O
O
P
QQQQ

Page 6 — 384W
FIG. 4

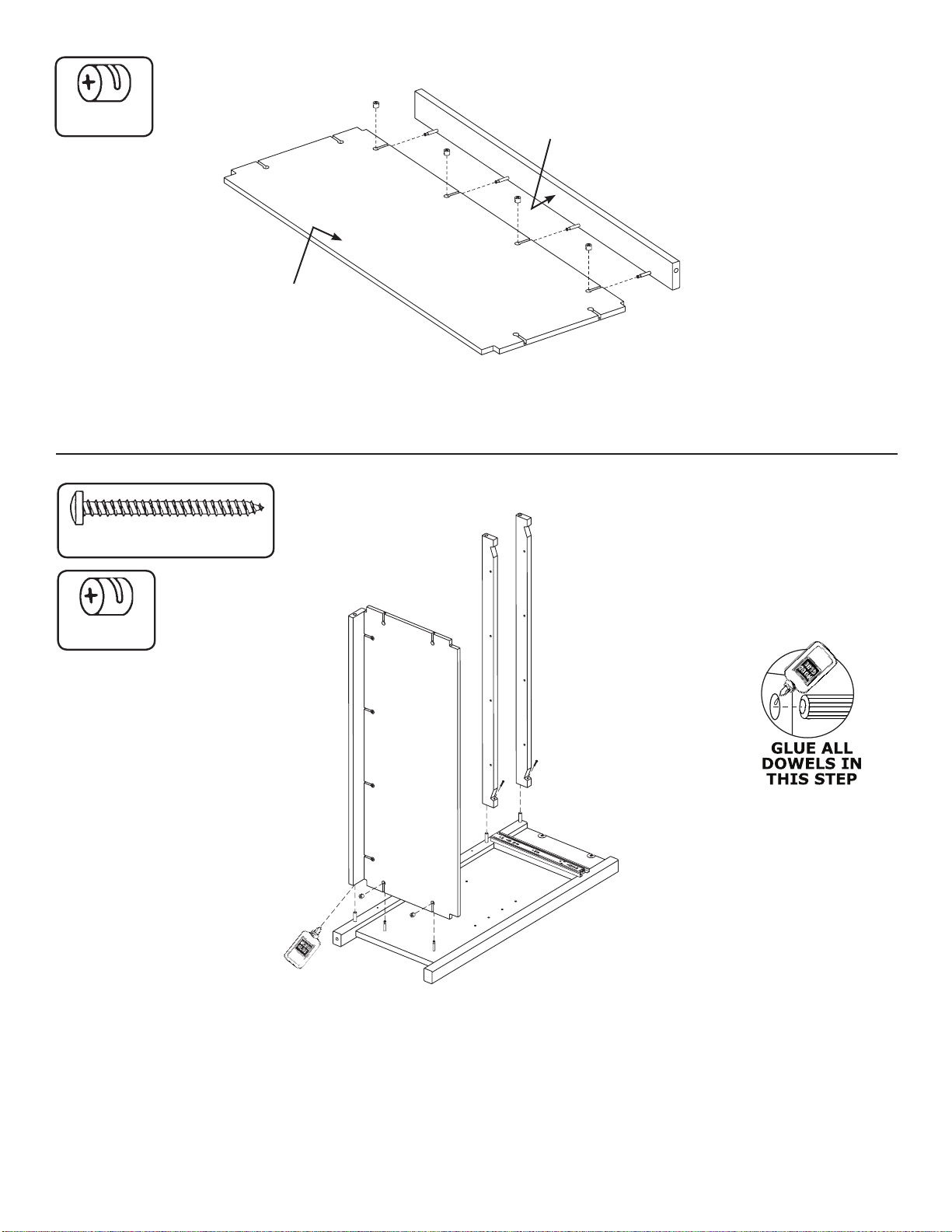

4. Attach upper and lower Sleepers (D), with notches facing in, to the Left Side Assembly (C) gluing
the Wood Dowels (N) and securing each with Screws (S). The front edge of the sleepers must be
parallel with the front edge of the legs. See FIGURE 4.
Attach the Bottom Shelf Assembly (A & B) to the Left Side Assembly (C) gluing the Wood Dowel
(N) in the Left Side Assembly (C) into the Base (B). Fasten Bottom Shelf (A) in place with two
Cam Housings (R).
Sx2
Rx2
3. Attach the Base (B) to the Bottom Shelf (A) with four Cam Housings (R). See FIGURE 3.
FIG. 3
A
R
Rx4 Stain Test Area
Stain Test Area
R
R
R
B
NR
B
A
DD
R
C
NN
S
S

384W — Page 7
FIG. 6

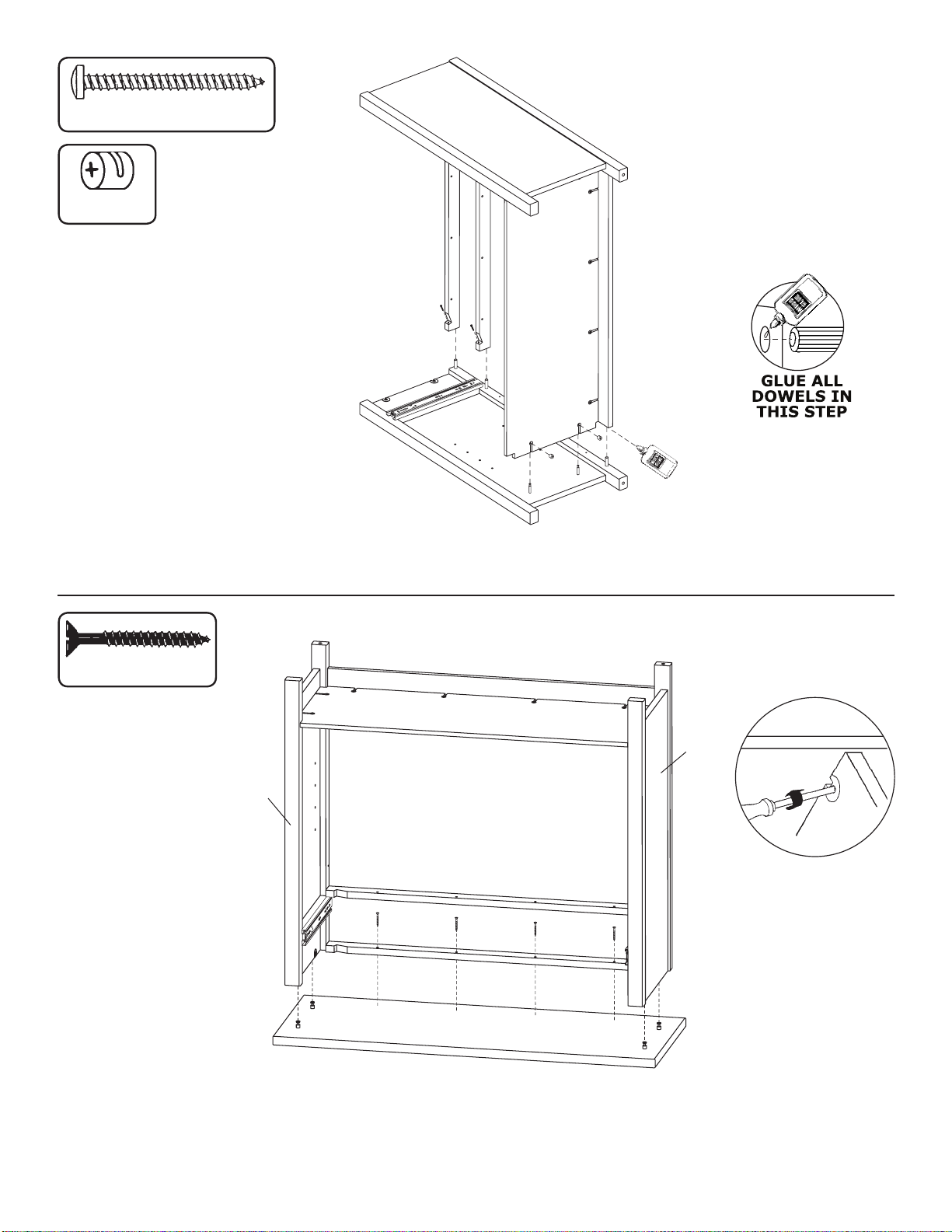

6. Lay the Top (F) on a protected surface and lower the Side Assemblies down over the Rafix
Bolts (P) in the top. Tighten Rafix Cams (O). Secure the upper Sleeper (D) to the Top (F) using
Screw (T) through the pre-drilled holes in the upper Sleeper (D). See FIGURE 6
Tx4
O
x4
5. Rotate Left Side Assembly and set in place on the right Side Assembly (E) and repeat step 4 to
secure pieces together. See FIGURE 5.
FIG. 5
Sx2
Rx2
RR
B
N
A
D
D
SS
N
N
E
T
P
D
TTT
PP
P
O
CE
O
C
F

Page 8 — 384W
FIG. 8
8. Stand the unit upright. Remove the outer slide section from each Ball Bearing Slide (ZA). To do
so, fully extend the slide as shown, press the release lever and remove each outer section. See
FIGURE 8.
U
GG
7. To square the unit, lay it face down on a protected surface, measure from top left to bottom right
and from bottom left to top right . Measurements should be equal. If the line is
longer, tap bottom of Left Side Assembly (C) until measurements are equal. If line is longer,
tap bottom of Right Side Assembly (E). See FIGURE 7A.
Connect the two Backs (G) together using the Plastic H-Channel (U). Make sure to connect the
edges that do not have pre-drilled holes. See FIGURES 7C & 7D.
Attach the Backs (G) to the unit using Screws (V). Make sure the bottom edge of the back is flush
with the bottom edge of bottom shelf and equal distance from the sides.
Tap Tack Glides (X) into the bottom of each back leg. Thread the Adjustable Glides (Y) onto the
Plastic Inserts (Z) and tap into the holes in the bottom of the front legs. See FIGURES 7B & 7D.
Z
Y
Xx2
Yx2
Zx2
Vx22
FIG. 7A
FIG. 7B
FIG. 7C FIG. 7D
GG
V
VV
V
X
X
Y&Z
E
C
U
ZA
Outer Slide Section ZA Release Lever
Y&Z

384W — Page 9

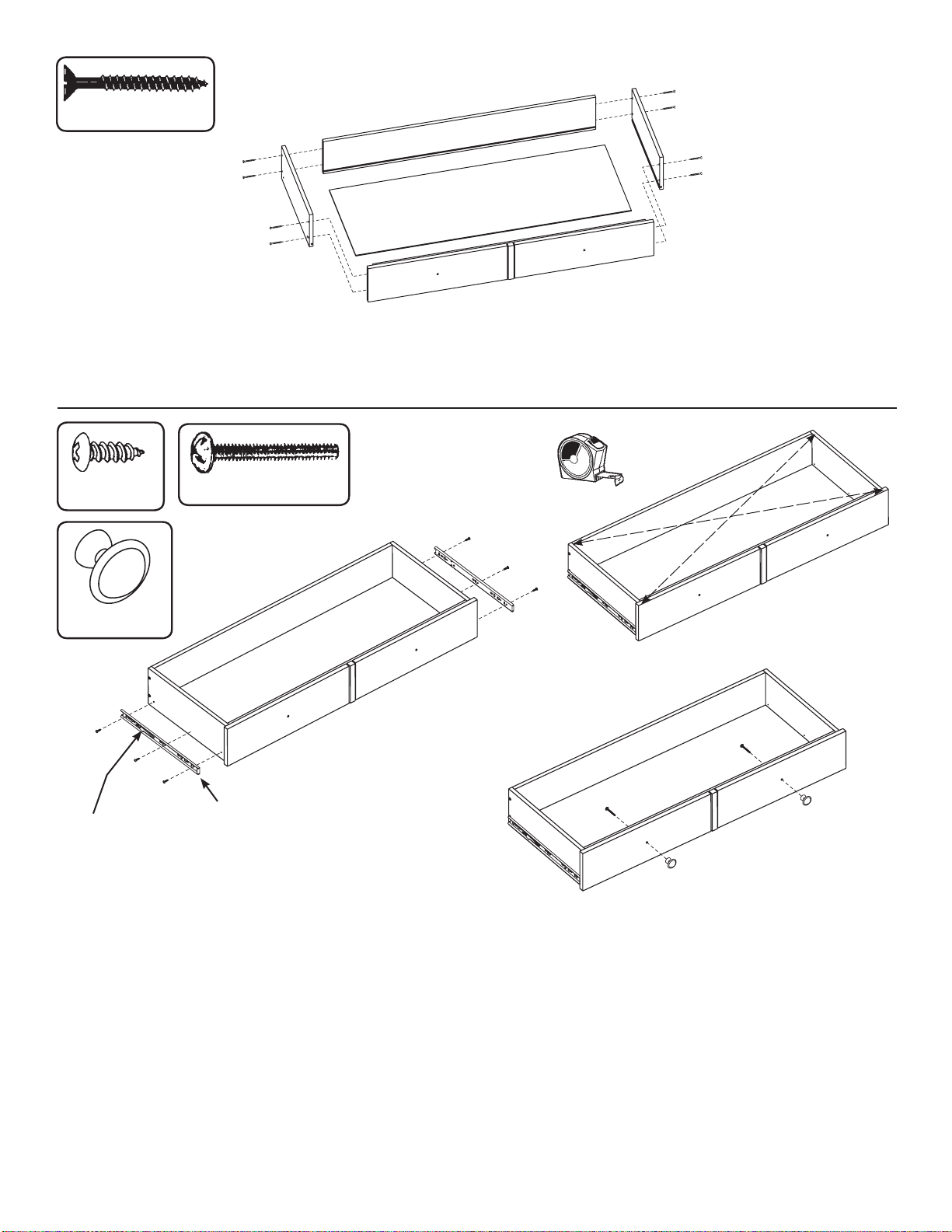

10. Attach each outer slide section (ZA) removed earlier to each side of the drawer. Align the two
outer holes on the slide with the pre-drilled holes on the Drawer Sides (H) and use Screw (V)
to hold slide in place. Make sure the closed end of the outer slide section is toward the Drawer
Face (K). Secure the outer slide section with a third Screw (V) in one of the middle holes. See
FIGURE 10A.
Square the drawer by measuring from left front to right rear and from right front to left rear. The
measurements should be equal. If one is longer, hold the drawer by the corners on the longest
line and squeeze them together until square. See FIGURE 10B.
Attach two Knobs (ZB) to the Drawer Face (K) using two 1½” Machine Screws (ZC). See
FIGURE 10C.
Vx6
FIG. 10A FIG. 10C
ZB x2
ZC x2
Closed end of slide
towards drawer face.
ZA — Outer
Slide Section
FIG. 9
9. Attach two Drawer Sides (H) to the Drawer End (I) with Screw (T) through the predrilled holes in
the sides. The grooves for the Drawer Bottom must line up. Slide the Drawer Bottom (J) into the
grooves. Attach the Drawer Face (K) to the Drawer Sides (H) using Screw (T). See FIGURE 9.
Tx8
FIG. 10B
T
T
T
T
T
T
T
T
I
J
K
VVV
K
H
VVV
KZB
ZB
ZC
ZC
H
H

Page 10 — 384W

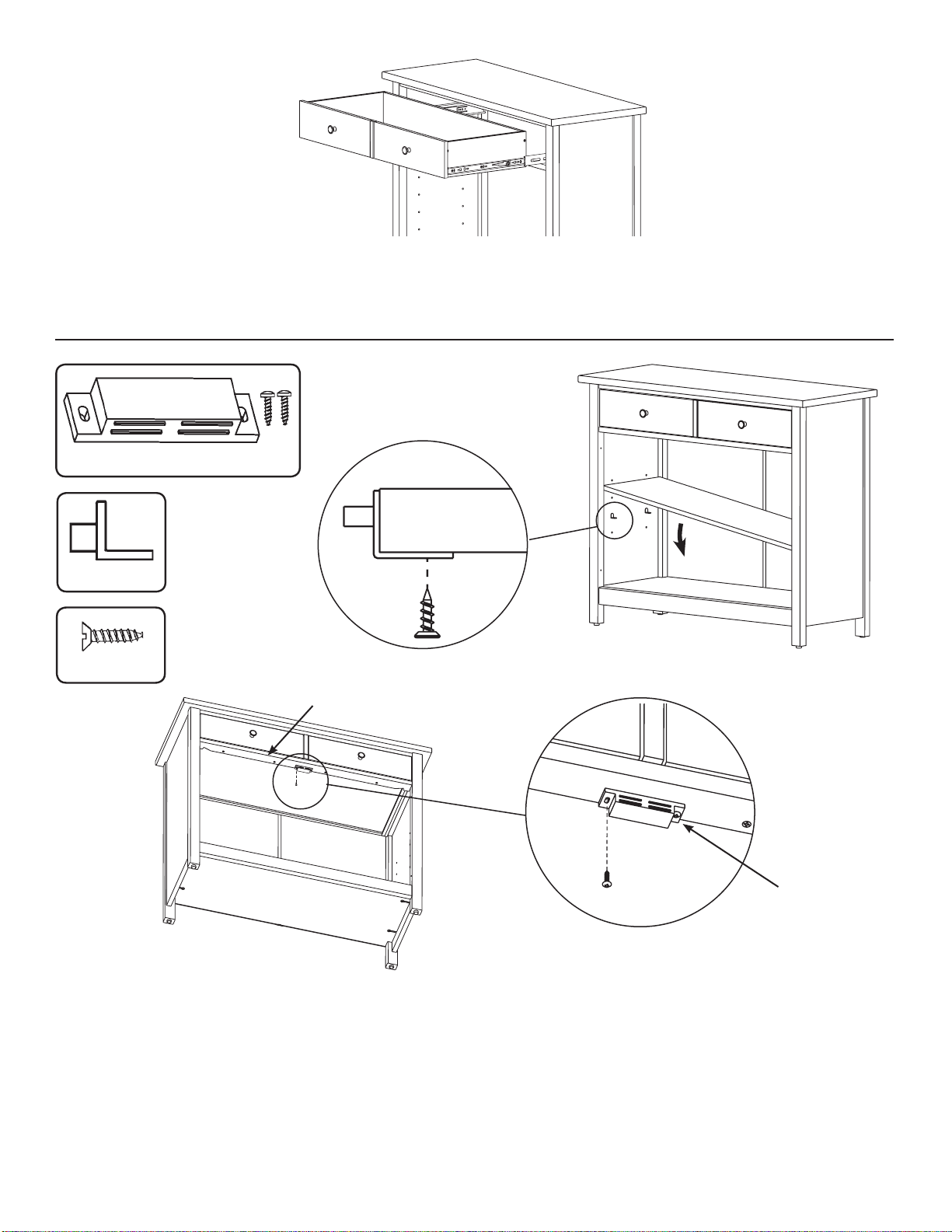

12. Determine where you want to locate the Adjustable Shelf (L). Tap the Shelf Brackets (ZD) into
the holes with the flat side down. Insert the shelf as shown. See FIGURES 12A & 12B. Secure
the shelf to the unit using Screws (ZE) through the holes in the bottom of the Shelf Brackets
(ZD) into the Shelf (L).
Center and attach the Double Magnetic Catch (ZF) to the underside of the lower Sleeper
(D). Make sure the back of the Magnetic Catch (ZF) is flush with the back edge of the lower
Sleeper (D). Use the pan head screws provided in the kit to secure the catch in place. See
FIGURES 12C & 12D.
ZD x4
ZE x4
ZF x1
FIG. 12A
ZE
ZD L
FIG. 12B
FIG. 12C
11. Install Drawer into the unit by aligning the outer slide section with the inner tracks attached to
the side assemblies. As the drawer is pushed in you will feel resistance. Continue pushing the
drawer in until it is fully closed.
FIG. 11
FIG. 12D
ZF
L
D
Lower Sleeper
Flush to back,
centered
side-to-side.
D

384W — Page 11

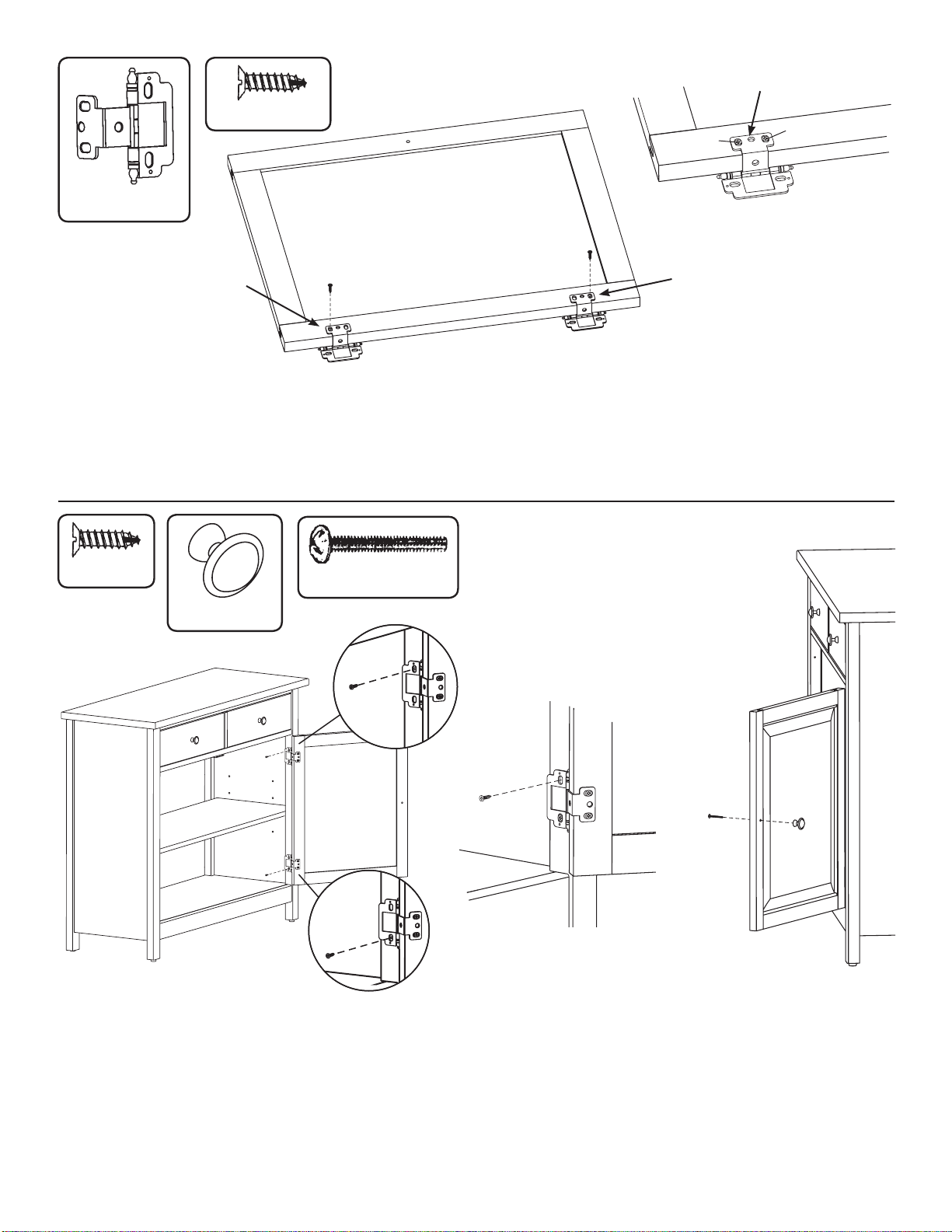

14. Attach each Door (M) to the unit. On each Side Assembly (C & E) there are two pre-drilled holes
to aid in aligning the door hinges. Use the uppermost pre-drilled hole to attach top hinge through
its uppermost hole. Likewise, use the lowermost pre-drilled hole to attach the bottom hinge
through its lowermost hole. Use Screw (ZH) in these holes. See FIGURE 14A. Once each door
is in place use a second Screw (ZH) in each hinge to hold it securely. See FIGURE 14B.
Attach a Knob (ZB) to each door using a 1¼” Machine Screw (ZI). See FIGURE 14C.
FIG. 14A FIG. 14B
ZB x2
ZI x2
ZH x8
FIG. 14C
13. Attach two Minaret Hinges (ZG) to each Door (M). Align the outermost hole in each hinge
with the outermost pre-drilled hole in the back of the door and secure with Screw (ZH). See
FIGURE 13A. Once in place, hold the Minaret Hinge (ZG) tightly against the edge of the door
and use a second Screw (ZH) in each hinge to hold it in place. DO NOT PUT A SCREW (ZH)
IN THE CENTER HOLE OF THE HINGE AT THIS TIME. See FIGURE 13B.
ZG x4
ZH x8
FIG. 13A
FIG. 13B
ZH
ZH
ZH
ZH
ZB
ZI
ZH
ZH ZH
ZG ZG
MZG
M
MM
Align this hole Align this hole
Leave empty
for now
ZH
ZH

Page 12 — 384W

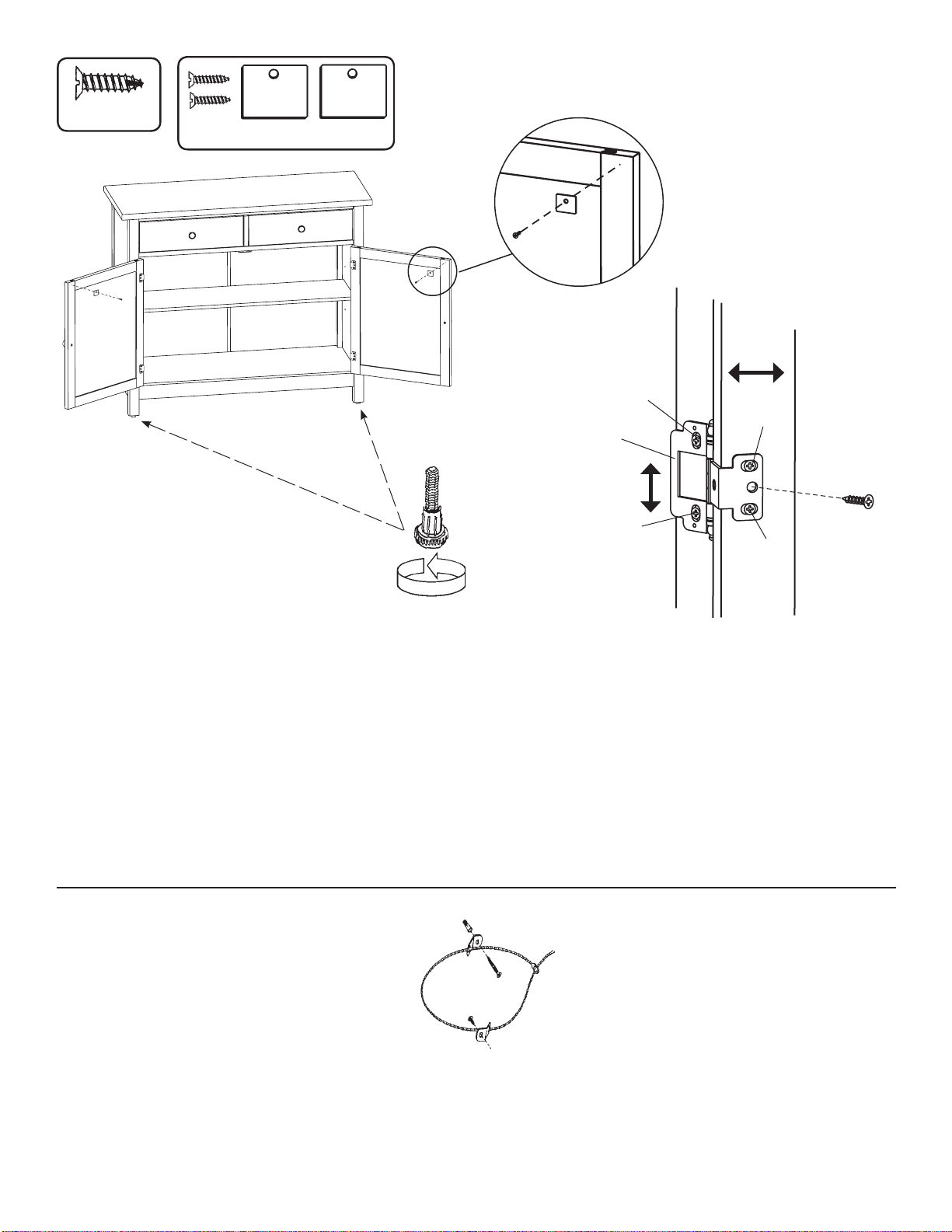

15. Attach a Magnetic Catch Plate (ZF) to the upper inside corner of each door where they will make
contact with the Double Magnetic Catch. Use the flat head screws in the magnetic catch kit to
hold each plate in place. See FIGURE 15A
When the unit is in its final location, level the unit by rotating the Adjustable Glides (Y). See
FIGURE 15B.
The doors need to be level and have equal gaps all the way around. Adjust one door at a time
by slightly loosening the four Screws (ZH) in each hinge. The oval screw holes in the hinges
allow some adjustment of the door up and down and side to side. Retighten the screws once the
door is in place. When both doors are adjusted insert the third Screw (ZH) in each hinge. See
FIGURE 15C.
FIG. 15A
ZJ
ZH
16. Once in place and level, install the Furniture Tipping Restraint (ZJ). Carefully follow the
instructions contained on the package.
FIG. 15B FIG. 15C
ZH
ZF
ZF
ZF
ZG
ZH
ZH
ZH
ZH x4 ZF x1
