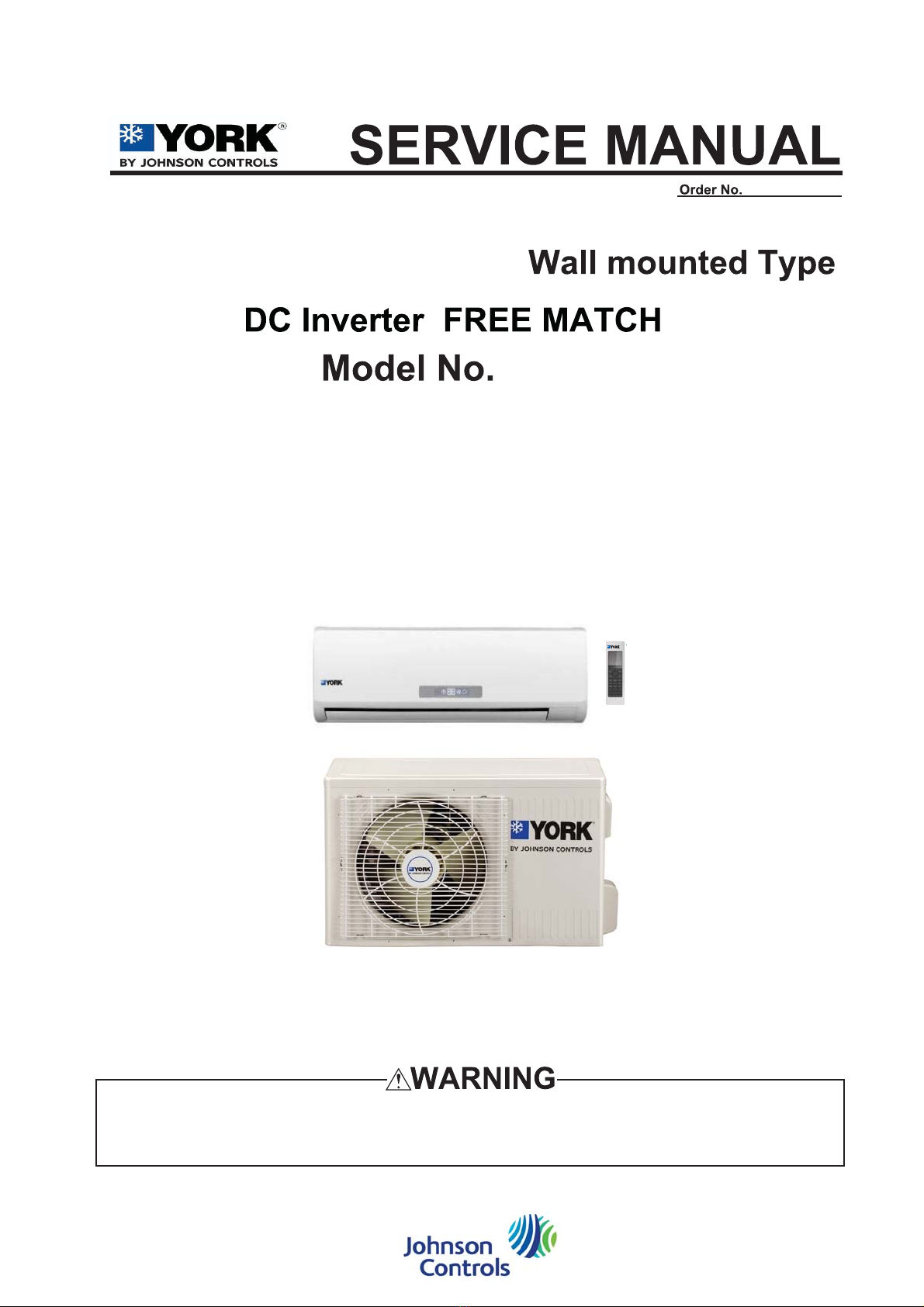

Johnson Controls York FREE MATCH EK-Series User manual

This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death
EK-Series
YJHMXH007BARR-FX
YJHMXH009BARR-FX
YJHMXH012BARR-FX
YJU2YH014BARRA-X

Table of Contents
Domestic Air Conditioner
1.Introduction-------------------------------------------------------------------------------------------------------------------1
2.List of fuctions---------------------------------------------------------------------------------------------------------------6
3.Specifications ----------------------------------------------------------------------------------------------------------------7
4.Printed Circuit Board Connector Wiring Diagram-----------------------------------------------------------------9
5.Funcitions and Control---------------------------------------------------------------------------------------------------14
5.1 Main functions and control specification of indoor unit -
------------------- -------------------------------------14
5.2
----- ------------------------------------------------------------------------------22
6. Service Diagnosis -----------------------------------------------------------------------------------------------------------41
6.1 Caution for Diagnosis-------------------------------------------------------------------------------------------------------41
6.2 Problem Symptoms and Measures-------------------------------------------------------------------------------------41
6.3 Error Codes and Description indoor display--------------------------------------------------------------------------42
6.3.1 Thermistor or Related Abnormality-----------------------------------------------------------------------------------43
6.3.2 EEPROM abnormal------------------------------------------------------------------------------------------------------44
6.3.3Indoor AC fan motor malfunction-----------------------------------------------------------------------------------------45
6.3.4 Outdoor DC fan motor fault---------------------------------------------------------------------------------------------46
6.3.5 IPM protection--------------------------------------------------------------------------------------------------------------47
6.3.6 Over-current of the compressor----------------------------------------------------------------------------------------48
6.3.7 The communication fault between IPM and outdoor PCB ------------------------------------------------------49
6.3.8 Power Supply Over or under voltage fault---------------------------------------------------------------------------50
6.3.9 Overheat Protection For Discharge Temperature------------------------------------------------------------------51
6.3.10 The communication fault between indoor and outdoor------------------------------------------------------------52
6.3.11 Loss of synchronism detection----------------------------------------------------------------------------------------54
6.3.12 High work-intense protection------------------------------------------------------------------------------------------55
7.exponent--------------------------------------------------------------------------------------------------------------------------56
9.Removal Procedure----------------------------------------------------------------------------------------------------------81
10.Wiring Diagrams--------------------------------------------------------------------------------------------------------------102
Contents
The control system of outdoor unit
8. ------------------- ----------------------------------------------------------- 63
Installation manual of room Air conditioner
5.3 ----- ------------------------------------------------------------------------------22
Value of termistor
-------------------

Introduction
Domestic Air Conditioner
1.1.1 Caution in Repair
Warning
Be sure to disconnect the power cable plug from the plug socket before disassembling the equipment for
arepair.
Working on the equipment that is connected to a power supply can cause an electrical shook.
If it is necessary to supply power to the equipment to conduct the repair or inspecting the circuits, do not
touch any electrically charged sections of the equipment.
If the refrigerant gas discharges during the repair work, do not touch the discharging refrigerant gas.The
refrigerant gas can cause frostbite.
When disconnecting the suction or discharge pipe of the compressor at the welded section, release the
refrigerant gas completely at a well-ventilated place first.
If there is a gas remaining inside the compressor, the refrigerant gas or refrigerating machine oil
discharges when the pipe is disconnected, and it can cause injury.
If the refrigerant gas leaks during the repair work, ventilate the area. The refrigerant gas can generate
toxic gases when it contacts flames.
The step-up capacitor supplies high-voltage electricity to the electrical components of the outdoor unit.
Be sure to discharge the capacitor completely before conducting repair work.A charged capacitor can
cause an electrical shock.
Do not start or stop the air conditioner operation by plugging or unplugging the power cable plug.
Plugging or unplugging the power cable plug to operate the equipment can cause an electrical shock or
fire.
1. Introduction
1.1 Safety Cautions
Be sure to read the following safety cautions before conducting repair work.
The caution items are classified into “Warning” and “Caution”. The “Warning” items are especially important
since they can lead to death or serious injury if they are not followed closely. The “Caution” items can also lead
to serious accidents under some conditions if they are not followed. Therefore, be sure to observe all the safety
caution items described below.
About the pictograms
This symbol indicates an item for which caution must be exercised.
The pictogram shows the item to which attention must be paid.
This symbol indicates a prohibited action.
The prohibited item or action is shown inside or near the symbol.
This symbol indicates an action that must be taken, or an instruction.
The instruction is shown inside or near the symbol.
After the repair work is complete, be sure to conduct a test operation to ensure that the equipment operates
normally, and explain the cautions for operating the product to the customer.
1

Introduction
Domestic Air Conditioner
Warning
Do not repair the electrical components with wet hands. Working on the equipment with wet hands can
cause an electrical shock.
Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical
shock.
Be sure to provide the grounding when repairing the equipment in a humid or wet place, to avoid electrical
shocks.
Be sure to turn off the power switch and unplug the power cable when cleaning the equipment. The
internal fan rotates at a high speed, and cause injury.
Do not tilt the unit when removing it. The water inside the unit can spill and wet the furniture and floor.
Be sure to check that the refrigerating cycle section has cooled down sufficiently before conducting repair
work. Working on the unit when the refrigerating cycle section is hot can cause burns.
Use the welder in a well-ventilated place. Using the welder in an enclosed room can cause oxygen
deficiency.
1.1.2 Cautions Regarding Products after Repair
Warning
Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to
conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools can
cause an electrical shock, excessive heat generation or fire.
When relocating the equipment, make sure that the new installation site has sufficient strength to
withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation work is not conducted
securely, the equipment can fall and cause injury.
Be sure to install the product correctly by using the provided standard installation frame.
Incorrect use of the installation frame and improper installation can cause the equipment to fall, resulting
in injury.
For
integral
units only
Be sure to install the product securely in the installation frame mounted on a window frame.
If the unit is not securely mounted, it can fall and cause injury.
For
integral
units only
2

Introduction
Domestic Air Conditioner
Warning
Be sure to use an exclusive power circuit for the equipment, and follow the technical standards related to
the electrical equipment, the internal wiring regulations and the instruction manual for installation when
conducting electrical work.
Insufficient power circuit capacity and improper electrical work can cause an electrical shock or fire.
Be sure to use the specified cable to connect between the indoor and outdoor units. Make the
connections securely and route the cable properly so that there is no force pulling the cable at the
connection terminals.
Improper connections can cause excessive heat generation or fire.
When connecting the cable between the indoor and outdoor units, make sure that the terminal cover does
not lift off or dismount because of the cable.
If the cover is not mounted properly, the terminal connection section can cause an electrical shock,
excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable can cause an electrical shock or fire. Placing heavy items on the
power cable, and heating or pulling the power cable can damage the cable.
Do not mix air or gas other than the specified refrigerant (R-410A / R22) in the refrigerant system.
If air enters the refrigerating system, an excessively high pressure results, causing equipment damage
and injury.
If the refrigerant gas leaks, be sure to locate the leak and repair it before charging the refrigerant. After
charging refrigerant, make sure that there is no refrigerant leak.
If the leak cannot be located and the repair work must be stopped, be sure to perform pump-down and
close the service valve, to prevent the refrigerant gas from leaking into the room. The refrigerant gas itself
is harmless, but it can generate toxic gases when it contacts flames, such as fan and other heaters,
stoves and ranges.
When replacing the coin battery in the remote controller, be sure to disposed of the old battery to prevent
children from swallowing it.
If a child swallows the coin battery, see a doctor immediately.
3

Introduction
1.1.3 Inspection after Repair
Warning
Check to make sure that the power cable plug is not dirty or loose, then insert the plug into a power outlet
all the way.
If the plug has dust or loose connection, it can cause an electrical shock or fire.
If the power cable and lead wires have scratches or deteriorated, be sure to replace them.
Damaged cable and wires can cause an electrical shock, excessive heat generation or fire.
Warning
Do not use a joined power cable or extension cable, or share the same power outlet with other electrical
appliances, since it can cause an electrical shock, excessive heat generation or fire.
Caution
Installation of a leakage breaker is necessary in some cases depending on the conditions of the
installation site, to prevent electrical shocks.
Do not install the equipment in a place where there is a possibility of combustible gas leaks.
If a combustible gas leaks and remains around the unit, it can cause a fire.
Be sure to install the packing and seal on the installation frame properly. If the packing and seal are not
installed properly, water can enter the room and wet the furniture and floor.
For
integral
units only
4

Introduction
Domestic Air Conditioner
Caution
Check to see if the parts and wires are mounted and connected properly, and if the connections at the
soldered or crimped terminals are secure. Improper installation and connections can cause excessive
heat generation, fire or an electrical shock.
If the installation platform or frame has corroded, replace it. Corroded installation platform or frame can
cause the unit to fall, resulting in injury.
Check the grounding, and repair it if the equipment is not properly grounded. Improper grounding can
cause an electrical shock.
Be sure to measure the insulation resistance after the repair, and make sure that the resistance is 1 M
ohm or higher.
Faulty insulation can cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage can cause the water to enter the room and wet the furniture and floor.
5

2 List of fuctions
Category
Y/N
Child lock Y
3D air flow Y
24Hour timer Y
Auto restart Y
Easy clean
design Y
Intelligent air Y
Anti-mold filter Y
4 Fan setting Y
Auto mode Y
Power mode Y
Soft mode Y
RCD module optional
Super Nano-
Quqa optional
Note: Y: Holding Functions
N : No Functions
Functions
Avoid the child's wrong operation on the remote controller
The 3D airflow is able to deliver the airflow horizontally and vertically.
Use the timer function to set on,or off,or from on to off,or from off to on
Automatic return to previous operation conditions after sudden power blackout
The panel is easy to wash and the airflow vents can be detached easily
With twin-blade technology ,the airflow can be adjusted not to blow directly
Catches most small particles and remove unpleasant odors effectively.
Sleep mode The setting temprature and the indoor noise can be adjusted to a more
comfortable level when you set the "sleep mode"during night sleep Y
RCD module can strongly degrade formaldehyde that
caused by the chemical products.
Super Nano-Quqa can ionize water molecules into
nanometer water ion, which can be easily absorbed by skin.
Slect the fan speed LO,MED,HI,AUTO
Adjust the last fixed operation mode automatically.
Quick cooling or heating
Lower noise operation condition
6

7
3 Specifications
Cooling Heating Cooling Heating
Kw 3.9 4.2 4 4.2
Btu/h
13300 14330 13650 14330
kcal/h 3354 3612 3440 3612
L/h 2.4 - 2.6 -
A 4.8 5 4.9 5
W 1040 1090 1070 1090
%97 97 97 97
W /W 5.1 3.4 5.1 3.4
Liquid mm
Gas mm
Drain mm
m
m
m
g/m
H
M
L
Motor Output W
Speed Steps
A
W
mm
mm
kg
kg
OperationSound(cooling/heating
H/M/L dBA
Sound Power(cooling/heating) H dBA
52/47/42/40
360x871x304
8.8 8.8
11.3 11.3
62 62
360x871x304
Rem ovable/W ashable/Mildew Proof
0.15 0.15
33 33
Microcomputer Control
Cross Flow Fan
20 20
4 Step,Silent,Auto 4 Step,Silent,Auto
Right, Left, Horizontal, Downward
Both Liquid and Gas Pipes
White
7.5(265)/7.0(247) 7.5(265)/7.1(250)
20
20 20
Moisture Removal
Running Current(Rated)
Power Consumption Rated(Min.-Max)
Power Factor
Model
Capacity Rated(Min.-Max.)
Φ16 Φ16
Φ6.35 Φ6.35
Φ9.52 Φ9.52
7.2(254)/6.3(222)
Max.Interunit Piping Length
30˄double˅20˄single˅30˄double˅20˄single˅
Max.Interunit Height Difference
15 15
6.5(229)/6.1(215)
Type
Amount of Additional Charge of Refrigerant
Air Direction Control
Indoor Unit
Front Panel Color
Air Flow Rate
(cooling/heating)
6.2(219)/5.7(201) 5.5(194)/5.2(183)
Packaged Dimensions(H*W *D)
W eight
Dimensions (H*W *D)
Temperature Control
Running Current(Rated)
Power Consumption Rated
265x795x187 265x795x187
53/47/44/41
COP Rated(Min.-Max.)
Piping Connections
Heat Insulation
Chargeless
20
m3/m in(cfm )
Fan
Air Filter
Gross W eight
YJHMXH007/009/012BARR-FX YJU2YH014BARRA-X
07/09+09 07/09+12
YJHMXH007/009BARR-FX YJHMXH012BARR-FX

Conversion Formulae
kal/h=kWx860
Btu/h=kWx3414
cfm=m³/minx35.5
gnitaeHgnilooC
Indoor:27 DB/19 WB
Outdoor:35 DB/24 WB
Indoor:20 DB
Outdoor:7 DB/6 WB
Piping Length
5m

Motor Output W
Charge L
Charge kg
Motor Output W
A
W
%
A
mm
mm
kg
kg
OperationSound(cooling/heating) H/M/L dBA
Sound Power(cooling/heating) H dBA
Propeller
31.2
1101 1101
1.2 1.2
White
rotary Compressor
0.48
31.2
Air Flow Rate (H/L)
(cooling/heating)
m3/m in
cfm
Refrigerant
Model
Refrigerantoil
Model ESTER LIL VG74 ESTER LIL VG74
Power Consumption Rated(cooling/heating)
Power Factor(cooling/heating)
40 40
Running Current(Rated)(cooling/heating)
Fan
Type
6.7 8.6
1400
Starting Current (cooling/heating) 8 8
Dimensions (W *D*H)
Packaged Dimensions(W *D*H) 905x375x612
38
41
Outdoor Unit
Casing Color
Compressor
Type
Model
855 855
DA108X1C-20FZ3
Weight
Gross W eight
0.48
1800
62.0 62.0
98 98
51.0 51.0
780x270x540
R410A
YJU2YH014BARRA-X
07/09+09 07/09+12

Connectorwringdiagram
Domestic Air Conditioner

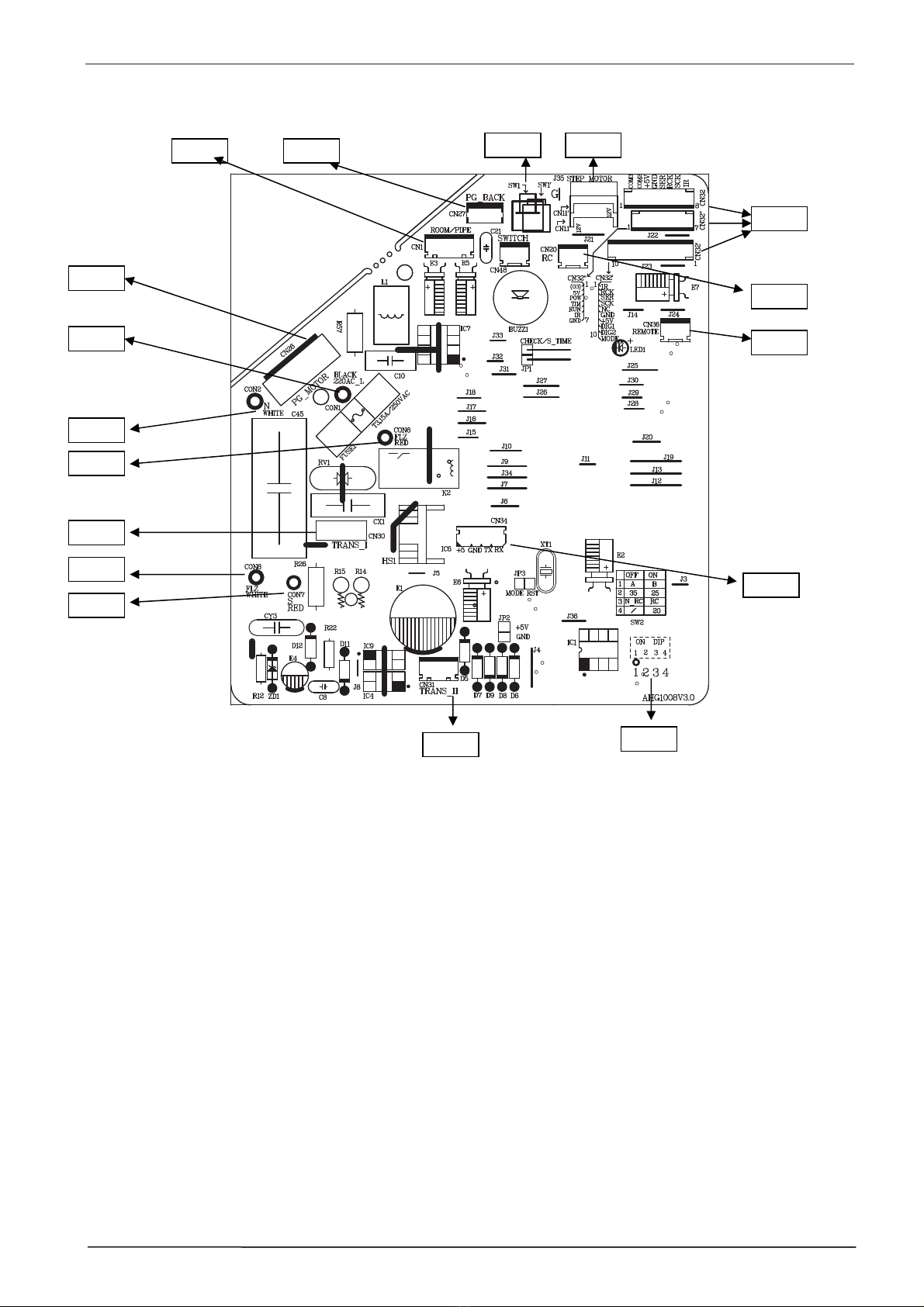

4.Printed Circuit Board Connector Wiring Diagram
Connectors
PCB(1) (Control PCB) For
1) CN9ʙCN27 Connector for fan motor and feedback
2) CN1 Connector for heat exchanger thermistor and Room temperature thermistor
3) CN11 Connector for UP&DOWN STEP motor
4) CON2 Connector for power N wire
5) CON1 Connector for power L
6) CN30ʙCN31 Connector transformer
7) CN32 Connector for display board
8) CON6ʙCON8 Connector for ions generator
9) CON7 Connector for communicate between the indoor board and the outdoor board
10) CN36 Connector for long-range control
11) CN34 Connector for Net Module
12) CN20 Connector for room card
Note: Other designations
PCB(1) (Indoor Control PCB)
1) SW1 Connector for Forced operation ON / OFF switch
2) SW2 1 Select remote code A or B,2 Select 25 or 35 ,3 Select room card able or disable
3) RV1 Varistor0
4) FUSE1 Fuse 3.15A/250VAC




indoor unit
YJHMXH007/09/12BARR-FX

Connectorwringdiagram
Domestic Air Conditioner
PCB(1)
CN11
CN36
CN20
CN1
CN26
CN32
CON1
SW1
CN27
CN30
CON2
CON6
CON8
CON7
CN34
CN31 SW2


Connector Wiring Diagram
Domestic Air Conditioner
outdoor unit
1) CN1,CN2 Connector for power N and L
2) CN3 CN8 Connector for ground
3) CN23 Connector for DC POWER 15Vand 5V to the module board
4) CN9,CN10 Connector for CN9,CN8 on the module board
5) CN22 Connector for fan motor
6) CN11 Connector for four way valve coil
7) CN17,CN18,CN19,CN20,CN21 CN47 Connector for thermistors
8) CN24 Connector for communicate between the control board and the module board
9) CN28,CN25 Connector to P and N of the module board
10) CN36 Connector for communicate between indoor and outdoor unit
11) CN15 CN16 Connector for electric expansion valves
CN10 Connector for the DC power 5V and 15V form the control PCB
CN11 Connector for communicate between the control board and the module board
P( CN1), N(CN5) Connector for CN28,CN25 on the control board
LO (CN6),LI(CN7) Connector for reactor
AC_L(CN8),AC_N(CN9) Connector for CN10,CN9 on the control board
CN2(U), CN3(V), CN4(W) connector for the compressor
: Other Designations
PCB(1) (Control PCB)
1) FUSE 1, Fuse (25A,250VAC)
2)LED 1 keep light representative normal ,if keep flash interval representative trouble Alarm
3)RV1,RV2,RV3 Varistor
11
For YJU2YH014BARRA-X

Connector Wiring Diagram
12
Domestic Air Conditioner
PCB(1)
CN36
CN17
CN28CN23
CN18
CN16
CN9 CN8 CN10 CN3
CN11
CN15
CN24 CN25
CN19
CN20
CN21
CN1
CN2
CN47
CN49
CN45
CN22

Connector Wiring Diagram
13
Domestic Air Conditioner
PCB(2)









CN1 CN5
CN6 CN7 CN10 CN11CN8 CN9
CN2
CN3
CN4

Functionsandcontrol
Domestic Air Conditioner
5.Funcitions and Control
5.1 Main functions and control specification
5.1.1 Automatic operation
When the running mode is turned to automation after starting the system, the system will first
determine the running mode according to the current room temperature and then will run according to
the determined mode. Tr in the following selection conditions means room temperature, Ts means
setting temperature, Tp means temperature of indoor coil pipe
Tr≥23ćChooseCoolingMode
Tr˘23ćChoose Heating Mode
After turning to the automation mode, the running mode can be switched between cooling mode,
fan mode and heating mode according to the change of the indoor ambient temperature. But the
automatic conversion between cooling mode and heating mode must be conducted after 15 minutes.
5.1.2 Cooling operation mode
Temperature control range: 16ć---30ć
Temperature difference: r1ć
* Control features: When Tr˄input airflow˅>Ts˄set temperature˅ć, the compressor will be opened,
the indoor fan will operate at the set speed and the mode signal will be sent to the outdoor system.
When Tr˄input airflow˅Ts˄set temperature˅ć, the compressor will be opened, the indoor fan will
operate at the set speed and the mode signal will be sent to the outdoor system. The system will keep
the original status if Tr= Ts.
Airflow speed control: (temperature difference 1ć)
Automatic: When Tr≤Ts+3ć, high speed.
When Ts+1ć≤Tr<Ts+3ć, medium speed
When Tr<Ts+1ć, low speed
When the sensor is off, low speed
When the airflow speed has no delay from the high to low switching, the speed should be delayed for
3 minutes (remain at high speed for 3 minutes.) before the next switch.
Manus: When the system is operating, you can set the high, medium or low speed manually. (When
the sensor is on or off, the system will change the speed 2 seconds after receiving the signal.)
*Airgate location control: the location for the airgate can be set according to your needs.
*Defrosting function: preventing the frosting on the indoor heat exchanger (when cooling or
dehumidifying). When the compressor works continuously for 1/6 minutes (adaptable in EEPROM)
and the temperature of the indoor coils has been below zero centigrade for 10 seconds, the
compressor will be stopped and the malfunction will be recorded in the malfunction list. The indoor
system will continue to run. When the temperature of the indoor coil is raised to 7ć, the compressor
will be restarted again (the requirement of 3 minutes’ delay should be satisfied.)
* timing system on/off function.
* Dormant control function.
14

Functionsandcontrol
Domestic Air Conditioner
5.1.3 Dehumidifying mode.
* temperature control range: 16---30ć
* temperature difference: r1ć
Control feature: send the dehumidifying signal to the outdoor system.
When Tr>Ts+2ć, the compressor will be turned on, the indoor fan will operate at the set speed.
When Tr is between the Ts and Ts+2ć, the outdoor system will operate at the high dehumidifying
frequency for 10 minutes and then at the low dehumidifying mode for six minutes. The indoor fan will
operate at low speed.
When Tr< Ts, the outsystem will be stopped, the indoor fan will be stopped for 3 minutes and then
turned to the low speed option.
All the frequency converses have a f1ćdifference.
* Wind speed control: Automatic:
When Tr≥ Ts+ 5ć, high speed.
When Ts+3ćdTr< Ts+5ć, medium speed.
When Ts+2ćdTr< Ts+3ć, low speed.
When Tr<Ts+2ć, light speed.
If the outdoor fan stopped, the indoor fan will be paused for 3 minutes.
If the outdoor fan stopped for more than 3 minutes and the outdoor system still operates, the system
will be changed into light speed mode.
When the airflow speed has no delay from the high to low switching, the speed should be delayed for
3 minutes (remain at high speed for 3 minutes.) before the next switch.
Manual: When the sensor is off or Tr< Ts+3ć, the manual operation can not be made. (obligatory
automatic operation.)
*Airgate location control: the location for the airgate can be set according to your needs.
*Defrosting function: preventing the frosting on the indoor heat exchanger (when cooling or
dehumidifying). When the compressor works continuously for 1/6 minutes (adaptable in EEPROM)
and the temperature of the indoor coils has been below zero centigrade for 10 seconds, the
compressor will be stopped and the malfunction will be recorded in the malfunction list. The indoor
system will continue to run. When the temperature of the indoor coil is raised to 7ć, the compressor
will be restarted again (the requirement of 3 minutes’ delay should be satisfied.)
* Coil protection (synchronic overheating protection) are installed for the four directions latch
malfunctions when dehumidifying.
* Timing system on/off function.
* Dormant control function.
5.1.4 Heating operation mode.
* temperature control range: 16---30ć
* temperature difference: r1ć
* control feature: the temperature compensation is automatically added and the system will send the
heating signals to the outdoor system.
If TrdTs, the outdoor compressor is turned on, the indoor fan will be at the cold air proof mode.
If Tr>Ts+, the outdoor system is turned off, the indoor fan will be at the heat residue sending mode.
If Tr<Ts+, the outdoor system will be turned on again, the indoor fan will be at the cold air proof mode.
15

Functionsandcontrol
Domestic Air Conditioner
*Indoor fan control
manual control: You can choose high, medium, low and automatic speed control.
Automatic: When Tr<Ts, high speed.
When Ts≤Tr≤Ts+2ć, medium speed.
When Tr> Ts+2ć, low speed.
When the airflow speed has no delay from the high to low switching, the speed should be delayed for
3 minutes (remain at high speed for 3 minutes.) before the next switch.
*Airgate location control: the location for the airgate can be set according to your needs.
Coldair proof operation
1. The indoor operation within 4 minutes after the start up is as the following diagram, the air speed
can be raised only after the speed has reached a certain level.










2. 4 minutes after the start up of the indoor fan, the light airflow and the low airflow will be turned to the
set speed airflow.
3. In the cold air proof operation, the fan won’t stop after the start up.
4. During the cold air proof operation, the indoor system will continuously send ‘indoor high speed’
signals to the outdoor system.
* Residue heat sending. The indoor fan will send the residue heat at a low speed for 12 seconds.
If other conditions are satisfied, when the compressor stops, the indoor system will operate at a light
speed. The indoor fan will stop when the coil temperature is below the ‘heat start temp 4’.
* Defrosting. When the system receives the defrosting signal from outdoors, the indoor fan will stop
and the indoor temperature display won’t change. At the time, any indoor coil malfunctions will be
neglected. When the outdoor defrosting finishes, the coil malfunction will still be neglected until the
compressor has been started up for 30 seconds. The indoor temperature display will not change and
the system operates at the cold air proof mode.
* Automatic heating temperature compensation: when the system enters the heating mode, the
temperature compensation (4) will be added. When the status is switched off, the compensation will
be erased.
5.1.5 Strength operation
The system enters the mode after receiving the ‘strength signal’.
Send strength operation signal to the outdoor system.
The mode change finishes the strength operation.
Entering ‘mute’, you can have normal operation or signal control such as timing to finish the strength
operation.
Heat start temp 1
Heat start temp
2
Heat start temp
3
Heat start temp 4
Set speed
Low speed
Light speed
Fan/off
Fan/off
Keep the hig
h
speed. The fa
n
doesn’t stop
16

Functionsandcontrol
Domestic Air Conditioner
When the system is at the automatic option with the strength/ mute function, if the system enters the
cooling mode, the cooling strength/ mute function will be offered; if the system enters the heating
mode, then the heating strength/ mute function will be offered; if the system enters the airflow mode,
there will be no strength/ mute function.
5.1.6 Mute operation
The system enters the mode after receiving the ‘mute signal’.
a. Mute heating: the airflow speed is slight, the system sends the mute signal to the outdoor system.
b. mute cooling: the airflow speed is slight, the system sends the mute signal to the outdoor system.
When the compressor operates, the airflow speed is mute speed. EEPROM is adaptable.
Mute operation can not work under the dehumidifying and airflow-sending operation.
5.1.7 Air refreshing
After receiving the signal from the remote control, (HV series: the background light of the ‘health’ logo
is green. HS series: the ‘health’ indicator will be lighted). If the fan operates, the Nano-Aqua operates
to realize the ions sending function.
If the indoor fan stops, the Nano-Aqua is turned off.
When the Nano-Aqua is turned off, if the air refreshing system is turned on, the Nano-Aqua will be
turned on when the fan operates.
5.1.8 Timing
You can set 24 hours’ on/off timing accordingly. After the setting, the timing indicator will be lightened.
Also, the light will be turning off after the timing is finished. The followings are several timing methods.
1.system /on timing: The timing indicator will be lightened and the indoor system is under the waiting
mode. The light will be turned off when the timing is finished and the rest of the system will operate
under a normal condition. The timing starts since the last reception of the timing signal.
2.system /off timing: When the system is turned on, the timing indicator is lightened, the rest of the
system will operated under a normal condition. When set time comes, the indicator light will be turned
off and the system will be turned off. If you have set the dormant functions, the order of your settings
will be operated according to the timing settings.
3 .system /on and off timing: The settings will be completed according to the orders..
5.1.9 Dormant operation
The dormant timing is an eight hours unadaptable one. The timing signs are shown on the V series
board. (RC series show the dormant signal, the timing light is lighted on the 6 lights board).
2.1 Under the cooling/ dehumidifying operation, after the setting of the dormant operation, the set
temperature will be raised for 1 centigrade after 1 hour’s operation and will be raised for 1 centigrade
1 hour later. The system will keep this status for 6 hours and then close.
2.2 Under the heating mode, after the setting of the dormant operation, the setting temperature will fall
2 centigrade after 1 hour’s operation and will fall 2 centigrade 1 hour later. 3 hours after the preceding
17

Functionsandcontrol
Domestic Air Conditioner
operations, the set temperature will be raised for 1 centigrade and the system will keep this status for
3 hours and then close down.
2.3 During the dormant time, except the change of the system mode or a new press on the dormant
setting keys, the timing of the 8 hours dormancy will take the first timing as the start time, any presses
on other keys will not affect the original timing.
2.4 Indoor fan control under the dormant operation.
If the indoor fan is at the high speed before the dormant operation setting, the speed will be turned to
medium after the setting. If the fan is at the medium speed before the dormant setting, the speed will
be turned to low after the setting. If the fan is at the low speed before the dormant setting, the speed
will not change.
5.1.10 Urgent on/off input
Press the urgency button the buzzer will ring. The system will enter the automatic mode if you don’t
press the button for more than 5 seconds.
Under the system off mode, if you press the urgency key for 5 to 10 seconds, the system will start the
test operation.
Under the system off mode, if you press the urgency key for 10 to 15 seconds, the display screen will
show the resume of the last malfunction.
If the system is under operation, the press on the urgency key will stop it.
Under the system off mode, the display screen will show automatic running sign.
Under the system off mode, the system will not receive the remote control signal if the press on the
urgency key doesn’t last for 15 seconds or if the key is loosened.
Urgency operation: If you press the urgency key for less than 5 seconds, the buzzer will ring when you
press the on/off key. The system will enter the urgency operation when the urgency key is loosened.
The urgency operation is fully automatic.
Test operation.
The inlet temperature sensor doesn’t work, the indoor fan and the indoor air direction board motor
works synchronically. High speed airflow, cooling, outdoor system on, etc, will send the ambient
temperature 30 centigrade and coil temperature 16 centigrade information to the outdoor system.
Test operation
The defrost protection of the evaporator doesn’t work.
The temperature control doesn’t work.
The test operation will be finished in 30 minutes.
The test operation can be stopped by the relative commands from the remote control.
5.1.11 Low load protection control
In order to prevent the frosting of the indoor heat interaction device, the outdoor system will be
stopped if the indoor heat interaction temperature is below zero centigrade for 5 minutes, but the fan
will continue to operate. The outdoor system will be started again when the heat interaction
temperature is above 7 centigrade and the system has been stopped for 3 minutes. The malfunction
will be stored in the malfunction resume and will not be revealed.
5.1.12 High load protection control
18
