VFD68 Variable Frequency Drives Product Bulletin 1
Refer to the QuickLIT website for the most up-to-date version of this document.
The VFD68 Variable Frequency Drive provides
three-phase motor speed control in a variety of HVACR
applications. The VFD68 drive is designed primarily for
condenser fan speed control on HVAC and
refrigeration condensing units, but can also be set up to
control a variety of pumps, blowers, and fans.
The VFD68 drive accepts input signals from
P499 Electronic Pressure Transducers, or other
devices that provide a 0–5 VDC, 0–10 VDC, or
4–20 mA signal.
The application-specific design of the VFD68 drive
provides a simple interface, which makes the drive
easy to understand and operate.
You can quickly and easily reconfigure the VFD68 drive
to control variable speed pumps in cooling and heating
applications, or to control variable speed supply fans in
VAV applications.
The VFD68 drive is an RS485, RTU-compliant
ModBus® slave device and can be integrated into a
ModBus network.

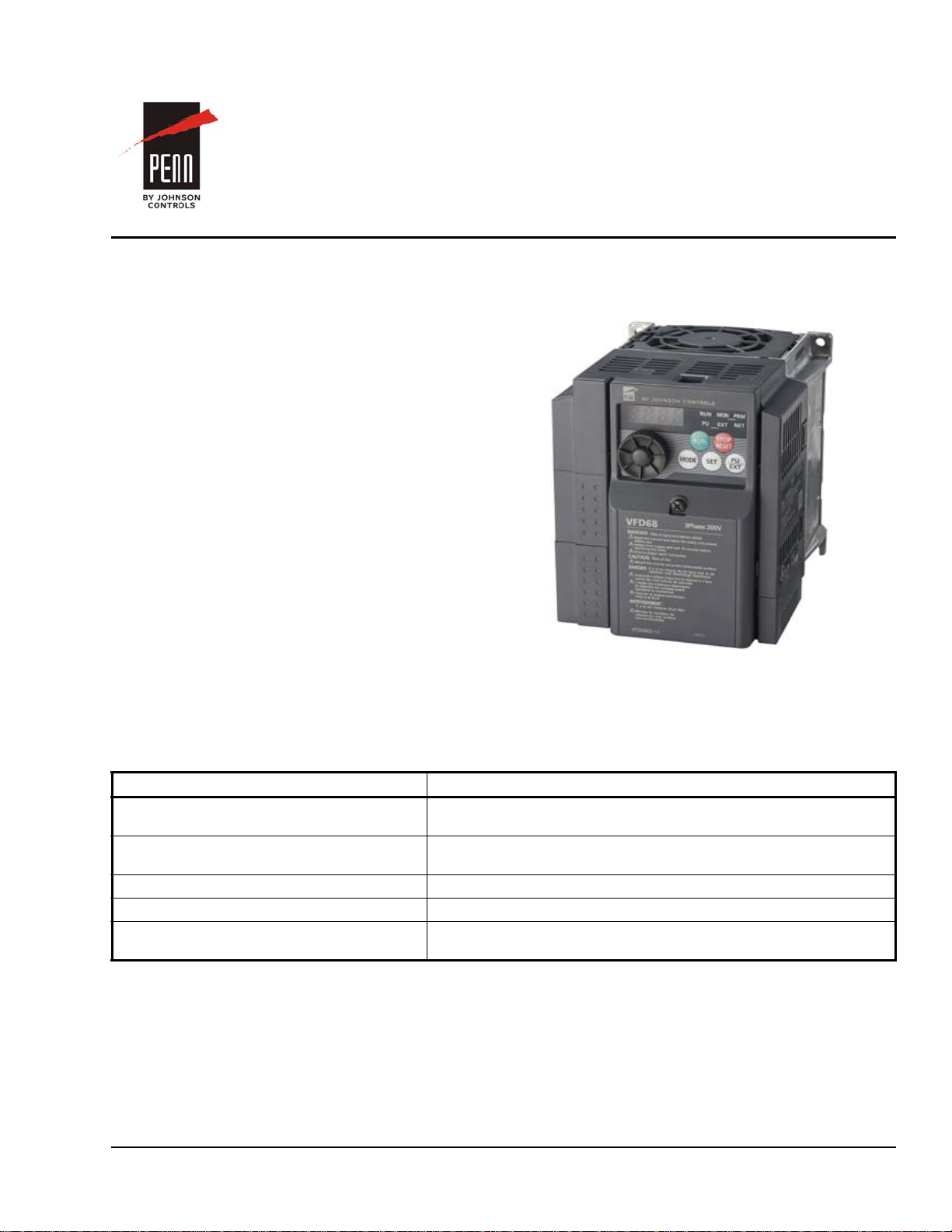

Figure 1: VFD68 Variable Frequency Drives
Table 1: Features and Benefits
Features Benefits
Selectable Input Types Allowusewith0–5 VDC (ratiometric),0–10VDC,or4–20mAinputsignals
from transducers, sensors, and controllers.
High Input Signal Selection of Two Similar
Inputs (230 or 460 volt models only) Provides fan speed control of dual circuit condensing units, based on the highest pressure circuit.
Compact Design Provides for easy and flexible installation.
Three-Phase, 230, 460, or 575 VAC Models Can control a wide variety of three-phase motors ranging up to 10 hp.
Simple and Advanced End-User Settings Provide quick and simple application setup and operation, as well as
advanced setup parameters for custom applications.
VFD68 Variable Frequency Drives
Product Bulletin Code No. LIT-12012068
Issued October 2017

VFD68 Variable Frequency Drives Product Bulletin2
Application
The VFD68 drive accepts input signals from a variety of
pressure transducers, temperature sensors, and
low-voltage controllers to provide continuous response
to changing condenser load conditions.
The VFD68 drive allows the system to:
• maintain optimum condenser head pressure
• operate in low ambient temperature conditions
down to -40ºC (-40ºF)
• reduce short-cycling, which occurs when using
On/Off fan controls
• maintain a more stable evaporator temperature
• operate more efficiently, reducing electricity cost
The VFD68 drive can also:
• help optimize compressor operation, reduce wear,
and extend compressor life by stabilizing the
condenser head pressures
• reduce motor repair and replacement costs by
eliminating the condenser fan short-cycling
• extend refrigerated product life and provide more
consistent comfort cooling by stabilizing evaporator
temperatures
Operation
Depending on the model, the VFD68 drive’s mode of
operation is indicated by LEDs or icons on the drive’s
operation panel (Figure 2 or Figure 3).
PU Mode: The Parameter Units (PU) mode is manual
control mode. In PU mode, the drive and motor are
completely controlled using the buttons and setting dial
on the drive’s user interface. No external analog
signals or network signals control the drive operation.
The PU mode is typically used to set up, test, and
troubleshoot the drive and motor operation using
controlled input signal values.
EXT Mode: In the External (EXT) mode, the drive and
motor are responding to a signal or signals from one or
two analog input signal devices such as pressure
transducers or analog controllers. This is the typical
mode of operation for the drive when it is controlling a
condenser fan or other three-phase HVACR motor
application.
PU/EXT Mode: In PU/EXT mode, the drive responds to
the connected external signal devices, and you can
edit the drive setup values. The PU/EXT mode is
typically used to set up your drive for initial operation,
or to adjust setup parameters on an operating
application.
IMPORTANT: Use this VFD68 Variable
Frequency Drive only as an operating control.
Where failure or malfunction of the VFD68 Drive
could lead to personal injury or property damage
to the controlled equipment or other property,
additional precautions must be designed into the
control system. Incorporate and maintain other
devices, such as supervisory or alarm systems or
safety or limit controls, intended to warn of or
protect against failure or malfunction of the
VFD68 Drive.
IMPORTANT : Utiliser ce VFD68 Variable
Frequency Drive uniquement en tant que
dispositif de régulation. Lorsqu'une défaillance
ou un dysfonctionnement du VFD68 Drive risque
de provoquer des blessures ou d'endommager
l'équipement contrôlé ou un autre équipement,
la conception du système de contrôle doit
intégrer des dispositifs de protection
supplémentaires. Veiller dans ce cas à intégrer
de façon permanente d'autres dispositifs, tels
que des systèmes de supervision ou d'alarme,
ou des dispositifs de sécurité ou de limitation,
ayant une fonction d'avertissement ou de
protection en cas de défaillance ou de
dysfonctionnement du VFD68 Drive.

VFD68 Variable Frequency Drives Product Bulletin 3
Operation Panel on 230 VAC and 460 VAC
Models
The RUN, MON, and PRM LEDs provide drive status
and indicate the type of information being displayed on
the operation panel (Figure 2).
RUN LED: The LED state (on steady, flashing, or
flickering) provides information regarding the drive and
motor run status.
MON LED: Indicates that the monitor is displaying the
drive’s run status. Press SET to scroll through run
frequency, output amperes, and output voltage.
PRM LED: Indicates that the monitor is set to display
parameters and parameter values and allows you to
view and edit parameter values.

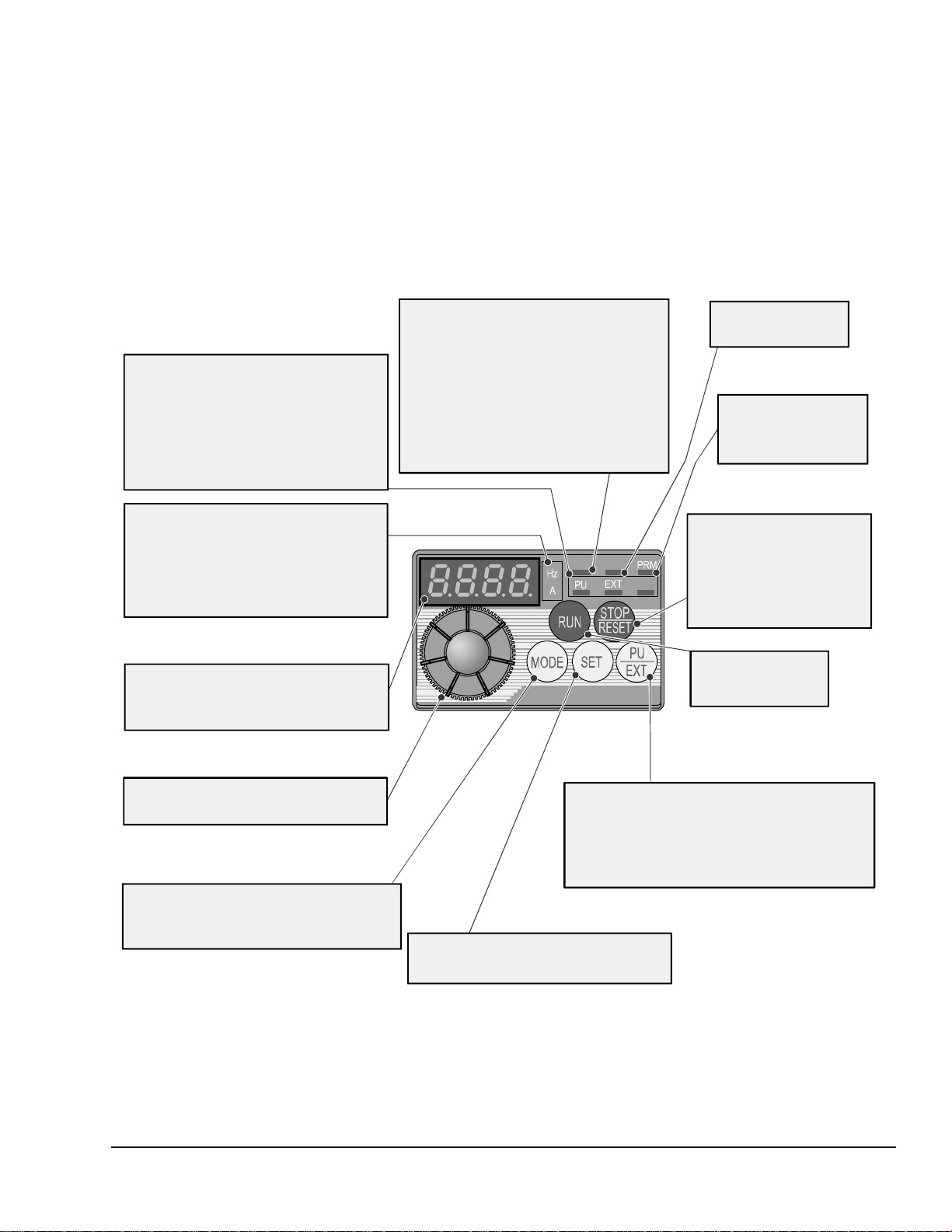

Figure 2: Operation Panel for 230 VAC and 460 VAC Models
RUN MON
NET
Operation mode indication LEDs
PU:
EXT:
NET:
Lit to indicate PU manual operation
mode.
Lit to indicate External operation mode.
(Lit at power-ON at initial setting.)
Lit to indicate Network operation mode.
These turn OFF when the command source
is not on the operation panel.
Unit of measurement indication
Hz
A (
Hz A
(lit) indicates operating frequency
(motor speed) is displayed.
lit) indicates operating amperes is
displayed.
and are not lit when values other than
frequency or amperes are displayed.
Monitor (4-digit LED)
Shows the frequency, parameter number,
parameter values, motor speed during
operation, and error codes.
Setting dial
In PRM mode,
scroll the setup parameters
to view and change the parameter values.
Mode button
Used to change each setting mode.
Pressing changes the operation mode
between PRM mode and PU mode.
MODE SET button
Used in PRM mode to select a parameter
and save a new parameter value.
Parameter setting mode
indication
PRM
lit to indicate
parameter setting mode.
Monitor indication
MON lit to indicate
monitoring mode.
STOP/RESET button
Press to stop
and motor. the VFD68 drive
If the VFD68 drive
is stopped because of a fault
condition, press this button
to reset the drive and resume
operation.
Operation mode switchover
Switches between the PU mode and EXT mode.
When using the EXT mode (using an external device
connected toAI1 orAI2, such as a pressure
transducer or control analog output, with a
0–5 V, 0 10 V, or 4 20 mAoutput), pressthis key
to light the EXT indication.
––
Run button
RUN
Press to start the
VFD68 driveand motor.
RUN indicator LED
On Steady:
Slow flash:
Fast flash:
RUN lit or flickering during operation.
Motor running in forward rotation.
Motor running in reverse rotation.
The drive cannot run due to a
condition such as the SD and STF
inputs are not connected or when
the frequency command is less
than the starting frequency.
FIG:oprtn_pnl

VFD68 Variable Frequency Drives Product Bulletin4
Operation Panel for 575 VAC Models
Table 2: Operation Panel Keys
Key Description
Used to give a start rotation command.
• Used to stop operation.
• Used to reset the VFD68 Drive when the output stops due to activation of the protection function.
Used to select the operation mode or setting mode.
Used to determine the frequency and parameter settings.
• Used to increase or decrease the running frequency consecutively. Hold down the key to change the
frequency.
• Used to change the parameter setting consecutively, when in the setting mode. Press the key to change
the parameter setting.
Used to give a forward rotation command.
Used to give a reverse rotation command.
• Used to stop operation.
• Used to reset the VFD68 Drive when the output stops due to activation of the protection function.
Table 3: Unit Indications and Operating Status Indications
Indication Description
Hz Lit to indicate frequency
ALit to indicate the current (Amperes)
RUN Lit to indicate drive operation
Steady light = forward rotation
Flickering light = reverse rotation
MON Lit to indicate monitor display mode
PU Lit to indicate the PU operation mode
EXT Lit to indicate the external operation mode
Figure 3: Operation Panel
Unit indication
Operation status
indication
Reverse key
Setting key
Mode key
RUN key STOP/RESET key Forward key STOP/R
ESET key UP
/
DOWN key
COVER
OPENED:
REV
SET
RESET
RUN
RUN
STOP
RESET
MODE
SET
FWD
REV
STOP
RESET

VFD68 Variable Frequency Drives Product Bulletin 5
Selecting a Motor
Required Motor Specifications
Motors used with the VFD68 drive must:
• be AC induction three-phase motors that are UL
Recognized and CSA Certified, or equivalent
• be rated for:
• 230 VAC, 50/60 Hz
• 460 VAC, 50/60 Hz
• 575 VAC, 60 Hz
• have an Inverter Rating (460 VAC motors)
• have Insulation Class F or better
The VFD68 drive is intended for use with variable
speed motors that are rated for 40:1 operation.
Multiple Motors
A VFD68 drive can control multiple motors wired in
parallel; however, the sum of the Full Load Amperes
(FLA) ratings for the motors must not exceed the
maximum output current rating of the VFD68 drive,
including any de-rating due to altitude. Refer to the
VFD68 Variable Frequency Drive Technical Bulletin
(Part No. 24-7664-3051) for de-rating information.
If three-phase power is not available as supply power
for the VFD68 drive, refer to the VFD68 Variable
Frequency Drive Technical Bulletin
(Part No. 24-7664-3051).
Ordering Information
Use Figure 4 and Table 4 to select the desired model of
VFD68 Drive. For example, a VFD68BGG would be
rated for 230 VAC ±10% and 2 horsepower. See
Table 5 through Table 7 for available production
models.
.
IMPORTANT: When selecting the motor, do not
exceed the maximum output current rating of the
VFD68 drive.
IMPORTANT: Do not control both single-phase
and three-phase motors with the same VFD68 drive.
Figure 4: VFD68 Drive Model
VFD68 -2C
Voltage Kilowatts
(Horsepower)
Dimensions
H x W x D
FIG:VFD68_slctn
Table 4: VFD68 Drive Model Information
Voltage kW (Horsepower) Dimensions, H x W x D, mm (in.)
B200–240 VAC, 50/60 Hz 0.1 (1/8) 128 x 68 x 81 (5 x 2-11/16 x 3-3/16)
C400–480 VAC, 50/60 Hz 0.2 (1/4) 128 x 68 x 113 (5 x 2-11/16 x 4-7/16)
D575 VAC, 50 Hz 0.4 (1/2) 128 x 68 x 133 (5 x 2-11/16 x 5-1/4)
F0.75 (1) 128 x 108 x 130 (5 x 4-1/4 x 5-1/8)
G1.5 (2) 128 x 108 x 136 (5 x 4-1/4 x 5-5/16)
H2.2 (3) 128 x 108 x 156 (5 x 4-1/4 x 6-1/8)
J3.7 (5) 128 x 108 x 166 (5 x 4-1/4 x 6-1/2)
K5.5 (7-1/2) 128 x 170 x 142 (5 x 6-11/16 x 5-5/8)
L7.5 (10) 150 x 220 x 155 (5-15/16 x 8-11/16 x 6-1/8)
M11 (15) 150 x 140 x 136 (5-15/16 x 5-1/2 x 5-5/16)
N15 (20) 150 x 220 x 148 (5-15/16 x 8-11/16 x 5-13/16)
P260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
IMPORTANT: Frequently starting and stopping the VFD shortens the lifespan of the VFD68 drive. In
applications where the drive will start or stop frequently, select a VFD which has an output current rating that is
1.5 to 2 times greater than the FLA current rating of the three-phase motor.

VFD68 Variable Frequency Drives Product Bulletin6
Selection Charts
Table 5: 230 VAC ±10% Production Models
Product Code Number Description
VFD68BBB-2C VFD68 Drive; 0.1 kw (1/8 hp); 128 x 68 x 81 mm (5 x 2-11/16 x 3-3/16 in.)
VFD68BCB-2C VFD68 Drive; 0.2 kw (1/4 hp); 128 x 68 x 81 mm (5 x 2-11/16 x 3-3/16 in.)
VFD68BDC-2C VFD68 Drive; 0.4 kw (1/2 hp); 128 x 68 x 113 mm (5 x 2-11/16 x 4-7/16 in.)
VFD68BFD-2C VFD68 Drive; 0.75 kw (1 hp); 128 x 68 x 133 mm (5 x 2-11/16 x 5-1/4 in.)
VFD68BGG-2C VFD68 Drive; 0.5 kw (2 hp); 128 x 108 x 136 mm (5 x 4-1/4 x 5-5/16 in.)
VFD68BHG-2C VFD68 Drive; 2.2 kw (3 hp); 128 x 108 x 136 mm (5 x 4-1/4 x 5-5/16 in.)
VFD68BJK-2C VFD68 Drive; 3.7 kw (5 hp); 128 x 170 x 142 mm (5 x 6-11/16 x 5-5/8 in.)
VFD68BKL-2C VFD68 Drive; 5.5 kw (7-1/2 hp); 150 x 220 x 155 mm (5-15/16 x 8-11/16 x 6-1/8 in.)
VFD68BLL-2C VFD68 Drive; 7.5 kw (10 hp); 150 x 220 x 155 mm (5-15/16 x 8-11/16 x 6-1/8 in.)
VFD68BMP-2C VFD68 Drive; 11 kw (15 hp); 260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
VFD68BNP-2C VFD68 Drive; 15 kw (20 hp); 260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
Table 6: 460 VAC ±10% Production Models
Product Code Number Description
VFD68CDF-2C VFD68 Drive; 0.4 kw (1/2 hp); 128 x 108 x 130 mm (5 x 4-1/4 x 5-1/8 in.)
VFD68CFF-2C VFD68 Drive; 0.75 kw (1 hp); 128 x 108 x 130 mm (5 x 4-1/4 x 5-1/8 in.)
VFD68CGG-2C VFD68 Drive; 1.5 kw (2 hp); 128 x 108 x 136 mm (5 x 4-1/4 x 5-5/16 in.)
VFD68CHH-2C VFD68 Drive; 2.2 kw (3 hp); 128 x 108 x 156 mm (5 x 4-1/4 x 6-1/8 in.)
VFD68CJJ-2C VFD68 Drive; 3.7 kw (5 hp); 128 x 108 x 166 mm (5 x 4-1/4 x 6-1/2 in.)
VFD68CKL-2C VFD68 Drive; 5.5 kw (7-1/2 hp); 150 x 220 x 155 mm (5-15/16 x 8-11/16 x 6-1/8 in.)
VFD68CLL-2C VFD68 Drive; 7.5 kw (10 hp); 150 x 220 x 155 mm (5-15/16 x 8-11/16 x 6-1/8 in.)
VFD68CMP-2C VFD68 Drive; 11 kw (15 hp); 260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
VFD68CNP-2C VFD68 Drive; 15 kw (20 hp); 260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
Table 7: 575 VAC +5/-10% Production Models
Product Code Number Description
VFD68DFM-2C VFD68 Drive; 0.75 kw (1 hp); 150 x 140 x 136 mm (5-15/16 x 5-1/2 x 5-5/16 in.)
VFD68DGM-2C VFD68 Drive;1.5 kw (2 hp); 150 x 140 x 136 mm (5-15/16 x 5-1/2 x 5-5/16 in.)
VFD68DHM-2C VFD68 Drive; 2.2 kw (3 hp); 150 x 140 x 136 mm (5-15/16 x 5-1/2 x 5-5/16 in.)
VFD68DJN-2C VFD68 Drive; 3.7 kw (5 hp); 150 x 220 x 148 mm (5-15/16 x 8-11/16 x 5-13/16 in.)
VFD68DKN-2C VFD68 Drive; 5.5 kw (7-1/2 hp); 150 x 220 x 148 mm (5-15/16 x 8-11/16 x 5-13/16 in.)
VFD68DLN-2C VFD68 Drive; 7.5 kw (10 hp); 150 x 220 x 148 mm (5-15/16 x 8-11/16 x 5-13/16 in.)

VFD68 Variable Frequency Drives Product Bulletin7
Table 8: Transducer Kits and Wire Harnesses
Product Code
Number Description Accessory Information
P499RAPS100K
P499RCPS100K Electronic Pressure Transducer (-10 to 100 psis [sealed for wet and freeze/thaw applications]
Range) and WHA-PKD3-200C Wire Harness
• Product code numbers ending in K are P499 kit
models that include a P499 Pressure
Transducer model and a WHA-PKD3-200C
(2 m [6-1/2 ft ]) Wire Harness. To order a single
P499 Pressure Transducer model (without a
WHA-PKD3-200C Wire Harness), replace the
K with a C at the end of the P499 product code
number.
• P499RxP type models are 0.5 to 4.5 VDC
ratiometric pressure transducers with Packard
style electrical connections.
• P499RAP type models have a 1/8 in. 27 NPT
external thread (Style 49) pressure connection.
• P499RCP type models have a 1/4 in. SAE 45°
flare internal thread (7/16-20 UNF) with
depressor (Style 47) pressure connection.
• Refer to the P499 Series Electronic Pressure
Transducers Product/Technical Bulletin
(LIT-12011190) for more information on
P499 Pressure Transducer models and the
associated wire harnesses.
P499RAPS102K
P499RCPS102K Electronic Pressure Transducer (0 to 200 psis [sealed for wet and freeze/thaw applications]
Range) and WHA-PKD3-200C Wire Harness
P499RAP-101K
P499RCP-101K Electronic Pressure Transducer (0 to 100 psig Range) and WHA-PKD3-200C Wire Harness
P499RAP-102C Electronic Pressure Transducer (0 to 200 psig
Range)
P499RAP-105K
P499RCP-105K Electronic Pressure Transducer (0 to 500 psig Range) and WHA-PKD3-200C Wire Harness
P499RAP-107K
P499RCP-107K Electronic Pressure Transducer (0 to 750 psig Range) and WHA-PKD3-200C Wire Harness
WHA-PKD3-200C Wire Harness, 2 m (6-1/2 ft)
WHA-PKD3-400C Wire Harness, 4 m (13 ft)
WHA-PKD3-400C Wire Harness, 6 m (19-5/8 ft)

VFD68 Variable Frequency Drives Product Bulletin8
Technical Specifications
VFD68 Variable Frequency Drive
Input Power Voltage/Frequency 230 VAC, 50 HZ (208/230 VAC, 60 Hz);
400 VAC, 50 Hz (460 VAC, 60 Hz);
575 VAC, 50 Hz;
Continuous Duty
Output Voltage/Frequency 230 VAC, 50 HZ (208/230 VAC, 60 Hz);
400 VAC, 50 Hz (460 VAC, 60 Hz);
575 VAC, 50 Hz;
Continuous Duty
Input Devices Johnson Controls/PENN® P499 Electronic Pressure Transducers
PWM Carrier Frequency Adjustable 0.7 to 15 kHz
Motor Requirements Three-phase NEMA Design B motors required; Inverter-rated motors recommended
Overload Capacity 150% of ampere rating for 1 minute
Start/Stop Use STF input to start or stop the motor
Ambient Conditions Storage: -40 to 65ºC (-40 to 149ºF), 0 to 95% RH noncondensing
Operating: -40 to 50ºC (-40 to 122ºF), 0 to 95% RH noncondensing
Altitude: 1,000 m (3,300 ft) Maximum without derating
Enclosures UL Type 1 (NEMA) Fan Cooled
(230 VAC 1 hp and lower models do not have a fan)
Maximum High Voltage Wire
Length Up to 100 m (328 ft) between the VFD68 drive and the motor (using the appropriate wire gauge)
Compliance North America: cULus Listed, UL 508C, CSA-C22.2 No. 14, File E244421;
Industry Canada (IC) Compliant to Canadian ICES-003, Class B limits
Europe: CE Mark - Johnson Controls, Inc. declares that this product is in compliance with
the essential requirements and other relevant provisions of the EMC Directive and the
Low Voltage Directive.
Australia: Regulatory Compliance Mark (RCM)
Dimensions (H x W x D) Minimum: 128 x 68 x 81 mm (5 x 2-11/16 x 3-3/16 in.)
Maximum: 260 x 220 x 190 mm (10-1/4 x 8-11/16 x 7-1/2 in.)
Shipping Weight 230 VAC ±10% Production Models:
VFD68BBB, VFD68BCB: 0.5 kg (1.1 lb)
VFD68BDC: 0.8 kg (1.8 lb)
VFD68BFD: 1.0 kg (2.2 lb)
VFD68BGG, VFD68BHG: 1.4 kg (3.1 lb)
VFD68BJK: 1.8 kg (4.0 lb)
VFD68BKL, VFD68BLL: 3.6 kg (8.0 lb)
VFD68BMP, VFD68BNP: 6.5 kg (14.3 lb)
460 VAC ±10% Production Models:
VFD68CDF, VFD68CFF: 1.3 kg (2.9 lb)
VFD68CGG: 1.4 kg (3.1 lb)
VFD68CHH, VFD68CJJ: 1.5 kg (3.3 lb)
VFD68CKL, VFD68CLL: 3.3 kg (7.3 lb)
VFD68CMP, VFD68CNP: 6.5 kg (14.3 lb)
575 VAC +5/-10% Production Models:
VFD68DFM: 1.8 kg (3.96 lb)
VFD68DGM, VFD68DHM: 2.0 kg (4.41 lb)
VFD68DJN, VFD68DKN, VFD68DLN: 3.8 kg (8.38 lb)

Published in U.S.A. www.johnsoncontrols.com
VFD68 Variable Frequency Drives Product Bulletin 9
Building Efficiency
507 E. Michigan Street, Milwaukee, WI 53202
® Johnson Controls and PENN are registered trademarks of Johnson Controls, Inc. in the
United States of America and/or other countries. All other trademarks used herein are the property
of their respective owners. © Copyright 2017 by Johnson Controls. All rights reserved.
United States Emissions Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause
harmful interference, in which case users will be required to correct the interference at their own expense.
Canadian Emissions Compliance
This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
