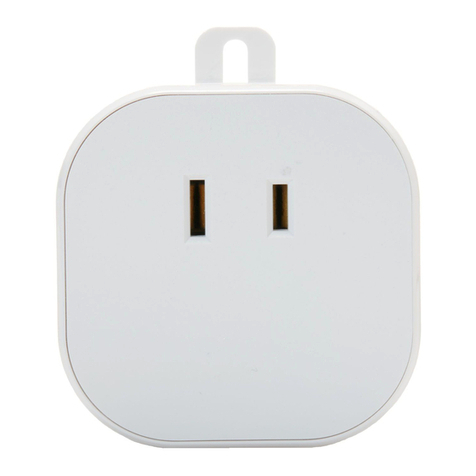

IQ DIMMER QUICK INSTALL GUIDE
SPECIFICATIONS
The IQ Dimmer can be used to turn any outlet into a smart outlet to turn lamps On,
Off, or control dimming of any lamps with dimmable light bulbs. Each Z-Wave device
also serves as a repeater in the Z-Wave network, extending and improving the mesh
network in the installed location.
The IQ Dimmer is a Z-Wave Plus® certified device and includes S2 security and
SmartStart. You can now add this device securely and with ease using QR code on the
product.
Use Locations:
•Kitchen
•Living Room
•Basement
•Bedrooms
•Garage
FEATURES & OVERVIEW
This is a quick guide for experienced installers only. Refer to http://dealers.qolsys.com (login required)
WARNING:!Do not install to control a motor-operated
Appliance, a non-dimmable fluorescent lighting fixture, or a
transformer-supplied appliance.!The lighting devices connected
to this Z-Wave module must not exceed 2.5A, 300W
incandescent, 65W dimmable CFL/LED, 120VAC 60Hz
• Works with incandescent and most dimmable florescent
(CFL), or LED lighting
• 700 Series Z-Wave module
• LED to indicate ON/OFF status
• Remotely or manually turns ON or OFF lights
• Controls light fixtures up to 300W Incandescent and 65W
Dimmable LED/CFL
• Z-Wave Plus Certified with S2 security and SmartStart (QR
code on bottom of device)
• Grounded 3-pin AC power receptacle to enhance safety
• Safety tab to secure unit to AC outlet
• Compact design - does not block the 2nd AC outlet
• Supports Network Wide Inclusion (through a repeater)
•Functions as a Z-Wave signal repeater
•Indoor Use Only
•Operating ambient temperature 0°C - 40°C
•Class II
•Purpose of control: Operating Control;
•Construction of control: Portable Direct Plug In Type;
•Type 1 Action;
•Pollution Degree: 2
•Impulse Voltage: 1500 V
•Not Suitable for Appliances which only allowed to be
plugged into wall outlet or a single outlet circuit, such as
room heaters and window air conditioners.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est
soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit
accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.

ADD
STEP
2
DETERMINE
INSTALLATION
LOCATION
PREPARE THE
PANEL TO ENROLL
THE IQ DIMMER
STEP
3
PAIRING
WITH THE
IQ PANEL
✓
Test device to ensure
proper function
Document#: IQSD-QG-02-21
Revision#: 02/19/21
Issue Date: FEB 2021
Qolsys Product #: QZ2141-840
Press the button on
the top of the IQ
Dimmer once to enroll
with the IQ Panel.
STEP
1
Plug in the IQ Dimmer
at desired location
Customize name
Complete pairing process
by touching Add
Select “Add device”
from Z-Wave menu
Qolsys Inc. proprietary. Reproduction without permission is not permitted.
FCC ID: 2AMY9PD700
INCLUDE
Press the
“Include” button
ADD
19
Dimmer
Kitchen Dimmer
Id
Type
Name
IC: 22968-PD700
GOT QUESTIONS?
CONTACT TECH SUPPORT
[e-mail]
Responsible Party – US Contact
Information; Qolsys, Inc.
1900 The Alameda Suite 420
San Jose, CA 95126, United States
Supplier’s Declaration of Conformity; 47 CFR
2.1077 Compliance Information
Model: PD700
