Johnson Controls SUNLINE 2000 BQ 060 User manual

INSTALLATION
MANUAL
CAUTION: READ ALL SAFETY GUIDES BEFORE YOU
BEGIN TO INSTALL YOUR UNIT.
SAVE THIS MANUAL
ISO 9001
Certified Quality
Management System
SUNLINE 2000™
SINGLE PACKAGE HEAT PUMP
BQ 036, 048 & 060
EXPORT ONLY
364985-XIM-B-0508
CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY CONSIDERATIONS. . . . . . . . . . . . . . . . . 4
INSPECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
REFERENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RENEWAL PARTS . . . . . . . . . . . . . . . . . . . . . . . . . 4
APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PRODUCT NOMENCLATURE . . . . . . . . . . . . . . . . 5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
START-UP (COOLING) . . . . . . . . . . . . . . . . . . . . 35
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . 35
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . 38
See the following page for a complete Table of Contents.
NOTES, CAUTIONS AND WARNINGS
The installer should pay particular attention to the words:
NOTE, CAUTION, and WARNING. Notes are intended to
clarify or make the installation easier. Cautions are given
to prevent equipment damage. Warnings are given to
alert installer that personal injury and/or equipment dam-
age may result if installation procedure is not handled
properly.

364985-XIM-B-0508
2Johnson Controls Unitary Products
TABLE OF CONTENTS
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . 4
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
REFERENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RENEWAL PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . 4
APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PRODUCT NOMENCLATURE . . . . . . . . . . . . . . . . . 5
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLATION SAFETY INFORMATION: . . . . . . . .6
LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
RIGGING AND HANDLING . . . . . . . . . . . . . . . . . . . .7
CLEARANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
DUCTWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CONDENSATE DRAIN . . . . . . . . . . . . . . . . . . . . . . . .7
COMPRESSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SERVICE ACCESS . . . . . . . . . . . . . . . . . . . . . . . . . .8
THERMOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
POWER AND CONTROL WIRING . . . . . . . . . . . . . .10
OPTIONS/ACCESSORIES . . . . . . . . . . . . . . . . . . . . 10
ELECTRIC HEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
ECONOMIZER/MOTORIZED DAMPER AND
RAIN HOOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
POWER EXHAUST/BAROMETRIC RELIEF
DAMPER AND RAIN HOOD . . . . . . . . . . . . . . . . . . .11
ECONOMIZER AND POWER EXHAUST DAMPER
SET POINT ADJUSTMENTS AND
INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MINIMUM POSITION ADJUSTMENT . . . . . . . . . . . .12
ENTHALPY SET POINT ADJUSTMENT . . . . . . . . . .12
POWER EXHAUST DAMPER SETPOINT (WITH
OR WITHOUT POWER EXHAUST) . . . . . . . . . . . . .12
INDOOR AIR QUALITY . . . . . . . . . . . . . . . . . . . . . . .12
PHASING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
SUPPLY AIR BLOWERS . . . . . . . . . . . . . . . . . . . . . 30
CHECKING SUPPLY AIR CFM . . . . . . . . . . . . . . . .30
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
SEQUENCE OF OPERATIONS OVERVIEW . . . . . .31
COOLING SEQUENCE OF OPERATION . . . . . . . . 31
CONTINUOUS BLOWER . . . . . . . . . . . . . . . . . . . . . . 31
INTERMITTENT BLOWER . . . . . . . . . . . . . . . . . . . . 31
NO OUTDOOR AIR OPTIONS . . . . . . . . . . . . . . . . . 31
ECONOMIZER WITH SINGLE ENTHALPY
SENSOR - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
ECONOMIZER WITH DUAL ENTHALPY
SENSORS - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
ECONOMIZER (SINGLE OR DUAL) WITH POWER
EXHAUST - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
MOTORIZED OUTDOOR AIR DAMPERS - . . . . . . . 32
COOLING OPERATION ERRORS . . . . . . . . . . . . . 32
HIGH-PRESSURE LIMIT SWITCH . . . . . . . . . . . . . . 32
LOW-PRESSURE LIMIT SWITCH . . . . . . . . . . . . . . . 32
FREEZESTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
LOW AMBIENT COOLING . . . . . . . . . . . . . . . . . . . . . 33
SAFETY CONTROLS . . . . . . . . . . . . . . . . . . . . . . . 33
COMPRESSOR PROTECTION . . . . . . . . . . . . . . . 33
FLASH CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
HEATING SEQUENCE OF OPERATIONS . . . . . . . 33
WITH OR WITHOUT ELECTRIC HEAT . . . . . . . . . . . 33
DEFROST MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
FORCED DEFROST . . . . . . . . . . . . . . . . . . . . . . . . . 34
SAFETY CONTROLS . . . . . . . . . . . . . . . . . . . . . . . 34
HEAT ANTICIPATOR SETPOINTS . . . . . . . . . . . . . 34
START-UP (COOLING) . . . . . . . . . . . . . . . . . . . . . 35
PRESTART CHECK LIST . . . . . . . . . . . . . . . . . . . . 35
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . 35
POST START CHECK LIST . . . . . . . . . . . . . . . . . . 35
SHUT DOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 35
COOLING TROUBLESHOOTING GUIDE . . . . . . . . 35
UNIT FLASH CODES . . . . . . . . . . . . . . . . . . . . . . . 37
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
NORMAL MAINTENANCE . . . . . . . . . . . . . . . . . . . 38
FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MOTORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
OUTDOOR COIL . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

364985-XIM-B-0508
Johnson Controls Unitary Products 3
LIST OF FIGURES
Fig. # Pg. #

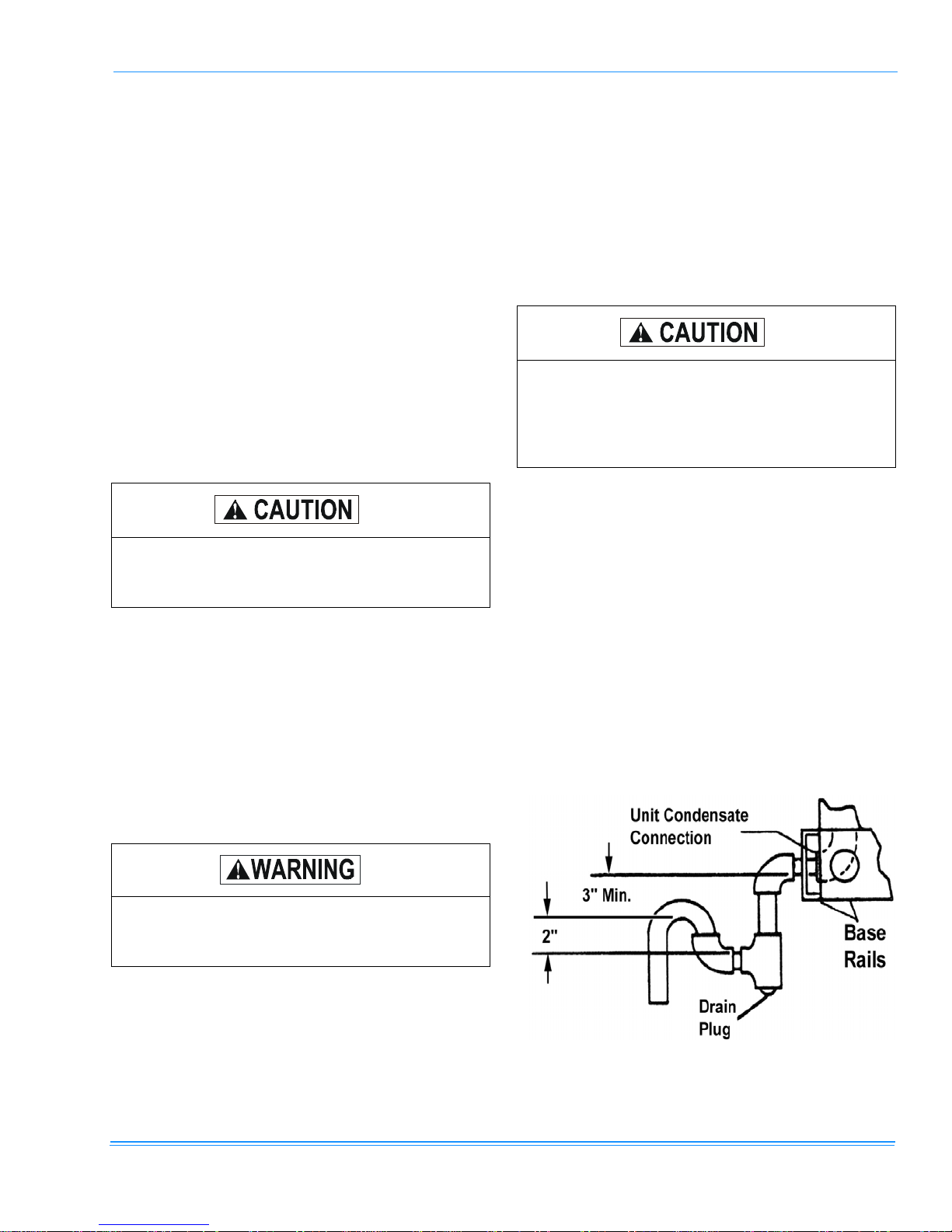

1 RECOMMENDED DRAIN PIPING . . . . . . . . . . . . . . . . 7

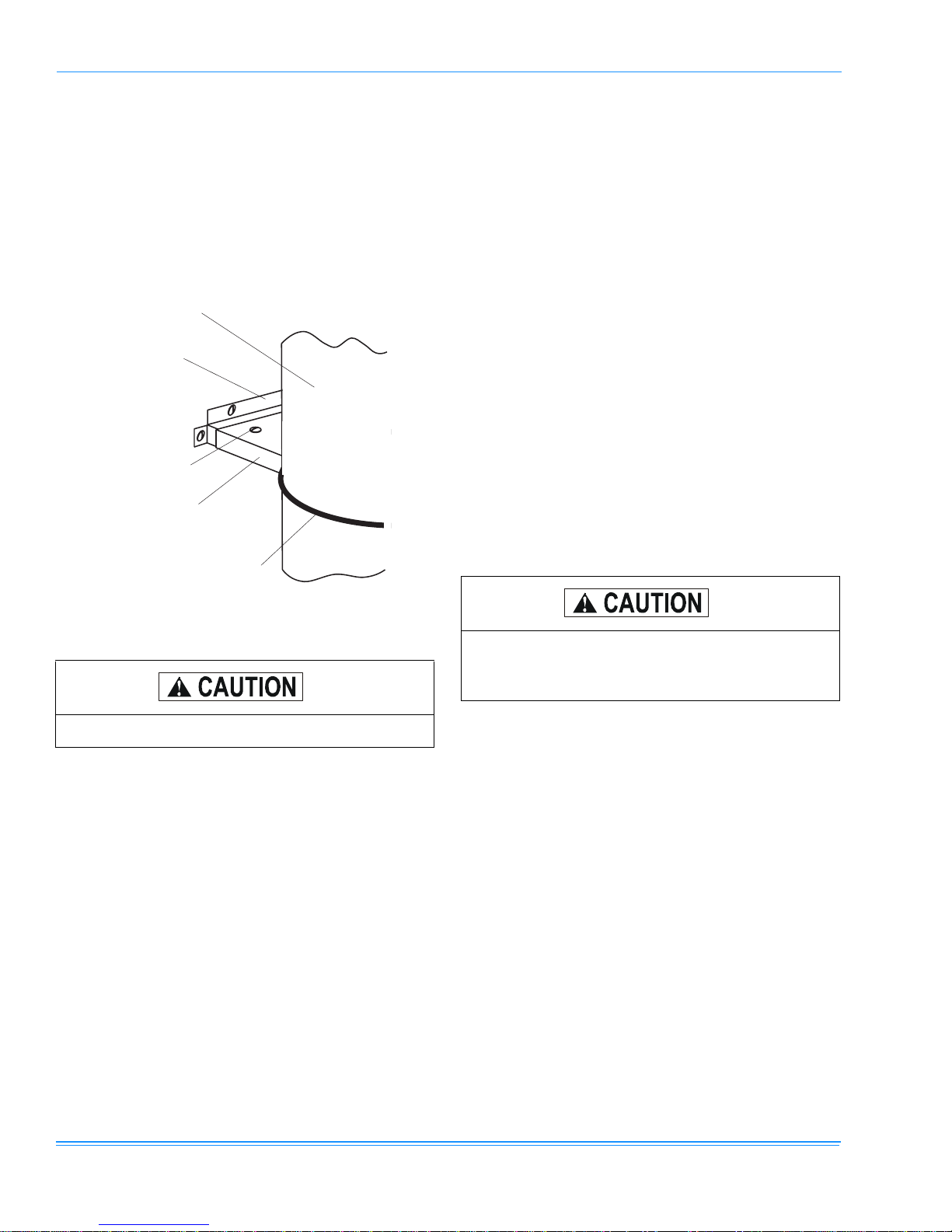

2 COMPRESSOR RESTRAINING BRACKET . . . . . . . . 8

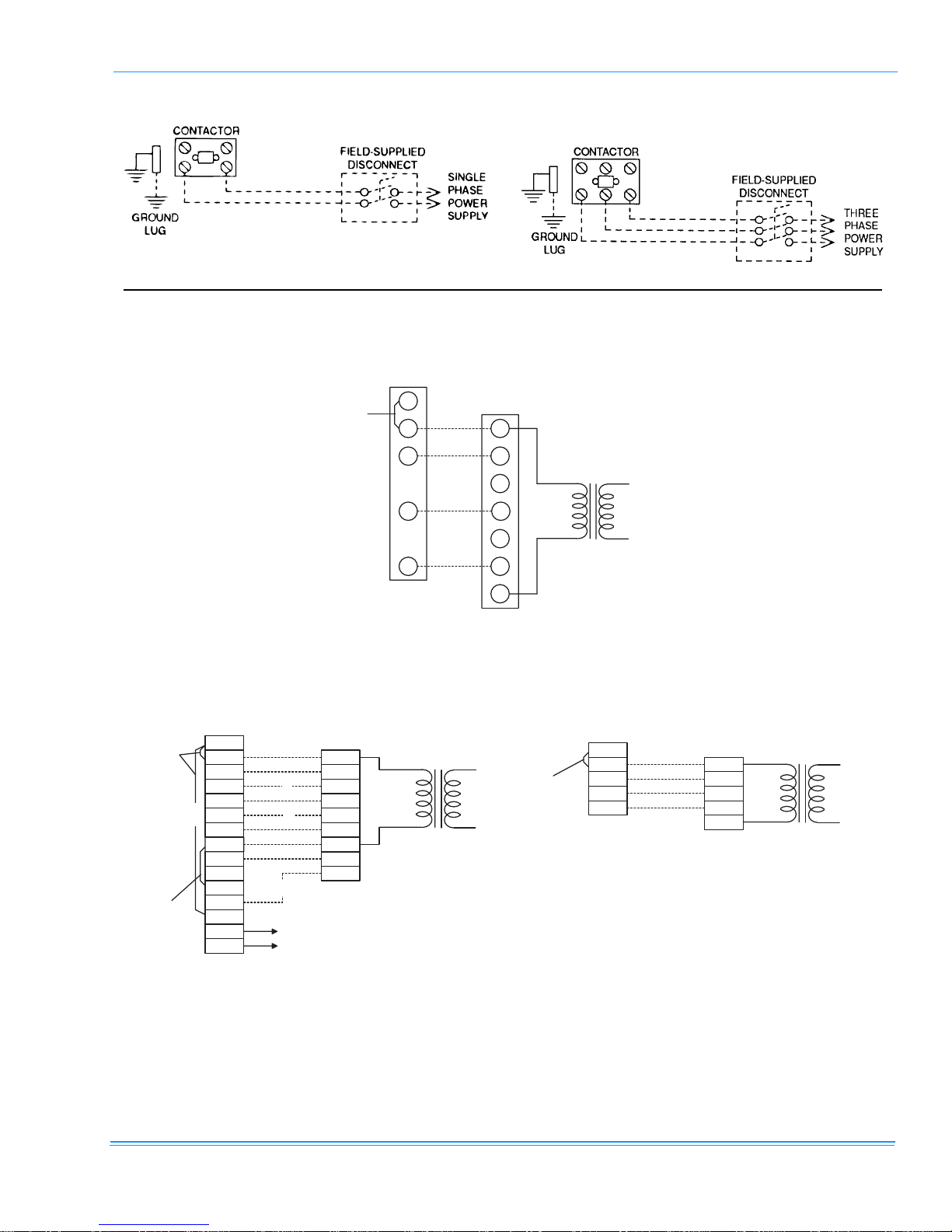

3 TYPICAL FIELD POWER & CONTROL WIRING . . . . 9
4 ENTHALPY SETPOINT ADJUSTMENT . . . . . . . . . . 13
5 HONEYWELL ECONOMIZER CONTROL W7212 . . . 13
6 FOUR AND SIX POINT LOADING . . . . . . . . . . . . . . . 14
7 UNIT DIMENSIONS (3 - 5 TON HEAT PUMP)
FRONT VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8 UNIT WITH ECONOMIZER RAINHOOD . . . . . . . . . . 23
9 UNIT WITH FIXED OUTDOOR AIR/MOTORIZED
DAMPER RAINHOOD . . . . . . . . . . . . . . . . . . . . . . . . 23
10 UNIT DIMENSIONS (REAR VIEW) . . . . . . . . . . . . . . 24
11 DISCONNECT/BLOWER ACCESS LOCATION . . . . 24
12 BELT ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . 30
13 PRESSURE DROP ACROSS COIL . . . . . . . . . . . . . . 31
LIST OF TABLES
Tbl. # Pg. #
1 UNIT APPLICATION DATA (BQ) . . . . . . . . . . . . . . . . . 6
2 CONTROL WIRE SIZES . . . . . . . . . . . . . . . . . . . . . . 10
3 ELECTRIC HEATER CFM LIMITATIONS . . . . . . . . . 11
4 CENTER OF GRAVITY (ALL MODELS) . . . . . . . . . . 14
5 BQ 4 POINT LOADS WEIGHT DISTRIBUTION . . . . 14
6 BQ 6 POINT LOADS WEIGHT DISTRIBUTION . . . . 14
7 PHYSICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8 OPERATING WEIGHTS (LBS.) . . . . . . . . . . . . . . . . . 15
9 ELECTRICAL DATA - BQ036-060 DIRECT DRIVE
W/O POWERED CONVENIENCE OUTLET . . . . . . . 16
10 ELECTRICAL DATA - BQ036-060 BELT DRIVE
W/O POWERED CONVENIENCE OUTLET . . . . . . . 17
11 ELECTRICAL DATA - BQ036-060 BELT DRIVE
HIGH STATIC W/O POWERED CONVENIENCE
OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tbl. # Pg. #
12 ELECTRICAL DATA - BQ036-060 DIRECT DRIVE
W/POWERED CONVENIENCE OUTLET . . . . . . . . . 19
13 ELECTRICAL DATA - BQ036-060 BELT DRIVE
W/POWERED CONVENIENCE OUTLET . . . . . . . . . 20
14 ELECTRICAL DATA - BQ036-060 BELT DRIVE
HIGH STATIC W/POWERED CONVENIENCE
OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
15 ELECTRIC HEAT CORRECTION FACTORS . . . . . . 22
16 VOLTAGE LIMITATIONS . . . . . . . . . . . . . . . . . . . . . 22
17 UTILITIES ENTRY . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
18 MINIMUM CLEARANCES . . . . . . . . . . . . . . . . . . . . . 24
19 SUPPLY AIR BLOWER PERFORMANCE (BQ036
BELT DRIVE) - SIDE DUCT APPLICATION . . . . . . . 25
20 SUPPLY AIR BLOWER PERFORMANCE (BQ036
BELT DRIVE) - BOTTOM DUCT APPLICATION . . . 25
21 SUPPLY AIR BLOWER PERFORMANCE (BQ048
BELT DRIVE) - SIDE DUCT APPLICATION . . . . . . . 25
22 SUPPLY AIR BLOWER PERFORMANCE (BQ048
BELT DRIVE) - BOTTOM DUCT APPLICATION . . . 25
23 SUPPLY AIR BLOWER PERFORMANCE (BQ060
BELT DRIVE) - SIDE DUCT APPLICATION . . . . . . . 26
24 SUPPLY AIR BLOWER PERFORMANCE (BQ060
BELT DRIVE) - BOTTOM DUCT APPLICATION . . . 26
25 SUPPLY AIR BLOWER PERFORMANCE (BQ036,
048 & 060 DIRECT DRIVE) - SIDE DUCT
APPLICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
26 SUPPLY AIR BLOWER PERFORMANCE (BQ036,
048 & 060 DIRECT DRIVE) - BOTTOM DUCT
APPLICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
27 BELT DRIVE RPM SELECTION . . . . . . . . . . . . . . . . 27
28 BELT DRIVE BLOWER MOTOR AND DRIVE
DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
29 STATIC RESISTANCES . . . . . . . . . . . . . . . . . . . . . . 27
30 ELECTRIC HEAT LIMIT CONTROL SETTING . . . . . 34
31 ELECTRIC HEAT ANTICIPATOR SETPOINTS . . . . 35
32 UNIT CONTROL BOARD FLASH CODES . . . . . . . . 37

364985-XIM-B-0508
4Johnson Controls Unitary Products
GENERAL
YORK Model BQ units are single package heat pumps
equipped with optional factory installed electric heat-
ers. These are designed for outdoor installation on a
rooftop or slab.
The units are completely assembled on rigid, perma-
nently attached base rails. All piping, refrigerant
charge, and electrical wiring is factory installed and
tested. The units require electric power, gas connec-
tion, duct connections, installation of combustion air
inlet hood, flue gas outlet hoods and fixed outdoor air
intake damper (units without economizer or motorized
damper option only) at the point of installation.
The supplemental electric heaters have nickel-chrome
elements and utilize single point power connection.
SAFETY CONSIDERATIONS
Due to system pressure, moving parts and electrical
components, installation and servicing of air condition-
ing equipment can be hazardous. Only qualified,
trained, service personnel should install, repair, main-
tain or service this equipment.
Observe all precautions in the literature, on labels and
tags accompanying the equipment whenever working
on air conditioning equipment. Be sure to follow all
other safety precautions that apply.
Wear safety glasses and work gloves, and follow all
safety codes. Use a quenching cloth and have a fire
extinguisher available for all brazing operations.
INSPECTION
As soon as a unit is received, it should be inspected for
possible damage during transit. If damage is evident,
the extent of the damage should be noted on the car-
rier's freight bill. A separate request for inspection by
the carrier's agent should be made in writing. Refer to
Form 50.15-NM for additional information.
REFERENCE
Additional information on the design, installation, oper-
ation and service of this equipment is available in the
following reference forms:
• 364985 -General Installation
• 035-19404-000 -Economizer Accessory
• 530.18-N1.13V -Man. Outdoor Air Damper
Accessory 0 - 35%
• 530.18-N1.14V -Man. Outdoor Air Damper Accy
0 - 100%
• 035-07364-000 -Motorized Outdoor Air Damper
Accy.
• 035-19422-000 –Electric Heat Accessory
• 035-19405-000 -Barometric Relief Damper
• 530.46-N1.1V -Dual Enthalpy Accessory
• 530.18-N1.10V -Power Exhaust Accessory
RENEWAL PARTS
Contact your local York®parts distribution center for
authorized replacement parts.
APPROVALS
Design listed by CSA as follows:
• For use as a heat pump only with or without
optional electric heat.
• For outdoor installation only.
• For installation on combustible material.
The installer should pay particular attention to the
words: NOTE, CAUTION and WARNING. Notes are
intended to clarify or make the installation easier. Cau-
tions are given to prevent equipment damage. Warn-
ings are given to alert installer that personal injury and/
or equipment damage may result if installation proce-
dure is not handled properly.
This product must be installed in strict compli-
ance with the enclosed installation instructions
and any applicable local, state, and national
codes including, but not limited to, building,
electrical, and mechanical codes.
Improper installation may create a condition
where the operation of the product could cause
personal injury or property damage.

364985-XIM-B-0508
Johnson Controls Unitary Products 5
PRODUCT NOMENCLATURE
B Q 048 N04 A 2 A AA 1 0 1 2 4 A
Product Category
B = HP, Single Pkg., R-22
A = Direct Drive
Airflow
B = Direct Drive/Single Input Economizer
D = Direct Drive/Motorized Damper
N = Belt Drive
P = Belt Drive/Single Input Economizer
R = Belt Drive/Motorized Damper
T = Belt Drive High Static
U = Belt Drive High Static/Single Input Economizer
V = Belt Drive High Static/Motorized Damper
1 = First Generation
Product Generation
2 = Second Generation
C00 = Cooling Only. Suitable for Field
Installed Electric Heat
Heat Type and Nominal Heat Capacity
E05 = 5 KW
E07 = 7 KW
E10 = 10 KW
E15 = 15 KW
E20 = 20 KW
E30 = 30 KW
Electric Heat Options
036 = 3.0 Ton
Nominal Cooling Capacity
048 = 4.0 Ton
060 = 5.0 Ton
Product Identifier
Q = 10.0 SEER HP
Voltage
2 = 208/230-3-60
4 = 460-3-60
5 = 575-3-60
Product Style
A = Style A
A = No Options Installed
Installation Options
B = Option 1
C = Option 2
D = Options 1 & 2
E = Option 3
F = Option 4
G = Options 1 & 3
H = Options 1 & 4
J = Options 1, 2 & 3
K = Options 1, 2, & 4
L = Options 1,3 & 4
M = Options 1, 2, 3, & 4
N = Options 2 & 3
P = Options 2 & 4
Q = Options 2, 3, & 4
R = Options 3 & 4
S = Option 5
T = Options 1 & 5
U = Options 1, 3, & 5
V = Options 1, 4, & 5
W = Options 1, 3, 4, & 5
X = Options 3 & 5
Y = Options 4 & 5
Z = Options 3, 4 & 5
1 = Disconnect
2 = Non-Pwr'd Conv. Outlet
3 = Smoke Detector S.A.
4 = Smoke Detector R.A.
5 = Pwr'd Conv. Outlet
Options
SS Drain Pan
Configuration Options (not required for all units)
These four digits will not be assigned until a quote is requested, or an order placed.
CPC Controller, DFS, APS
Johnson Controller, DFS, APS
Honeywell Controller, DFS, APS
Novar Controller, DFS, APS
Simplicity IntelliComfort Controller
Simplicity IntelliComfort Controller w/ModLinc
2" Pleated Filters
BAS Ready Economizer (2-10 V. D. C. Actuator without a Controller)
Any Combination of Additional Options that Don’t Have an Option Code Pre-assigned
AA = None
Standard Cabinet
AB = Phase Monitor
AC = Coil Guard
AD = Dirty Filter Switch
AE = Phase Monitor & Coil Guard
AF = Phase Monitor & Dirty Filter Switch
AG = Coil Guard & Dirty Filter Switch
AH = Phase Monitor, Coil Guard & Dirty Filter Switch
AS = Bottom Drain Connection
RC = Coil Guard & American Flag
TA = Technicoat Condenser Coil
TJ = Technicoat Evaporator Coil
TS = Technicoat Evaporator and Condenser Coil
Additional Options
Hinged Filter Door & Toolless Access Cabinet
3-5 Ton Sunline Simplicity Model Number Nomenclature
BA = Hinged Filter Door & Toolless Access Panels
BB = Phase Monitor, Hinged Filter Door & Toolless
Access Panels
BC = Coil Guard, Hinged Filter Door & Toolless
Access Panels
BD = Dirty Filter Switch, Hinged Filter Door &
Toolless Access Panels
BE = Phase Monitor & Coil Guard, Hinged Filter
Door & Toolless Access Panels
BF = Phase Monitor & Dirty Filter Switch, Hinged
Filter Door & Toolless Access Panels
BG = Coil Guard & Dirty Filter Switch, Hinged Filter
Door & Toolless Access Panels
BH = Phase Monitor, Coil Guard & Dirty Filter Switch,
Hinged Filter Door & Toolless Access Panels
BA = Hinged Filter Door & Toolless Access Panels
BA = Hinged Filter Door & Toolless Access Panels
ZZ = If desired option combination is not listed above, ZZ will be assigned and configuration options will be
located in digits 15-18.

364985-XIM-B-0508
6Johnson Controls Unitary Products
INSTALLATION
INSTALLATION SAFETY INFORMATION:
Read these instructions before continuing this appli-
ance installation. This is an outdoor combination heat-
ing and cooling unit. The installer must assure that
these instructions are made available to the consumer
and with instructions to retain them for future reference.
1. Install this unit only in a location and position as
specified on page 6 of these instructions.
2. This equipment is not to be used for temporary
heating of buildings or structures under construc-
tion.
LIMITATIONS
These units must be installed in accordance with the
following national and local safety codes:
In U.S.A.:
• National Electrical Code ANSI/NFPA No. 70.
In Canada:
• Current Canadian Electrical Code C22.1.
• Local plumbing and waste water codes.
• Other applicable local codes.
Refer to the Unit Application Data Table 1 and the
Electrical Data table for the unit.
If components are to be added to a unit to meet local
codes, they are to be installed at the dealer's and/or
the customer's expense.
Size of unit for proposed installation should be based
on heat loss/heat gain calculation made according to
the methods of the Air Conditioning Contractors of
America (ACCA).
This unit is not to be used for temporary heating of
buildings or structures under construction.
LOCATION
Use the following guidelines to select a suitable loca-
tion for these units.
1. Unit is designed for outdoor installation only.
2. Condenser coils must have an unlimited supply of
air.
3. Where a choice of location is possible, position the
unit on either north or east side of building.
4. For ground level installation, use a level concrete
slab with a minimum thickness of 4 inches. The
length and width should be at least 6 inches
greater than the unit base rails. Do not tie slab to
the building foundation.
5. Roof structures must be able to support the weight
of the unit and its options and/or accessories. Unit
must be installed on a solid level roof curb or
appropriate angle iron frame.
6. Maintain level tolerance to 1/2 inch maximum
across the entire length or width of the unit.
If a unit is to be installed on a roof curb or special frame
other than a YORK roof curb, gasketing must be
applied to all surfaces that come in contact with the unit
underside.
TABLE 1: UNIT APPLICATION DATA (BQ)
UNIT MODEL NUMBER 036 048 060
Voltage Variation,
Min. / Max.1
208/230 187 / 253
460 414 / 506
575 518 / 630
Supply Air CFM, Nom. 1200 1600 2000
Wet Bulb Temperature (ºF) of Air on
Evaporator Coil, Min. / Max 57 / 72
Dry Bulb Temperature (ºF) of Air on
Condenser Coil, Min. / Max. 0 / 120
1. Utilization range “A” in accordance with ARI Standard 110.

364985-XIM-B-0508
Johnson Controls Unitary Products 7
RIGGING AND HANDLING
Exercise care when moving the unit. Do not remove
any packaging until the unit is near the place of installa-
tion. Rig the unit by attaching chain or cable slings to
the lifting holes provided in the base rails. Spreader
bars, whose length exceeds the largest dimension
across the unit, MUST BE USED.
Units may also be moved or lifted with a forklift. Slotted
openings in the base rails are provided for this pur-
pose. Fork lengths must be a minimum of 42 inches.
Remove the nesting brackets from the four corners on
the top of the unit. All screws that are removed when
removing the brackets must be replaced on the unit.
Refer to Table 8 for unit weights and to the Figure 6 for
approximate center of gravity.
CLEARANCES
All units require certain clearances for proper operation
and service. Installer must make provisions for ade-
quate ventilation air. Refer to Dimensions and Clear-
ances shown in Figures 7 through 10 and Table 18 for
the clearances required for combustible construction,
servicing, and proper unit operation.
DUCTWORK
Ductwork should be designed and sized according to
the methods in Manual Q of the Air Conditioning Con-
tractors of America (ACCA).
A closed return duct system shall be used. This shall
not preclude use of economizers or outdoor fresh air
intake. The supply and return air duct connections at
the unit should be made with flexible joints to minimize
noise.
The supply and return air duct systems should be
designed for the CFM and static requirements of the
job. They should NOT be sized to match the dimen-
sions of the duct connections on the unit.
Refer to Figures 7 and 10 for information concerning
side and bottom supply and return air duct openings.
CONDENSATE DRAIN
Plumbing must conform to local codes. Use a sealing
compound on male pipe threads. Install a condensate
drain line from the 3/4" NPT female connection on the
unit to an open drain.
NOTE: The condensate drain operates in a negative
pressure in the cabinet. The condensate drain
line MUST be trapped to provide proper drain-
age. See Figure 1.
Before lifting a unit, make sure that all panels
are in place and that its weight is distributed
equally on all cables so it will lift evenly.
Do not permit overhanging structures or shrubs
to obstruct outdoor air discharge outlet, com-
bustion air inlet or vent outlets.
When fastening ductwork to side duct flanges
on unit, insert screws through duct flanges
only. DO NOT insert screws through casing.
Outdoor ductwork must be insulated and
waterproofed.
FIGURE 1 - RECOMMENDED DRAIN PIPING

364985-XIM-B-0508
8Johnson Controls Unitary Products
COMPRESSORS
Units are shipped with compressor mountings factory-
adjusted and ready for operation.
Units with scroll compressors have a shipping bracket
which must be removed after the unit is set in place.
See Figure 2.
FILTERS
One-inch or two-inch filters can be supplied with each
unit. Filters must always be installed ahead of the
evaporator coil and must be kept clean or replaced with
same size and type. Dirty filters will reduce the capacity
of the unit and will result in frosted coils or safety shut-
down. Minimum filter area and required sizes are
shown in Physical Data Table 7.
SERVICE ACCESS
The following removable panels provide access to all
serviceable components:
• Compressor compartment
• Electric Heat compartment
• Blower compartment
• Main control box
• Filter compartment
Refer to the Dimensions and Clearances shown in Fig-
ures 7 and 11 for location of these access panels.
FIGURE 2 - COMPRESSOR RESTRAINING
BRACKET
Do not loosen compressor mounting bolts.
WIRE TIE (CUT AND REMOVE)
MOUNTING
BRACKET TOP
(REMOVE)
MOUNTING
BRACKET BASE
REMOVE THESE
SCREWS (2)
COMPRESSOR
Make sure that all screws and panel latches
are replaced and properly positioned on the
unit to maintain an airtight seal.

364985-XIM-B-0508
Johnson Controls Unitary Products 9
FIGURE 3 - TYPICAL FIELD POWER & CONTROL WIRING
REFER TO THE ELECTRICAL DATA
TABLES TO SIZE THE DISCONNECT
SWITCH, OVERCURRENT PROTEC-
TION AND WIRING.
RC
RH
Y1
Y2
W1
W2
G
LED 1
LED 2
COM
A1
A2
T
T
B
R
Y1
Y2
G
C
X
OCC
W2
W1
THERMOSTAT1
TERMINALS UNIT TERMINAL
STRIP TB1 24 VOLT
TRANSFORMER
TO REMOTE SENSOR
2TH040702224 IF USED
NOT
USED
ADD
JUMPER
ADD
JUMPER
4
4
3
2
1
ELECTRONIC PROGRAMMABLE THERMOSTAT 2ET04700224 (INCLUDES SUBBASE).
2
SECOND STAGE COOLING IS NOT REQUIRED ON UNITS LESS ECONOMIZER.
3
SECOND STAGE HEATING IS ONLY REQUIRED ON UNITS WITH A TWO STAGE
ELECTRIC HEATER OR 2 STAGE GAS HEAT.
4
REMOVE JUMPER J2 FROM TERMINALS 4 AND 9 ON JUMPER PLUG CONNECTOR
P6 ON UNITS WITH ECONOMIZER. TERMINALS A1 AND A2 PROVIDE A RELAY
OUT-PUT TO CLOSE THE OUTDOOR ECONOMIZER DAMPERS WHEN THE
THERMOSTAT SWITCHES TO THE SET-BACK POSITION.
COOLING / HEATING (ELECTRONIC THERMOSTAT)
MULTI STAGE
RH
RC
Y
W
G
R
Y1
W1
C
G
ADD
JUMPER
THERMOSTAT1
TERMINALS UNIT TERMINAL
STRIP TB1
24 VOLT
TRANSFORMER
1ELECTRONIC PROGRAMMABLE THERMOSTAT 2ET07701024 (INCLUDES SUBBASE).
TO CONTROL THE ECONOMIZER ON SECOND STAGE COOLING, USE THERMOSTAT
2TH04700224.
COOLING / HEATING (ELECTRONIC THERMOSTAT)
SINGLE STAGE
RC
Y
R
Y1
Y2
W1
W
W2
G
C
G
RH
THERMOSTAT
TERMINALS
UNIT TERMINAL
STRIP TB1
24 VOLT
TRANSFORMER
ADD
JUMPER
1
24 VOLT THERMOSTAT 2ET07701024. TO CONTROL THE ECONOMIZER ON THE SECOND
STAGE COOLING OR TO HAVE AN ELECTRIC HEAT ACCESSORY WITH TWO STAGES OF
HEAT, USE THERMOSTAT 2TH0471024.
1
COOLING / HEATING (24 VOLT THERMOSTAT)
TYPICAL POWER WIRING
TYPICAL CONTROL WIRING

364985-XIM-B-0508
10 Johnson Controls Unitary Products
THERMOSTAT
The room thermostat should be located on an inside
wall approximately 56 inches above the floor where it
will not be subject to drafts, sun exposure or heat from
electrical fixtures or appliances. Follow the manufac-
turer's instructions enclosed with the thermostat for
general installation procedure. A minimum of seven
color-coded insulated wires (#18 AWG) should be used
to connect the thermostat to the unit.
POWER AND CONTROL WIRING
Field wiring to the unit must conform to provisions of
the National Electrical Code, ANSI / NFPA No. 70 (in
U.S.A.), current Canadian Electrical Code C22.1 (in
Canada) and/or local ordinances. The unit must be
electrically grounded in accordance with NEC and CEC
(as specified above) and/or local codes. Voltage toler-
ances, which must be maintained at the compressor
terminals, during starting and running conditions, are
indicated on the unit Rating Plate and the Unit Applica-
tion Data table.
The internal wiring harness furnished with this unit is
an integral part of a CSA design certified unit. Field
alteration to comply with electrical codes should not be
required.
A fused disconnect switch should be field provided for
the unit. The switch must be separate from all other cir-
cuits. Wire entry at knockout openings require conduit
fittings to comply with NEC (in U.S.A.), CEC (in Can-
ada) and/or local codes. If any of the wire supplied with
the unit must be replaced, replacement wire must be of
the type shown on the wiring diagram and the same
minimum gauge as the replaced wire.
Use copper conductors properly sized to carry the load.
Each unit must be wired with a separate branch circuit
fed directly from the meter panel and properly fused.
Refer to the Typical Field Wiring Figure 3 and to the
appropriate unit wiring diagram for control circuit and
power wiring information.
OPTIONS/ACCESSORIES
ELECTRIC HEAT
The factory- or field-installed heaters are wired for sin-
gle point power supply. Power supply need only be
brought into the single point terminal block and thermo-
stat wiring to the low voltage terminal strip located in
the upper portion of the unit control box.
These CSA approved heaters are located within the
central compartment of the unit with the heater ele-
ments extending into the supply air chamber. Refer to
Figure 7 for access panel location.
Fuses are supplied, where required, by the factory.
Some KW sizes require fuses and others do not. Refer
to Table 3 for minimum CFM limitations and to Tables
9 through 14 for electrical data.
When connecting electrical power and control
wiring to the unit, waterproof type connectors
MUST BE USED so that water or moisture
cannot be drawn into the unit during normal
operation. The above waterproofing conditions
will also apply when installing a field-supplied
disconnect switch.
TABLE 2: CONTROL WIRE SIZES
Wire Size Maximum Length1
1. From the unit to the thermostat and back to the unit.
18 AWG 150 Feet

364985-XIM-B-0508
Johnson Controls Unitary Products 11
ECONOMIZER/MOTORIZED DAMPER AND RAIN HOOD
The instruction for the optional economizer/motorized
damper and rain hood can be found in form 035-
07364-000. Use these instructions when field assem-
bling an economizer rain hood onto a unit. The outdoor
and return air dampers, the damper actuator, the
damper linkage, the outdoor and return air divider baf-
fles, and all the control sensors are factory mounted as
part of the “Factory installed” economizer/motorized
damper options.
POWER EXHAUST/BAROMETRIC RELIEF DAMPER AND
RAIN HOOD
The instructions for the power exhaust/barometric relief
damper and rain hood can be found in form 530.18-
N1.10V.
All of the components, including the dampers, hard-
ware, and mounting instructions are shipped in a single
package external from the unit and must be field
assembled and installed.
Power exhaust is only available as a field installed
accessory.
ECONOMIZER AND POWER EXHAUST DAMPER
SET POINT ADJUSTMENTS AND INFORMATION
Remove the economizer access panel from the unit.
Loosen but do not remove the two panel latches.
Locate the economizer control module, where the fol-
lowing adjustments will be made.
Check that the damper blades move smoothly without
binding; carefully turn the Minimum Position Adjusting
screw (found on the damper control module) fully
clockwise and then set the thermostat indoor fan switch
to the on position and then off, or energize and de-
energize terminals “R” to “G”.
TABLE 3: ELECTRIC HEATER CFM LIMITATIONS
UNIT MODEL SIZE
NOMINAL TONS VOLTAGE MINIMUM SUPPLY AIR CFM
HEATER SIZE NOMINAL KW
5 7 10 15 20 30
036
(3)
208/230-1-60 900 900 900 900 900 -
208/230-3-60 900 900 900 900 900 -
460-3-60 - 900 900 900 900 -
600-3-60 - - 900 900 900 -
048
(4)
208/230-1-60 1200 1200 1200 1200 1200 -
208/230-3-60 1200 1200 1200 1200 1200 -
460-3-60 - 1200 1200 1200 1200 -
600-3-60 - - 1200 1200 1200 -
060
(5)
208/230-1-60 1500 1500 1500 1500 1500 1500
208/230-3-60 1500 1500 1500 1500 1500 1500
460-3-60 - 1500 1500 1500 1500 1500
600-3-60 - - 1500 1500 1500 1500
Extreme care must be exercised in turning all
setpoint, maximum, and minimum damper
positioning adjustment screws to prevent twist-
ing them off.

364985-XIM-B-0508
12 Johnson Controls Unitary Products
MINIMUM POSITION ADJUSTMENT
With thermostat set to indoor fan on position, or termi-
nals “R” to “G” energized, turn the Minimum Position
Adjusting screw (located on the damper control mod-
ule) counterclockwise until the desired minimum
damper position has been attained.
ENTHALPY SET POINT ADJUSTMENT
The enthalpy setpoint may now be set by selecting the
desired setpoint shown in the Enthalpy Setpoint Adjust-
ment Figure 4. Adjust as follows:
• For a single enthalpy operation carefully turn the
setpoint adjusting screw (found on the damper
control module) to the “A”, “B”, “C” or “D” setting
corresponding to the lettered curve of the Enthalpy
Setpoint Adjustment Figure 4.
• For a dual enthalpy operation, carefully turn the
setpoint adjusting screw fully clockwise past the
“D” setting.
POWER EXHAUST DAMPER SETPOINT (WITH OR WITH-
OUT POWER EXHAUST)
• With no power exhaust option, adjust the Exhaust
Air Adjustment Screw fully clockwise.
• With power exhaust option, each building pressur-
ization requirement will be different. The point at
which the power exhaust comes on is determined
by the economizer damper position (Percent
Open). The Exhaust Air Adjustment Screw should
be set at the Percent Open of the economizer
damper at which the power exhaust is needed. It
can be set from 0 to 100% damper open.
INDOOR AIR QUALITY
Indoor air quality (indoor sensor input): Terminal AQ
accepts a +2 to +10 Vdc signal with respect to the
(AQ1) terminal. When the signal is below it's setpoint,
the actuator is allowed to modulate normally in accor-
dance with the enthalpy and mixed air sensor inputs.
When the AQ signal exceeds it's setpoint setting and
there is no call for free cooling, the actuator is propor-
tionately modulated from the 2 to 10 Vdc signal, with 2
Vdc corresponding to full closed and 10 Vdc corre-
sponding to full open. When there is no call for free
cooling, the damper position is limited by the IAQ Max
damper position setting. When the signal exceeds it's
setpoint (Demand Control Ventilation Setpoint) setting
and there is a call for free cooling, the actuator modu-
lates from the minimum position to the full open posi-
tion based on the highest call from either the mixed air
sensor input or the AQ voltage input.
• Optional CO2Space Sensor Kit Part #
2AQ04700324
• Optional CO2Unit Sensor Kit Part # 2AQ04700424
Replace the economizer access panel.

364985-XIM-B-0508
Johnson Controls Unitary Products 13
FIGURE 4 - ENTHALPY SETPOINT ADJUSTMENT
40
(4)
70
(21)
50
(10)
55
(13)
60
(16)
65
(18)
35
(2)
45
(7)
75
(24)
80
(27)
35
(2)
40
(4)
45
(7)
50
(10)
55
(13)
60
(16)
65
(18)
70
(21)
75
(24)
80
(27)
85
(29)
85
(29)
90
(32)
90
(32)
105
(41)
110
(43)
100
(38)
95
(35)
95
(35)
100
(38)
105
(41)
110
(43)
APPROXIMATE DRY BULB TEMPERATURE - 0F (0C)
D
D
C
C
B
B
A
A
CONTROL
CURVE
CONTROL POINT
APPROX.
0
F (
0
C)
AT 50% RH
A
D
C
B
63 (17)
73 (23)
70 (21)
67 (19)
FIGURE 5 - HONEYWELL ECONOMIZER CONTROL W7212
N1 N
P1 P
EXH
Set
EXH
Min
Pos
IAQ
Max
IAQ
IAQ
Min
Free
Cool
T
T1
AQ1 AQ
SO+ SO
SR+ SR
A
BC
D
TR TR1
24
Vac
HOT
24
Vac
COM
EF EF1
2
34
5
1
+
Exhaust Air
Adjustment
Screw
Exhaust Air LED
Damper Min.
Position
Screw
Indoor Air Quality
Max. Adjustment
Screw
Indoor Air Quality
LED
Indoor Air Quality
Min. Adjustment
Screw
Free Cooling LED
Economizer Enthalpy
Set Point Adjustment
Screw

364985-XIM-B-0508
14 Johnson Controls Unitary Products
FIGURE 6 - FOUR AND SIX POINT LOADING
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
447/8
821/4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 4: CENTER OF GRAVITY (ALL MODELS)
DIMENSION 3 - 5 TON
X40-¾”
Y19-¾”
TABLE 5: BQ 4 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTALABCD
BQ036 628 139 137 174 177
BQ048 668 148 146 185 189
BQ060 693 154 151 192 196
TABLE 6: BQ 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL A B C D E F
BQ036 628939291116117119
BQ048 668 99 98 97 123 125 126
BQ060 693 103 102 100 128 129 131

364985-XIM-B-0508
Johnson Controls Unitary Products 15
TABLE 7: PHYSICAL DATA
MODELS BQ
036 048 060
EVAPORATOR
BLOWER
Centrifugal Blower (Dia. x Wd. in.) 12 X 10 12 X 10 12 X 10
Fan Motor HP (Direct Drive) 1/2 3/4 1
Fan Motor HP (Belt Drive) 1 1/2 1 1/2 1 1/2
Fan Motor HP (Belt Drive High Static) 1 1/2 1 1/2 2
EVAPORATOR
COIL
Rows Deep 4 3 3
Fins Per Inch 16 15 15
Face Area (Sq. Ft.) 4.3 5.1 5.1
CONDENSER
FANS
Propeller Dia. (in.) 22 22 24
Fan Motor Hp 1/3 1/2 1/2
Nom. CFM 4300 4200 4500
CONDENSER
COILS
Rows Deep 1 1 1
Fins Per Inch 20 20 20
Face Area (Sq. Ft.) 17.1 17.1 17.1
COMPRESSOR
(Qty. Per Unit) Reciprocating Type 1 1 1
AIR
FILTERS
Quantity Per Unit (15” X 20” X 1” or 2“) 2 2 2
Quantity Per Unit (14” X 25” X 1” or 2“) 1 1 1
Total Face Area (sq. ft.) 6.6 6.6 6.6
CHARGE Refrigerant 22
(lbs./oz.) 7/12 9/2 8/4
TABLE 8: OPERATING WEIGHTS (LBS.)
MODEL SIZE 3 TON 4 TON 5 TON
BASIC UNIT BQ 628 668 693
OPTIONS
Economizer 50
Motorized Damper 26
Electric Heater 5 - 7 kW 18 10 - 15 kW 23
20 - 30 kW 28
ACCY. Roof Curb 92
Barometric Relief / Fixed Air Damper 10
Belt-Drive Blower 5

364985-XIM-B-0508
16 Johnson Controls Unitary Products
TABLE 9: ELECTRICAL DATA - BQ036-060 DIRECT DRIVE W/O POWERED CONVENIENCE OUTLET
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 11.9 85.0 16.7 1.7 4.4 0.0
None - - - 21.0 30
E05 4.0 1 11.1 34.9 40
E07 5.6 1 15.5 40.4 45
E10 8.0 1 22.2 48.7 50
E15 11.9 2 33.0 62.3 70
E20 15.9 2 44.1 76.1 80
230-3-60 11.9 85.0 16.7 1.7 4.4 0.0
None - - - 21.0 30
E05 5.3 1 13.3 36.9 45
E07 7.5 1 18.8 43.5 50
E10 10.6 1 26.6 52.8 60
E15 15.9 2 39.9 68.8 70
E20 21.2 2 53.2 84.7 90
460-3-60 5.9 42.0 8.2 1.0 2.2 0.0
None - - - 10.6 15
E07 6.8 1 8.5 20.8 25
E10 10.1 1 12.7 25.8 30
E15 13.6 2 17.1 31.0 35
E20 19.5 2 24.5 39.9 40
575-3-60 4.8 34.0 6.7 1.0 2.2 0.0
None - - - 8.6 15
E10 10.6 1 10.6 21.3 25
E15 15.9 1 16.0 27.7 30
E20 21.2 2 21.3 34.1 35
048
(4.0)
208-3-60 14.7 130.0 23.0 2.3 5.0 0.0
None - - - 25.7 35
E05 4.0 1 11.1 39.6 50
E07 5.6 1 15.5 45.1 50
E10 8.0 1 22.2 53.4 60
E15 11.9 2 33.0 67.0 70
E20 15.9 2 44.1 80.8 90
230-3-60 14.7 130.0 23.0 2.3 5.0 0.0
None - - - 25.7 35
E05 5.3 1 13.3 41.6 50
E07 7.5 1 18.8 48.2 50
E10 10.6 1 26.6 57.5 60
E15 15.9 2 39.9 73.5 80
E20 21.2 2 53.2 89.4 90
460-3-60 7.7 64.0 12.0 1.3 2.2 0.0
None - - - 13.1 20
E07 6.8 1 8.5 23.3 25
E10 10.1 1 12.7 28.3 30
E15 13.6 2 17.1 33.6 35
E20 19.5 2 24.5 42.4 45
575-3-60 6.4 52.0 10.0 1.3 2.2 0.0
None - - - 10.8 15
E10 10.6 1 10.6 23.5 25
E15 15.9 1 16.0 29.9 30
E20 21.2 2 21.3 36.3 40
060
(5.0)
208-3-60 19.3 137.0 27.0 2.3 6.6 0.0
None - - - 33.0 45
E05 4.0 1 11.1 46.9 60
E07 5.6 1 15.5 52.5 60
E10 8.0 1 22.2 60.8 70
E15 11.9 2 33.0 74.3 80
E20 15.9 2 44.1 88.2 90
E30 22.2 2 61.6 110.1 125
230-3-60 19.3 137.0 27.0 2.3 6.6 0.0
None - - - 33.0 45
E05 5.3 1 13.3 49.0 60
E07 7.5 1 18.8 55.6 70
E10 10.6 1 26.6 64.9 70
E15 15.9 2 39.9 80.8 90
E20 21.2 2 53.2 96.8 100
E30 29.6 2 74.3 122.0 125
460-3-60 10.0 62.0 14.0 1.3 3.3 0.0
None - - - 17.1 25
E07 6.8 1 8.5 27.3 35
E10 10.1 1 12.7 32.3 35
E15 13.6 2 17.1 37.5 40
E20 19.5 2 24.5 46.4 50
E30 28.8 2 36.1 60.4 70
575-3-60 7.9 50.0 11.0 1.3 3.3 0.0
None - - - 13.5 20
E10 10.6 1 10.6 26.2 30
E15 15.9 1 16.0 32.6 35
E20 21.2 2 21.3 39.0 40
E30 30.4 2 30.5 50.1 60

364985-XIM-B-0508
Johnson Controls Unitary Products 17
TABLE 10: ELECTRICAL DATA - BQ036-060 BELT DRIVE W/O POWERED CONVENIENCE OUTLET
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 11.9 85.0 16.7 1.7 5.2 0.0
None - - - 21.8 30
E05 4.0 1 11.1 35.7 40
E07 5.6 1 15.5 41.2 45
E10 8.0 1 22.2 49.5 50
E15 11.9 2 33.0 63.1 70
E20 15.9 2 44.1 76.9 80
230-3-60 11.9 85.0 16.7 1.7 5.2 0.0
None - - - 21.8 30
E05 5.3 1 13.3 37.7 45
E07 7.5 1 18.8 44.3 50
E10 10.6 1 26.6 53.6 60
E15 15.9 2 39.9 69.6 70
E20 21.2 2 53.2 85.5 90
460-3-60 5.9 42.0 8.2 1.0 2.6 0.0
None - - - 11.0 15
E07 6.8 1 8.5 21.2 25
E10 10.1 1 12.7 26.2 30
E15 13.6 2 17.1 31.4 35
E20 19.5 2 24.5 40.3 45
575-3-60 4.8 34.0 6.7 1.0 2.0 0.0
None - - - 8.8 15
E10 10.6 1 10.6 21.5 25
E15 15.9 1 16.0 27.9 30
E20 21.2 2 21.3 34.3 35
048
(4.0)
208-3-60 14.7 130.0 23.0 2.3 5.2 0.0
None - - - 25.9 35
E05 4.0 1 11.1 39.8 50
E07 5.6 1 15.5 45.3 50
E10 8.0 1 22.2 53.6 60
E15 11.9 2 33.0 67.2 70
E20 15.9 2 44.1 81.0 90
230-3-60 14.7 130.0 23.0 2.3 5.2 0.0
None - - - 25.9 35
E05 5.3 1 13.3 41.8 50
E07 7.5 1 18.8 48.4 50
E10 10.6 1 26.6 57.7 60
E15 15.9 2 39.9 73.7 80
E20 21.2 2 53.2 89.6 90
460-3-60 7.7 64.0 12.0 1.3 2.6 0.0
None - - - 13.5 20
E07 6.8 1 8.5 23.7 25
E10 10.1 1 12.7 28.7 30
E15 13.6 2 17.1 34.0 35
E20 19.5 2 24.5 42.8 45
575-3-60 6.4 52.0 10.0 1.3 2.0 0.0
None - - - 11.0 15
E10 10.6 1 10.6 23.8 25
E15 15.9 1 16.0 30.2 35
E20 21.2 2 21.3 36.5 40
060
(5.0)
208-3-60 19.3 137.0 27.0 2.3 5.2 0.0
None - - - 31.6 40
E05 4.0 1 11.1 45.5 60
E07 5.6 1 15.5 51.1 60
E10 8.0 1 22.2 59.4 70
E15 11.9 2 33.0 72.9 80
E20 15.9 2 44.1 86.8 90
E30 22.2 2 61.6 108.7 110
230-3-60 19.3 137.0 27.0 2.3 5.2 0.0
None - - - 31.6 40
E05 5.3 1 13.3 47.6 60
E07 7.5 1 18.8 54.2 60
E10 10.6 1 26.6 63.5 70
E15 15.9 2 39.9 79.4 80
E20 21.2 2 53.2 95.4 100
E30 29.6 2 74.3 120.6 125
460-3-60 10.0 62.0 14.0 1.3 2.6 0.0
None - - - 16.4 25
E07 6.8 1 8.5 26.6 30
E10 10.1 1 12.7 31.6 35
E15 13.6 2 17.1 36.8 40
E20 19.5 2 24.5 45.7 50
E30 28.8 2 36.1 59.7 60
575-3-60 7.9 50.0 11.0 1.3 2.0 0.0
None - - - 12.9 20
E10 10.6 1 10.6 25.6 30
E15 15.9 1 16.0 32.0 35
E20 21.2 2 21.3 38.4 40
E30 30.4 2 30.5 49.4 50

364985-XIM-B-0508
18 Johnson Controls Unitary Products
TABLE 11: ELECTRICAL DATA - BQ036-060 BELT DRIVE HIGH STATIC W/O POWERED CONVENIENCE OUTLET
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 11.9 85.0 16.7 1.7 5.2 0.0
None - - - 21.8 30
E05 4.0 1 11.1 35.7 40
E07 5.6 1 15.5 41.2 45
E10 8.0 1 22.2 49.5 50
E15 11.9 2 33.0 63.1 70
E20 15.9 2 44.1 76.9 80
230-3-60 11.9 85.0 16.7 1.7 5.2 0.0
None - - - 21.8 30
E05 5.3 1 13.3 37.7 45
E07 7.5 1 18.8 44.3 50
E10 10.6 1 26.6 53.6 60
E15 15.9 2 39.9 69.6 70
E20 21.2 2 53.2 85.5 90
460-3-60 5.9 42.0 8.2 1.0 2.6 0.0
None - - - 11.0 15
E07 6.8 1 8.5 21.2 25
E10 10.1 1 12.7 26.2 30
E15 13.6 2 17.1 31.4 35
E20 19.5 2 24.5 40.3 45
575-3-60 4.8 34.0 6.7 1.0 2.0 0.0
None - - - 8.8 15
E10 10.6 1 10.6 21.5 25
E15 15.9 1 16.0 27.9 30
E20 21.2 2 21.3 34.3 35
048
(4.0)
208-3-60 14.7 130.0 23.0 2.3 5.2 0.0
None - - - 25.9 35
E05 4.0 1 11.1 39.8 50
E07 5.6 1 15.5 45.3 50
E10 8.0 1 22.2 53.6 60
E15 11.9 2 33.0 67.2 70
E20 15.9 2 44.1 81.0 90
230-3-60 14.7 130.0 23.0 2.3 5.2 0.0
None - - - 25.9 35
E05 5.3 1 13.3 41.8 50
E07 7.5 1 18.8 48.4 50
E10 10.6 1 26.6 57.7 60
E15 15.9 2 39.9 73.7 80
E20 21.2 2 53.2 89.6 90
460-3-60 7.7 64.0 12.0 1.3 2.6 0.0
None - - - 13.5 20
E07 6.8 1 8.5 23.7 25
E10 10.1 1 12.7 28.7 30
E15 13.6 2 17.1 34.0 35
E20 19.5 2 24.5 42.8 45
575-3-60 6.4 52.0 10.0 1.3 2.0 0.0
None - - - 11.0 15
E10 10.6 1 10.6 23.8 25
E15 15.9 1 16.0 30.2 35
E20 21.2 2 21.3 36.5 40
060
(5.0)
208-3-60 19.3 137.0 27.0 2.3 8.2 0.0
None - - - 34.6 45
E05 4.0 1 11.1 48.5 60
E07 5.6 1 15.5 54.1 60
E10 8.0 1 22.2 62.4 70
E15 11.9 2 33.0 75.9 80
E20 15.9 2 44.1 89.8 90
E30 22.2 2 61.6 111.7 125
230-3-60 19.3 137.0 27.0 2.3 8.2 0.0
None - - - 34.6 45
E05 5.3 1 13.3 50.6 60
E07 7.5 1 18.8 57.2 70
E10 10.6 1 26.6 66.5 70
E15 15.9 2 39.9 82.4 90
E20 21.2 2 53.2 98.4 100
E30 29.6 2 74.3 123.6 125
460-3-60 10.0 62.0 14.0 1.3 4.1 0.0
None - - - 17.9 25
E07 6.8 1 8.5 28.1 35
E10 10.1 1 12.7 33.1 40
E15 13.6 2 17.1 38.3 40
E20 19.5 2 24.5 47.2 50
E30 28.8 2 36.1 61.2 70
575-3-60 7.9 50.0 11.0 1.3 3.6 0.0
None - - - 14.5 20
E10 10.6 1 10.6 27.2 30
E15 15.9 1 16.0 33.6 35
E20 21.2 2 21.3 40.0 40
E30 30.4 2 30.5 51.0 60

364985-XIM-B-0508
Johnson Controls Unitary Products 19
TABLE 12: ELECTRICAL DATA - BQ036-060 DIRECT DRIVE W/POWERED CONVENIENCE OUTLET
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 11.9 85.0 16.7 1.7 4.4 10.0
None - - - 31.0 40
E05 4.0 1 11.1 44.9 50
E07 5.6 1 15.5 50.4 60
E10 8.0 1 22.2 58.7 60
E15 11.9 2 33.0 72.3 80
E20 15.9 2 44.1 86.1 90
230-3-60 11.9 85.0 16.7 1.7 4.4 10.0
None - - - 31.0 40
E05 5.3 1 13.3 46.9 50
E07 7.5 1 18.8 53.5 60
E10 10.6 1 26.6 62.8 70
E15 15.9 2 39.9 78.8 80
E20 21.2 2 53.2 94.7 100
460-3-60 5.9 42.0 8.2 1.0 2.2 5.0
None - - - 15.6 20
E07 6.8 1 8.5 25.8 30
E10 10.1 1 12.7 30.8 35
E15 13.6 2 17.1 36.0 40
E20 19.5 2 24.5 44.9 45
575-3-60 4.8 34.0 6.7 1.0 2.2 4.0
None - - - 12.6 15
E10 10.6 1 10.6 25.3 30
E15 15.9 1 16.0 31.7 35
E20 21.2 2 21.3 38.1 40
048
(4.0)
208-3-60 14.7 130.0 23.0 2.3 5.0 10.0
None - - - 35.7 45
E05 4.0 1 11.1 49.6 60
E07 5.6 1 15.5 55.1 60
E10 8.0 1 22.2 63.4 70
E15 11.9 2 33.0 77.0 80
E20 15.9 2 44.1 90.8 100
230-3-60 14.7 130.0 23.0 2.3 5.0 10.0
None - - - 35.7 45
E05 5.3 1 13.3 51.6 60
E07 7.5 1 18.8 58.2 60
E10 10.6 1 26.6 67.5 70
E15 15.9 2 39.9 83.5 90
E20 21.2 2 53.2 99.4 100
460-3-60 7.7 64.0 12.0 1.3 2.2 5.0
None - - - 18.1 25
E07 6.8 1 8.5 28.3 30
E10 10.1 1 12.7 33.3 35
E15 13.6 2 17.1 38.6 40
E20 19.5 2 24.5 47.4 50
575-3-60 6.4 52.0 10.0 1.3 2.2 4.0
None - - - 14.8 20
E10 10.6 1 10.6 27.5 30
E15 15.9 1 16.0 33.9 35
E20 21.2 2 21.3 40.3 45
060
(5.0)
208-3-60 19.3 137.0 27.0 2.3 6.6 10.0
None - - - 43.0 60
E05 4.0 1 11.1 56.9 70
E07 5.6 1 15.5 62.5 70
E10 8.0 1 22.2 70.8 80
E15 11.9 2 33.0 84.3 90
E20 15.9 2 44.1 98.2 100
E30 22.2 2 61.6 120.1 125
230-3-60 19.3 137.0 27.0 2.3 6.6 10.0
None - - - 43.0 60
E05 5.3 1 13.3 59.0 70
E07 7.5 1 18.8 65.6 80
E10 10.6 1 26.6 74.9 80
E15 15.9 2 39.9 90.8 100
E20 21.2 2 53.2 106.8 110
E30 29.6 2 74.3 132.0 150
460-3-60 10.0 62.0 14.0 1.3 3.3 5.0
None - - - 22.1 30
E07 6.8 1 8.5 32.3 40
E10 10.1 1 12.7 37.3 40
E15 13.6 2 17.1 42.5 45
E20 19.5 2 24.5 51.4 60
E30 28.8 2 36.1 65.4 70
575-3-60 7.9 50.0 11.0 1.3 3.3 4.0
None - - - 17.5 25
E10 10.6 1 10.6 30.2 35
E15 15.9 1 16.0 36.6 40
E20 21.2 2 21.3 43.0 45
E30 30.4 2 30.5 54.1 60

364985-XIM-B-0508
20 Johnson Controls Unitary Products
TABLE 13: ELECTRICAL DATA - BQ036-060 BELT DRIVE W/POWERED CONVENIENCE OUTLET
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 11.9 85.0 16.7 1.7 5.2 10.0
None - - - 31.8 40
E05 4.0 1 11.1 45.7 50
E07 5.6 1 15.5 51.2 60
E10 8.0 1 22.2 59.5 60
E15 11.9 2 33.0 73.1 80
E20 15.9 2 44.1 86.9 90
230-3-60 11.9 85.0 16.7 1.7 5.2 10.0
None - - - 31.8 40
E05 5.3 1 13.3 47.7 50
E07 7.5 1 18.8 54.3 60
E10 10.6 1 26.6 63.6 70
E15 15.9 2 39.9 79.6 80
E20 21.2 2 53.2 95.5 100
460-3-60 5.9 42.0 8.2 1.0 2.6 5.0
None - - - 16.0 20
E07 6.8 1 8.5 26.2 30
E10 10.1 1 12.7 31.2 35
E15 13.6 2 17.1 36.4 40
E20 19.5 2 24.5 45.3 50
575-3-60 4.8 34.0 6.7 1.0 2.0 4.0
None - - - 12.8 15
E10 10.6 1 10.6 25.5 30
E15 15.9 1 16.0 31.9 35
E20 21.2 2 21.3 38.3 40
048
(4.0)
208-3-60 14.7 130.0 23.0 2.3 5.2 10.0
None - - - 35.9 50
E05 4.0 1 11.1 49.8 60
E07 5.6 1 15.5 55.3 60
E10 8.0 1 22.2 63.6 70
E15 11.9 2 33.0 77.2 80
E20 15.9 2 44.1 91.0 100
230-3-60 14.7 130.0 23.0 2.3 5.2 10.0
None - - - 35.9 50
E05 5.3 1 13.3 51.8 60
E07 7.5 1 18.8 58.4 60
E10 10.6 1 26.6 67.7 70
E15 15.9 2 39.9 83.7 90
E20 21.2 2 53.2 99.6 100
460-3-60 7.7 64.0 12.0 1.3 2.6 5.0
None - - - 18.5 25
E07 6.8 1 8.5 28.7 30
E10 10.1 1 12.7 33.7 35
E15 13.6 2 17.1 39.0 40
E20 19.5 2 24.5 47.8 50
575-3-60 6.4 52.0 10.0 1.3 2.0 4.0
None - - - 15.0 20
E10 10.6 1 10.6 27.8 30
E15 15.9 1 16.0 34.2 35
E20 21.2 2 21.3 40.5 45
060
(5.0)
208-3-60 19.3 137.0 27.0 2.3 5.2 10.0
None - - - 41.6 60
E05 4.0 1 11.1 55.5 70
E07 5.6 1 15.5 61.1 70
E10 8.0 1 22.2 69.4 80
E15 11.9 2 33.0 82.9 90
E20 15.9 2 44.1 96.8 100
E30 22.2 2 61.6 118.7 125
230-3-60 19.3 137.0 27.0 2.3 5.2 10.0
None - - - 41.6 60
E05 5.3 1 13.3 57.6 70
E07 7.5 1 18.8 64.2 70
E10 10.6 1 26.6 73.5 80
E15 15.9 2 39.9 89.4 90
E20 21.2 2 53.2 105.4 110
E30 29.6 2 74.3 130.6 150
460-3-60 10.0 62.0 14.0 1.3 2.6 5.0
None - - - 21.4 30
E07 6.8 1 8.5 31.6 35
E10 10.1 1 12.7 36.6 40
E15 13.6 2 17.1 41.8 45
E20 19.5 2 24.5 50.7 60
E30 28.8 2 36.1 64.7 70
575-3-60 7.9 50.0 11.0 1.3 2.0 4.0
None - - - 16.9 20
E10 10.6 1 10.6 29.6 30
E15 15.9 1 16.0 36.0 40
E20 21.2 2 21.3 42.4 45
E30 30.4 2 30.5 53.4 60
