Johnson Controls RL Series Owner's manual

RL SERIES
VERTICAL AND HORIZONTAL CABINETS
7–25 TONS
Issue Date:
January 2015
WATER SOURCE HEAT PUMPS
INSTALLATION, OPERATION, MAINTENANCE Supercedes: 146.00-NOM3 (310) Form 146.00-NOM3 (115)
LD20072

This equipment is a relatively complicated apparatus.
During rigging, installation, operation, maintenance,
or service, individuals may be exposed to certain com-
ponents or conditions including, but not limited to:
heavy objects, refrigerants, materials under pressure,
rotating components, and both high and low voltage.
Each of these items has the potential, if misused or
handled improperly, to cause bodily injury or death. It
is the obligation and responsibility of rigging, instal-
lation, and operating/service personnel to identify and
recognize these inherent hazards, protect themselves,
and proceed safely in completing their tasks. Failure
to comply with any of these requirements could result
in serious damage to the equipment and the property in
IMPORTANT!
READ BEFORE PROCEEDING!
GENERAL SAFETY GUIDELINES
which it is situated, as well as severe personal injury or
death to themselves and people at the site.
This document is intended for use by owner-authorized
rigging, installation, and operating/service personnel. It
is expected that these individuals possess independent
training that will enable them to perform their assigned
tasks properly and safely. It is essential that, prior to
performing any task on this equipment, this individual
shall have read and understood the on-product labels,
this document and any referenced materials. This in-
dividual shall also be familiar with and comply with
all applicable industry and governmental standards and
regulations pertaining to the task in question.
SAFETY SYMBOLS
The following symbols are used in this document to alert the reader to specific situations:
Indicates a possible hazardous situation
which will result in death or serious injury
if proper care is not taken.
Indicates a potentially hazardous situa-
tion which will result in possible injuries
or damage to equipment if proper care is
not taken.
Identies a hazard which could lead to
damage to the machine, damage to other
equipment and/or environmental pollu-
tion if proper care is not taken or instruc-
tions and are not followed.
Highlights additional information useful
to the technician in completing the work
being performed properly.
External wiring, unless specied as an optional connection in the manufacturer’s product line, is not
to be connected inside the control cabinet. Devices such as relays, switches, transducers and controls
and any external wiring must not be installed inside the micro panel. All wiring must be in accor-
dance with Johnson Controls’ published specications and must be performed only by a qualied
electrician. Johnson Controls will NOT be responsible for damage/problems resulting from improper
connections to the controls or application of improper control signals. Failure to follow this warn-
ing will void the manufacturer’s warranty and cause serious damage to property or personal injury.
JOHNSON CONTROLS
2
RL SERIES INSTALLATION MANUAL

CHANGEABILITY OF THIS DOCUMENT
In complying with Johnson Controls’ policy for con-
tinuous product improvement, the information con-
tained in this document is subject to change without
notice. Johnson Controls makes no commitment to
update or provide current information automatically
to the manual or product owner. Updated manuals, if
applicable, can be obtained by contacting the nearest
Johnson Controls Service office or accessing the John-
son Controls QuickLIT website at http://cgproducts.
johnsoncontrols.com.
It is the responsibility of rigging, lifting, and operating/
service personnel to verify the applicability of these
documents to the equipment. If there is any question
regarding the applicability of these documents, rig-
ging, lifting, and operating/service personnel should
verify whether the equipment has been modified and
if current literature is available from the owner of the
equipment prior to performing any work on the chiller.
CHANGE BARS
Revisions made to this document are indicated with a
line along the left or right hand column in the area the
revision was made. These revisions are to technical in-
formation and any other changes in spelling, grammar
or formatting are not included.
JOHNSON CONTROLS
3
RL SERIES INSTALLATION MANUAL

RL SERIES INSTALLATION MANUAL
Table of Contents
Model Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vertical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horizontal Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Horizontal Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Vertical Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Cleaning and Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Blower Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional FX10 Microprocessor Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Blower Drive Sheaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unit Startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Drop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Startup/Troubleshooting Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preventive Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
JOHNSON CONTROLS
4
5
6
7
9
10
12
13
14
15
16
17
27
29
39
40
41
41
42
43
43

RL SERIES INSTALLATION MANUAL
Model Nomenclature
RLX
1-3 4 5-7 8 9 10
Model Type
RLL –RL Low Temp
RLX –RL Extended Range
Cabinet Configuration
V–Vertical
H - Horizontal
Unit Capacity (MBTUH)
080, 095, 120, 160
180, 240, 300
Discharge Configuration
T–Top (Vertical)
E–End (Horizontal)
S–Side (Horizontal)
Return Air Configuration
L–Left
R–Right
Voltage
3–208-230/60/3
4–460/60/3
5–575/60/3
Future Option
0–Future
Blower Options
A–Standard Static, Standard Motor
B–Low Static, Standard Motor1
C–High Static, Standard Motor2
D–Standard Static, Large Motor2,3
E–High Static, Large Motor3
Water Coil Option
C–Copper
N–CuproNickel
Vintage
* - Factory Use Only
Non-Standard Options
SS –Standard
QP –2" MERV 13 Filter
SF –Stainless Steel Drain Pan4
SG –2" MERV 13 Filter, Stainless Steel Drain Pan4
Air Coil/Insulation Option
3–Uncoated
4–AlumiSealTM
Control Option
4–FX10 Standard without Communication
5–FX10 with Open N2 Communication
6–FX10 with Lonworks Communication
7–FX10 with BacNet Communication
8–FX10 Standard with User Interface
9–FX10 with Open N2 & User Interface
0–FX10 with Lonworks & User Interface
3–FX10 with BacNet & User Interface
Water Control Option
N–None
Hot Gas Bypass/Reheat Option
N–None
G–Hot Gas Bypass
R–Hot Gas Reheat
B–Hot Gas Bypass w/Hot Gas Reheat
Sound Kit Option
A–None
B–Sound Kit
Rev.: 14 August 2014D
11 12 13 15
V 120 T L 3 0 A C A N
14
N
16
4
17
3
18
SS
19-20
*
21
Notes:
1–Not available on RLXV/RLLV095, 180, RLXH/RLLH080
2–Not available on RLXV/RLLV080, 160
3–Not available on RLXH/RLLH120, RLXV/RLLV300
4–Not available on RLXV/RLLV160-300. Stainless steel is standard on RLXV/RLLV160-300
JOHNSON CONTROLS
5

RL SERIES INSTALLATION MANUAL
WARNING: Before performing service or maintenance operations on a system, turn off main power switches to the
indoor unit. If applicable, turn off the accessory heater power switch. Electrical shock could cause personal injury.
Installing and servicing heating and air conditioning equipment can be hazardous due to system pressure and electrical components. Only
trained and qualified service personnel should install, repair or service heating and air conditioning equipment. Untrained personnel can
perform the basic maintenance functions of cleaning coils and cleaning and replacing filters. All other operations should be performed by
trained service personnel. When working on heating and air conditioning equipment, observe precautions in the literature, tags and labels
attached to the unit and other safety precautions that may apply.
Follow all safety codes. Wear safety glasses and work gloves. Use a quenching cloth for brazing operations and have a fire extinguisher
available.
Moving and Storage
Move units in the normal “up” orientation. Horizontal units may be moved and stored per the information on the packaging. Do not stack
more than three units in total height. Vertical units may be stored one upon another to a maximum height of two units. Do not attempt to
move units while stacked. When the equipment is received, all items should be carefully checked against the bill of lading to be sure all
crates and cartons have been received. Examine units for shipping damage, removing the units from the packaging if necessary. Units in
question should also be internally inspected. If any damage is noted, the carrier should make the proper notation on the delivery receipt,
acknowledging the damage.
Unit Location
Locate the unit in an indoor area that allows for easy removal of the filter and access panels. Location should have enough space for
service personnel to perform maintenance or repair. Provide sufficient room to make water, electrical and duct connection(s). If the unit
is located in a confined space, such as a closet, provisions must be made for return air to freely enter the space by means of a louvered
door, etc. Any access panel screws that would be difficult to remove after the unit is installed should be removed prior to setting the unit.
On horizontal units, allow adequate room below the unit for a condensate drain trap and do not locate the unit above supply piping. Care
should be taken when units are located in unconditioned spaces to prevent damage from frozen water lines and excessive heat that could
damage electrical components.
Installing Vertical Units
Prior to setting the unit in place, remove and discard the compressor hold down shipping bolt
located at the front of the compressor mounting bracket.
Vertical units are available in left or right air return configurations. Top flow vertical units should
be mounted level on a vibration absorbing pad slightly larger than the base to provide isolation
between the unit and the floor. It is not necessary to anchor the unit to the floor (see right).
Safety Considerations
General Installation Information

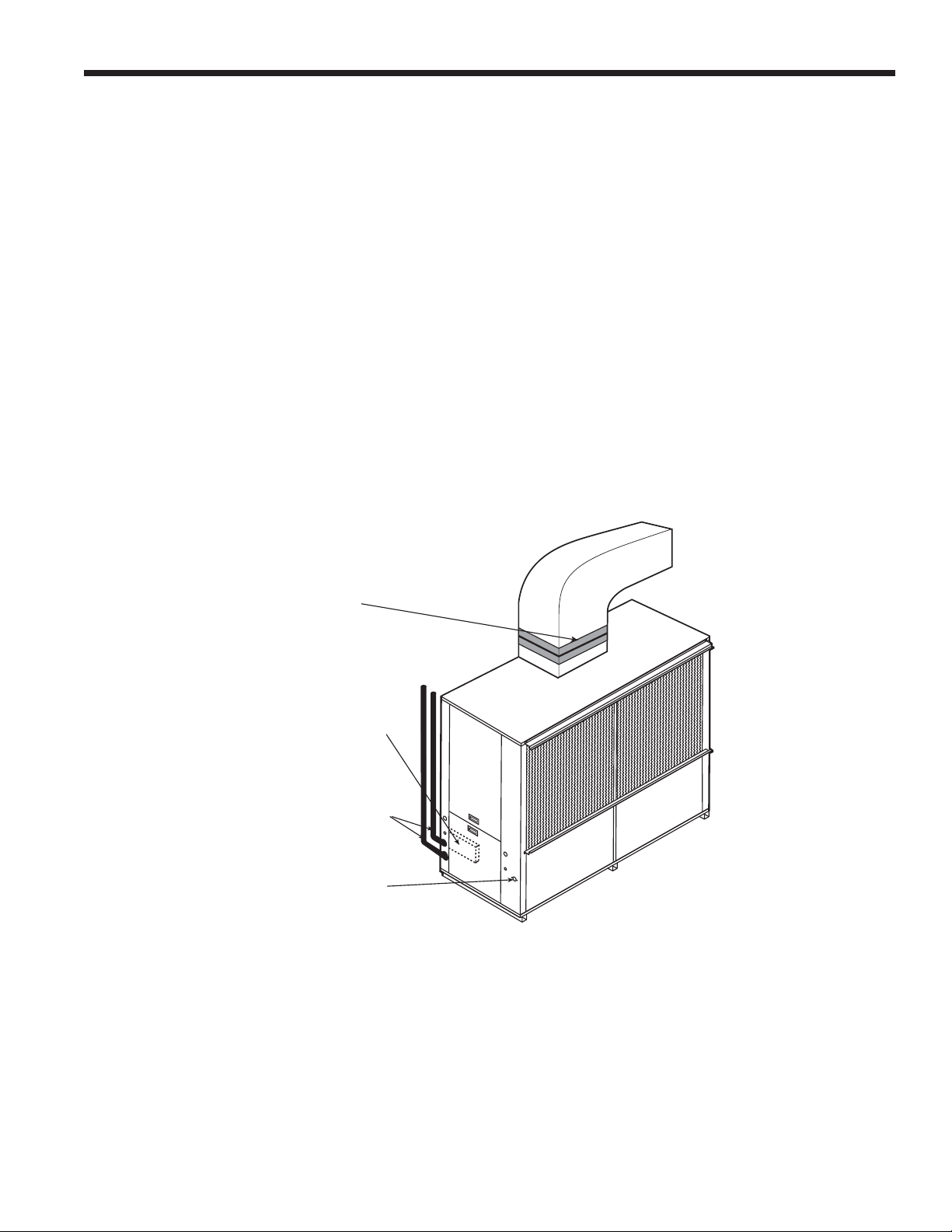

Figure 1: Vertical Unit Mounting
(RLXV080-300)
JOHNSON CONTROLS
6

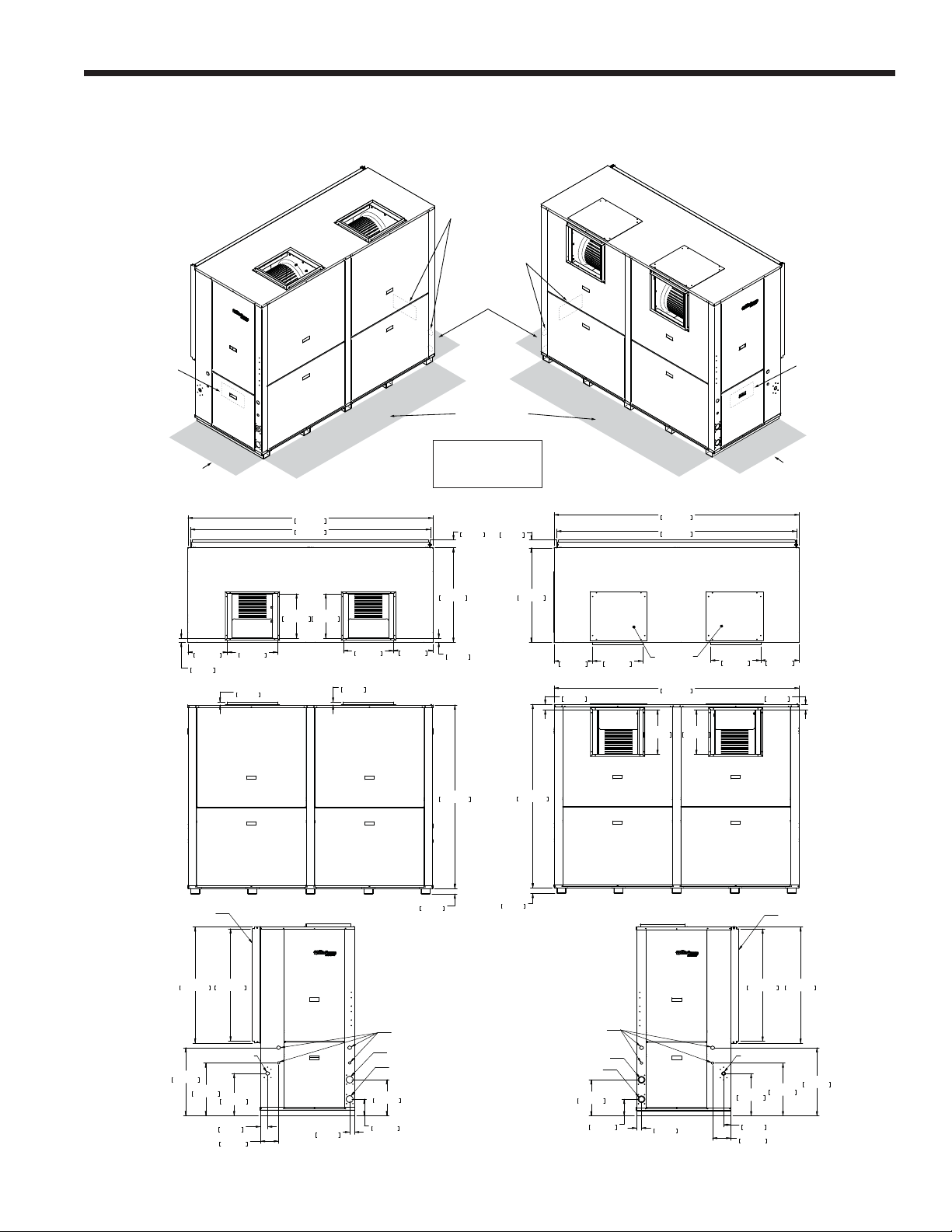

RL SERIES INSTALLATION MANUAL
CONTROL BOX
RIGHT RETURN
CONTROL BOX AND WATER
LEFT RETURN
2’PRIMARY
SERVICEACCESS
FOR LEFT RETURN
2’PRIMARY
CONTROL BOX
RIGHT RETURN
SERVICEACCESS
FOR RIGHT RETURN
2’SECONDARY
SERVICEACCESS
CONTROL BOX
AND WATER
LEFT RETURN
TOP DISCHARGE
2’PRIMARY
SERVICEACCESS
FOR LEFT RETURN
2’PRIMARY
SERVICEACCESS
FOR RIGHT RETURN
2’SECONDARY
SERVICEACCESS
SIDE DISCHARGE
56 in
[142.2 cm]
2 in [5.1 cm]
1 in [2.5 cm]
2 in [5.1 cm]
18.1 in [46 cm]
1.8 in [4.6 cm]
56 in
[142.2 cm]
22.6 in
[57.4 cm]
TOP PANEL
COVER
58.1 in [147.6 cm]
61.3 in [155.7 cm]
34.1 in
[86.6 cm]
2.9 in
[7.4 cm]
16.1 in
[40.9 cm]
TOP VIEW
Left or Right Return
SIDE VIEW
Left or Right Return
34.1 in
[86.6 cm]
58.1 in [147.6 cm]
61.3 in [155.8 cm]
21.6 in
[54.9 cm] 18.1 in [46.0 cm] 1.42 in [3.6 cm]
16.1 in
[40.9 cm]
2.9 in
[7.4 cm]
15.6 in
[39.6 cm]
12.5 in [31.8 cm]
36.3 in
[92.2 cm]
2.6 in [6.6 cm]
DRAIN CONNECTION
WATER OUT
WATER IN
ELECTRICAL
CONNECTIONS ELECTRICAL CONNECTIONS
AIR COILS
34.4 in
[87.4 cm]
4.0 in [10.2 cm]
2.2 in [5.6 cm]
10.1 in [25.7 cm]
2.0 in
[5.1 cm]
2.2 in
[5.6 cm]
7.2 in
[18.3 cm]
LEFT RETURN RIGHT RETURN
15.6 in
[39.6 cm]
4.0 in [10.2 cm]
2.2 in [5.6 cm]
10.1 in [25.7 cm]
2.2 in
[5.6 cm]
12.5 in [31.8 cm]
36.3 in
[92.2 cm]
2.6 in [6.6 cm]
DRAIN CONNECTIO
N
WATER OUT
WATER IN
AIR COILS
34.4 in
[87.4 cm]
7.2 in
[18.3 cm]
2.0 in
[5.1 cm]
TOP OR SIDE DISCHARGE
Legend
AP = Alternate Service Panel
BP = Blower Service Panel
CP = Control Access Panel
CMP = Compressor Service Panel
AP
CMP AP
CMP CPCP
CP CP
REV 2/11/0
8
Vertical Dimensions
7-10 Tons
JOHNSON CONTROLS
7

RL SERIES INSTALLATION MANUAL
LEFT RETURN
6.0 in
15.2 cm
13.0 in
33.0 cm
15.2 in
38.7 cm
19.0 in
48.2 cm
24.5 in
62.2 cm
18.0 in
45.7 cm
18.0 in
45.7 cm
16.0 in
40.6 cm 16.0 in 40.6 cm
16.0 in
40.6 cm 16.0 in 40.6 cm
1.5 in
3.7 cm
1.5 in
3.7 cm
2.0 in
5.1 cm 2.0 in 5.1 cm
34.0 in
86.4 cm
14.2 in
36.1 cm
14.2 in
36.1 cm
2.6 in
6.5 cm
6.5 in
16.5 cm
88.1 in
223.8 cm
RIGHT RETURN
TOP DISCHARGE SIDE DISCHARGE
88.1 in
223.8 cm
86.3 in
219.1 cm
1.0 in
2.5 cm
66.0 in
167.5 cm
2.0 in
5.1 cm
1.0 in
2.5 cm
34.0 in
86.4 cm
2.9 in
7.3 cm
86.3 in
219.1 cm
88.1 in
223.8 cm
18.0 in
45.8 cm
13.8 in
35.1 cm
18.0 in
45.8 cm 13.8 in 35.1 cm
TOP PANEL
COVER
2.9 in
7.3 cm
66.0 in
167.5 cm
2.0 in
5.1 cm
DRAIN CONNECTION
ELECTRICAL
CONNECTIONS
40.4 in
102.6 cm 41.8 in 106.2 cm
AIR COILS
AIR COILS
41.8 in
106.2 cm 40.4 in 102.6 cm
15.2 in
38.7 cm
19.0 in
48.2 cm
24.5 in
62.2 cm
2.6 in
6.5 cm
6.5 in
16.5 cm
6.0 in
15.2 cm
13.0 in
33.0 cm
1.7 in
4.4 cm
1.7 in
4.4 cm
DRAIN CONNECTION WATER OUT
WATER IN
WATER OUT
WATER IN
ELECTRICAL
CONNECTIONS
2’ PRIMARY
SERVICE ACCESS
2’ SECONDARY
SERVICE ACCESS
2’ PRIMARY
SERVICE ACCESS 2’ PRIMARY SERVICE ACCESS
Legend
AP = Alternate Service Panel
BP = Blower Service Panel
CP = Control Access Panel
CMP = Compressor Service Panel
CONTROL BOX
AND WATER
RIGHT RETURN
CONTROL BOX
AND WATER
LEFT RETURN
CONTROL BOX
LEFT RETURN
AP
CMP
AP
CMP
CP CP
CPCP
CONTROL BOX
RIGHT RETURN
TOP VIEW
L or R Return
SIDE VIEW
L or R Return
TOP OR SIDE DISCHARGE
REV 8/16/07
Vertical Dimensions cont.
13-25 Tons
JOHNSON CONTROLS
8

RL SERIES INSTALLATION MANUAL
RIGHT RETURN LEFT RETURN
26.2
4.1
15.6
89.0
34.5
90.0
37.3
92.5
7.6
7.615.6
85.91.6
TOP VIEW
26.2
4.1
15.6
89.0
34.5
90.0
37.3
92.5
7.6 7.6 15.6
85.9 1.6
DRAIN CONNECTION
END DISCHARGE
OPTION
15.62
13.5
2.9
6.1
20.1
21.0
END VIEW
DRAIN CONNECTION
END DISCHARGE
OPTION
15.62
2.9
6.1
20.1 21.0
SIDE DISCHARGE WATER IN
WATER OUT
OPTION
SIDE VIEW
18.6
3.4
29.929.9
24.5
23.5
SIDE DISCHARGE
WATER IN
WATER OUT
OPTION
18.6
3.4
29.929.9
24.5 23.5
13.5
Legend
AP = Alternate Service Panel
BP = Blower Service Panel
CP = Control Access Panel
CMP = Compressor Service Panel
CMP
CMP
CMP
CMP CPCP
BP BP
2’PRIMARY
SERVICEACCESS
2’SECONDARY
SERVICEACCESS 2’SECONDARY SERVICEACCESS
REV 4/28/08
Horizontal Dimensions
7-10 Tons
JOHNSON CONTROLS
9

RL SERIES INSTALLATION MANUAL
Installing Horizontal Units
Mounting Horizontal Units
Units are available with side or end discharge in left-hand or right-hand return air configurations. Horizontal units are normally suspended
from a ceiling by four 1/2 in. diameter threaded rods. The rods are usually attached to the unit corners by the bottom panel mounting
channel and the mounting grommets furnished with each unit.
CAUTION: Do not use rods smaller than 1/2 in. diameter since they may not be strong enough to support the unit. The
rods must be securely anchored to the ceiling (the units are approximately 800 lbs.).
To p Vi e w
90.5
26.244.13
Figure 3: Mounting HardwareFigure 2: Mounting Rod Layout
Ball Valves
Water Loop
Flexible Duct
Collar
1/2”
Threaded Rods
(4)
P/T Plugs
Hose Kits
Insulate supply
plenum anduse at
least a 90° elbow
to reduce noise
Condensate
Drain
Connection
Power
Disconnect Low
Voltage
Isolation
Grommets
(Included)
Figure 1: Typical Horizontal Application
Layout the threaded rods per the dimensions in Figure 2. Assemble the hangers to the unit as shown in Figure 3. Securely tighten the
brackets to the unit. When attaching the hanger rods to the bracket, a double nut is recommended since vibration could loosen a single
nut. The unit should be pitched approximately 1/2 in. towards the drain in both directions, to facilitate condensate removal.
1/2 in. Threaded Rod
(not included)
Vibration
Isolator
Washer
(not included)
Hex Nuts
(not included)
JOHNSON CONTROLS
10

RL SERIES INSTALLATION MANUAL

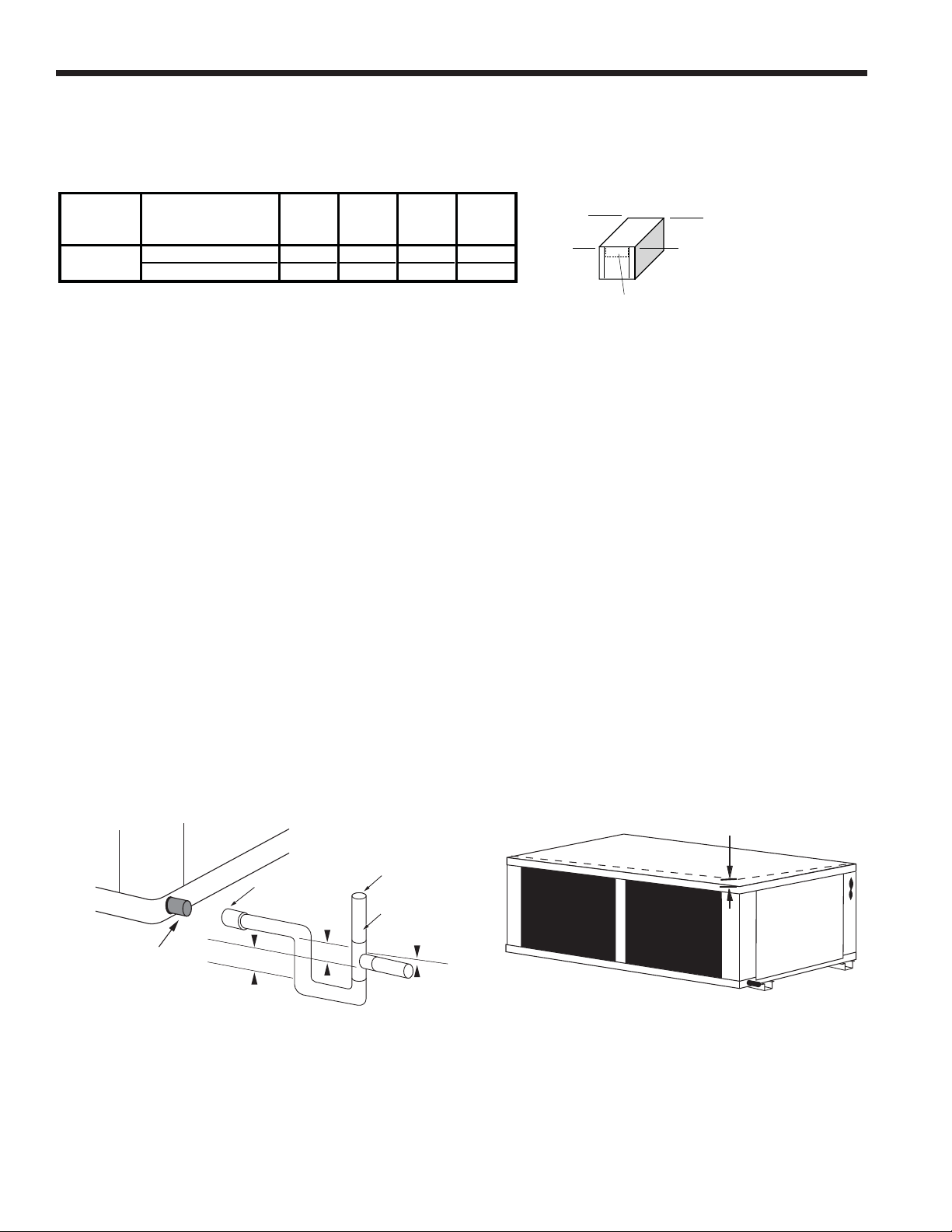

1/2'' Pitch
Figure 5: Unit Pitch for DrainFigure 4: Suggested Layout of Condensate
Installing Horizontal Units cont.
ABCD
Front Front Back Back
Model Return / Discharge Left Right Right Left
Left / Side or End 30% 26% 22% 22%
Right / Side or End 26% 30% 22% 22%
Approximate
080 - 120
AB
C
D
Controls
Horizontal Unit Corner Weight Distribution
Duct System
An air outlet collar is provided on vertical top flow units and all horizontal units to facilitate a duct connection. A flexible connector is recom-
mended for discharge and return air duct connections on metal duct systems. Uninsulated duct should be insulated with a minimum of
1-inch duct insulation. Application of the unit to uninsulated ductwork in an unconditioned space is not recommended as the unit’s perfor-
mance will be adversely affected.
If the unit is connected to existing ductwork, check the duct system to ensure that it has the capacity to accommodate the air required for
the unit application. If the duct is too small, as in the replacement of heating only systems, larger ductwork should be installed. All existing
ductwork should be checked for leaks and repaired if necessary.
The duct system should be sized to handle the design airflow quietly and efficiently. To maximize sound attenuation of the unit blower, the
supply and return plenums should include an internal duct liner of fiberglass or constructed of ductboard for the first few feet. On systems
employing a sheet metal duct system, canvas connectors should be used between the unit and the ductwork. If air noise or excessive
airflow is a problem, the blower speed can be changed.
Water Piping
The proper water flow must be provided to each unit whenever the unit operates. To assure proper flow, use pressure/temperature ports to
determine the flow rate. These ports should be located at the supply and return water connections on the unit. The proper flow rate cannot
be accurately set without measuring the water pressure drop through the refrigerant-to-water heat exchanger.
All source water connections on commercial units are fittings that accept a male pipe thread (MPT). Insert the connectors by hand, then
tighten the fitting with a wrench to provide a leakproof joint. When connecting to an open loop (groundwater) system, thread any copper
MPT fitting into the connector and tighten in the same manner as described above.
1.5 in. 1.5 in.
3/4 in. PVC tube stub
3/4 in. PVC
Coupling
Vent (if needed)
3/4 in. PVC
1/8 in. per foot
JOHNSON CONTROLS
11

RL SERIES INSTALLATION MANUAL
Control Box
Condensate
Drain
Water Supply
and Return
Connections
Flexible duct
Collar
ACCESS
PANEL
ACCESS
PANEL
PANEL
ACCESS
Figure 6: Typical Vertical Application
Installing Vertical Units
Mounting Vertical Units
Units are available with top/side discharge, left-hand or right-hand return air configurations. Vertical units are assembled on rails which
facilitate moving and placement of the units. It is not necessary to anchor the unit to the floor.
Duct System
A supply air duct flange is provided for field installation to facilitate the secure duct connection at the job site. A flexible connector is
recommended for discharge and return air duct connections on metal duct systems to prevent vibration transmission. It is recommended
that all ductwork be insulated with a minimum of 1/2-inch coated insulation. Installation of the units with uninsulated ductwork in an
unconditioned space is not recommended, as the system’s performance will be adversely affected.
Condensate Drain
In vertical units, the internal condensate drain assembly consists of a flexible drain tube which is attached to the drain pan and a 3/4-inch
(7-10 tons) and 1-inch (13-25 tons) female pipe thread. An external water trap is not required as the drain tube serves as a trapping loop.
The field-installed piping and unit connection must be properly installed and sealed to prevent water leakage.
JOHNSON CONTROLS
12

RL SERIES INSTALLATION MANUAL
Water Connections
All supply and return water connections are female pipe thread of size specified in physical dimensions. Never use flexible hoses smaller
than separate water connections on the unit and limit hose length to 10 ft. per connection. Check carefully for water leaks.
Interior Piping
All units are recommended to be connected to supply and return piping in a two-pipe reverse return configuration. A reverse return
system is inherently self-balancing and requires only trim balancing when multiple quantities of units with different flow and pressure
drop characteristics are connected to the same loop. A direct return system may also be made to work acceptably, but proper water flow
balance is more difficult to achieve and maintain.
Supply and return runouts are usually connected to the unit by short lengths of high pressure flexible hose which are sound attenuators for
both unit operating noise and hydraulic pumping noise. One end of the hose should have a swivel fitting to facilitate removal for service.
Hard piping can also be connected directly to the unit although it is not recommended since no vibration or noise attenuation can be
accomplished. The hard piping must have unions to facilitate unit removal (see figure 1 & 6) for typical application).
Some flexible hose threaded fittings are supplied with sealant compound. If not, apply Teflon tape to assure a tight seal.
Supply and return shutoff valves are required at each unit. The return shutoff valve can be used for balancing and should be adjusted for
proper flow required, or a manual or automatic flow control device should be on the leaving water hose assembly.
No unit should be connected to the supply and return piping until the water system has been cleaned and flushed completely. After the
cleaning and flushing has taken place, the initial connection should have all valves wide open in preparation for water system filling.
Water Quality Guidelines
In ground water situations where scaling could be heavy or where biological growth such as iron bacteria will be present, a closed loop
system is recommended. The heat exchanger coils in ground water systems may, over a period of time, lose heat exchange capabilities
due to a buildup of mineral deposits inside. These can be cleaned, but only by a qualified service mechanic, as special solutions and
pumping equipment are required. Hot water generator coils can likewise become scaled and possibly plugged. In areas with extremely
hard water, the owner should be informed that the heat exchanger may require occasional flushing.
Units with cupronickel heat exchangers are recommended for open loop applications due to the increased resistance to build-up and
corrosion, along with reduced wear caused by acid cleaning.
Water Quality
Material Copper 90/10 Cupronickel 316 Stainless Steel
pH Acidity/Alkalinity 7 - 9 7 - 9 7 - 9
Scaling Calcium and
Magnesium Carbonate
(Total Hardness)
less than 350 ppm
(Total Hardness)
less than 350 ppm
(Total Hardness)
less than 350 ppm
Corrosion
Hydrogen Sulfide Less than 0.5 ppm (rotten egg
smell appears at 0.5 ppm) 10 - 50 ppm Less than 1 ppm
Sulfates Less than 125 ppm Less than 125 ppm Less than 200 ppm
Chlorine Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Chlorides Less than 20 ppm Less than 125 ppm Less than 300 ppm
Carbon Dioxide Less than 50 ppm 10 - 50 ppm 10 - 50 ppm
Ammonia Less than 2 ppm Less than 2 ppm Less than 20 ppm
Ammonia Chloride Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Nitrate Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Hydroxide Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Ammonia Sulfate Less than 0.5 ppm Less than 0.5 ppm Less than 0.5 ppm
Total Dissolved Solids (TDS) Less than 1000 ppm 1000 - 1500 ppm 1000 - 1500 ppm
LSI Index +0.5 to -0.5 +0.5 to -0.5 +0.5 to -0.5
Iron Fouling
(Biological Growth)
Iron, FE2+ (Ferrous)
Bacterial Iron Potential < 0.2 ppm < 0.2 ppm < 0.2 ppm
Iron Oxide Less than 1 ppm, above this
level deposition will occur
Less than 1 ppm, above this
level deposition will occur
Less than 1 ppm, above this
level deposition will occur
Erosion
Suspended Solids Less than 10 ppm and filtered
for max. of 600 micron size
Less than 10 ppm and filtered
for max. of 600 micron size
Less than 10 ppm and filtered
for max. of 600 micron size
Threshold Velocity
(Fresh Water) < 6 ft/sec < 6 ft/sec < 6 ft/sec
JOHNSON CONTROLS
13

RL SERIES INSTALLATION MANUAL
System Cleaning and Flushing
Cleaning and Flushing
Prior to start up of any heat pump, the water circulating system must be cleaned
and flushed of all dirt and debris.

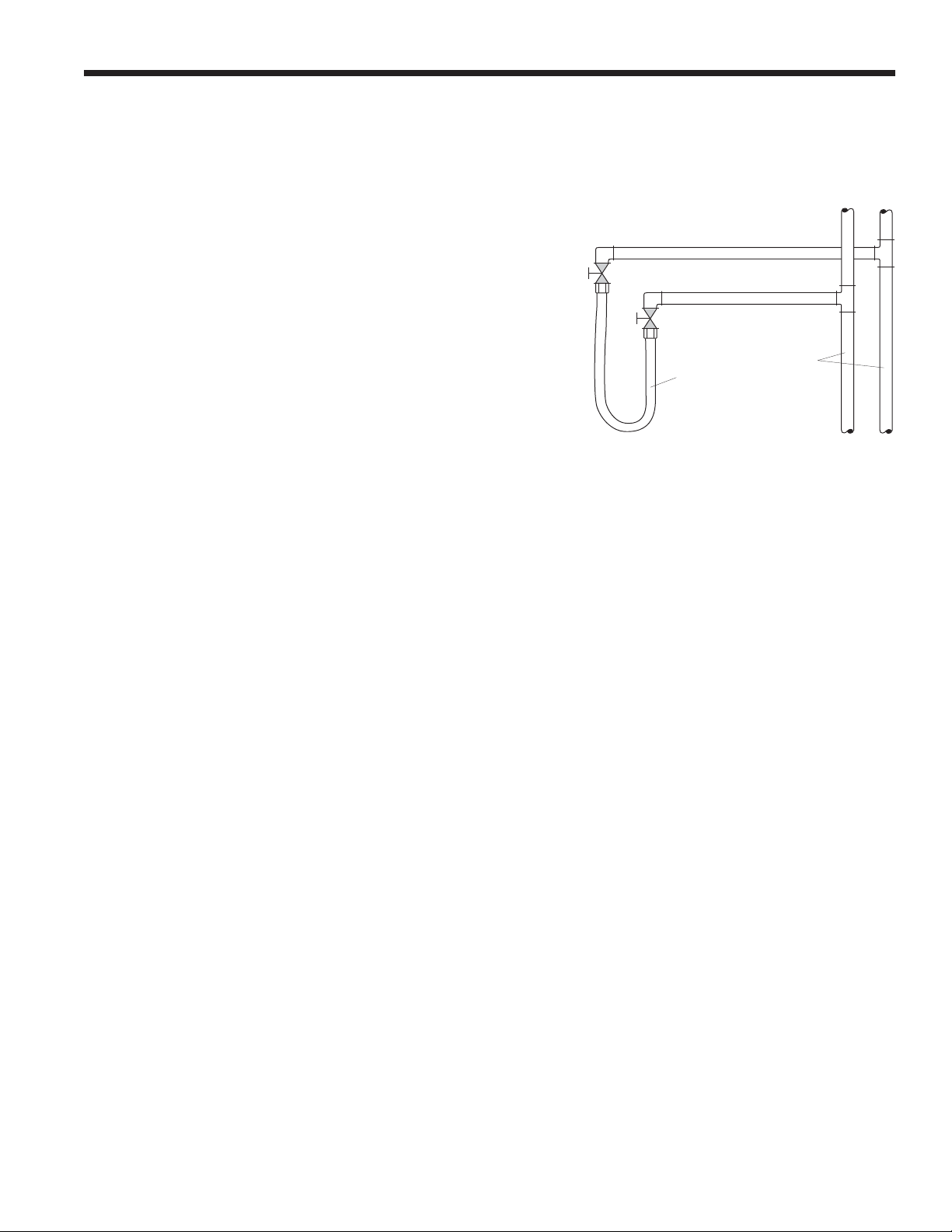

If the system is equipped with water shutoff valves, the supply and return
runouts must be connected together at each unit location (This will prevent the
introduction of dirt into the unit, see Figure 7). The system should be filled at the
water make-up connection with all air vents open. After filling, vents should be
closed.
The contractor should start the main circulator with the pressure reducing valve
makeup open. Vents should be checked in sequence to bleed off any trapped air
and to verify circulation through all components of the system.
As water circulates through the system, the contractor should check and repair
any leaks found in the piping system. Drain(s) at the lowest point(s) in the system
should be opened for initial flush and blowdown, making sure water fill valves
are set at the same rate. Check the pressure gauge at the pump suction and manually adjust the make-up water valve to hold the same
positive pressure both before and after opening the drain valves. Flushing should continue for at least two hours, or longer if required, until
drain water is clean and clear.
The supplemental heater and/or circulator pump, if used, should be shut off.All drains and vents should be opened to completely drain the
system. Short-circuited supply and return runouts should now be connected to the unit supply and return connections.
Refill the system with clean water. Test the system water for acidity and treat as required to leave the water slightly alkaline (pH 7.5 to 8.5).
The specified percentage of antifreeze may also be added at this time. Use commercial grade antifreeze designed for HVAC systems only.
Environol™ brand antifreeze is recommended..
Once the system has been filled with clean water and antifreeze (if used), precautions should be taken to protect the system from dirty
water conditions. Dirty water will result in system-wide degradation of performance, and solids may clog valves, strainers, flow regulators,
etc. Additionally, the heat exchanger may become clogged which reduces compressor service life and can cause premature unit failure.
In boiler/tower application, set the loop control panel set points to desired temperatures. Supply power to all motors and start the circulating
pumps. After full flow has been established through all components including the heat rejector (regardless of season), air vented and loop
temperatures stabilized, each of the units will be ready for check, test and start up and for air and water balancing.
Ground Source Loop System Checkout
Once piping is completed between the unit pumping system and ground loop, final purging and charging of the loop is needed. A high
pressure pump is needed to achieve adequate flow velocity in the loop to purge air and dirt particles from the loop itself. Antifreeze solution
is used in most areas to prevent freezing. Flush the system adequately to remove as much air as possible; then pressurize the loop to a
static pressure of 40-50 PSI (summer) or 50-75 PSI (winter). This is normally adequate for good system operation. Loop static pressure
may decrease soon after initial installation, due to pipe expansion and loop temperature change. Running the unit for at least 30 minutes
after the system has been completely purged of air will allow for the “break-in” period. It may be necessary to adjust static loop pressure
(by adding water) after the unit has run for the first time. Loop static pressure will also fluctuate with the seasons. Pressures will be higher
in the winter months than during the cooling season. This fluctuation is normal and should be considered when charging the system
initially.
Ensure the pump provides adequate flow through the unit by checking pressure drop across the heat exchanger. Usually 2.25-3.0 GPM of
flow per ton of cooling capacity is recommended in earth loop applications.
Return Runout
Supply Runout
Mains
Rubber Hose
Runouts Initially
Connected Together
Figure 7: Flushing with Water
Shutoff Valve Equipped Systems
JOHNSON CONTROLS
14

RL SERIES INSTALLATION MANUAL
Electrical Connections
General
Be sure the available power is the same voltage and phase as that shown on the unit serial plate. Line and low voltage wiring must be
done in accordance with local codes or the National Electric Code.
Unit Power Connection
Line voltage connection is made by connecting the incoming line voltage wires to the terminal block as shown on the unit’s wiring diagram
attached to the inside front panel. Consult the Unit Electrical Data below for correct fuse size.
208 Volt Operation
NOTE: All 208-230 volt units are factory wired for 230 volt operation. For 208 volt operation, the red and the blue transformer
wires must be switched between terminal strip PS and contactor RB.
JOHNSON CONTROLS
15

RL SERIES INSTALLATION MANUAL
Electrical Data
Rated Voltage Blower Blower Total Min Max
Voltage Min/Max Motor HP Unit Circ Fuse/
MCC RLA LRA FLA*** *** FLA Amp HACR
Horizontal
208-230/60/3 187/253 16.3 10.4 88.0 4.8 1.5 25.7 28.3 35.0
080 460/60/3 414/506 9.0 5.8 38.0 2.4 1.5 13.9 15.4 20.0
575/60/3 518/632 5.9 3.8 36.5 1.9 1.5 9.5 10.4 10.0
208-230/60/3 187/253 16.3 10.4 88.0 6.2 2.0 27.1 29.7 40.0
080** 460/60/3 414/506 9.0 5.8 38.0 3.1 2.0 14.6 16.1 20.0
575/60/3 518/632 5.9 3.8 36.5 2.5 2.0 10.1 11.0 10.0
208-230/60/3 187/253 21.2 13.6 83.1 6.2 2.0 33.3 36.7 50.0
095 460/60/3 414/506 9.5 6.1 41.0 3.1 2.0 15.3 16.8 20.0
575/60/3 518/632 7.8 5.0 34.0 2.5 2.0 12.5 13.7 15.0
208-230/60/3 187/253 21.2 13.6 83.1 9.2 3.0 36.3 39.7 50.0
095** 460/60/3 414/506 9.5 6.1 41.0 4.3 3.0 16.5 18.0 20.0
575/60/3 518/632 7.8 5.0 34.0 3.4 3.0 13.4 14.6 15.0
208-230/60/3 187/253 24.9 15.9 110.0 9.2 3.0 41.1 45.1 60.0
120 460/60/3 414/506 12.1 7.7 52.0 4.3 3.0 19.8 21.7 25.0
575/60/3 518/632 8.9 5.7 38.9 3.4 3.0 14.8 16.2 20.0
Vertical
208-230/60/3 187/253 16.3 10.4 88.0 3.6 1.0 24.5 27.1 35.0
080 460/60/3 414/506 9.0 5.8 38.0 1.8 1.0 13.3 14.8 20.0
575/60/3 518/632 5.9 3.8 36.5 1.5 1.0 9.0 9.9 10.0
208-230/60/3 187/253 16.3 10.4 88.0 4.8 1.5 25.7 28.3 35.0
080** 460/60/3 414/506 9.0 5.8 38.0 2.4 1.5 13.9 15.4 20.0
575/60/3 518/632 5.9 3.8 36.5 1.9 1.5 9.5 10.4 10.0
208-230/60/3 187/253 21.2 13.6 83.1 4.8 1.5 31.9 35.3 45.0
095 460/60/3 414/506 9.5 6.1 41.0 2.4 1.5 14.6 16.1 20.0
575/60/3 518/632 7.8 5.0 34.0 1.9 1.5 11.9 13.1 15.0
208-230/60/3 187/253 21.2 13.6 83.1 6.2 2.0 33.3 36.7 50.0
095** 460/60/3 414/506 9.5 6.1 41.0 3.1 2.0 15.3 16.8 20.0
575/60/3 518/632 7.8 5.0 34.0 2.5 2.0 12.5 13.7 15.0
208-230/60/3 187/253 24.9 15.9 110.0 6.2 2.0 38.1 42.1 50.0
120 460/60/3 414/506 12.1 7.7 52.0 3.1 2.0 18.6 20.5 25.0
575/60/3 518/632 8.9 5.7 38.9 2.5 2.0 13.9 15.3 20.0
208-230/60/3 187/253 24.9 15.9 110.0 9.2 3.0 41.1 45.1 60.0
120** 460/60/3 414/506 12.1 7.7 52.0 4.3 3.0 19.8 21.7 25.0
575/60/3 518/632 8.9 5.7 38.9 3.4 3.0 14.8 16.2 20.0
208-230/60/3 187/253 35.0 22.4 149.0 3.6 1.0 52.0 57.6 80.0
160 460/60/3 414/506 16.5 10.6 75.0 1.8 1.0 24.8 54.0 35.0
575/60/3 518/632 12.0 7.7 54.0 1.5 1.0 18.4 20.3 25.0
208-230/60/3 187/253 35.0 22.4 149.0 4.8 1.5 54.4 60.0 80.0
160** 460/60/3 414/506 16.5 10.6 75.0 2.4 1.5 26.0 28.7 35.0
575/60/3 518/632 12.0 7.7 54.0 1.9 1.5 19.2 21.1 25.0
208-230/60/3 187/253 36.2 23.2 164.0 4.8 1.5 56.0 61.8 80.0
180 460/60/3 414/506 17.5 11.2 75.0 2.4 1.5 27.2 30.0 40.0
575/60/3 518/632 12.3 7.9 54.0 1.9 1.5 19.6 21.6 25.0
208-230/60/3 187/253 36.2 23.2 164.0 6.2 2.0 58.8 64.6 80.0
180** 460/60/3 414/506 17.5 11.2 75.0 3.1 2.0 28.6 31.4 40.0
575/60/3 518/632 12.3 7.9 54.0 2.5 2.0 20.8 22.8 30.0
208-230/60/3 187/253 47.0 30.1 225.0 6.2 2.0 72.6 80.1 110.0
240 460/60/3 414/506 26.0 16.6 114.0 3.1 2.0 39.5 43.6 60.0
575/60/3 518/632 19.0 12.2 80.0 2.5 2.0 29.3 32.4 40.0
208-230/60/3 187/253 47.0 30.1 225.0 9.2 3.0 78.6 86.1 110.0
240** 460/60/3 414/506 26.0 16.6 114.0 4.3 3.0 41.9 46.0 60.0
575/60/3 518/632 19.0 12.2 80.0 3.4 3.0 31.1 34.2 45.0
208-230/60/3 187/253 52.0 33.3 239.0 9.2 3.0 85.0 93.3 125.0
300 460/60/3 414/506 28.0 17.9 125.0 4.3 3.0 44.4 48.9 60.0
575/60/3 518/632 20.0 12.8 80.0 3.4 3.0 32.4 35.6 45.0
*Ratings per each compressor - unit supplied with two 9/10/07
**With optional motor
***Ratings per each blower motor - Vertical models 160-300 supplied with two.
HACR circuit breaker in USA only
All fuses Class RK-5
Compressor*
Model
JOHNSON CONTROLS
16

RL SERIES INSTALLATION MANUAL
Airflow in CFM with dry coil and clean air filter.
Rated CFM External Static Pressure (in. w.g.)
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0
2200 BHP 0.37 0.40 0.43 0.47 0.52 0.59 0.65 0.71 0.75 0.78 0.81 0.86 0.90
RPM 583 624 665 706 747 770 791 821 865 911 957 986 1015
TURNS OPEN 5.0 4.0 3.0 2.0 1.0 3.0 2.0 1.0 0.0 3.5 3.0 2.5 2.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0
2400 BHP 0.45 0.49 0.53 0.59 0.62 0.67 0.70 0.74 0.79 0.85 0.88 0.91 0.95 1.08
RPM 582 623 664 705 746 765 790 820 861 906 938 970 1004 1030
TURNS OPEN 5.0 4.0 3.0 2.0 1.0 3.0 2.0 1.0 0.0 4.0 3.0 2.5 2.0 1.5
MTR/SHEAVE 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0 5.0
2600 BHP 0.51 0.56 0.62 0.66 0.69 0.73 0.76 0.84 0.90 0.93 0.96 1.04 1.12 1.17
RPM 602 643 684 726 760 783 805 853 877 916 954 988 1021 1051
TURNS OPEN 4.5 3.5 2.5 1.5 4.0 3.5 2.5 2.0 1.5 3.5 3.0 2.5 1.5 1.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0
2800 BHP 0.53 0.58 0.64 0.69 0.76 0.79 0.80 0.94 0.99 1.03 1.15 1.16 1.17 1.27
RPM 581 622 663 704 744 776 802 851 876 900 951 976 1001 1033
TURNS OPEN 5.0 4.0 3.0 2.0 1.0 3.5 3.0 2.0 1.5 1.0 3.0 2.5 2.0 1.5
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0 5.0
3000 BHP 0.59 0.66 0.73 0.80 0.87 0.90 0.92 1.07 1.08 1.10 1.30 1.33 1.35 1.40 1.44
RPM 580 621 662 702 743 775 801 848 873 898 949 973 997 1022 1046
TURNS OPEN 5.0 4.0 3.0 2.0 1.0 3.5 3.0 2.0 1.5 1.0 3.0 2.5 2.0 1.5 1.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0 5.0
3200 BHP 0.72 0.81 0.90 0.98 1.02 1.04 1.19 1.21 1.23 1.44 1.47 1.51 1.54 1.57
RPM 620 661 701 741 773 799 846 871 895 946 970 994 1019 1043
TURNS OPEN 4.0 3.0 2.0 1.0 3.5 3.0 2.0 1.5 1.0 3.0 2.5 2.0 1.5 1.0
MTR/SHEAVE 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0 5.0 5.0 5.0
3400 BHP 0.87 0.98 1.08 1.12 1.16 1.31 1.34 1.36 1.58 1.62 1.65 1.69 1.73
RPM 660 700 740 772 797 844 869 893 944 968 992 1016 1040
TURNS OPEN 3.0 2.0 1.0 3.5 3.0 2.0 1.5 1.0 3.0 2.5 2.0 1.5 1.0
Bold Face Requires Larger 2 HP Motor
A=Std Static/Std Mtr;B=Low Static/Std. Mtr;C=High Static/Std. Mtr;D=Std Static/Large Mtr;E=High Static/Large Mtr
Units factory shipped with standard static sheave and drive at 2.5 turns open (2600 cfm @ 0.4 in. ESP). Other speeds require field selection.
ISO/AHRI rating point with standard static sheave and drive at 1.5 turns open (2600 cfm @ 0.5 in. ESP). Other speeds require field selection.
For applications requiring higher static pressures, contact your local representative.
Performance data does not include drive losses and is based on sea level conditions.
Do not operate in gray region. "na" = information not available at time of printing.
All airflow is rated at lowest Voltage if unit is dual Voltage rated, i.e. 208V for 208-230V units.
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, and 400 fpm by 0.12in. wg.
A
D
C E
07/25/07
RLLH080 - Blower Performance Data
Belt Drive
JOHNSON CONTROLS
17

RL SERIES INSTALLATION MANUAL
Airflow in CFM with dry coil and clean air filter.
Rated CFM External Static Pressure (in. w.g.)
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.4 1.6 1.8 2.0
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 4.0 4.0 4.0 4.0 5.0
2600 BHP 0.44 0.47 0.52 0.57 0.66 0.78 0.79 0.80 0.92 0.97 1.08 1.18 1.37 1.56
RPM 584 625 667 708 757 806 831 856 905 960 1021 1082 1142 1202
TURNS OPEN 5.0 4.0 3.0 2.0 4.0 3.0 2.5 2.0 1.0 3.0 2.0 1.0 0.0 3.0
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 4.0 4.0 4.0 4.0 5.0 5.0
2800 BHP 0.51 0.56 0.61 0.67 0.77 0.89 0.90 0.91 1.06 1.11 1.14 1.38 1.44 1.59 1.73
RPM 583 625 665 707 756 804 829 854 902 933 982 1055 1100 1156 1212
TURNS OPEN 5.0 4.0 3.0 2.0 4.0 3.0 2.5 2.0 1.0 3.5 2.5 1.5 0.5 3.5 2.5
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0
3000 BHP 0.57 0.64 0.70 0.76 0.87 1.00 1.01 1.03 1.19 1.25 1.28 1.33 1.59 1.64 1.68 1.91
RPM 582 624 665 705 754 802 827 852 900 930 955 1005 1078 1110 1169 1228
TURNS OPEN 5.0 4.0 3.0 2.0 4.0 3.0 2.5 2.0 1.0 3.5 3.0 2.0 0.5 0.0 3.0 2.0
MTR/SHEAVE 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0
3200 BHP 0.70 0.78 0.86 0.97 1.11 1.13 1.15 1.31 1.31 1.38 1.44 1.61 1.69 1.80 2.02
RPM 623 664 704 753 801 826 851 899 919 949 978 1036 1086 1137 1196
TURNS OPEN 4.0 3.0 2.0 4.0 3.0 2.5 2.0 1.0 4.0 3.5 3.0 2.5 1.5 3.5 2.5
MTR/SHEAVE 2.0 2.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0
3400 BHP 0.85 0.94 1.07 1.21 1.24 1.26 1.42 1.43 1.50 1.57 1.65 1.71 1.76 2.10 2.35
RPM 663 703 752 800 825 849 896 917 947 976 1020 1057 1094 1164 1223
TURNS OPEN 3.0 2.0 4.0 3.0 2.5 2.0 1.0 4.0 3.5 3.0 2.5 1.8 1.0 3.0 2.0
MTR/SHEAVE 2.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0
3600 BHP 1.01 1.16 1.31 1.34 1.37 1.54 1.55 1.63 1.70 1.78 1.87 2.06 2.15 2.40
RPM 702 751 798 823 848 894 915 945 974 1003 1031 1088 1133 1191
TURNS OPEN 2.0 4.0 3.0 2.5 2.0 1.0 4.0 3.5 3.0 2.5 2.0 1.5 3.5 2.5
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 3.0 5.0 5.0
3800 BHP 1.23 1.40 1.44 1.48 1.66 1.67 1.75 1.83 1.91 2.00 2.10 2.19 2.44
RPM 750 797 821 845 893 913 942 971 1000 1029 1086 1102 1160
TURNS OPEN 4.0 3.0 2.5 2.0 1.0 4.0 3.5 3.0 2.5 2.0 1.5 4.0 3.0
Bold Face Requires Larger 2 HP Motor
A=Std Static/Std Mtr;B=Low Static/Std. Mtr;C=High Static/Std. Mtr;D=Std Static/Large Mtr;E=High Static/Large Mtr
Units factory shipped with standard static sheave and drive at 2 turns open (3200 cfm @ 0.6 in. ESP). Other speeds require field selection.
ISO/AHRI rating point with standard static sheave and drive at 2 turns open (3200 cfm @ 0.6 in. ESP). Other speeds require field selection.
For applications requiring higher static pressures, contact your local representative.
Performance data does not include drive losses and is based on sea level conditions.
Do not operate in gray region. "na" = information not available at time of printing.
All airflow is rated at lowest Voltage if unit is dual Voltage rated, i.e. 208V for 208-230V units.
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, and 400 fpm by 0.12in. wg.
A
B
C
D
E
07/25/07
RLLH095 - Blower Performance Data
Belt Drive
JOHNSON CONTROLS
18

RL SERIES INSTALLATION MANUAL
Airflow in CFM with dry coil and clean air filter.
External Static Pressure (in. w.g.)
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.4 1.6 1.8 2.0
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0
BHP 0.80 0.88 0.96 1.07 1.09 1.11 1.13 1.28 1.36 1.48 1.67 1.86
RPM 707 748 789 830 857 882 907 931 956 1032 1115 1198
TURNS OPEN 5.0 4.0 3.0 2.0 5.0 4.5 4.0 3.5 2.5 1.0 4.5 3.5
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0
BHP 0.90 0.99 1.09 1.16 1.22 1.25 1.27 1.34 1.49 1.63 1.77 1.98 2.08
RPM 707 747 788 830 855 880 905 930 955 1031 1107 1166 1210
TURNS OPEN 5.0 4.0 3.0 2.0 5.0 4.5 4.0 3.5 2.5 1.0 4.0 3.0 2.5
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0
BHP 0.99 1.09 1.20 1.19 1.35 1.38 1.41 1.44 1.47 1.55 1.76 2.06 2.15 2.24
RPM 706 747 787 829 854 879 904 929 954 1004 1070 1137 1180 1224
TURNS OPEN 5.0 4.0 3.0 2.0 5.0 4.5 4.0 3.5 3.0 2.0 4.5 3.5 2.5 2.0
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0
BHP 1.05 1.18 1.30 1.32 1.47 1.51 1.54 1.58 1.61 1.85 1.90 2.12 2.22 2.32 2.51
RPM 706 746 787 828 853 878 903 928 953 1001 1044 1103 1134 1184 1233
TURNS OPEN 5.0 4.0 3.0 2.0 5.0 4.5 4.0 3.5 3.0 2.0 5.0 4.0 3.5 2.5 1.5
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0
BHP 1.11 1.25 1.39 1.53 1.59 1.63 1.67 1.71 1.75 1.99 2.08 2.16 2.27 2.37 2.64 2.75
RPM 705 756 786 827 853 878 902 927 951 999 1037 1075 1118 1161 1219 1255
TURNS OPEN 5.0 4.0 3.0 2.0 5.0 4.5 4.0 3.5 3.0 2.0 1.0 4.5 3.5 3.0 2.0 1.5
MTR/SHEAVE 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 3.0
BHP 1.31 1.46 1.61 1.68 1.74 1.79 1.84 1.89 2.13 2.17 2.20 2.43 2.68 2.76 2.84 2.94
RPM 745 786 826 852 877 901 926 950 998 1023 1047 1100 1157 1188 1231 1275
TURNS OPEN 4.0 3.0 2.0 5.0 4.5 4.0 3.5 3.0 2.0 1.0 5.0 4.0 3.0 2.5 1.5 1.0
MTR/SHEAVE 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 3.0 3.0 3.0 3.0 3.0 3.0
BHP 1.52 1.69 1.85 1.88 1.90 1.96 2.02 2.26 2.30 2.34 2.57 2.84 2.91 2.97 3.28
RPM 785 825 851 876 900 925 949 997 1018 1039 1098 1155 1184 1214 1270
TURNS OPEN 3.0 2.0 5.0 4.5 4.0 3.5 3.0 2.0 1.0 5.0 4.5 3.5 2.5 2.0 1.0
A=Std Static/Std Mtr;B=Low Static/Std. Mtr;C=High Static/Std. Mtr;D=Std Static/Large Mtr;E=High Static/Large Mtr
Units factory shipped with standard static sheave and drive at 3.0 turns open (3600 cfm @ 0.9 in. ESP). Other speeds require field selection.
ISO/AHRI rating point with standard static sheave and drive at 2.0 turns open (3600 cfm @ 1.0 in. ESP). Other speeds require field selection.
For applications requiring higher static pressures, contact your local representative.
Performance data does not include drive losses and is based on sea level conditions.
Do not operate in gray region. "na" = information not available at time of printing.
All airflow is rated at lowest Voltage if unit is dual Voltage rated, i.e. 208V for 208-230V units.
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, and 400 fpm by 0.12in. wg.
3600
3800
4000
4200
Rated CFM
3000
3200
3400 A
B
C
07/23/07
RLLH120 - Blower Performance Data
Belt Drive
JOHNSON CONTROLS
19

RL SERIES INSTALLATION MANUAL
Airflow in CFM with dry coil and clean air filter.
External Static Pressure (in. w.g.)
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5
MTR/SHEAVE 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0
BHP 0.29 0.33 0.38 0.37 0.45 0.47 0.50 0.54 0.58 0.64 0.69 0.71 0.73 0.84 0.95 1.05
RPM 437 478 518 539 586 617 647 677 707 736 765 775 809 843 876 909
TURNS OPEN 4.0 3.0 2.0 1.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 3.5 3.0 2.5 2.0 1.5
MTR/SHEAVE 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.38 0.44 0.43 0.52 0.56 0.59 0.63 0.68 0.73 0.78 0.81 0.83 0.94 1.05 1.13 1.20
RPM 477 517 538 585 615 645 675 704 734 763 774 807 841 874 907 940
TURNS OPEN 3.0 2.0 1.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 3.5 3.0 2.5 2.0 1.5 1.0
MTR/SHEAVE 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.49 0.50 0.59 0.63 0.67 0.72 0.77 0.83 0.89 0.91 0.94 1.05 1.17 1.24 1.32
RPM 516 537 584 614 643 673 702 732 761 772 806 839 871 905 938
TURNS OPEN 2.0 1.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 3.5 3.0 2.5 2.0 1.5 1.0
MTR/SHEAVE 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.56 0.66 0.71 0.75 0.81 0.86 0.92 0.99 1.02 1.05 1.17 1.29 1.37 1.44
RPM 536 582 612 642 671 700 729 758 770 804 837 869 903 936
TURNS OPEN 1.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 3.53.02.52.01.51.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.72 0.78 0.83 0.89 0.95 1.02 1.09 1.12 1.16 1.29 1.41 1.49 1.57
RPM 581 611 640 669 698 727 756 768 802 835 867 900 933
TURNS OPEN 5.0 4.5 4.0 3.5 3.0 2.5 2.0 3.5 3.0 2.5 2.0 1.5 1.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.83 0.90 0.97 1.03 1.11 1.18 1.14 1.27 1.40 1.53 1.61 1.70
RPM 610 639 668 697 726 754 767 800 833 865 898 930
TURNS OPEN 4.5 4.0 3.5 3.0 2.5 2.0 3.53.02.52.01.51.0
MTR/SHEAVE 1.0 1.0 1.0 1.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
BHP 0.97 1.04 1.11 1.19 1.23 1.30 1.37 1.51 1.64 1.73 1.82
RPM 637 666 695 725 731 765 798 830 862 895 927
TURNS OPEN 4.0 3.5 3.0 2.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0
Bold Face Requires 1.5 HP Motor
A=Std Static/Std Mtr;B=Low Static/Std. Mtr;C=High Static/Std. Mtr;D=Std Static/Large Mtr;E=High Static/Large Mtr
Units factory shipped with standard static sheave and drive at 3 turns open (2600 cfm @ 0.6 in. ESP). Other speeds require field selection.
ISO/AHRI rating point with standard static sheave and drive at 3 turns open (2600 cfm @ 0.6 in. ESP). Other speeds require field selection.
For applications requiring higher static pressures, contact your local representative.
Performance data does not include drive losses and is based on sea level conditions.
Do not operate in gray region. "na" = information not available at time of printing.
All airflow is rated at lowest Voltage if unit is dual Voltage rated, i.e. 208V for 208-230V units.
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, and 400 fpm by 0.12in. wg.
2800
3000
3200
3400
Rated CFM
2200
2400
2600 A
B
E
07/25/07
RLLV080 - Blower Performance Data
Belt Drive
JOHNSON CONTROLS
20
