Johnson Level & Tool 40-6005 User manual

©2011 Johnson Level & Tool 1
Laser Dista ce Measure
Model No. 40-6005
Instruction Manual
Congratulations on your choice of this Laser Distance Measure. We
suggest you read this instruction manual thoroughly before using the
instrument. Save this instruction manual for future use.
This is a Class II laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
The laser also complies with EMC Test according to EN61000-6-3;
2001+A11:2004, EN 6100-6-1:2011, EN 6100-4-2, EN 61000-4-3,
EN 60825, FCC Test according to PART 15.
4533H-English_Manuals 4/1/11 10:49 AM Page 1

2©2011 Johnson Level & Tool
Table of Contents
1.Kit Contents . . . . . . . . . pg. 2
2.Safety Information . . . pg. 2-3
3.Location/Content of
Warning Labels . . . . . . . pg. 3
4.Location of Parts/
Components . . . . . . . pg. 4-5
5.Start Up - Battery Installation
Instructions . . . . . . . . . . pg. 7
6.Using the Product . . pg. 8-19
7.
Technical Specifications pg. 20
8.Product Warranty. . . . . pg. 21
9.Product Registration . . pg. 22
1. Kit Contents
Description for Model 40-6005 Qty.
Laser Distance Measure 1
Protection Cover 1
Wrist Strap 1
“AA” Alkaline Batteries 2
Instruction Manual 1
Soft-Sided Pouch 1
2. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may result in bodily injury.
CAUTION!
Class II Laser Product
Max. Power Output: ≤1mW
Wavelength: 640-660nm
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EX OSURE.
4533H-English_Manuals 4/1/11 10:49 AM Page 2

©2011 Johnson Level & Tool 3
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
stare into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the battery when storing the tool for an extended time (more than 3 months) to
avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
3. Location/Content of Warning Labels
4533H-English_Manuals 4/1/11 10:49 AM Page 3

4©2011 Johnson Level & Tool
4. Location of art/Components
1
28
9
10
11
13
14
12
3
4
5
6
7
1. LCD Display
2. Add/Unit of Measure
3. Measure Button
4. Measure Function
Area
Volume
Stake-Out
5. Countdown Measure/
Memory Recall
6. Wrist Strap Bracket
7. Laser Emitting Window
8. Subtract/Back-Light
9. Indirect Measurement/Pythagoras
10. Power Button/Clear/Escape
11. Measuring Reference Position/
Continuous Laser Mode
12. Receiver Window
13. Battery Cover
14. Corner Measurement
Extension Piece
4533H-English_Manuals 4/1/11 10:49 AM Page 4

©2011 Johnson Level & Tool 5
1. Active Laser Indicator
2. Indirect Measuring
Single Pythagoras
Double Pythagoras
Double Pythagoras
(Partial Height)
3. Measuring Function
Area Measuring
Volume Measuring
4. Measurement Reference Position
5. Add and Subtract
6. Maximum Display
7. Minimum Display
8. Stake Direction Indicator
9. Main Screen and
Units of Measure
10. Countdown Measuring Timer
11. Memory Counter
12. Battery Status
13. Sub-Screen and Units
of Measure
4533H-English_Manuals 4/1/11 10:49 AM Page 5

6©2011 Johnson Level & Tool
Measuring Reference
Range
Range is specified between a minimum 2-inches to a maximum of
230-feet with an accuracy of 1/16”. Longer ranges will be found by the
instrument but a variance in the accuracy may exist. At night or dusk
the range may be greater than during daylight or if the target has poor
reflective properties.
Target Surfaces
Measuring errors may occur when aiming at surfaces composed
of colorless liquids (e.g. water), glass, Styrofoam or similar semi-
permeable surfaces. Aiming at high gloss surfaces may deflect the
laser beam and lead to measurement errors.
Hazards of Use
Be aware that errors in distance measurements may occur if the
instrument is defective or has been dropped, been misused or
modified.
Note
Conduct periodic test measurements to ensure the instrument is
measuring accurately and consistently. This is most important if the
instrument has been exposed to abnormal use. Always confirm
accuracy before and during important measurements. Keep the laser
distance measure optic clean and inspect for damage.
4533H-English_Manuals 4/1/11 10:49 AM Page 6

©2011 Johnson Level & Tool 7
5. Start Up - Battery Installation
1. Remove battery compartment lid.
2. Insert 2-“AA” batteries observing
correct polarity.
3. Close battery compartment lid.
4. Battery status will be shown in start
up screen.
5. When the icon appears there are
approximately 1,000 measurements
remaining.
6. Replace batteries when the icon flashes on the screen.
7. Remove old batteries and replace with new “AA” alkaline batteries
following steps 1-3 above.
Note
Use only alkaline batteries. If the instrument will not be used for an
extended time, remove the batteries to protect against corrosion.
ower Button
Press Power Button to power up.
Press and hold Power Button to power off.
Automatic Shutoff
Laser will turn off after 30 seconds
Unit will turn off after 3 minutes of inactivity
4533H-English_Manuals 4/1/11 10:49 AM Page 7

8©2011 Johnson Level & Tool
6. Using the roduct
Measuring
Measuring Modes
Your Laser Distance Measure has four
measuring modes:
Length
Area/Square
Volume/Cube
Indirect/Pythagoras
Units of Measure
This instrument has five units of measure. The desired unit of measure
can be set by pressing and holding for two seconds. The main
screen will display square feet/square meters or cubic feet/cubic
meters in a decimal format when calculating area and volume.
The following units can be set:
Distance Area Volume
1. 0.000 m 0.000 m20.000 m3
2. 0.00 ft 0.00 ft20.00 ft3
3. 0’0” 1/32 0.00 ft20.00 ft3
4. 0.00 in 0.00 ft20.00 ft3
5. 0 1/32 in 0.00 ft20.00 ft3
4533H-English_Manuals 4/1/11 10:49 AM Page 8

©2011 Johnson Level & Tool 9
Measurement Reference osition
Be sure to adjust the measuring reference position prior to engaging a
measuring calculation mode. Press and release to scroll through
the reference point options
Front
Rear
Corner Extension Piece
Single Distance Measuring
Press to turn power on.
Direct Laser Beam to Target.
Press and release .
Keep unit still until measurement has been
recorded. Laser beam will shut off once
measurement has been recorded.
Recorded measurements (up to 20 measurements will be stored
automatically and available for recall, see Memory Recall page 18).
Press and release to clear screen.
Press and hold to power down unit
4533H-English_Manuals 4/1/11 10:49 AM Page 9

10 ©2011 Johnson Level & Tool

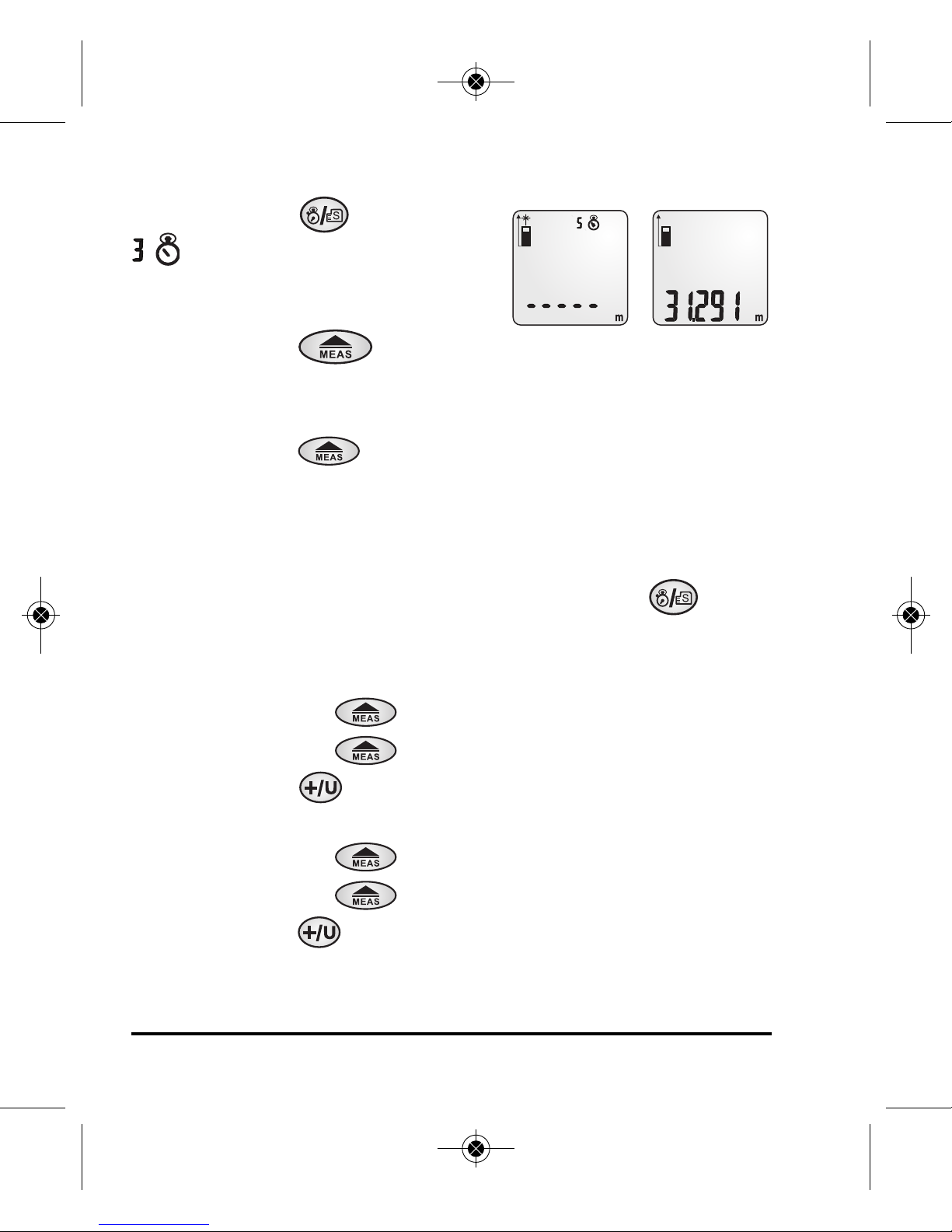

Measuring with Countdown Timer
Press and release .
icon will appear on screen with
default setting of three second
countdown timer.
Press and release to activate
laser (if inactive.)
Direct the laser beam towards the target and hold steady.
Press and release to activate the countdown timer.
Measurement will be recorded on screen.
Repeat these steps for each measurement. Countdown measuring may be
used during any measuring function (e.g. Pythagorean, area, volume, etc).
To extend the time from three seconds press and release until
you reach desired time. Timer can be set up to 15 seconds.
Adding or Subtracting
Press and release the button to activate laser.
Press and release the button to record first measurement.
Press and release (first measurement moves to sub value position
on screen and a “+” sign temporarily appears).
Press and release the button to activate laser. (If inactive.)
Press and release the button to record second measurement.
Press and release to add measurement 1 (stored in sub value
position) and measurement 2 together.
4533H-English_Manuals 4/1/11 10:49 AM Page 10

©2011 Johnson Level & Tool 11
To add another measurement to sum (repeat same measurement
sequence) to tally.
To subtract a value in the tally sequence press button.
Continuous Measuring
This mode will take continuous
measurements as you move closer or
further away from the target.
Minimum working range is 2-inches.
Maximum working range is 230-feet.
Press and hold the button to activate continuous
measuring mode.
To pause Continuous Measuring mode press or .
To resume Continuous Measuring mode press or to exit
Continuous Measuring mode press .
4533H-English_Manuals 4/1/11 10:49 AM Page 11

12 ©2011 Johnson Level & Tool
Minimum / Maximum Measurements
As the laser beam is scanned across
the measuring surface, the
maximum and minimum distance is
simultaneously recorded in the sub
value positions on the screen as the
laser is scanning the targeted surface.
Area Measurement (Square2)
Press Power Button to turn power on.
Press button to enter Area mode.
A rectangle icon will appear on the upper left side of screen.
Observe flashing line for each required measurement (Length & Width).
Follow flashing line instructions on screen to measure width & length.
Press and release button to record measurements.
Area calculation will be presented in sub value position at top of screen.
Note: Unit of measure for area calculation will be displayed in decimal
form in square feet or square meters on main screen.
4533H-English_Manuals 4/1/11 10:49 AM Page 12

©2011 Johnson Level & Tool 13

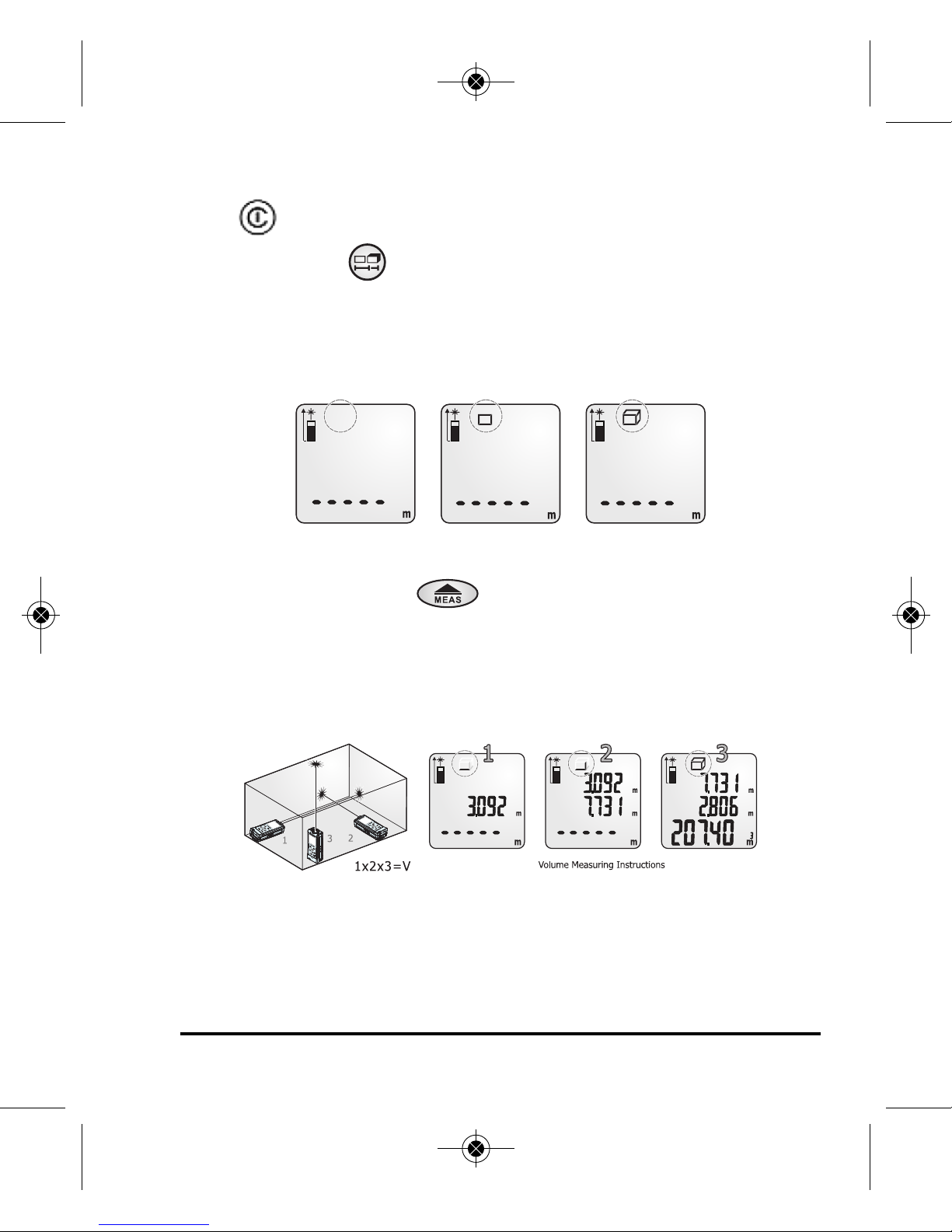

Volume Measurement (Cube3)
Press Power Button to turn power on.
Press and release button two times.
A 3- dimensional rectangle icon will appear on the upper left side of
screen. Observe flashing line for each required measurement (Length,
Height & Width).
Follow flashing line instructions on screen to measure length, width &
height. Press and release button to record measurements.
Volume calculation will be presented in sub value position at top of
screen.
Note: Unit of measure for cube calculation will be displayed in decimal
form in cubic feet or cubic meters on main screen.
4533H-English_Manuals 4/1/11 10:49 AM Page 13

14 ©2011 Johnson Level & Tool
Indirect Measurements ( ythagorean Methods)
All Calculations are based on Pythagorean Theorem a2+b2=c2.
This function allows for the measurement of hard to reach jobs.
Follow the order of the flashing lines for each required measurement.
Note: For accurate measurements the instrument’s position must be
held constant. For example, note the position of your hand when
taking first measurement. Do not move your hand when preparing to
take the second measurement. Simply pivot your wrist (keeping
instrument in same position) to align the next target. Then record
next measurement.
First Press or Single
Pythagoras
Calculates distance between
Point 1 and Point 2
Second Press or Double
Pythagoras (Summary)
Calculates distance between
Point 1 and Point 3
Third Press or Double
Pythagoras (Partial Measurement)
Calculates distance between
Point 1 and Point 2
4533H-English_Manuals 4/1/11 10:49 AM Page 14

©2011 Johnson Level & Tool 15
Indirect Measurement 1 (2 shot measurements FULL Height)
Press and release Indirect Measure button once to enter mode.
Position instrument by observing flashing line on screen. (Base of triangle)
Press and release Measure button to record first measurement.
Hold instrument position and pivot to aim laser at second target
observing flashing line on screen.
Press and release Measure button to record second measurement.
Pythagoras calculation (full height) will be presented in main screen
position at bottom.
Indirect Measurement 2 (3 shot measurements FULL Height)
Press and release Indirect Measure button twice to enter Mode.
Aim laser at target-observe flashing lines on screen.
Press and release Measure button to record first measurement.
Hold instrument position and pivot to aim laser at second target
observing flashing line on screen.
Press and release Measure button to record second measurement.
Hold instrument position and pivot to aim laser at third target.
Press and release Measure button to record third measurement.
Pythagoras calculation (full height) will be presented in main screen
position bottom.
4533H-English_Manuals 4/1/11 10:49 AM Page 15

16 ©2011 Johnson Level & Tool
Indirect Measurement 3 (3 shot measurements ARTIAL Height)
Press and release Indirect Measure button three times to enter mode.
Aim laser at targeted measuring surface observe flashing line on screen.
Press and release Measure button to record first measurement.
Hold instrument position and pivot to aim laser at second target
observing flashing line on screen.
Press and release Measure button to record second measurement.
Hold instrument position and pivot to aim laser at third target.
Press and release Measure button to record third measurement.
Pythagoras calculation (partial height) will be presented in main screen
position at bottom.
Note: Unit of measure for each Pythagoras function is capable of being
displayed in decimal (feet, inches or metric) or inches and feet to 1/32.
Simply press and hold to scroll through each unit of measure.
Stake-out
Stake-out mode is designed to mark off repetitive
equal distances. For example, fence post installation
or framing.
1. To use Stake-out, you have to set one value or “stake” in memory.
2. Turn the unit on.
3. Press and release three times to enter the first stake setting.
4. Press to increase your value.
5. Press to decrease your value.
6. Hold for two seconds to shift to positions.
7. Once value is set, press to enter.
4533H-English_Manuals 4/1/11 10:49 AM Page 16

©2011 Johnson Level & Tool 17
Enter Continuous Measuring Mode by pressing and holding .
An arrow will guide direction. This function can be stopped by
pressing the red power button .
Memory Recall
This instrument stores your last 20 measurements in order recognizing
their unit of measure and measuring mode.
Press and hold the button.
Press or buttons to scroll up or down through the recorded
measurements.
Indoor & Outdoor Measurements
This model is designed to take measurements indoors under normal
settings. The measuring surfaces and ambient light are critical factors
to the quality of measurement (indoors an outdoors). Outdoor
measurement capability may be limited due to sunlight/UV ray
interference. Please note that in some situations the unit may have
difficulty reading the surface you try to measure if lighting or sunlight
is intense and/or the surface being measured does not reflect the
laser beam appropriately.
Backlight
Press and hold the button for two seconds
to activate backlight. Repeat this step to turn off
backlight.
4533H-English_Manuals 4/1/11 10:49 AM Page 17

18 ©2011 Johnson Level & Tool
Measurement Errors
Error messages will appear if the unit’s receiver is not getting a
sufficient laser return signal.
Common surfaces that could cause an error reading:
- Water or other fluids
- Translucent to clear surfaces like glass or acrylic
- Porous or dark surfaces may require longer reading times or
cause an error reading
- Moving surfaces or objects such as curtains
- Highly reflective or angled surfaces may deflect the laser
beam signal
Error Codes
Code Description Solution
Err01 Distance is outside of measuring range Measure in a shorter
distance or longer distance
Err02 Reflected signal is too weak Measure a better surface
Err03 Out of display range Maximum Value: 99,999
Split up measurement area
into smaller segments.
Err04
Pythagorean theorem calculation error Check and verify value or the
sequence of measurements
is correct
Err05 Low Battery Install a new battery
Err06
Temperature is outside of working range Measure in an environment
within specified working
temperature range
Err07 Ambient light is too strong Measure in a darker place
(shadow target)
4533H-English_Manuals 4/1/11 10:49 AM Page 18

©2011 Johnson Level & Tool 19
Tips from the ro’s
Take more than one measurement in critical situations where accuracy
needs to be greater than an estimation measurement. Take 3-4
measurements from the same position to compare consistency of each
reading. Prior to important measurements verify that the instrument is
in proper working order and take sample measurements to of a known
distance to verify accuracy.
To accurately measure from the rear of the instrument, use a scrap
piece of drywall or other flat material. Extend the material off the
corner and butt the LDM up to the material. Then take measurement.
Place a white sheet of paper over the targeted measuring surface if
error message Err02 occurs to improve the return signal.
4533H-English_Manuals 4/1/11 10:49 AM Page 19

20 ©2011 Johnson Level & Tool
7. Technical Specifications
Measure Range* 2” - 230’
Accuracy* ± 1/16”
Measure Speed* 0.5 seconds
Laser Type 650 nm, ± 10nm, Class II, ≤1mW
Power Supply 2 - “AA” Alkaline Batteries
Battery Life 10,000 measurements
Dimensions 4.33” x 1.77” x 1.18”
(110 x 45 x 30 mm)
Working Temperature 23°F to 104°F (-5°C to +40°C)
Storage Temperature -4°F to 140°F (-20°C to +60°C)
Auto Shut-off Laser 30 seconds
Auto Shut-off Main Power 3 minutes
*The working range and accuracy is dependent on how well laser
light is reflected from the surface for the target and with increased
brightness of the ambient light intensity measuring accuracy may
deteriorate.
4533H-English_Manuals 4/1/11 10:49 AM Page 20
