Jonix steel 1C User manual

MADE IN ITALY
JONIX steel
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY
USE AND MAINTENANCE MANUAL

These instructions are translated from Italian (the original language).
JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement
to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual
without JONIX srl’s consent.

3
JONIX steel
TABLE OF CONTENTS
1 - GENERAL INFORMATION 5
1.1 - SERIAL NUMBER PLATE 5
1.2 - LIABILITY 5
1.3 - SYMBOLS 6
2 - WARNINGS AND GENERAL PROHIBITIONS 6
3 - THE OPERATING SYSTEM 8
4 - TECHNICAL DATA 10
4.1 - COMPONENT DESCRIPTION JONIX steel 1C 10
4.1.1 - Technical features JONIX steel 1C 10
4.2 - COMPONENT DESCRIPTION JONIX steel 2C/4C 11
4.2.1 - Technical features JONIX steel 2C/4C 11
4.3 - COMPONENT DESCRIPTION JONIX steel 2F/4F 12
4.3.1 - Technical features JONIX steel 2F/4F 12
4.4 - SPARE PARTS AVAILABLE ON ORDER 12
5 - RECEPTION, TRANSPORT AND STORAGE 13
5.1 - PACKAGING 13
5.2 - HANDLING AND TRANSPORT 13
5.3 - INSPECTION UPON RECEPTION 13
5.4 - STORAGE 13
5.5 - HANDLING DEVICE IN OPERATING CONDITIONS 13
6 - INSTALLATION AND COMMISSIONING 14
6.1 - SAFETY STANDARDS 14
6.2 - GETTING STARTED 16
6.3 - CHOOSING THE INSTALLATION SITE 16
6.4 - INSTALLATION OF THE DEVICE 16
6.4.1 - Type of fixing 18
6.4 - ELECTRICAL CONNECTIONS 19
6.5 - ELECTRIC POWER SUPPLY 19
6.7 - USING THE DEVICE 20
7 - MAINTENANCE 21
7.1 - WARNINGS 21
7.2 - ROUTINE MAINTENANCE 21
7.2.1 - Cleaning the Ionising Tubes JONIX steel 1C 22
7.2.2 - Cleaning the Ionising Tubes JONIX steel 2C / 4C 25
7.2.3 - Cleaning the Ionising Tubes JONIX steel 2F / 4F 28
7.2.4 - Cleaning the Filter 31
7.2.5 - External cleaning of the equipment 32
7.3 - SPECIAL MAINTENANCE 33
7.3.1 - Replacing the Ionising Tubes JONIX steel 1C 33
7.3.2 - Replacing the Ionising Tubes JONIX steel 2C / 4C 36
7.3.3 - Replacing the Ionising Tubes JONIX steel 2F / 4F 39

4
JONIX steel
Thank you purchasing the JONIX steel device.
This manual contains information and what is deemed necessary for transporting, installing,
using and maintaining the JONIX steel sanitation module.
Improper installation of the device and/or failure to comply with the instructions in this manual,
may invalidate the warranty that the Manufacturer issues for its products.
The Manufacturer is not liable for any direct and/or indirect damage caused by incorrect installation
or damage caused by the units installed by inexperienced and/or unauthorised staff. At the time of
purchase, check that the device is intact and complete.
The Manufacturer declines any liability in case of personal injury or property damage resulting
from any improper use of the device or from the failure to observe the use and safety instructions
specified in this manual. In any such case, any warranty claim will be void.
Any complaints must be submitted in writing within 8 days of receiving the goods.
For more information, download of the manual or video tutorial, we invite you to visit
www.jonixair.com.
8 - OPERATIONAL CHECK AND TROUBLESHOOTING 43
8.1 - LED SIGNAL FOR MALFUNCTION (JONIX steel 2C/4C/2F/4F) 44
9 - DISPOSAL 45
WARRANTY CONDITIONS 46
EC DECLARATION OF CONFORMITY 47
ATTACHMENTS
EXPLODED JONIX steel 1C 48
EXPLODED JONIX steel 2C/4C 49
EXPLODED JONIX steel 2F/4F 50
OVERALL DIMENSIONS JONIX steel 1C 51
OVERALL DIMENSIONS JONIX steel 2C/4C 52
OVERALL DIMENSIONS JONIX steel 2F/4F 53
ELECTRICAL DIAGRAMS JONIX steel 1C/2C/4C/2F/4F 54

5
JONIX steel
Fabbricante JONIX S.R.L.
Viale Spagna, 31/33
35020 Tribano (PD)
Nome del
prodotto
Descrizione del
prodotto
Codice
prodotto
Numero di
serie
Alimentazione
Max Corrente
assorbita
Dispositivo per la sanificazione attiva
e purificazione dell’aria
70MICFxx
xxxxxxxxxxxx
xx A
230V / ~1 / 50Hz
REF
SN
JONIX
steel
The equipment described in this manual is provided with
a plate containing the equipment and Manufacturer data:
1.1 SERIAL NUMBER PLATE
The ionisation module for professional environments
JONIX steel is in compliance with Directives 2006/42/
CE, 2011/65/UE, 2014/30/UE, 2014/35/UE and
subsequent amendments.
1 - GENERAL INFORMATION
IMPORTANT WARNING
The JONIX steel device is designed and made to sanitise the air in
residential environments that are incompatible with toxic and flammable
gases. It is therefore strictly forbidden to use the device in environments
where the air is mixed with and/or altered by other gaseous compounds
and/or solid particles. Using the device for purposes other than those
intended and that do not comply with those described in this manual, will
immediately relieve the manufacturer and its distributors from any direct
and/or indirect liability.
Failure to comply with the instructions contained in this Use and maintenance manual relieves the
Manufacturer from any liability. For any information not included or that cannot be deduced from
the Manual, consult the Manufacturer directly.
JONIX srl
Viale Spagna 31/33
35020 Tribano - PD - Italy
http://www.jonixair.com
In particular, if equipment maintenance is carried out in a way that is not in compliance with
the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is
relieved from any liability inherent to safety of persons and faulty operation of the equipments.
1.2 LIABILITY

6
JONIX steel
This instruction manual is an integral part of the device and therefore must be kept
carefully and must ALWAYS accompany the device, even in the event that it is sold
to another owner or user or transferred to another facility. In the event that it is
damaged or lost contact JONIX srl for another copy or download the document
from www.jonixair.com.
Repairs and maintenance work must be carried out by JONIX srl authorised staff
or by qualified staff according to the provisions set out by this manual. Do not alter
or tamper with the device as it can lead to hazards and the manufacturer of the
device shall not be liable for any damage caused.
After removing the packaging check that the contents are intact and complete. In
the event of a noncompliance please contact the Company that sold you the device.
2 - WARNINGS AND GENERAL PROHIBITIONS
HAZARD: It refers to dangerous situations that may result from the use of the device,
in order to ensure personal safety.
WARNING: It refers to integrations or suggestions concerning the proper use of the
device.
FORBIDDEN: This symbol refers to operations that must be avoided under any
circumstances, and hence forbidden.
HIGH VOLTAGE HAZARD!
Do not open or remove any doors or protections before disconnecting the voltage
supply.
WARNING!
It is mandatory to use protective gloves.
Please pay utmost attention to the following symbols and their meaning. They emphasise specific
information, such as:
1.3 SYMBOLS
WASTE FROM ELECTRICAL AND ELECTRONIC EQUIPMENT.
The crossed-out wheelie bin symbol on the equipment label indicates that the
equipment is compliant with the Waste Electrical and Electronic Equipment (WEEE)
Directive. Disposing of the equipment freely in the environment or illegally disposing of
the equipment are punishable by law.

7
JONIX steel
This device is not intended for use by people (including children) with reduced
physical, mental or sensory capabilities or without experience and knowledge,
unless they are supervised or are given instructions to use the appliance by a
person responsible for their safety. Take suitable precautions to prevent children
from playing with the device.
Do not carry out any maintenance or cleaning operations without having first
disconnected the device from the mains, by turning the main system switch to
“OFF”.
Do not touch the device if you are barefoot and with parts of the body that are wet
or damp.
Do not alter the safety or adjustment devices without prior authorisation and
instructions from the manufacturer of the device.
Please note that the use of products that require electricity, involves the observance of some
crucial safety rules such as:
When installing, commissioning and operating this product, it is mandatory to
observe the requirements and instructions specified in this manual.
JONIX srl disclaims any liability for damage caused to people, animals or property
due to installation, adjustment and maintenance errors or by improper use.
Do not pull, detach or twist the electrical wires coming out of the device, even
when it is disconnected from the mains.
Do not open the panels for accessing the internal parts of the device without
having first turned the system switch to “OFF”.
Do not stand, sit and/or rest any type of object on the device.
Not dispose of or leave the packaging materials within reach of children because
it can be potentially dangerous.
Do not spray or throw water or other liquids directly onto the device.

8
JONIX steel
H2O, O3, VOC
electric
field
< 3000W
free electron
neutral molecule
(O2, CO2, H2O)
gas molecule
(O2, O3, NO, NO2)
stable negative
ion
(O, O2, O3)
BACTERIA
FUNGI
MOLDS AND YEASTS
M
I
C
R
O
B
I
C
I
D
A
L
A
C
T
I
O
N
free radical
OH, HO2, HO2- •
JONIX steel device:
• reducesandeliminatescontinuouslythebacterialloadinagivenambientairandonthe
surfacesofindoorareas;
• constantlydecomposesVolatileOrganicCompounds(VOC);
• eliminatesodours;
• iscompatiblewithenvironmentsthatrequireon-goingmonitoringofaircontamination.
Use:
• veterinary sector: waiting rooms, patients' rooms, infectious diseases ward, surgical
rooms.
• foodsector:coldstoragecells,workingareas,packagingareas,blastchillingcells.
This sanitization device, by exploiting the physical process of ionisation, promotes the controlled
formation of particular ionic species (electrically charged species) in the air, through an
electrostatic field that simulates the natural process that normally occurs through solar radiation,
mechanically or by means of other physical phenomena.
The particular ionic species produced have proved to be particularly effective as sanitizing agents
in the air and on surfaces, moreover are historically and scientifically proven to be beneficial in
people, especially those with a negative electrical charge (arising from individual or small groups
of molecules that receive an electron).
3-THEOPERATINGSYSTEM
Staphilococcus
Aureus
Abatement > 98%*
Aspergillus
Niger
Abatement > 96%*
Saccharomyces
Cerevisiae
Abatement > 99%*
The device has a safety switch, positioned in such a way that when the protection cover (also
accidental) is opened, the power supply to the ionizing units and the fan is removed.

9
JONIX steel
JONIX steel 1C
JONIX steel 4C
JONIX steel 4F
JONIX steel 2C
JONIX steel 2F
JONIX steel sanitizing activity is compatible with human presence.
Airborne and surfaces contamination reduction can be verified through environmental
analysis: air sampling with SAS method, surfaces and equipment sampling through
contact plates method. In order to obtain a comparative analysis it is suggested to
carry out three cycles of sampling in three different days of the week before the devices
are started. They should be selected on the basis of productive and representative
characteristics of the risks of increasing microbial contaminations. The same cycle
has to be repeated under the same conditions, with the same sampling methods and
in the same points, starting from the 24 hours after the installation.

10
JONIX steel
06
05
05
07
10
01
11
02
03
01
09
04
08
JONIX steel 1C
4 - TECHNICAL DATA
01 Cover fixing screw 07 Plate in AISI 304 stainless steel
02 Filter cover 08 Switch button
03 AISI 304 stainless steel filter 09 Electrical compartment
04 Cover in AISI 304 stainless steel 10 Power cable exit
05 Pre-punched slots wall plate 11 ON/OFF luminous switch
06 Ionising tube and earthing bracket

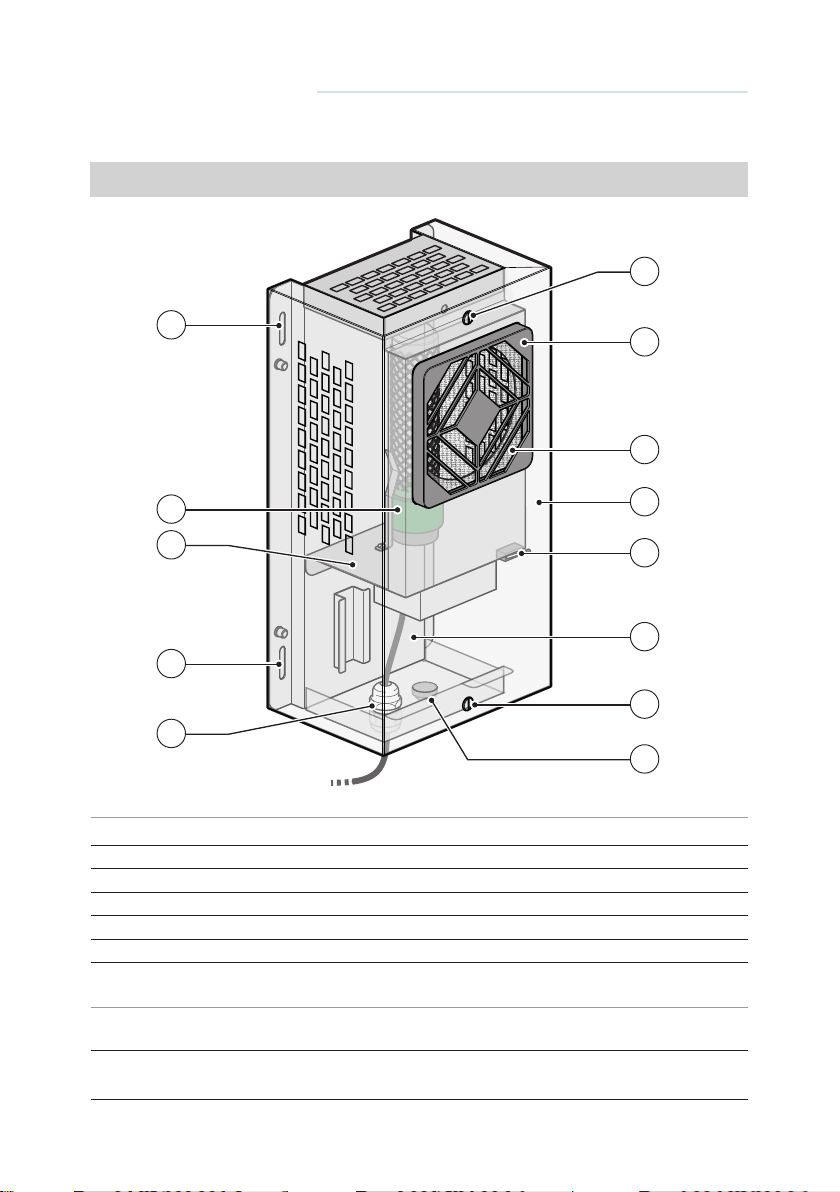

4.1 COMPONENT DESCRIPTION JONIX steel 1C
Model Dimensions
(WxDxH) [mm] Power Supply Max power absorption [W] Air flow rate [m3/h] Weight [Kg]
JONIX steel 1C 190 x 150 x 375 230 V / ~1 / 50Hz 0,14 160 5
4.1.1 Technical features JONIX steel 1C

11
JONIX steel
07
06
06
08
10
15
01
13
14
12
11
02
03
01
09
05
04
JONIX steel 2C
JONIX steel 4C
01 Cover fixing screw 08 Plate in AISI 304 stainless steel
02 Filter cover 09 Electrical compartment
03 AISI 304 stainless steel filter 10 Power cable exit
04 Switch button 11 ON/OFF luminous switch
05 Cover in AISI 304 stainless steel 12 Alarm reset button
06 Pre-punched slots wall plate 13 Led signal for malfunction
07 Ionising tube and earthing bracket
JONIX steel 2C: n°2 - JONIX steel 4C: n°4
14 Led signal for maintenance need
15 Led signal for correct functioning

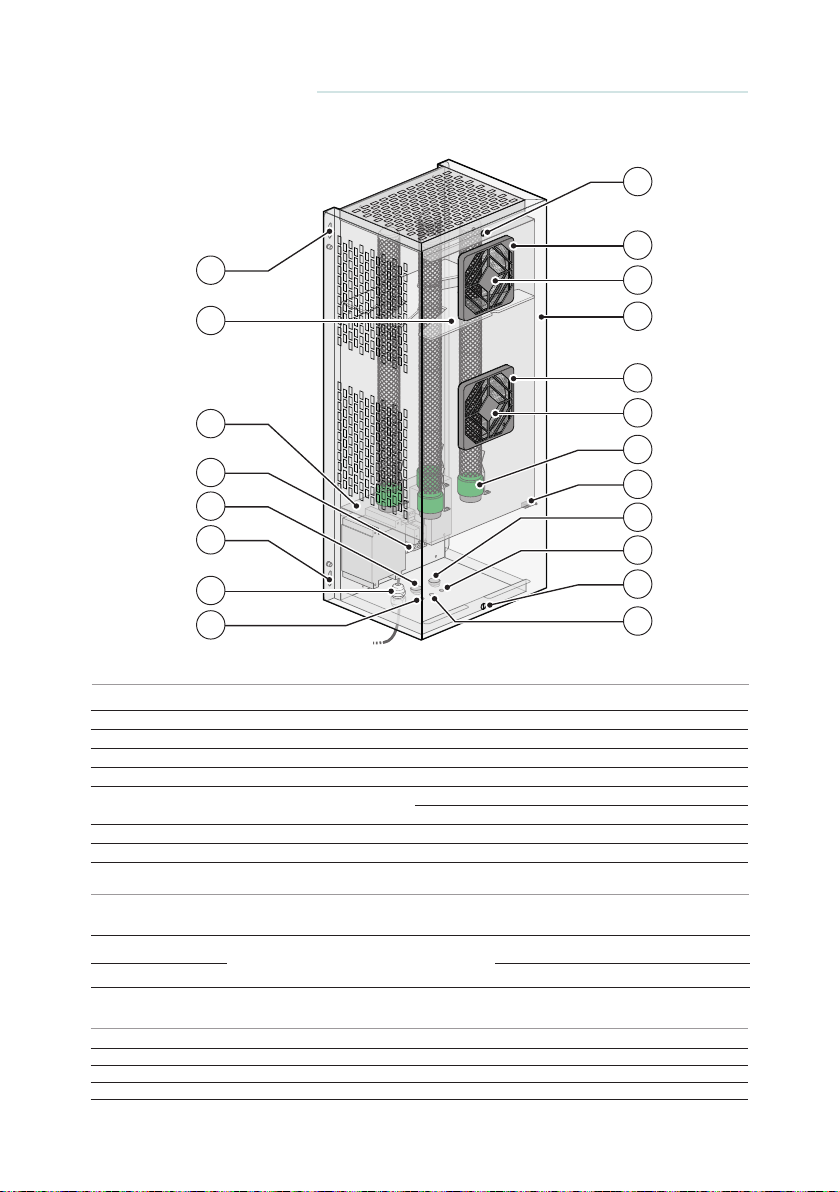

4.2 COMPONENT DESCRIPTION JONIX steel 2C / 4C
Model Dimensions
(WxDxH) [mm] Power Supply Max power absorption [W] Air flow rate [m3/h] Weight [Kg]
JONIX steel 2C 310 x 260 x 400 230 V / ~1 / 50Hz
0,15 160 9
JONIX steel 4C 0,15 160 9
4.2.1 Technical features tecniche JONIX steel 2C / 4C

12
JONIX steel
16
13
07
05
05
08
10
14
01
15
11
12
01
06
09
02
02
03
03
04
JONIX steel 2F
JONIX steel 4F
4.3 COMPONENT DESCRIPTION JONIX steel 2F / 4F
Model Dimensions
(WxDxH) [mm] Power Supply Max power absorption [W] Air flow rate [m3/h] Weight [Kg]
JONIX steel 2F 310 x 260 x 750 230 V / ~1 / 50Hz 0,29 320 14
JONIX steel 4F 0,29 320 15
4.3.1 Technical features tecniche JONIX steel 2F / 4F
Code Description Notes
71KT000002 GENERATORS 175 SPARE PART KIT N° 2 Ionising tubes (short)
71KT000002 N° 2 GENERATORS 520 SPARE PART KIT N° 2 Ionising tubes (long)
JX40000002 PROTECTION FUSE 1 quick blow glass fuse 5x20 1A ‘F’
4.4 SPARE PARTS AVAILABLE ON ORDER
01 Cover fixing screw 09 Switch button
02 Filter cover 10 ON/OFF luminous switch
03 AISI 304 stainless steel filter 11 Alarm reset button
04 Cover in AISI 304 stainless steel 12 Led signal for malfunction
05 Pre-punched slots wall plate 13 Power cable exit
06 Ionising tube and earthing bracket
JONIX steel 2F: n°2 - JONIX steel 4F: n°4
14 Led signal for correct functioning
15 Led signal for maintenance need
07 Plate in AISI 304 stainless steel 16 Condenser support plate
08 Electrical compartment

13
JONIX steel
5 - RECEPTION, TRANSPORT AND STORAGE
The JONIX steel device, together with the accessories, is shipped in special protective packaging.
The materials that were not installed for technical requirements are supplied packed with suitable
packaging secured to the inside or outside of the device itself. The packaging contains:
- JONIX steel *.
- Operating and maintenance manual (with dimensional diagrams, wiring diagrams, Declaration
of Conformity).
5.1 PACKAGING
Any type of complaint must be sent in writing within eight days from receiving the
goods.
When you receive the device please check all its parts, in order to make sure that it has not been
damaged during transport.
Any damage must be reported to the carrier, by filling in the relevant section on the delivery note
and specifying the type of damage.
5.3 INSPECTION UPON RECEPTION
*): in JONIX steel 2C / 4C / 2F / 4F versions the ionised tubes equipped are disassembled and
packed in their boxes.
5.2 HANDLING AND TRANSPORT
To handle the device use appropriate means, depending on the weight, as required
by Directive 89/391/EEC and subsequent amendments.
Please take great care while unloading and positioning the devices, to prevent
damaging the casing or components. Avoid uncontrolled rotations.
The weight of every single device is given in this manual.
The Manufacturer disclaims any liability for damage due to incorrect unloading
failure to protect the device from the elements.
In the event of extended storage keep the devices away from dust and sources of vibration and
heat.
5.4 STORAGE
ìJONIX steel device is easy movable in various environments, because it is provided with
reduced dimensions (see Chapter 4 "Technical Data").
5.5 HANDLING DEVICE IN OPERATING CONDITIONS

14
JONIX steel
6 - INSTALLATION AND COMMISSIONING
ATTENTION! Before carrying out any operation on the devices read ALL the
instructions in this manual carefully.
6.1 SAFETY STANDARDS
The Manufacturer disclaims any liability for failure to comply with the safety and
prevention standards as described below.
The Manufacturer also disclaims any liability for damage caused by improper use
of sanitisers and/or alterations carried out without prior authorisation.
• The device must be installed in strict accordance with the instructions contained in this
manual.
• Wear suitable accident prevention clothing when installing the device, such as: goggles,
gloves, etc. as instructed in standard 686/89/EEC and subsequent amendments.
• Whileperforminginstallation,operateinfullsafety,inacleanenvironmentclearofobstructions.
• Complywiththelawsinforceinthecountryinwhichthedeviceisinstalled,regardingtheuse
and disposal of the packaging and products used for cleaning and servicing the device; you
should also observe the recommendations given by the manufacturer of such products.
• Before switching the device on check the integrity of the various components and of the
electrical mains to which it is connected, making sure that it is fitted with a circuit breaker
upstream of the power line as shown in this manual.
• Neverinsertobjectsof anykindintothedevice, ascominginto contactwithliveparts or
electrical terminals may cause fires or electric shocks.
Definitions:
USER:
Person, organisation or
company who or which
has purchased or
rented the device and
is going to use it for the
intended purposes.
USER/OPERATOR:
Individual who has been
authorised by the user to
operate the device.
QUALIFIED STAFF:
Individuals who have completed a
specific course and are therefore
able to recognise the hazards
arising from the use of this device
and are able to prevent them.
• Donotserviceorcleanthedevicewithoutfirstunpluggingitfromthemains.
WARNING!
Mechanical machinery in motion and dangerous points of voltage inside the device.
Risk of dragging and entrapment or electric shock.

15
JONIX steel
• Wornordamagedpartsmustonlyberepairedorreplacedbyqualifiedstaffandbyfollowing
the instructions given in this manual.
• ThesparepartsmustbeapprovedbytheManufacturer.
• In the event of decommissioning or disposing of the device, follow the
anti-pollution regulations set out by the country in which the device is installed.
• Indoingpunctureinceilingsorwallsbesureofnotinterferewithelectricropes,plumbingand
whatever can be damaged.
• Donotpourwateroranykindofliquidsonthedevice.
• Placethedevicesothatthepowercablecannotbesteppedon.
• Donotconnectthedevicetopowerlinesconnectedtoanyotherelectricutilitiesordevices.
• Use the type of power supply shown on the label. If you are not sure about the type of
power supply available, ask your local retailer or electricity provider for assistance.
• Donottouchtheinsideofthedevice,unlessspecifiedotherwiseintheinstructionscontained
in this manual.
• Never force the components when assembling: although it is made with high strength
materials, the parts of the device can be damaged if handled incorrectly.
• Donottrytoperformmaintenanceworkonthedevice,exceptwherespecifiedinthismanual.
Opening or removing the outer casing may expose you to dangerous live parts or may involve
other risks. All maintenance work must be carried out by authorised staff, except where
specified in this manual.
• Unplug the device from the mains and contact qualified staff for assistance in one of the
following cases:
- The device has come into contact with water or liquids of any kind.
- The device has been exposed to the elements.
- A malfunction persists despite all the installation and/or maintenance procedures have been
performed properly.
• Thedevicecomeswithslotsandopeningsforventilation;donotblockorcovertheseslots.
• Makesurethatyoualwaysleaveenoughspaceforadequateventilationaroundthesideslots
of the device.
IMPORTANT The installer and the user, when using the JONIX steel device, must
take into account and solve all the other types of risk associated with the system.
For example, risks arising from foreign bodies getting into the device or risks due
to dangerous flammable or toxic gases at high temperature.

16
JONIX steel
40 295
158 278 278
40
40 320 40
40 670 40
1616 1616 1616
JONIX steel 2C JONIX steel 2F
JONIX steel 1C JONIX steel 4C JONIX steel 4F
6.2 GETTING STARTED
6.3 CHOOSING THE INSTALLATION SITE
• Checkthatthevariouscomponentsofthedevicearefullyintact.
• Checkthatthedocumentationandanyaccessoriesforinstallationarecontainedin
the package.
• Carrythedeviceinitspackagingascloseaspossibletotheinstallationsite.
• Donotrestweightsortoolsonthedevice,orplaceitonanunstablesurface.
• Donotputthedeviceinplaceswherethereareflammablegases,acidic,aggressive
and corrosive substances that can damage the various components beyond repair.
• Provideaminimumclearance,inordertoinstallthedeviceandcarryoutroutineand
special maintenance.
JONIX steel device is designed to be directly installed on the wall through the pre-punched slots
placed on the device plate (see image in chapter 4 of this manual).
6.4 INSTALLATION OF THE DEVICE
Before installation:
- Check that under and above the device there
is sufficient space in order to allow the air to
flow.

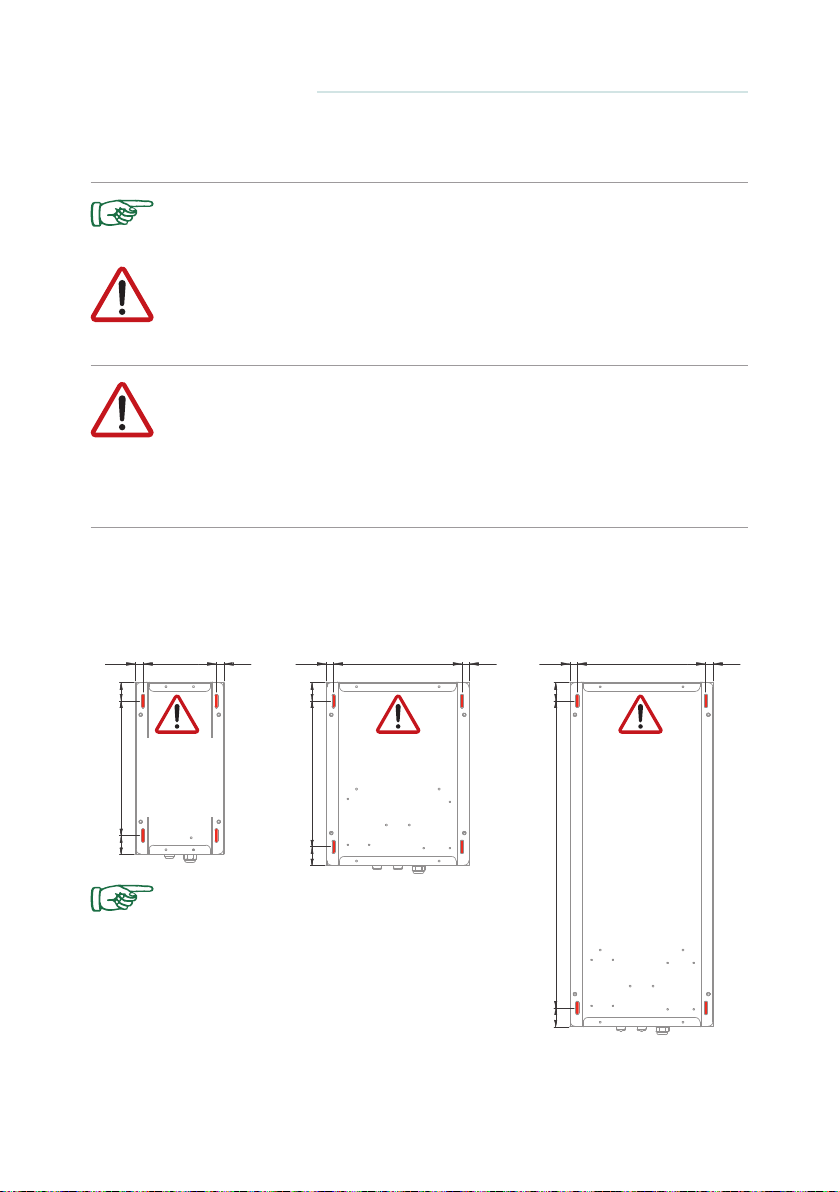

- Make sure that the holes are aligned; in this
respect, follow the quotas mentioned in the
drawing to the side.
Drill holes in the wall and insert the screw anchors into them. Screw the screws allowing them to
project 8-10 mm from the wall. Check that the device is stable before using it.
Holes for
wall
fixing:
Ø7 mm
Holes for
wall
fixing:
Ø7 mm
Holes for
wall
fixing:
Ø7 mm

17
JONIX steel
JONIX steel 2C JONIX steel 2F
JONIX steel 4C JONIX steel 4F
JONIX steel 1C
A
In JONIX steel 2C / 4C / 2F / 4F versions it is necessary to unpack the ionised tubes from their
boxes and to screw them in their allocated seat according to the following procedure:
The right plugs for installation must be chosen based on the weight of the appliance,
shown in chap. " Technical data", and the type of wall it is installed on.
Gently screw the ionising tube holding on to the base (green part). If the operation is difficult to
perform, pull slightly the earthing bracket so that it does not make contact with the surface of
the tube.
ATTENTION: do not overtighten the screw after reaching its end stop.
Check that the earthing spring is in contact with the outer mesh once the ionising
tubes have been screwed back into place. Otherwise contact the manufacturer.
Fig. A: Unscrew the fixing screw and remove the frontal cover from the device.

18
JONIX steel
B
Fig. B: Lift up the device and fix it to the wall with the support of the slots placed on the posterior
plate. Finally proceed remounting the anterior panel fixing it with the appropriate locking screws.
VERTICAL WALL FIXING
It is the most used fastening
system, ideal for every kind
of environment.
: ambient air. - : ionised air flow.
HORIZONTAL WALL FIXING
It can be used as an
alternative to the vertical
fixing, optimizing the space
available.
CEILING FIXING
It can be used in rooms
where there is no space in
the walls and the ceiling
can be easily reached (for
example inside cold storage
cells).
Example of JONIX steel 2C/4C vertical wall
mounting.
There are different types of mounting of JONIX steel devices, in particular:
6.4.1 Type of fixing

19
JONIX steel

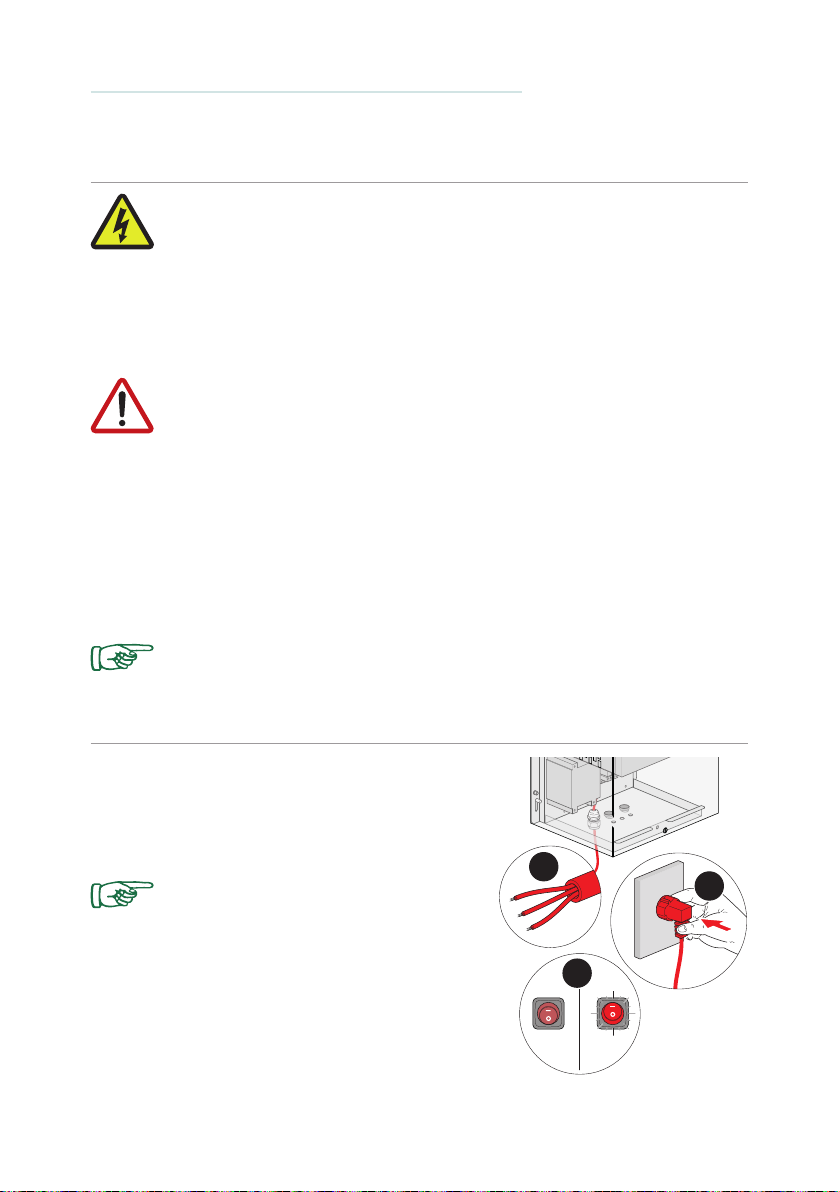

1
2
3
OFF ON
JONIX steel device is delivered from the factory
equipped with a two-phase wire + earthing of adequate
section (the cable is 2 m long but it is not provided with
the plug). The type of power supply suitable for the
module is 230V/ ~1/ 50Hz.
1) Use the most suitable connector for the sockets in
the installation site.
2) After wiring, connect the device to the power mains.
3) The voltage in the device is indicated by an ON/OFF
luminous switch that will illuminate once turned ON.
6.6 ELECTRICAL CONNECTIONS
Before making any connections, make sure
the mains voltage complies with what is
shown on the label.
WARNING!
Using power supply that does not meet the requirements requested by the device
could resolve in damaging the device or part of it.
• The electrical connections must be carried out following the instructions provided in this
manual.
• Make sure that voltage and frequency of the electric line correspond to those provided on
the name plate.
• TheelectricalmainsoftheJONIX steel device must be used for the device only, there must
be no other devices powered by the same power line. Do not use adapters, power strips and/
or extension cords.
• Maketheconnectionwithcableswithasuitablecross-sectionandincompliancewithlocal
standards.
• The installer must see to it to assemble the device as close to the power disconnector as
possible, according to standards in force and as far as necessary to protect the electrical parts.
6.5 ELECTRICAL CONNECTIONS
ATTENTION! BEFORE STARTING ANY OPERATION, MAKE SURE THAT THE MAIN
POWER SUPPLY IS DISCONNECTED!
Any deficiency or non-conformity with the parameters of the power supply to which
the device is connected might cause damage to the device itself.

20
JONIX steel
01 JONIX steel 2C / 4C
JONIX steel 1C JONIX steel 2F / 4F
Fig. 01: In order to turn on the device act on the switch 0/I, turning it to I. The button will illuminate,
a slight noise coming from the ionising tube will be heard and the air flow generated by the fan will
be perceived.
6.7 USING THE DEVICE
In JONIX steel 2C/4C/2F/4F versions under normal operating conditions, the green
LED will be turned on.
The table below offers a generic overview of the times needed to reach and maintain the maximum
sanitisation level, depending on the size of the relevant room.
Model Floor area (m3)Time needed
for sanitation
Recommended daily
operating time *
70MICF1C 15 30 min 3 h
70MICF1C 30 1 h 3 h
70MICF1C 45 2 h 4 h
70MICF1C 60 6 h 8 h
70MICF1C 75 12 h 12 h
70MICF1C 90 24 h 24 h
70MICF1C 105 24 h 24 h
70MICF2C 200 24 h 24 h
70MICF4C 500 24 h 24 h
70MICF2F 1000 24 h 24 h
70MICF4F 2000 24 h 24 h
* The recommended daily operating times may be changed in case of specific needs.
We recommend avoiding extending the operating hours beyond the values indicated in this table.
