Best Living Systems KHAOS User manual

Owner’s Manual
Please read Owner’s Manual before installation or operation.

Welcome
Thank you for your purchase of KHAOS, featuring MCI™(Multi-Cluster Ionization)
Technology. KHAOS is designed to keep the air and surfaces clean of bacteria, mold
and viruses while improving indoor air quality. Dealing with pollutants in a proactive
way, the KHAOS w/MCI™uses HEPA-grade filtration and produces aggressive ionized
oxidizers with MCI™(multi-cluster ionization) distributed throughout the home or
office to purify, protect, and prevent. Multiple technologies work synergistically
together to result in a cleaner, safer, and healthier indoor environment.
This trademarked MCI™(Multi-Cluster Ionization) Technology, using an enhanced
ionization output, represents the newest generation of proactive air purification, is
completely safe, unlike high levels of ozone, and effectively destroys mold, mildew,
bacteria, viruses, odors, volatile organic compounds (VOCs) and the odors associated
with them in the air and on surfaces.
Package Contents
1 KHAOS Unit with HEPA Filter
1 Set of MERV Filters
1 Power Cord
Warnings
Use this unit only in a manner intended by the manufacturer
Use proper AC plug and step-down transformer as required
Do not pull out by power cord or handle power plug when wet
Do not dismantle or repair as may void Warranty. Refer all repairs during
warranty period to Distributor or Repair Center
Confirm no foreign material is on power plug before connecting with outlet

Components and Specification
Main Body
Adapter (DC24V)
MCI™HEPA Pro Filter
Manual
Stand Model
Model
KHAOS
DBI Cell
Dielectric Barrier Ionizer
UV Lamp
25-Watt UV LED Germicidal Lamp
Multi-layer filters w/catalyst
Hepa MERV16 + Carbon + Pre-filter @ *CADR 300 m³/hr
Size (mm and inch)
215(W) X 350(H)X 215(D) or 84.6”(W)x137.8”(H)x84.6”(D)
Weight(kg and lbs.)
2.5kg or 5.51lbs
AirVolume(CMH)
Max.250 (Variable speed fan)
Power Input
DC 24V by 110W plug-in 50-60Hz 1A
WIFI
Cellphone App w/Upgrade

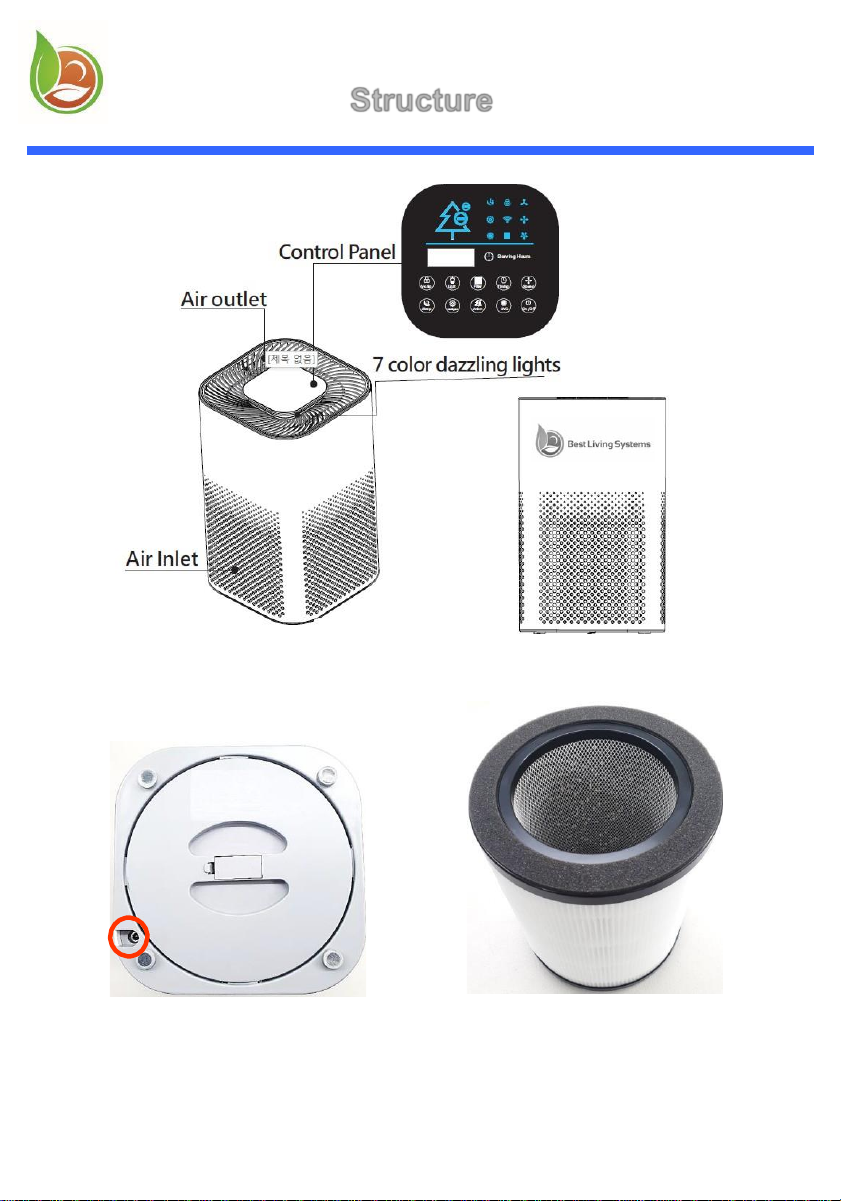

Structure
Handle for bottom cover
Jack for adapter
Bottom
3-Way KHAOSfilter
Dust + Hepa 16 + Carbon w/PCO catalyst

Structure
Dust + Hepa + Carbon DBI Plasma Tube UV LED

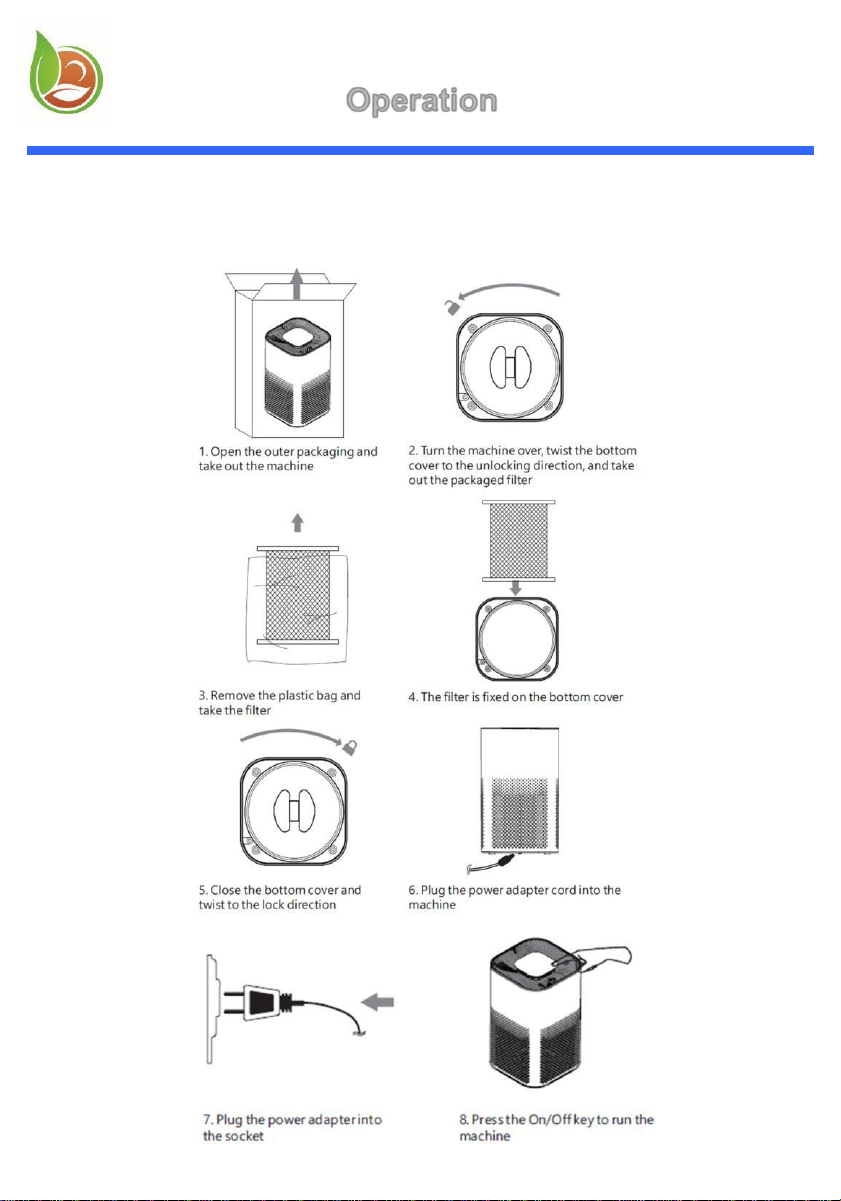

Operation
The filter is already installed on the product you purchased. Please remove the plastic
bag from the filter according to the steps shown below before use. This may have
already been removed, please verify.

Operation
Power on and off
Touch the Power Key to turn it on/off. The auto mode is entered
by default after power-on and the indicator light of the
corresponding icon is always on when the corresponding function
is turned on after power-on. is displayed in the digital area
in the first 10s after power-on and the VOC value is displayed in
real time after 10s.
UVC Sterilization (catalyst for PCO technology)
Touch the UVC key to turn on/off the UV sterilization
function.
Dielectric Barrier Ionizer
Touch the Anion function key to turn on/off this f un ct i on .
DBI cell recycles on/off to eliminate ozone buildup.
Intelligent
Touch the Intelligent function key to enter the automatic mode and
the fan speed will automatically change according to the VOC value.
Sleep mode
Touch the sleep function key to enter the sleep mode and the
manual mode or automatic mode can be released at the same time.
(In the sleep mode, the display is off, and only the indicator lamp
corresponding to the sleep button is on). In the sleep mode, press
any button to cancel the sleep mode and it enters the first fan
speed mode.
Fan speed adjustment
Touch the wind speed key to release the automatic mode and enter
the manual adjustment mode, select 1~5 speeds and the
corresponding LED beads will light up.
Timer function
Touch the timer key to set the working time of the machine, from
1-24h, off, and cycle selection. When the timing function is on, the
indicator light is on.
HEPA w/catalyst
When the cumulative working time of 2000h are detected the filter
icon lights up. At this time press and hold the filter button for 5
seconds to reset after cleaning or replacing with new filter
LED light
Touch the light key to select light color
V-Chip mode
Press V-Chip button to turn on the key screen lock screen state. In
the V-Chip state, pressing all the keys will prompt two short beeps to
indicate that the function keys are locked. Press for 3 seconds to
release the child lock, or power off and restart.
WiFi (availablew/upgrade)

Discharge Tube Cleaning
In order to keep the efficiency of the tube, it is recommended to clean it every 6
months.
It is mandatory to use the machine with filter in order to protect eyes from UVC led light
Directions
1. Turn off the machine and unplug it before maintenance.
2. Turn the bottom cover counterclockwise to open it.
3. Take out the filter and clean it with a vacuum cleaner
4. Remove the DBI plasma tube. (Push the tube and turn it 90 degrees and take it out.)
5. Carefully remove the mesh from the tube.
6. Clean the tube with wet tissue and dry it with dry tissue.
7. Use brush to take off the dust from the mesh.
8. Assemble it in reverse order.
4: 5: 6: 7:

Warranty Certificate
www.BLSWarranty.com (register enhanced warranty program)
Product Name
Warranty Period
Model
1 Year from Date of
Purchase
Serial Number
Purchase date
Client
Name
Customer
Address
Customer
Phone
TEL. CELL
1. Troubles during normal operation will be covered as warranty free of charge, within
warranty period.
2. Read operation manual carefully before contacting service center.
3. Service fee will be charged for following condition(s) in warranty period.
▶Trouble caused by improper operation, modification, or disassembly.
▶Trouble(s) caused by non-fulfillment of instructions in the manual.
4. Paid service can be provided for out of warranty period.
5. Submittal of this warranty is required for warranty service.
6. Warranty service is valid only in the territory of product purchased.
7. Warranty card will not be reissued.
Best Living Systems, LLC 1150
N. Museum Road, #105
Conway, AR 72032
800.728.7206

Warranty
Your KHAOS unit is warranted to be free from all defects in material and
workmanship in normal use for a period of (1) year from date of purchase. The
warranty is granted only to the original purchaser and members of his or her
immediate household. The warranty is subject to the following provisions.
Any damage or malfunctions caused by negligence, abuse, or use not in accordance
with the Owner’s Manual are not covered by this warranty. Likewise, any defects or
damage caused by unauthorized service or the use of other than Genuine Best Living
Systems parts are not covered. Best Living Systems, LLC. Will, at its option, repair or
replace a defective KHAOS unit or part(s) for the KHAOS unit that is covered by this
warranty. As a matter of warranty policy, Best Living Systems, LLC. Will not refund the
customer’s purchase price.
Obtaining Warranty Service
To obtain warranty service you must return the defective KHAOS unit or KHAOS
parts along with proof of purchase to the Best Living Systems Authorized Service
Center. All transportation charges on parts, or units, submitted under this Warranty
shall be borne by purchaser. Unless this Warranty is expressly renewed or extended
by Best Living Systems, LLC., any repaired or replaced part of unit shall be warranted
to the original purchaser only for the length of the unexpired portion of the original
warranty. For the location of the nearest Best Living Systems Authorized Service
Center or for service information in the United States or Canada, please visit us
online at: ww.BLSWarranty.com
FURTHER LIMITATIONS AND EXCLUSIONS ARE AS FOLLOWS
Any warranty that may be implied in connection with your purchase or use of the
KHAOS unit, including any warranty of merchantability or any warranty for Fitness
For A Particular Purpose is limited to the duration of this warranty. Some states do
not allow limitations on how long an implied warranty lasts, so the above limitations
may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided
above. In no event shall Best Living Systems, LLC.be liable for any consequential or
incidental damages you may incur in connection with your purchase or use of MCI™
OdorNeutralizer. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This Warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
REGISTRATION
Please register your new KHAOS unit within 10 days of purchase by visiting
www.BLSWarranty.com. Registering your new Best Living Systems product entitles
you to the most up-to-date Best Living Systems warranty and promotion information.
