Important Safety Information
Use the following safety principles to avoid damage to the humidor
due to the working environment.
Please read carefully before using the product and retain all
operating instructions for future reference.
Do not allow children to climb，stand or hang on the shelves in
the cooler. They could damage the cooler and seriously injure
themselves.
Do not use damaged wires, if damaged, it must be replaced by
the manufacturer or professionals to avoid danger
It is strictly forbidden to use inferior wires and power strips to
switch. Make sure to plug it directly into a power outlet.
Do not clean the product with flammable, corrosive liquids.
Please wash with mild detergent
Do not place the product near any flammable materials, keep
away from heat sources, and avoid direct exposure to the sun.
Do not pull the cord to remove the plug, remove the plug from the
outlet, and do not plug into the power outlet until installed.

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
2
Structure Diagram
①Box body
②Glass door
③Handle
④Shelf
⑤Water Tank
⑥Control Panel
⑦Adjustable leg

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
3
Installation instructions
Note: Put the humidor in the location you want to install, this location should be:
①Away from heat source, good air mobility;
②Not damp；
③On a stable surface;
1．The humidor that has been transported needs to be left for 2 to 3 hours before it
is connected to the power supply for normal operation.。
2．When carrying/moving the humidor, do not use the door or door handle as the
focal point, lift the humidor upright from the bottom, and do not allow it to be lifted
horizontally or upside down to consolidate all movable parts (the items in the
thermostatic humidor should be emptied).
3．Please remove the outer and inner packaging first and clean with a soft cloth
moistened with warm water.。

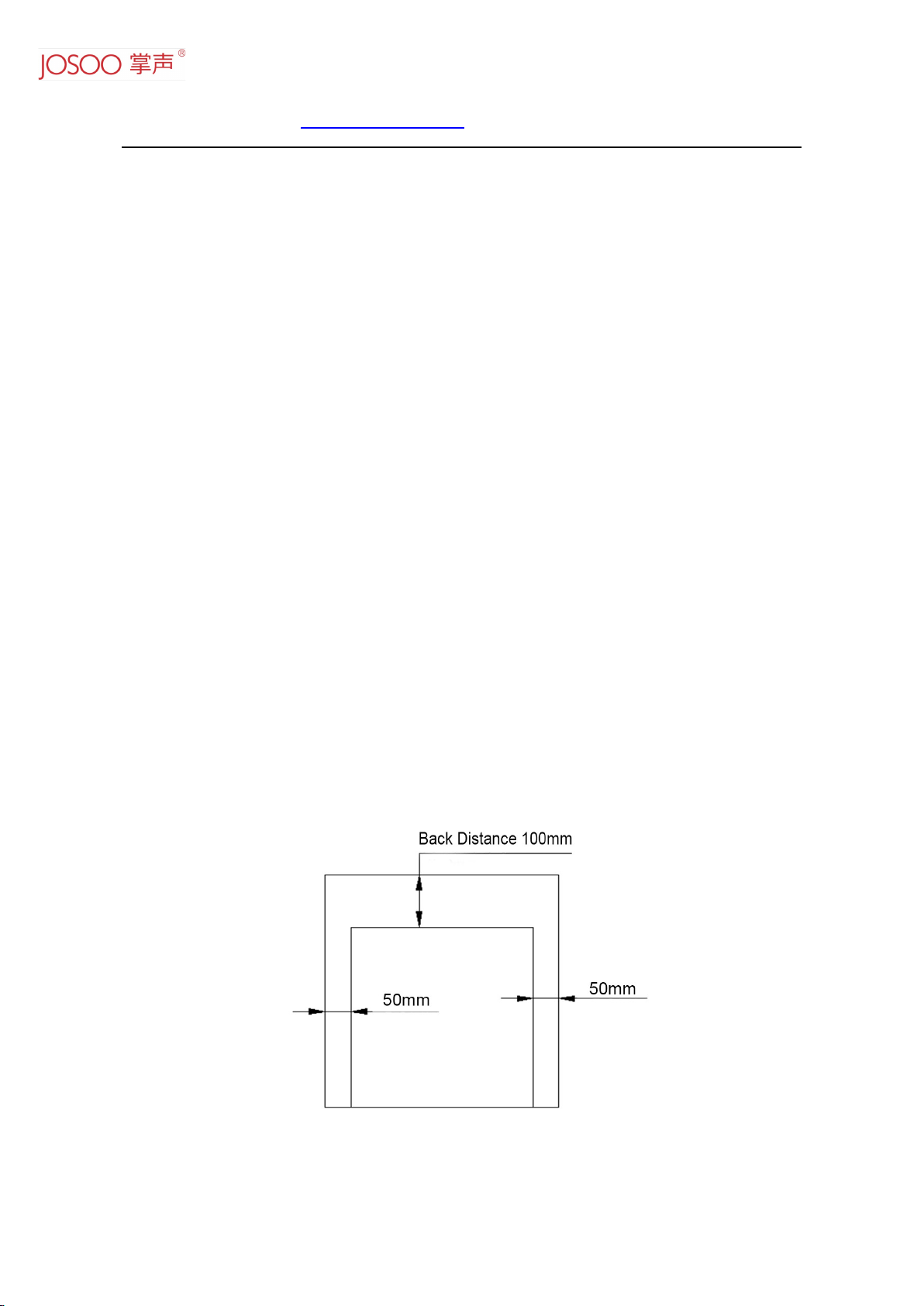

4．When installing a non-recessed humidor, make sure that there is at least 50mm
clearance on each side and at least 100mm clearance at the back, as this is the
main outlet for hot air, and an adequate ventilation system must be left
5．After a power failure or shutdown, the automatic protection of the compressor
needs to wait for 5 minutes before restarting the cooling.
6．When the humidor is loaded, make sure the floor is level.。
7． Avoid placing the humidor near heat sources, direct light and humidity, and make
sure the humidor is vertical and level (to prevent vibration and noise).
8．Do not place items on the top of the humidor, avoid storing food or drinks, and
ensure that there is sufficient space between the humidors for ventilation.
Moving the humidor
Take out all cigars or other items and fix the shelf, tie the closed door, to prevent
damage to the adjustable feet,Please tighten them all to ensure that the humidor
stays upright at all times during transport.

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
4
Reversible Door
This product can change the door opening direction according to the actual
installation needs. The door hinge of the product is on the right side. If you need to
change the door direction, please follow the steps below.

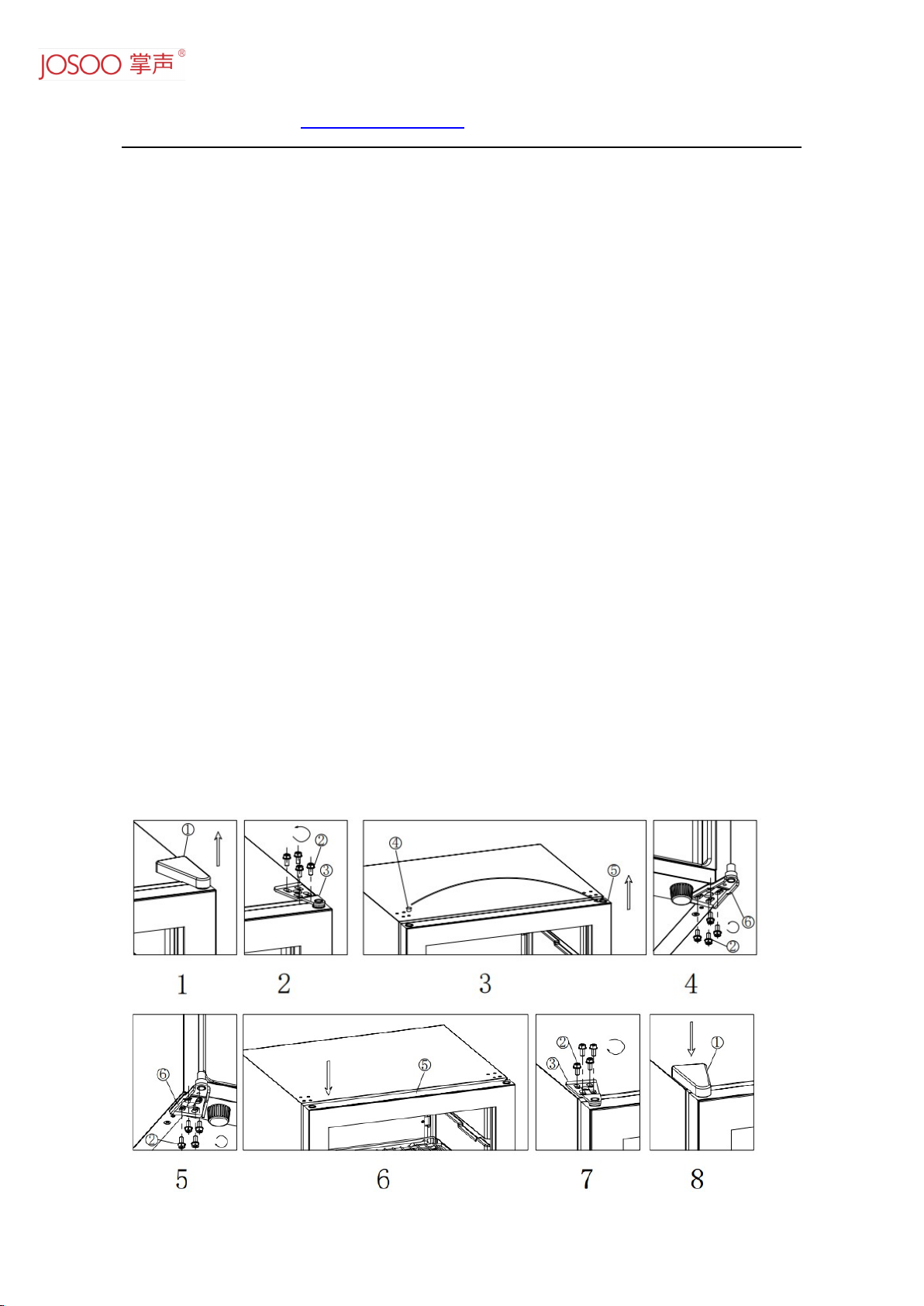

1)Grasp the upper door hinge cover, lift lightly, and remove the upper door hinge
cover ①, as shown in Figure 1
2) Use a Phillips screwdriver to remove the 4 screws ②that fix the upper door
hinge ③, as shown in Figure 2
3) Then hold the door body ④, remove the door body vertically upwards, and place
it on the protective cushion carefully.as shown in Figure 3
4) Tilt the product back at a certain angle, and use a Phillips screwdriver to remove
the 4 screws ②that fix the lower door hinge ⑤. Figure 4
5) Install the removed lower door hinge ⑤on the corresponding position at the
bottom of the left side of the box with screws ②. Figure 5
6)Align the door shaft sleeve on the left side of the door body ④with the hinge hole
of the lower door, press the door body vertically downward, and install the door on
the lower door hinge ⑤, as shown in Figure 6
7) Fix the removed upper door hinge ③with screws ②at the corresponding
position on the left side of the top of the box, adjust the level of the door body, and
lock the screws, as shown in Figure 7
8)Align the upper door hinge cover with the upper door hinge, press down vertically,
and install the upper door hinge cover on the upper door hinge, as shown in Figure
8

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
5
Operation and Temperature Settings
1. Plug in the power cord and turn on the power. The rated power supply used by
the cigar cabinet is 220-240V/50HZ, the power socket used is a standard
12A-16A.220V socket with a ground wire, and the socket should also be equipped
with a fuse and a leakage protection switch.
2. Power on for the first time, the machine will run automatically
3. When the machine is turned on for the first time, the temperature inside the cigar
cabinet is displayed according to the ambient temperature (room temperature)
outside the cigar cabinet.
4. When the machine is turned on for the first time, the humidity inside the humidor
is displayed according to the ambient humidity outside the humidor.
5.When the humidor is in normal operation, the measured temperature/humidity in
the cabinet is displayed, and the fan in the humidor starts to run.
The temperature/humidity inside the machine can be adjusted by the control
buttons.
Note: Temperature/humidity control operation as shown (single temperature)
1.The temperature of the single-temperature humidor can be set between 16-22℃,
and the humidity is between 60%-80%. According to different types, different
temperature and humidity can be set.
2. Introduction to the functions of the control panel:
①Light switch key, when working, press this key to control the lighting and
extinguishing of the lighting in the box.
②Temperature display digital tube measurement unit setting key. Press the
measurement unit setting key to change the measurement unit of the temperature
display.

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
6
③Temperature/humidity setting key, the temperature/humidity setting must
be pressed first before setting. Press the temperature/humidity setting key once,
the temperature display nixie tube flashes, indicating that the temperature can be
changed by pressing the temperature setting up or down key to change the
temperature setting value;Press it again, the humidity display nixie tube flashes
(the temperature display nixie tube stops flashing), indicating that the humidity can
be changed by pressing the humidity setting up or down key to change the humidity
setting value; press this key again, the temperature/humidity display digital tube
The tube stops flashing and resumes displaying the temperature and humidity in
the box respectively. When the temperature and humidity in the box are set, and no
button is pressed, it will automatically return to displaying the temperature and
humidity in the box after 5 seconds;
④Temperature setting/display window in the box;
⑤Humidity setting/humidity display window
⑥Set temperature/humidity up key. When the temperature
setting/temperature display in the box or the humidity setting/humidity display in the
box is flashing, press this key to change the set temperature/humidity in the box.
Press it once, the temperature/humidity will rise by 1 degree, until the highest value
of the temperature/humidity setting in the box;
⑦Set temperature/humidity down key, When the temperature
setting/temperature display in the box or the humidity setting/humidity display in the
box is flashing, press this key to change the set temperature/humidity in the box.
Press it once, the temperature/humidity will drop by 1 degree, until the minimum
value set by the temperature/humidity in the box;
⑧Power switch key. In the off state, the display does not show. Press and hold
the switch for 3 seconds, the screen will display all parameters normally, and the
humidor cooler will start to work. When you need to stop working, press and hold
the power button for 3 seconds to shut down.
3. Power-off setting temperature/humidity memory function: that is, the set
temperature/humidity is still automatically saved in the case of power-off, and the
next time the humidor is powered on, its temperature/humidity set value will still be
the same as the set temperature when the last shutdown humidity;

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
7
4.Automatic defrost function: The humidor has been designed with an automatic
defrost function. The purpose of the defrosting function is to regularly remove the
frost that remains on the surface of the evaporator of the refrigeration system
(built-in, invisible when it is not disassembled), so as to ensure that the refrigeration
system has been operating efficiently and in a good cooling state. When the
machine runs for a period of time, the machine automatically enters the defrosting
state, at this time the compressor of the humidor stops running, and the cooling fan
in the box runs continuously. When defrosting, the temperature in the box will rise,
which is not a malfunction.
Maintain and care
Hint：
1. After the power failure, the self-protection function of the compressor needs to
wait for 5 minutes before restarting the refrigeration; otherwise, the humidor cannot
operate。
2. If you use the humidor for the first time or use it again after a long shutdown, it
may be that the temperature/humidity you set is inconsistent with the
temperature/humidity displayed in the humidor. After the humidor has been running
for a period of time, the temperature/humidity display will return to normal. .
Door lock
Some cigar cabinets are equipped with safety locks. The cigar cabinets are
equipped with protective locks. The keys are placed in the packaging bag of the
instruction manual. Take out the key and insert it into the lock hole and turn it to the
left to open the cabinet door immediately. in a safe place.
Cleaning the humidor(Keep it clean to prevent odors, and follow the steps below.)
1．Switch off the power supply, clean the surface of the shelf with a clean soft
cloth and dry it immediately.
2．Do not use coarse brushes and rough abrasive cleaners to clean the interior of
the humidor, as this will easily damage the surface of the interior。
3．Wipe the outside of the humidor with a soft cloth dampened with neutral
detergent or warm water, and then dry with a clean soft cloth.
4．When cleaning the humidor accessories, the power cord must be unplugged.
Wipe off moisture with a sponge or soft cloth to prevent water or other liquids
from seeping into the humidor accessories and causing electric shock.

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
8
power failure
Most power outages are repaired within 1 to 2 hours, with little impact on the
humidor. However, opening the door of the cigar cabinet should be minimized
during a power outage. If the power is cut off for a long time, the cigar should be
taken out of the humidor to prevent deterioration, or other corresponding measures
should be taken.
Decommissioning of the humidor
If you decide to take the humidor out of service for a period of time, please follow
these steps:
1.First turn off the power and unplug the power plug;
2.Remove all items in the humidor and clean;
3.Open the door slightly to avoid unpleasant odors.
Troubleshooting
1. Humidor does not operate: no power supply or power switch turned on; circuit
fault or blown fuse.
2. Poor cigar cabinet cooling: Check temperature control settings; ambient
temperature is too high or ventilation is poor; doors are opened too many times;
doors are not closed properly.
3. The LED light does not light up: the light switch is not turned on; the circuit is
faulty or the fuse is blown.
4. Humidor Vibration: Make sure that the humidor is positioned smoothly.
5. Too much noise: whether there is an item behind the humidor that resonates
with the cabinet; whether it is placed in an unstable or uneven place.
Note: If the humidor cannot operate normally, in any case, in order to ensure
safety, first pull out the power plug, and then contact the supplier.
6.Fault code analysis：
error code explain
The digital tube shows E0 sensor failure
Nixie tube shows E5 communication fail

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
9
Several non-fault phenomena
1.Condensation on the surface of the humidor
Condensation is a natural phenomenon. The humidor works in a high
temperature and high humidity environment in summer. Because of the low
temperature of the cabinet shell and glass door surface, the moisture in the air will
condense on the surface of the cabinet shell and glass door, and it is moist to the
touch. a feeling of. Condensation mainly occurs in the door seal, door surface and
other parts.。When the relative air temperature exceeds 80%, bead condensation
will appear on the surface of the glass door of the humidor. This is a normal
phenomenon. When condensation occurs, you can wipe the condensation off with
a soft cloth. Condensation will disappear naturally when it is reduced, and will not
affect the performance of the humidor. In addition, in order to reduce the
occurrence of condensation, please pay attention to the following points when
using:
1．Humidor in the summer rainy season, often use a soft cloth to clean the surface of the
glass door and other condensation parts, which can reduce the condensation
phenomenon.
2.Place the humidor in a well-ventilated location, which can also reduce condensation.
2.Box heats up
The condensing pipes are close to the inner sides of the left and right side panels
of the outer box. When the cigar cabinet is working, the heat is dissipated through
the condensing pipes. In order to obtain the best cooling effect for the humidor you
choose, please pay attention to the following points when using it:
1．Keep the side panels of the box clean, and leave a cooling space of no less
than 50MM for the cigar cabinet.
2.The humidor should be placed in a well-ventilated position so that the heat
emitted from the surface of the box can be fully exchanged with the surrounding
air.。
3.Since the surface temperature of the cigar cabinet rises when it is refrigerated in
summer, it will cause the surrounding temperature to rise during operation. Items
that are sensitive to temperature should not be placed on both sides of the cigar
cabinet.
4.Although the temperature of the cigar cabinet will not be very high, children
should be careful not to touch the cooling surface of the cabinet in summer.

Zhongshan Josoo Electric Appliance Co., Ltd.
No.9, Qiye North Road, Maxin Industrial Zone, Huangpu Town , Zhongshan, GD, CN
Website: www.josoocooler.com Email: le[email protected].cn
10
Humidor has a "humming" vibration or sound like running water:
1. When the humidor is working, the compressor will make a slight "humming"
sound. Vibration and noise can also be generated if the humidor is not positioned
evenly.
2. The refrigerant in the refrigeration system flows in the pipeline like the sound
of running water. If the above sound is normal
Technical parameter
Model ZS-A200X
Temperature Range 16-22℃
Humidity 60%-80%
Net Volume 172L
Dimensions (W*D*H) 490ⅹ575ⅹ1285 mm
Rated voltage 220-240V~/50HZ
Input power 82W
Net Weight 51KG
Warranty
This product is manufactured by Zhongshan Josoo Electric Appliance Co., Ltd
The warranty does not apply to damage resulting from abuse, accident, natural
disaster, loss of electrical power to the product for any reason, alteration, outdoor
use, improper installation, and improper operation, repair or service of the product
by anyone other than an authorized by us, service agency or representative.
