jost TriDec EF-S User manual

Partno.: 162014EN-1
EF-S system
User manual
Release (07/2020)

Table of contents
Foreword 1
1 Description 3
1.1 Operation 3
1.2 Components 6
1.3 Battery charger 7
1.4 Warning light 8
2 Remote control 10
2.1 Function keys 12
2.2 Replacing the batteries 13
2.3 Turning on and off 17
2.3.1 Connected to the 12 V or 24 V connection 17
2.3.2 Not connected to the 12 V or 24 V connection 19
2.4 Selecting the language 21
2.5 Screen brightness 23
2.6 Configuring key sounds 25
2.7 Connecting to a computer 27
2.7.1 Synchronization 27
2.7.2 Registering a new remote control 28
2.8 Stop button 30
2.9 Icons on the display 31
3 Using the EF-S system 33
3.1 Coupling 35
3.2 Main menu 36
3.3 Automatic steering 37
3.4 To the straight-ahead position (centring) 39
3.5 To the left (Ackermann) 41
3.6 To the right (Ackermann) 43
Part no.: 162014 EN-1 II Release 07/2020
User manual 2300 EF-S system

3.7 To the left (crab steering) 45
3.8 To the right (crab steering) 47
3.9 Calibrating 49
3.10 Turning off the EF-S system 51
3.11 Message history 53
4 Messages 54
4.1 Types of messages 54
4.2 Information messages 57
4.3 Warning messages 61
4.4 Error messages 65
5 Putting into service 68
5.1 Vehicle registration and delivery 68
6 Safety & environment 69
6.1 Safety while operating 70
6.2 Environment 71
7 General information 72
7.1 Pictograms 73
7.2 Cleaning 74
7.3 System info 74
7.3.1 Wireless 74
7.3.2 Programs 76
7.3.3 Sensors 78
7.3.4 Serial number 82
Part no.: 162014 EN-1 III Release 07/2020
User manual 2300 EF-S system

Manufacturer: TRIDEC, Transport Industry Development Centre
B.V.
Address : Ekkersrijt 6030,
5692 GA Son,
the Netherlands
hereby declares that the product:
Model : EF-S system
Product number :
613977 / 613996 : 613975 / 613997 / 613976 / 617403
Commercial name : EF-S system
to which this declaration refers, is in compliance with the pro-
visions stipulated in the following guideline:
nECE Regulation 10, Rev.5
Quality control by:
SGS-International Certification Services GmbH,
Rödingsmarkt 16,
D-20459 Hamburg
Germany
Conducted at Son 1 20-04-2016, the Netherlands
TRIDEC
Frans Lipman
Director

Foreword
This guide is intended for drivers and/or other EF-S system users and contains the
necessary TRIDEC information regarding the use of the EF-S system. This User manual
must always be stored in the vehicle.
A separate maintenance and repair manual for service technicians is available on the web-
site: www.tridec.com .
Separate installation instructions for the system are supplied upon delivery of the EF-S sys-
tem.
Effective use:
The EF-S system system is not designed to be used independently. It has been designed to
be mounted as an external steering system to a trailer/semi-trailer. Any modifications what-
soever could compromise the safety of the system. Both the TRIDEC product guarantee and
the homologation shall be rendered invalid if these products are modified without written
consent from TRIDEC. All guarantee claims against TRIDEC or suppliers of the EF-S system
shall be declared invalid if the EF-S system is not installed according to the instructions sup-
plied by TRIDEC.
Prior to putting the system into service, compliance with the applicable national road traffic
regulations must be established for the trailer on which the system is installed. The system
may only be used in accordance with the manual for the truck and any other trailer manuals.
The diagrams in this manual are only included as examples and are not intended for any
other purposes. Images shown may vary slightly from the system supplied.
Allsafetyinformationisoutlinedinchapter9(see "Safety & envir-
onment" on page69).Safetyrisksaredepictedusingpictogramsin
allotherchapters.
ThismanualisbasedonfirmwareversionB0.02.06
Contact details:
Tridec Transport Industry Development Centre BV
5692 GA Son, the Netherlands
Tel: [phone]
www.tridec.com
[e-mail]
Part no.: 162014 EN-1 1Release 07/2020
User manual 2300 EF-S system

Validity and copyright:
No part of this document may be reproduced and/or published by print, photocopy, microfilm
or any other manner whatsoever without written consent from Tridec. The diagrams and spe-
cifications have been diligently compiled and we cannot be held responsible for any inac-
curacies. Tridec retains the right to modify the technical aspect of parts without prior
notification. Please contact Tridec for more information on this subject.
© Copyright Tridec, Son, the Netherlands
Date of issue: 22 September 2020 Original version: 1.0
Part no.: 162014 EN-1 2Release 07/2020
User manual 2300 EF-S system

1 Description
The following paragraphs contain information about the components that make up the EF-S
system and how the system works.
1.1 Operation
The EF-S system is a total system developed by TRIDEC. Its purpose it to steer trailers/semi-
trailers with one or more steered axles.
It allows the driverto alter the steering angle of the wheels on the steered axles when man-
oeuvring a trailer/semi-trailer, which makes manoeuvring easier. Once the manoeuvring has
been completed, the wheels can be turned back to the driving direction, either manually or
automatically.
The EF-S system allows the driver to steer the trailer/semi-trailer either manually or auto-
matically. When the “Automatic” function is active, the EF-S system only steers according to
the Ackermann principle (see Figure 1-1).

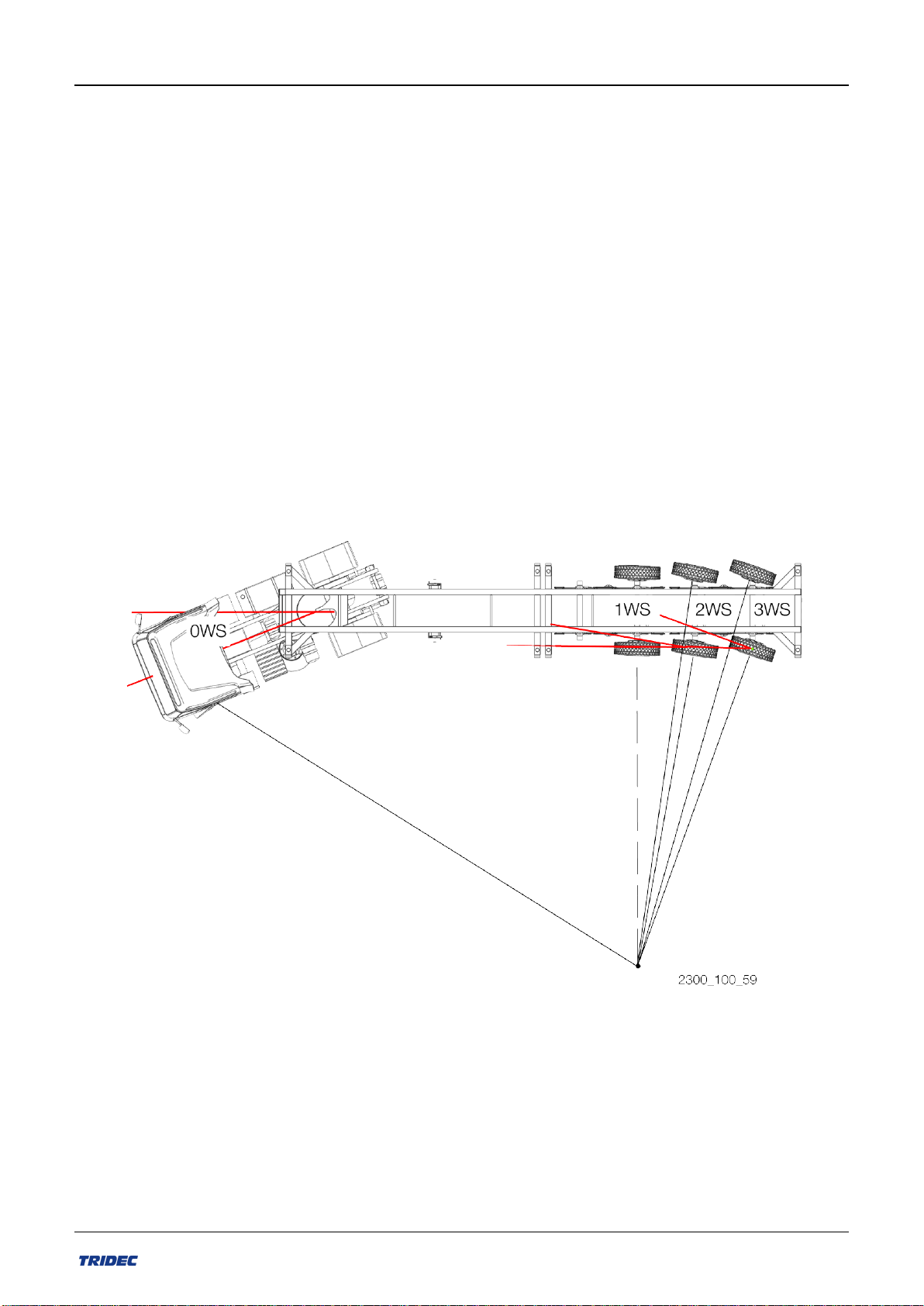

Figure 1-1
With the Ackermann principle, each steered wheel draws a circle. The middle points of
these circles are all in the same place.
The wheels of the trailer turn depending on the angle (0WS) (see "System info" on page74)
between the tractor unit and the trailer/semi-trailer. These angular rotations are determ-
ined in advance and are set per axle in the EF-S system’s program. The EF-S system has a
centring circuit and a number of steering circuits (dependent on the order).
Part no.: 162014 EN-1 3Release 07/2020
User manual 2300 EF-S system

During automatic steering, the angular rotation of the wheels of the trailer/semi-trailer is
100% up to a vehicle speed of 30 km/h(see Figure 1-2). That means that the steering angles of
the trailer’s wheels are exactly the same as the pre-set angular rotations. The angular rota-
tions reduce at a speed of 30-50 km/h. They are, therefore, smaller than the pre-set angles.
At speeds above 50 km/h, the wheels of the trailer/semi-trailer are no longer steered when
the tractor unit changes direction. The centring function automatically becomes active at a
speed of more than 65 km/h.
2300_100_22
20
40
60
80
100
120
05 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 km/h
%
Speed
Angular rotation
Figure 1-2
The EF-S system uses two EBS signals:
nThe speed signal
nThe on/off signal
To determine the speed of the articulated vehicle, the EF-S system uses the speed signal.
The on/off signal is used to start the battery-charging main control unit when EBS becomes
active.
FortheEF-Ssystemtoworkcorrectly,thewheelsofthetrail-
er/semi-trailermustbealignedaccordingtothespecifications.

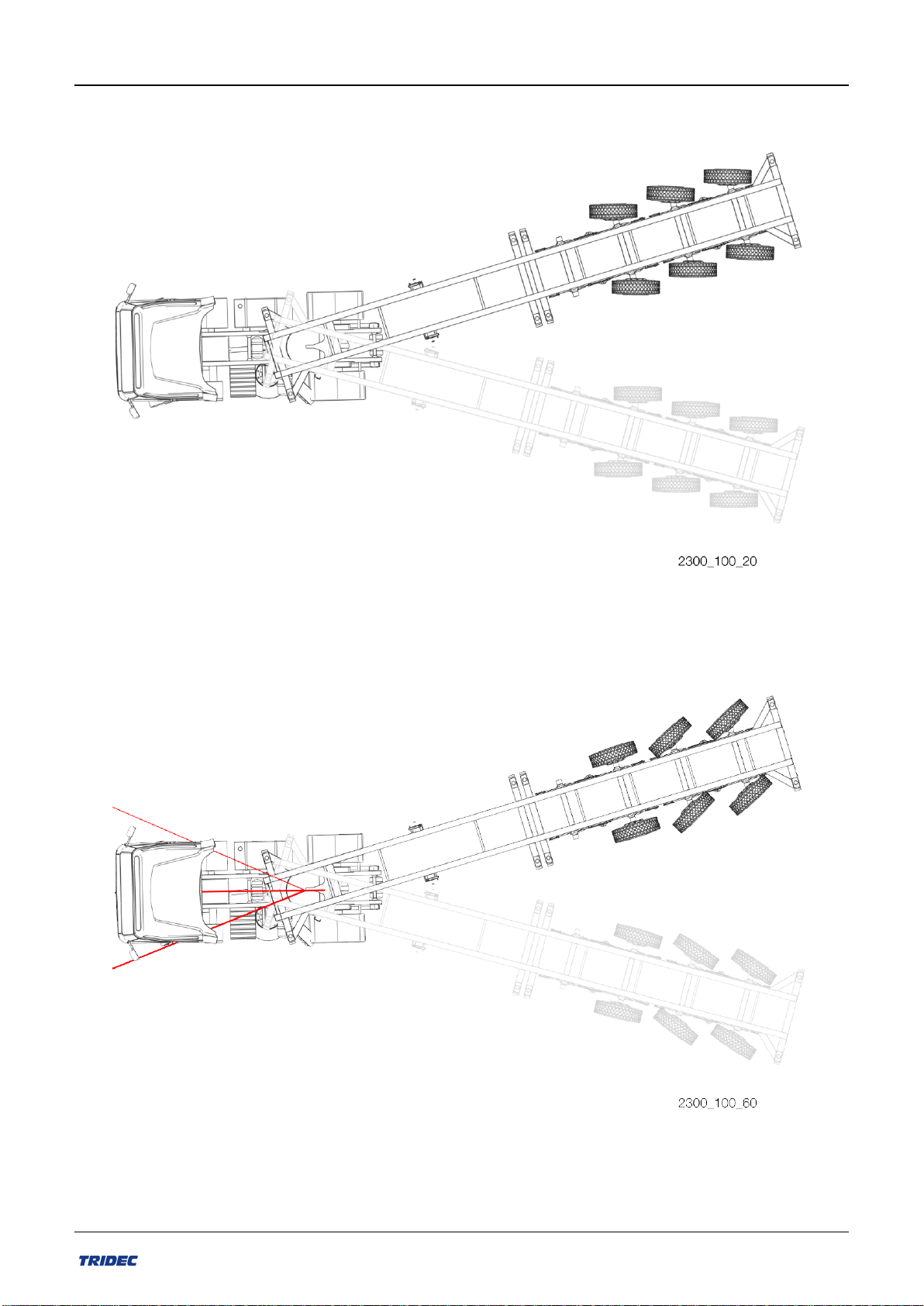

Manually, the wheels can be steered according to both the Ackermann principle and the crab
steering principle (see Figure 1-3).
Shouldanerroroccurwhiledrivinginabend,thenthesteeringbeha-
viorwillbedifferentandthiswillaffectthecoveredtrackofthetrail-
er/semi-trailercombination.
Part no.: 162014 EN-1 4Release 07/2020
User manual 2300 EF-S system

Figure 1-3
Figure 1-4
Part no.: 162014 EN-1 5Release 07/2020
User manual 2300 EF-S system

1.2 Components
The EF-S system consists of the following main components:
Figure 1-5
1. Generator box
2. Tank/filter box
3. Battery charger
4. Steering/centring cylinder
5. Battery
6. Hydraulic control unit
7. Kingpin with angle sensor
8. Remote control
9. Steering angle sensor
10. Accumulator
11. Bluetooth module
12. Signaal lamp
13. Stuur-/ centreercilinder SRE
14. Keycord
15. Synchronization cable
16. Holder
17. Charging cable remote control
Part no.: 162014 EN-1 6Release 07/2020
User manual 2300 EF-S system

1.3 Battery charger
The batteries for the EF-S system are charged by the generator via the NATO connection
with a charging current of no more than 45 A when the tractor unit’s engine is running.

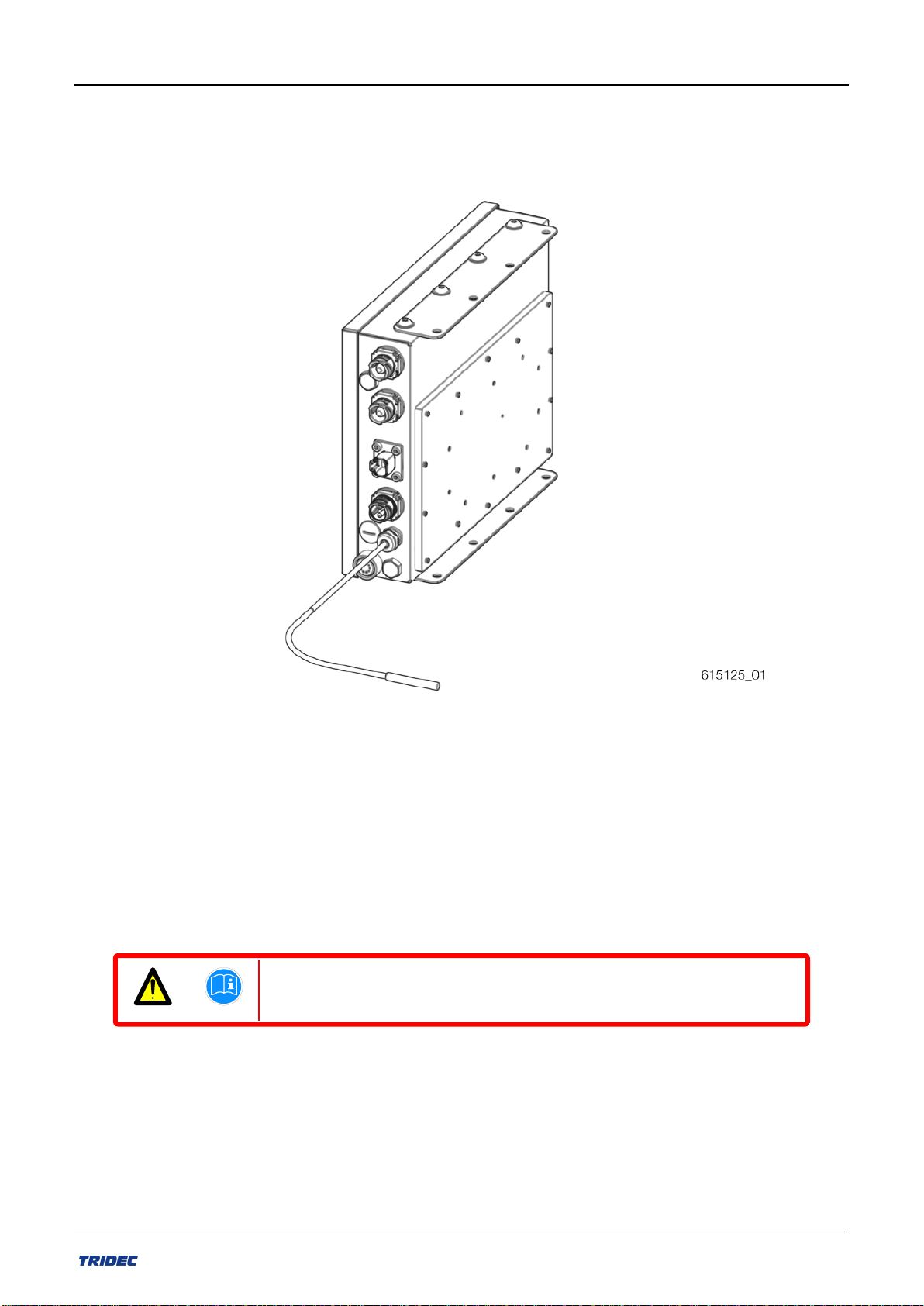

Figure 1-6
The intelligent charger measures the temperature of the batteries. This makes it possible to
adjust both the charging current’s amperage and charging voltage to the temperature. At a
low battery temperature, a higher amperage and voltage are required to keep the battery at
the desired voltage. At a higher temperature, the amperage and the voltage can be lower.
The charger can provide a maximum current of 45 A. The charger is protected by two fuses.
The input has an automatic fuse, while the output has a 60 A replaceable fuse. The charger is
sealed. The fuse may only be replaced after permission has been granted by TRIDEC.
Thewarrantyisinvalidatedifthesealisbrokenwithoutpermission
todosofromTRIDEC.
Part no.: 162014 EN-1 7Release 07/2020
User manual 2300 EF-S system

1.4 Warning light
The EF-S system has a warning light. This light has three colour areas:
nRed
nOrange
nWhite
Each colour area has a separate function and can light up.
Figure 1-7
The white warning light indicates that the EF-S system does not have any faults and is ready
for use. When the system pressure is reached, a message will appear on the display.
By pressing you activate the steering system and the signal light will go out.
The orange light indicates a system error or that the system is not yet ready for use. It is still
permitted to drive the trailer/semi-trailer. If the red warning light is lit, it is NOT permitted
to drive the trailer/semi-trailer. Contact the service workshop for further instructions. The
warning light must be located in a position where it can easily be seen from the tractor unit’s
cabin.
Part no.: 162014 EN-1 8Release 07/2020
User manual 2300 EF-S system

Figure 1-8
Part no.: 162014 EN-1 9Release 07/2020
User manual 2300 EF-S system

2 Remote control
Forsafetyreasons,movingpartsmustremaininviewoftheoper-
atorwhentheremotecontrolisused.
The remote control (see Figure 2-1)is part of the EF-S system. The EF-S system can be operated
with the remote control via a wireless connection (Bluetooth) or via the synchronisation
cable.
Figure 2-1
Part no.: 162014 EN-1 10 Release 07/2020
User manual 2300 EF-S system

The following accessories are available for the remote control:
nA synchronisation cable to synchronise the remote control with a computer.
nA holde, also charger.
nA charging cable. This cable can be used to connect the remote control to a 12 V or
24 V socket.
nA belt.

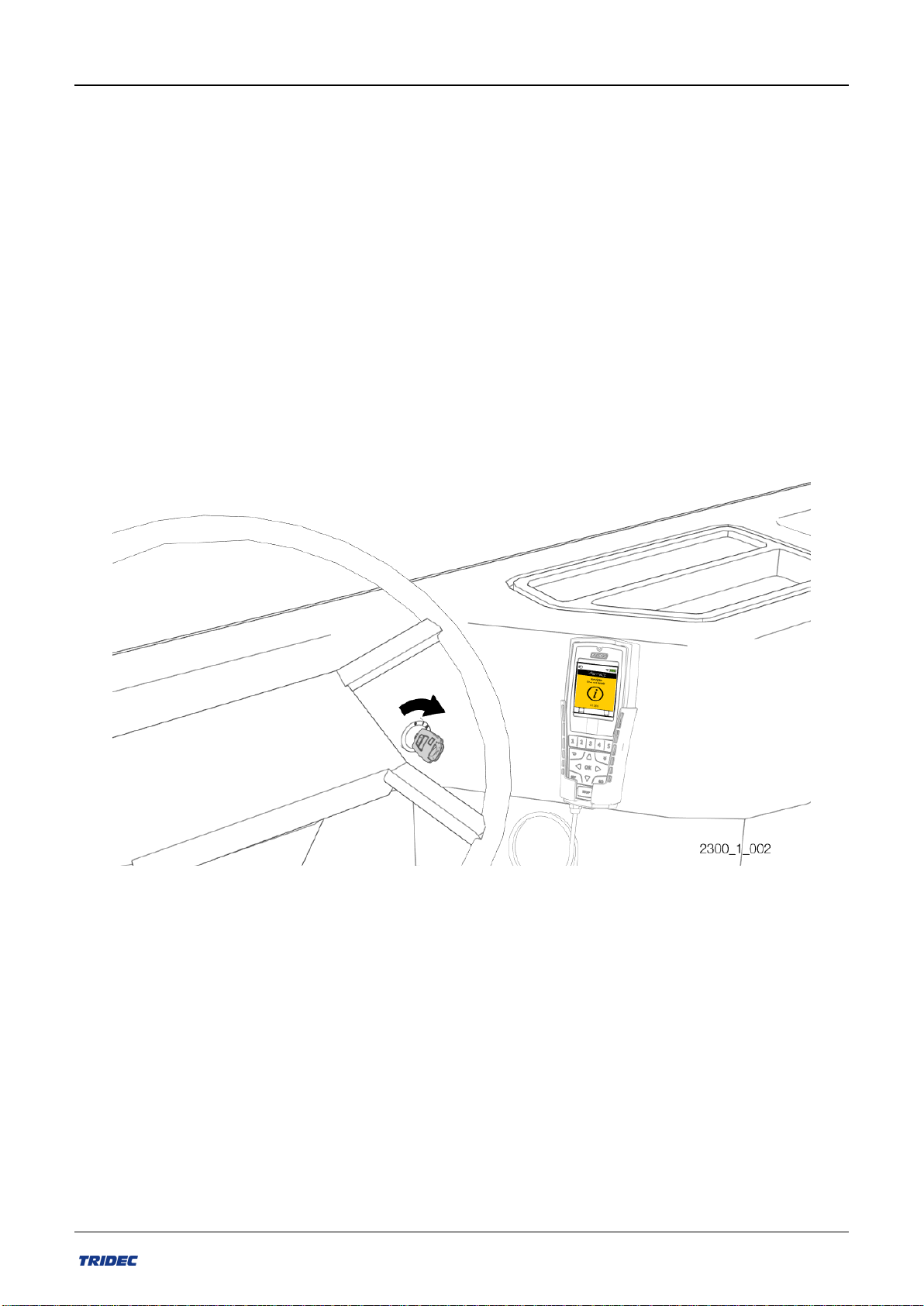

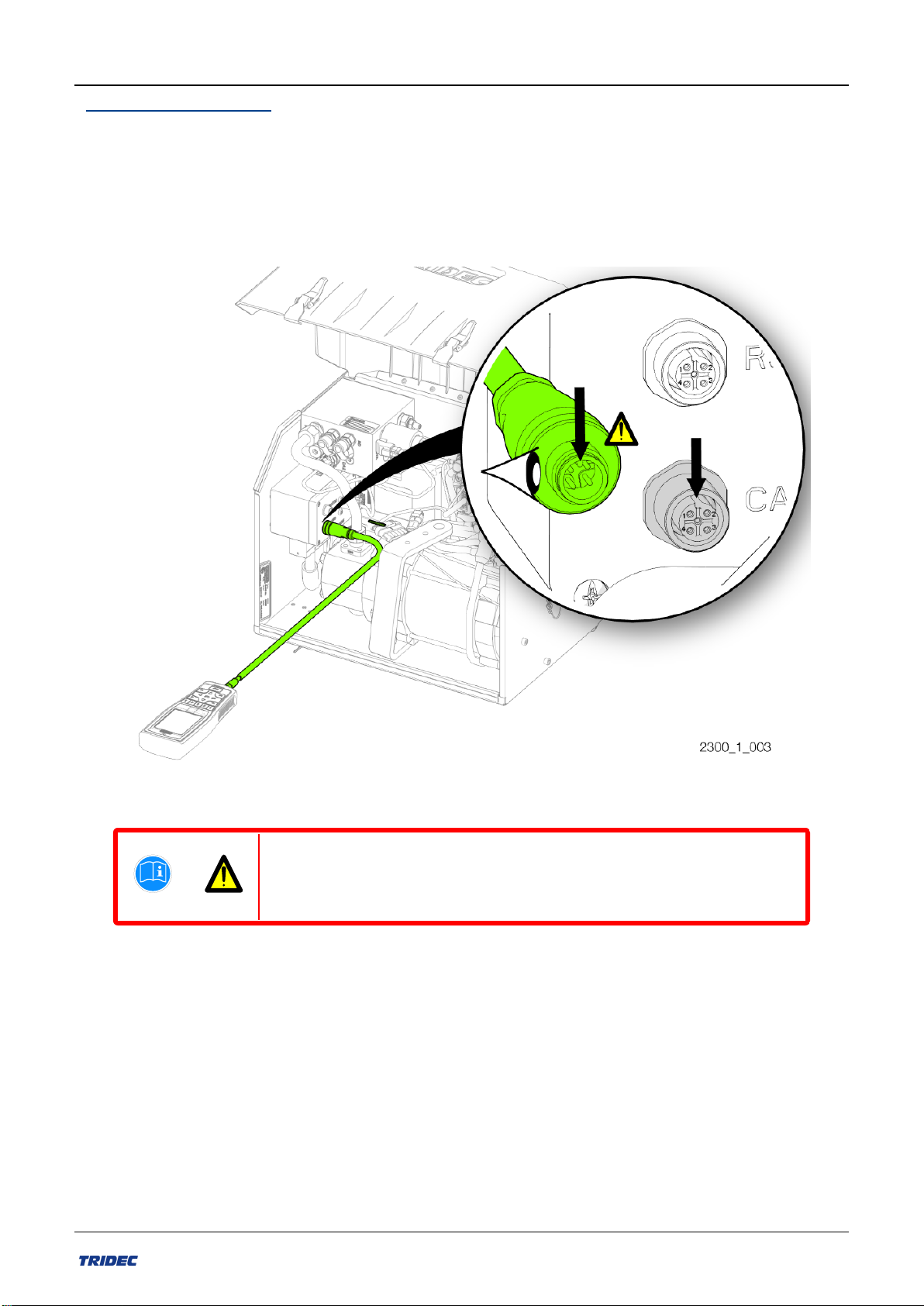

The remote control is automatically activated when it is connected (see Figure 2-2) to the tractor
unit’s cigarette lighter and when the ignition key is rotated to the accessory position or fur-
ther.
Figure 2-2
Part no.: 162014 EN-1 11 Release 07/2020
User manual 2300 EF-S system

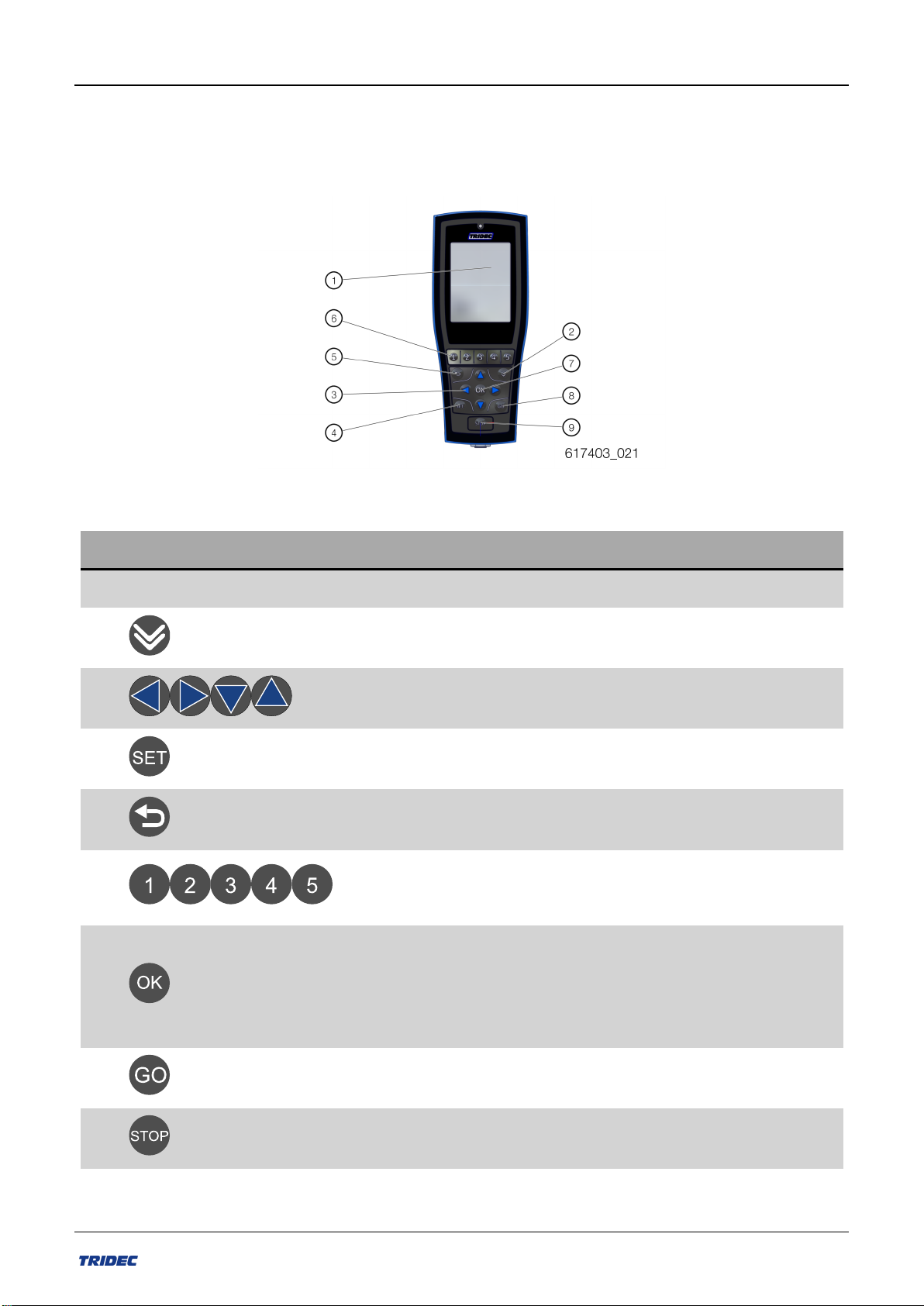

2.1 Function keys
In addition to a screen, the remote control also has a number of keys. Use these keys to
activate functions or to select menus.
Figure 2-3
No. Item Description
1Screen
2Navigatetothenext pageinthemenu.
3Activateselectedfunctions.
4Select "Systeminfo"oractivateautomaticfunctions.
5Gobacktopreviouspage
6Order-specificmenusarelinked tothenumerickeys.
7
nTurn the remote control on and off.
nGo back to the previous menu in the menu
structure.
nConfirmation of message.
8Select "Setting" orrestart theEF-Ssystem.
9This button has no function with the EF-S
Keys on the remote control.
Part no.: 162014 EN-1 12 Release 07/2020
User manual 2300 EF-S system

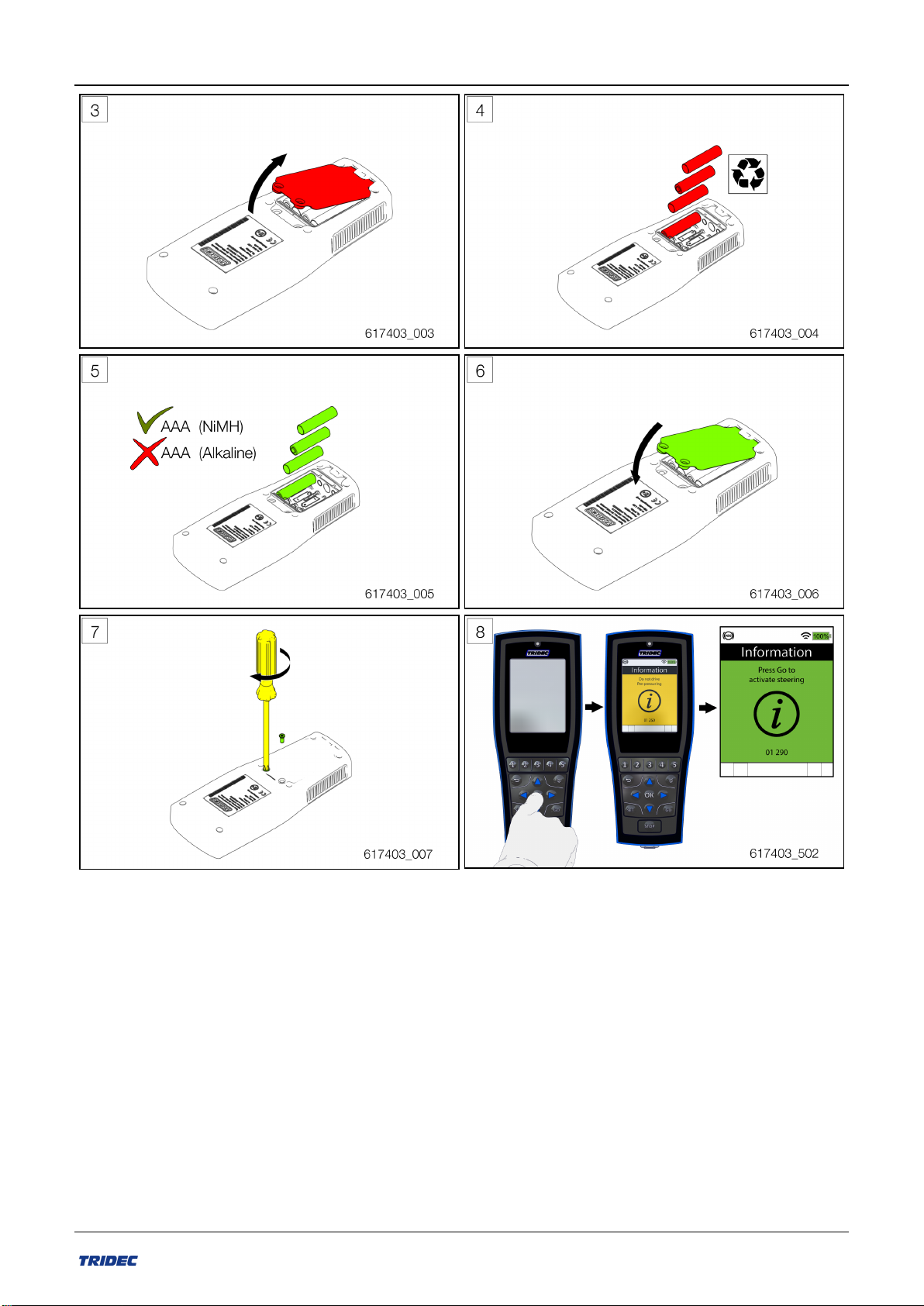

2.2 Replacing the batteries

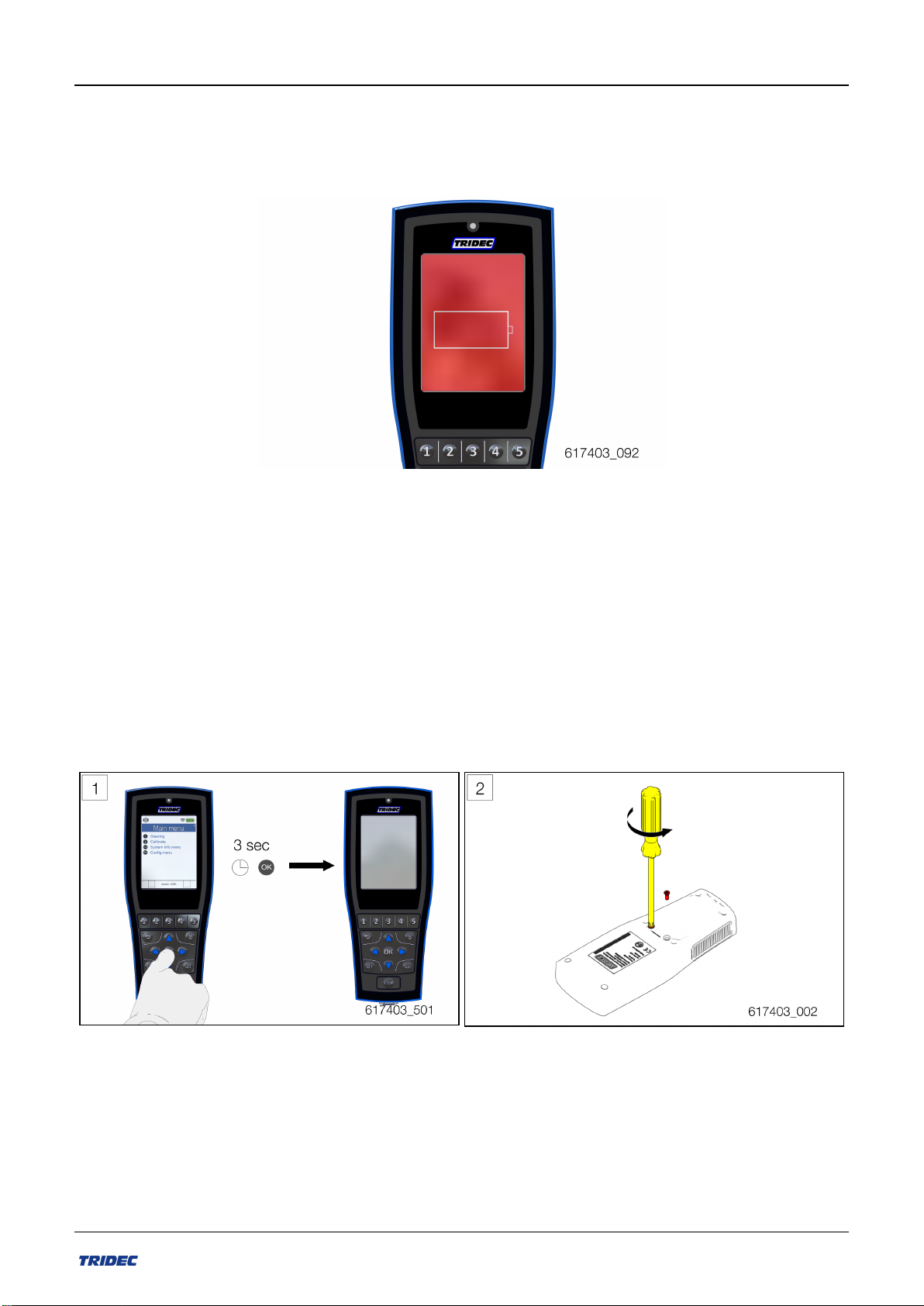

When the batteries have reached the end of their service life, the following message is dis-
played at the bottom of the screen while charging.
Figure 2-4
nThe batteries may only be replaced with rechargeable NiMH (Nickel Metal Hydride)
AA-size batteries with a recommended capacity of 2000 mAh.
nThe batteries must be removed if the remote control is not going to be used for an
extended period of time (longer than one month).
nDo not place fully discharged batteries in the remote control. The system does not
have sufficient capacity to charge them.
nRemove the batteries from the remote control when they are fully discharged and
recharge them in a charging station.
Part no.: 162014 EN-1 13 Release 07/2020
User manual 2300 EF-S system

Part no.: 162014 EN-1 14 Release 07/2020
User manual 2300 EF-S system

Charging the batteries
The batteries in a remote control can be charged in the following ways:
nUsing the supplied holder (this is connected to a power source).
nUsing the synchronization cable, which can be connected to the distribution box
(see Figure 2-5) in the generator box.
Figure 2-5
Thebatteriesarenotoverchargediftheremotecontrolisleftcon-
nectedtoa12Vor24 Vpowersourceforanextendedperiodof
time.
Part no.: 162014 EN-1 15 Release 07/2020
User manual 2300 EF-S system

The following information is displayed on the screen when the remote control is connected
to a power source ( in. 9V ).
Figure 2-6
When the remote is turned off and connected to a power source, the following message will
appear on the screen
Part no.: 162014 EN-1 16 Release 07/2020
User manual 2300 EF-S system
