joule InvaVent MAXI User manual

Instruction booklet
COD. 5471.084.960 09/03/2018
MAXI

2
Read the instructions contained in this booklet
carefully before using the appliance.
Joukle cannot assume any responsibility for da-
mage to property or personal injury resulting
from failure to abide by the instructions given in
this booklet.
Follo ing these instructions ill ensure a long
service life and overall electrical and mechanical
reliability.
Keep this instruction booklet in a safe place.
Table of Contents EN
Compliance with Building Codes . . . . . . 3
Description . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Principles . . . . . . . . . . . . . . . . . 5
Instructions for Use . . . . . . . . . . . . . . . . . 5
Maintenance/Cleaning . . . . . . . . . . . . . . . 5
Information for the Installer . . . . . . . . . . . 5
Important information on eco-
compatible disposal. . . . . . . . . . . . . . . . . . . . . . 9
AA
A
Check that the power supply specifica-
tions comply with the electrical data on
data plate A

Compliance with Building Codes
The 2006 Edition of the U.K Building Regulations
Approved Document F1: Means of Ventilation
(applicable in England and Wales) details 4 clearly
defined systems of ventilation to dwellings. System 3 -
Continuous mechanical extract (MEV) is complied with
by the INVAVENT MAXI ultra-high efficiency whole house
extract ventilation system.
System 3- Continuous mechanical extract requires a
"minimum high rate" in each wet room to be achieved
(Kitchens 13 l/s and both utilities and bathrooms 8 l/s -
sanitary only 6 l/s).
The "minimum low rate" is calculated by taking the
number of bedrooms in the dwelling and applying the l/s
value from Table 1.1b (pag.7). In addition the rate should
be no less than 0.3 l/s per m_ of internal floor area (all
storey’s) plus for each additional occupant over and
above the anticipated two for the first bedroom and one
for each of the others a further 4 l/s must be added to the
extract rate. The system provides quiet, uninterrupted
extract ventilation from the dwelling via all the wet
rooms, creating a permanent air path through the
property from the “dry” habitable rooms to the “wet”
rooms.
The current Building (Scotland) Regulations refers to
continuously operating mechanical extract ventilation in
accordance with the guidance in BRE (Building
Research Establishment) Digest 398, a paper based on
the former government department’s (and now private
company) own tests and recommendations , specifically
0.5 air changes per hour throughout the property.
The INVAVENT MAXI complies fully with the
recommendations contained within this document.
In Ireland, Technical Guidance Document (TGD) 2008
Part F: Ventilation is applicable and the INVAVENT MAXI
complies fully with the recommendations contained
within this document.
With the Governments actively encouraging energy
saving and a target for all new homes to be ‘carbon zero’
by 2016, the INVAVENT MAXI has been designed ‘future
proof’.
The ‘Code for Sustainable Homes’ which came into
force in March 2007, details six levels of CO2emission
improvement over 2006 Building Regulations
requirements.
To achieve the three highest levels of reduction of carbon
emissions, the air leakage of the dwelling must be
improved so significantly that continuous ventilation
becomes the only appropriate method. In addition, it
must be demonstrated that the ventilation system itself
must be energy efficient. The INVAVENT MAXI has been
independently tested by the Building Research
Establishment (BRE) to the appropriate SAP (1)
Appendix Q test methodology and is therefore Appendix
Q eligible.
(1) The Governments Standard Assessment Procedure
(SAP) is a method assessing the energy performance of
dwellings and SAP Appendix Q provides an allowance
for the benefits of energy-saving appliances; products
may be independently assessed and the results
uploaded to the SAP website.
Description
Comfort and energy efficiency are becoming
increasingly important factors in buildings. With this in
mind, appliances are being developed to control the
micro-climate within homes and to provide a high
degree of comfort along with energy efficiency. These
appliances silently and continuously ventilate homes
removing humidity from service areas (bathrooms,
kitchens, etc.) and creating a flow of “dry” air in “lived-
in” areas (dining areas, studies, bedrooms, etc.). The
INVAVENT MAXI centralised ventilation systems has
been specifically designed for continuous ventilation
in domestic applications and may also be used in
some commercial applications.
The INVAVENT MAXI is fitted with brushless three-
phase motors with electronically controlled three-
speed operation.
The INVAVENT MAXI is a modular appliance that
means maintaining and replacing parts is both quick
and easy.

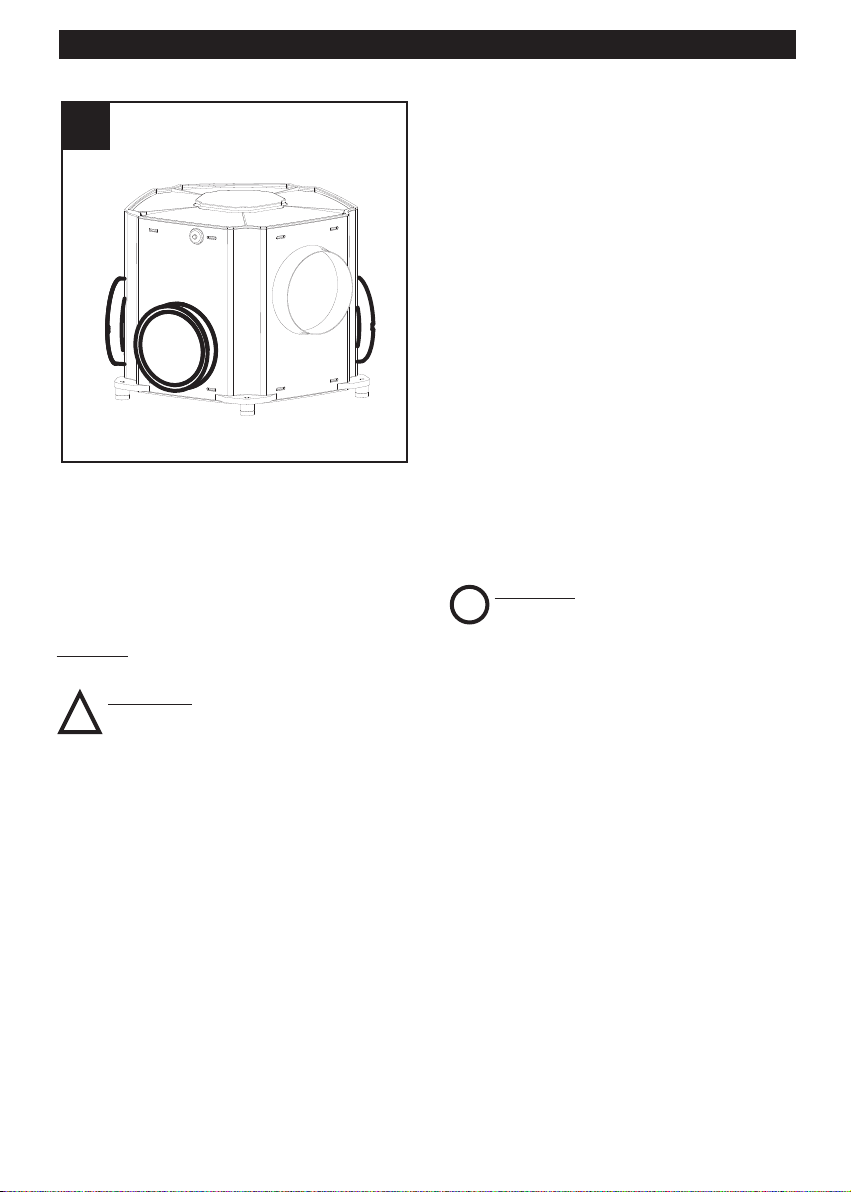

The appliance can be wall or ceiling mounted. The unit
has 5 vents: the one positioned at the top right (fig 1)
is for expelling stale air; the other 4 (fig. 2) extract
humidity and stale air.
11
3
ENGLISH

When the characteristics of an installation dictate that
one or more of the extraction vents will not be used,
these vents should be sealed using the special
blanking caps provided. This will stop any leaks and
ensure that air from the areas involved is properly
extracted.
Safety
• Do not use this appliance for functions other than
those described in this booklet
• After removing the appliance from its packaging,
ensure that it is complete and undamaged. If in
doubt contact a professionally qualified electrician
or oule. Do not leave packaging within the reach of
children or infirm persons
• Certain fundamental rules must be observed when
using any electrical appliance, including:
-never touch electrical appliances with wet or
damp hands;
- never touch appliances while barefoot;
- never allow children or infirm persons to operate
appliances unattended
•This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
•These appliances are designed
for use in residential and
commercial properties.
• Store the appliance out of the reach of children and
infirm persons after deciding to disconnect it from
the power supply and use it no more.
• Do not use the appliance where flammable vapours
are present (spirit, insecticides, petrol, etc.).
• The appliance houses electrical components; in the
event of malfunction, call a qualified technician.
• The appliance houses moving parts that can still be
in motion several seconds after the unit has been
disconnected from the mains. For this reason you
are advised to disconnect the appliance from the
mains then wait at least 10 seconds before opening
it.
• Never touch the electronics as some of the
components may still be electrically charged.
• The air inlets positioned in differing areas need to be
periodically cleaned and care must be taken not to
change the degree to which they are open.
• Do not make modifications of any kind to this
appliance.
• The maintenance instructions must be followed to
avoid damage and/or excessive wear and tear to
the appliance
• The motors fitted to appliances only work with a
230V~ 50Hz AC power supply.
• Do not expose this appliance to the weather (rain,
sun, etc.).
• Do not leave objects standing on the appliance.
• Regularly inspect the appliance for visible defects. If
the appliance does not function correctly, do not
use it and contact oule immediately.
• If the appliance does not function correctly or
develops a fault, contact oule immediately and
ensure that only genuine original oule spares are
used for any repairs.
•The appliance must be installed
by a professionally qualified
electrician.
•The electrical system to which
the product is connected must
be in compliance with
applicable regulations.
•An omnipolar switch with a
22
4
ENGLISH
Caution:
this symbol indicates that care must
be taken to avoid damaging the appliance
!
Warning:
this symbol indicates that care must
be taken to avoid injury to the user
!

contact opening distance of 3
mm or higher should be
provided for installation,
enabling complete
disconnection under
overvoltage category III
conditions.
• Switch off the appliance at the installation's main
switch: a) if the appliance does not function
correctly; b) before cleaning the outside of the
appliance, c) if the appliance is not to be used for
any length of time.
• The appliance cannot be used to control activation
of water heaters, room heaters, etc. and it must not
exhaust into the hot air flues of such appliances.
• Ensure that the appliance discharges into a single
duct (dedicated to this product) or directly to the
outside.
• The air to be extracted from the room must be clean
(i.e. free of grease, soot, chemical and corrosive
agents, and explosive or flammable mixtures).
• Do not cover or block appliance intake or outlet
vents grilles as this may prevent optimum air flow.
•Products equipped with three-
phase wiring (T) engines
ALWAYS require connection to
380-415V (or only 400V where
required) three-phase lines, or
also 220-240V (or only 230V
where required). Any kind of
modification shall be considered
as product tampering and shall
nullify the relative warranty.
Products equipped with single-
phase wiring (M) engines
ALWAYS require connection to
220-240V (or only 230V where
required) single-phase lines. Any
kind of modification shall be
considered as product
tampering and shall nullify the
relative warranty.
Operating Principles
Air is extracted from the areas involved by connecting
the INVAVENT MAXI to ducting vents placed in
“damp” areas of the home. The volume of air to be
extracted is set by moving adjustable vents in line with
unit requirements and current legislation. Incoming air,
on the other hand, enters via intakes (e.g. grilles)
positioned on the walls or windows of “lived-in” areas.
Appliances from the INVAVENT MAXI are designed to
ensure comfort in the home with the least possible use
of electricity.
Instructions for use
INVAVENT MAXI has an external switch for selecting
from the 3 operating speeds available.
Maintenance/Cleaning
Appliances in the INVAVENT MAXI do not need
scheduled maintenance work. Depending upon the
degree of pollution in the areas served by the units,
you are recommended to have the inside of the
appliances cleaned every 3/4 years (to be carried out
by a qualified technician)
(see Information for installer)

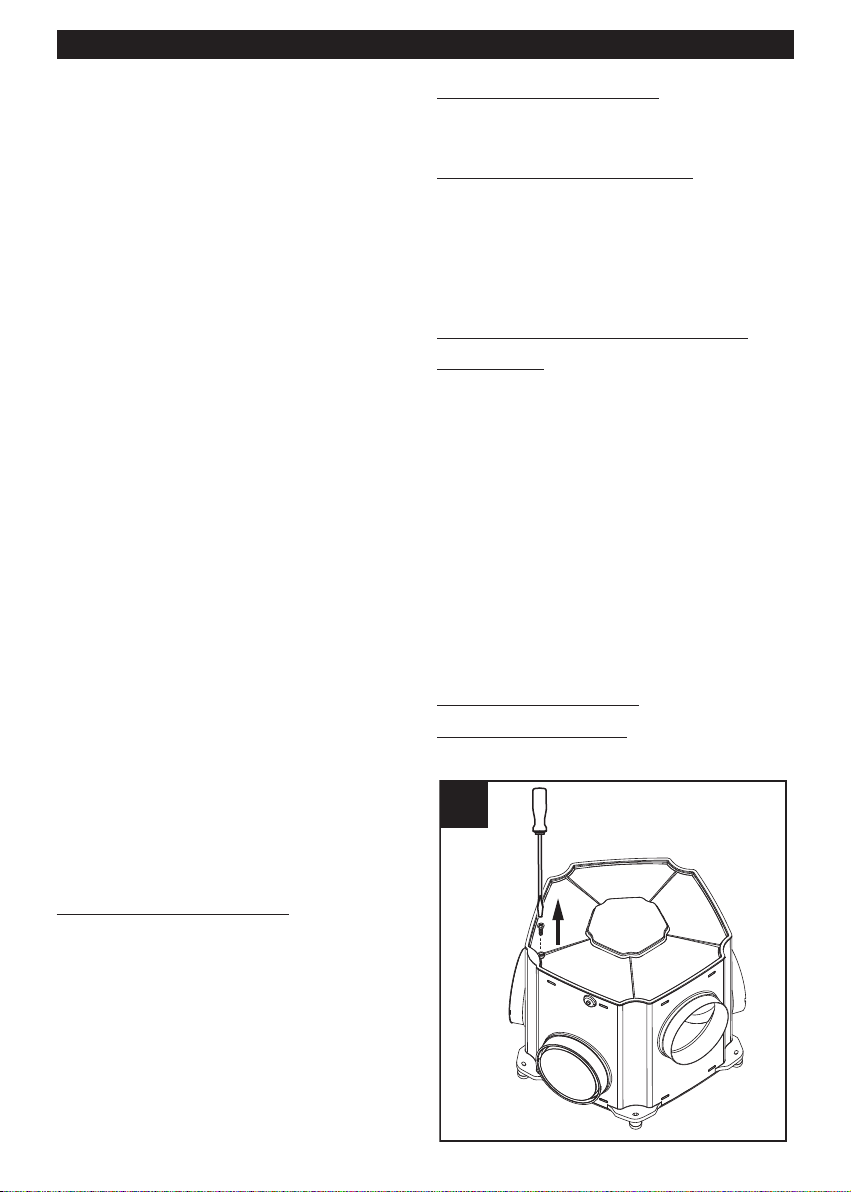

Information for the Installer
INSTALLATION
Appliances in the INVAVENT are compatible with
installation in differing types of buildings whether new
or existing. They can be mounted vertically,
horizontally or inclined, in false ceilings, on
mezzanines, on ceilings, etc. The appliance can be
fixed in position by using the slots on the base.
During the installation procedure, the instructions in
this booklet must be followed carefully and all current
legislation complied with:
•power supply - 230V~50 Hz;
• use a suitably sized multi-polar switch with a
minimum contact gap of 3 mm to install the
appliance;
• connecting pipes must be the right size (125 mm
diameter and 204 x 60 mm if rectangular);
•ducting that leads to or crosses unheated areas
should be insulated to prevent the formation of
condensation.
INITIAL SETTING OF SPEED
Removing the upper cover
Undo the fixing screw (fig.3) and use the lever to
remove the cover. (fig 4)
5
ENGLISH
33

Adjusting potentiometers
The electronics board fitted to appliances in the
INVAVENT MAXI has two potentiometers for setting
the minimum and maximum speed parameters
(medium speed is the average of previously set min
and max configurations). The setting of parameters
must be carried out within one hour of connecting the
appliance to the mains. To make adjustments after
this period, the appliance will have to be disconnected
then reconnected to the mains. On re-start, the
appliance keeps the previous settings and over-rides
the positions of the potentiometers that need to be re-
set by being turned fully anti-clockwise to start
making new settings.
Before starting to adjust the settings, the two
potentiometers must be set to "0". Under these
conditions, the default settings are Vmax=600 and
Vmin = 400.
Setting procedure:
• with the speed selector circuit breaker closed;
• change Vmax from 600 to 2500 rpm - (fig.5);
• open the speed selector circuit breaker;
• change Vmin from 400 to Vmax - (fig.6);
• wait 5 minutes for the appliance to memorise the
new settings;
• turn the power supply to the appliance OFF;
• turn the appliance back ON and check that the new
settings have been successfully stored.
If the minimum air-flow required for a specific
installation cannot be satisfied at the minimum speed,
the appliance will have to be set so that the minimum
air-flow is obtained at medium speed.
N.B.
The setting should be made first to the Vmax then the
Vmin potentiometer.
N.B.
Obtaining the necessary air-flow in each area served
by the installation involves both the speed setting and
the degree to which intake vents in the area are
opened.
N.B.
Increasing the speed of the motor leads to an increase
in power consumption and noise emission.
6
ENGLISH
55
66
44

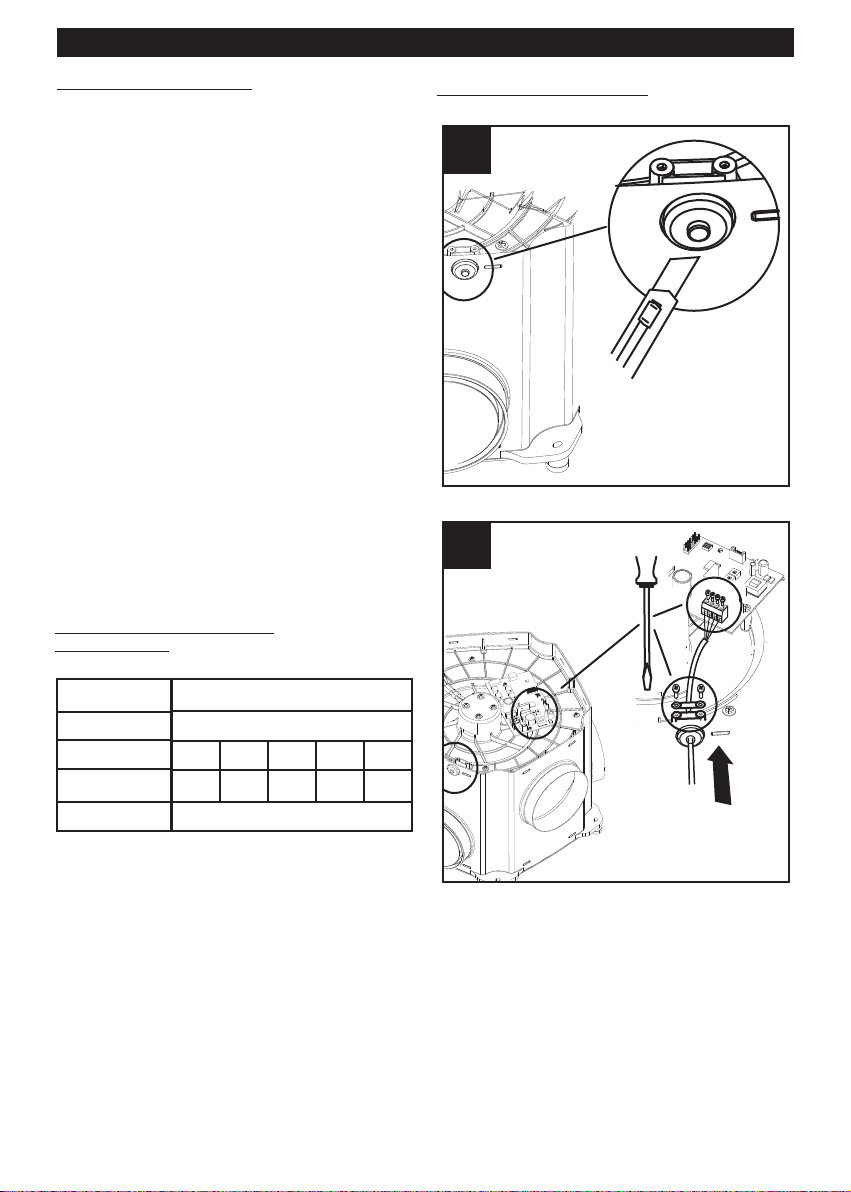

MAINTENANCE/CLEANING
Proceed as follows to check if the appliance needs
cleaning:
• disconnect the appliance from the mains;
•remove any blanking caps from vents that are not
connected to intake ducts so that you can see inside
the appliance and see the blades;
• check the blades for dust: A thin layer of dust will not
affect performance but, if the layer is more than 1
mm deep, the blades should be cleaned;
•check the motor bearings by spinning the blades:
bearings in good condition make no noise; Rotating
the blades manually a few times, their movement is
jerky and they come to a stop. This behaviour is
known as “clogging” and is typical of units powered
by motors with permanent magnets like those fitted
to the INVAVENT MAXI;
• Make sure that the blades rotate smoothly on the
driveshaft;
•on completion of the cleaning, reposition the
blanking caps where they were beforehand;
• reconnect the appliance to the mains;
Vents should be cleaned regularly to ensure that the
unit is working at its best and that the areas involved
are being well ventilated. Make sure that system
settings are not interfered with. Each vent should be
repositioned exactly as it was beforehand. Vents with
no filter can be removed from the mouth of the duct.
Any insulation foam (if present), should be removed
before cleaning the vent with warm water and liquid
detergent. Replace the vents after cleaning.
ELECTRICAL CONNECTIONS
7
ENGLISH
Table 1.1 B
Whole building
ventilation rate (l/s)
Number of bedrooms in dwelling
1 2 3 4 5
13 17 21 25 29
Minimum value in any dwelling of
0,3 l/s per m2floor area
Building Regulations Document
F1 2006 (Extract)
77
88

8
ENGLISH
1111 MAXIMUM SPEED
L
N
N1 L2 3 4
1010 MEDIUM SPEED
L
N
N1 L2 3 4
L
N
N1 L2 3 4
99 MINIMUM SPEED

9
ENGLISH
Important information concerning the environmentally
compatible disposal
IN CERTAIN EUROPEAN UNION COUNTRIES THIS PRODUCT DOES NOT FALL WITHIN THE
RE UIREMENTS OF THE NATIONAL LAWS IMPLEMENTING DIRECTIVE WEEE, AND IN THESE
COUNTRIES THE PRODUCT IS NOT SUBJECT TO SEPARATE DISPOSAL OPERATIONS AT THE END OF
ITS WORKING LIFE.
This product conforms to EU Directive 2012/19/EC.
This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its
useful life, it must not be disposed of as domestic waste, but must be taken to a collection
centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a
replacement.
It is the user's responsibility to dispose of this appliance through the appropriate channels at
the end of its useful life. Failure to do so may incur the penalties established by laws
governing waste disposal.
Proper differential collection, and the subsequent recycling, processing and environmentally compatible
disposal of waste equipment avoids unnecessary damage to the environment and possible related healthrisks,
and also promotes recycling of the materials used in the appliance.
For further information on waste collection and disposal, contact your local waste disposal service, or the shop
from which you purchased the appliance.

10
ENGLISH

11
ENGLISH

12
JOULE IE
mail Kylemore Park West, Ballyfermont, Dublin 10
tel [phone]
fax [phone]
eml [email protected]
web www.joule.ie
JOULE UK
mail Unit 17C&D Power Road, Plantation Bus. Pk.
Bromborought, Wirral, CH62 3RN
tel [phone]
fax [phone]
eml info@jouleuk. o.uk
web www.jouleuk. o.uk
JOULE PL
mai 23-200 Kraśnik, ul. Towarowa 34
tel [phone]
fax [phone]
eml [email protected]
web www.joule-pl.pl
ENGLISH

13
ENGLISH

14
A
CERTIFICATE OF WORK PERFORMED UNDER GUARANTEE
DATE OF WORK STAMP OF TECHNICAL ASSISTANCE CENTRE
CERTIFICATE OF WORK PERFORMED UNDER GUARANTEE
DATE OF WORK STAMP OF TECHNICAL ASSISTANCE CENTRE
CERTIFICATE OF WORK PERFORMED UNDER GUARANTEE
DATE OF WORK STAMP OF TECHNICAL ASSISTANCE CENTRE
CERTIFICATE OF WORK PERFORMED UNDER GUARANTEE
DATE OF WORK STAMP OF TECHNICAL ASSISTANCE CENTRE
B
C
D

15
This guarantee is offered as an extra benefit and does not affect yourlegal rights.
All electrical appliances produced by Joule are guaranteed by the Company for 2 years
against faulty material or workmanship.
If any part is found to be defective in this way within the first twentyfour months from the
date of purchase or hire purchase agreement, we, or our authorised service agents,
will replace or at our opt
ion repair thatpart without any charge for materials or labour or
transportation, provided that the appliance has been used only in accordance with
the instructions provided with each appliance and has been not connected to an unsuitable
electricity supply, or subjected tomisuse, neglect or damage or modified or repaired by any person
not authorised by us.
The correct electricity supply voltage is shown on the rating plate attached to the appliance.
This guarantee is normally available only to the original purchaser of theappliance, but
the Company will consider written applications for transfer. Should any defect arise
in any product and a claim under guarantee become necessary, the appliance
should be carefully packed and returned to your approved stockist.
This portion of the guaranteeshouldbe
attached to the appliance.
UK-IRELAND
Send the guarantee
in sealed envelope to:
Joule
Kylemore Park West,
Ballyfermot,
Dublin 10
OTHER COUNTRIES
Please send the guarantee to
the retailer’s address in the
country where the appliance
has been purchased.
I authorize
to include my personal
details within their
database, which they use,
via a third party for the
despatch of advertising
material, at any time, in
accordance with the
regulations in force within
my country. I can have
access to my details and
can request changes, or
prohibit the usage of my
details.This will be done
by addressing my request
directly to:
I authorize
and its local distributors to include
my personal details within their
database and they can use it
through a third party for the
despatch of advertising material. At
any time, in accordance with the
regulations in force within my
country. I can have access to
details and can ask to make
changes, or prohibit the usage of
my details.This will be done by
addressing my request directly to
the headquarters of the local
distributor where the appliance has
been bought.
I do not authorize
(please tick if required)
I do not authorize
(please tick if required)
Joule
Joule
Joule
Joule
Kylemore Park West,
Ballyfermot,
Dublin 10
Joule
UK AND IRELAND
CONDITION OF WARRANTY

16
YEARS
2
1
2
YEARS
2
CONF.
COLL.
GUARANTEE
GUARANTEE
TO BE RETAINED
Purchase date
This warranty must be attached to the
appliance should it need to be returned
for servicing.
N.B. Guarantee is only valid if all details are
completed correctly.
Mailing dateStamp of supplier
TO SEND
(within 8 days from the date of purchese)
Stamp of supplier
Purchase date
CUSTOMER DATA
name
surname
street
post code
town
I have read and understood the terms and conditions of this guarantee and I authorize the processing
of my personal details (see overleaf).
Signature
Mailing date
