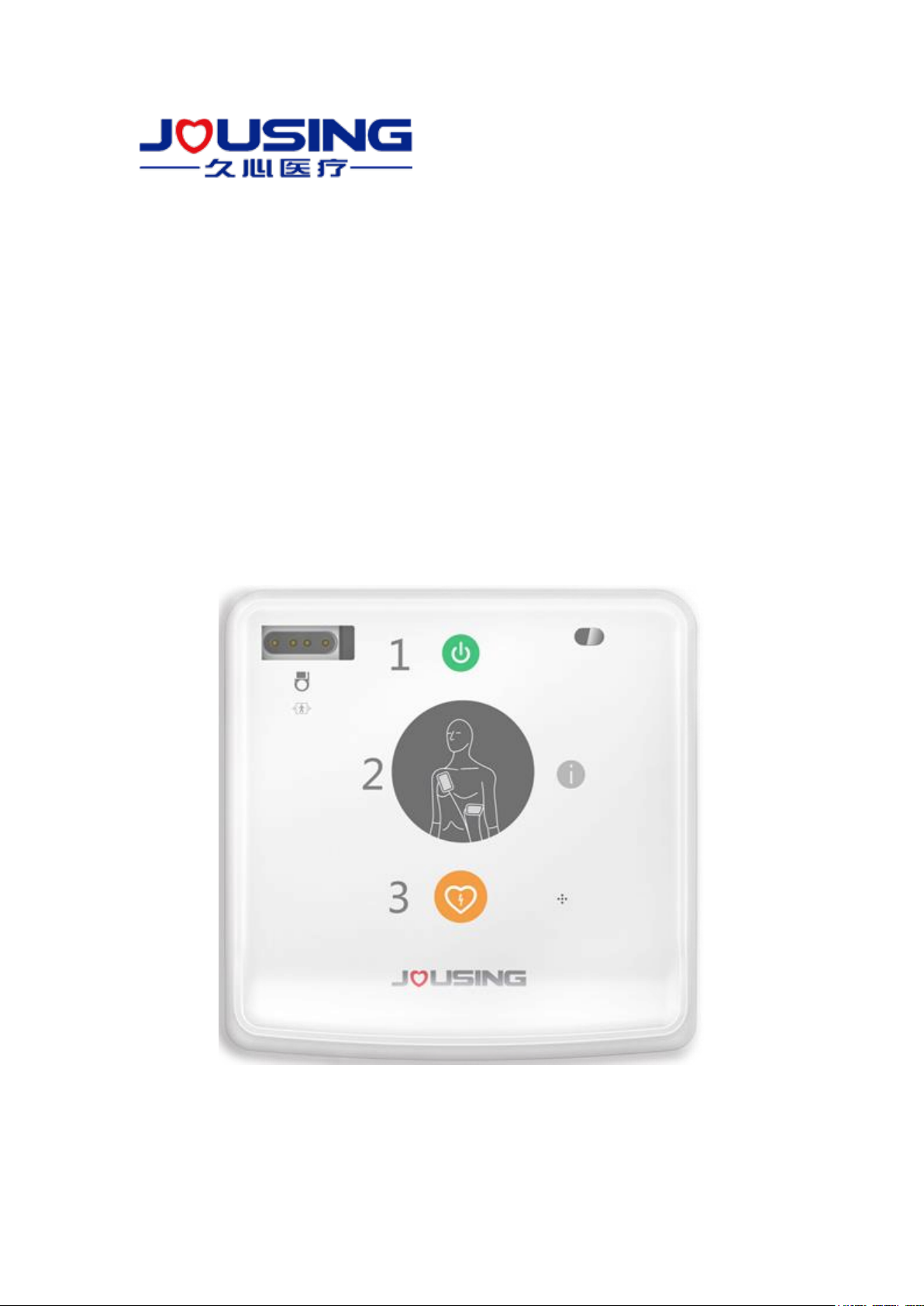

JOUSING iAED-S1 User manual

iAED-S1
Automated External Defibrillator
User Manual

About this Edition
The instructions for use applies to the iAED-S1 Automated External
Defibrillator.
Edition History
Edition: H
Publication date: June. 2021
Copyright Statement
○
C2021 Jousing Medical. Co., Ltd.
No part of this publication may be reproduced by any organization or individual
without the consent of the copyright holder.
The software copyright of the iAED-S1 is under protection by the copyright law
and the worldwide applicable international treaty provisions. Any reproduced,
transcribed, transmitted, stored in a retrieval system or translate in any human
or computer language in any form by any means without consent of the
copyright holder is not allowed.
Responsibility Statement
No responsibility need to be taken by Jousing Medical Co., Ltd. for any injury
caused by any action in violation of the instruction for use, cautions, warning or
the application instructions of this publication.
For any information about the product, please contact your local distributor or
Jousing Medical Co., Ltd.
Technical Support & Customer Service
Company name: Jousing Medical Co., Ltd.
Company Address: BLDG B2-303, Biobay, 218 Xinghu Street, Suzhou

Industrial Park District, 215021 Suzhou, PEOPLE’S REPUBLIC OF CHINA.
Tel: [phone]
Fax: [phone]
Email: [email protected]
Authorized EU representative
Company name: Wellkang Ltd
Address: Enterprise Hub, NW Business Complex, 1 Beraghmore Road, Derry,
BT48 8SE, Northern Ireland, UK.
Tel: [phone]
Email: [email protected]

CONTENTS
1. Introduction to iAED-S1................................1
1.1 Overview...........................................................................................................................1
1.2 Device Appearance.........................................................................................................1
1.2.1 Unpacking and Inspecting...................................................................................1
1.2.2 Device Parts..........................................................................................................2
1.2.3 Controls, Indicators and Labels..........................................................................2
1.3 Indications.........................................................................................................................4
1.4 Contraindications.............................................................................................................4
1.5 User Training Requirement............................................................................................5
2. Safety Information.....................................6
2.1 Warnings...........................................................................................................................6
2.2 Cautions............................................................................................................................8
3 Setting up the iAED-S1 ................................10
3.1 Installing the Battery......................................................................................................10
3.2 Battery Insertion Self-Test............................................................................................11
3.3 Checking the Pads Connection...................................................................................11
3.4 (Optional) Replacing the Battery.................................................................................12
4. Using the iAED-S1....................................14
4.1 Overview.........................................................................................................................14
4.2 Preparation.....................................................................................................................14
4.3 Steps................................................................................................................................15
4.3.1 Turning on the iAED-S1.....................................................................................15
4.3.2 Preparing the Patient.........................................................................................16
4.3.3 Tearing the Pads Package................................................................................17
4.3.4 Placing the Pads to the Patient........................................................................18
4.3.5 ECG Rhythm Analysis .......................................................................................19
4.3.6 Defibrillation Required .......................................................................................20
4.3.7 No Shock Required............................................................................................21
4.3.8 CPR......................................................................................................................21
4.3.9 Terminate Operation...........................................................................................21
5. After Using the iAED-S1...............................22
5.1 Replacing Pads..............................................................................................................22

5.2 Checking the Battery Capacity....................................................................................22
6. Maintenance and Troubleshooting .....................23
6.1 Routine Maintenance....................................................................................................23
6.1.1 Checking the Status Indicator...........................................................................23
6.1.2 Checking the Expired Date of the Pads..........................................................24
6.1.3 Checking the Condition of the Unit andAccessories....................................24
6.2 Cleaning the Device Surface .......................................................................................25
6.3 Storage Environment ....................................................................................................25
6.4 Transportation Environment.........................................................................................26
6.5 Disposal...........................................................................................................................26
6.6 Data Management.........................................................................................................26
6.7 Troubleshooting..............................................................................................................27
7. Product Warranty.....................................31
Annex .................................................32
A Settings...............................................................................................................................32
B Symbols .............................................................................................................................33
C Glossary of Terms.............................................................................................................35
D Technical Specifications ..................................................................................................36
E Waveform Specifications.................................................................................................38
F ECGAnalysis Algorithm...................................................................................................39
G EMC Test Results.............................................................................................................41
H Periodic Checklist.............................................................................................................44
I Device Tracking Table .......................................................................................................45

1
1. Introduction to iAED-S1
1.1 Overview
The iAED-S1 is an automated External Defibrillator (AED) that is used to treat
patients in sudden cardiac arrest (SCA) and designed to be portable and
battery powered, for simple and reliable operation. Voice prompts and visual
indicators provide a simple interface for the operator. After pads are applied to
the patient’s chest, the iAED-S1 will automatically analyze the patient’s heart
rhythm. If a shockable rhythm is detected, the iAED-S1 will direct the
responder to deliver a shock through the pads for defibrillation.
1.2 Device Appearance
1.2.1 Unpacking and Inspecting
Check the product box and the handbag. Make sure it contains the followings
items:
⚫1 iAED-S1 Defibrillator (REF: iAED-S1)
⚫1 Battery JOUBAT (REF:JXB1242)
⚫1 Pads Package JOUPAD (REF:F7952W/J)
⚫1 User Manual
⚫1 Quick Reference Guide
⚫1 Product Certification
⚫1 Warranty Card
⚫1 Package List
Perform the initial inspection as follows:
⚫Examine the surface of the device for signs of possible damage that might
have occurred during shipping.
⚫Check the expired date of the pads and battery.
If there is any damage or expired parts, please contact your local distributor

2
or Jousing Medical.
1.2.2 Device Parts

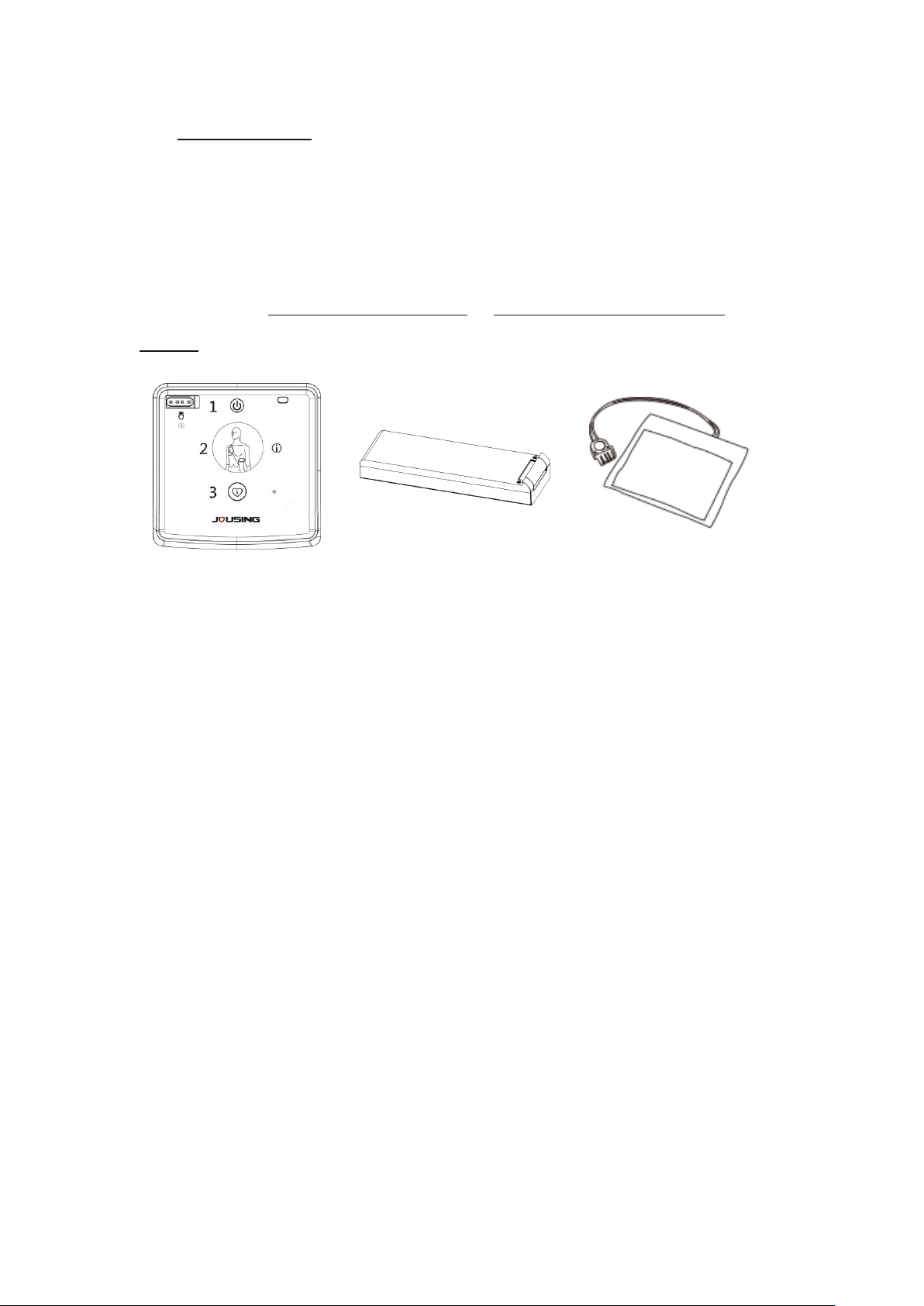

The device’s parts are as shown in Figure 1. Installing and removing the parts
refer to section 3.1 Installing the Battery to 3.4 (Optional) Replacing the
Battery.
①②③
Figure 1 Parts of the device
①The iAED-S1 defibrillator.
②Battery: Non-rechargeable battery, JOUBAT.
The iAED-S1 defibrillator is powered by JOUBAT.
③Pads: Disposable pads, JOUPAD.
JOUPAD and its cables are the applied parts. They are applied to the patient’s
bare chest and used to detect the patient’s heart rhythm and to transfer the
defibrillation shock.
1.2.3 Controls, Indicators and Labels
The controls, indicators and labels on the iAED-S1 are shown in Figure 2 and
the corresponding functions are described in Table 1.

3
a) Front view b) Back view
Figure 2 Controls and indicators on the iAED-S1
Table 1 Functions
No.
Name
Function
①
ON/OFF Button
The ON/OFF Button turns on or off the iAED-S1.
The light of the button turns green when the
defibrillator is on. Press button to turn on the
iAED-S1, light turns green.
Press button again to turn off the iAED-S1, light
turns off.
②
Status indicator
⚫Green light flashes –device is ready for use.
⚫Green light turn on–device is under using.
⚫Red light turns on or flashes –device operates
abnormally.
③
Information Button
⚫Press button for 3 seconds at least to enter Data
administration Mode, light turns green.
◼Green light flashes - data under transmitting.
◼Green light turns on - in standby status.
⚫Press button for 3 seconds at least to exit the Data
administration Mode, light turns off.
④
Speaker
To prompt use instructions to the user.

4
⑤
Shock Button
Press this button on iAED-S1 defibrillator to deliver
a shock when the red light is flashing.
⑥
Pads Attachment
Indicator
Pads Attachment Indicator flashes –pads are not
applied to patient or pads connector is not
connected to the defibrillator.
Pads Attachment Indicator will turn off after pads
are correctly applied to patient.
⑦
Pads Socket
Connect the pads to the defibrillator.
⑧
Safety Warning
Provide warning information about how to use the
device.
⑨
Product Label
Product Label includes the defibrillator serial
number.
⑩
Battery Holder
Store battery.
1.3 Indications
The iAED-S1 is indicated for use on victims of sudden cardiac arrest when the
patients showing both of:
⚫Unresponsive
⚫Not breathing or not breathing normally
1.4 Contraindications
The iAED-S1 should not be used if the patient shows any of the following
signs:
⚫Responsive
⚫Breathing normally

5
1.5 User Training Requirement
The iAED-S1 is intended to be used by persons who are qualified by training in
basic life support (CPR/AED certification) and the use of this device.

6
2. Safety Information
This section provides important information about safely operating the
defibrillator. Many of these messages are repeated elsewhere in this manual
and on the iAED-S1 or accessories.
DANGER：Immediate hazards that will result in serious personal injury or
death.
WARNING：Hazards or unsafe practices that could result in serious personal
injury or death to the user and/or the patient.
CAUTION：Hazard or unsafe practices that could result in minor personal
injury to the user and/or the patient or damage to the device.
2.1 Warnings
Shock Hazard
⚫Disconnect all medical electrical equipment without defibrillation protection
from patient before delivering a shock.
⚫Do not touch the patient or connect the patient with other equipment or
metal objects in contact with patient during defibrillation. The electrical
energy could potentially cause death or injury if it is discharged improperly.
Skin burns
⚫The pads should be kept clear of other electrodes, lead wires, dressings,
medicine patches in contact with patient, etc. Such contact can cause
electrical arcing and skin burns during defibrillation and may also divert the
electrical current away from the patient’s heart.
⚫During defibrillation, air pockets between the skin and pads can cause skin
burns.
⚫To help prevent air pockets, body hair needs to be removed then make

7
sure no other object sticking to the gel or on the pads and pads stick well to
the skin.
⚫Do not use dried out pads, because they will not provide good contact with
the skin.
⚫Do not wipe patient’s skin with alcohol, it may cause skin burns.
Incorrect Rhythm analysis
⚫Place the pad on the patient’s bare skin and press the pads down firmly,
improper place the pad will affect the analysis.
⚫Be sure not to place the pads over an implanted device. An indication of an
implant is a protrusion in the chest skin and a scar.
⚫Moving or transporting the patient during the rhythm analysis may cause
incorrect or delayed diagnosis. Be sure to follow all instructions in this
manual.
⚫Avoid operating the device in close proximity to the equipment which may
emit strong electromagnetic. Electromagnetic interference may result in
improper device operation or failure to detect shock rhythm.
Explosion danger
⚫Do not use this device in the presence of flammable gases or oxygenated
environment.
⚫Do not recharge battery.
⚫Do not burn or incinerate the battery.
Improper operation
⚫An electrical shock hazard will be resulted from unauthorized repair or
modification.
⚫Do not open the iAED-S1, remove its covers, or attempt repair or
modification. There are no user-serviceable components in iAED-S1.
⚫If repair is required, contact Jousing Medical for service.
⚫Do not immerse the device in water or any fluids. Avoid any fluids to spill or
enter the device.
⚫Do not immerse the pads in alcohol or any fluids. Aggressive or prolonged

8
cardiopulmonary resuscitation (CPR) to a patient with pads attached can
cause damage to the pads and the device.
Usage caution
⚫Do not use the device on patient under 8 years old or weighing less than
25kg (55lb).
⚫Use only Jousing Medical-approved accessories. The iAED-S1 may
perform improperly if it is used with other manufacturer’s accessories.
⚫The improper operation can result in damage to the device. Be sure to
follow the instructions in this manual.
⚫Keep patient from touching with conductive liquid or metal conductor.
Conductive liquid or metal conductor may cause unexpected current
bypass.
⚫The device should not be close to or superimposed with other equipment.
It should be observed and verified that the device is normally operating in
this configuration.
⚫The iAED-S1 is an equipment for infrequent use.
⚫During rescue, do not service or maintain the equipment and its parts.
Usage environment
⚫The device should be used for rescue within the temperature 0℃~ 50℃.
⚫When the essential performance of the device is lost or degraded due to
electromagnetic disturbances, please turn off the device and keep away
from strong electromagnetic environment and contact Jousing Medical for
service.
2.2 Cautions
Device Damage
If the device appears damage in any way, please contact Jousing Medical for
service.

9
Label
Please note all cautions and warning signs on the device and the accessories.
Performance
The device may not in good performance if it is stored, transported or used
beyond the range of environmental conditions specified in the technical
specifications.

10
3 Setting up the iAED-S1
This section describes how to set up the defibrillator for use. A few steps are
required to set up the iAED-S1 before using. (The Quick Reference Guide
provides illustrated instructions for set up).
3.1 Installing the Battery
To make sure the defibrillator in operation, the first step is to insert the battery
into the battery holder.
Procedure
Insert a new battery into the defibrillator and push until the user hears it clicked
into position, as shown in figure 3.

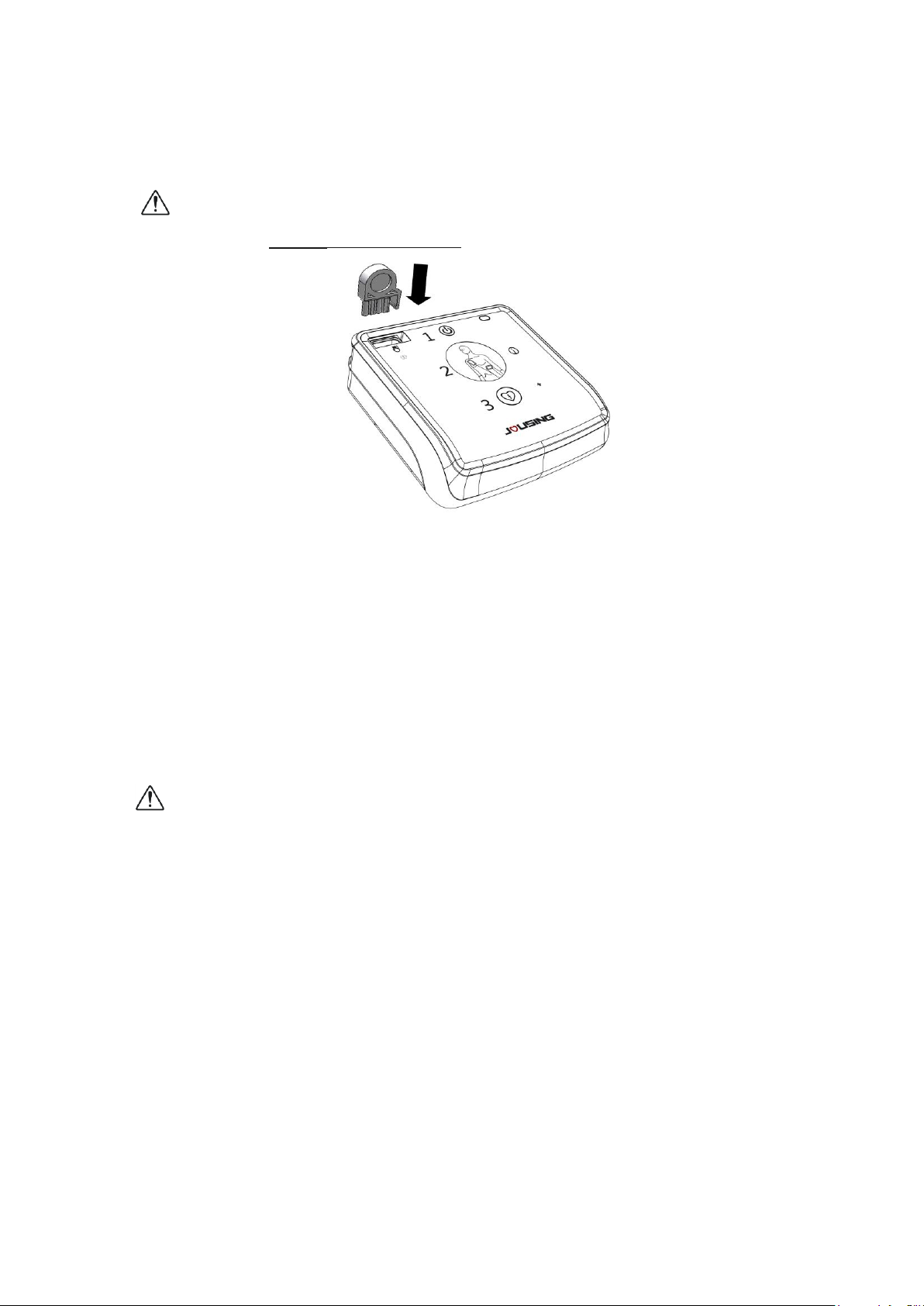

Figure 3 Installing the battery schematic
Warning: Use only the battery approved by Jousing Medical, the battery
specified in the 1.2 Device Appearance.
Verification
If the battery is installed successfully, the device will prompt “Beep”, “Self-test
started, press the green ON/OFF button for emergency”.
※Press the ON/OFF button in case of an emergency.

11
3.2 Battery Insertion Self-Test
Procedure
Wait for battery insertion self-test completion.
If there are some prompts during the self-test, be sure to follow the prompts
and press corresponding buttons and let the self-test run until it completes.
Verification
⚫If the status indicator flashes green from fast to slow and the voice prompts
“self-test completed device normal”, it means the device is ready for use.
⚫If the status indicator flashes red, the device will prompt:
◼“Self-test completed, replace battery now” User should replace a new
battery immediately after performing this rescue if a rescue is needed,
or replace a new battery immediately.
◼“Self-test completed, battery low”. User should replace the battery
immediately.
◼“Self-test completed, temperature abnormal”. You can also perform
rescue if needed. Or place the device in room temperature and wait for
10 minutes, then reinstall the battery to eliminate equipment failure
alarm.
◼“Self-test completed, service required”. That means error is detected
and user should contact Jousing Medical for service.
3.3 Checking the Pads Connection
Procedure
1. Make sure the pads package is intact and within expired date. Replace the
pads if it is expired or the pads package is damaged.
2. Insert the pads connector into the device if it’s not fully inserted into the

12
device, as shown in figure 4.
Warning: Use only the pads approved by Jousing Medical, the pads
specified in the 1.2 Device Appearance.
Figure 4 Pads Connector Insertion
3.4 (Optional) Replacing the Battery
Scenarios
Replace the battery when the device prompts “Replace the battery” or “Battery
low”.
Warning:
⚫Do not remove the battery from the device optionally.
⚫Battery lifetime will be shortened if the defibrillator turns on frequently.
Procedure
Press up the spring button on the right side of the device and pull out the
battery, as shown in Figure 5 a). Remove the battery from the battery holder as
shown in figure 5 b). After removing the old battery, wait at least 30 seconds
before reinstalling a new battery.

13
Verification
a) Step one b) Step two
Figure 5 Removing the battery

14
4. Using the iAED-S1
4.1 Overview
This chapter describes how to use the iAED-S1. The device provides voice
prompts and indications for users throughout the rescue.
If you think someone is in SCA, follow these steps:
1. If other rescuers are available, ask them to call for emergency medical
assistance. Check the patient and get the iAED-S1.
2. If you are the only rescuer, first call the emergency services, quickly get the
iAED-S1 and bring it to the patient. If there is any delay in getting the
defibrillator, perform cardiopulmonary resuscitation (CPR) until the iAED-S1 is
available.
There are three basic steps to use the iAED-S1 to treat someone who may be
in SCA:
1. Press the ON/OFF button.
2. Apply pads on the patient's chest.
3. Press the shock button as instructed by the iAED-S1 voice prompts.
4.2 Preparation
Make sure all the steps in 3 Setting up the iAED-S1 are already finished.
The pads should be kept clear of other electrodes, lead wires, dressings,
medicine patches in contact with patient, etc.

15
4.3 Steps
The iAED-S1 is designed to be easily use. Users can use it according to the
following figure. To learn more about detailed steps instructions, please refer to
the sections 4.3.1 Turning on the iAED-S1 to 4.3.9 Terminate Operation.

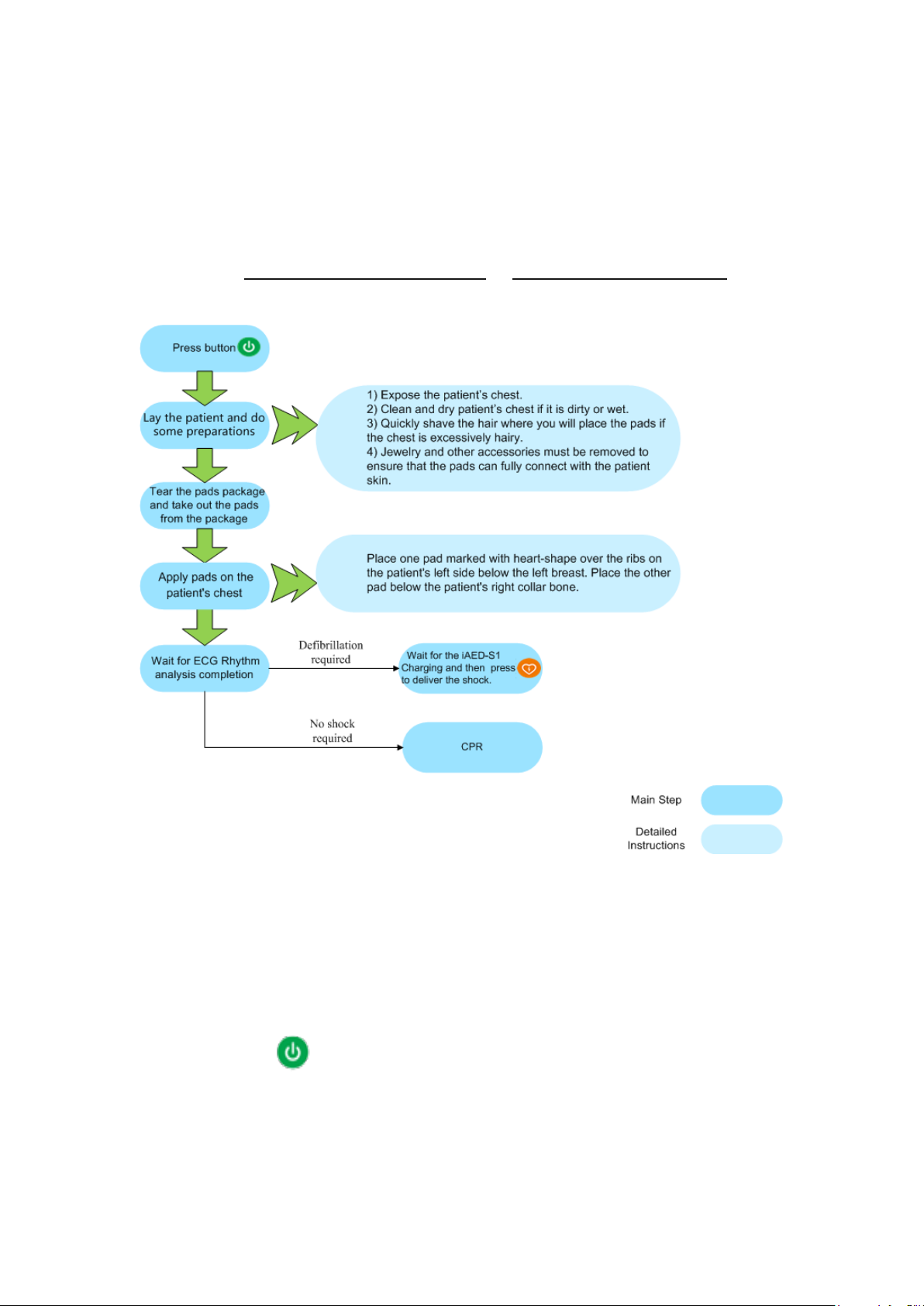

Figure 6 Step Procedure
4.3.1 Turning on the iAED-S1
Procedure
1. Press button .
2. Call emergency medical assistance.
