Operating Manual
Uninterruptible Power Supply
Wärtsilä JOVYTEC PNT
1000VA –3000VA
BAX 3313_en

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 2 -
Index
Date
Name
Revision
0
28. March.
2007
A.Heller
Original
1
14.May 2007
A.Heller
Revision Compass Distances
2
30.05.2007
Th.Harms
07/277
3
13.06.2007
A.Heller
ID added
4
15.11.2007
A.Heller
Designation X1 added
5
24.01.2008
A.Heller
Software Version added
6
04.08.2008
A.Heller
DNV Certificate added
7
29.08.2008
Th. Harms
08/308 Relay card removed (Not possible at NT Series)
8
23.03.2009
A.Heller
09/149 Battery Security Data Sheet added
9
26.03.2010
A.Heller
10/113 Battery Datas added in technical data
10
11.07.2011
A.Heller
BV Certificate added
11
16.01.2012
Chr. Fechteler
12/024
12
10.07.2012
Chr. Fechteler
12/319
13
12.09.2012
A.Heller
12/409
14
25.04.2013
Chr. Fechteler
13/227
15
20.06.2014
D. Busboom
14/375
16
09.10.2014
D. Busboom
14/559
14
22.12.2014
Chr. Fechteler
14/743

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 3 -
N O T E S !
Notes concerning this operating manual
Thank you for deciding to purchase the uninterrupted power supply units (UPS) out of the series JOVYTEC PNT. They represent
reliable protection for the attached consumers.
Please read through this manual very carefully
This manual contains regulations covering safety, installation and operating methods which will help you guarantee to obtain the full
performance und operational readiness which these UPS can offer.
Put this manual in a place of safe keeping
It contains important regulations for safe use of these UPS and for reaching manufacturer services if, for some reason, correct operation
of the UPS is in doubt.
Keep or reuse the packaging material
The packaging material for these UPS was designed with great care to protect its contents against damage during transport. This
material is also useful if you ever have to send the UPS back for checking. Damage which occurs during transport is not covered by the
warranty provisions.
Duty to instruct persons
This operating manual is to be read through carefully before assembly and first use of the UPS by persons who will be working with or
on the UPS.
This operating manual is an integral part of the UPS. The operator of this device is required to make this operating manual available in
an unlimited fashion to every group of persons who transport the UPS, commission it, maintain it or who do any other kind of work on
this device.
Validity
This operating manual is in line with state-of-the-art UPS technology at its time of publishing. The contents are not part of the contract
but simply serve as a source of information.
Wärtsilä JOVYATLAS EUROATLAS GmbH reserves the right to make any necessary changes to the contents and technology
described in this operating manual without having to make an announcement to this effect. We cannot be held responsible for any errors
or improper information in this operating manual since there is no duty upon the company to update this operating manual on an
ongoing basis.
Loss of warranty
Our deliveries and services rendered are subject to the General Delivery Conditions for Products of the Electrical Industry as well as
our General Sales Conditions. We reserve full rights to make any changes to this operating manual, in particular to technical data,
operation, dimensions and weights. We request that you make any claims concerning delivered goods within eight days after arrival of
the goods together with the packing slip. Complaints made later than this cannot be considered.
Wärtsilä JOVYATLAS EUROATLAS GmbH will annul all duties such as promises to offer a warranty period, service contracts etc.
without warning if any spare parts other than original are used for maintenance and repair purposes.
Handling
This operating manual for the UPS is constructed in such a way that all work required for commissioning, maintenance and repair can
be conducted by appropriate skilled personnel.
The Service Hotline
There is further information available under Chapter 8 “Service information“for questions about the UPS unit, about the operating
manual, service etc.
Copyright
Any passing on, duplication and/or transfer by means of electronic or mechanical means, also extracts thereof, of this operating manual,
requires express prior written permission from Wärtsilä JOVYATLAS EUROATLAS GmbH.
Copyright Wärtsilä JOVYATLAS EUROATLAS GmbH. All rights reserved.
.

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 4 -
TABLE OF CONTENT
1. GENERAL NOTES 6
1.1 SCOPE OF DELIVERY 6
1.2 GENERAL NOTES REGARDING THE UPS DEVICES 7
2. DESCRIPTION OF THE SYSTEM 7
3. GENERAL DESCRIPTION OF THE FUNCTION 8
4. TECHNICAL DATA 10
4.1 1000 VA 10
4.2 1500 VA 11
4.3 2000 VA 12
4.4 3000 VA 13
4.5 TECHNICAL DATA BATTERIES 14
5. VIEWS OF THE UPS 15
5.1 FRONT VIEW 1000VA –1500 VA 15

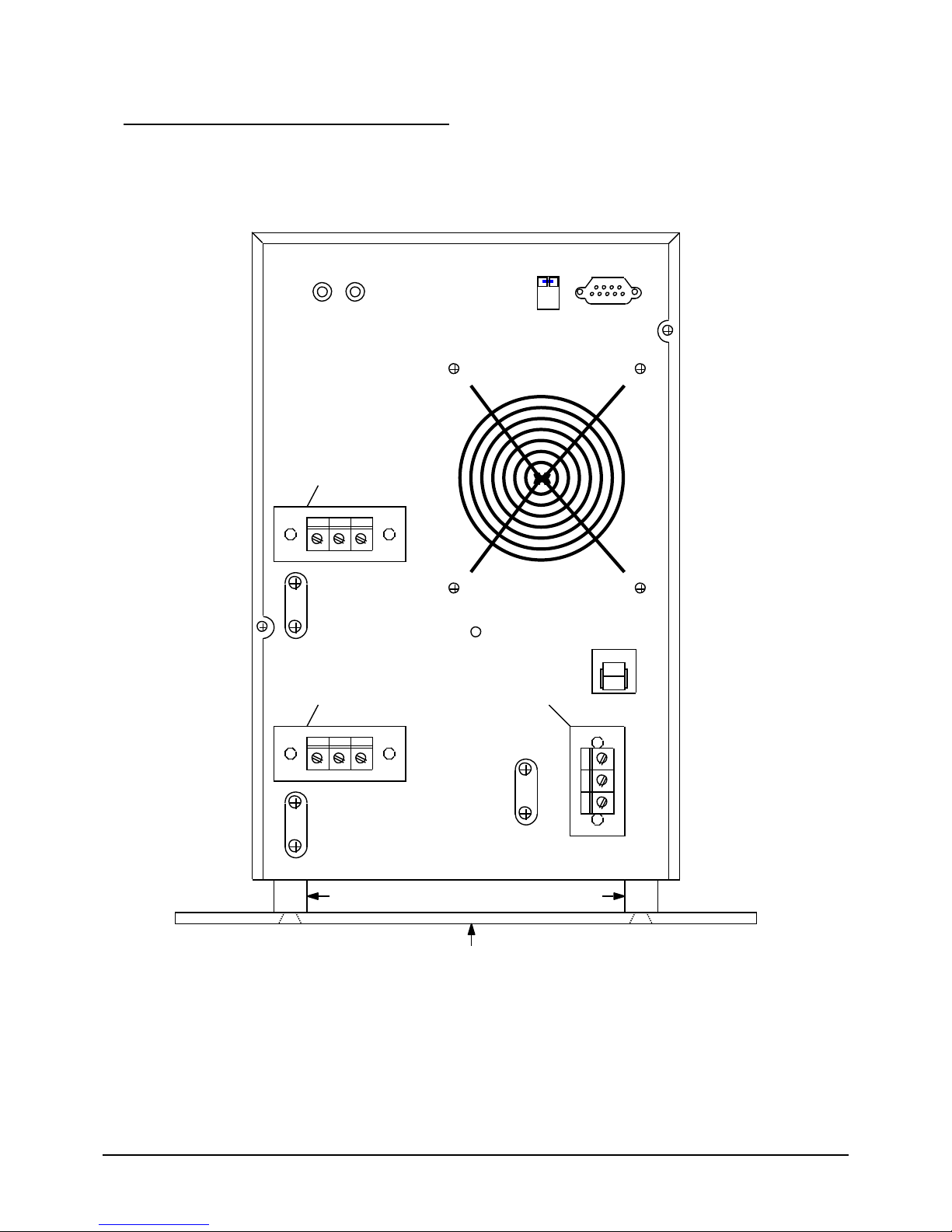

5.2 REAR VIEW 1000 VA –1500 VA 16
5.3 FRONT VIEW 2000 VA –3000 VA 17
5.4 REAR VIEW 2000 VA –3000 VA 18
6. ELECTRICAL CONNECTION 18
6.2 COMMISSIONING 20
6.3 UPS SHUT-DOWN 20
7. OPERATING AND INDICATING ELEMENTS 21
7.1 FUNCTION OF LED AND FUNCTION KEYS 21
7.2 PARAMETERS 22
7.3 CONFIGURATION 23
7.4 TABLE OF THE ADJUSTABLE PARAMETERS 23
7.5 AUTOMATIC/MANUAL BATTERY TEST 24
7.6 OFFLINE MODE 24
7.7 FREE RUNNING MODE 24
7.7.1 FREE RUNNING ON 24
7.7.2 FREE RUNNING OFF 25
7.7.3 SETTING THE BYPASS TOLERANCE + ACTIVATION/DEACTIVATION OF THE BYPASS 25
7.7.4 FREE RUNNING ON, BYPASS DEACTIVATED 25
7.7.5 FREE RUNNING ON, BYPASS ACTIVATED 25

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 5 -
7.7.6 GENERATOR MODE 26
7.8 ERROR MESSAGES AND THEIR REMOVAL 26
7.8.1 OPTICAL AND ACOUSTICAL ERROR MESSAGES 27
8. SERVICE INFORMATION 28
9. REMOTE MONITORING 28
9.1 CONNECTING THE UPS TO THE COMPUTER 28
9.2 ASSIGNMENT OF THE RS232 INTERFACE 28
10. SPECIAL EQUIPMENT 29
10.1 ELECTRONIC STOP FUNCTION 29
11. BATTERY 30
11.1 BATTERY OPERATION 30
11.2 SERVICE LIFE OF BATTERIES 30
11.3 INSTRUCTIONS FOR USING THE BATTERIES 30
12. REPLACING AN INTERNAL UPS BATTERY 31
13. MAINTENANCE 32
14. ANNEX 32

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 6 -
1. General notes
Congratulations on chosen a UPS out of the Wärtsilä JOVYTEC PNT series!
This type of static UPS incorporates the latest findings in power electronics and digital signal processing. The
UPS offers the best solution of problems in power supply of computer-systems. These UPS are special build
for nautical use on ships. UPS of this series are capable to communicate with different computer operating
systems through standardized RS232/RS485-interfaces. The necessary software for remote control of the UPS
is available as an option.
These UPS are real online systems, which prevents your loads from mains disturbances like spikes, blackouts
and voltage variations. The production of these systems is screened by an effective quality management
system.
Therefore it offers a perfect solution for your power supply problems; the reliability of the systems is our major
goal since over 60 years of experience in secured power supply and techniques.
The scope of this manual is to describe briefly the parts that constitute the UPS and to guide the installer and
the user to the correct installation of the system in the chosen room.
The installer and the user will have to read this manual with care and attention and correctly carry-out the
instructions provided, especially those relevant to security according to the country standards in force.
For this UPS systems are Type Approval certificates by GL, DNV and BV on our website in the download
section available: http://www.jovyatlas.com/ja/JOVYTEC-P-nt,120-83-2.
1.1Scope of delivery
The ups –system exists of the following components, which will be delivered:
UPS –Device
Mounting Plate with fixing screws and washers
Communication cable for RS 232 –Interface
Manual BAX 3313 E
CD UPSMON (Communication Software)
i
IMPORTANT:
The manufacturer declines all responsibility for damages to people or equipment
deriving from non-fulfilment of the above.

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 7 -
N O T E!
The UPS should be attached to the mains supply and switched on at the latest 4
weeks after receipt in order to prevent the battery discharging itself.
P L E A S E N O T E!
In order to exclude the possibility of overloading or constant switching over to bypass
due to consumer generated non-sinusoidal current peaks, no devices such as laser
printers, fax machines as well as devices operating with a similar technology should be
connected to the UPS.
In cases where it is essential that such devices be operated then a UPS must be
selected whose capacity can match the maximum possible current peaks.
Devices with power reduction due to half wave power consumption, (e.g. coffee
machines, hair dryers) can lead to immediate destruction of the power-output stage. The
battery is not galvanically isolated from the mains so occurrence of a mains voltage at
the battery terminals is possible! The UPS unit does not have an output transformer and
is therefore not galvanically isolated from the mains!!
P L E A S E N O T E!
The batteries used are just designed for the required backup time to supply
the nominal load of the UPS. Operation of the UPS unit in free running mode
for a longer period of time on battery can damage the batteries. This effect is
due to the nature of the battery since for a longer discharge period the final
discharging voltage is not reached.
1.2 General notes regarding the ups devices
The device may only be opened by trained specialists.
The system is to be connected up and earthed according to VDE regulations. Provisions of the local energy
–supply company must be observed.
The ventilation slits on the front and rear sides must not be covered and a distance from the wall of at least
100 mm is essential.
The UPS unit is built according to Protection Class IP 21 and is designed for installation in heated internal
spaces (at 20°C). A lower operating temperature lowers the bridging time.
No devices with a connecting cable in excess of 10 metres in length should be connected to the UPS. This
measure serves to ensure observance of the EMC standard.
No alterations should be made to the UPS unit. The warranty will expire in cases of inappropriate physical
interventions.
2. Description of the System
UPS devices of this type are particularly suited for supplying critical power consumers in industry and the
office such as personal computer, computer-controlled devices, PLCs and similar equipment. The output
voltage is sinusoidal. In normal cases the attached consumers are supplied with power from the installed
rectifier and installed inverter from the mains power supply network (online operation). Any disturbances in
the mains such as voltage peaks, voltage drops, harmonic distortions or noises etc. are filtered out. The
installed battery is constantly being charged up by means of a charging rectifier with a charge preservation
charging stage which is gentle on the batteries.

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 8 -
P L E A S E N O T E !
The output of the UPS unit also carries a voltage in the case of a power failure!
This is why the installation engineer must mark the outputs and power
sockets on the UPS unit clearly according to EN 62040.
Input
Battery
Rectifier Inverter
Ouput
Manual Bypass
Input
Battery
Rectifier Inverter
Output
Manual Bypass
3. General description of the function
Normal operation
During normal operation the battery and the inverter are supplied with power via a rectifier (online operation).
The change-over from alternating voltage to direct voltage and back to alternating voltage again is achieved
by a sinusoid output voltage with a low distortion factor. The direct voltage is also needed for charging the
battery. The inverter supplies the attached consumers.

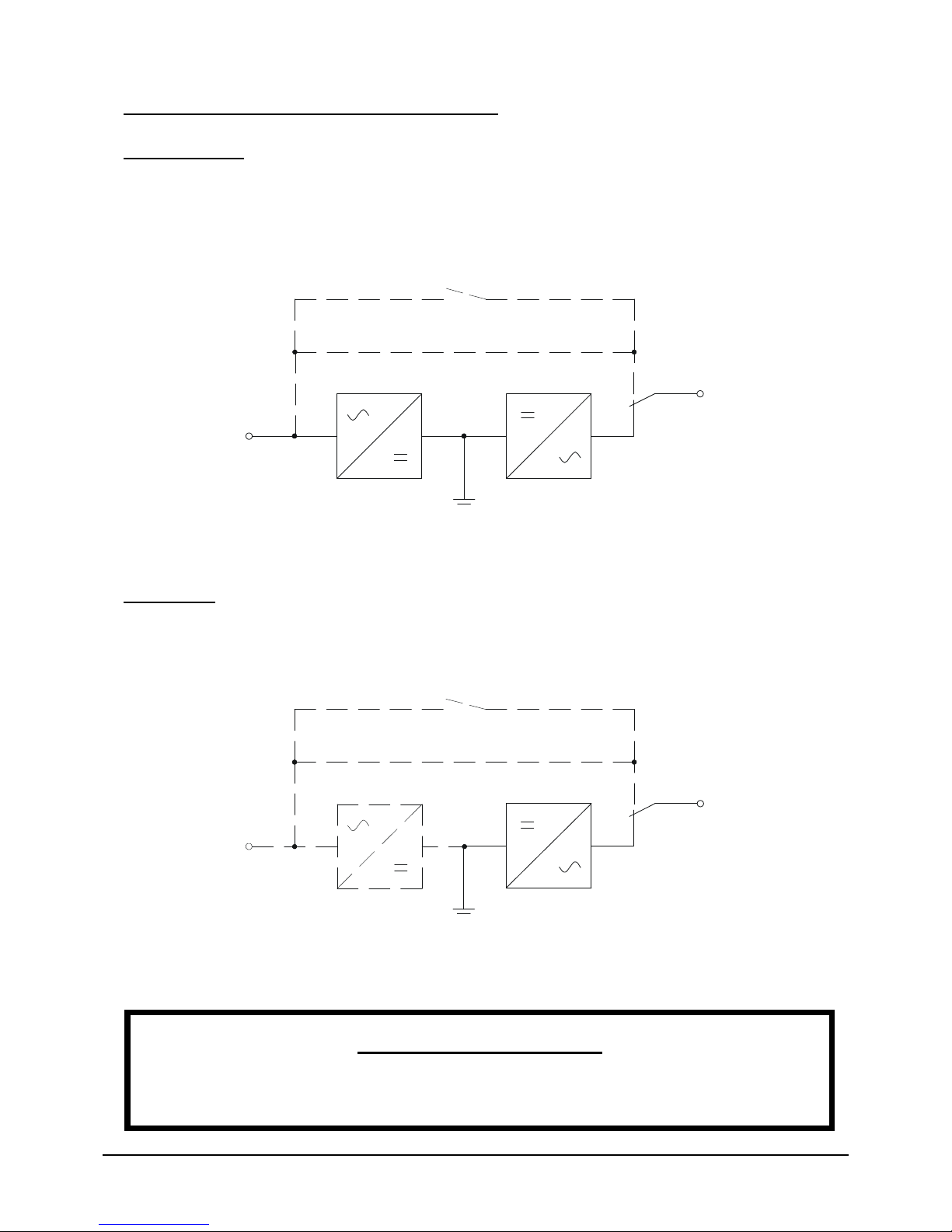

Figure 1: Block diagram “Normal operation“
Power failure
In the case of a power failure, the energy needed by the inverter is taken from the battery. At the output the
voltage from the inverter is still available.
Figure 2: Block diagram “Power failure“

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 9 -
Input
Battery
Rectifier Inverter
Output
Manual Bypass
Input
Battery
Rectifier Inveter
Output
P L E A S E N O T E!
An operating fault can lead to total loss of power supply to the attached power
consumer loads! A power failure for a switched in manual bypass will lead to
crashing of the power consumer loads!
Fault in the inverter or an overload (bypass operation)
In the case of a fault occurring in the inverter or an overload, a switch-over device switches the load back to
the mains. This means that, in the case of a power failure, the connected consumers will no longer be
supplied with power.
Figure 3: Block diagram “Fault in the inverter“
Manual bypass (service bypass)
If there is a fault in the UPS unit and service work must be undertaken, the UPS unit is fitted with an internal
bypass for that purpose. When actuating the manual bypass, the load is directly supplied from the mains.
This means that, in the case of a power failure, the connected consumers will no longer be supplied with
power. When using the manual bypass it is essential to observe the chapter “UPS internal manual bypass”.
Other procedures could lead to destruction of the UPS unit or crashing of the power consumer loads.
Figure 4: Block diagram “Manual bypass“

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 10 -
4. Technical data
4.1 1000 VA
Output power
cos 0,7 ind.
1000VA / 700W
Network supply
Voltage
230V
Input voltage ranges
168V - 276V (0-100% load)
140 - 159V (0-70% load)
120 - 139V (0-40% load)
Current with standard charger
3.6A
Current with additional charger
4,6A
Frequency
50Hz ±3Hz or 60Hz ±3Hz
Phase
Single phase
Power Factor
0,98
External fuse protection
D01/10A
Battery
(installed in battery pack inside the ups)
Direct current link voltage
36V
Backup time
8min. at
100% load
13min. at
80% load
24min.at 50%
load
Type
Maintenance free, closed lead acid batteries
Charging time
< 8 hours for 90% recharge
Output
Voltage
230V Standard (208V / 220V / 240V
selectable at the panel)
Frequency
Automatic adjustment via of the ups
Power factor
cos 0,7 ind.
Phase
Single phase
Distorsion factor
< 3% at linear load
Overload behaviour
100 to 125% for 60 seconds
125 –150% for 10s
Crest Factor
3 : 1
Efficiency
AC to AC
88 - 98% according to the operation mode
Switch over behaviour
Power failure
0ms
Overload switching
Automatic overload switching by the ups
Noise level
At an distance of 1m
< 45dB(A)
Compass Distances
Standard 600mm
Reserve 450mm
Environment
Protection Degree
IP 21
Temperature
0°C to 45°C
+15 … +25°C (recommended)
Air humidity
0% to 95%, non condensing
Storage at …
20°C (recommended) with Battery
-20°C to 50°C without Battery
Applied Rules
Operation Mode VFI SS 111 acc. t IEC 62040-
3, DIN EN 60945
Approved according to IACS Typetest
Specification E10 of Det Norske Veritas and
Type approved according to the Rules of
Germanischer Lloyd and Det Norske Veritas
Type approved by Bureau Veritas
Interfaces
RS 232-Interface
Optional:
USB Interface
Relay card
AS/400 - Adapter
SNMP - Adapter
Supports power management and diagnosis
such as BATTERY LOW, UPS ON/OFF
Software is compatible with operating systems
such as: Windows 95/98/NT/2000/XP, Novell,
Unix, etc current operating systems.
Dimensions
UPS Device
Width
152mm
Depth
425mm
Heights
238mm
Weight UPS
approx. 9,4 kg
Weight UPS incl. Battery
approx. 17,4 kg
Scope of delivery
Hardware/Software
UPS unit
Manual BAX 3313E
Interface cable, Mounting plate with fixing
screws
Software UPSMON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 11 -
4.2 1500 VA
Output power
cos 0,7 ind.
1500VA / 1050W
Network supply
Voltage
230V
Input voltage ranges
168V - 276V (0-100% load)
140 - 159V (0-70% load)
120 - 139V (0-40% load)
Current with standard charger
5,7A
Current with additional charger
6,9A
Frequency
50Hz ±3Hz or 60Hz ±3Hz
Phase
Single phase
Power Factor
0,98
External fuse protection
D01/10A
Battery
(installed in battery pack inside the ups)
Direct current link voltage
36V
Backup time
6min. at
100% load
8min. at
80% load
14min.at 50%
load
Type
Maintenance free, closed lead acid batteries
Charging time
< 8 hours for 90% recharge
Output
Voltage
230V Standard (208V / 220V / 240V
selectable at the panel)
Frequency
Automatic adjustment via of the ups
Power factor
cos 0,7 ind.
Phase
Single phase
Distorsion factor
< 3% at linear load
Overload behaviour
100 to 125% for 60 seconds
125 –150% for 10s
Crest Factor
3 : 1
Efficiency
AC to AC
88 - 98% according to the operation mode
Switch over behaviour
Power failure
0ms
Overload switching
Automatic overload switching by the ups
Noise level
At an distance of 1m
< 50dB(A)
Compass Distances
Standard 600mm
Reserve 400mm
Environment
Protection Degree
IP 21
Temperature
0°C to 45°C
+15 … +25°C (recommended)
Air humidity
0% to 95%, non condensing
Storage at …
20°C (recommended) with Battery
-20°C to 50°C without Battery
Applied Rules
Operation Mode VFI SS 111 acc. t IEC 62040-
3, DIN EN 60945
Approved according to IACS Typetest
Specification E10 of Det Norske Veritas and
type approved of Det Norske Veritas
Type approved by Bureau Veritas
Interfaces
RS 232-Interface
Optional:
USB Interface
Relay card
AS/400 - Adapter
SNMP - Adapter
Supports power management and diagnosis
such as BATTERY LOW, UPS ON/OFF
Software is compatible with operating systems
such as: Windows 95/98/NT/2000/XP, Novell,
Unix, etc current operating systems.
Dimensions
UPS Device
Width
152mm
Depth
420mm
Heights
238mm
Weight UPS
approx. 10,4 kg
Weight UPS incl. Battery
approx. 18,5 kg
Scope of delivery
Hardware/Software
UPS unit
Manual BAX 3313E
Interface cable, Mounting plate with fixing
screws
Software UPSMON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 12 -
4.3 2000 VA
Output power
cos 0,7 ind.
2000VA / 1400W
Network supply
Voltage
230V
Input voltage ranges
168V - 276V (0-100% load)
140 - 159V (0-70% load)
120 - 139V (0-40% load)
Current with standard charger
7,7A
Current with additional charger
8,9A
Frequency
50Hz ±3Hz or 60Hz ±3Hz
Phase
Single phase
Power Factor
0,98
External fuse protection
D01/10A
Battery
(installed in battery pack inside the ups)
Direct current link voltage
72V
Backup time
8min. at
100% load
13min. at
80% load
24min.at 50%
load
Type
Maintenance free, closed lead acid batteries
Charging time
< 8 hours for 90% recharge
Output
Voltage
230V Standard (208V / 220V / 240V selectable
at the panel)
Frequency
Automatic adjustment via of the ups
Power factor
cos 0,7 ind.
Phase
Single phase
Distorsion factor
< 3% at linear load
Overload behaviour
100 to 125% for 60 seconds
125 –150% for 10s
Crest Factor
3 : 1
Efficiency
AC to AC
88 - 98% according to the operation mode
Switch over behaviour
Power failure
0ms
Overload switching
Automatic overload switching by the ups
Noise level
At an distance of 1m
< 50dB(A)
Compass Distances
Standard 600mm
Reserve 400mm
Environment
Protection Degree
IP 21
Temperature
0°C to 45°C
+15 … +25°C (recommended)
Air humidity
0% to 95%, non condensing
Storage at …
20°C (recommended) with Battery
-20°C to 50°C without Battery
Applied Rules
Operation Mode VFI SS 111 acc. t IEC 62040-
3, DIN EN 60945
Approved according to IACS Typetest
Specification E10 of Det Norske Veritas and
type approved of Det Norske Veritas
Type approved by Bureau Veritas
Interfaces
RS 232-Interface
Optional:
USB Interface
Relay card
AS/400 - Adapter
SNMP - Adapter
Supports power management and diagnosis
such as BATTERY LOW, UPS ON/OFF
Software is compatible with operating systems
such as: Windows 95/98/NT/2000/XP, Novell,
Unix, etc current operating systems.
Dimensions
UPS Device
Width
225mm
Depth
425mm
Heights
360mm
Weight UPS
approx. 16,2 kg
Weight UPS incl. Battery
approx. 32,2 kg
Scope of delivery
Hardware/Software
UPS unit
Manual BAX 3313E
Interface cable, Mounting plate and fixing
screws with distance washer
Software UPSMON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 13 -
4.4 3000 VA
Output power
cos 0,7 ind.
3000VA / 2100W
Network supply
Voltage
230V
Input voltage ranges
168V - 276V (0-100% load)
140 - 159V (0-70% load)
120 - 139V (0-40% load)
Current with standard charger
10,7A
Current with additional charger
11,9A
Frequency
50Hz ±3Hz or 60Hz ±3Hz
Phase
Single phase
Power Factor
0,98
External fuse protection
D01/16A
Battery
(installed in battery pack inside the ups)
Direct current link voltage
72V
Backup time
6min. at
100% load
8min. at
80% load
14min.at 50%
load
Type
Maintenance free, closed lead acid batteries
Charging time
< 8 hours for 90% recharge
Output
Voltage
230V Standard (208V / 220V / 240V selectable
at the panel)
Frequency
Automatic adjustment via of the ups
Power factor
cos 0,7 ind.
Phase
Single phase
Distorsion factor
< 3% at linear load
Overload behaviour
100 to 125% for 60 seconds
125 –150% for 10s
Crest Factor
3 : 1
Efficiency
AC to AC
88 - 98% according to the operation mode
Switch over behaviour
Power failure
0ms
Overload switching
Automatic overload switching by the ups
Noise level
At an distance of 1m
< 50dB(A)
Compass Distances
Standard
Reserve
Environment
Protection Degree
IP 21
Temperature
0°C to 45°C
+15 … +25°C (recommended)
Air humidity
0% to 95%, non condensing
Storage at …
20°C (recommended) with Battery
-20°C to 50°C without Battery
Applied Rules
Operation Mode VFI SS 111 acc. to IEC
62040-3,
DIN EN 60945
Interfaces
RS 232-Interface
Optional:
USB Interface
Relay card
AS/400 - Adapter
SNMP - Adapter
Supports power management and diagnosis
such as BATTERY LOW, UPS ON/OFF
Software is compatible with operating systems
such as: Windows 95/98/NT/2000/XP, Novell,
Unix, etc current operating systems.
Dimensions
UPS Device
Width
225mm
Depth
425mm
Heights
360mm
Weight UPS
approx. 17 kg
Weight UPS incl. Battery
approx. 33 kg
Scope of delivery
Hardware/Software
UPS unit
Manual BAX 3313E
Interface cable, Mounting plate and fixing
screws with distance washer
Software UPSMON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 14 -
4.5 Technical data batteries
Battery for 1000VA UPS
General Data
Voltage
12V
Capacity
7Ah
Quantity
3 pcs.
Weigth each bloc
2,54kg
Dimensions each bloc (LxWxH)
151 x 65 x 94mm
Type of battery
JL 205670
Battery for 1500VA UPS
General Data
Voltage
12V
Capacity
7Ah
Quantity
3 pcs.
Weigth each bloc
2,54kg
Dimensions each bloc (LxWxH)
151 x 65 x 94mm
Type of battery
JL 205670
Battery for 2000VA UPS
General Data
Voltage
12V
Capacity
7Ah
Quantity
6 pcs.
Weigth each bloc
2,54kg
Dimensions each bloc (LxWxH)
151 x 65 x 94mm
Type of battery
JL 205670
Battery for 3000VA UPS
General Data
Voltage
12V
Capacity
7Ah
Quantity
6 pcs.
Weigth each bloc
2,54kg
Dimensions each bloc (LxWxH)
151 x 65 x 94mm
Type of battery
JL 205670

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 15 -
SHOCK MOUNT
FAULT
ON-LINE
ON
MOUNTING PLATE
BYPASS
ON-BAT
ON/OFF
ENTER
JOVYATLAS
SHOCK MOUNT
FUNC
5. Views of the UPS
5.1 Front view 1000VA –1500 VA
Sign
Meaning
ON
Operation
ON - LINE
Output Voltage available
ON –BAT
Battery Operation
BYPASS
Bypass Operation
FAULT
UPS Failure
Remark for mounting:
JT1000/1500 please use the cross recessed countersunk-head screw M6, and washer.
JT2000/3000 please use the cross recessed countersunk-head screw M8, and washer
DISPLAY
FUNC BUTTON
ENTER BUTTON
ON/OFF BUTTON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 16 -
5.2 Rear view 1000 VA –1500 VA
X2
Erdungsbolzen M6
COVER PLATE
MOUNTING PLATE
BATTERIEVERBINDER
Abdeckplatte
N
NETZEINSPEISUNG
230V 50/60Hz
MAINS INPUT
230V 50/60Hz
SHOCK MOUNT
L1 PE
Schwingmetallpuf f er
SHOCK MOUNT
Abdeckplatte
UPS OUTPUT 2
230V 50/60Hz
COVER PLATE
RS232
EARTHING BOLT M6
02
Abdeckplatte
Schwingmetallpuf f er
BATTERY CONNECTOR
L1
01
USV AUSGANG 1
230V 50/60Hz
USV AUSGANG 2
230V 50/60Hz
X3
EPO
UPS OUTPUT 1
230V 50/60Hz
COVER PLATE
10 AMP
03
Montageplatte
X1
N
PE

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 17 -
ON/OFF
JOVYATLAS
ENTERFUNC
FAULT
SHOCK MOUNT
BYPASS
SHOCK MOUNT
ON-BAT
ON-LINE
ON
MOUNTING PLATE
5.3 Front view 2000 VA –3000 VA
Sign
Meaning
ON
Operation
ON - LINE
Output Voltage available
ON –BAT
Battery Operation
BYPASS
Bypass Operation
FAULT
UPS Failure
DISPLAY
FUNC BUTTON
ENTER BUTTON
ON/OFF BUTTON

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 18 -
L1
BATTERY CONNECTOR
X1
Montageplatte
03
BATTERIEVERBINDER
OUT
MOUNTING PLATE
UPS OUTPUT 2
230V 50/60Hz
MAINS INPUT
230V 50/60Hz
IN
SHOCK MOUNT
EPO
N
SHOCK MOUNT
N
RS232
USV AUSGANG 2
230V 50/60Hz
NETZEINSPEISUNG
230V 50/60Hz
Abdeckplatte
COVER
PLATE
Schwingmetallpuf f er
Abdeckplatte
COVER
PLATE
10 AMP
X2
02
PE
Eingangssicherung
INPUT FUSE
Erdungsbolzen M6
EARTHING BOLT M6
PE
L1
01
X3
N
USV AUSGANG 1
230V 50/60Hz
Schwingmetallpuf f er
PE
L1
UPS OUTPUT 1
230V 50/60Hz
5.4 Rear view 2000 VA –3000 VA

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 19 -
6. Electrical connection
These UPS units are to be connected by means of the installed terminal board to the mains. Also all load
have to be connected via terminal boards, which are installed on the rear side of the ups. The ups –systems
are suitable for grounded and isolated mains.
One proceeds as follows:
1. Connect the mains input cable to the terminal rail X1 (L1/N/PE). Fix the connected cable via pull relief
on the rear side of the ups.
2. Connect the load cables to the terminal rails X2/X3 (L1/N/PE). Fix the connected cable via pull relief
on the rear side of the ups.
3. Set in the battery connector. For transport or shipment of the ups –device this connector has to be
removed to prevent short circuit or fire while improper transport.
4. All connecting up work is now complete.
P L E A S E N O T E!
Only trained personnel are allowed to work on the UPS unit.
Observe all corresponding safety regulations.
Marking of cables is to be according to DIN EN 60445!
When connecting to the UPS unit, ensure use of an adequately sized protective-
conductor connection!
P L E A S E N O T E!
When working on the batteries it is possible for dangerous situations to arise
due to a high DC voltage and high short-circuit currents.
This work on the device must only be conducted when accompanied by use of
suitable protective measures such as insulated tools, eye and hand protection
etc.

Wärtsilä JOVYTEC PNT 1000VA –3000VA BAX 3313_en - 20 -
6.2 Commissioning
Take note: The unit fans run as soon as the input voltage is applied!!
The UPS unit can now be started by pressing the ON/OFF button in the front panel for 3 seconds; a
message appears in the display: Switching on procedure. The UPS unit now starts a self-test routine
during which its internal functions are tested and the mains synchronisation and the inverter are started. The
message “Battery mode“ is shown in the display during the self-test and the LED´s ON for UPS ON and
ON-LINE output voltage light up. The message “Operation“ appears in the display. The consumers to be
supplied can now be switched on.
Please contact us if anything different happens.
6.3 UPS Shut-down
When shutting down the unit please proceed as follows:
- Switch off all consumers
- Press the ON/OFF button in the front panel for 3 seconds. An acoustic sound (bleep) is emitted while
pressing the ON/OFF button and the message: Switching off soon appears in the display, and then
the message “UPS OFF“. The UPS unit is now shut-down. Please note: The device fans continue to
run as long as the input voltage is applied.
P L E A S E N OT E!
The unit should be started over the input mains. If the input mains is not available for a short
time then it is also possible to start the unit over the battery. It is a basic prerequisite for this
operating mode that the UPS unit was one time operated over the energy supplier’s mains
network. Please note that when starting over the external battery, the maximum time the output
voltage is available to you is the autonomy time. The UPS unit will also start with the
preconfigured parameter, i. e. if the mains previously had 50 Hz then the UPS will generate 50 Hz
on the output side.
