Joy aXtion MCU203 User manual

Installation Guide
Guide d'installation
ご 利 用 ガ イド
LockDown
Universal Holder
for
7.5"-10.2"
Tablets
MCU203
for
10"-13"
Tablets
MCU204

Installation Guide Guide d'installation ご 利 用 ガ イド
LockDown Universal Holder
For more information, please visit www.thejoyfactory.com.
© The Joy Factory, Inc.
Designed in Irvine, California, USA. Made in Taiwan. Reproduction in whole or in part is prohibited. All other trademarks are the properties of their respective owners.
Patent: www.thejoyfactory.com/ip
1

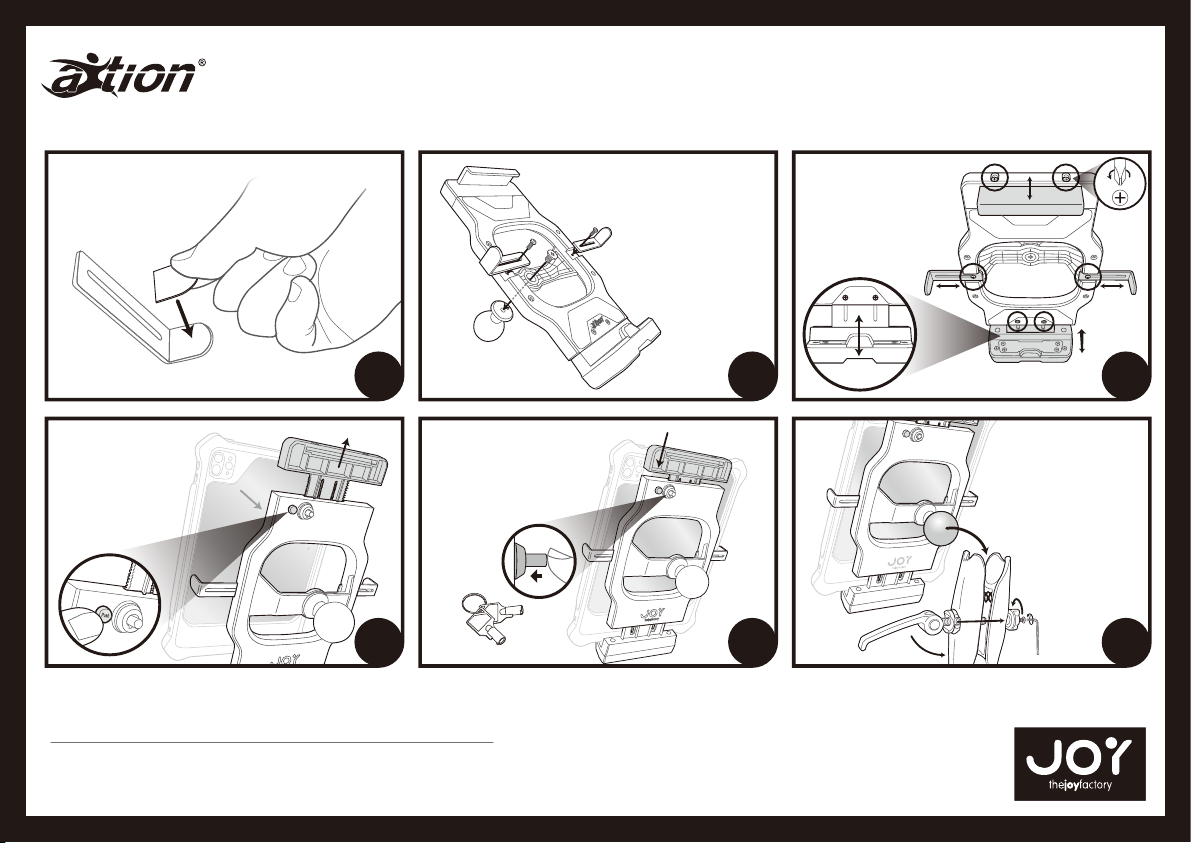

Adhere rubber bumper pad onto each bracket
Install the ball joint and 2
brackets into the Cradle.
Do not fully tighten the
screws
2
3
Extend all brackets
until they are fully open,
then loosen (but do not
fully remove) the
corresponding screws
4
Press the button on
the rear to release
the top portion of
the Cradle, then
place aXtion case
into the cradle
5
Push the top portion of the
Cradle down to secure the
tablet case tightly. Push
the silver button to lock
the top portion in place
(optional)
Lock
6
Compatible with any
style of 38mm ball
joint HD mounts
