Joysway Hobby OFFSHORE LITE WARRIOR V4 User manual

8206
OFFSHORE LITE WARRIOR V4 2.4GHz RTR
3
6
547
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat
Caution:
2. Before racing your model boat, carefully check silicone tube for guarantee good water cooling system; Avoid
water inlet on the bottom of hull become deformed, otherwise, water cooling system failure, this may lead to
ESC burned out and motor defected.
OFFSHORE LITE SEA RIDER V5 2.4GHz RTR
8208
OR
Offshore Lite Warrior V4 and Offshore Lite Sea Rider V5 are compatible with this manual.
The Offshore Lite Series are designed for use in fresh water only.They are not designed for use in salt water!
The Offshore Lite Series are ont intended for persons under 14 years of age, unless closely supervised by an acult.
1. Continuous running of the model will generate high heat levels, Which will lead to premature wear of the motor.
Once your power pack is exhausted, we recommend that you open model’s upper deck and let motor air cool for
around 15 minutes before installing a fresh power pack. This action will protect motor and extend its working life.
ESC with low voltage hard cut off at 6.4V, when driving your boat , as soon as you notice boat stop, that
means ESC low voltage cut off effective, you should immediately drive boat back to shore in slow speed ,
recharge battery and race again. don’t keep racing boat when ESC low voltage cut off effective, otherwise,
you will allow battery over discharge, battery voltage will reach very low and won’t be recharged again.
Caution for battery:
1) Offshore Lite Warrior V4 Racing Boat
OR
1) Offshore Lite Sea Rider V5 Racing Boat
2) Transmitter
3) 7.2V 1100mAh NiMH Battery
4) AC Charger
5) Boat Stand
6) 9V Dry battery (for Transmitter)
7) 2.5mm Allen Key (Only For Deep Vee Turn Fins)
2.0mm Allen Key (for Grub Screws)

2
Always use a fresh 9V battery in the
transmitter.
1) Ensure transmitter ‘ON/OFF’ switch is in the
‘OFF’ position.
2) Remove battery cover screw.
3) Remove battery cover by pressing down on
the embossed arrow and sliding the cover as
indicated.
4) Insert 9V battery, noting correct location
(polarity + or -).
5) Slide battery cover back into place.
6) Re-fit battery cover screw.
NOTE 1: The Offshore Lite Series are supplied
with a start-up 9V dry cell battery. Once this
battery is depleted, please replace it with
another dry cell 9V battery (alkaline recommended)
or fully charged 9V rechargeable battery. Remove
9V battery from the transmitter if you do not intend
to use it for a period of time.
NOTE 2: When the transmitter battery (dry cell
or rechargeable) is at the end of its life, it should
be disposed of at an approved battery recycling
centre.DO NOT DISPOSE OF IT IN HOUSEHOLD
WASTE!
1‘OFF’
2 6
9V Battery
4
3
5
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat
INSTALLING THE 9V DRY BATTERY IN YOUR TRANSMITTER
CHARGING THE 7.2V 1100mAh NiMH BATTERY
1) Remove the AC charger from the package and
plug it into the power socket. The green LED
light turn on means power on.
2) Plug in the 7.2V NiMH battery to the AC charger,
the green LED light turn to red LED light means
charging.
3) Supplied 7.2V NiMH battery will charge from flat
in around 2 hours. Red LED light turn back to
Green LED light means battery is fully charged.
4) Unplug the 7.2V NiMH battery from the AC
charger, unplug the AC charger from the power socket.
4) Never leave the battery unattended during charging process. Always keep charger out of reach of children.
5) Never put the battery inside the boat to be recharged.
6) It is normal for the battery to get warm during the charging process. Do not charge the battery on a surface
that is flammable or can be damaged by heat.
7) Do not attempt to disassemble the charger. Do not store the battery plugged into the charger.
CAUTION:
1) The 7.2V NiMH battery is not supplied pre-charged and must charge it fully before race boat for the first time.
2) Charge times are around 2 hours,do not leave on charge overnight. Battery should be unplugged from the
charger after a maximum 3 hours.
3) The 7.2V NiMH battery can be re-charged many times before it needs replacing. When 7.2V NiMH battery no
longer holds a charge, it should be properly recycled. DO NOT DISPOSE OF IT IN HOUSEHOLD WASTE!
NOTE 1: The Offshore Lite Series will typically run for around 5 minutes on a fully charged 7.2V NiMH battery.
As soon as you notice a drop off in speed you should bring the model back to shore or control may be lost.

3
(Model should be placed on its supplied
boat stand)
2) Insert the 7.2 V Power Pack into the left side of
the hull. The connector of power pack heads
towards the front of boat.Tie the power pack
with provided magic belt inside the hull.
3) Attach the
7.2 V Power Pack’s connector to the
matching connector in the Offshore Lite Series.
Do not force them together - they only attach
one way!
5) Re-position the upper deck.
1) Forward Throttle Trigger
Your Offshore Lite Series can be driven
forward by pulling the throttle trigger. Release
the trigger and the Offshore Lite Series will stop.
2) Left/Right Steering Wheel
The steering wheel controls the Offshore Lite
Series’s left and right movement. Turn the
wheel to the left to steer to the left. Turn the
wheel to the right to steer to the right. Release
the wheel to go straight.
Racing Tip: The Offshore Lite Series are an oval
racer, designed for clockwise racing, and will be
less responsive to steering inputs at high speed,
particularly left turns. Decrease your speed to
allow tighter turning.
1
2
1
54
2
3
The binding process effectively ties the transmitter and receiver together. Under normal circumstances, both
items are supplied like this from the factory. If, however, you find that your transmitter and receiver are not
bound(receiver’s red LED is on), you should do the following:
1) Switch “ON” the transmitter.
2) Switch “ON” the receiver by Attaching the 7.2V power pack’s connector to the matching connector in the
Offshore Lite Series boat.
3) Press down the “BIND” button on the receiver, the receiver’s green LED will be on to indicate that binding has
been successful and the receiver will now accept commands from the transmitter.
Note 1: During binding process, transmitter and receiver should be no more than one meter apart and no other
similar devices should be within 10 meters.
Note 2: if the green light flashing, showing the binding failure, please do again as above indication.
TRANSMITTER/RECEIVER BINDING
NOTE:
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat
1. It is suggested that don’t leave the rubber ring in the slot of hull. Remove the rubber ring when not racing
the boat, so as to keep the rubber ring flexible for water proof effective.

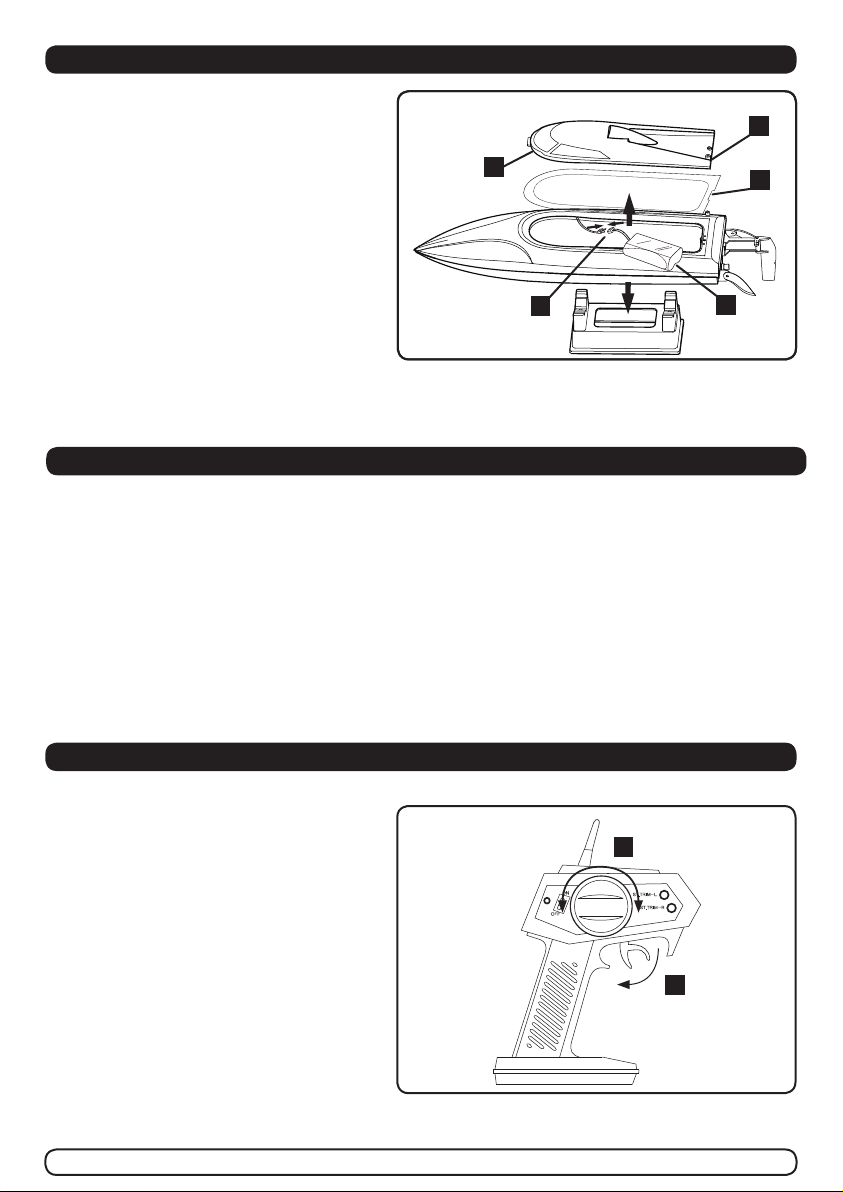

1) Remove the Offshore lite series’ upper deck by
rotating the plastic lock at its rear section.
4) Place the water proof rubber ring along the slot of
hull, make sure it’s secured positioned before
re-position the upper deck.
INSTALLING THE 7.2V NiMH BATTERY IN THE OFFSHORE LITE SERIES
HOW TO CONTROL/OPERATE YOUR OFFSHORE LITE SERIES

4
DRIVING YOUR OFFSHORE LITE SERIES
1) Switch ‘ON’ the transmitter. Check that the transmitter’s red LED glows brightly.
2) Check that the Offshore Lite Warrior ‘s turn fins are adjusted correctly.
3) Switch‘ON’the Offshore Lite Series (connect the 7.2V Power Pack).
4) Check that the propeller and the rudder respond to transmitter inputs before placing the Offshore Lite Series
on the water.
AFTER USE
1) When you have finished using your Offshore Lite Series, you should first switch ‘OFF’ the model (disconnect
the 7.2V Power Pack), then switch ‘OFF’ your transmitter.
2) Remove all batteries from the transmitter and model.
3) Leave the Offshore Lite Series’s upper deck off to allow moisture to evaporate. Ideally, place the model in this
way in a warm and dry place, like an airing cupboard, until you are sure it is dry and then store it away.
4) Remove the rubber ring from the slot of hull, so as to keep the rubber ring flexible for water proof effective
in next time boat racing.
NOTE: If the Offshore Lite Series begins to bob when running, it may have taken on an excessive amount of
water. In this case, you should immediately return to shore, remove the upper deck and drain the water
from the hull.
IF THE OFFSHORE LITE SERIES DO NOT RUN IN A STRAIGHT LINE
If your Offshore Lite Series do not run in a straight
line when not being steered, you can adjust it by
using the steering trim located on the upper right
hand side of the transmitter.
1) Run your Offshore Lite Series on calm water
when adjusting the steering. If your model runs
to the right when not being steered, press the
“ST.TRIM-L” button. Re-center the model and
see if this has corrected the problem. Keep
making small adjustments in this way until the
model runs stright.
Press the “ST.TRIM-R” button to correct if your
model steers to the left without being steered
in the same way as detailed above.
ST.TRIM-L
ST.TRIM-R
TURN FINS
The Offshore Lite Warrior V4 features adjustable turn
fins to aid in turning. These can be adjusted using the
included Allen key. The optimum angle of
adjustment is 45 degrees to the hull.
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat

5
CAUTION!
LUBRICATING DRIVE SHAFT
Please observe the following warnings.
DURING OPERATION
•
•Ensure that all batteries are correctly installed and that the 7.2V Power Pack is fully charged.
•Do not operate your Offshore Lite Series in areas with strong currents, in salt water or areas of water with
large waves.
•Do not touch moving parts during operation, especially the propeller.
•Do not let your Offshore Lite Series run aground, as this can cause damage.
•If you lose control of your Offshore Lite Series, never wade into deep water or water with strong currents to
retrieve it. First, hold the transmitter as high as you can to try to re-establish control. If this does not work,
find another way to move closer to the model, but do not endanger yourself in the process!
Care must be taken when handling rechargeable batteries (the Power Pack) to avoid the possibility of injury
and/or damage to property. Do not short circuit, disassemble or incinerate rechargeable batteries. It is very
dangerous to disregard these warnings.
GENERAL INFORMATION FOR THE SAFE OPERATION OF YOUR OFFSHORE LITE SERIES
Please follow these simple rules to ensure safe operation and gain the maximum enjoyment from your
model.
•Avoid overloading your model. Never run it in areas where its movement will be restricted, e.g. areas where
there is pond weed, etc., as this can over stress the motor.
•Ensure nothing prevents the smooth running of moving parts.
•Do not run your model in confined spaces.
•Never run your model in a public space where it might upset or endanger people or wildlife.
•Immediately switch‘OFF’your model and transmitter if you see lightning or hear thunder.
Never use your model in the rain.
Do not dismantle or tamper in any way with this R/C vehicle and its transmitter.The manufacturer and distributor
will accept no responsibility, expressed or implied, for accidents or injuries caused as a result of disassembly,
modification and/or usage against the Instructions for this product.
Tampering or modification will also invalidate the guarantee.
The transmitter’s range will vary depending on your surroundings and battery strength.Do not operate
Offshore Lite Series too far away or control will be lost.
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat
Lubricating the flexshaft is vital to the life of the drivetrain. The lubricant
also acts as a water seal, keeping water from entering the hull through
the stuffing tube. Lubricating the flexshaft, propeller shaft after every
2 or 3 times of operation.
1. Use the 2mm Allen key to loose the two grub screws of the coupler
which connects the flexshaft, then slide the flexshaft w/ prop shaft
out of the stuffing tube.
2. Lubricate the flexshaft w/ prop shaft with the water proof marine
grease, reinstall the flexshaft w/ prop shaft in reverse order, be sure
to retighten the two grub screws of coupler.
CARE WITH RECHARGEABLE BATTERIES (THE POWER PACK)

7.2V
82004A
Flex shaft for deep vee
82003
Aluminum Alloy Coupler w/3 screws
82006
Rudder Set
82007
Stainless Steel Turn fins set
82004B
Flex shaft for catamaran
820601
2.4GHz RX,ESC,Servo set BIND
820803
OL Sea Rider V4 Deck(white)/Rubber Ring
Offshore Lite Warrior V4 /Sea Rider V5 RTR Mini EP Racing Boat
82001
OL Warrior Deck(Orange)/Rubber Ring
82020
2.4GHz Transmitter
82014
390 motor
FCC REQUIREMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifi cations to this product not expressly approved by the party responsible
forcompliance may void the user’s authority to operate the equipment.
Check using the chart below before returning your Offshore Lite Series for repair as many problems can be
easily solved.
AC Europe plug NiMH charger
7.2V 1100mAh NiMH battery
820801
82005
P1.4*D33/3 Propeller (Pk2)
820602
