JPT YDFLP-150-M7-L1-X User manual

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
1
Safety
Please read this user manual carefully before operating the YDFLP fiber laser. It provides
essential information regarding safety, product operation, and other necessary reference
information. For the purpose of safety operation and maximizing the performance of the fiber
laser, please strictly follow the safety notifications as below:
●Make sure the +48VDC power supply is connected in the correct way. Inappropriate
connection might spoil the product.
●You can’t open the cover of this product without the permission of JPT. It might cause
safety issues and invalidate the warranty.
●Please wear laser goggle, as shown in Fig.1, all the time during the operation. This laser
module carry a Class 4 Laser rating it emits invisible laser radiation with a rated average output
power of over 10W and rated peak power of over 7kW. Contact with direct or scattered laser
radiation will cause permanent damage to the eyes, burn human tissue and start fires.
●Attention: Even at 0% power setting, the average output power is still about 3W.
Table 1 Safety Labels
Symbols
Information
Laser Warning Triangle -La
bel of laser emission (Att
ached near the output fib
er)
CAUTIONS IN USE（Attach
ed on the
cover plate）

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
2

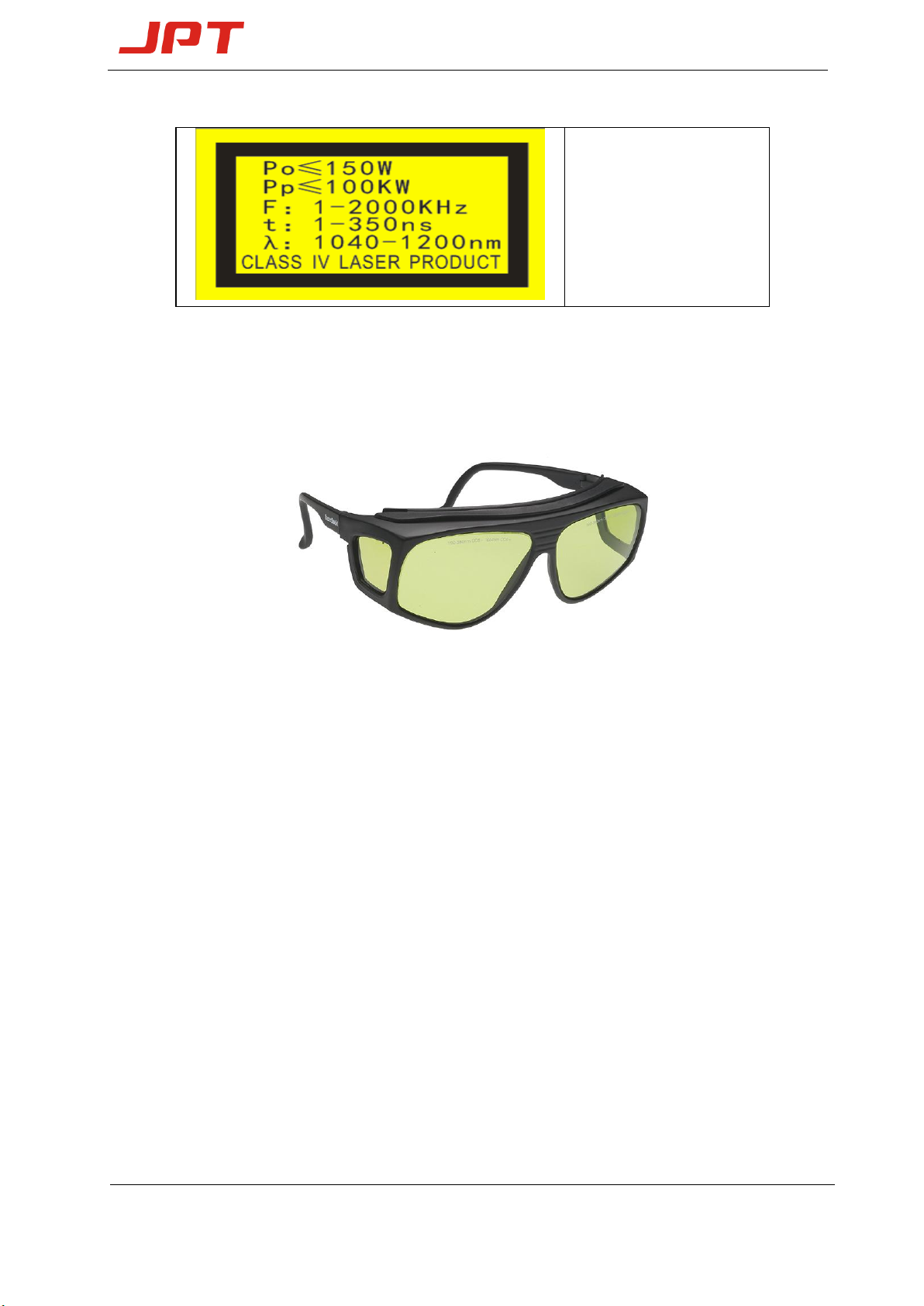

Figure 1 Laser Safety Goggle
Parameter Information
(Attached on the
cover plate)

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
1
SAFETY....................................................................................................................................................................... 1
1. PRODUCT TOUR........................................................................................................................................................ 2
1.1 PRODUCT DESCRIPTION....................................................................................................................................... 2
1.2 PACKAGING LIST................................................................................................................................................. 3
1.3 OPERATION CONDITIONS AND SAFETY INSTRUCTIONS......................................................................................... 3
1.4 YDFLP PRODUCT SERIES NAMING CONVENTION............................................................................................... 4
1.5 TECHNICAL SPECIFICATIONS............................................................................................................................... 5
TABLE 4SPECIFICATIONS OF THE YDFLP-C-M7-S FIBER LASER.............................................................................. 5
2. INSTALLATION.................................................................................................................................................... 8
2.1 DIMENSIONS........................................................................................................................................................ 8
2.2 INSTALLATION STEPS .......................................................................................................................................... 9
3.LASER CONNECTOR ......................................................................................................................................... 10
3.1 POWER INTERFACE............................................................................................................................................ 10
3.2 RS232 CONNECTOR........................................................................................................................................... 10
3.3CONTROL INTERFACE........................................................................................................................................ 11
3.3.1 Interface Setting........................................................................................................................................ 12
3.3.2 Pulse width control instruction structure .................................................................................................. 14
3.3.3 Pulse width control instruction code......................................................................................................... 14

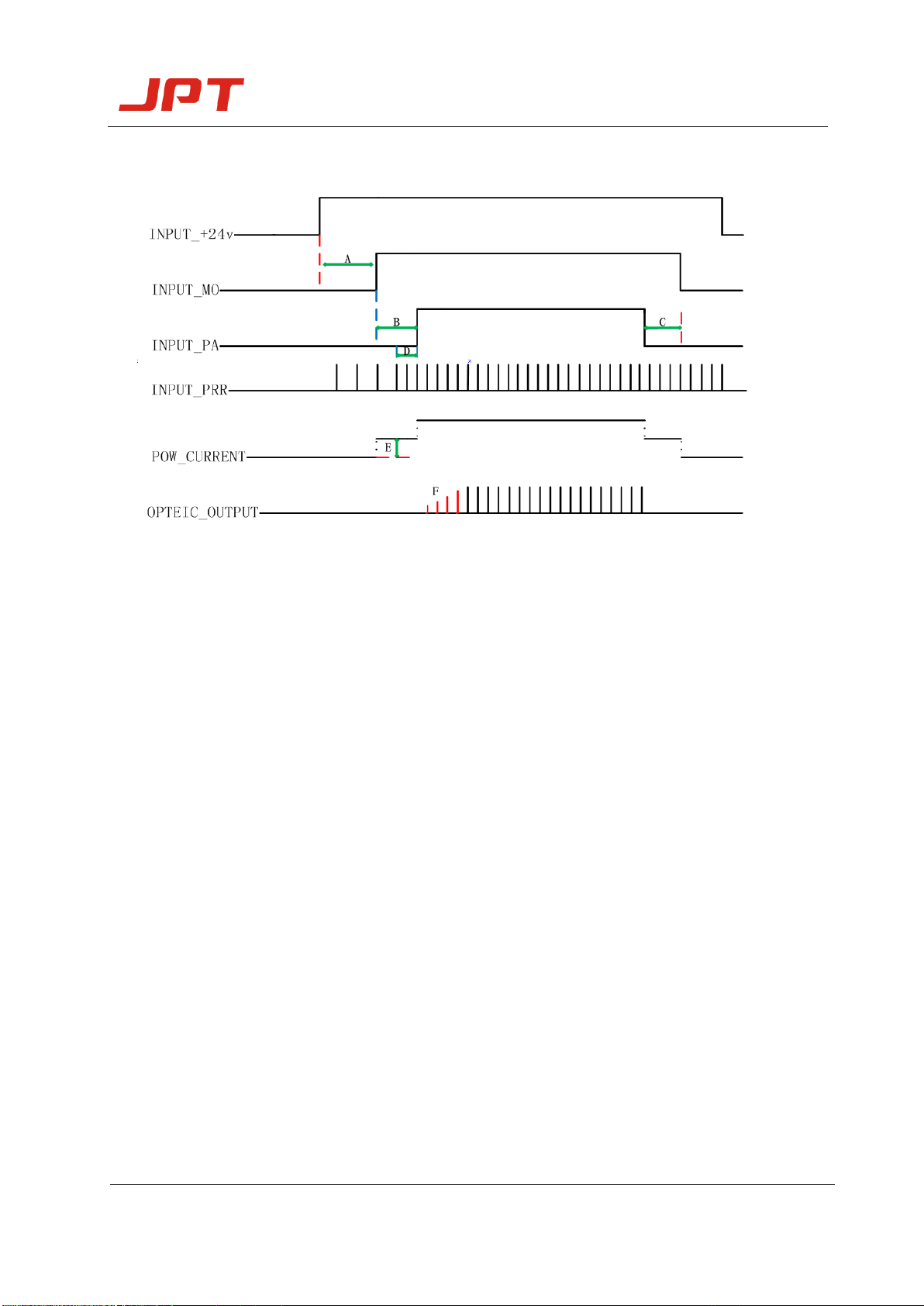

3.3.4 Pulse energy control clock diagram....................................................................................................... 15
4.JPT GUI.................................................................................................................................................................. 16
4.1 GUI INSTALLATION........................................................................................................................................... 16
4.2 INTRODUCTION.................................................................................................................................................. 17
4.3 GUI OPERATION ............................................................................................................................................... 18
4.3.1 Serial Comm Port ..................................................................................................................................... 18
4.3.2 GUI control the emission.......................................................................................................................... 18
4.4 CHECK THE STATE OF THE LASER ...................................................................................................................... 22
5. OPERATION PROCEDURE .............................................................................................................................. 22
5.1 PREPARATORY EXAMINATION OF THE PRODUCT................................................................................................ 22
5.2 OPERATION PROCEDURE ................................................................................................................................... 22
5.3 PRECAUTIONS DURING THE LASER OPERATION.................................................................................................. 23

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
2
1. Product Tour
1.1 Product Description
The JPT YDFLP pulsed fiber laser adopts the MOPA (Master Oscillator Power Amplifier)
configuration, in which a semiconductor laser diode serves as the master oscillator and the fiber
amplifiers boost the output power. For this MOPA pulsed fiber laser, the pulse width and pulse
repetition frequency are able to be adjusted independently. By changing the pulse width of the
fiber laser, the peak power of this MOPA fiber laser can be maintained at the same level for
different pulse repetition frequency. This feature makes the product an ideal laser source for
various industrial applications.
The MOPA fiber lasers get pumps through fiber couplers, which enables them with higher
slope efficiency compared to conventional solid state lasers. The fiber laser is more compact and
easy to carry, because it only uses three cooling fans to effectively remove the heat generated
inside the chamber. Besides, the whole fiber based laser cavity enables higher beam quality of
the laser output.
JPT MOPA fiber laser adopts the standard DB25 interface, and it’s power supplied with
48V/12A DC(150W) or 48V/16A DC(200W), which makes it a good compatibility. A
photograph of a typical JPT MOPA fiber laser is as shown below.
Figure 2 JPT MOPA Fiber Laser

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
3
1.2 Packaging List
Table 2 Packaging List of YDFLP
Items
Quantity
Fiber Laser source
1
48V Power supply Cable
1
db25 male to female
adapter
1
Packaging list
1
Specification List
1
Precautions
1
1.3 Operation conditions and safety instructions
In order to maintain good performance and reliability of this product, please operate the laser
under conditions as below:
(1) This fiber laser shall be operated with correct DC power supply; wrong connection will
damage the fiber laser, which lead to the laser can’t work.
(2) There should be 10-cm-wide air gaps in front and behind the fiber laser chamber, and
the air flow direction should be the same with the direction of the fiber laser system; Short
ventilation distance and wrong air flow direction will lead to the fiber laser can’t
work.
(3) The operating temperature should be 0~40℃; the fiber laser will alarm internal if the
temperature above 40℃; it’s a protection action, in order to insure the long time operational
reliability.
(4) Please keep the fiber laser source clean during the operation, especially for the fiber
pigtail and output isolator; please remember cover the isolator when the laser is unworking.
Dust on the isolator will cause heating and lens damage, which results in the laser
output power attenuation
(5) Please ensure the power is off before install and uninstall this fiber laser.
(6) Never look at the fiber laser head, and please wear laser goggle when operate this
fiber laser;

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
4
(7) The YDFLP-150-M7-L1-Xcontains 15waveform:
Continuous ,4ns,9ns,13ns,20ns,30ns,45ns,60ns,80ns,100ns,150ns,200ns,250ns,350ns,500ns
(8) The YDFLP-200-M7-L1-Xcontains 15 waveform:
Continuous ,8ns,13ns,20ns,30ns,40ns,50ns,60ns,80ns,100ns,150ns,200ns,250ns,350ns,500n
s.
(9) If you need other pulse width, please contact us for customization.
1.4 YDFLP Product Series Naming Convention
Table 3 Naming Convention for Pulsed Fiber Laser
YDFLP -X-XX-XX-X-X
1 2 3 4 5 6
1. Product name.
YDFLP
Ytterbium Doped Fiber Laser Pulse
2. Size
C：Compact
3. Average Output
power (optional).
10W～200W
4. Product Series
(optional).
Pulse width adjustable
M Series
M1(+)
M6(+)
M7
LM1 Series
large pulse width
Pulse width fixed
LP series
5. Optical Fiber Types
S
Single mode
L
Low mode
H
High mode
6. Customized
Without: Standard product; R:Built-in red pilot laser
Table 3 Naming Convention for Pulsed Fiber Laser
For example:

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
5
YDFLP - C-20—M1+—S: Means this is a compact size product of M1+ using single mode type of
optical fiber with the nominal output power @ 20W.
YDFLP - 30—M1+—L—R: Means this is a customized product of M1+ using low mode type of optical
fiber with the nominal output power @ 30W,Integrated built-in red pilot laser.
1.5 Technical Specifications
Table 4 Specifications of the fiber laser
Laser Type
Unit
MOPA
MOPA
Product Model
YDFLPC-150-M7-L1-X
YDFLPC-200-M7-L1-X
YDFLP-30-M6-L
Average Output Power
W
>150
>200
30
M2
＜1.8
＜1.8
＜1.8
＜1.8
Output Fiber Length
m
3m (Customize)
3m (Customize)
Pulse Energy
mJ
1.5
1.5
0.9
Full Power Frequency Range
kHz
100-4000
130-4000
33-1000
Adjustable Frequency Range
kHz
1-4000
1-4000
Pulse Width Range
ns
4-500
8-500
Output Power Stability
%
＜5
＜5
Cooling Method
Air Cooling
Air Cooling
Supply Voltage
V
48
48
Current consumption
A
＜12
＜16
Environmental Supply Current
A
＞12
＞16
Power Consumption (20 °C)
W
<600
<800
<140
Central Wavelength
nm
1064
1064
FWHM (nm) @3dB
nm
<20
<20
Polarization
Random
Random
Anti-Reflection Protection
Yes
Yes
Output Beam Diameter (mm)
mm
6.5±0.5
6.5±0.5
Power Range
%
0 ~ 100
0 ~ 100
Operation Temperature Range
℃
0 ~ 40
0 ~ 40
Storage Temperature Range
℃
-10 ~ 60
-10 ~ 60
Dimension
cm
430*351*133
430*351*140
Package size
mm
800*550*180
800*550*180
Weight
kg
24.8
24.8

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
6
Table 5 Threshold Frequency
Pulse
width (ns)
150-M7-L1-X
200-M7-L1-X
Maximum
Frequency
1
CW
CW
4
4000
/
4 MHz
8
2300
3000
13
1500
2000
3MHz
20
1000
1200
30
700
900
40
/
700
2MHz
45
550
/
50
/
600
60
450
550
80
340
450
100
280
350
1MHz
150
150
200
200
120
150
250
100
130
900 kHz
350
100
130
600 kHz
500
100
130
500kHz
*Above the cut-off Frequency value is the fiber laser full power output range, oppositely,
below the cut-off frequency value is the cut-off power output range. That means the fiber laser
will reduce the output power to protect the fiber laser when below the cut-off frequency value.
Below is the chart that shows the change between frequency and output:
Figure 3 Cut-off Frequency & Output power relationship charts

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
7
Waveform of YDFLP-150-M7-L1
Waveform of YDFLP-200-M7-L1
Figure 4

YDFLP-150/200-M7-L1-X user manual
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018.9
8
2. Installation
2.1 Dimension
1.1 Dimension of main body （YDFLP-150-M7-L1）
1.2 Dimension of main body （YDFLP-200-M7-L1）
Figure 5 Mechanical Dimension of Fiber Laser Module (Unit: mm)
