JRI Nano SPY T1 User manual

USER GUIDE
Nano SPY
Ref: 11816J

©JRI 2
TABLE OF CONTENTS
I. INTRODUCTION .............................................................................................................................................. 3
A) PRODUCT CONTENTS.......................................................................................................................................................3
B) SYMBOLS ......................................................................................................................................................................3
II. INSTALLATION RECOMMANDATIONS ............................................................................................................ 3
A) SOURCES OF DISTURBANCES OR ATTENUATION ....................................................................................................................3
B) POSITIONING .................................................................................................................................................................4
III. PRODUCT DESCRIPTION.................................................................................................................................. 4
A) CONTROL UNIT...............................................................................................................................................................4
B) MOUNTING...................................................................................................................................................................4
IV. OPERATION..................................................................................................................................................... 5
A) OFF STATE.....................................................................................................................................................................5
B) ACTIVATION ..................................................................................................................................................................5
C) TURNING OFF ................................................................................................................................................................5
D) ACTIONS ON THE TOUCH BUTTON......................................................................................................................................5
V. NANO SPY UCONNECTION ............................................................................................................................. 6
VI. BATTERY REPLACEMENT................................................................................................................................. 7
VII. MAINTENANCE ............................................................................................................................................... 7
VIII. TECHNICAL FEATURES..................................................................................................................................... 7
A) COMMON FEATURES:......................................................................................................................................................7
B) SPECIFIC FEATURES: ........................................................................................................................................................ 7
C) COMPLIANCE ...............................................................................................................................................................10
IX. OPERATION CAPACITY .................................................................................................................................. 11
X. WARANTY ..................................................................................................................................................... 13
XI. MAINTENANCE CONTRACT........................................................................................................................... 13
XII. ENVIRONMENTAL PROTECTION ................................................................................................................... 13

©JRI 3
I. INTRODUCTION
The Nano SPY is a measuring device for 1 or 2 physical parameters (T or TH depending on the model). Data is
transmitted through NANO Link or Relay/Alarm modules using wireless 2.4GHz radio signal to the JRI-MySirius
monitoring software hosted on the JRI could or the customer’s server.

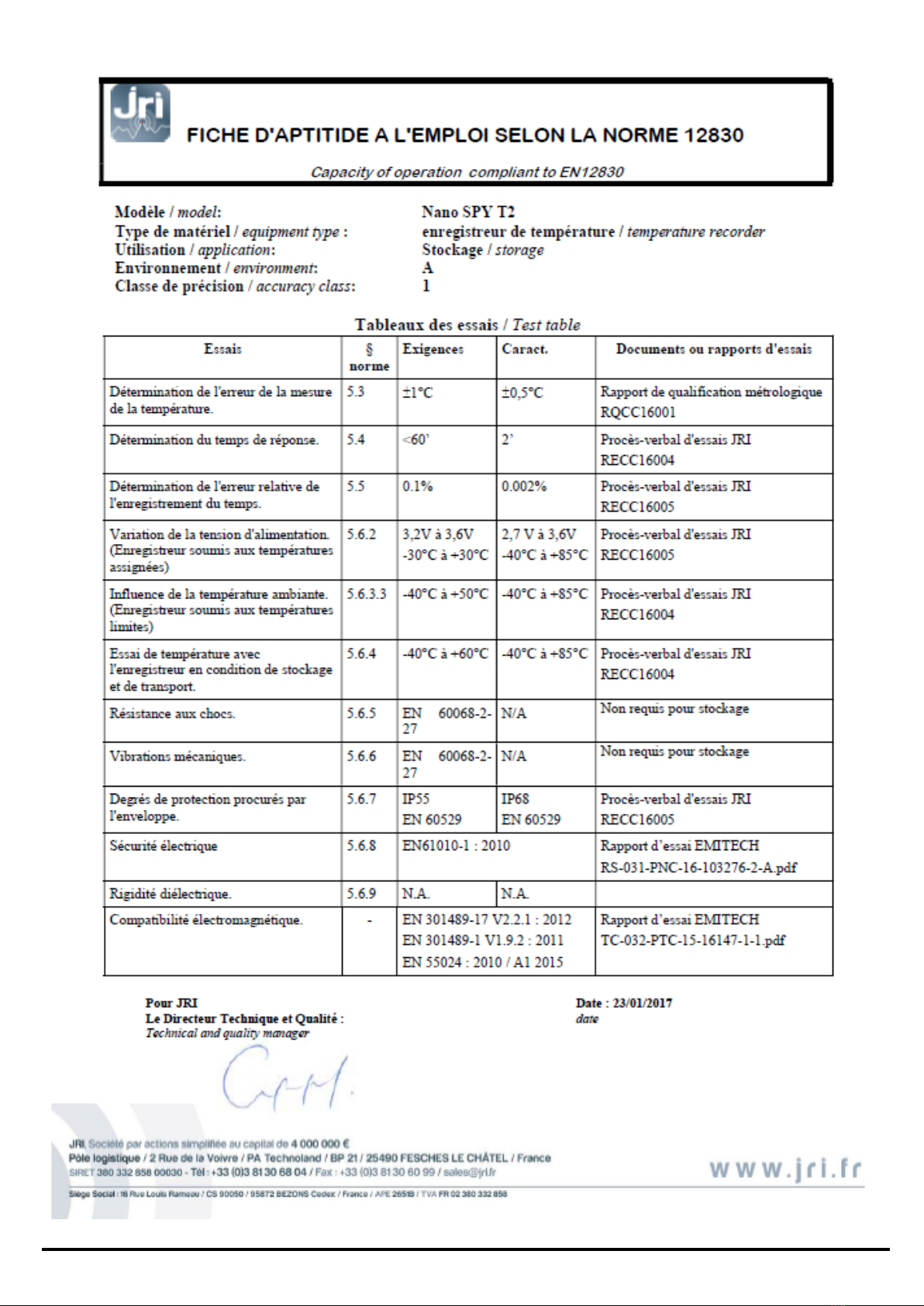

The Nano SPY complies with EN 12830 with temperature probes only, and is compatible
with EN 13486 which defines procedures for periodic verification.
a) Product contents
•1 Nano SPY
•1 User guide
b) Symbols
Do not use the device under conditions other than those described in the technical
characteristics
Risk of fire or explosion in the case of improper use:
- Recharging of the battery
- Short circuiting of the battery
If the device is used in a manner not specified by the manufacturer, the protection
provided by the device may be compromised.
II. INSTALLATION RECOMMANDATIONS
To ensure optimal radio transmission, a certain number of recommendations must be respected, as any
wireless transmission is subject to disturbances.
a) Sources of disturbances or attenuation
•The presence of obstacles in the wave path between the Nano SPY and the Nano SPY Link (wall,
furniture, people…) or near the antenna.
•The thickness of an obstacle in the wave path. The attenuation is greater diagonally than
perpendicularly.
RECYCLING: do not dispose of in a refuse dump or waste disposal bin. Comply with existing legislation for disposal.
Power source: this device is powered by a 3.6VDC type AA lithium battery (§ ch. V).
CE LABELING: this device is certified to conform to European regulations for electrical safety, flammability, disruptive
electromagnetic emissions, and immunity to environmental electrical disturbances.
FCC ID : W45 12525
This device complies with part 15 of the FCC rules. Operation is subject to the following two condition:
1. This device may not harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
The grantee is not responsible for any changes or modification not expressly approved by the party responsible for compliance.
Such modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.

©JRI 4

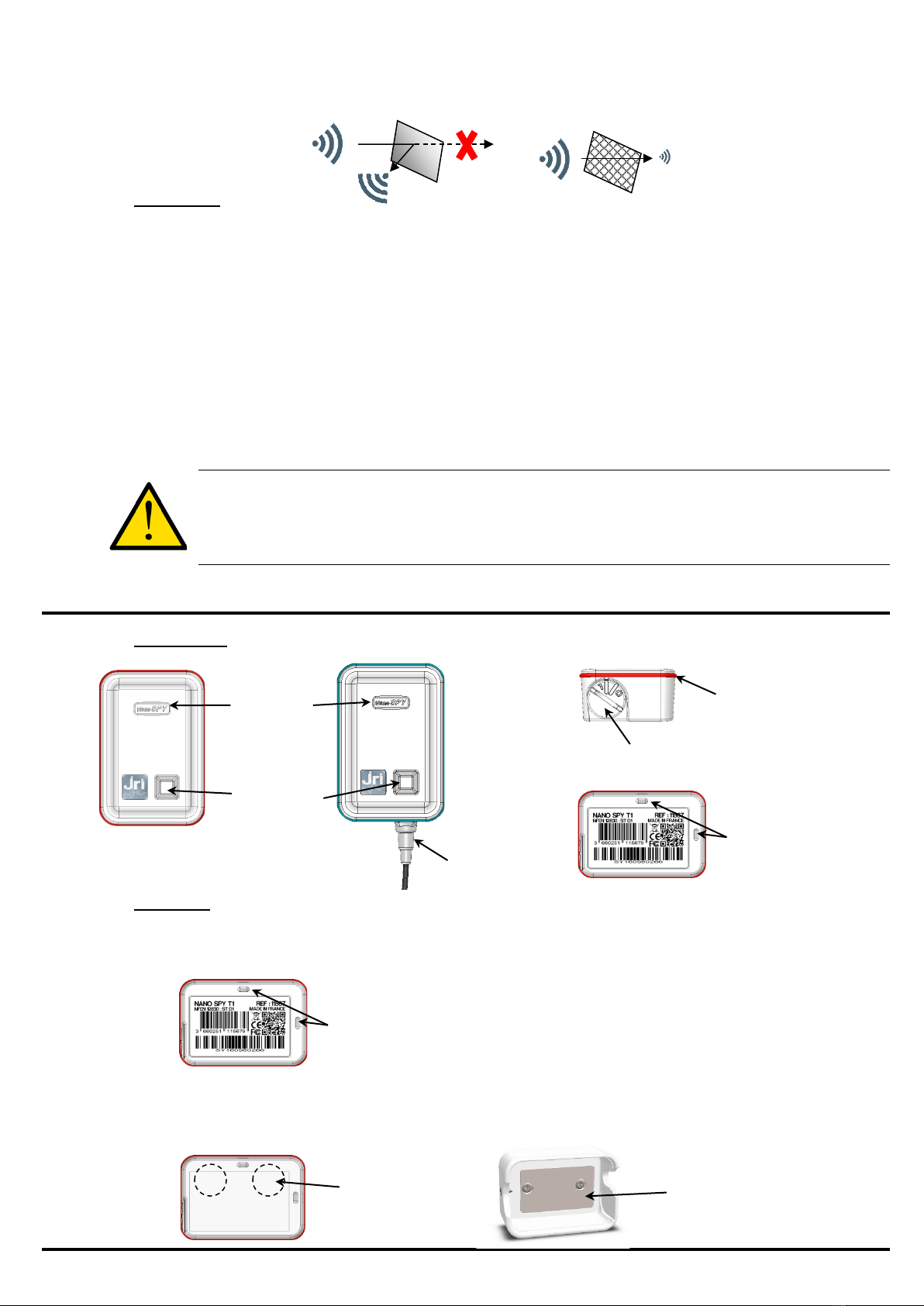

•A solid metal wall will not allow transmission by radio. A perforated metal wall will allow waves
to pass while attenuating them.
b) Positioning
•The Nano SPY units can be placed either inside or outside the enclosures.
•For installations outside the enclosure, mount the units sufficiently high on the walls to avoid
interference with obstacles and foot traffic.
•Insofar as is possible, place the Nano SPY LINK in a central position relative to the measurement
points.
•Try to place them in locations where they are visible
•Never place the Nano SPY unit horizontally.
•If difficulties persist it is possible to use Nano SPY ALARMs (repeaters) or connect to another
Nano SPY LINK on the Ethernet network.
To ensure your safety during installation or an intervention on a device placed in a high
position, use proper equipment which is in good condition and provides adequate
stability, wear appropriate, non-slip shoes and install warning signs around the work area
if the intervention takes place in an area of foot traffic.
III. PRODUCT DESCRIPTION
a) Control unit
b) Mounting
The Nano SPY can be mounted in 2 different ways
•Using a tie wrap to attach it to the monitored product
•Magnetically
The Nano SPY has 2 internal magnets for easy mounting on metallic surfaces. A protective shell
is available as an option (Ref: 12715)
Modèle T1/TH
Model T2/T3
Status LED
Touch-sensitive
button
Battery access
(All models)
Identification ring
(All models)
To sensor
Mounting eyelets
(All models)
Mounting eyelets
(All models)
Protective shell
Magnets

©JRI 5
IV. OPERATION
The Nano SPY can only be used with the My Sirius software hosted on a Web platform and with a Nano SPY
Link. See MySirius online help for Nano Spy configuration.
a) Off state
As delivered, the Nano SPY is turned off. It can neither emit nor receive signals.
b) Activation
Once activated, the le Nano SPY automatically declares itself in MySirius if it is contact with a Link. It starts to
measure and transmit its measurements to My Sirius, at the frequency defined in MySirius, then flashes
regularly as a function of its status.
c) Turning Off
d) Actions on the touch button
Appui BP
Mode
< 3" > 3’’ >8’’
Activation - during 3’’
during 3’’
The Nano SPY
remains
activated
Mesurement
1’’ = OK
1’’ = Technical alarm
3x1’’ = OK but paused
1’’ = In alarm state
Off
Off (If authorized by program) -
If the authorization of turning off the device is not programmed via MySirius then it will be not possible to turn
off the Nano Spy.
3’’
3’’
3’’

©JRI 6
V. NANO SPY U CONNECTION

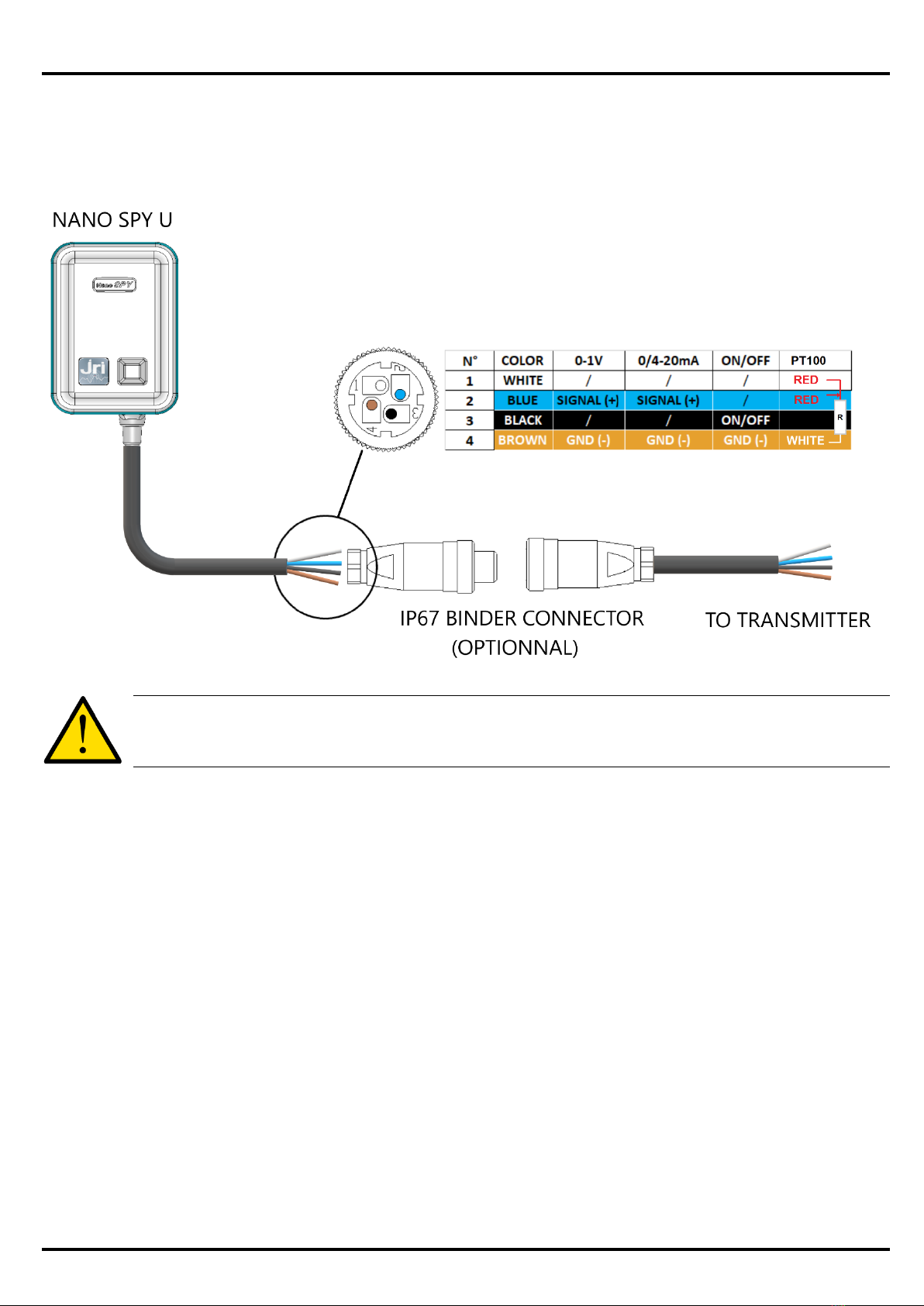

The Nano SPY Universal is equipped with a 4-wires cable facilitating connection to terminal blocks of sensors
with analog outputs. These sensors can, if necessary, be disconnected from the logger for replacement or for
the exchange of the logger itself.
An IP67 Binder connector (optional) can be used to facilitate the connection of the sensors.
Connect only sensors compatible with the technical characteristics of the devices
For sensors with 0-1V and 0-20mA outputs, there’s no probe failure detection the NANO SPY U
doesn’t trigger sensor default alerts.

©JRI 7
VI. BATTERY REPLACEMENT
Removing the battery
Open the battery cover with a suitable
object (coin) to align the marks
(/!\0 = Open ; 1= Closed)
Remove the battery from its lodging
Replacing the battery
Put the new battery in place respecting
the polarity .
Battery detection is confirmed by the
activation of the red LED for few seconds. The device can be activated after the extinction of the red LED.
*Recommended batteries: Saft LS14500 type AA 3.6V 2250mAh
VII. MAINTENANCE
Clean the device with a soft cloth, either dry or slightly moistened with water. To remove stubborn dust,
use a cloth soaked in a diluted, non-abrasive detergent. Then wipe carefully with a soft dry cloth.
Never use benzene, thinner, alcohol or any type of solvent, which can cause discoloration or deformation
of the surfaces.
VIII. TECHNICAL FEATURES
a) Common features:
HMI
: 1 RGB LED + 1 sensitive bouton
Frequency band
: 2.4GHz (from 2400 to 2483.5 MHz)
Maximum Radio Power
: 10 dBm
Memory
: 10 000 timestamped measures
Resolution
: 0.01
Dimensions
: 63 mm x 42 mm x 25 mm
Case
: Polycarbonate – Food Contact
Power
: 3,6v Lithium battery up to 6 years life time battery,
depending on usage
Weight
: ~ 60g
b) Specific features:
Nano SPY T1 Temperature (internal probe)
Sensor
: PT100 sensitive element inside unit
Operating range
: -40+85°C
Measurement range
: -40+85°C
Accuracy, standard version
: ±0.4°C from -20°C to +40°C / ± 0.5°C outside this range
IP rating
: IP 68
Frequency of measurement and
transmission
: adjustable from 1 min to 12h
Frequency of recording
: adjustable from 1 min to 24h
Response time
: ~ 5 min. to 90% of the variation
KEEP THE BATTERY AWAY FROM FIRE; DO NOT ATTEMPT TO RECHARGE OR SHORT-CIRCUIT IT
ONLY USE BATTERIES* SUPPLIED BY JRI (REF : 11596)





©JRI 8
Nano SPY TH (Thermo-Hygro)
Sensor
: inside unit
Operating range
: -30 +70°C
Measurement range
: -30 +70°C et 0-100%HR
Accuracy, standard version
Temperature
Humidity at T° from 15 to 25°C
: ± 0.4°C from -20 C° to +40°C / ± 0.5°C outside this range
±3% HR from 20% to 80%
±5% HR from 0 to 20% and 80% to 100% (T° from 15 to
25°C)
IP rating
: IP 40
Frequency of measurement and
transmission
: adjustable from 1 min to 12h
Frequency of recording
: adjustable from 1 min to 24h
Response time
: ~ 5 min. to 90% of the variation
Power source
: 3,6V Lithium battery– 2-year autonomy depending on use
Nano SPY T2 Remote temperature, standard
Sensor
: PT100 external probe, non-withdrawable
Operating range
: from -30 +70°C
Measurement range
: - 50 +105°C
Accuracy, standard version
: ±0.3°C from -20 to 30°C / ± 0.5°C outside this range
Accuracy, incubator version
: ±0.2°C from +30 to +50°C/± 0.5°C outside this range
IP rating
: IP 65
Cable length
: Flat cable Sentroprene 30 cm, 3 m and 8 m
Frequency of measurement and
transmission
: adjustable from 1 min to 12h
Frequency of recording
: adjustable from 1 min to 24h
Response time
: ~ 5 min. to 90% of the variation
Nano SPY Reference
Sensor
: External Class A PT 100 - stainless steel Ø2,9x25mm
Operating range
: -20°C to +50°C
Measurement range
: -196°C to +150°C
Accuracy
: ±0.15°C from 0°C to +40°C
±0.2°C from -30°C to 0°C and from +40°C to +150°C
±0.5°C out of this range
±0.6°C to -196°C
IP rating
: IP 65
Cable length
: 3 m
Frequency of measurement and
transmission
: 1 min
Frequency of recording
: Adjustable from 1 min to 24h
Response time
: ~ 2 min

©JRI 9
Nano SPY T3 Low Temperature
Sensor
: PT100 external probe, non-withdrawable
Operating range
: -20 to 50°C
Measurement range
: -200 to +260°C
Accuracy
: ±0.2°C from 0°C to -20°C and ±0.5°C outside this range
IP rating
: IP 65
Cable length
: 50 cm and 3 m
Frequency of measurement and
transmission
: adjustable from 1 min to 12h
Frequency of recording
: adjustable from 1 min to 24h
Response time
: ~ 2 min. to 90% of the variation
Nano SPY Universal
Input type
:
PT100 input
measurement range:
resolution:
accuracy (not including probe) :
-200°C to +300°C (*)
0,01°C
± 0,2°C from -20°C to +50°C
±0,3°C from -80°C to -20°C and from +50°C to +140°C
± 0,5°C beyond these ranges
Current input
measurement range:
resolution:
accuracy (control unit only):
(No detection of probe failure for 0-20mA input)
0 to 20 mA or 4-20mA
0,001 mA
± 0,01 mA
Voltage input
measurement range:
resolution:
accuracy (control unit only)
(No detection of probe failure for 0-1 V input)
0 à 1V
0,1 mV
±0.5 mV
On/Off or Counting input
Type of input
measurement range:
resolution:
accuracy
Dry contact or 0-3,3V max
0 à 65535 – signal from 0 to 200Hz
1
±1
Operating range
: -20 à 50°C
IP rating
: IP 65
Cable length
: 2 m
Frequency of measurement and
transmission
: adjustable from 5 sec to 12h
Frequency of recording
: adjustable from 1min to 24h
Response time
: according to sensor
Weight
: ~ 60 gr

©JRI 10
c) Compliance
JRI declares that all our radioelectric devices from the NANO SPY range (T1,T2,T3,TH) are in compliance with
the following standards:
EN 12830
These devices must be verified regularly according to EN13486 (recommended once per year)
CE ERM
EN 301489-1 & -17/EN 61010-1/EN 62479/EN 300328
2014/53/UE
A copy of the full EU compliance statement can be requested by email: [e-mail]
IC CANADA
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause interference, and (2) This device
must accept any interference, including interference that may cause undesired operation of the
device.
This equipment should be installed and operated such that a minimum separation distance of 20
cm is maintained between the radiator (antenna) and user’s/nearby person’s body at all times.

©JRI 11

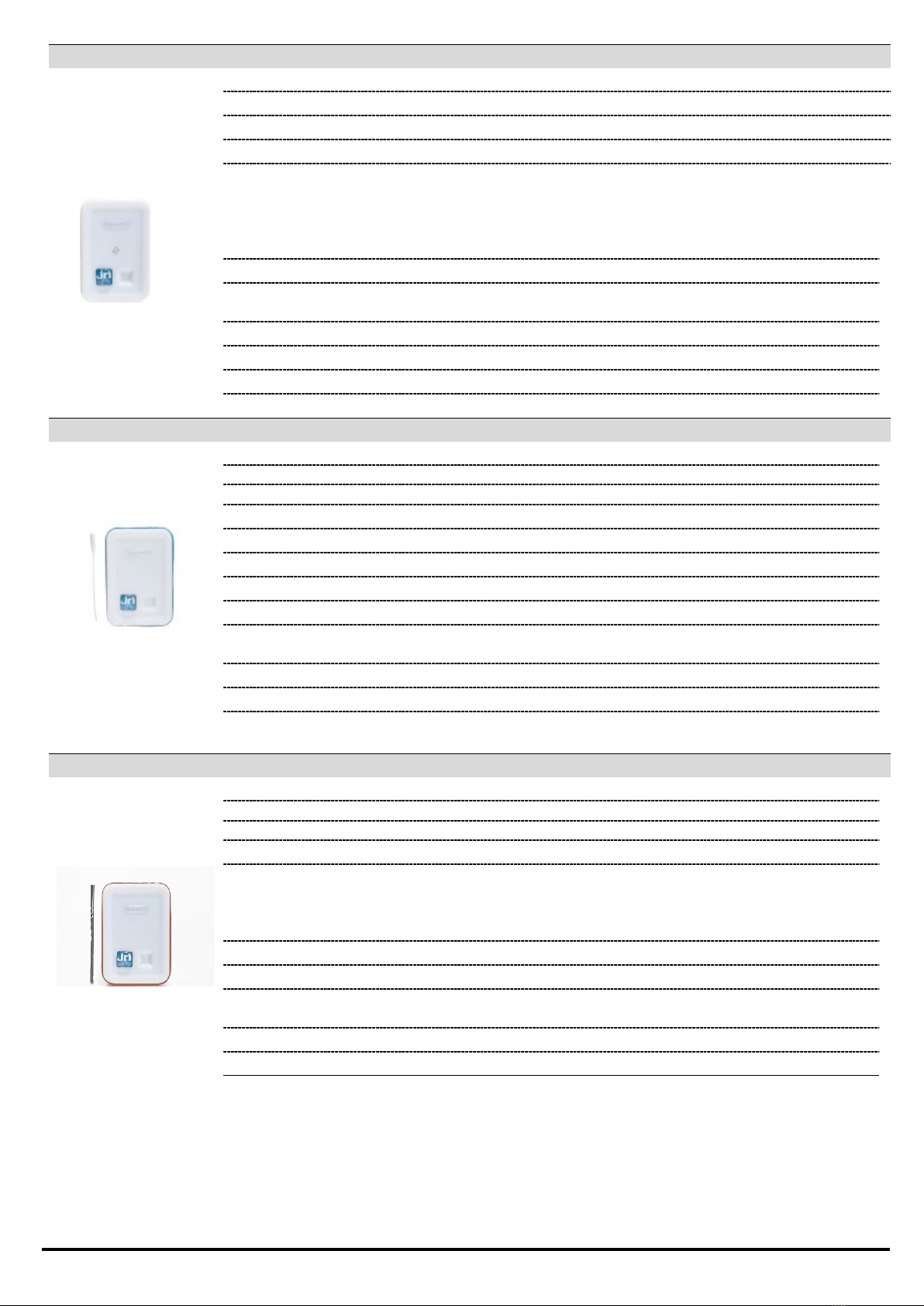

IX. OPERATION CAPACITY

©JRI 12

©JRI 13
X. WARANTY
Our material is guaranteed for one year, parts and labor, against any manufacturing defect, functional failure
or abnormal wear. This guarantee covers only the replacement of parts recognized to be defective as well
as the repair of the material in question returned shipping paid to our workshops, and excludes all damages
and interest or incidental expenses.
The starting point of the guarantee is the date of invoice of the concerned product. The invoice must be
provided for any request for application of the guarantee. Repairs under guarantee in no way extend the
guarantee period accorded to the product at the time of sale. Deterioration due to any abnormal usage or
to storage under adverse environmental conditions is excluded from our guarantee.
XI. MAINTENANCE CONTRACT
How best to optimize your radiofrequency installation?
Radiofrequency measurement systems communicate through Hertzian waves. Many factors (change in
installation, moving, supplemental wall, interference with another radio system…) can nonetheless modify
the radio pathway previously defined. The use of radiofrequency thus requires periodic monitoring by
recognized specialists.
It is for this reason that JRI has developed for you the maintenance contract. We simplify your procedures
by offering you a fully-integrated solution. This global service offer includes both maintenance and a
metrological service, ensuring the optimum functioning of your devices or of your installation.
You'll no longer have to worry about the maintenance of your devices!
This maintenance contract allows you to benefit, for a minimum period of 2 years, from a variety of services
such as:
- annual or biannual verification of the material
- an extension of the guarantee
- tele maintenance
- technical support [phone] (0,282 € HT/min)
- replacement of the material onsite or by a return to the factory
- verification of measurement accuracy (metrological certificate)
- battery replacement
- access to new software versions
- intervention within 48 working hours following identification of the fault by our experts
XII. ENVIRONMENTAL PROTECTION
JRI recommends to its customers the disposal of their unusable and/or irreparable measurement and
recording materials in a manner compatible with the protection of the environment. As the production of
waste materials cannot be avoided, these should be reused through the recycling process best adapted to
the considered materials and to the protection of the environment.
RoHS Directive
The RoHS European directive regulates and limits the presence of dangerous substances in
electronic and electric equipment (EEE).
All new electronic equipment designed, developed and manufactured by JRI are compliant with the
aforementioned Directive 2002/95/CE.
