JUMAO JMC9A Ni User manual

Document No.: JM/JM10A（A/0）

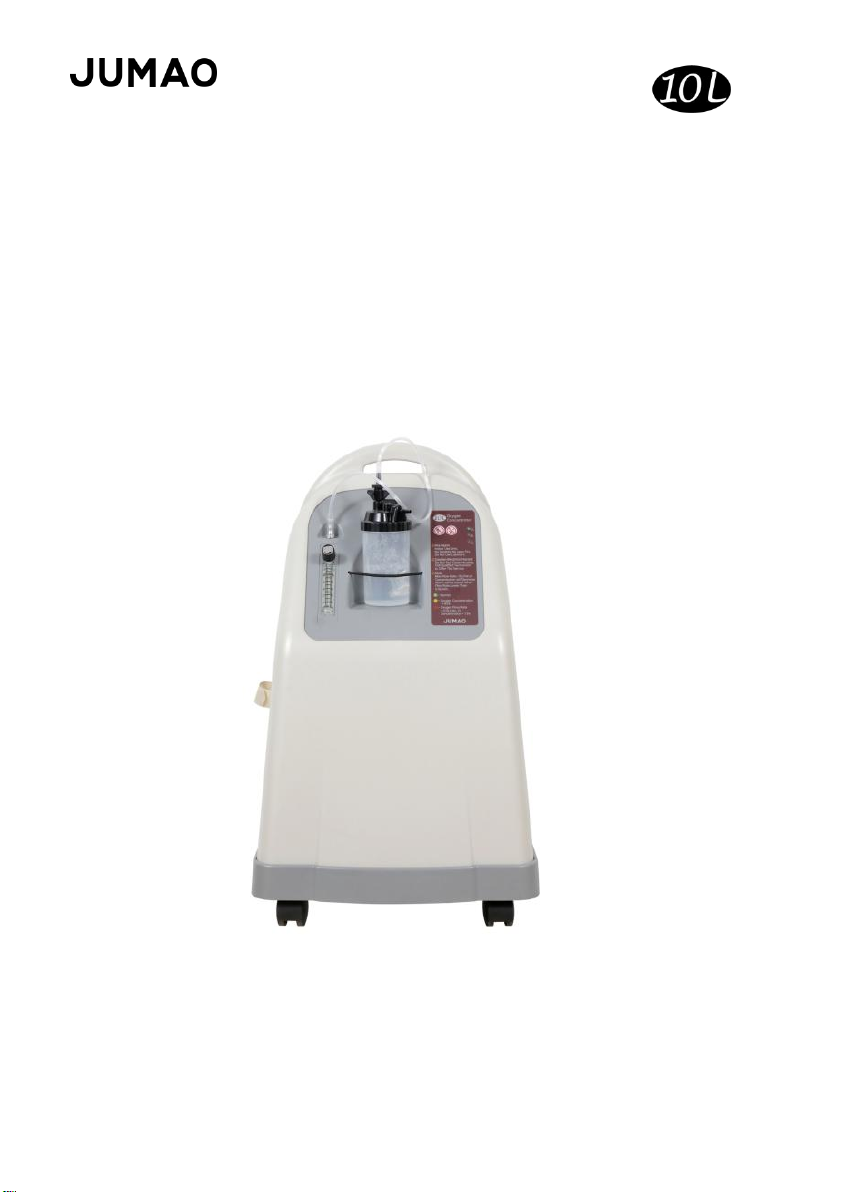

OXYGEN CONCENTRATOR
USER’S MANUAL
JMC9A Ni
DO NOT OPERATE THIS UNIT WITHOUT FIRST
READING AND UNDERSTANDING THIS MANUAL!
SAVE THIS MANUAL FOR FUTURE USE.

TABLE OF CONTENTS
2
1、SAFETY NOTES…………………………………..4-11
1.1 important information ……………………...........5
1.2 before installation ………………………………..6
1.3 placement …………………………………......…6
1.4 fire warning and explosion ……………….......…7
1.5 maintenance ……………………………………...8
1.6 radio frequency interference …………………....8
1.7 reduce the risk of burns to persons …………....9
2、FEATURES………………………………………12-15
2.1 summary …………………………………..….…12
2.2 characteristics …………………………...……..…12
2.3 specifications ……………………………......……13
3、HANDLING………………………………………16
3.1 unpacking ………………………..………………16
3.2 inspection ………………………..………………16
3.3 storage …………………………..………….……16
4、INSTALLATION AND OPERATION…….………....17-22
4.1 feature view ……………………………......……17
4.2 prepare work ………………………….….…...19

TABLE OF CONTENTS
3
4.3 turning on………………… …….………………19
4.4 alarm signal ……………………….……......…...20
4.5 alarm signal cue ………………….….….........…21
4.6 turning off ………………………………………21
4.7 symbols and descriptions …………………….…22
5、MAINTENANCE………………………………….23-25
5.1 cleaning the cabinet ……………………………....23
5.2 cleaning the replacing the filter ……………...........23
5.3 cleaning the optional humidifier bottle ……...........25
5.4 oxygen nasal cannula …………………….…....….25
5.5 Tube maintenance……………………………....…25
5.6 Note：for each new patient……………………….25
6、TROUBLESHOOTING………………….…..……26-27
7、OTHER ATTENTIVE ITEMS………………..…….28-34
7.1 GAS PASS OPERATION SKETCH MAP...............28
7.2 Electrical Rationale....................................................28
7.3 Post-marketing service ………………......…………29
7.2 Treatment of waste and residual ….........…………..29
7.3 Accessories and spare parts ……….....…………….30
7.4 Appendix EMC report…………………...….….……31
COMPANY AND ADDRESS …………....………......…….35

1、SAFETY NOTES
4
WARNING:Users who require continuous oxygenation must plan for
alternate reserve sources of power and oxygen in the event of a
failure or loss of power and oxygen. This device is to be used as an
oxygen supplement and is NOT considered life-supporting or life-
sustaining!
WARNING: There is a risk of fire associated with oxygen enrichment
during oxygen therapy.
Do not use the oxygen concentrator or accessories near sparks or
open flames.
WARNING: To ensure receiving the therapeutic amount of oxygen
delivery according to your medical condition [insert model and brand]
must
- Be used only after one or more settings have been individually
determined or prescribed for you at your specific activity levels.
- Be used with the specific combination of parts and accessories that
are in line with the specification of the concentrator manufacturer and
that were used while your settings were determined.
WARNING: Use only water-based lotions or salves that are oxygen-
compatible before and during oxygen therapy. Never use petroleum
or oil-based lotions or salves to avoid the risk of fire and burns.
WARNING: Do not lubricate fittings, connections, tubing, or other
accessories of the oxygen concentrator to avoid the risk of fire and
burns.
WARNING: Use only spare parts recommended by the manufacturer
to ensure proper function and to avoid the risk of fire and burns.
WARNING: Use of this device at an altitude above [insert maximum
RATED altitude] or outside a temperature of [insert RATED
temperature range] or a relative humidity above [insert maximum
RATED relative humidity] is expected to adversely affect the flowrate

1、SAFETY NOTES
5
and the percentage of oxygen and consequently the quality of the
therapy.
WARNING: Oxygen makes it easier for a fire to start and spread. Do
not leave the nasal cannula or mask on bed coverings or chair
cushions, if the oxygen concentrator is turned on, but not in use; the
oxygen will make the materials flammable.
Turn the oxygen concentrator off when not in use to prevent oxygen
enrichment.
WARNING: If you feel discomfort or are experiencing a medical
emergency while undergoing oxygen therapy, seek medical
assistance immediately to avoid harm.
WARNING:Smoking during oxygen therapy is dangerous and is likely
to result in facial burns or death. Do not allow smoking within the
same room where the oxygen concentrator or any oxygen carrying
accessories are located.
WARNING:Open flames during oxygen therapy are dangerous and is
likely to result in fire or death. Do not allow open flames within 2 m of
the oxygen concentrator or any oxygen carrying accessories.
1.1 Important Information
Risk of electric shock.
DO NOT disassemble. Refer serving to qualified service personnel.
symbols
contents
describing the principal RISK(S) foreseen (e.g. “Causes
burns”, “Risk of explosion”, etc.).
describing what is prohibited (e.g. “Do not open”, “Do not
drop”, etc.).
Describing required action (e.g. “Wear protective gloves”,
“Scrub before entering”, etc.).

1、SAFETY NOTES
6
DO NOT modify this equipment without authorization of the
manufacturer.
Read the following information before operating this product.
1.2 Before Installation
The concentrator should always be kept in the upright position to
prevent damage during transport.
If the electrical power source becomes unstable, discontinue use
and find an alternate source.
Only use stable and safe electrical power sources.
The oxygen concentrator cabinet should ONLY be opened by an
authorized equipment provider.
1.3 Placement
● You may select a room in your house where using your oxygen
concentrator would be most convenient. Your concentrator can be
easily roll from room to room on its casters.
Do not place the oxygen concentrator in surroundings where its
airflow is obstructed.
Be certain to place the oxygen concentrator so that all sides are at
least 10 centimeters (4 inches) away from walls, draperies, furniture,
or similar surfaces. Avoid deep pile carpets and heaters, radiators or
hot air registers.
Do not place the unit in a confined area.
The oxygen concentrator MUST be kept away from heat, fire and
excessive water sources and conditions.
The oxygen concentrator should be located so as to avoid

1、SAFETY NOTES
7
pollutants or fumes.
Do Not place items on top of the concentrator.
NEVER block the air openings of the unit or place it on a soft
surface, such as a bed or couch, where the concentrator may tip or
fall. Keep the openings free from lint, hair and
the like.
1.4 Fire Warning and Explosion
Keep the concentrator away from flammable and explosive areas.
Users MUST NOT SMOKE while using this device. Keep all
matches, lighted cigarettes or other sources of ignition out of the
room in which this product is located. NO SMOKING signs should be
prominently displayed. Textiles and other materials that normally
would not burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can result in
severe fire, property damage and cause physical injury or DEATH.
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any materials that will burn in air, and some
that will not, are easily ignited and burn rapidly in high concentrations
of oxygen. For safety concerns, it is necessary that all sources of
ignition be kept away from the product and preferably out of the room
in which it is being used.
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under pressure.
These substances MUST be kept away from the oxygen concentrator,
tubing and connections, and all other oxygen equipment.
DO NOT use any lubricants unless recommended by manufacturer.

1、SAFETY NOTES
8
1.5 Maintenance
The oxygen concentrator was specifically designed to minimize
routine preventive maintenance at intervals of once per year. Only
professionals of the health care field or persons fully conversant with
this process such as authorized or factory trained personnel should
perform preventive maintenance or performance adjustments on the
oxygen concentrator.
DO NOT service or maintain while patient in use.
● For optimum performance, manufacturer recommends that the
concentrator be on and running for a minimum of 30 minutes at a time.
Shorter periods of operation may reduce maximum product life.
1.6 Radio Frequency Interference
Most electronic equipment is influenced by Radio Frequency
Interference (FRI). Always exercise CAUTION with regard to the use
of portable communications equipment in the area around such
equipment.
Energy of Radio Frequency of this machine is just for device
operation use, so the Radio Frequency is very low, will not affect
the running of other electric equipment around regard to the use of
portable communications equipment in the area around such
equipment.

1 、 SAFETY NOTES
9
1.7 To Reduce the Risk of Burns, Electrocution, Fire or Injury
to Persons.
Avoid using while bathing. If continuous usage is required by the
physician’s prescription: The concentrator must be located in another
room at least 2.5 meters (8.2 feet) from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into water or
other liquid.
DO NOT reach for product that has fallen into water. UNPLUG
IMMEDIATELY and call Qualified Service Personnel for examination
and repair.
A product should NEVER be left unattended when plugged in.
This device is to be used only in accordance with the prescription
of a physician and this User’s Manual. If at any time the patient or
attendant concludes that the patient is receiving an insufficient
amount of oxygen, contact the provider and/or physician immediately.
No adjustments should be made to the flow rate unless prescribed
by a physician.
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this manual.
DO NOT use parts, accessories or adapters other than those
authorized by manufacturer. Use of certain humidifiers and
administration accessories not specified for use with this oxygen
concentrator may impair the performance.

1 、 SAFETY NOTES
10
If replacement parts used for the periodic servicing by an
approved technician do not comply with the manufacturer’s
specifications, the manufacturer is not responsible in the event of an
accident.
DO NOT connect the concentrator in parallel or series with other
oxygen concentrators or oxygen therapy devices.
In certain circumstances oxygen therapy can be
hazardous.Manufacturer recommends that you seek medical advice
before using this product.
Avoid creation of any spark near medical oxygen equipment. This
includes sparks from static electricity created by any type of friction.
If the concentrator has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, call Qualified Service
Personnel for examination and repair.
Keep the cord away from HEATED or HOT surface.
Do not move or relocate concentrator by pulling on the cord.
NEVER drop or insert any object into any opening.
If you have any problems setting up, maintaining or using this
device, please contact manufacturer or customer service. Please
report to manufacturer if any unexpected operation or events occur.
Don’t open or repair the device by yourself.
After drop or shock that may cause changes in the performance,
please contact with service personnel. Don’t open or repair the
device by yourself.

1 、 SAFETY NOTES
11
Do not use the device if it is damaged in any way. The continuous
use of a damaged unit may cause injury, improper results, or serious
danger.
At least 30 min required of equipment to warm from the minimum
storage temperature between uses until it is ready for intended use
At least 30 min required for me equipment to cool from the
maximum storage temperature between uses until it is ready for
intended use
When not in use, store the device with the adapter in a dry room
and protect it against extreme moisture, heat, lint, dust and direct
sunlight. Never place any heavy objects on the storage case
Do not servicing/maintenance while the me equipment is in use
Use this device only with the leads, electrodes, and accessories
that the manufacturer recommends.
Do not share the use of the parts、accessories or adapters with
others.
The parts placement of attachments is critical to the effectiveness
of the therapy.

2、FEATURES
12
2.1 Summary
JM-10A Ni oxygen concentrator is intended for individual use as an
oxygen supplement device in a home or care facility. The patient is
an intended operator. It is an electronically operated device that
separates oxygen from ambient air. It provides high concentration of
oxygen directly to you through a nasal cannula or other methods.
Clinical studies have documented that oxygen concentrator are
therapeutically equivalent to other types of oxygen delivery systems.
This equipment takes 120V ~ power source as power source, air as
raw material, adopts high quality and high efficiency molecular sieve,
and through PSA method at room temperature, produces high purity
oxygen conforming to medical standards, thus achieving sustainable
and uninterrupted oxygen supply.
This user’s manual will tell you about your concentrator and will
serve as a reference as you use your concentrator.
2.2 Characteristics
Oxygen concentrator make up of mainframe humidifier
and Flowmeter.
Reliable, safe, complete plastic outer shell, breaker.
Display screen shows total elapsed working hours.
Pressure safety valve helps ensure operating pressure.
Power loss alarm function.
High and low pressure alarm function.
Low oxygen concentration alarm function.
Heat protection to ensure the safety of the compressor
and concentrator.

2、FEATURES
13
2.3 Specifications
1. Power supply: AC120V, 60Hz; Current:4.6A; Power:580VA.
2. Sound level: ≤ 56dB (A); Acoustic power level：65dB(A).
3. Maximum recommended flow: 10L/min.
4. Flow Range at Outlet Pressure of zero: 0.5～10L/min.
Flow Range at Outlet Pressure of 7 kPa: 0.5～10L/min.
Change in maximum recommended flow when back pressure of
7kPa is applied:＜0.5 L/min.
5. Oxygen Concentration: When 0.5~10L/min ,93%±3% (after
turning on 10 minutes)
6. Output Pressure: 58kPa±5kPa.
7. Release Pressure by machine operation: 250kPa±50kPa.
8. Weight: 23kg.
9. Dimension: 430×380×720(mm).
10. Height above sea level: The oxygen concentration will not
decrease on 1828 meter height above sea level, from 1828
meter to 4000 meter; the efficiency will decrease to less than
90%.
11. Safety System:
1Current overload or line surge shutdown.
2High temperature compressor shutdown.
3High pressure alarm shutdown.
4Low pressure alarm shutdown.
5Low Oxygen Concentration alarm.

2、FEATURES
14
12. Minimum Operating Time: 30 minutes.
13. Electric Classification: Class Ⅱequipment , Type BF applied
part(Nasal oxygen cannula).
14. Mode of operation: Continuous duty.
15. Normal Operating Ambient:
1. Temperature range: 5℃～40℃(41℉～104℉)
2. Relative humidity: ≤80%
3. Atmospheric pressure: 86kPa～106kPa (12.47psi～15.37psi)
NOTE: ①When the storage temperature is lower than 5℃, the
equipment shall be laid in normal operation temperature
environmentfor at least 4 hours.
②The life time or equipment will be affected and the efficiency will
be lowered if the equipment runs under conditions exceeding
normality.
16. Electrical category: II；IP21.
17. Oxygen Output Temperature: Less than Ambient +6℃.
18. Tube: To prevent folding of tube, nasal oxygen 2
meters,prolonged tube notlonger than 15.2 meters (no flatting).
19. The Storage and transport Ambient:
1. Temperature Range: 0℃～+55℃(32℉～+131℉)
2. Relative Humidity Range: 10%～90%
3. Atmospheric pressure: 70kPa～106kPa (10.2psi～15.3)
NOTE: The oxygen concentrator should be stored in area
withouterode gas; be avoided shaking and inversion in
transportation.

2、FEATURES
15
20. This device is expected to work for a period of 6 years. For a
longer use, please consult your Equipment Provider and
physician.
21. Software version: A1.0
22. Contraindication：Do not use in patients with oxygen allergy or
oxygen poisoning.

3、HANDLING
16
3.1 Unpacking
NOTE: Unless the oxygen concentrator is to be used immediately,
retain containers and packing materials for storage until concentrator
use is required.
Check for any obvious damage to the carton or its contents. If
damage is evident, please notify the carrier or local dealer.
Remove all loose packing from the carton.
Carefully remove all the components from the carton.
PACKING LIST
Oxygen Concentrator: 1 unit
User Manual: 1 piece
Humidifier bottle：1 set
3.2 Inspection
Examine exterior of the oxygen concentrator for nicks, dents,
scratches or other damages.
Inspect all components.
3.3 Storage
Store the repackaged oxygen concentrator in a dry area.
DO NOT place anything on top of the repackaged concentrator.

4 、 INSTALLATION AND OPERATION
17
4.1 FEATURE VIEW
Figure 1
1--Power switch
2--Outlet connector
3---Flow meter
Setting oxygen flow rate by adjust the knob.
4--Status indicator light (Alarm/Normal Low)
5—Humidifier bottle station
6--Cabinet air filter
10

4 、 INSTALLATION AND OPERATION
18
7--Breaker
To protect the machine and user, breaker will cut off power
automatically when current ≥10A.After cooling, machine can be
turn on if push up the breaker.
8--Elapsed time meter
9--Intake filter
10--Atomization port
Figure 2: Humidifier Features
DO NOT add water over the maximum water level. Pure water
shall be added in humidifier to between maximum and minimum water
level in use.
●Power switch—— “I”indicate the power is on, “O”indicate the
power is off. When the switch locates on “ON ”, if the power cutting
occurs, the oxygen concentrator will not run, there will be alarm noise.
●The oxygen will be obtained by passing humidifier. Pure water
shall be added in humidifier to between maximum and minimum water

4 、 INSTALLATION AND OPERATION
19
level in use. When the tube of oxygen exit of humidifier wrested or
jammed, the pressure in humidifier will ascend to 25±5kPa, the
safety valve of humidifier will open to release the pressure.
●Expected service life of humidifier bottle: 3 years.
Inspection of performance of humidifier：1. use the PVC soft tube to
connect the humidifier adapter and the oxygen outlet of the shell; 2.
turn on the oxygen concentrator, adjust the flux to about 5L/min, jam
the exit of humidifier, after about 5 seconds, the safety valve will open,
the gas will release, the valve will close, which indicate the gas
proofing of humidifier and safety valve in conforming.
4.2 PREPARE WORK
●Unscrew the cover of the humidifier, fill the purify water (or distil
water) into the humidifier bottle between the maximum and minimum
water level lines, and then screw the humidifier bottle. (If needed, add
other medicine into the water, please according to the doctor’s
suggestion.)
●Screw the humidifier bottle absorbing connector into the cover of the
humidifier, then insert the humidifier to the elastic belt on the left side of
the unit, and connect the other end of the cannula to the oxygen outlet.
●Plug in power supply：Ensure that the power switch is off; plug the
concentrator’s AC connector into power outlet.
4.3 Turning the Concentrator ON
●Press power switch to the“|”position. At that time green, yellow
light all will be on which means the function of machine is normal.
After about 1 second, only green light on. After 4 seconds, the

4 、 INSTALLATION AND OPERATION
20
display will show accumulation work time.

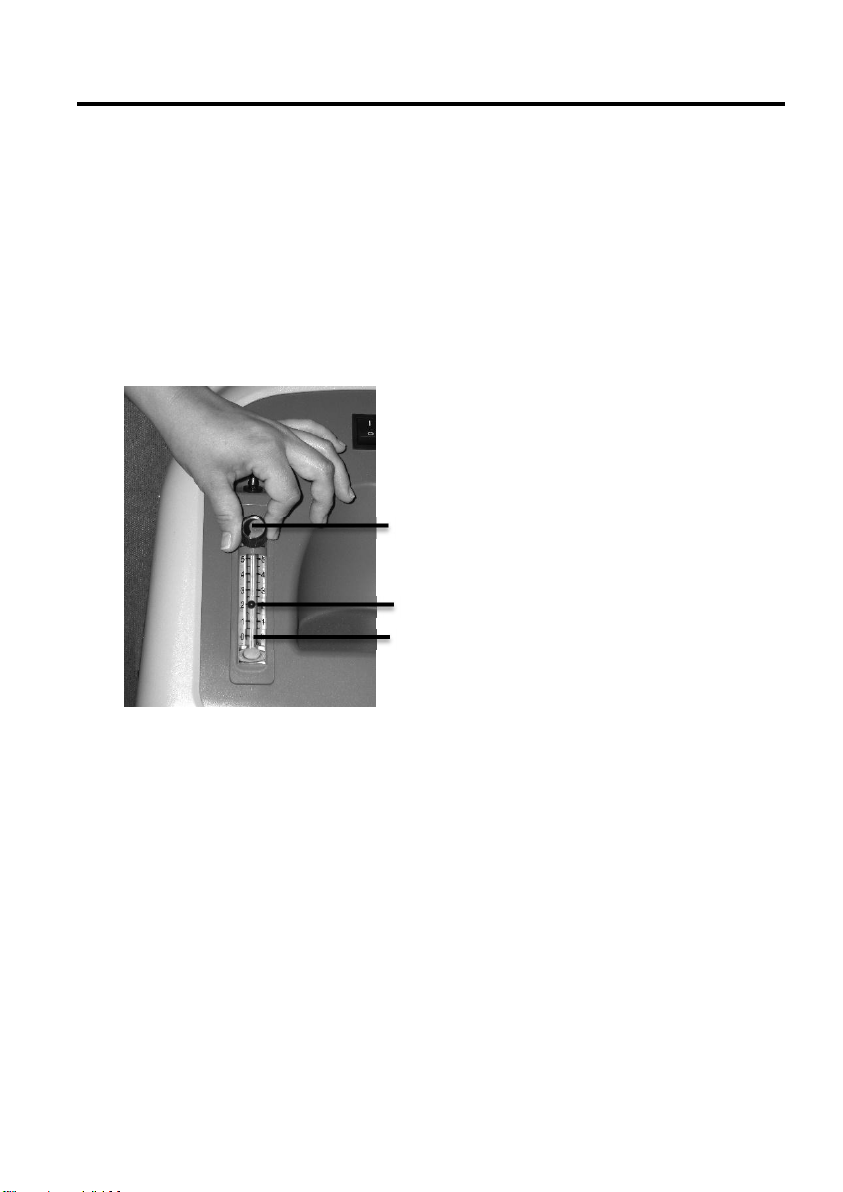

●To properly read the flowmeter, locate the prescribed flow rate
line on the flowmeter. Next, turn the flow knob until the ball rises to
the line. Now, center the ball on the L/min. line prescribed (Figure
3).
NOTE: Oxygenation times and the flow rate ranges are established
and prescribed by your physician.
Figure 3
CAUTION: If the flow rate on the flowmeter ever falls below
0.5L/min, check tubing or accessories for blocked or kinked
tubing or a defective humidifier bottle.
4.4 Alarm Signal
Initial startup of the concentrator
NOTE: Concentrator may be used during the initial start warm-up time
(approximately 5 minutes) while waiting for the O2
concentration to reach maximum.
Flowmeter knob
Black floater
Flowmeter
