Juna JRDAB-04 Series User manual

JRDAB-04
DAB/DAB+ Radio
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
1. Basic functions ...............................................................................
2. Turning on the DAB radio screen ...................................................
3. Station list .......................................................................................
4. Memorizing the station list (adding to favorites) .............................
5. Extended information .....................................................................
6. Favorite list .....................................................................................
7. Choice of service ............................................................................
8. DAB options ...................................................................................
9. Operation from the steering wheel .................................................
10. Firmware update and station "logo" images database ...................
User manual
2
2
3
3
4
4
5
6
7
7
Table of Contents
Audi

2
• Support for DAB and DAB + standards
• Automatic background scan and search for radio stations
• Dual DAB / DAB + tuner
• Support directly from the panel of factory MIB / MIB2 MQB units
• Dynamic labels: DL / DL +
• TA - Traffic announcements
• The slideshow
• Logo service
• Track selected radio station while driving (following service)
• List of favorite radio stations - save, delete and manage the list
• Language selection for radio operation
Pic. 1
When the ignition
switch is on
1. Press the MEDIA button and select the AUX source
2. If the car has the "Voice" function - it should be
say the word "MEDIA AUX".
When the ignition
is turned off
3. To show the DAB radio screen, press and
hold down the MEDIA button for 2 seconds.
Switching the display to DAB radio
Activation of DAB
MEDIA button
Voice function
1. Basic functions
2. Switch on the DAB radio screen
■ Covered parking lots, tunnels, tall buildings or mountains can interfere with
the radio signal to the extent that the device cannot be used.
■ Radio reception problems may also occur in
the case of a long distance from the DAB radio transmitter.
■ On vehicles with an antenna in the windscreen, if the windows are covered
with foil or metal stickers, interference may occur.
Information
Note: When changing the media source to return to digital radio
DAB +, press and hold the MEDIA button for 2 seconds (point 3).

3
3. Station list
a) Information symbols on the DAB screen
The radio station is a DAB radio station
DAB signal is not available
Radio station contains graphic information (slide show)
The radio station contains text information
Move the desired DAB station
Delete the selected DAB station
b) In the station list window the multiplexes and the stations are visible.
All stations available in the given location are searched automatically
and shown in the list of available stations. You can choose any stations,
as well as the option to hide the station group for the selected multiplex.
To save the currently selected radio station and add it
to the favorites screen, press the knob on the panel
on the control unit for 2 seconds.
Correctly performed operation will be confirmed
message on the screen.
4. Save a station (add to favorites)
PRESS
Pic. 4
3. Window - Station list
Pic. 2
ABCservice name
(multiplex, groups)
name of the chosen
one radio station
graphic information
about the selected
station - logo
or slideshow
The bar for the selected station will remain
automatically widened when additional text
information(DL+ which contain tag of Arist
or Tittle) will appear.
Pic. 3
*
*
*For cars with 7 "screen in the station list window graphic informations
(logo or slideshow) are invisible.

5. Extended information
a) In the "extended information" window, only currently selected radio station
informations are display
To make the window visible, it must be activated in: "DAB-options" (see - page 6).
The activated window will be the DAB radio main window.
3
Pic. 5
3. Window - extended
AB
C
A
B
C
station name
radio
text information
(DLS, DL +)
graphic information
about the selected
station - logo
or slideshow
6. Favorite list
4
Pic. 6
3. Window - Station
list favorite
a) In the "Radio: Favorites-DAB" window, only the list of "favorites" stations is visible,
which can be creat individually by the user.
Adding radio stations to the list is described on page 3, point. 4.
Removing a station from the favorites list should be done in the
"Options -> Remove Favorite "window program” (see page 6).
CAUTION:
For cars with a 7 "screen, in the favorites window, graphic informations
(logo or slideshow) are invisible.

6. Window - service
selection
5
Pic. 8
To change the position of a station on the favorites list, press and hold the knob on the
control panel until the symbol ( ) appears.
Then select the new position using the knob and confirm it by prssing the knob Pic 6.
The function of changing the position of stations in the favorites list can also be
performed in the window ”DAB options" (page 6).
PRESS 2 sek.
Pic. 6
Change of order
station in the list
favorites
Only available for cars equipped with a control panel with keyboard of quick selection.
It allows you to quickly access to first eight of yours favorites stations and select
one of them.
7. Choice of service
To activate the selection screen, press the left button on the control panel.
When the DAB radio is active, you can select the way of displaying the list of radio
stations or switch to the external AUX audio source
Support for quick selection
favorite stations
The type of keyboard
depends from the
equipment car.
b) Support for quick selection of stations from favorites
Pic. 7

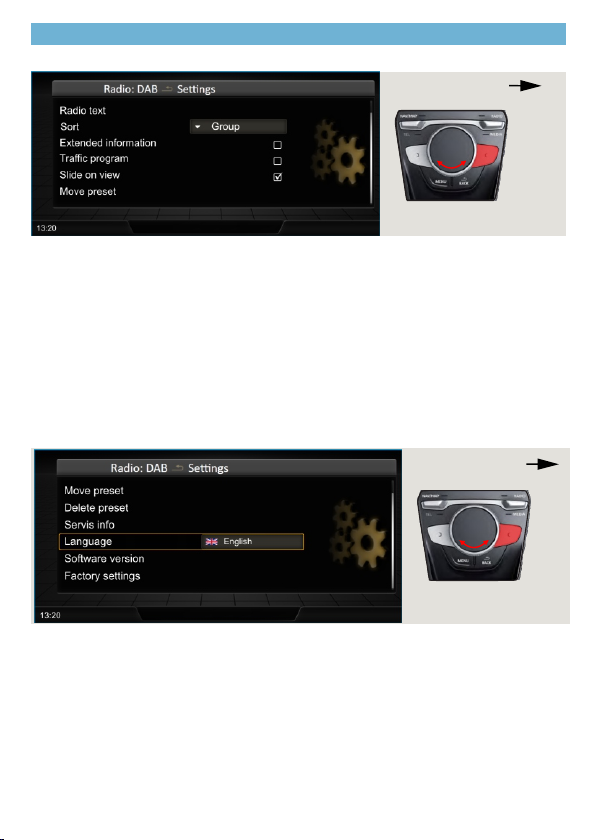

7. DAB options
Pic. 9
■ Radio text - text information broadcast by the station currently being received.
■ Program sorting - how to display the station list.
A-Z - alphabetical sort.
Groups - divided in groups by the content of the multiplexes.
■ Extended information - all textual and graphical informations broadcast by the
selected radio station are visible. When this option is active then „Extended
information” window is the main DAB screen. (Pic. 5).
■ Traffic announcements - Turn ON/OFF handling DAB
road DAB (TA)
■ Slide show - Turn ON/OFF the slide show service
■ Move Favorite Program - Change the position of the stations in the favorites list
(active only when the "Radio: Favorites-DAB" screen is selected - Pic. 6).
■ Delete favorite program - deletes the selected station from the favorites list
(active only when the "Radio: DAB Favorites" screen is selected - Pic. 6)
■ Station information - Detailed information about the currently selected station
DAB radio (Pic. 2)
■ Language - language selection for DAB radio
■ System Information - Software version information and function
that allows you to update the software
■ Factory settings - Restore factory settings for DAB radio
6
Pic. 10
8. DAB options
7. DAB options

10. Firmware update and station "logo" image database
The JRDAB-04 receiver has the function of displaying the logo assigned to the saved
ones radio stations. The receiver can automatically select the appropriate picture for
the station saved in the favorites list in the main window. Station logotype databaseis
located on a pendrive connected to the JRDAB-04 module or in memory
internal JRDAB-04 module (depending on the module version).
In the case of the JRDAB-04_v4.xx module version, the station logos are downloaded
from the external one USB memory - when a USB memory is not connected, displaying
the station logo images is not possible. For the JRDAB-04_v5.0 module versions and
later, the logo database is included in the internal memory. A USB flash drive is not
required to be connected.
The software update function is available in the "System information" window
located in "DAB Options -> System Information."
Detailed information on software update, logo database and you can add or change
your own logo for your favorite radio stations
found at www.juna.pl
(Partner zone-> Updates -> DAB / DAB + modules -> JRDAB-04).
When a USB memory is connected, the (USB) symbol will appear on the screen.
7
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
JuNa PPHU Manufacturer
Operation via the buttons on the multifunction steering wheel is possible
when the ignition switch is on.
The next / previous buttons allow you to select the next radio station
or the previous one in the station list or favorite list.
The louder / quieter knob allows you to adjust the volume level
When DAB is active on the dash panel screen ,information about „AUX” as active
source will be displayed.
AB
C
9. Operation from the steering wheel
Pic. 11
