Jung USB 15 CA Series User manual

USB charger
13.01.20201 / 20024021501
USB charger
Ref.-no.: USB 15 CA ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, re or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
These instructions are an integral part of the product, and must remain with the end customer.
2 Structure of the device
Fig. 1: Structure of the device
(1) USB charger
(2) Power supply terminals
(3) USB sockets
(4) Frame
(5) Holder plate
(6) Screw
(7) Cover
3 Function
Intended purpose
- Battery charging station for mobile devices with USB connection
- Installation in appliance box according to DIN 49073
Product characteristics
- 1 USB port type A and 1 USB port type C
- Simultaneous charging of 2 devices possible
- Installation into multiple frame with other devices possible
iObserve charging instructions of devices!
2 2 3
1 4
5
6
7
GB

USB charger
13.01.20202 / 20024021501

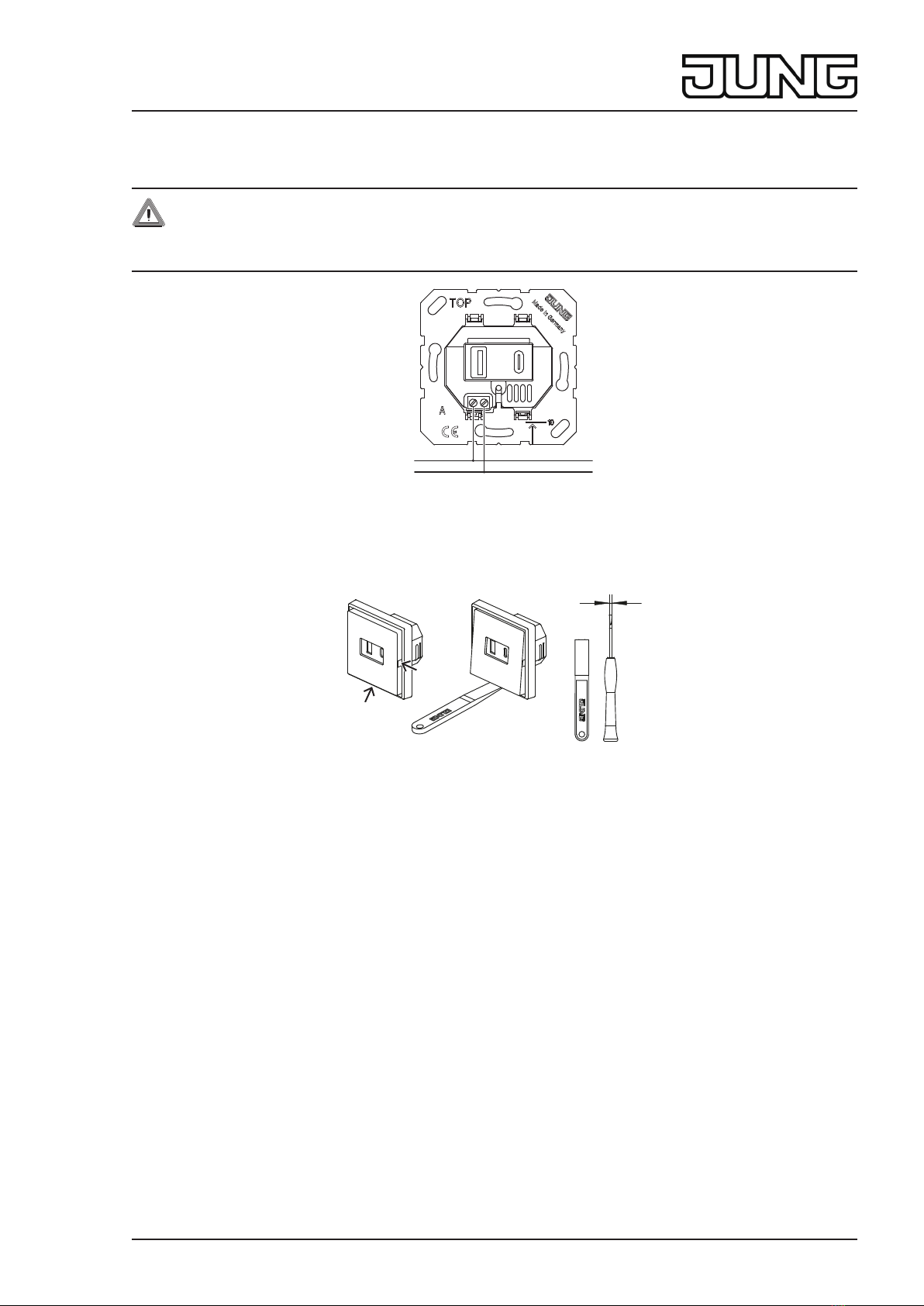

4 Information for electrically skilled persons
Installation and electrical connection
DANGER
Electric shock from touching live parts in the installation environment.
An electric shock can be fatal.
Before working on the device, disconnect the power and cover live parts in the area.
L
N
Fig. 2: Connection
• Connect the divice according to wiring diagram.
• Install the device.
• Install frame and cover onto the device.
• Supply voltage can be switched on.
≤3 mm
Fig. 3: Dismounting
iDismounting only with a suitable tool at notches in the centre plate.
Technical data
Rated voltage AC 100 ... 240 V ~ ± 10 %
Mains frequency 50/60 Hz
Ambient temperature 0 ... +35 °C
Storage/transport temperatur -20 ... +70 °C
Standby power AC 230 V ~: ≤ 0.1 W
Terminal screw terminals
Output voltage DC 5 V (± 5 %)
Output current
AC 120 ... 240 V ~ max. 3000 mA
AC 90 ... 108 V ~ max. 2500 mA
Protection level IP 20
5 Accessories
Centre plates .. 1569 USB ..
.. 1969 USB ..
6 Warranty
The warranty follows about the specialty store in between the legal framework as provided for by law.
