Jung DAB Series User manual

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20201 / 70024075202
Smart Radio DAB+
Ref.-no.: DAB ..
Smart Radio DAB+ Bluetooth
Ref.-no.: DAB .. BT ..
Operating instructions
1 Safety instructions
Electrical equipment may only be tted and connected by electrically skilled persons.
Serious injuries, re or property damage possible. Read and observe instructions fully.
Danger of electric shock. Before working on the device, disconnect the mains voltage and switch o󰀨 the
circuit breakers.
These instructions are a component part of the product and must remain with the end customer.
2 Correct use
- DAB reception in the frequency range 174 MHz to 240 MHz (VHF band III and channel 13)
- FM reception in the frequency range 87.5 MHz to 108 MHz (VHF band II)
- Installation in ush box according to DIN 49073 (recommendation: deep box)
3 Product characteristics
- Digital radio with display and sensor buttons
- Real glass front panel
- Stereo reception
- Connection terminals for two loudspeakers
- Stereo/mono switch-over
- Simple operation
- Integrated antenna for DAB+ and FM
- High reception quality
- Automatic station scan
- Storage of 8 favourites DAB+ and 8 favourites FM (will be retained after voltage failure)
- Switch-on with last station
- Switch-on with last volume
- Switch-on with last operation mode (DAB+ or FM)
- Display of station information, time and current settings
- Current time via RDS and DAB+
- Brightness level of display can be adjusted
- Night mode
- Alarm function
- Sleep mode
- Switching on/o󰀨 via extension unit
- Line-out output (AUX) to connect external ampliers
- Optional external cable antenna ref.-no.: RAD-ANT
Only version with Bluetooth
- Playback and control of music on mobile devices via Bluetooth
- Storage of 8 Bluetooth audio sources
- Bluetooth device name can be changed
GB

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20202 / 70024075202
4 Structure of the device
1. Power supply
2. Frame
3. Display
4. next/previous channel/title
loud/quiet, brighter/darker
5. Button On/O󰀨
6. Conrm/apply button
7. Button Selection DAB+, FM, Bluetooth, Alarm, Settings, Return without saving
8. Favourites button
12
3
4
5
6
7
8
Fig. 1: Structure of the device
5 Operation
Switch on/o󰀨
• Press button
Radio switches on/o󰀨
Menu
• Press button.
• Select functions with buttons: DAB RADIO, FM RADIO, BLUETOOTH, ALARM, SETTINGS
• Selection with button.
• SETTINGS submenu:
SLEEP, TIME, DISPLAY, BT-NAME
• Selection with button.
DAB RADIO/FM RADIO
During commissioning, all reachable channels are saved. The next/previous channel is selected using the
buttons.
The choice between DAB RADIO and FM RADIO is made using the menu .
Saving favourites
During commissioning, the 8 strongest channels are saved as favourites.
The favourites can be customised individually.
• Selecting channels
• Press button longer.
• Select favourite 1-8 using button
• Press button.
Channel is saved on the selected favourite.

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20203 / 70024075202
Retrieving favourites
• Press button briey.
• Select favourite 1-8 using button .
The respective channel is displayed and played.
• Conrm channel using button
Channel search
• Press button for 3 seconds
Display shows “New Scan”
• Conrm scan using button
Night mode
In night mode the display can be hidden, if the radio is switched o󰀨. After pressing any button, the display becomes
visible for approx. 10 seconds.
Requirement: For activating the night mode the radio has to be switched o󰀨.
• Select the lowest brightness level using button.
• Press again to de/activate night mode
SLEEP
The radio switches o󰀨 after a predetermined time. The OFF setting deactivates the function.
• Hold down button for 3 seconds.
• Set (OFF, 15 min, 30 min) using buttons
• Conrm button
Setting time
The time is transferred from favourite 1 via DAB+ or FM. If the time is not transferred via DAB+ or FM, it must be set
manually.
• Press button.
• Select SETTINGS and then TIME using button.
• Conrm button
• Set time using buttons.
• Conrm button
Alarm time/alarm function
The last radio channel is selected as alarm sound. The volume increases gently.
Setting alarm time:
Requirement: The radio is switched o󰀨.
• Press button for approx. 4 sec
• Setting alarm time using buttons
• Press button
Alarm time is set.
Alarm function is active
Switching alarm function on/o󰀨:
Requirement: The radio is switched o󰀨.
• Press button for approx. 2 sec.
ALARM ON or ALARM OFF is displayed briey.
Activated alarm time appears in the upper right-hand corner of the display.

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20204 / 70024075202
Connecting Bluetooth
(Only version with Bluetooth)
External audio devices can be connected via Bluetooth.
Requirement: There is no active Bluetooth connection to other devices.
• Invoke menu screen using button and select BLUETOOTH.
• Conrm button
The radio is now visible.
The connection can be established via the Bluetooth audio device.
Known devices are connected automatically.
Clearing Bluetooth Connections
(Only Version with Bluetooth)
All connections are cleared.
• Invoke menu screen using button and select BLUETOOTH
• Press button for 3 seconds
“UNPAIR” display screen
• Conrm button
All connections are cleared.
Selecting known Bluetooth sources
(Only version with Bluetooth)
• Invoke menu screen using button and select BLUETOOTH
• Press button briey
Known sources are displayed.
• Displaying devices using button
• Select device using button.
Switching hotel mode on/o󰀨
The SETTINGS menu item (Settings) is not displayed in hotel mode.
The maximum volume is limited, channel search and favourite assignment are disabled.
Requirement: The radio is switched o󰀨.
• Press and buttons simultaneously for approx. 8 seconds.
A progress bar is displayed after approx. 4 seconds.
The hotel mode is switched after approx. 8 sec.
• Release both buttons.
Hotel mode is switched on/o󰀨.
Default setting, reset
All settings are reset.
• Press and buttons simultaneously for approx. 8 seconds.
A progress bar is displayed after approx. 4 seconds.
The radio is reset to the as-delivered state after approx. 8 sec.
• Release both buttons.
All settings are reset.
Channels for DAB+ and FM are rescanned.

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20205 / 70024075202
6 Information for electrically skilled persons
Installation and electrical connection
Danger!
Risk of death by electric shock.
Disconnect device from power supply. Cover live parts.

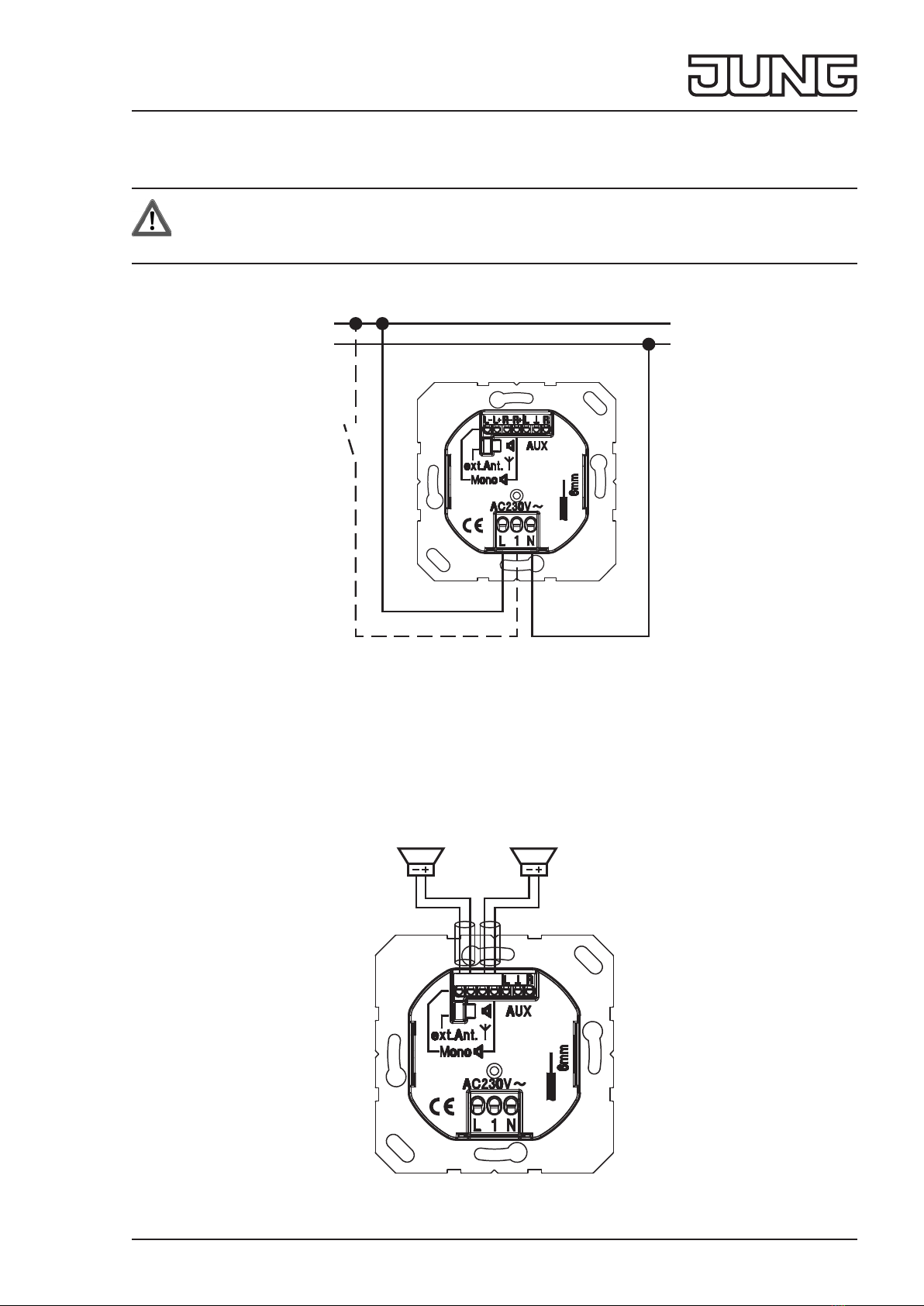

Connecting and installing power supply
L
NAC 230 V~
Fig. 2: Connection of insert with optional extension unit
iThe radio, for example, can be switched on together with the room lighting via the extension unit input.
iThe radio and extension unit must be operated on the same phase.
Connecting a loudspeaker (stereo mode)
Two loudspeakers must be connected for stereo mode.
iAll cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
L R
L-L+ R-R+
Fig. 3: Connection of 2 loudspeakers

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20206 / 70024075202
Connecting a loudspeaker (mono mode)
One loudspeaker must be connected for mono mode.
iAll cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
L-L+ R-R+
Fig. 4: Connection of 1 loudspeaker
Connecting AUX output
Output to the connection from active boxes and headphones.
iAll cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
Connecting cable aerial
It is only necessary to connect the external cable aerial Art.-No.: RAD-ANT in the case of poor reception.
iThe connection from other aerials, e.g. roof aerials or community aerials, is not permitted.
• Remove jumper (9)
• Insert the aerial (10) at the lower connection
9
10
Fig. 5: Aerial connection

Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20207 / 70024075202
7 Commissioning
The radio scans and saves all receivable channels for DAB+ and FM. The 8 strongest channels are saved as
favourite.
The time is applied automatically during reception of favourite 1. The time can also be set via the menu.
8 Technical data
Rated voltage AC 230 V ~
Mains frequency 50/60 Hz
Connection Screw terminals
Cable cross-section 1 x 2.5 mm² or 1 x 1.5 mm²
Power draw
Standby < 1 W
Operation < 4 W
Temperature range 0 ... 50 °C
Humidity 15 ... 90 % (no dew)
DAB frequency range 174 ... 240 MHz
VHF frequency range 87.5 ... 108 MHz
Bluetooth
Frequency range 2.402 ... 2.48 GHz
Transmission power Class 2 < 4 dBm
Transmitter range type 10 m
Protection rating IP20
Connecting cable loudspeaker
Twin cable H03VH-H, 2x0.75
Alternative JY-(St)- Y 2x2x0.6
Length max. 5 m
Loudspeaker LSM…
Rated load capacity 2.5 W
Impedance 4 Ω
Frequency range 120 ... 15000 Hz (-10 dB)
9 Accessories
Cable aerial Art.-No.: RAD-ANT
10 Warranty
Warranty is o󰀨ered according to the statutory provisions via specialist dealers.
