Jupiter Avionics JA72-006 User manual

Rev B Page i
JA72-005 Glove Box with USB Charger
JA72-006
Glove Box with USB Charger
Installation and Operating Manual
Rev. B
Jupiter Avionics Corporation
1959 Kirschner Road
Kelowna BC
Canada V1Y 4N7
Tel: [phone]
Toll-Free: 1 855 478 2232
www.jupiteravionics.com

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page ii
Copyright 2013 Jupiter Avionics Corp.
All rights reserved
Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express
use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this
copyright notice. Any unauthorized commercial distribution of this manual is strictly prohibited. Except as described
above, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded, or stored in any
storage medium for any purpose without the express prior written consent of JAC.
RECORD OF REVISIONS
Revision
Rev Date
Description
ECR
A
Oct 2013
Initial release, Serial number 1001 and higher.
2488
B
Feb 2014
Change Certification Statement
2493
Prepared:
MPB
Checked:
Approved:
IMPORTANT:
Information in this document is subject to change without notice.
To confirm the current revision status of this manual, visit the JAC website:
www.jupiteravionics.com

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page iii
Table of Contents
SECTION 1 - DESCRIPTION...........................................................................................................................................1
1.1 System Overview..............................................................................................................................................1
1.2 Features Overview............................................................................................................................................1
1.3 Inputs and Outputs ...........................................................................................................................................1
1.3.1 Inputs........................................................................................................................................................1
1.3.2 Bi-Directional Ports...................................................................................................................................1
1.3.3 Output.......................................................................................................................................................1
1.4 Specifications....................................................................................................................................................1
1.4.1 Electrical Specifications............................................................................................................................1
1.4.2 Mechanical Specifications ........................................................................................................................2
1.4.3 Environmental Specifications ...................................................................................................................2
1.4.4 Flammability of Materials..........................................................................................................................2
SECTION 2 – INSTALLATION........................................................................................................................................3
2.1 Introduction.......................................................................................................................................................3
2.2 Continued Airworthiness...................................................................................................................................3
2.3 Unpacking and Inspecting Equipment..............................................................................................................3
2.3.1 Warranty .......................................................................................................................................................3
2.4 Installation Procedures.....................................................................................................................................3
2.4.1 Installation Limitations ..................................................................................................................................3
2.4.2 Cabling and Wiring .......................................................................................................................................3
2.4.3 Mechanical Installation .................................................................................................................................4
2.4.6 Post Installation Checks ...............................................................................................................................4
2.5 Installation Kit ...................................................................................................................................................4
2.5.1 Recommended Crimp tools......................................................................................................................4
2.6 Installation Drawings.........................................................................................................................................4
SECTION 3 – OPERATION.............................................................................................................................................5
3.1 Introduction.......................................................................................................................................................5
3.2 Front Panel Connectors....................................................................................................................................5
3.2.1 USB POWER OUTPUT 5V/2A.................................................................................................................5
3.2.2 AUDIO I/O.................................................................................................................................................5
3.3 Compatibility .....................................................................................................................................................5
Appendix A - Installation Drawings........................................................................................................................... A1
A1 Introduction.....................................................................................................................................................A1
A2 Installation Drawings.......................................................................................................................................A1
Appendix B - Certification Documents...................................................................................................................... B1
B1 Airworthiness Approval...................................................................................................................................B2
B2 Instructions for Continued Airworthiness........................................................................................................B2
B3 Environmental Qualification Form ..................................................................................................................B3

Rev B Page 1
JA72-006 Glove Box with USB Charger
SECTION 1 - DESCRIPTION
1.1 System Overview
The JA72-006 Glove Box with USB Charger allows the aircraft owner /operator to use an unused portion of the
instrument panel for storage. The interior of the glove box has a soft, high friction finish to minimize noise and
movement due to vibration.
A USB 2.0 Type A receptacle is provided to supply 5 Vdc power up to 2 Amps.
A 3.5mm stereo jack is also provided to enable music players to be connected to the aircraft's audio system.
The JA72-006 uses a 6 Dzus high aperture. Other heights and a non-USB version are available.
1.2 Features Overview
The JA72-006 is painted in a baked-on flat black urethane finish to resist scratches and nicks during use.
1.3 Inputs and Outputs
Refer to the JA72-006 connector map for the mating connector designators and contact assignments for the input and
bi-directional signals.
1.3.1 Inputs
Name
Qty
Type
D+ and D-
2
Charge sense
POWER INPUT
1
+ 28 Vdc power
SPARE
1
Spare
1.3.2 Bi-Directional Ports
Name
Qty
Type
AUDIO LEFT, AUDIO RIGHT
2
Audio I/O connector, audio
RESERVED
1
Audio I/O connector, reserved
AUDIO LEFT, AUDIO RIGHT
2
Main connector, audio
RESERVED
1
Main connector, reserved
1.3.3 Output
Name
Qty
Type
+5VDC
1
USB power output
1.4 Specifications
1.4.1 Electrical Specifications
Power Input
Primary nominal voltage 28.0 Vdc
Maximum voltage 32.2 Vdc
Minimum voltage 22.0 Vdc
Emergency voltage 18.0 Vdc
Power Input - Off ≤ 14 Vdc

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page 2
Overvoltage ≥ 42 Vdc for ≥ 5 min
Input current at 28 Vdc ≤ 0.7 A
1.4.1.1 +5V Output Performance
Output rated current 2.00 A
Output rated voltage +5 Vdc ± 12 %
Output capable of ≥110 % of rated power for ≥ 2h
Regulation ≤ 12 %
Ripple ≤ 280 mVrms
Short circuit ≥ 1 min
Dielectric strength Not Applicable
1.4.2 Mechanical Specifications
Height 2.24 in [56.9 mm] maximum
Behind panel depth (not including connectors) 5.52 in [140.2 mm] maximum
Width 5.75 in [146.1 mm] maximum
Weight 1.01 lbs [0.46 kg] maximum
Enclosure: 5052-H32 aluminum; brushed
texture and conversion coating
Internal Finish Flat Black Urethane Paint with
Soft Touch coating
Faceplate 6061-T651 Aluminum with flat black
urethane paint; white legends
Connectors (3): J1 Main One 9-pin D-Sub male, V5 locking
J2 Audio I/O One 4 pole 3.5mm jack
J3 USB One USB Type A Female
Mounting 4 Dzus fasteners
Bonding ≤2.5 mΩ
Installation kit part number INST-JA72
1.4.3 Environmental Specifications
The JA72-006 Glove Box with USB Charger has been tested to the environmental conditions listed below.
Environmental categories are listed in the Environmental Qualification Form in Appendix B of this manual.
Temperature:
Operating -45 °C to +70 °C
Ground Survival -55 °C to +85 °C
Altitude 50,000 ft
Humidity Cat A (48 hours)
Shock, Crash Safety 15 g, 30 g for 11 ms
1.4.4 Flammability of Materials
The JA72-006 complies with the requirements of RTCA/DO-160G Sec 26.3.3 "Flammability", through equivalent
flammability testing of materials and the Small Parts Exemption.

Rev B Page 3
JA72-006 Glove Box with USB Charger
CAUTION: The power input circuitry of the unit may be damaged if the installation does not
conform to the wiring instructions in this manual.
SECTION 2 – INSTALLATION
2.1 Introduction
This section contains unpacking and inspection procedures, installation information, and post-installation checks.
2.2 Continued Airworthiness
Maintenance of the JA72-006 is on condition only. Scheduled inspection and/or periodic maintenance of this unit is
not required.
2.3 Unpacking and Inspecting Equipment
Unpack the equipment carefully. Check for shipping damage and report any problems to the relevant carrier. Confirm
that the Authorized Release Certificate or Certificate of Conformance is included. Complete the on-line warranty card
from the Jupiter Avionics Corporation (JAC) website – www.jupiteravionics.com/warranty.
2.3.1 Warranty
All products manufactured by JAC are warranted to be free of defects in workmanship or performance for 2 years
from the date of installation by an approved JAC dealer or agency. This warranty covers the cost of all materials and
labour to repair or replace the unit, but does not include the cost of transporting the defective unit to and from JAC or
its designated warranty repair centre, or of removing and replacing the defective unit in the aircraft. This warranty
does not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.
THIS WARRANTY IS VOID IF THE PRODUCT IS NOT INSTALLED BY AN AUTHORIZED JAC DEALER. If the on-
line warranty card is not completed, the product will be warranted from the date of manufacture.
Contact JAC for return authorization, and for any questions regarding this warranty and how it applies to your unit(s).
JAC is the final arbiter concerning warranty issues.
2.4 Installation Procedures
2.4.1 Installation Limitations
Those installing the JA72, on or in a specific type or class of aircraft, must determine that the aircraft installation
conditions. The JA72 may be installed only by following the applicable airworthiness requirements.
2.4.2 Cabling and Wiring
All wire shall be selected in accordance with the original aircraft manufacturer’s maintenance instructions, or AC43.13-
1B Change 1, Paragraphs 11-76 through 11-78. Unshielded wire types shall qualify to MIL-W-22759 as specified in
AC43.13-1B Change 1, Paragraphs 11-85, 11-86, and listed in Table 11-11. For shielded wire applications, use Tefzel
MIL-C-27500 shielded wire with tag ring or equivalent (for shield terminations) to make the most compact and easily

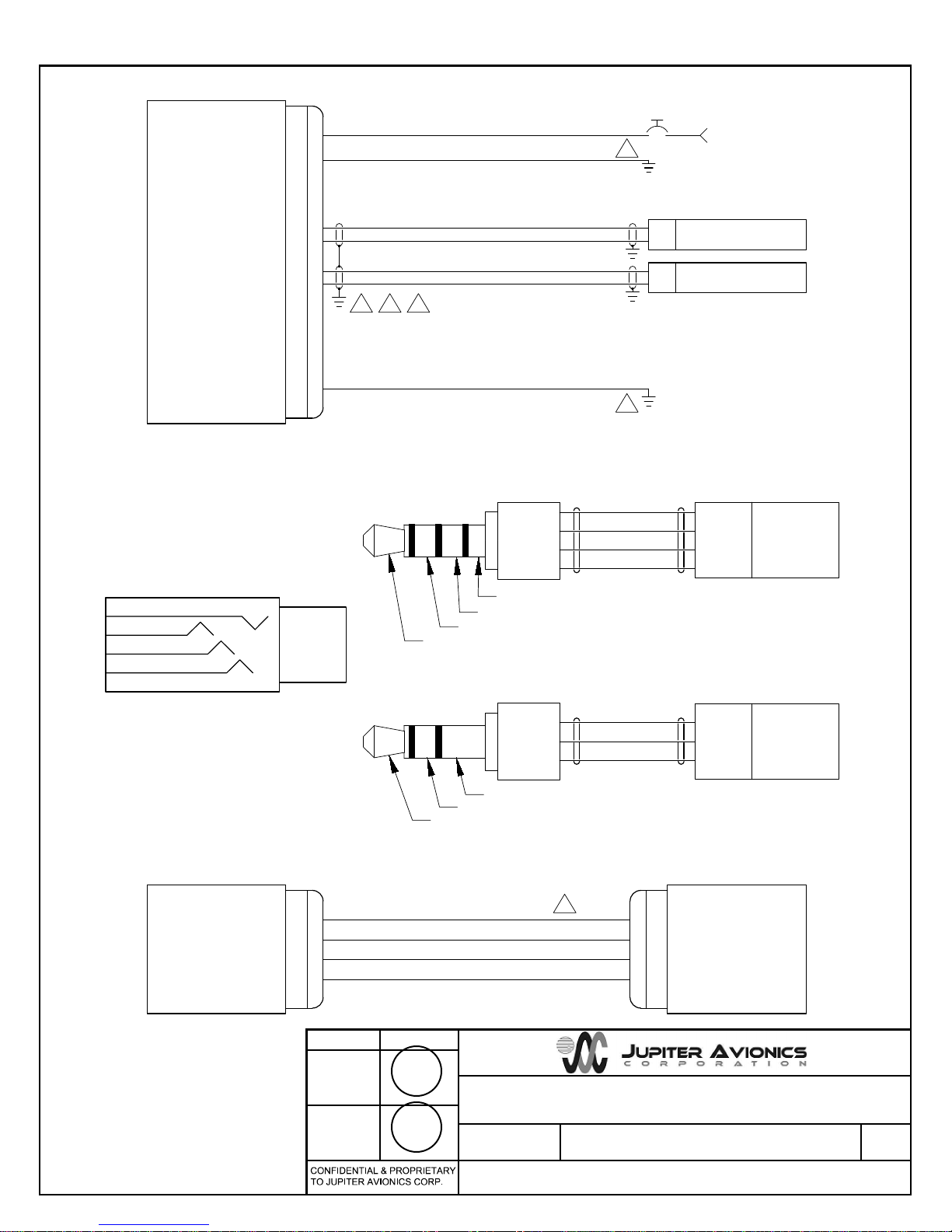

terminated interconnect. Follow the Connector Map in Appendix A of this manual.
Allow 3” from the end of the shielded wiring to the shield termination to allow the connector hood to be easily installed.
Refer to the Interconnect drawing in Appendix A of this manual for shield termination details. Note that this unit has a
‘clamshell’ hood that is installed after the wiring is complete.

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page 4
Maintain wire segregation and route wiring in accordance with the original aircraft manufacturer’s maintenance
instructions.
Unless otherwise noted, all wiring shall be a minimum of 24 AWG, except power and ground lines, which shall be a
minimum of 20 AWG. Refer to the Interconnect drawing for additional specifications. Check that the ground
connection is clean and well secured, and that it shares no path with any electrically noisy aircraft accessories such
as blowers, turn-and-bank instruments, or similar loads.
2.4.3 Mechanical Installation
The JA72-006 can be mounted in any attitude and location with adequate space for the front panel and sufficient
clearance for the connector and wiring harness. It requires no direct cooling.
2.4.6 Post Installation Checks
2.4.6.1 Voltage/Resistance checks.
Do not attach this unit until the following conditions are met:
a) Check P1 pin 1for +28 Vdc relative to ground.
b) Check P1 pin 6(power ground) for continuity to ground (less than 0.5 Ω).
c) Check P1 pin 7 (chassis ground) for continuity to ground (less than 0.5 Ω).
d) Check all pins for shorts to ground or adjacent pins.
2.4.6.3 Power on Checks.
Power up the aircraft’s systems and confirm normal operation of all functions of the JA72. Refer to
Section 3 (Operation) for specific operational details.
When all performance checks are satisfied, complete the necessary regulatory documentation before releasing the
aircraft for service. Refer to Appendix B.
2.5 Installation Kit
The kit required to install this unit is not included with the unit.
The installation kit (Part # INST-JA72) consists of the following:
Quantity Description JAC Part #
1 D-Sub 9-pin connector, hood and 9 crimp pins CON-3420-0009
1 JA72 Assembly Notes, Installation Kit DOC-INST-JA72
2.5.1 Recommended Crimp tools
Connector Type
Hand crimp tool
Positioner
Insertion/extraction tool
Positronic
9507
9502-3
M81969/1-04
Positronic
AFM8 (Daniels)
M22520/2.08 KB-1
2.6 Installation Drawings

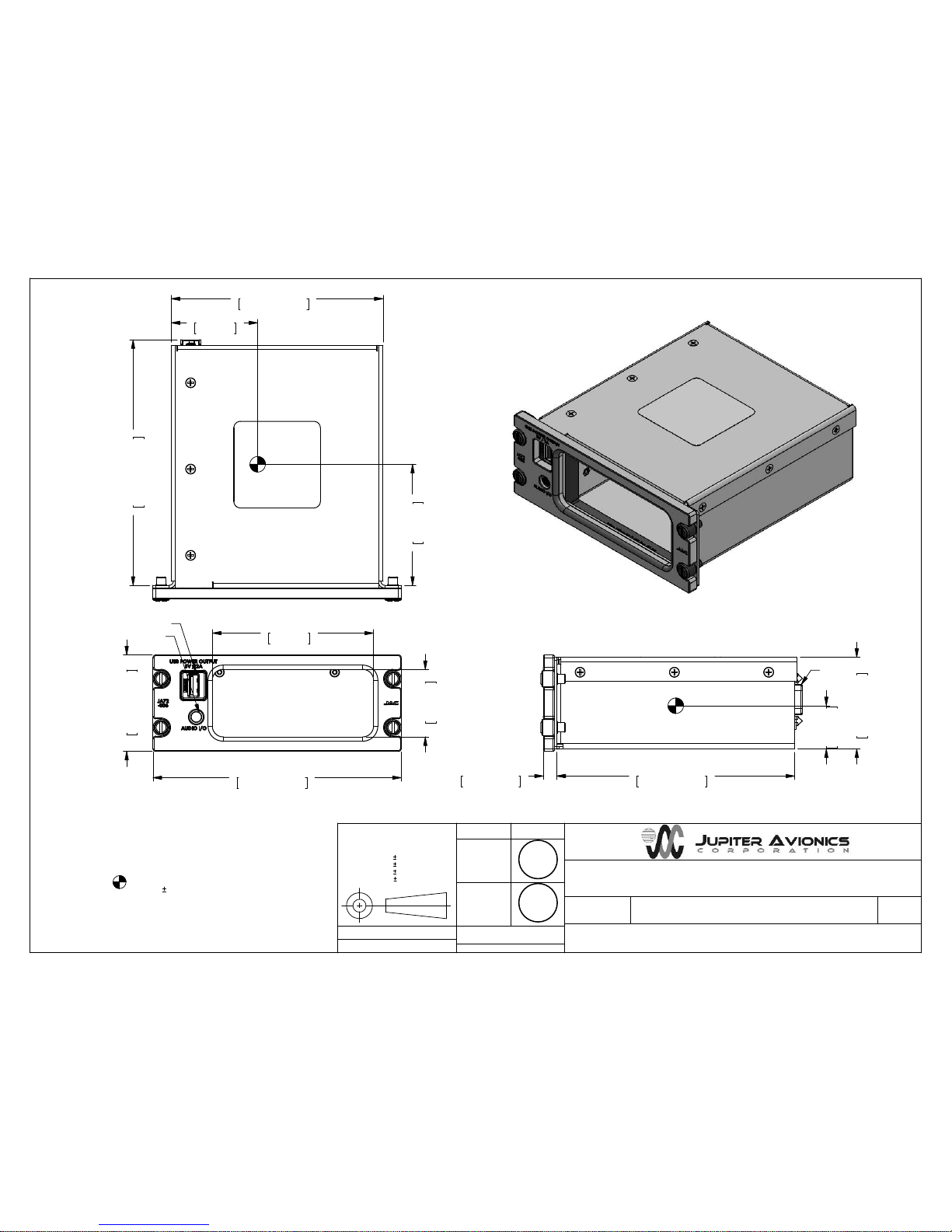

The drawings and documents required for Installation can be found in Appendix A of this manual.

Rev B Page A5
JA72-006 Glove Box with USB Charger
CAUTION: Attempting to connect an incompatible plug or device could damage the JA72, the
attached device, or both.
Note: This port is not designed to be used for data transfer.
SECTION 3 – OPERATION
3.1 Introduction
This section contains the operating instructions for the JA72-006.

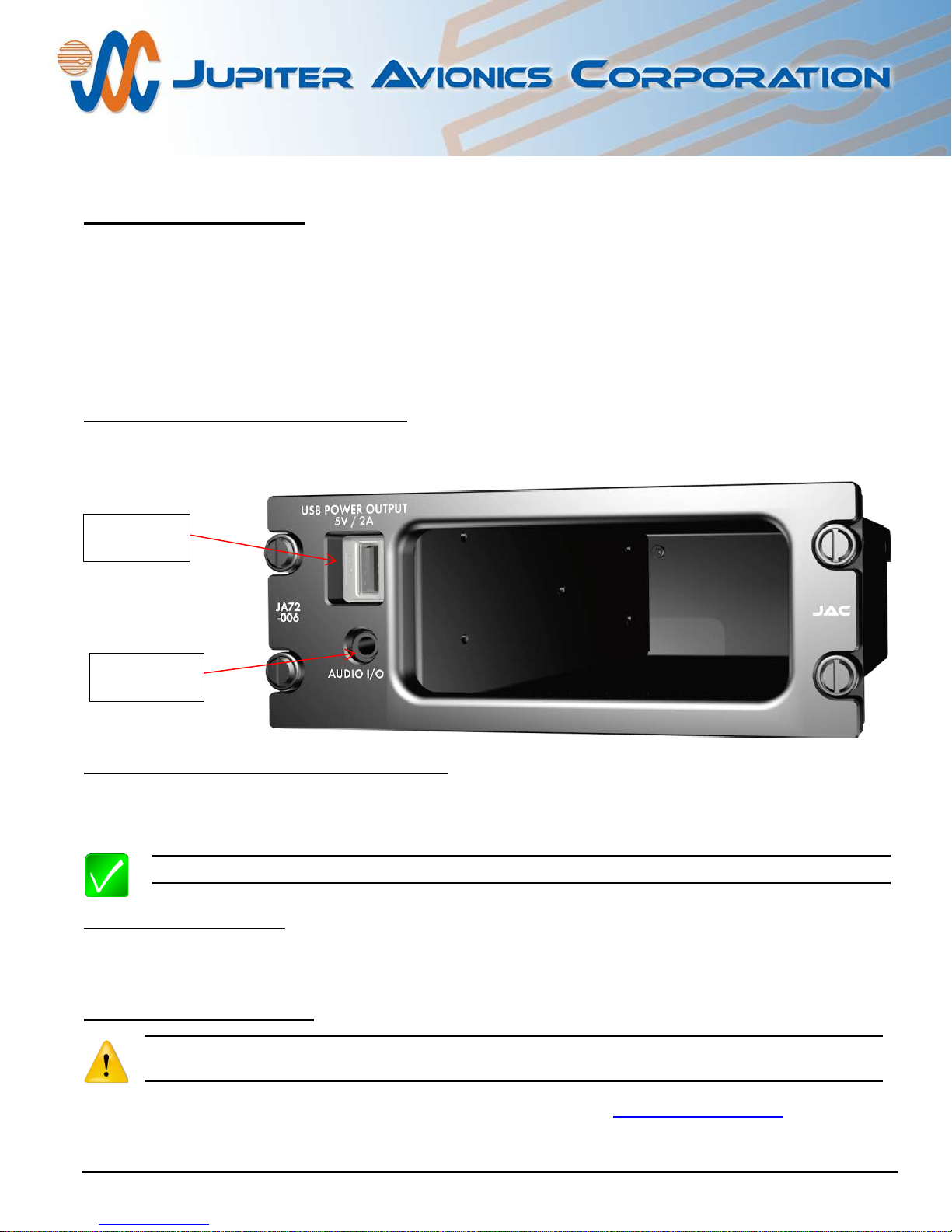

The JA72-006 provides a useful storage space with the added benefits of storing and charging a phone or other
device, and connecting a music player or other audio input to the aircraft audio system. The interior of the glove box
has a soft, high friction finish to minimize noise and movement due to vibration.
The JA72-006 uses a 6 Dzus high panel height. Other heights and a non-USB version are available.
3.2 Front Panel Connectors
The JA72-006 has two front panel connectors: the USB Power output, and the Audio Input/Output jack.
3.2.1 USB POWER OUTPUT 5V/2A
The Power Output is a USB Type A connector.
This connector is provided to supply 5 Vdc up to 2 Amps for charging cell phones and similar devices.
3.2.2 AUDIO I/O
The Audio I/O jack provides a stereo audio input or output when the interconnect is wired to appropriate audio
equipment. It accepts a 3 pole 3.5mm stereo plug with a slim diameter connector housing.
3.3 Compatibility
If in doubt regarding compatibility of a specific item, contact Jupiter Avionics (www.jupiteravionics.com).
USB Power
Output
Audio
Input/Output

Rev B Page A1
JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Appendix A - Installation Drawings
A1 Introduction
The drawings necessary for installation and troubleshooting of the JA72-006 Glove Box with USB Charger are in this
Appendix, as listed below.
A2 Installation Drawings
DOCUMENT Rev
JA72-006 Connector Map B
JA72-006 Interconnect B
JA72-006 Mechanical Installation A

JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Glove Box with USB Charger
P1, P2 and P3 Connector Map
JA72-006 1/1
JA72-006 Connector Map Rev B.dwg
TAT
1 2 3 4 5
6 7 8 9
POWER INPUT SPARE AUDIO RIGHT HI AUDIO LEFT HI RESERVED
POWER GROUND CHASSIS GROUND AUDIO RIGHT LO AUDIO LEFT LO
P1
9 PIN FEMALE DMIN
MATING CONNECTOR
VIEW IS FROM REAR OF MATING CONNECTOR
P3
USB TYPE A MALE
MATING CONNECTOR
+5V D+ D-
4 3 2 1
View is from front of mating connector
P2
3 POLE OR 4 POLE MALE 3.5mm
MATING CONNECTOR
3rd Ring / PIN 4: RESERVED
1st Ring / PIN 2: AUDIO RIGHT HI
2nd Ring / PIN 3: AUDIO LO
TIP / PIN 1: AUDIO LEFT HI
View is from side of mating connector
Audio I/O Connector
USB Connector
GROUND
Main Connector
View is from side of mating connector
OR
JAC
DS
11-28-13
JAC
KDV
11-28-13

JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Glove Box with USB Charger
JA72-006 1/2
JA72-006 Interconnect Rev B.dwg
TAT
JA72-006 INTERCONNECT WIRING NOTES
NOTES
ALL WIRE SIZE SHOULD BE 24 AWG MIN UNLESS OTHERWISE SPECIFIED. UNSHIELDED
WIRE SHOULD BE SELECTED PER FAA AC43.13-1B CHANGE 1 PARA 11-76 TO 11-78. WIRE
TYPES SHOULD BE IN ACCORDANCE WITH MIL-W-22759 AS DESCRIBED IN FAA AC43.13-1B
CHANGE 1 PARA 11-85 AND 11-86 AND LISTED IN TABLE 11-11 OR 11-12. ALL SHIELDED
CABLE SHOULD BE IN ACCORDANCE WITH MIL-DTL-27500 (REVISION H OR LATER).
CONNECTION TO AIRFRAME GROUND SHOULD BE MADE WITH 20 AWG WIRE. LENGTH NOT
TO EXCEED 3 FT (0.91 M).
CABLE SHIELDS AT THE JA72-006 CONNECTOR PINS MAY BE TERMINATED TO AIRFRAME
GROUND USING A TAG RING P/N: MS27741-5 OR EQUIVALENT.
AUDIO LO's ARE CONNECTED TOGETHER INTERNALLY.
CABLE LENGTH NOT TO EXCEED 6 FT (1.82 M).
2
1.
3
4
5
JAC
DS
11-19-13
JAC
KDV
11-19-13

POWER INPUT 1
AUDIO RIGHT HI
AUDIO RIGHT LO HI
LO AUDIO RIGHT
3
8
AUDIO LEFT HI
AUDIO LEFT LO HI
LO AUDIO LEFT
4
9
SPARE
RESERVED 2
5
CHASSIS GROUND 7
JA72-006 MAIN P1 9 PIN FEMALE DMIN
MATING CONNECTOR
2 3
CHASSIS GROUND
20 AWG
2
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
Glove Box with USB Charger
JA72-006 2/2
JA72-006 Interconnect Rev B.dwg
TAT
+ 28 VDC POWER
2A
POWER GROUND 6
AUDIO LEFT HI
STEREO PLAYER
AUDIO RIGHT HI
AUDIO LO
P3
4 POLE MALE 3.5MM STEREO
MATING CONNECTOR
AUDIO LEFT
AUDIO RIGHT
AUDIO LO
TIP
1ST RING
2ND RING
RESERVED
AUDIO LEFT
AUDIO RIGHT
AUDIO LO
3RD RING
TIP
1ST RING
2ND RING
JA72-006 AUDIO I/O
RESERVED3RD RING
J2
+5V 1
P3
USB TYPE A MALE
MATING CONNECTOR
D- 2
D+ 3
GROUND 4
VBUS1
D-2
D+3
GROUND4
20 AWG
20 AWG
AUDIO CONTROLLER
RESERVED
P2
4 POLE FEMALE 3.5mm
MATING CONNECTOR
JA72-006 USB
J3
J1
CHARGEABLE USB DEVICE
INPUT
INPUT
2
4
5
20 AWG
20 AWG
AUDIO LEFT HI
STEREO PLAYER
AUDIO RIGHT HI
AUDIO LO
P3
3 POLE MALE 3.5MM STEREO
MATING CONNECTOR
AUDIO LEFT
AUDIO RIGHT
AUDIO LO
TIP
1ST RING
2ND RING
OR
JAC
DS
11-19-13
JAC
KDV
11-19-13

CENTER OF GRAVITY
WEIGHT: 1.01 lb. 0.46 Kg Max.
0.03in [0.8mm]
1.00in
25.4mm
2.80in
71.1mm
2.00in
50.8mm
J3
J2 3.73in
94.7mm
146.1mm MAX
5.75in MAX
56.9mm MAX
2.24in MAX
1.56in
39.6mm
TITLE
CONFIDENTIAL & PROPRIETARY
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Glove Box with USB Charger
JA72-006 Mechanical Installation Rev A.SLDDRW
DOC. NO.
1/1
SHEET
JA72-006
PART NO.
L00N3
DRAWING NOT TO SCALE
TO JUPITER AVIONICS CORP.
APPROVED
CHECKED
TATPREPARED
N/A
N/A
MATERIAL:
FINISH:
NCAGE CODE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG
J1
5.52in MAX
140.2mm MAX
8.1mm MAX
0.32in MAX
2.14in MAX
54.4mm MAX
5.71in MAX
145.0mm MAX
4.92in MAX
125.0mm MAX
JAC
DS
11-19-13
JAC
KDV
11-19-13

Rev B Page B1
JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Appendix B - Certification Documents

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page B2
B1 Airworthiness Approval
Airworthiness approval of the JA72-006 may require completion of a TCCA Major Modification Report per CAR
STD (AWM) 571 Appendix L, or a FAA Form 337. The sample wording for a description of the work is provided to
assist the Installing Agency in preparing Instructions for Continued Airworthiness (ICA) when installing a Jupiter
Avionics JA72-006 Glove Box with USB Charger. This sample may be modified appropriately for new
installations. It is the installer’s responsibility to determine the applicability of the method used. Installations
performed outside Canada must follow the applicable aviation authority’s regulations.
Sample Wording:
Installed the Jupiter Avionics JA72-006 Glove Box with USB Charger in [aircraft location].
The JA72-006 meets RTCA DO-160G environmental qualifications for this installation. See Section 1 of the JA72-
006 Installation Manual.
Installed in accordance with the JA72-006 Installation Manual, Revision [ ], and AC 43.13-2, Chapters 2, and 3.
The JA72-006 Installation Manual provides detailed installation instructions and wiring diagrams (Section 2, and
Appendices A and B).
Power is supplied to the JA72-006 through a 1-Amp circuit breaker.
Aircraft equipment list, weights and balance amended. Compass compensation checked and found to conform to
applicable regulations.
B2 Instructions for Continued Airworthiness
Maintenance of the JA72-006 Glove Box with USB Charger is “on condition” only. Refer to the JA72-006
Maintenance Manual. Periodic maintenance of the JA72-006 is not required.
The following sample Instructions for Continued Airworthiness (ICA) provides assistance in preparing ICA for the
Jupiter Avionics JA72-006 unit installation as part of a Type Certificate (TC) or Supplemental Type Certificate
(STC) project to comply with CAR STD (AWM) 523/527/525/529.1529 or FAR 23/25/27/29.1529 “Instructions for
Continued Airworthiness”.
Items that may vary by aircraft make and model are shown in brackets (“[ ]”) and should be filled in as
appropriate. Some of the checklist items do not apply, in which case they should be marked “N/A” (Not
Applicable).
Instructions for Continued Airworthiness, Jupiter Avionics JA72-006 Glove
Box with USB Charger in an [Aircraft Make and Model]
1. Introduction
[Aircraft that has been altered: Registration number, Make, Model and Serial Number]
Content, Scope, Purpose and Arrangement: This document identifies the Instructions for Continued
Airworthiness for a Jupiter Avionics JA72-006 installed in an [aircraft make and model].
Applicability: Applies to a Jupiter Avionics JA72-006 installed in an [aircraft make and model].
Definitions/Abbreviations: None, N/A.
Precautions: None, N/A.
Units of Measurement: None, N/A.
Referenced Publications: JA72-006 Installation and Operating Manual
JA72-006 Maintenance Manual
JA72-006 Operating Manual
STC/TC # [applicable STC/TC number for the specific aircraft installation]
Distribution: This document should be a permanent aircraft record.

JA72-006 Glove Box with USB Charger
Installation and Operating Manual
Rev B Page B3
2. Description of the System/Alteration
Jupiter Avionics JA72-006 Glove Box with USB Charger.Refer to Appendix A of this manual for interconnect
information. Refer to aircraft manufacturer approved interconnect for actual installation.
3. Control, Operation Information
Refer to section 3 of this manual or to the Jupiter Avionics JA72-006 Operating Manual.
4. Servicing Information
N/A
5. Maintenance Instructions
Maintenance of the JA72-006 is ‘on condition’ only. Periodic maintenance is not required. Refer to the
JA72-006 Maintenance Manual.
6. Troubleshooting Information
Refer to the JA72-006 Maintenance Manual.
7. Removal and Replacement Information
Refer to Section 2 of this manual - the JA72-006 Installation and Operating Manual. If the unit is removed and
reinstalled, a functional check of the equipment should be conducted.
8. Diagrams
Refer to Appendix A of this manual - the JA72-006 Installation and Operating Manual - for installation
drawings and interconnect examples.
9. Special Inspection Requirements
N/A
10. Application of Protective Treatments
N/A
11. Data: Relative to Structural Fasteners
JA72-006 and appropriate mounting hardware installation, removal and replacement should be in accordance
with applicable provisions of AC 43.13-1B and AC 43.13-2A.
12. Special Tools
N/A
13. This Section is for Commuter Category Aircraft Only
A. Electrical loads: Refer to Section 1 of the JA72-006 Installation and Operating Manual.
B. Methods of balancing flight controls: N/A.
C. Identification of primary and secondary structures: N/A.
D. Special repair methods applicable to the airplane: N/A.
14. Overhaul Period
No additional overhaul time limitations.
15. Airworthiness Limitation Section
N/A
B3 Environmental Qualification Form
See next pages.

JA72-006 Glove Box with USB Charger
Environmental Qualification Form
Environmental Qualification Form Rev A Page 1 of 3
Prepared:
KDV
Checked:
Approved:
Nomenclature
Glove Box with USB Charger
Type/Model/ Part No.:
JA72-006
TSO No.:
To Be Applied for: CAN-TSO-C71; FAA TSO-C71
Manufacturer’s Build Configuration:
JA72-006 Build Configuration Rev A
Manufacturer’s Test Report:
JA72-006 Test Report (Qualification - Final) Rev A
Manufacturer’s Specification
and/or Other Applicable Specification:
JA72-006 Declaration of Design and Performance Rev A
Manufacturer:
Jupiter Avionics Corporation
Address:
1959 Kirschner Road, Kelowna, BC, Canada, V1Y 4N7
Revision & Change No of DO-160:
Rev. G dated December 8, 2010
Dates Tested:
TBD
CONDITIONS
SECTION
DESCRIPTION OF TESTS CONDUCTED
Temperature
4.5
Equipment to be tested to Category C4
Ground Survival Low Temperature
4.5.1
Equipment to be tested to Category C4 (-55 °C)
Short-Time Operating Low
Temperature
4.5.1
Equipment to be tested to Category C4 (-45 °C)
Operating Low Temperature
4.5.2
Equipment to be tested to Category C4 (-45 °C)
Ground Survival High Temperature
4.5.3
Equipment to be tested to Category C4 (+85 °C)
Short-Time Operating High
Temperature
4.5.3
Equipment to be tested to Category C4 (+70 °C)
Operating High Temperature
4.5.4
Equipment to be tested to Category C4 (+70 °C)
In-Flight Loss of Cooling
4.5.5
Equipment identified as Category X, no test performed
Altitude
4.6
Equipment to be tested to Category (A1)(D1)
Altitude
4.6.1
Equipment to be tested to Category D1 (50,000 ft)
Decompression
4.6.2
Equipment to be tested to Category A1 (8,000 to 50,000 ft)
Overpressure
4.6.3
Equipment tested to Category A1 (-15,000 ft)
Temperature Variation
5.0
Equipment to be to be tested to Category B (5 °C/min)
Humidity
6.0
Equipment to be tested to Category A (48 h)
Operational Shock and Crash Safety
Operational Shock
Crash Safety (impulse)
Crash Safety (sustained)
7.0
7.2.1
7.3.1
7.3.3
Equipment to be identified as Category B (15 g for 11 ms)
Equipment to be tested to Category B (30 g for 11 ms)
Equipment to be tested to Category B (30 g for 3 sec)
Vibration1
Fixed Wing - Sine
Fixed Wing - Random
Helicopter - Random, unknown
8.0
8.5.1
8.5.2
8.8.3
Equipment to be tested to Categories:
SM
SB
U2FF1
JAC
SRM
11-20-13 JAC
KDV
11-28-13

JA72-006 Glove Box with USB Charger
Environmental Qualification Form
Environmental Qualification Form Rev A Page 2 of 3
CONDITIONS
SECTION
DESCRIPTION OF TESTS CONDUCTED
Explosive Atmosphere
9.0
Equipment identified as Category X, no test performed
Waterproofness
10.0
Equipment identified as Category X, no test performed
Fluids Susceptibility
11.0
Equipment identified as Category X, no test performed
Sand and Dust
12.0
Equipment identified as Category X, no test performed
Fungus
13.0
Equipment identified as Category X, no test performed
Salt Fog Test
14.0
Equipment identified as Category X, no test performed
Magnetic Effect
15.0
Equipment to be tested to Category Z (≤ 0.3 m)
Power Input
16.0
Equipment to be tested to
2 Volts Peak to Peak Ripple at 400Hz –Unit shall not
exceed 1/10% of the output voltage
50% Overvoltage for 5 minutes –After which, output
voltage and current returns to normal
80% Voltage –Operates electrically
80% to 50% Gradual reduction –Operates reliably
50% to 0% Gradual reduction –No fire or smoke
Voltage Spike
17.0
Equipment identified as Category X, no test performed
Audio Frequency Susceptibility
18.0
Equipment identified as Category X, no test performed
Induced Signal Susceptibility
19.0
Equipment identified as Category X, no test performed
Radio Frequency Susceptibility
20.0
Equipment to be tested to Category RR
R (20 V/m CW&SW) and (150 V/m PM)
R (30 mA)
Radio Frequency Emission
21.0
Equipment to be tested between 90 kHz to 1500 Mhz with
not more than 200 uV between any cable terminal and
ground.
Lightning Induced Transient Susceptibility
22.0
Equipment to be tested to Category [A3J33]
Waveform Set A, Test Level 3
Waveform Set J, Test Levels 33
Lightning Direct Effects
23.0
Equipment identified as Category X, no test performed
Icing
24.0
Equipment identified as Category X, no test performed
Electrostatic Discharge
25.0
Equipment identified as Category X, no test performed
Fire, Flammability
26.0
Equipment to be identified as Category C.

JA72-006 Glove Box with USB Charger
Environmental Qualification Form
Environmental Qualification Form Rev A Page 3 of 3
CONDITIONS
SECTION
DESCRIPTION OF TESTS CONDUCTED
Other Tests
N/A
Power Output
Equipment to be tested with 10% more output current for a
period of two hours
Regulation
Equipment to be tested with varied load impedance from
maximum rated load to 20% of maximum rated load –Unit
shall not exceed 12% regulation
Short Circuit
Equipment to be tested with output short circuited for 1
minute –Following test, unit will deliver rated output power
for 8 hours
Dielectric Strength
No test performed. Unit does not have isolation
transformers in the design.
REMARKS
1
The frequencies of the critical resonances changed after exposure to the vibration test conditions.
