Jura IMPRESSA C5 User manual

The IMPRESSA C5 Manual
The 'IMPRESSA Manual' has been awarded the seal of
approval by the independent German Technical Inspec-
tion Agency, TÜV SÜD, due to its easy-to-understand
style, its thoroughness and coverage of safety aspects.

2
Table of contents
Your IMPRESSA C5
Control elements and accessories 4
Proper use 6
For your safety 6
The IMPRESSA C5 Manual 8
Model variants..................................................................................................................... 9
Symbol description............................................................................................................... 9
Welcome to the world of IMPRESSA! 10
1 IMPRESSA C5
–Click & Drink 11
Coffee that fulfils your wildest dreams................................................................................. 11
Click & Drink..................................................................................................................... 11
JURA on the Internet ......................................................................................................... 12
Knowledge Builder ............................................................................................................. 12
2 Preparing and using your IMPRESSA for the first time 13
Supplied as standard .......................................................................................................... 13
Setting up and connecting................................................................................................... 13
Filling the water tank .........................................................................................................14
Filling the bean container ................................................................................................... 14
First-time use .................................................................................................................... 15
Using and activating filter .................................................................................................. 16
Assessing and setting water hardness .................................................................................. 18
Adjusting grinder................................................................................................................ 19
Switching on...................................................................................................................... 20
Switching off(standby mode) .............................................................................................. 20
3 Familiarising yourself with the control options 21
Preparing drinks at the touch of a button ............................................................................ 21
One-off setting during drink preparation .............................................................................. 22
Adjusting the default cup size settings................................................................................. 23
4 Recipes 24
5 Preparing drinks at the touch of a button 30
Barista tips........................................................................................................................ 30
Espresso............................................................................................................................ 31
Coffee................................................................................................................................31
Cappuccino ........................................................................................................................ 32
Pre-ground coffee ..............................................................................................................33
Milk foam.......................................................................................................................... 34
Hot water .......................................................................................................................... 35

3
Table of contents
6 Adjusting the default cup size settings 36
7 Adjusting the default settings in programming mode 37
Automatic switch-off time .................................................................................................. 37
8 Maintenance 39
Maintenance tips................................................................................................................ 39
Rinsing the machine ........................................................................................................... 40
Changing the filter.............................................................................................................. 40
Cleaning the machine ......................................................................................................... 41
Descaling the machine ....................................................................................................... 43
Rinsing the Easy-Auto-Cappuccino Frother ......................................................................... 46
Cleaning the Easy-Auto-Cappuccino Frother........................................................................ 46
9 CLARIS plus – water for the perfect coffee 49
As fresh as a mountain stream............................................................................................ 49
Water – freshly filtered to do you good ................................................................................ 49
Quality knows no compromises............................................................................................ 49
Water filtered on the 'just in time' principle ......................................................................... 50
10 Messages in the maintenance field and symbol display 57
11 Troubleshooting 59
12 Transport and environmentally neutral disposal 60
Empty system .................................................................................................................... 60
Transport........................................................................................................................... 60
Disposal............................................................................................................................. 60
13 Accessories – extend your coffee horizon! 61
14 Technical data and guide values 71
Technical data.................................................................................................................... 71
Basic settings in programming mode ................................................................................... 71
15 Key technologies and the IMPRESSA range of products 72
16 JURA contact details 77
Index 81

Control elements and accessories
4
1 Filler funnel for pre-ground coffee 10 Cup platform
2 Cup tray 11 JURA Auto-Cappuccino Cleaner
3 Water tank with level indicator 12 Drawer with coffee grounds container
4 Overview of maintenance indicators 13 Height-adjustable coffee spout
5 CLARIS plus filter cartridge 14 Easy-Auto-Cappuccino Frother with milk pipe
6 Hot water nozzle 15 Connector System©for removable nozzles
7 Measuring spoon for pre-ground coffee 16 Switch for water and milk preparation
8 JURA cleaning tablets 17 Bean container, aroma preservation cover
9 Drip tray
Control elements and accessories
1
2
3
4
5
6
7
8
17
16
15
14
13
12
10
9
Power switch and cable (see rear side)
Switch for setting fineness
of grind
11
Figure: IMPRESSA C5 platinum

Control elements and accessories
5

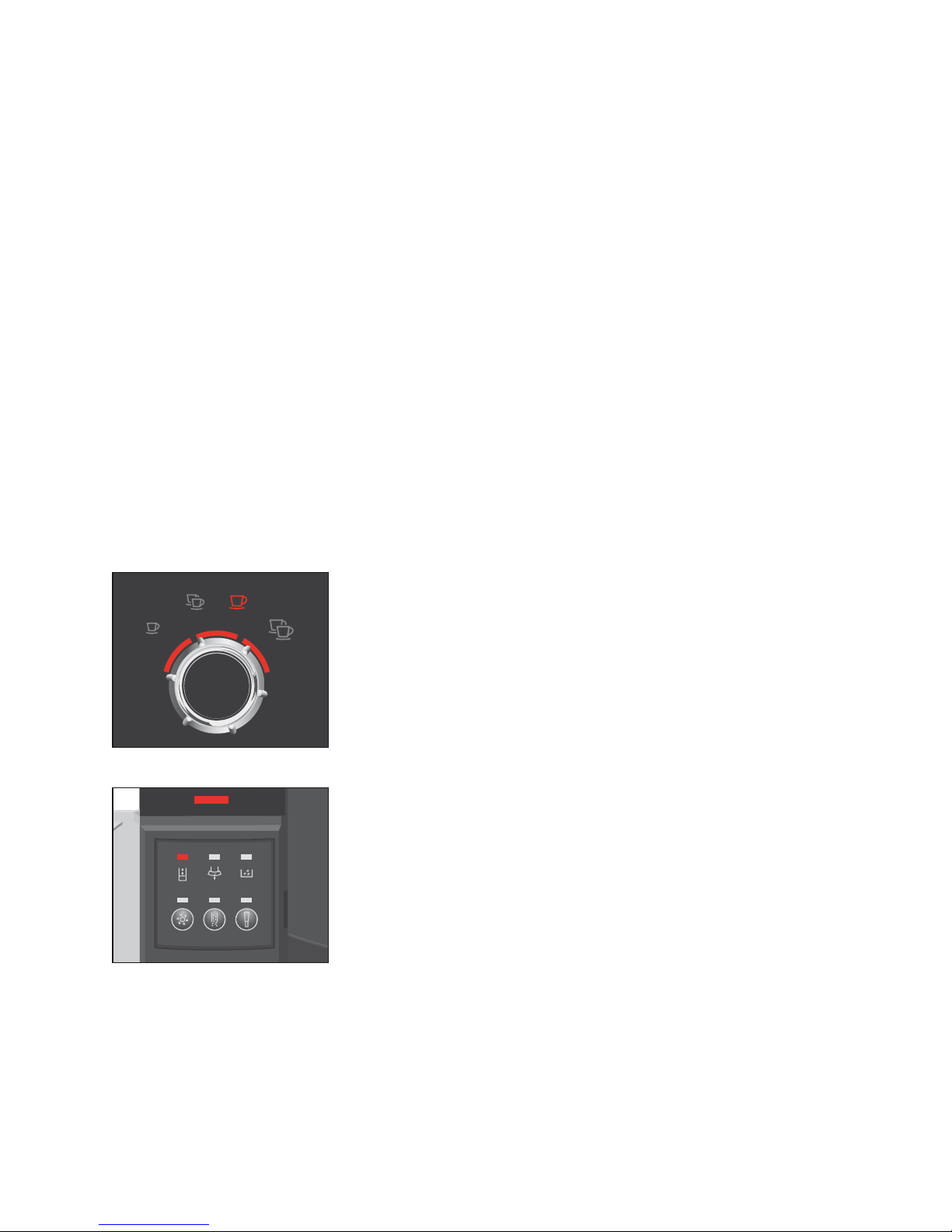

Symbol display Maintenance field
1 Symbol display 5 Maintenance indicator
2 Rotary Switch 6 Access door
3 Light segments 7 Maintenance field
4 Symbols 8 Indicators
a1 Espresso yWater tank
s2 Espressos xCoffee grounds container
d1 coffee cBean container
f2 coffees vCleaning button
gOn/off bDescaling button
hMaintenance nFilter button
jPre-ground coffee
kSteam
4
2
5
8
7
1
3
6

6
Important information
The machine has been designed and built for private use in the
home. It should only be used to prepare coffee and to heat milk
and water. Use for any other purpose will be deemed improper.
JURA cannot accept any responsibility for the consequences of
improper use.
Please read and note carefully the important safety information
set out below, which is intended to ensure that any danger of
electric shock is avoided.
Never use a machine which has been damaged or with a
defective power cable.
For information on what to do in case of damage, for
example if there is a smell of burning, unplug the machine
immediately from the mains supply and contact the JURA
service centre.
If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA approved
service centre.
Make sure that the IMPRESSA and the power cable are
not close to hot surfaces, for example, a gas or electric
cooker.
Be careful to ensure that the power cable does not get
caught and does not rub against sharp edges.
Never open and repair the machine yourself. Do not
modify the machine in any way that is not described in
the IMPRESSA Manual.The machine contains live parts.
If opened, there is a danger of serious injury. Repairs may
only be carried out by JURA approved service centres,
using original spare parts and accessories.
It is possible to scald or burn oneself on the spouts. Hence,
Place the machine out of reach of children.
Do not touch any hot parts. Use the handles provided.
p
p
p
p
p
p
p
p
Proper useProper use
For your safety
For your safety

7
Important information
A defective machine is not safe and could cause injury or fire.To
avoid damage and any associated risk of injury or fire:
Never allow the power cable to trail, as someone could trip
over the power cable and/or it could get damaged.
Protect your IMPRESSA from environmental influences
such as rain, frost and direct sunlight.
Do not put the IMPRESSA, cable or connections in
water.
Do not put the IMPRESSA or any individual parts in the
dishwasher.
Turn your IMPRESSA off at the power switch before start-
ing any cleaning operation. Always wipe your IMPRESSA
with a damp cloth rather than a wet one, and protect it
from prolonged water splash.
Only connect the machine to a power supply in accordance
with the technical data. (See rating plate and Chapter 14,
'Technical data and guide values')
Use only original JURA care products. Use of accessories
that are not explicitly recommended by JURA could
damage the IMPRESSA.
Do not use any coffee beans treated with additives or
caramelised coffee beans.
Always fill the water tank with cold, fresh mains water.
If you will be absent for an extended period, turn the
machine off and unplug.
Keep this manual close to the IMPRESSA and, if appro-
priate, pass it on to the next user.
p
p
p
p
p
p
p
p
p
p
p

8
The IMPRESSA C5 Manual
You are holding the manual for your IMPRESSA C5 in your
hand.The information contained in this manual will help you to
familiarise yourself with your IMPRESSA safely and quickly
and teach you the full range of facilities it offers.
Chapter 2, 'Preparing and using your IMPRESSA for the first
time', explains step-by-step how to set up and prepare the
IMPRESSA.
Chapter 3, 'Familiarising yourself with the control options'
is important for you to read as you are familiarising yourself
with your IMPRESSA. It invites you to actively explore all the
different coffee experiences that it offers.
As coffee and coffee specialities are very important to JURA,
we have compiled a selection of tasty suggestions for you in
Chapter 4, 'Recipes'.
All the other chapters are intended to help you when you have
a specific query.
If you use the IMPRESSA C5 Manual, you will become a past
master at preparing exciting coffee specialities, you will be a
Barista!
The IMPRESSA C5 ManualThe IMPRESSA C5 Manual

9
The IMPRESSA C5 Manual covers all C series IMPRESSA
models.
Model variantsModel variants
Warnings
CAUTION
Always take note of any informa-
tion marked with the CAUTION or
WARNING symbol.The WARNING
symbol is used where there is a risk
of injury. The CAUTION symbol is
used where there is a risk of dam-
age to property.
CAUTION
The CAUTION symbol is used to
draw attention to circumstances
which could cause the machine to
become damaged.
Symbol descriptionSymbol description Warnings
CAUTION
Always take note of any informa-
tion marked with the CAUTION or
WARNING symbol.The WARNING
symbol is used where there is a risk
of injury. The CAUTION symbol is
used where there is a risk of dam-
age to property.
CAUTION
The CAUTION symbol is used to
draw attention to circumstances
which could cause the machine to
become damaged.
Symbol descriptionSymbol description
Symbols used
o Information and tips to ease
things for you as you use your
IMPRESSA.
@References to the online JURA
website, where you can find
interesting further information:
www.jura.com
LPrompt to take action.
This symbol means that you are
being prompted to perform some
action.
Symbols used
o Information and tips to ease
things for you as you use your
IMPRESSA.
@References to the online JURA
website, where you can find
interesting further information:
www.jura.com
LPrompt to take action.
This symbol means that you are
being prompted to perform some
action.
Model variants

10
Welcome to the world of IMPRESSA!
Dear customer,
We thank you for the trust that you have placed in us by purchas-
ing a JURA IMPRESSA coffee machine. The machines, which
are produced in Switzerland, have already impressed independ-
ent, critical testers of goods and design award juries. We will do
everything we can to ensure that this genuine 2-cup Espresso
and coffee fully automated machine continues to deliver perfect
coffee specialities at the press of a button to your family and
your guests for years to come.
The IMPRESSA Manual will teach you everything you need to
know on the subject of operating and tailoring your IMPRESSA
to your particular preferences. Other subjects covered include
how to solve the problem of scale build-up and important tips
on care. Our primary concern is to stimulate your imagination
with attractive coffee recipes and to invite you to put the wealth
of possibilities offered by the JURA fully automated machine to
use on a daily basis.
We wish you many stimulating and enjoyable moments with your
IMPRESSA.
Yours sincerely
Emanuel Probst
General Manager
Welcome to the world of IMPRESSA!

11
1 IMPRESSA C5 –Click & Drink
JURA‘s avowed mission is to develop superior machines which
get the best out of every blend and roast of coffee.
This it delivers
through a unique, intelligent pre-brew system combined with loving
attention to detail.
The IMPRESSA C5 demonstrates just how wonderful a perfect
cup of coffee can taste and how easy it is to prepare one.Thus,
the further development of the IMPRESSA compact series is
setting new standards in coffee quality while at the same time
maintaining a visually pleasing appearance from every angle.
The smart control philosophy is especially to be admired. The
various speciality coffees can be selected simply and intuitively
using a single control element.
Click & Drink
Thanks to the revolutionary one-switch operation philosophy
with the smart Rotary Switch, you are only a single touch
of a button away from enjoying a perfect cup of coffee. To
make your choice, all you have to do is to rotate the switch
between coffee and Espresso, one or two cups. Just click the
control and seconds later you can be enjoying your drink.
Indicators
The easy-to-understand indicators light up in a regal red,
providing the information that you need. Just one click of
the Rotary Switch away, unobtrusively concealed, are the
maintenance buttons with associated indicators.
Height-adjustable coffee spout
Whether you are after a small cup of Espresso or a large
cup of breakfast coffee, the height-adjustable coffee spout,
which can be raised and lowered between 65 and 111 mm,
can be adjusted on a continuous scale to suit all sizes of
cup. This prevents coffee splashing on the machine and is
your guarantee of a rich, thick crema.The superior design
and feel of the machine are also evident.
p
p
p
1 IMPRESSA C5 –Click & Drink1 IMPRESSA C5 –Click & Drink
Coffee that fulfils your
wildest dreams
Coffee that fulfils your
wildest dreams
Click & DrinkClick & Drink

12
1 IMPRESSA C5 –Click & Drink
Connector System©
The Connector System©allows one to use the Easy-Auto-
Cappuccino Frother,which is fitted as standard,a hot water
nozzle for an even jet of water and the optionally available
2-stage frothing nozzle or the Professional Cappuccino
Frother for perfect milk foam or hot milk.
Further information on this subject can be found in Chapter 13,
'Accessories – extend your coffee horizon!'.
Visit us on the Internet.
At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of
the subject of coffee.
You can familiarise yourself with your IMPRESSA C5 in a fun
way on the PC.
The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO,will support you and explain the
benefits of and how to use your IMPRESSA.
p
@
@
JURA on the InternetJURA on the Internet
Knowledge BuilderKnowledge Builder

13
2 Preparing and using your IMPRESSA for the first time
This chapter provides you with the information you need to use
your IMPRESSA without any problems. You will prepare your
IMPRESSA step-by-step for your first coffee experience using it.
The following items are supplied as standard:
Your JURA IMPRESSA fully automatic coffee machine
CLARIS plus filter cartridge
JURA Auto-Cappuccino Cleaner
The Welcome Pack, which includes:
The IMPRESSA C5 Manual
IMPRESSA C5 Quick Reference Guide
Milk pipe
JURA cleaning tablets
Measuring spoon for pre-ground coffee
Hot water nozzle
Aquadur®test strips
Overview of maintenance indicators, multi-lingual
Keep the packaging for your IMPRESSA. It is used to protect
the machine during transportation.
When setting up and connecting your IMPRESSA, please
proceed as follows:
Set the IMPRESSA down on a horizontal surface that is
not sensitive to water.
Choose a spot which is protected against overheating to
set up your IMPRESSA.
Never place the IMPRESSA on a hot surface, such as a hob.
Check that the mains voltage agrees with the specification
on the rating plate.
Make sure that no one can trip over the power cable.
p
p
p
pu
u
u
u
u
u
u
u
p
p
p
p
p
2 Preparing and using your IMPRESSA for the first time2 Preparing and using your IMPRESSA for the first time
Supplied as standardSupplied as standard
Setting up and
connecting
Setting up and
connecting

14
2 Preparing and using your IMPRESSA for the first time
To enjoy perfect coffee, we recommend that you change the
water every day.
Only use fresh,cold water to refill the water tank and never
milk, mineral water or other liquids.
Open the cover of the water tank.
Remove the water tank and rinse it with cold water.
Fill the water tank with fresh, cold mains water and
reinsert.
Close the cover of the water tank.
The bean container has an aroma preservation cover. This will
ensure that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g.sugar),
either pre-ground or in the form of freeze-dried coffee, will
damage the grinder.
Only use untreated coffee beans to refill the bean con-
tainer.
Open the cover of the bean container and remove the
aroma preservation cover.
Remove any dirt or foreign objects inside the bean
container.
New machines contain an information sheet in the bean
container. Remove this information sheet.
Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
o
l
l
l
l
l
l
l
l
l
Filling the water tankFilling the water tank
Filling the bean
container
Filling the bean
container
CAUTIONCAUTION

15
2 Preparing and using your IMPRESSA for the first time
If the machine is operated with a defective power cable, there is
a danger of electric shock.
Never use a machine which has a defective power cable.
Precondition: the water tank must be full.
Remove the protective film from the symbol display.
Insert the mains plug into a power socket.
e l Switch on the IMPRESSA using the power switch on the
back of the machine.
The On/Off symbol Gwill light up to indicate that the
machine is on standby.
m l Press the Rotary Switch to switch the IMPRESSA on.
The light segment by the switch will now flash.
Place a receptacle under the Easy-Auto-Cappuccino
Frother.
r l Turn the switch in the anticlockwise direction.
The light segment by the switch will now light up. The
system will now be filled with water. A small amount of
water will flow out of the Easy-Auto-Cappuccino Frother.
The operation stops automatically.The light segment by
the switch will now flash.
t l Turn the switch in the clockwise direction.
As long as the machine is heating up, the Maintenance
symbol hwill flash. The Maintenance symbol hlights
up.
Place a receptacle under the coffee spout.
m l Press the Rotary Switch.
The machine will rinse itself, stopping automatically.
l
l
l
l
l
First-time useFirst-time use
WARNINGWARNING

16
2 Preparing and using your IMPRESSA for the first time
The 1 Espresso symbol awill light up indicating that your
IMPRESSA is ready to use.
After the first time that a coffee speciality has been
prepared, you may find that the maintenance indicator and
the bean container ydisplay flash if the grinder has not
yet been filled with coffee beans. In that case, prepare a
different coffee speciality.
Your IMPRESSA no longer has to be descaled if you are using
CLARIS plus filter cartridges.
Perform the 'Using filter' operation without a break. This
will ensure that your IMPRESSA always produces its
best.
You can also try out the 'Using filter' operation online.
Visit the Knowledge Builder on www.jura.com.
Further information on CLARIS can be found in Chapter 9,
'CLARIS plus – water for the perfect coffee'.
Remove the packaging on the CLARIS plus filter cartridge.
Remove the water tank and empty it.
Lift the cartridge holder and insert the filter cartridge
into the water tank, applying a light pressure.
Close the cartridge holder. It will lock into place audibly.
Fill the water tank with cold, fresh mains water and
reinsert.
After two months,the filter will cease to work. Monitor the
elapsed time as shown on the date plate on the cartridge
holder.
o
o
@
l
l
l
l
l
o
Using and activating
filter
Using and activating
filter

17
2 Preparing and using your IMPRESSA for the first time
Precondition: your IMPRESSA must be switched off (standby
mode).
Open the access door.
n l Hold down the Filter button until the Filter indicator n
lights up.
ä l Turn the Rotary Switch until the 3 light segments around
the Rotary Switch light up.
When the 3 light segments light up, the filter is activated.
If none of the light segments light up, this means that the
filter has not been activated.
m l Press the Rotary Switch to confirm the setting.
The light segment by the switch will now flash.
Place a receptacle (containing at least 500 ml) under
the Easy-Auto-Cappuccino Frother.
If the milk pipe is connected, remove it.
r lTurn the switch in the anticlockwise direction.
Rinsing of the filter will now begin.The light segment by
the switch will light up.
The water could be slightly discoloured. This is not harmful to
health, nor does it affect the taste.
Rinsing of the filter will automatically stop after approx.
500 ml, and the light segment by the switch will then
flash.
t l Turn the switch in the clockwise direction.
The IMPRESSA will switch itself off (into standby
mode).The filter is now activated.
l
o
l
l

18
2 Preparing and using your IMPRESSA for the first time
The harder the water is, the more frequently the IMPRESSA
needs to be descaled. It is therefore important to set the water
hardness.
However, if you are using the CLARIS plus filter cartridge
and have activated the filter, you will not be able to adjust
the water hardness.
The water hardness is set to level 3 in the factory.
The symbols in the symbol display show the configured degree
of water hardness. The number of symbols corresponds to the
relevant level.
You can find out what the water hardness is, using the Aquadur®
test strips enclosed in the Welcome Pack.
Hold the test strip briefly (for one second) under flowing
mains water. Shake off the water.
Wait for about 1 minute.
You will then be able to read the degree of water hard-
ness from the discoloration of the Aquadur®test strip
and the description on the packaging.
You can now configure the water hardness.
o
o
l
l
l
Assessing and setting
water hardness
Assessing and setting
water hardness
Level Water hardness Shown in display
0 The water hardness is switched off, the automatic
calcification indicator is switched off
No symbol is illuminated
1 German degree of water hardness 1 – 7° dH
French degree of water hardness 1.79 – 12.53° f
1 symbol is illuminated
A
2 German degree of water hardness 8 – 15° dH
French degree of water hardness 14.32 – 26.85° f
2 symbols are illuminated
A S
3 German degree of water hardness 16 – 23° dH
French degree of water hardness 28.64 – 41.14° f
3 symbols are illuminated
A S D
4 German degree of water hardness 24 – 30° dH
French degree of water hardness 42.96 – 53.7° f
4 symbols are illuminated
A S D F
Level Water hardness Shown in display
0 The water hardness is switched off, the automatic
calcification indicator is switched off
No symbol is illuminated
1 German degree of water hardness 1 – 7° dH
French degree of water hardness 1.79 – 12.53° f
1 symbol is illuminated
A
2 German degree of water hardness 8 – 15° dH
French degree of water hardness 14.32 – 26.85° f
2 symbols are illuminated
A S
3 German degree of water hardness 16 – 23° dH
French degree of water hardness 28.64 – 41.14° f
3 symbols are illuminated
A S D
4 German degree of water hardness 24 – 30° dH
French degree of water hardness 42.96 – 53.7° f
4 symbols are illuminated
A S D F

19
2 Preparing and using your IMPRESSA for the first time
Example: to change the water hardness from level 3 to level 4,
proceed as follows:
Precondition: your IMPRESSA must be switched off (standby
mode).
Open the access door.
b l Hold down the Descaling button until the Descaling indi-
cator blights up.
The Descaling indicator b and the symbols A S D will
now light up.
ä l Turn the Rotary Switch until the four symbols a s d f
light up.
m l Press the Rotary Switch to confirm the level 4 setting.
The IMPRESSA will switch itself off (into standby
mode).The water hardness is now set.
You can adjust the grinder to suit the roast of your coffee.
If you adjust the fineness of grind when the grinder is not
operating, the fineness of grind switch could be damaged.
Only adjust the fineness of grind when the grinder is running.
Our recommendations:
Select a fine setting for a light roast.
Select a coarse setting for a darker roast.
Example: to change the fineness of grinding during preparation
of a coffee, proceed as follows:
Open the cover of the bean container and remove the
aroma preservation cover.
Place a cup under the coffee spout.
ä l Turn the Rotary Switch to the 1 coffee setting D.
l
l
p
p
l
l
Adjusting grinderAdjusting grinder
CAUTIONCAUTION

20
2 Preparing and using your IMPRESSA for the first time
m l Press the Rotary Switch to initiate preparation of the
coffee.
The grinder will now start up, and the 1 coffee symbol D
flashes
.

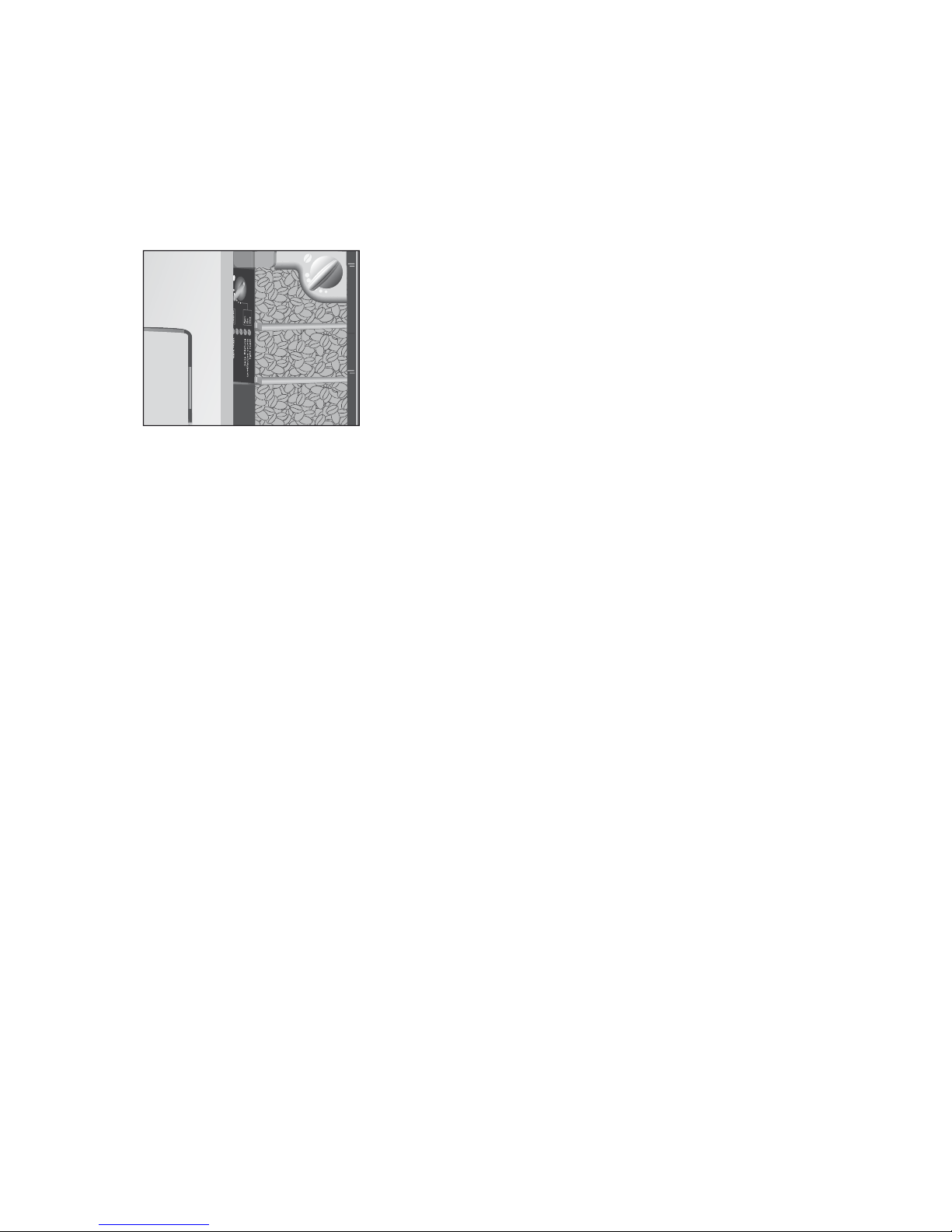

Turn the fineness of grind switch to the desired position
while the grinder is running.
The coffee will be prepared and the fineness of grind is
set.
When the IMPRESSA is switched on, a prompt to perform a
rinse operation automatically appears.
Precondition: your IMPRESSA is switched on at the power
switch and the On/Off symbol gis illuminated (standby).
m l Press the Rotary Switch to switch the IMPRESSA on.
As long as the machine is heating up, the Maintenance
symbol hwill flash.The Maintenance symbol hlights up.
Place a receptacle under the coffee spout.
m l Press the Rotary Switch to start the rinse operation.
The coffee spout will be rinsed.The operation stops auto-
matically and your IMPRESSA is now ready for use.
When you switch off your IMPRESSA, the system is automati-
cally rinsed.
Place a receptacle under the coffee spout.
ä l Turn the Rotary Switch to the On/Off symbol g.
m l Press the Rotary Switch to switch the IMPRESSA off.
The system is rinsed and the Maintenance symbol H
flashes.The operation stops automatically.
The IMPRESSA is switched off (in standby mode), and
the On/Off symbol Gis illuminated.
l
l
l
Switching onSwitching on
Switching off
(standby mode)
Switching off
(standby mode)
