Juralco Aluminium Building Products Ltd designs and distributes specialist aluminium
joinery systems through a national network of franchised fabricators and agents.
For more than 25 years we have been at the forefront of specialist aluminium door and
window products suitable for New Zealand joinery and building methods. Our
comprehensive product range includes security and insect screens, balustrades and gates,
shutters and awnings, shower screens, wardrobe doors and organisers and internal doors.
The Juralco Bannette Awning is a compact, ready-to-install, system designed for outside
use anywhere protection is needed from sun or rain. All of the components are made of
aluminium alloy or powder coated/galvanised steel forming a highly-resistant, lightweight,
rust-proof construction. The awning is designed to adapt to all types of openings regardless
of the dimensions. Installation is straightforward. Bannette awnings operation is either
manual or by a tubular electric motor, fitted with remote control. A wide range of attractive
mildew and UV resistant 100% acrylic fabrics are available, all with a 5 year guarantee.
Bannette Drop Arm Shade Awning
All pages © Copyright Juralco Aluminium Building Products Ltd, 2023
New from Jan 2023. Important instructions for Powder Coatings near Salt Water
The new standard Dulux powder coating systems used by Juralco are:
® ®
- Duralloy (to be phased out) for structures greater than 100m from high tide and up to 3 stories high. Duralloy has a 10 yr warranty.
® ® ®
- Duralloy Plus (full Duralloy colour range) for structures greater than 10m from high tide and up to 3 stories high. Duralloy Plus has a 15 yr warranty.
® ®
- Duratec for prestigious residential and commercial developments over 10m from high tide and over 3 stories high. Duratec has a 25yr warranty.
For all other applications contact Juralco for alternative systems.
® ® ®
Note - Powder coated prices listed in Juralco price books are for Duralloy or Duralloy Plus systems. If the Duratec system is required it
®
must be specified upon placement of the order and will incur a surcharge – Duratec prices on application.
lmportant instructions for Powder Coating - Attachment to structures
PVC Tape or similar material spacer must be used to separate powder coated aluminium items from all concrete and steel structures.
Failure to do so can lead to the chemicals in the structure affecting the powder coating layer on the aluminium, leading to corrosion.
Powder Coating Warranty
The Dulux powder coating warranty period is conditional upon the surface being maintained in accordance with the Dulux ‘Care and Maintenance
Instructions’. Contact your installer for a copy, download from Dulux or refer to the back page of this manual.
.

Page 3
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - General and Index
General Description - Pages 3 - 7
- There are two Juralco Bannette Awning systems - A Drop Arm shade awning and a vertical Drop Down curtain system.
- The Drop Arm system is available as a single unit up to 5mt wide.
- The Drop Down system is available as a single unit up to 4mt wide, and comes in three types.
- The basic Clear Drop system, no side guides. The horizontal drop bar is secured to the floor.
- The Clear Drop Zipped system, has side guides and side zippers. The sides and top are permanently installed into a face or reveal
mounted extrusion. The Clear Panel can be unzipped at each side and manually rolled up.
Retained with clear plastic straps. No floor clips needed. Draught proof.
- Typical applications include Decks, Bars, Shops, Terraces, or anywhere needing protection from the sun, wind or unexpected rain showers.
- Standard finishes - Aluminium Extrusions - Natural anodised. Cast aluminium items Bright Polished.
Bannette Drop Arm Shade Awning - Pages 8 - 11
The awning is supplied pre assembled with all necessary brackets, awning roll and two arm units.
- Axle Assembly - Roller tube axle. Mounting brackets and axle holders.
- Awning fabric - Many styles available, all mildew, UV resistant and Scotchguard treated.
- Arms - Supplied with spring loaded arms to more evenly tension the fabric cover, and control movement in windy conditions.
Four arm lengths from 750mm to 1500mm, mounting bracket attached.
- Drive - Manual - A gearbox fitted to the end of the roller tub assists the operator to raise/lower the curtain.
- Drive - Motorised - An inline tubular motor raises or lowers the awning automatically. Switch or remote wireless controls available.
- Wind - As for all Awnings, care must be taken when installing in Wind prone areas. A Volo wind sensor is strongly recommended.
Bannette Clear Drop Down Awning - Pages 12 - 14
- The awning is supplied pre assembled with all necessary brackets, awning roll and tie downs.
- Axle Assembly - Roller tube axle. Mounting brackets and axle holders.
- Awning fabric - Clear plastic, or Fabric with sewn border in a selection of colours or a standard awning material.
- Tie Downs - A variety of clips are available.
- Drive - Manual - A gearbox fitted to the end of the roller tube assists the operator to raise/lower the curtain.
The Banette Clear Drop Down Zipped Awning - Pages 15 - 16
- The awning is supplied complete with all necessary extrusion, awning roll and tie ups.
- Awning fabric - Clear plastic, or Fabric with sewn border in a selection of colours.
- Track Extrusion - A selection of, Natural anodized only, Black or White.
- Tie Ups - Clear Plastic straps and mounted clips. A variety of clips are available.
Building Consent Guide - Page 17
Bannette Drop Arm Shade Awning
Gearbox or Motor
Bannette Clear Drop Shade Awning
Gearbox only
Bannette Clear Drop Zipped Shade Awning
Manual only

Page 4
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - General Descriptions
Bannette Drop Arm Awning
General
The Juralco Bannette Drop Arm awning consists of :
Mounting /Roller Tube Brackets, made of cast aluminium suitable
for face or ceiling installation. Supports the ends of the Roller Tube.
Operation by means of a gearbox/handle, R1/7 and R1/13
gearbox, or tubular motor (with or without manual override).
Roller tube, 2mm wall aluminium extrusion 80mm dia,with a groove
to fix the awning fabric. One end equipped with the operating system
and the other mounted with a circular shaft.
Arms, made of extruded aluminium profile connected to an
aluminium pivot bracket. A tension spring integrated into the bracket
guarantees a perfect tension of the fabrics in all positions.
Arm dimensions 1500 mm only
Front profile, from extruded aluminium, 45mm sq cross section to
which are connected the arms, the fabrics cover and a valance.
Awning Fabric - Dickson or Planosol fabric ranges.
A selection of many fabrics in various colourways.
Awning fabrics will withstand wind, rain and pollution.
The fabrics are colour durable and resistant to most common
chemicals, mildew, and UV degradation; all have a minimum
five-year guarantee.
Finishes, Cast aluminium parts - bright Polished. Aluminium
extrusions - natural anodised.
OPTIONS.
Controls for the tubular motor; switch or wireless controls can be
mounted alongside or at a remote location. Also available are remote
wind actuated controls.
Mounting/Roller Tube Brackets
For Face or Ceiling Fix
Manual Gearbox
or Motorised
Roll Tube and
Awning Roll
Front Profile
Arms and
Arm bracket
Refer page 7 for Fabric information
Note: It is recommended that eyelets are fitted to the front edge of the fabric, to promote draining.
Bannette Drop Arm
Overall Width, max 5.9mt

Page 5
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Eye Strap
and Spring Clip
Bannette Drop Down Awning
General
The Juralco Bannette Clear Drop awning consists of :
Mounting /Roller Tube Brackets, made of cast aluminium suitable
for face or soffit installation. Supports the ends of the Roller Tube.
Operation by means of a R1:7 gearbox/handle,only
Roller tube, 2mm wall aluminium extrusion 80mmdia,with a groove
to fix the awning fabric. One end equipped with the operating system
and the other mounted with a circular shaft.
Front profile, from extruded aluminium, 32mm dia to which are
connected the drop tube clips.
Awning, either a clear plastic panel, complete with sewn in coloured
border, or a standard awning material.
Awning Fabric - Dickson, Planosol or Solarview fabric ranges.
A selection of many fabrics in various colourways.
Awning fabrics will withstand wind, rain and pollution.
The fabrics are colour durable and resistant to most common
chemicals, mildew, and UV degradation; all have a minimum
five-year guarantee.
Finishes, Cast aluminium parts - powder coated Grey. Aluminium
extrusions - natural anodised.
PVC Joints, Max PVC width 1350mm. Wider curtains will have
welded vertical PVC joins. Joins may only be vertical - horizontal joins
void PVC manufacturers warranty.

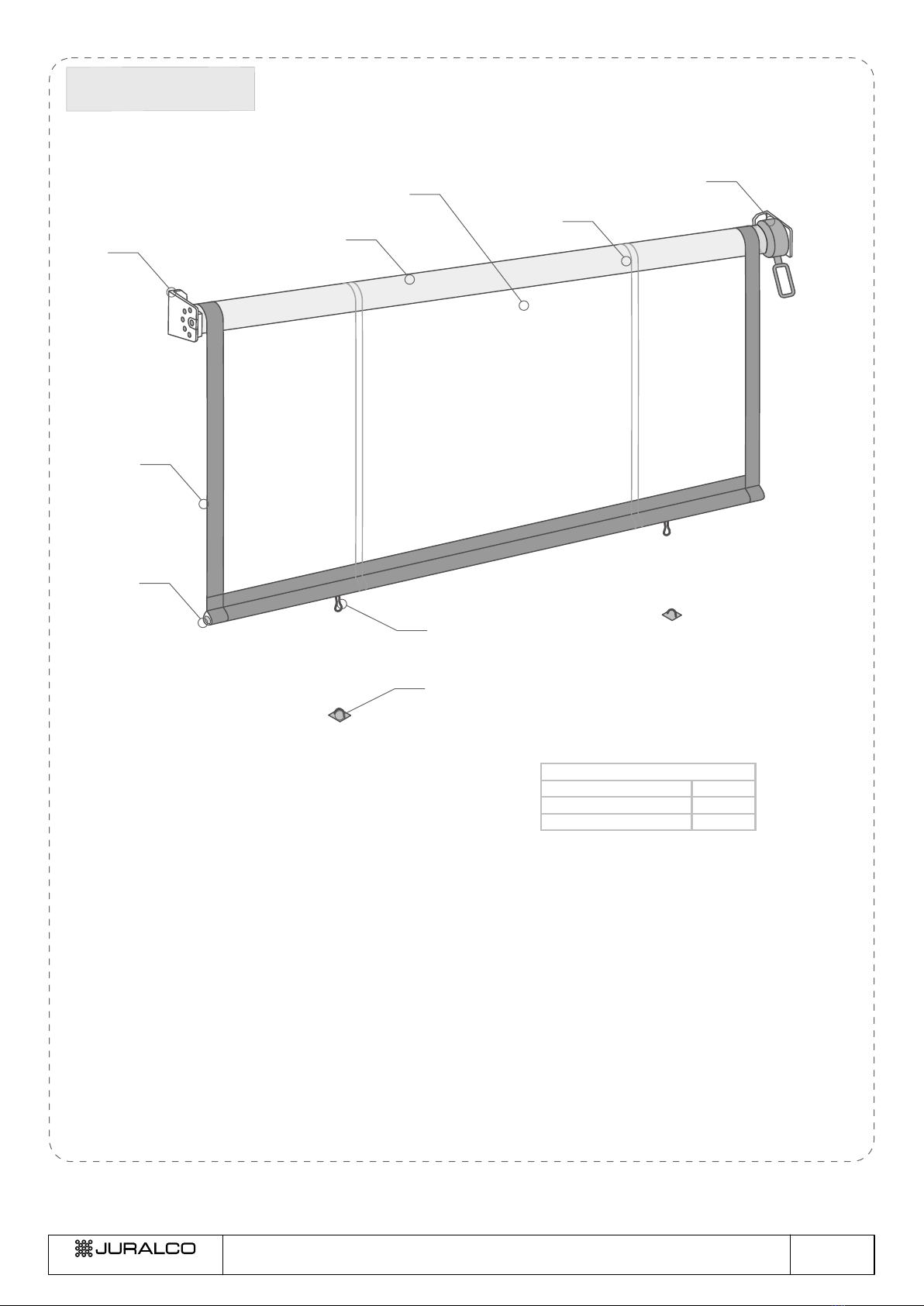

Mounting/Roller Tube Brackets
Manual
Gearbox
Roll Tube and
Awning Roll
Awning material
Border
Drop Tube
Juralco Bannette Awning System - General Descriptions
Eye Pad or Flush Clip
Welded PVC
joints
No side guides, as shown below.
Overall Width, max 4mt
Overall Drop, max 3mt
Sq meterage, max 10sq mt
Bannette Clear Drop
Refer page 7 for Fabric information

Page 6
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - General Descriptions
Bannette Clear Drop Down
Zipped Awning - General
The Juralco Bannette Clear Drop Zipped awning consists of :
Clear Drop Zipped Extrusion, JDA 11079 made of aluminium
suitable for face or soffit installation. Installed on 3 x sides.
Awning has ropes sown in the Top and both sides. These are
permanently attached to the extrusion.
Awning, either a clear plastic panel, complete with sown in coloured
border, or a standard awning material.
Awning Fabric - Clear PVC only
Finishes, Cast aluminium parts - powder coated Grey. Aluminium
extrusions - natural anodised.
PVC Joints, Max PVC width 1350mm. Wider curtains will have
welded vertical PVC joins. Joins may only be vertical - horizontal joins
void PVC manufacturers warranty.
Side guides and zipper, as shown below
Manual lift/drop only.
Plastic Tie ups are used to hold curtain roll in the raised position
Overall Width, max 4mt
Overall Drop, max 3mt
Sq meterage, max 10sq mt
Bannette Clear Drop
Side Zipper
Welded PVC
joints
Awning material
Clear PVC
Clear Drop Zipped
Extrusion
Clear Drop Zipped
Extrusion
Clear Drop
Zipped
Extrusion
Side Zipper
Refer page 7 for Fabric information
(Bolt track)
(Bolt track)

Page 7
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - Fabric Descriptions
Fabric Range
Clear PVC Film
- A Thick hard wearing transparent PVC film. Principal use; for Clear Drop and Clear Drop Zipped
Can be joined (vertical joints only) to 4mt wide max.
- Sewn on 50mm borders, Black or White
Clear Drop Material
Thickness
Spec
Polished, Flexible, Clear PVC Film x 1350mm wide
0.75mm
No Cadmium formulation. Incorporates UV Inhibitor
Planosol Awning Fabric
Planosol is manufactured from 100% acrylic fibre and will retain a light fastness rating of 6-8 on a 1-8 scale.
Planosol is very tightly woven, with minimal light transmission, resulting in excellent UV protection. It has Ultraviolet Protection
factor of 50+, maximum value granted for percentage of protection against UV ray and SPF 100. Planosol fabric will remain rot
resistant for 5 years under normal exposure conditions.
Dickson Orchestra Awning & Outdoor Canvas
The outdoor fabric of choice when it comes to solar protection, offering long- term protection against UV rays, heat, glare and
inclement weather. Its solution-dyed Sunacryl acrylic fibres and special Cleangard treatment give it exceptional long-term colour
fastness and superior resistance to tearing, water damage and dirt.
Sunacryl, 100% solution-dyed acrylic: the colour is locked right into the very core of the fibres during manufacture (in contrast to
the traditional yarn-dying process whereby colours are applied to the finished yarn and remain on the surface). Dyed all the way
through, this type of yarn ensures exceptionally long-lasting, ultra vivid colours.
0

Page 8
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning Systems - Drop Arm Awning Extrusions, Components
45
FRONT BAR
JDA/110 71/4/NAT
JDA/110 71/5.82/NAT
45
80 dia
JBA/403 0385 - 1500mm
Available, also cut down as
750mm, 1000mm and 1250mm arms
Gearbox Handle Bannette Drop Arms,
Sprung Loaded
Set = Pair, 1 x RH, 1 x LH
Front Profile Arm Bracket
fits into extrusion
Shade Awning Extrusions
Gearbox Handle
Clip, Pt No
JDA/402 6500
JDA/403 0431 - 1200mm
JDA 592 4/403 0 - 1 00mm
/403 0593 - 1600mmJDA
/403 0595 - 2000mmJDA
ROLLER TUBE, 78/80mm dia
JDA/110 74/4
JDA/110 74/5.82

Page 9
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - Drop Arm Awning Components
Roller Tube Support
JBA/403 1542
Gearbox, 1/7 reduction
JDA/403 6607
Front Profile with
Spring
JBA/403 0491
80mm dia,13mmsq shaft
Roller Tube End Cap
JDA/403 1325
Front Profile
End Cap, Pt No
JDA/314 05/PC
80mm dia,12mm dia shaft
Roller Tube End Cap
JDA/403 1326
16.5
82
37
66
75
100
Mount Holes
9mm dia
Drop Arm Measuring
Awning on site Check List:
1 - Check the desired width and installation area,
making sure there are no obstructions.
2 - Check that the Mounting brackets have secure
fixing points.
3 - Check the desired coverage making sure there
are no obstructions.
4 - Check the stowed position.
5 - Check the desired awning material.
6 - Check the desired method of operation.
Manual, 1:7 gearbox.
Motor, choice of switch or wireless controls.
Motor, optional extra sensor for wind.
7 - Check width, max overall = 5mt
Bracket
Spacing
1500mm
max
Projection
1500mm max
Arm Length
Extended
Stowed
1 - Carefully unpack and check for damage. Note - BE VERY CAREFUL THE AWNING IS NOT ACCIDENTLY CUT during unpacking.
2 - Check the awning, making sure it has been made to site measurements.
3 - Mark out Roller Tube Mounting Bracket positions on Wall/Ceiling. Install. Note - Brackets must be firmly mounted into the building structure.
4 - Mark Arm Bracket positions on wall. Must be compatible with stowing position and vertically below the Roller brackets above. Install.
5 - Insert the Awning/Roller tube 13mm dia axle into the bearing. Attach the Gearbox or Motor to the other bracket.
6 - Set limits on motor if used. Follow manufacturers instructions.
7 - Insert and tighten all screws.
8 - Test the awning opens and closes easily.
9 - Always clean off all fingermarks, leave the site clean and tidy.
Drop Arm
Awning Installation
Note: Prior to delivering to site, unpack and check all items
Juralco Bannette Awning System - Drop Arm Awning Measuring, Installation
Standard angles
90 and 120 deg

Page 10
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System

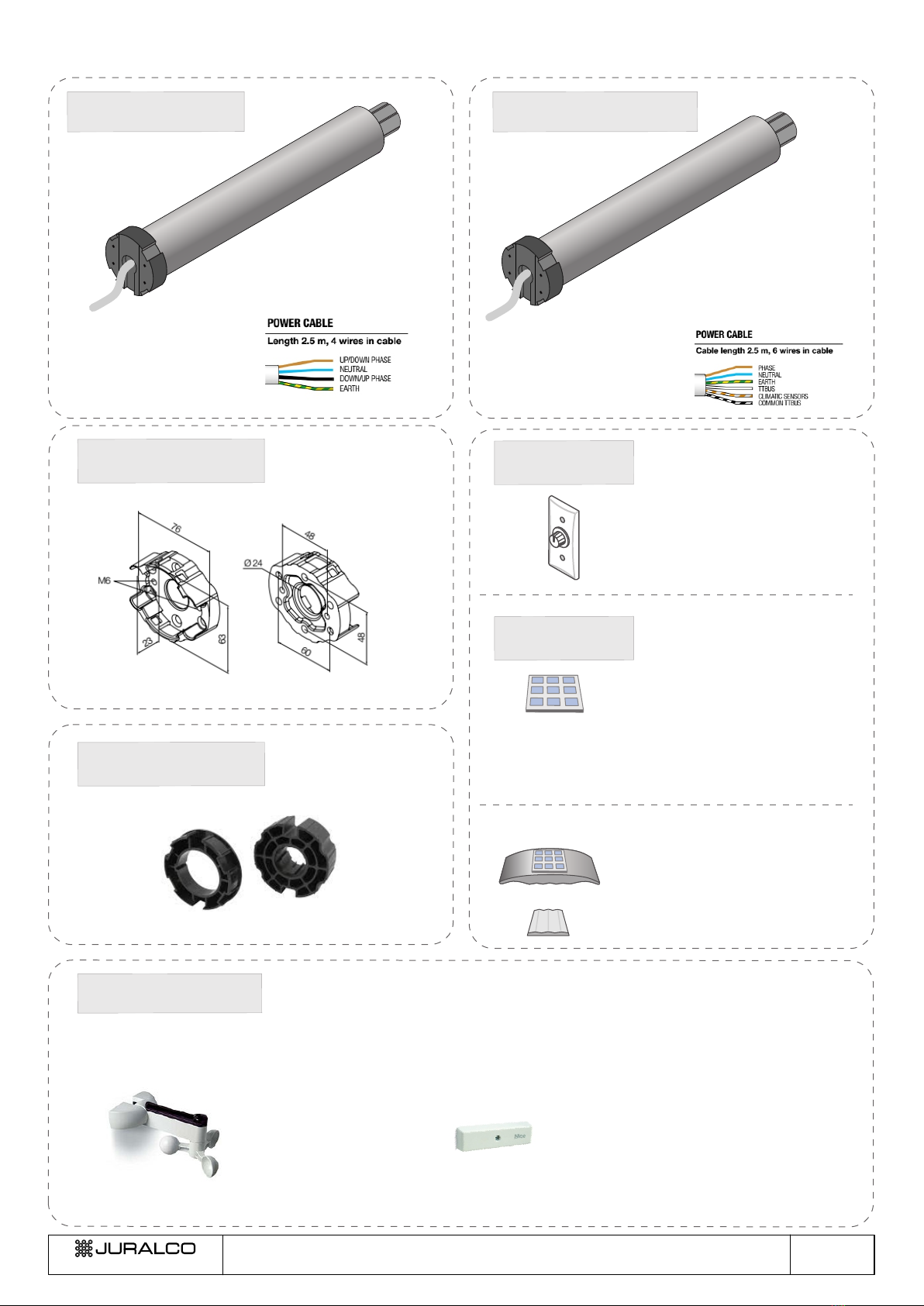

Tubular Motors
JNICE ERA M 3017 and 5012
Tubular Motors 45mm dia
Mechanical Limit switches
Motor 3017 - 30Nm, 17rpm
Motor 5012 - 50Nm, 12rpm
Nice

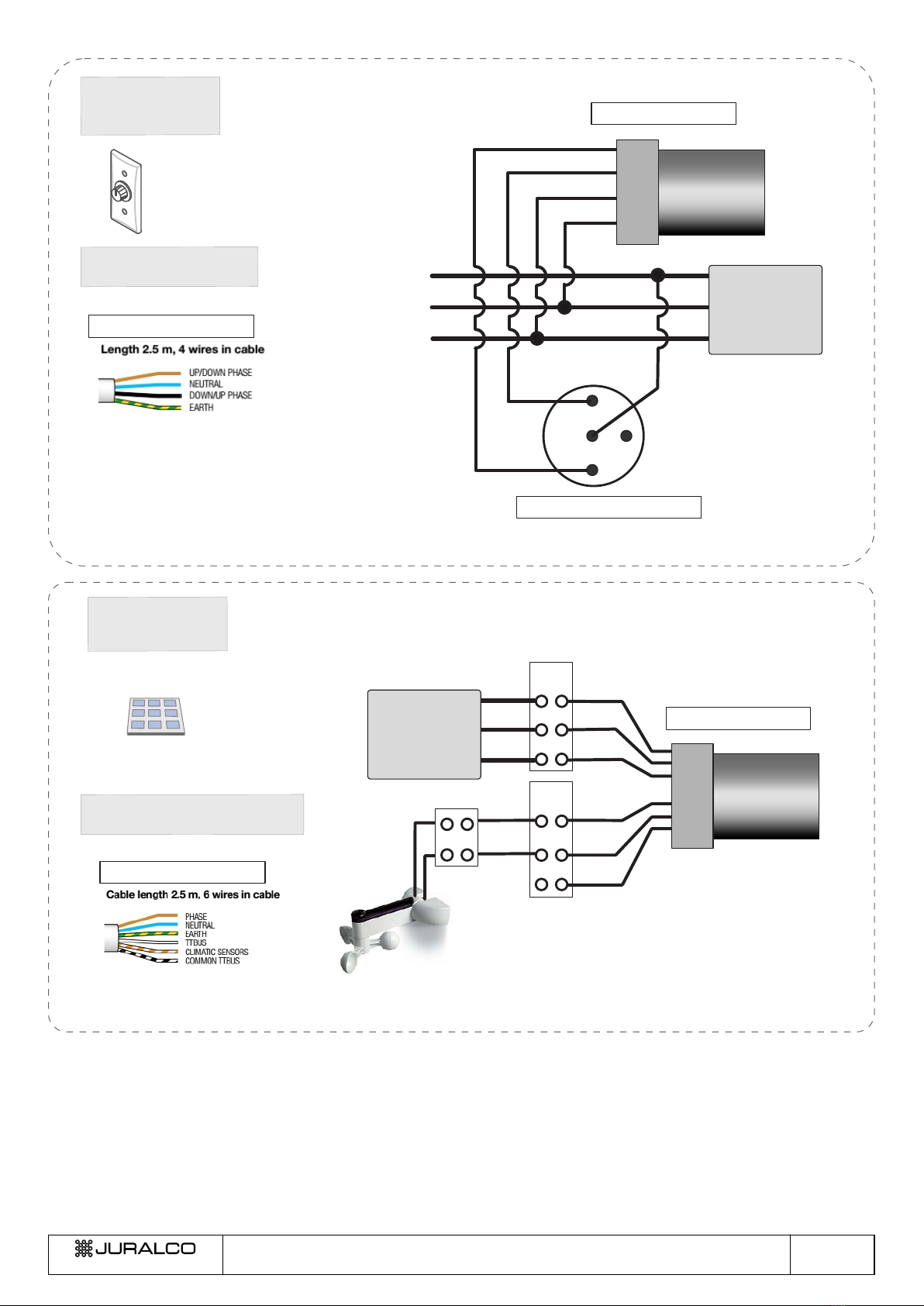

Tubular Motors
JNICE ERA PLUS 3017 and 5012
Tubular Motors 45mm dia
Push button Limit switches
Built in Receiver
Motor 3017 - 30Nm, 17rpm
Motor 5012 - 50Nm, 12rpm
Nice
For 45mm dia Motors
Compact aluminium
support. 2 x holes M6 at
48 and 60mm CL
Juralco Bannette Awning System - In Line Motors and Controls
Drive Wheel and Crown
JNICE/45ROUND78
JNICE/WIND/S
Volo Wind Sensor
Wind Sensor threshold has
3 wind speed settings
15, 30, 45 Kph
Motor Remote
Control Sensors
JNICE/NEMOVIBE
Vibration Sensor
NEMO VIBE does not require any additional
connections because it is battery powered.
It screw attaches to the front of the awning.
During windy conditions, a signal (adjustable)
is sent via radio sensor to the motor mounted
in the awning, which then retracts the awning.
WAX
Table top or
Wall mount transmitter with magnetic
attachment to WWW Wall bracket
Standard Housings for Wireless Modules (above)
WWW Wall bracket for magnetic
attachment to WAX transmitter
Manual
Switch Controls Wall Controls
3 position Rotary Wall Switch
Up - Off - Close
Cover Plate - Part No SSW 770 CPSM
Switch - Part No SSW 770 RSB
Wireless Modules
Modules are available in the following
configurations for Open, Stop, Close
operations, either in single or
multi group mode.
WM001G - 1 x Single or Multigroup
WM002G - 2 x Single or Multigroup
WM003G - 3 x Groups in Single or Multigroup
WM006G - 6 x Groups in Single or Multigroup
Wireless
Remote Controls
Motor Mount Brackets
JNICE/BRKT/ERAM

Page 11
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - In Line Motors and Controls
Yellow
Label
Green
Label
Tubular Motors
JNICE ERA PLUS 3017 and 5012
Motor Power Cable
Connections at Motor
Remote Control
Wireless Controls
TTBus Motor fully tested
and Limits set at factory
Volo Wind Sensor 15kph Limit set at factory
(set limits available 5,10,15,30,45kph)
Mains
230V
50HZ
Active
Neutral
Earth
Brown
Blue
Yellow
Green
Brown
Blue
Yellow
Green
Black
White
Orange
White
White (only used at Factory)
JNICE/WIND/S
Volo Wind Sensor
Black
White
Orange
White
Wireless Remote Control
From your NiceWay controller
WM001G - 1 x Single or Multigroup
WM002G - 2 x Single or Multigroup
WM003G - 3 x Groups in Single or Multigroup
WM006G - 6 x Groups in Single or Multigroup
Manual Control
HPM Rotary
Switch Controls
Tubular Motors
JNICE ERA M 3017 and 5012
Motor Power Cable
Connections at Rotary Switch
3
C
1
2
Connections at Motor
Mains
230V
50HZ
Active
Neutral
Earth
Black - Down (or Up)
Black
Brown - Up (or Down)
Brown
Green/Yellow
Blue
One switch per Single Motor only.
Use relays if more than single Motor
Motor fully tested
and Limits set at factory

Page 12
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System

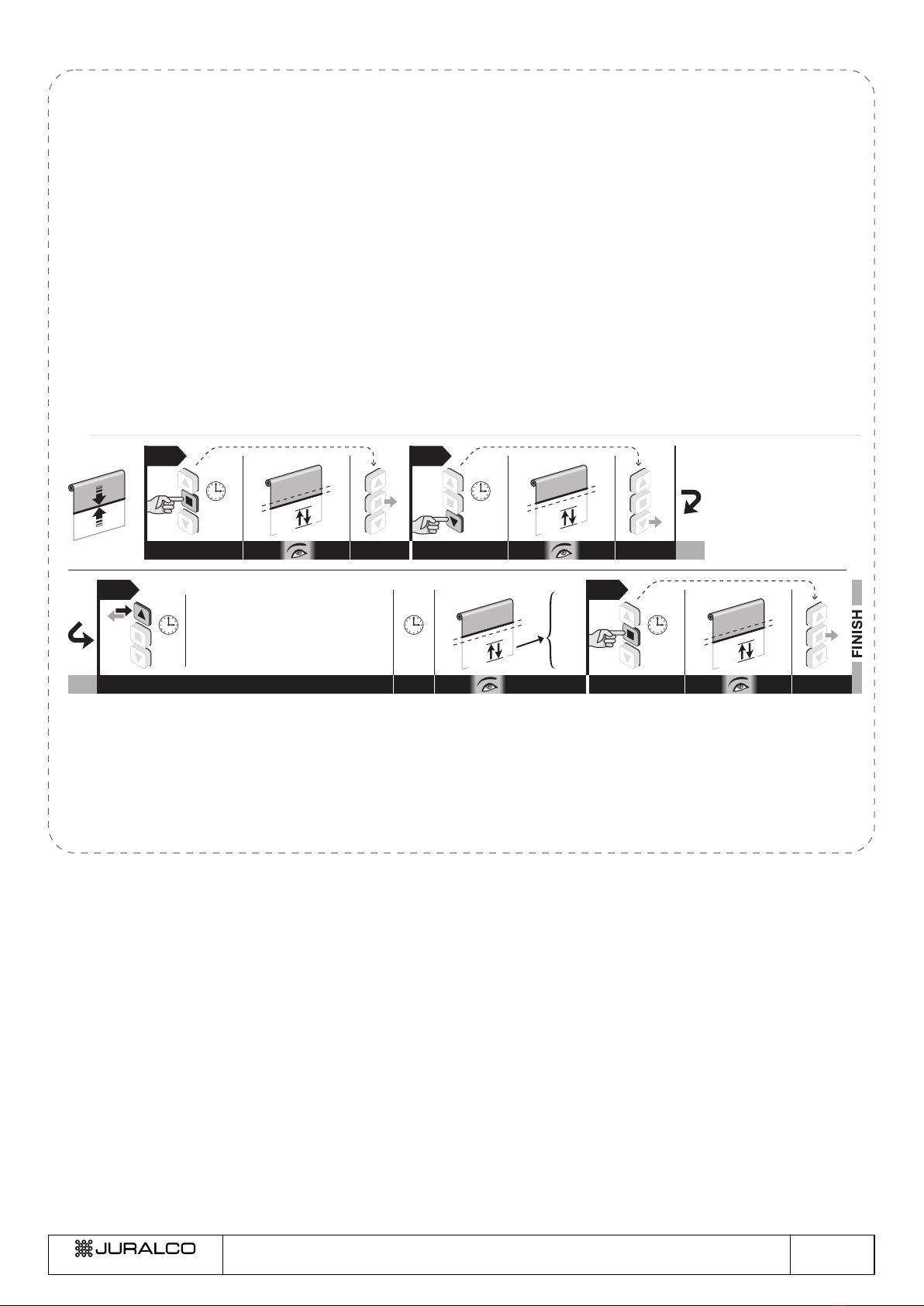

Wind Speed Adjustment - Awning Retraction settings
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the t key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
03. Briefly press the s key a few times, depending on the level you want to set for wind threshold.
1 press = wind, 5 km /h
2 presses = wind, 10 km /h
3 presses = wind, 15 km/h (factory setting s)*
4 presses = wind, 30 km /h
5 presses = wind, 45 km/h
After about 10 seconds, the motor performs the number of movements indicated by the level number selected
Note – If this does not occur, cancel the procedure.
This way, the adjustment is completed without changing the factory setting.
.
04. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
Notes.
- When performing the procedure, you can cancel it at any time by keeping the n and t keys pressed
simultaneously for 4 seconds.
- Otherwise, do not press any key and wait 60 seconds for the motor to perform 6 movements.
- If you use a sensor equipped with a “trimmer”, you must read the sensor instructions and adjust the
threshold directly on the sensor.
5
sec.
01 02
5
sec.
04
1/
2/
3/
4/
5/
10
sec.
03
0,5
sec.
x 1 = vento a 5 Km/h
x 2 = vento a 10 Km/h
x 3 = vento a 15 Km/h (*)
x 4 = vento a 30 Km/h
x 5 = vento a 45 Km/h
5
sec.
3 2
?
3
x 1 = wind at 5 Km/h
x 2 = wind at 10 Km/h
x 3 = wind at 15 Km/h (*)
x 4 = wind at 30 Km/h
x 5 = wind at 45 Km/h
At the factory, the intervention threshold to is set at level 3 and to change it you must take the following steps
Juralco Bannette Awning System - Awning Retraction Wind Settings

Page 13
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
1
Select Projection
then enter Width
Overall
Measurements
Projection (Arm Length) Overall width
Specify Fabric Colour and Code
Select
Fabric
Type
and Colour
Planasol
Dickson
9
Volo Wind sensor,
if required
Yes No
Additional Motor
Remote Control?
Notes:
Projection = Arm Length
Gearbox or Motor
750mm
1000mm
1250mm
1500mm
- Overall width 1000mm min, 5920mm max.
- Awning - enough material supplied
to arm horizontal.
5
Nemo Sun/Rain
sensor, if required
10
NemoVibe
sensor, if required
If Motor + Wireless selected, these options apply
Yes No
Yes No Yes No
7 8
BANNETTE
Customer
Date
WO SO
Contact
Order No
$
Juralco Juralco Juralco
Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to [email protected]
AW #
Drop Arm Awning System - Order Form
Unsuitable for Strong Winds
6
4If Gearbox, Select Handle Length
1200mm 1400mm
Select Gear Box or Motor
Gearbox
35
Select Motor
or Gearbox End,
viewed from Front
LH RH
Motor + Switch
Motor + Wireless
1600mm
2000mm Wall clip?

Page 14
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
FRONT PROFILE
JA248
32 dia
Clear Drop Extrusions
Juralco Bannette Awning Systems - Drop Down Extrusions, Components
80 dia
Roller Tube Mounting Bracket
JBA/403 1542
Gearbox, 1/7 reduction
JDA/403 6607
Roller Tube End Cap
JDA/403 1326
80mm dia
12mm dia shaft
(adjustable)
Roller Tube End Cap
JDA/403 1325
Eye Strap
JCA 2
Carabineer Clip
Fixed Full
Hook Clip Flush Full
Hook Clip
Standard Attachment
to underside of drop tube
Gearbox Handles
Gearbox Handle
Clip, Pt No
JDA/402 6500
80mm dia
13mmsq shaft
Eye Pad
JCA 1
Spring Clip
JCA 3
Pad Eye, Folding
JCA 4
16.5
82
37
66
75
100
Mount Holes
9mm dia
JDA/403 0431 - 1200mm
JDA 592 4/403 0 - 1 00mm
/403 0593 - 1600mmJDA
/403 0595 - 2000mmJDA
Suitable for Ceiling or Face Fix
ROLLER TUBE, 78/80mm dia
JDA/110 74/4
JDA/110 74/5.82

Page 15
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - Drop Down Measuring, Installation

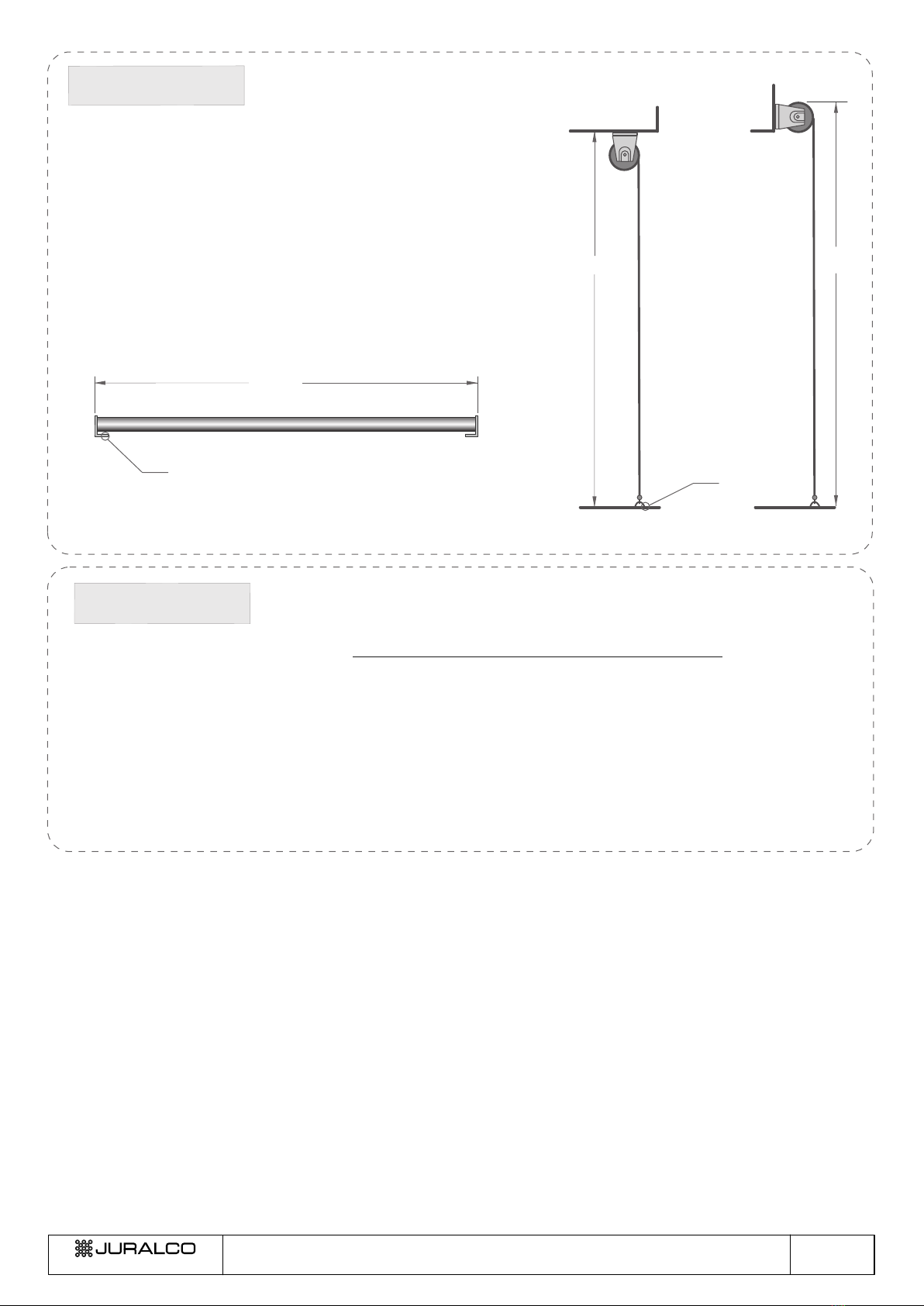

Clear Drop Measuring
Clear Drop on site Check List:
1 - Check the desired width and installation area,
making sure there are no obstructions.
2 - Check that the Mounting brackets have secure fixing points.
3 - Check the base clips operation.
4 - Check the desired awning material.
5 - Check end for gearbox operation (no motor option).
6 - Check overall width 4mt max, overall drop 3mt max,
Area 10sqmt max. Drop
1 - Carefully unpack and check for damage. Note - BE VERY CAREFUL THE AWNING IS NOT ACCIDENTLY CUT during unpacking.
2 - Check the awning, making sure it has been made to site measurements.
3 - Mark out Roller Tube Mounting Bracket positions on Wall/Soffit. Install. Note - Brackets must be firmly mounted into the building structure.
4 - Insert the Awning/Roller tube 13mm dia axle into the bearing. Attach the Gearbox/Motor to the other bracket. Screw in place.
5 - Insert and tighten all screws.
6 - Test the awning opens and closes easily.
7 - Mark position of Base clips. Install. Check awning clips down easily.
8 - Always clean off all fingermarks, leave the site clean and tidy.
Clear Drop Installation
Base Clip
Width
JBA/403152
Drop
Roller Reveal Fix Roller Face Fix

Page 16
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
1
Enter Overall
Measurements Overall Drop Overall width
For Clear PVC or Fabric. For Gearbox operation only
Notes: - Overall width 4000mm max.
- Overall height 3000mm max
- Overall area 10sqm max
- Clear PVC, 1350mm wide. Vertical join details if necessary.
- Includes SS Saddle clamps and Awning Hooks
5
Select Border
Colour (50mm)
Black White
Specify
Numbers
of Clip Sets
required
Clip
Sets
Tick
to select
Option
Clip Set- Option A Clip Set- Option B
1 x ea. Eye strap, Spring clip
and Flush Lift Hook
1 x ea. Eye strap, Spring clip
and Rectangular Eye Pad
6
7Notes:
IF Fabric - Specify Fabric Colour and Code
4
Planasol
Dickson
Select
Fabric
Type
and Colour Solarview
Clear PVC
BANNETTE
Customer
Date
WO SO
Contact
Order No
$
Juralco Juralco Juralco
Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to [email protected]
AW #
Drop Down System - Order Form
Unsuitable for Strong Winds
Gearbox Operation only
32 Select Gearbox Handle Length
1200mm 1400mm
Select
Gearbox End,
viewed from Front
LH RH
1600mm
2000mm Wall clip?

Page 17
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning Systems - Clear Drop Zipped Extrusions, Components
Clear Drop Zipped
Extrusion
11.2mm dia Bolt TRack
JDA/110 79/5
13
30
Clear Drop Zipped
Curtain Features
Sewn in Top Clamp Rope (6mm) Clear Heavy Duty
PVC Curtain
Sewn in Side
Clamp Rope (6mm)
Heavy Duty Full
length Zipper
Heavy Duty
Side Panels
Base Tube 30mm dia
x 16g wall
Top Track
Extrusion
Side Track
Extrusions
Clear Drop Zipped
Components
Clear Plastic Straps x 2
670mm x 35mm
Part No JBA/STRAP
Clear Drop Down Hooks x 2
Base 35mm x 16mm
JBA/FOLD/HOOK
80
60
18
Reveal Mount
- Fix track to inside
- Mount stay put clip about 100mm in from track
Face Mount
- Fix so screen covers Track
- Mount stay put brackets about 50mm above track
Installation instructions. All Fixings 300-400mm
1 - Check that the screen zips are facing inwards and are fully zipped to the bottom.
2 - Slide the top track onto the screen and fix loosely into place.
3 - Slide the side guides onto the side ropes and fix into place.
4 - Slip the straps between the top track and mounting surface
5 - Fix the stay puts clips in place.
6 - Roll the screen up and adjust the length of the straps, tighten.
Outside
Clear Plastic Strap
Stay put clip
Stay put
clip
Clear Plastic
Strap

Page 18
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
1
Enter
Overall
Dimensions
Overall Height Overall width
4Notes:
Unsuitable for Strong Winds
Select Side
Panel Colour
Black
2
White
Black
3
White
Select
Zip Colour
Silver
Cream
For Clear PVC Only. For Manual operation only
Notes: - Overall width 4000mm max. Rope to Rope
- Overall height 3000mm max. Top Rope to Bottom Tube
- Overall area 10sqmt max
- Clear PVC 1350mm wide. Vertical join details if necessary.
- Includes 2 x PVC Clips, 2 x Stayputs, Rope Track and Bottom tube
BANNETTE
Customer
Date
WO SO
Contact
Order No
$
Juralco Juralco Juralco
Select/Enter Dimensions below. Enter details/selections into all boxes. Then scan and send to [email protected]
AW #
Drop Down Zipped System - Order Form
Manual Operation only

Page 19
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - Building Consents
These two pages are an extract from the Department of Building and Housing
- Building Work that does not require a Building consent - pages 21 to 24. Online at www.dbh.govt.nz/bc-no-consent
- These are new exemptions dated December 2010
While every effort has been made to ensure that this information is correct at time of writing, it is provided for guidance only and Juralco will accept
no liability for, nor warrants the accuracy of this guidance. It is the sole responsibility of the of the purchaser to confirm current status of consent
requirements with the relevant territorial authority before purchase and installation.
Awnings
Awnings.
Exemption (ja) of Schedule 1
A building consent is not required for the following building work:
(ja) the construction, alteration, or removal of any fabric, glass, or metal awning on any building that-
(i) is on the ground or first storey level; and
(ii) does not exceed 20 square metres in size.
Guidance:
Awnings are usually coverings that are fabric, glass or metal. They are normally attached to the exterior of a building and are commonly used for
protection from sun, rain or as a wind buffer (eg, a shadesail or window awning). The installation of awnings that are 20 square metres or less on any
building at a ground floor or first floor level will comply with this exemption.
Size is a factor for large awnings, as they can damage the walls they are attached to or adjacent property or potentially injure people in high winds.
Accordingly, any awnings larger than 20 square metres require a building consent.
This exemption relates to awnings which are currently attached or are to be attached to a building’s external envelope or exterior surfaces.
Awnings may be removed, altered and constructed, providing this work complies with the Building Code. Particular emphasis should be placed on
weather tightness detailing when removing, altering and constructing such structures. All mechanical connections (eg, nuts, bolts, coach screws
etc) which penetrate the building envelope and provide support to awnings must provide adequate resistance to moisture getting into the structure.
Please note, this exemption does not relieve the owner of any other requirements under the Resource Management Act 1991 and or local district plan
rules and provisions.
Examples where this exemption could apply:
A shadesail is to be attached above a deck at first floor level of a dwelling. The proposed shadesail has a total area of 14 square metres, and meets all
Building Code requirements.
The removal of an existing 12 square metres awning providing shade at the entry to a building (situated at first floor level).
Examples where building consent is required:
A glass awning is to be fitted to an apartment on the sixth floor of the building. Though the awning has a total coverage of 14 square metres, it is not
exempt because of its height above ground and a building consent is required.
Territorial authority discretionary exemptions
Exemption (k) of Schedule 1
A building consent is not required for the following building work:
(k) any other building work in respect of which the territorial authority (or, as the case requires, the regional authority) considers that a building
consent is not necessary for the purposes of this Act because that building work-
(i) is unlikely to be carried out otherwise than in accordance with the building code; or
(ii) if carried out otherwise than in accordance with the building code, is unlikely to endanger people or any building, whether on the same
land or on other property.
Guidance:
Exemption (k) allows a discretionary decision to made by a territorial authority (city or district council) or regional authority (regional council) to exempt
proposed building work from the requirement to obtain a building consent in the circumstances specifed in (i) and (ii), above.
Members of the public may ask their local council to consider their proposed building work under this exemption. However, the decision to allow any
exemption under this part of Schedule 1 is totally at the council's discretion, based on the risk of building work not complying with the Building Code or
endangering people or property.
Local councils should have procedures for making formal decisions under exemption (k) to exempt building work, that meet the specific criteria of (i)
and (ii) above, from the requirement to obtain a building consent.
In all cases, the Department recommends that the decision, reason for the decision and the outcome of the decision be recorded by the local council
and placed on the property file that relates to the building work.
Territorial Authority discretionary exemptions

Page 20
Issue 4-23 v1
www.juralco.co.nz ph [phone]
Juralco Bannette Awning System
Juralco Bannette Awning System - Powder Coating Care and Maintenance
Warning re use of solvents:
- In some cases strong solvents are recommended for thinning various types of paints and also for cleaning up mastics and sealants.
- These can be harmful to the extended life of the powder coated surface, and must not be used for cleaning purposes.
- It is important to note that the damage will not be visible immediately and may take up to l2 months to develop.
If paint splashes or sealants and mastics need to be removed then the following may be safely used:
Methylated Spirits, Ethyl Alcohol, lsopropanol or preferably a mild detergent in warm water.
Joinery Protection during Installation:
All the activity on a construction site means that your powder coated items
may get knocked or scratched, splattered with mortar,
plaster, textured coating or paint during the later stages of construction.
Please ensure that all powder coated articles are masked or covered at this time.
It is far easier to prevent accidents than to try and correct them.
Should your joinery receive mortar or paint splashes see that these are removed
before cure and follow the instructions contained in this brochure.
“IMPORTANT ALL TRADES”
This valuable aluminium joinery will suffer
permanent damage from: plaster, mortar
and paint splashes - Protect if splashes
occur - Immediately wash down joinery
with water or meths - Do not allow
splashes to harden! ~ Do not use solvents!
- Do not remove this label until final clean
completed.
This photograph display damage that has occurred on site, post
installation. The photo of the masked joinery displays clear signs
of damage that could have occurred were it not masked. Please ensure that
your joinery is protected right through the entire construction process.
External - Maintenance Program:
To extend the life of external powder coated articles and to comply with warranty
requirements for powder coated aluminium joinery, a simple, regular
maintenance program must be implemented.
The effects of ultra violet light, atmospheric pollution, dirt, grime and
airborne salt deposits will all accumulate over time and must be removed
or surface staining and weathering will occur, leading to an unsightly appearance.
For external coatings, cleaning should take place every six months. ln areas
where pollutants are more prevalent, such as beachfront houses and
industrial or geothermal areas, then a cleaning program should be carried
out on a more frequent basis ie. every one to three months.
Cleaning your powder coating:
1. Carefully remove any loose surface deposits with a wet sponge.
2. Use a soft brush (non abrasive) and a mild household detergent (do
not use solvents) in warm water, remove dust, salt and other deposits.
3. Rinse off with clean fresh water.
Restoring weathered or scratched surfaces:
Repair of Scuffed or Scratched surfaces
Dulux Spray Cans are available in all colour card colours.
Repair of Small Scratches or Chips.
Dulux Dabsticks are ideally suited for the repair of small scratches.
Dabsticks may not be available in all colour card colours.
Repair of Weathered areas .
Dulux Gloss Up is a light to medium cutting cream ideally
suited for gloss restoration and has been specifically designed for this purpose.
Gloss Up contains no waxes or silicone and is a one step system.
Typical sticker used to warn
other trades of the need to
protect and mask off
powder coated joinery
(applies to anodised joinery also)
Contact Dulux Powder Coatings , ph 0064 9 441 8244
Powder Coating Maintenance
Powder Coating Installation Care
All pages © Copyright Juralco Aluminium Building Products Ltd, 2023
