2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
This mark is used to indicate...
Turn the control dial to make a
selection, then press to confirm the
selection.
Indication language:
In this manual, English indications are used
for purposes of explanation. You can select
the indication language on the monitor on the
“LANGUAGE” setting (see page 21).
Caution on volume setting:
Digital devices (CD/USB) produce very little noise
compared with other sources. Lower the volume before
playing these digital sources to avoid damaging the
speakers by sudden increase of the output level.
[European Union only]
WARNINGS:
(To prevent accidents and damage)
• DO NOT install any unit or wire any cable in
a location where;
– it may obstruct the steering wheel and
gearshift lever operations.
– it may obstruct the operation of safety
devices such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
• If you need to operate the unit while
driving, be sure to look around carefully.
• The driver must not watch the monitor
while driving.
If the parking brake is not engaged,
“DRIVER MUST NOT WATCH THE MONITOR
WHILE DRIVING.” appears on the monitor,
and no playback picture will be shown.
– This warning appears only when the
parking brake lead is connected to the
parking brake system built in the car
(refer to the Installation/Connection
Manual).
EN02-09_KD-DV5606_001A_1.indd 2EN02-09_KD-DV5606_001A_1.indd 2 12/12/09 4:23:29 PM12/12/09 4:23:29 PM

3
How to attach/detach the control
panel
How to reset your unit
Your preset adjustments will also be erased.
How to forcibly eject a disc
• You can forcibly eject the loaded disc even if the disc is
locked. To lock/unlock the disc, see page 12.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
CONTENTS
How to attach/detach the control panel .... 3
How to reset your unit ............................... 3
How to forcibly eject a disc......................... 3
PREPARATIONS
Canceling the display demonstration......... 4
Setting the clock ........................................ 4
INTRODUCTIONS
Playable disc type ...................................... 5
OPERATIONS
Basic operations......................................... 6
• Using the control panel.............................. 6
• Using the remote controller (RM-RK255)... 7
Listening to the radio................................. 10
Disc operations........................................... 12
• Operations using the control panel............ 13
• Operations using the remote controller
(RM-RK255)............................................... 15
USB operations........................................... 22
EXTERNAL DEVICES
Listening to the other external
components............................................ 23
SETTINGS
Selecting a preset sound mode .................. 24
Menu operations........................................ 25
REFERENCES
More about this unit .................................. 28
Maintenance.............................................. 32
Troubleshooting......................................... 33
Specifications............................................. 36
[Hold]
EN02-09_KD-DV5606_001A_f.indd 3EN02-09_KD-DV5606_001A_f.indd 3 1/6/10 11:56:22 AM1/6/10 11:56:22 AM

4PREPARATIONS
Canceling the display demonstration
1Turn on the power.
2
3
Setting the clock
1Turn on the power.
2
3Select <CLOCK>.
4Select <CLOCK SET>.
5Adjust the hour.
6Adjust the minute.
7Finish the procedure.
4Select <DEMO OFF>.
5
6Finish the procedure.
(Initial setting)
(Initial setting)
[Hold]
[Press]
[Press]
[Turn]
[Hold]
[Turn]
[Turn]
[Turn] [Press]
[Press]
[Press]
[Press]
EN02-09_KD-DV5606_001A_f.indd 4EN02-09_KD-DV5606_001A_f.indd 4 1/6/10 11:56:22 AM1/6/10 11:56:22 AM

5INTRODUCTIONS
Playable disc type
Disc type Recording format, file type, etc Playable
DVD DVD-Video *1
Region Code: South East Asia, Hong Kong region: 3
India: 5
Ex.:
DVD-Audio/DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW *2, +R/+RW *3)
• DVD Video: UDF bridge
• DVD-VR
• MPEG-1/MPEG-2/MP3/WMA/
WAV: ISO 9660 level 1, level 2,
Romeo, Joliet
DVD-Video
DVD-VR
MPEG1/MPEG2
JPEG
MP3/WMA/WAV
DivX/AAC/MPEG4/DVD+VR/DVD-RAM
Dual Disc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)
VCD (Video CD)
DTS-CD/SVCD (Super Video CD)/CD-ROM/
CD-I (CD-I Ready)
CD Recordable/Rewritable
(CD-R/-RW)
• ISO 9660 level 1, level 2, Romeo,
Joliet
CD-DA
VCD (Video CD)
MPEG1/MPEG2
JPEG
MP3/WMA/WAV
DivX/AAC/MPEG4
*1If you insert a DVD Video disc of an incorrect Region Code, “REGION CODE ERROR” appears on the monitor.
*2DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not
playable.
*3It is possible to play back finalized +R/+RW (Video format only) discs. +RW double layer discs are not playable.
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the
use of Non-DVD side of a DualDisc on this product may not be recommended.
EN02-09_KD-DV5606_001A_1.indd 5EN02-09_KD-DV5606_001A_1.indd 5 12/12/09 4:23:30 PM12/12/09 4:23:30 PM

6
Basic operations
Using the control panel
1• FM/AM : Search for station.
• DISC/USB : Select chapter/track.
2Eject disc.
3• Turn on the power.
• Turn off the power [Hold].
• Select the source.
FM = AM *1= DISC *2= USB *2=
AUX IN *1=(back to the beginning)
4 DISC/USB : Enter the playback mode.
5• Control the volume*3or select items [Turn].
• Confirm the selection [Press].
• FM/AM : Enter “PRESET MODE” [Hold].
• Mutes the sound while listening to a source
[Press].
• DISC/USB : Pause/resume playback and cancel
muting [Press].
6Loading slot
7Display window
8Select the sound mode.
9• Change the display information (if the power is
turned on).
• Check the current clock time (if the power is
turned off).
pDetach the panel.
q• FM/AM : Select preset station.
• DISC : Select title/program/playlist/folder.
• USB : Select folder.
wReturn to the previous menu.
e• Enter list operations.
• Enter Menu setting [Hold].
rRemote sensor
tAUX (auxiliary) input jack
yUSB (Universal Serial Bus) input terminal
*1You cannot select these sources if they were disabled
in the Menu (see <SRC SELECT> in “Menu
operations” on page 27).
*2You cannot select these sources if they are not ready
or not connected.
*3Also known as “Control dial” in this manual.
EN02-09_KD-DV5606_001A_f.indd 6EN02-09_KD-DV5606_001A_f.indd 6 1/8/10 12:13:15 PM1/8/10 12:13:15 PM

7OPERATIONS
Continued on the next page
Display window
1• (setting) indicator
• (search) indicator
2MENU indicator
3Tr (track) indicator
4Source display / Track number / Folder number /
Title number / PBC indicator / Time countdown
indicator / Setting and list operation information
5ST (stereo) indicator
6Playback mode indicators— (random),
(repeat)
7TAG (Tag information) indicator
8LOUD (loudness) indicator
9Disc/device information indicators— (track/file),
(folder)
pMain display
q(next level) indicator
Using the remote controller (RM-RK255)
Installing the batteries
Insert the batteries into the remote controller by
matching the polarity (+ and –) correctly.
If the effectiveness of the remote controller
decreases, replace the batteries.
Caution:
• Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
EN02-09_KD-DV5606_001A_1.indd 7EN02-09_KD-DV5606_001A_1.indd 7 12/12/09 4:23:30 PM12/12/09 4:23:30 PM

8
• USB :
– JPEG/MPEG Video/MP3/WMA/WAV: Selects
the folders if included.
4/ ¢buttons
• FM/AM :
– Searches for stations automatically if pressed
briefly.
– Searches for stations manually if pressed and
held.
•
DISC/USB :
– Reverse skip/forward skip if pressed briefly.
– Reverse search/forward search if pressed and
held.
3VOL (volume) + / – buttons
• Adjusts the volume level.
2nd VOL (volume) buttons
• Not applicable for this unit.
4* ASPECT button
• Not applicable for this unit.
5PHONE button
• Not applicable for this unit.
6* SETUP button
• Enters disc setup menu (during stop).
7* TOP MENU button
• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Original Program screen.
• VCD: Resumes PBC playback.
8* OSD (on-screen display) button
• Shows the on-screen bar.
9SHIFT button
• Functions with other buttons.
pDISP (display) button
• Changes the display information (if the power is
turned on).
• Checks the current clock time (if the power is
turned off).
1button
• Turns on the power.
When the power is on, pressing on
the remote controller also mutes the sound or
pauses. Press again to cancel muting or
resume playback.
• Turns the power off if pressed and held.
25/∞buttons
• FM/AM : Selects the preset stations.
• DISC :
– DVD-Video: Selects the title.
– DVD-VR: Selects the program/playlist.
– JPEG/MPEG Video/MP3/WMA/WAV: Selects
the folders if included.
EN02-09_KD-DV5606_001A_f.indd 8EN02-09_KD-DV5606_001A_f.indd 8 1/22/10 9:50:19 AM1/22/10 9:50:19 AM

9OPERATIONS
q1/¡buttons
• DVD-Video: Slow motion playback (during
pause).
• DVD-VR/VCD: Forward slow motion playback
(during pause).
• JPEG/MPEG Video/MP3/WMA/WAV/ USB :
Reverse search/forward search.
wSOURCE button
• Selects the source.
e3(play) / 8(pause) button
• DISC/USB : Starts/pauses playback.
r(end call) button
• Not applicable for this unit.
7(stop) button
• DISC/USB : Stops playback.
t* RETURN button
•
VCD : Returns to the PBC menu.
y* DVD MENU button
• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Playlist screen.
• VCD: Resumes PBC playback.
u* %/fibuttons
• DVD-Video: Makes selection/settings.
@/#buttons
• DVD-Video: Makes selection/settings.
• JPEG/MPEG Video: Skips back or forward by
about five minutes.
ENT (enter) button
• Confirms selection.
i* DUAL button
• Not applicable for this unit.
oDIRECT button
• DISC/USB : Enters direct search mode for
chapter/title/program/playlist/folder/track
when pressed with SHIFT button (see page 16 for
details).
CLR (clear) button
• DISC/USB : Erases the misentry when pressed
with SHIFT button.
* Functions as number buttons/*(asterisk)/# (hatch)
when pressed with SHIFT button.
– DISC/USB : Enters chapter/title/program/playlist/
folder/track number after entering search mode by
pressing SHIFT and DIRECT (see page 16 for details).
EN02-09_KD-DV5606_001A_f.indd 9EN02-09_KD-DV5606_001A_f.indd 9 1/8/10 12:40:45 PM1/8/10 12:40:45 PM

10
Changing the display information
Frequency =Clock =Station name* =(back to the
beginning)
* If no title is assigned to a station, “NO NAME” appears.
To assign a title to a station, see page 11.
Improving the FM reception
When an FM stereo broadcast is hard to receive,
activate monaural mode for better reception.
• See also page 26.
Reception improves, but stereo effect will be lost.
To restore the stereo effect, repeat the same
procedure to select <MONO OFF>.
Listening to the radio
1Select “
FM ” or “ AM .”
2Search for a station to listen—Auto Search.
When a station is tuned in, searching stops. To stop searching, press the same button
again.
• You can also search for a station manually—Manual Search. Hold either one of the
buttons until “M” flashes on the display, then press it repeatedly.
• When receiving an FM stereo broadcast with sufficient signal strength, the ST indicator
lights up on the display.
Storing stations in memory
Automatic presetting (FM)—SSM (Strong-
station Sequential Memory)
You can preset up to 18 stations for FM.
• See also page 26.
“SSM” flashes and local stations with the strongest
signals are searched and stored automatically.
• To stop searching, press 4/¢.
To preset another 6 stations, repeat the above
procedure by selecting one of the other 6 SSM setting
ranges.
[Hold]
[Hold]
[Turn] =[Press]
[Turn] =[Press]
EN10-21_KD-DV5606_001A_f.indd 10EN10-21_KD-DV5606_001A_f.indd 10 1/22/10 9:41:46 AM1/22/10 9:41:46 AM

11OPERATIONS
[Press]
1Select “ FM ” or “ AM .”
2Show the title entry screen.
3Assign a title.
1Select a character.
2Move to the next (or previous) character
position.
3Repeat steps 1and 2until you finish
entering the title.
4Finish the procedure.
To erase the entire title
After step 2above...
Manual presetting (FM/AM)
You can preset up to 18 stations for FM and 6 stations
for AM.
Ex.: Storing FM station of 92.50 MHz into preset
number “04.”
1
2
3Select preset number “04” and store.
Selecting preset station
|
or
|
|
|
|
|
Title assignment
You can assign titles to 30 station frequencies (FM and
AM) using 8 characters (maximum) for each title.
• If you try to assign titles to more than 30 station
frequencies, “NAME FULL” appears. Delete unwanted
titles before assignment.
[Turn]
[Hold]
[Hold]
[Hold] [Press]
[Turn] =[Press]
[Turn] =[Press]
EN10-21_KD-DV5606_001A_1.indd 11EN10-21_KD-DV5606_001A_1.indd 11 12/12/09 4:23:04 PM12/12/09 4:23:04 PM

12
Disc operations
Before performing any operations...
Turn on the monitor to watch the playback picture. If you turn on the monitor, you can also control playback of other
discs by referring to the monitor screen. (See pages 17 – 20.)
The disc type is automatically detected, and playback starts automatically (for DVD: automatic start depends on its
internal program).
If the current disc does not have any disc menu, all tracks will be played repeatedly until you change the source or
eject the disc.
If “ ” appears on the monitor when pressing a button, the unit cannot accept the operation you have tried to
do.
• In some cases, without showing “ ,” operations will not be accepted.
1Turn on the power.
2Insert a disc.
All tracks will be played repeatedly until you change the source
or eject the disc.
Selecting a track/folder (MP3/WMA/WAV/CD)
• For MP3/WMA/WAV discs, select the desired folder,
then the desired track by repeating the control dial
procedures.
• To return to the previous menu, press BACK.
[Hold]
Stop playing and ejecting the disc
“NO DISC” appears. Press /SOURCE to listen to
another playback source.
Prohibiting disc ejection
To cancel the prohibition, repeat the same
procedure.
[Turn] =[Press]
EN10-21_KD-DV5606_001A_1.indd 12EN10-21_KD-DV5606_001A_1.indd 12 12/12/09 4:23:05 PM12/12/09 4:23:05 PM

13OPERATIONS
Continued on the next page
Operations using the control panel
Pressing (or holding) the following buttons allows you to...
Disc type Operation
• 4/
¢
• 5/∞
• DISP
: [Press] Select chapter
[Hold] Reverse/fast-forward chapter*1
: Select title
: Current chapter number and Elapsed playing time =Current chapter
number and Clock =Current title and chapter number =(back to the
beginning)
• 4/
¢
• 5/∞
• DISP
: [Press] Select chapter
[Hold] Reverse/fast-forward chapter*1
: Select program number/playlist number
: Current chapter number and Elapsed playing time =Current chapter
number and Clock =Current program (or playlist) number and chapter
number =(back to the beginning)
• 4/
¢
• 5/∞
• DISP
: [Press] Select track
[Hold] Reverse/fast-forward track (for MPEG)*2
: Select folder
: Elapsed playing time =Folder number and Clock =Folder name =
Track title =(back to the beginning)
• 4/
¢
• DISP
: [Press] Select track
[Hold] Reverse/fast-forward track*1
: Current track number and Elapsed playing time =Current track number
and Clock =(back to the beginning)
• 4/
¢
• 5/∞
• DISP
: [Press] Select track
[Hold] Reverse/fast-forward track*1
: Select folder
: Current track number and Elapsed playing time =Current track number
and Clock =Album name/performer (folder name*3) =Track title (file
name*3) =(back to the beginning)
• 4/
¢
• DISP
: [Press] Select track
[Hold] Reverse/fast-forward track*1
: Current track number and Elapsed playing time =Current track number
and Clock =Disc title/performer*4=Track title*4=(back to the
beginning)
*1Search speed:
*2Search speed:
*3If the file does not have Tag information or <TAG DISPLAY> is set to <TAG OFF> (see page 26), folder name and
file name appear. TAG indicator will not light up.
*4“NO NAME” appears for an audio CD.
Changes the display information
EN10-21_KD-DV5606_001A_f.indd 13EN10-21_KD-DV5606_001A_f.indd 13 1/8/10 12:13:54 PM1/8/10 12:13:54 PM

14

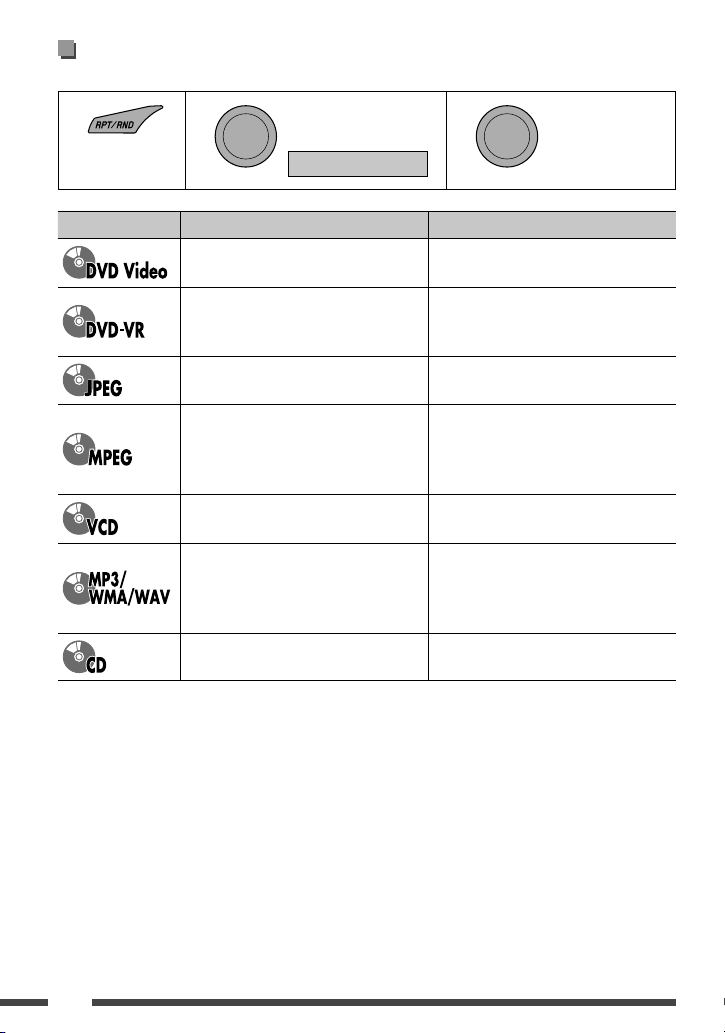

Selecting the playback modes
You can use only one of the following playback modes at a time.
123
Disc type REPEAT RANDOM
CHAPTER RPT: Repeat current chapter
TITLE RPT: Repeat current title —
CHAPTER RPT: Repeat current chapter
PROGRAM RPT: Repeat current program
(not available for Playlist Playback)
—
FOLDER RPT: Repeat current folder —
TRACK RPT: Repeat current track
FOLDER RPT: Repeat current folder
FOLDER RND: Randomly play all tracks of
current folder, then tracks of next
folders
ALL RND: Randomly play all tracks
TRACK RPT: Repeat current track (PBC not
in use)
ALL RND: Randomly play all tracks (PBC not
in use)
TRACK RPT: Repeat current track
FOLDER RPT: Repeat current folder
FOLDER RND: Randomly play all tracks of
current folder, then tracks of next
folders
ALL RND: Randomly play all tracks
TRACK RPT: Repeat current track ALL RND: Randomly play all tracks
• To cancel repeat play or random play, select “RPT OFF” or “RND OFF.”
• To return to the previous menu, press BACK.
REPEAT ÔRANDOM
[Turn] =[Press][Turn] =[Press]
EN10-21_KD-DV5606_001A_1.indd 14EN10-21_KD-DV5606_001A_1.indd 14 12/12/09 4:23:05 PM12/12/09 4:23:05 PM

15OPERATIONS
Continued on the next page
Operations using the remote controller (RM-RK255)
Button /
Stop play Stop play
Start play/Pause (if pressed during play) Start play/Pause (if pressed during play)
JPEG: Slide show: Each track is shown for a few
seconds.
• Reverse/forward chapter search*1(No sound
can be heard.)
• Slow motion*2during pause (No sound can
be heard.)
– DVD-VR: Reverse slow motion does not work.
MPEG: Reverse/forward track search*4(No
sound can be heard.)
[Press] Select chapter (during play or pause)
[Hold] Reverse/fast-forward chapter search*3
[Press] Select track
[Hold] MPEG: Reverse/fast-forward track
search*5(No sound can be heard.)
• DVD-Video: Select title (during play or pause)
• DVD-VR: Select program
Select playlist (during play or pause)
Select folder
—
• MPEG: Skip back or forward the scenes
• MPEG: Select chapter
*1Search speed:
*2Slow motion speed:
*3Search speed:
*4Search speed:
*5Search speed:
EN10-21_KD-DV5606_001A_f.indd 15EN10-21_KD-DV5606_001A_f.indd 15 1/8/10 12:14:19 PM1/8/10 12:14:19 PM

16
Button
Stop play Stop play Stop play
Start play/Pause (if pressed
during play)
Start play/Pause (if pressed
during play)
Start play/Pause (if pressed
during play)
Reverse/forward track search*1
• Forward slow motion*2
during pause (No sound can
be heard.)
– Reverse slow motion does not
work.
Reverse/forward track search*1Reverse/forward track search*1
[Press] Select track
[Hold] Reverse/fast-forward
track search*3(No
sound can be heard.)
[Press] Select track
[Hold] Reverse/fast-forward
track search*3
[Press] Select track
[Hold] Reverse/fast-forward
track search*3
—
Select folder
—
*1–*3: See page 15.
Searching for chapter/title/program/playlist/folder/track directly (DVD/JPEG/MPEG Video/
MP3/WMA/WAV/CD)
1While holding SHIFT, press DIRECT repeatedly to select the desired search mode.
DVD-Video:
DVD-VR:
JPEG/MPEG Video:
MP3/WMA/WAV:
CD:
2While holding SHIFT, press the number buttons (0– 9) to enter the desired number.
3Press ENT (enter) to confirm.
EN10-21_KD-DV5606_001A_1.indd 16EN10-21_KD-DV5606_001A_1.indd 16 12/12/09 4:23:06 PM12/12/09 4:23:06 PM

17OPERATIONS
Continued on the next page
Entering time/numbers
Press %/fito change the number, then press @/#to
move to the next entry.
• Each time you press %/fi, the number increases/
decreases by one value.
• After entering the numbers, press ENT (enter).
• It is not required to enter the zero and tailing zeros
(the last two digits in the example below).
Ex.: Time search
DVD: _:_ _:_ _ (Ex.: 1:02:00)
Press %once, then #twice to go to the third entry, %
twice, then press ENT (enter).
On-screen bar
Ex.: DVD-Video
1Disc type
2• DVD-Video: Audio signal format type and
channel
• VCD:PBC
3Playback mode*1
DVD-Video: T. RPT: Title repeat
C. RPT: Chapter repeat
DVD-VR: C. RPT: Chapter repeat
PG. RPT: Program repeat
JPEG: F. RPT: Folder repeat
MPEG Video: T. RPT: Track repeat
F. RPT: Folder repeat
A. RND: All random
F. RND: Folder random
VCD*2: T. RPT: Track repeat
A. RND: All random
(twice)
• For JPEG/MPEG Video/MP3/WMA/WAV, track is
searched within the same folder.
• For DVD-VR, program/playlist search is possible
during Original program playback (PG)/Playlist
playback (PL).
• To erase a misentry, press CLR (clear) while holding
SHIFT.
• To return to the previous screen, press RETURN.
Using menu driven features... (DVD-Video/
DVD-VR)
1Press TOP MENU/DVD MENU to enter the menu
screen.
2Press %/fi/@/#to select an item you want to
start play.
3Press ENT (enter) to confirm.
Canceling the PBC playback... (VCD)
1During stop, press DIRECT while holding SHIFT.
2Hold SHIFT, then press the number buttons (0– 9)
to enter the desired number.
3Press ENT (enter) to confirm.
• To resume PBC, press TOP MENU/DVD MENU.
Operations using the on-screen bar
(DVD/DVD-VR/JPEG/MPEG Video/VCD)
These operations are possible on the monitor using the
remote controller.
1Show the on-screen bar (see the right
column).
2Select an item.
3Make a selection.
If pop-up menu appears...
• To cancel pop-up menu, press RETURN.
• For entering time/numbers, see the following.
Information
Operation
EN10-21_KD-DV5606_001A_1.indd 17EN10-21_KD-DV5606_001A_1.indd 17 12/12/09 4:23:06 PM12/12/09 4:23:06 PM

18
4Playback information
Current title/chapter
Current program/chapter
Current playlist/chapter
Current track
Current folder/track
5Time indication
Elapsed playing time of the disc (For
DVD-Video, elapsed playing time of
the current title/program/playlist.)
DVD-Video/DVD-VR: Remaining title/
program/playlist time
VCD: Remaining disc time
Elapsed playing time of the current
chapter/track*3
Remaining time of the current
chapter/track*3
6Playback status
Play
Forward/reverse search
Forward/reverse slow-motion
Pause
Stop
7Operation icons
Change time indication (see 5)
Time Search (Enter the elapsed
playing time of the current title/
program/playlist or of the disc.)
Title Search (by its number)
Chapter Search (by its number)
Track Search (by its number)
Change the audio language or audio
channel
Change or turn off the subtitle
language
Change the view angle
Repeat play*1
Random play*1
*1For repeat play/random play, see also page 14.
*2While PBC is not in use.
*3Not applicable for DVD-VR.
Removing the on-screen bar
Operations using the control
screen
(JPEG/MPEG Video/MP3/WMA/WAV/CD)
These operations are possible on the monitor using the
remote controller.
1Show the control screen.
JPEG/MPEG Video: Press 7during play.
MP3/WMA/WAV/CD: Automatically appear during
play.
1Current folder number/total folder number
2Folder list with the current folder selected
3Selected playback mode
4Elapsed playing time of the current track
5Operation mode icon ( 3, 7, 8, ¡, 1)
6Current track number/total number of tracks
in the current folder (total number of tracks on
the disc)
7Track information
8Track list with the current track selected
2Select “Folder” column or “Track” column
(except for CD).
Ex.: MP3/WMA/WAV disc
EN10-21_KD-DV5606_001A_1.indd 18EN10-21_KD-DV5606_001A_1.indd 18 12/12/09 4:54:28 PM12/12/09 4:54:28 PM

19OPERATIONS
Continued on the next page
3Select a folder or track.
4Start playback.
JPEG/MPEG Video: Press ENT (enter) or 3/8.
MP3/WMA/WAV/CD: Playback starts automatically.
Selecting a playback mode
• See also page 14.
1While control screen is displayed...
Playback mode selection screen appears on the
folder list section of the control screen.
2Select a playback mode.
3Select an item.
REPEAT
FOLDER *: Repeat current folder
TRACK : Repeat current track
RANDOM
ALL : Randomly play all tracks
FOLDER *: Randomly play all tracks of
current folder, then tracks of
next folders
• To cancel repeat play or random play, select
“REPEAT OFF” or “RANDOM OFF.”
* Not selectable for CD.
4Confirm the selection.
Operations using the list screen
These operations are possible on the monitor using the
remote controller.
Before playing, you can display the folder list/track list
to confirm the contents and start playing a track.
List screen (JPEG/MPEG Video/MP3/WMA/
WAV)
1Display the folder list while stop.
1Current folder number/total folder number
2Current track number/total number of tracks
in the current folder
3Current page/total number of the pages
included in the list
4Current folder/track (highlighted bar)
2Select an item from the folder list.
• Track list of the selected folder appears.
• To go back to the folder list, press RETURN.
3Select a track to start playing.
• MP3/WMA/WAV: Control screen appears (see
page 18).
Ex.: Folder list
or
REPEAT ÔRANDOM
EN10-21_KD-DV5606_001A_1.indd 19EN10-21_KD-DV5606_001A_1.indd 19 12/12/09 4:23:07 PM12/12/09 4:23:07 PM

20
Disc setup menu
These operations are possible on the monitor using the
remote controller.
1Enter the disc setup menu while stop.
2Select a menu.
3Select an item you want to set up.
• To cancel pop-up menu, press RETURN.
4Select an option.
To return to normal screen
List screen (DVD-VR)
You can use ORIGINAL PROGRAM or PLAY LIST screen
anytime while playing DVD-VR with its data recorded.
1Select a list screen.
1Program/playlist number
2Recording date
3Recording source (TV station, the input
terminal of the recording equipment, etc.)
4Start time of recording
5Title of the program/playlist*
6Current selection (highlighted bar)
7Creating date of playlist
8Number of chapters
9Playback time
* The title of the original program or playlist may
not be displayed depending on the recording
equipment.
2Select an item from the list.
EN10-21_KD-DV5606_001A_1.indd 20EN10-21_KD-DV5606_001A_1.indd 20 12/15/09 10:59:57 AM12/15/09 10:59:57 AM
