ENGLISH
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.
(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
WARNINGS:
To prevent accidents and damage
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and
gearshift lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
INFORMATION (For U.S.A.)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
Caution
Changes or modifications not approved by JVC could
void the user’s authority to operate the equipment.
[European Union only]
CAUTION
This product has a fluorescent lamp that
contains mercury. Disposal of these materials
may be regulated in your community due to
environmental considerations. For disposal or
recycling information, please contact your local
authorities or for USA, the Electronic Industries
Alliance: http://www.eiae.org.
EN_KW-AVX810[J]f.indb 2EN_KW-AVX810[J]f.indb 2 08.1.25 7:50:16 PM08.1.25 7:50:16 PM

3
ENGLISH
INTRODUCTION
How to reset your unit

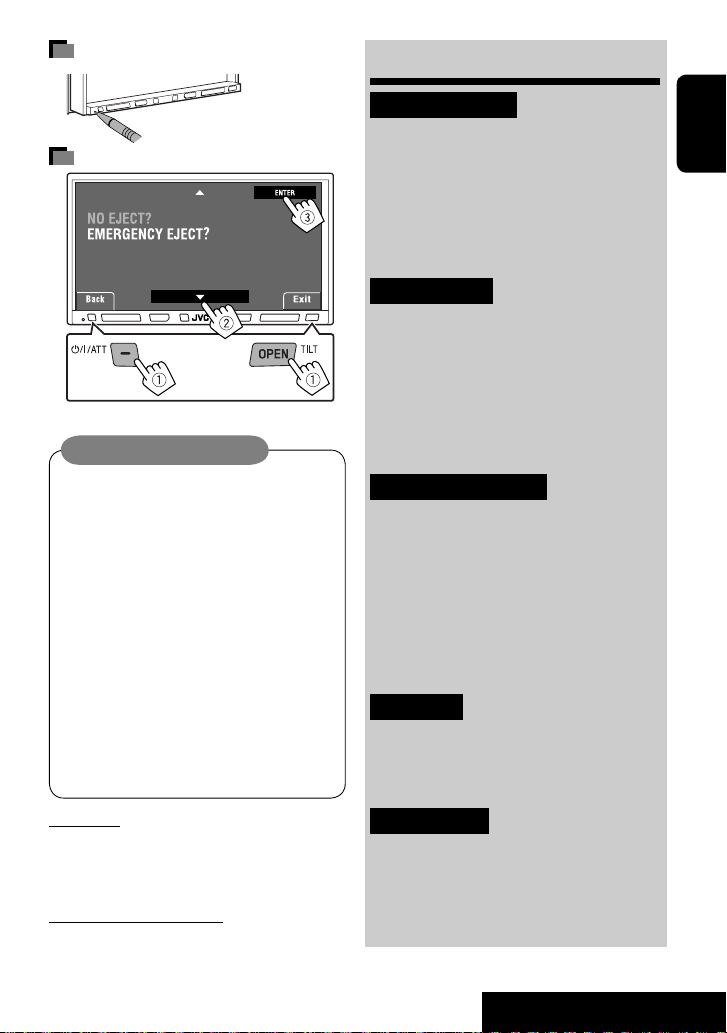

How to forcibly eject a disc
• If this does not work, reset the unit.
Contents
INTRODUCTION
Playable disc types .......................... 4
Before operations ........................... 5
Basic operations—
Monitor panel/touch panel............ 7
Basic operations—
Remote controller (RM-RK252) ...... 8
OPERATIONS
Preparing for operations ................. 10
Common operations ........................ 11
Listening to the radio ...................... 13
Disc operations................................ 16
SD operations.................................. 30
USB operations................................ 32
EXTERNAL DEVICES
Bluetooth® operations—
Cellular phone/audio player .......... 34
Listening to the CD changer.............. 41
Listening to the satellite radio ......... 43
Listening to the HD Radio™ Broadcast..... 46
Listening to the iPod ....................... 48
Using other external components..... 52
SETTINGS
Sound equalization.......................... 55
Assigning titles to the sources .......... 56
Menu operations ............................. 57
REFERENCES
Maintenance................................... 66
More about this unit ........................ 67
Troubleshooting.............................. 75
Specifications.................................. 80
at the same time
[Hold] [Hold]
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
Cautions on the monitor:
• The monitor built in this unit has been produced
with high precision, but it may have some
ineffective dots. This is inevitable and is not
malfunction.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with the sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in
such environments.
• Your preset adjustments will also
be erased.
EN_KW-AVX810[J]f.indb 3EN_KW-AVX810[J]f.indb 3 08.1.25 7:50:20 PM08.1.25 7:50:20 PM

ENGLISH
4
Disc type Recording format, file type, etc. Playable
DVD DVD Video (Region Code: 1)*1
DVD Audio
DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW*2, +R/+RW*3)
• DVD Video: UDF bridge
• DVD-VR
• DivX/MPEG1/MPEG2/JPEG/MP3/
WMA/WAV/AAC: ISO 9660 level
1, level 2, Romeo, Joliet
DVD Video
DVD-VR
DivX/MPEG1/MPEG2
JPEG
MP3/WMA/WAV/AAC*4
MPEG4
DVD+VR
DVD-RAM
Dual Disc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)
VCD (Video CD)
DTS-CD*5
SVCD (Super Video CD)
CD-ROM
CD-I (CD-I Ready)
CD Recordable/Rewritable
(CD-R/-RW)
• ISO 9660 level 1, level 2, Romeo,
Joliet
CD-DA
MP3/WMA/WAV/AAC*4
JPEG
DivX/MPEG1/MPEG2
MPEG4
*1If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen.
*2DVD-R recorded in multi-border format is also playable (except for dual layer discs).
DVD-RW dual layer discs are not playable.
*3It is possible to play back finalized +R/+RW (Video format only) discs.
+RW double layer discs are not playable.
*4This unit can play back AAC files encoded using iTunes.
*5To reproduce DTS sound, use the digital connection. (☞Installation/Connection Manual)
Playable disc types
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore,
the use of Non-DVD side of a DualDisc on this product may not be recommended.
EN_KW-AVX810[J]f.indb 4EN_KW-AVX810[J]f.indb 4 08.1.25 7:50:21 PM08.1.25 7:50:21 PM

:
5
ENGLISH
INTRODUCTION
Screen

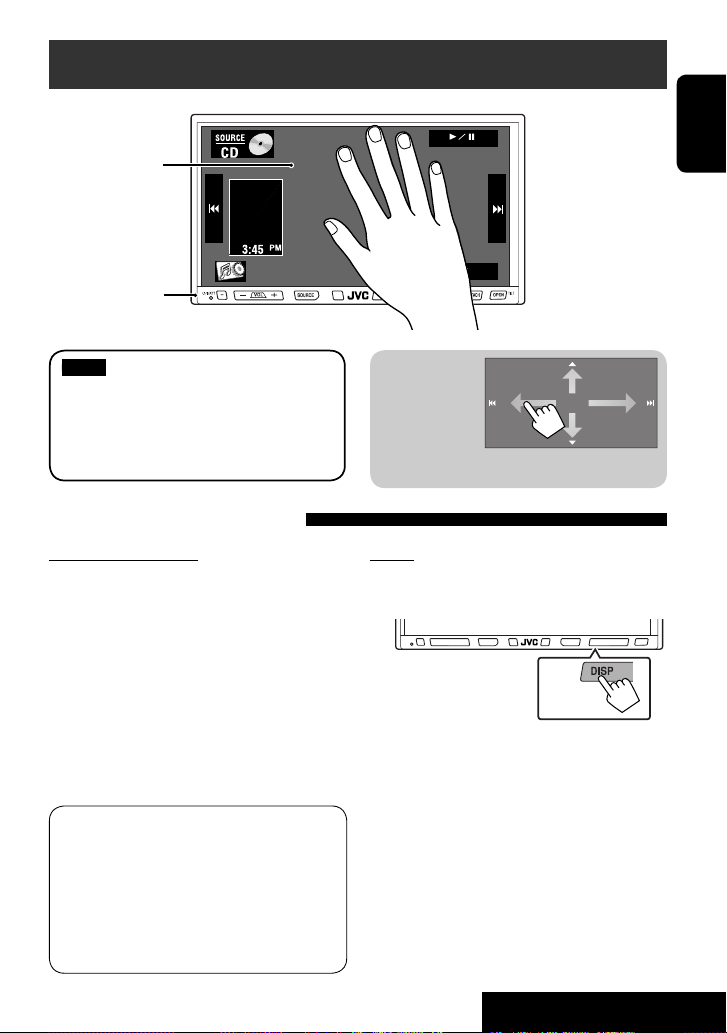

While the unit is turned on, you can also turn off the
screen by holding DISP on the monitor panel.
The screen is turned on again in the following cases:
– When you touch the touch panel
– When you press MENU, DISP, DETACH, or OPEN on the
monitor panel
– When a call/Text Message comes in (for Bluetooth
cellular phone)
– When the signal from the rear view camera comes in
Before operations
Buttons on the touch panel
In the explanation, they are
indicated inside [ ].
For details on the touch panel
operations, see each source operation
section.
Monitor panel
Touch panel
Monitor panel buttons
The lights of the monitor panel buttons are turned off
when no operation is done for about 10 seconds.
They are turned on again in the following cases:
– When you touch the touch panel or move your hand
nearby*
– When you use the remote controller
– When a call/Text Message comes in (for Bluetooth
cellular phone)
* Depending on the <Illumination> setting. (☞ page
62)
The lights of the monitor panel buttons are always
turned on in the following cases:
– While AV menu screen is displayed.
– While <Source Menu> screen is displayed.
– While <Open/Tilt> menu is displayed.
– When <Illumination> is set to <Normal>.
(☞ page 62)
[Hold]
Features of the illumination
When you slide
your finger on
the touch panel,
it functions in
the same way as
touching [5/ ∞/ 4/ ¢].
EN_KW-AVX810[J]f.indb 5EN_KW-AVX810[J]f.indb 5 08.1.25 7:50:21 PM08.1.25 7:50:21 PM

ENGLISH
6

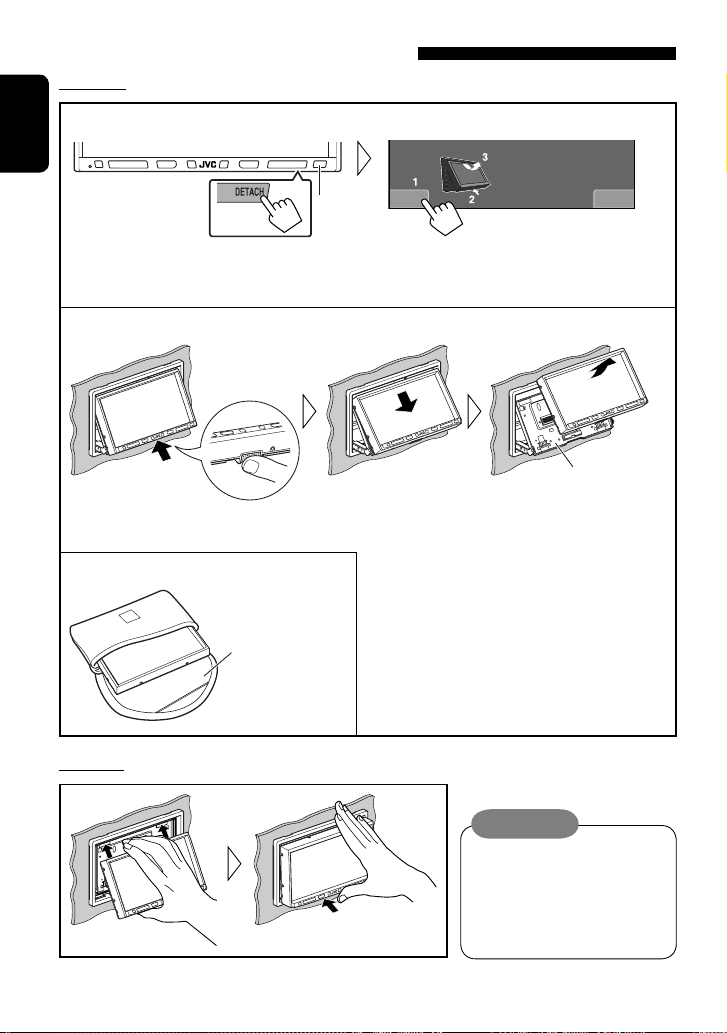

Detaching/attaching the monitor panel
Detaching
1While the unit is turned on:
Detach?Yes No
* You can also use OPEN on the monitor panel.
Then press [ Detach ].
The monitor panel opens by about 50°.
• It closes automatically when no operation is done
for about a minute.
2
The monitor panel is released. • The attaching plate closes automatically about
10 seconds after the monitor panel is released.
Remove the monitor panel before this happens.
3
Attaching
Attaching plate
*
Caution:
• Hold the monitor panel securely so
as not to drop it accidentally.
• Fit the monitor panel onto the
attaching plate until it is firmly
locked.
Soft case
(supplied)
EN_KW-AVX810[J]f.indb 6EN_KW-AVX810[J]f.indb 6 08.1.25 7:50:22 PM08.1.25 7:50:22 PM

Open
Eject
Close
Tilt +
Tilt –
Exit
Open/Tilt
Detach
15
VOL
7
ENGLISH
INTRODUCTION
Basic operations — Monitor panel/touch panel
• Turns on the power.
• Turns off the power. [Hold]
• Attenuates the sound (if the power is on).
Changes the sources.
☞page 11
Remote sensor
Adjusts the volume.*
Resets the unit.
• Use only when the internal system malfunctions.
Displays <AV Menu> screen. ☞page 57
Displays and erases Short Cut icons. ☞page 12
Changes the display information.
* You can also adjust
the volume by
moving your finger
on the touch panel
as illustrated.
Displays <Source Menu> screen. ☞page 11
• Displays and erases <AV Menu> screen.
☞page 57
• Displays <Open/Tilt> menu. ☞ below
• Ejects the disc and displays <Open/Tilt> menu.
[Hold]
• Closes the monitor panel.
To detach the monitor
panel.
[Open] Opens the monitor panel.
[Eject] Ejects the disc.
[Close] Closes the monitor panel.
[Tilt +/–] Tilts the monitor panel.
[Detach] To detach the monitor panel.
[Exit] Erases this screen.
<Open/Tilt> menu
• Shaded items cannot be used.
EN_KW-AVX810[J]f.indb 7EN_KW-AVX810[J]f.indb 7 08.1.25 7:50:22 PM08.1.25 7:50:22 PM

ENGLISH
8
Basic operations — Remote controller (RM-RK252)
Main elements and features
1• Turns on the power.
• Attenuates the sound if the power is on.
• Turns off the power if pressed and held (while
the power is on).
2“DISC/SD/USB/USB iPod“: Reverse search
3Adjusts the volume level.
• Does not function as “2nd VOL.”
4• Displays <Dial Menu> screen.
• Displays <Redial> menu if pressed and held.
• Answers incoming calls.
5• DVD/DivX 6: Shows the disc menu.
• VCD: Resumes PBC playback.
• DVD-VR: Shows the Original Program screen.
6Shows the on-screen bar.
• Does not function as “ “.
7Functions with other buttons (see iand o).
8Changes the display information.
R03/LR03/AAA
Installing the battery
Insert the batteries into the remote controller by
matching the polarity (+ and –) correctly.
Caution:
Battery shall not be exposed to excessive heat such
as sunshine, fire or the like.
• If the range or effectiveness of the remote controller
decreases, replace both batteries.
Before using the remote controller:
• Aim the remote controller directly at the remote
sensor on the unit.
• DO NOT expose the remote sensor to bright light
(direct sunlight or artificial lighting).
The unit is equipped with the steering wheel
remote control function.
• See the Installation/Connection Manual (separate
volume) for connection.
EN_KW-AVX810[J]f.indb 8EN_KW-AVX810[J]f.indb 8 08.1.25 7:50:23 PM08.1.25 7:50:23 PM

9
ENGLISH
INTRODUCTION
For Bluetooth operations:
• 4/ ¢: reverse skip/forward skip (for
audio player operation)
p“DISC/SD/USB/USB iPod”:
Forward search
qSelects the source.
w“DISC/SD/USB/USB iPod”:
Starts playback/pauses.
“Bluetooth PHONE”: Answers incoming calls.
“Bluetooth AUDIO”: Starts playback.
eChanges the aspect ratio of the playback
pictures.
r“TUNER/HD Radio/SAT”: Selects the bands.
“DISC/SD/USB“: Stops playback.
“USB iPod“: Enters <Search Mode> menu.
“Bluetooth PHONE”: Ends the call.
“Bluetooth AUDIO”: Pauses.
tVCD: Returns to the PBC menu.
y• DVD Video/DivX 6: Shows the disc menu.
• VCD: Resumes PBC playback.
• DVD-VR: Shows the Playlist screen.
u• Makes selection/settings.
• @/ #: Skips back or forward by 5 minutes
for DivX/MPEG1/MPEG2.
• %/ fi: Changes discs for “CD-CH.”
i*3• “DISC/SD/USB“: Switches number entry mode.
• Erases the misentry after entering a wrong
number.
• Does not function as “SURROUND.”
o*3Number buttons
• Enters numbers.
• “TUNER/HD Radio/SAT”: Selects the preset
station directly.
*1Functions as a number button only (see o).
*2Not used for this unit.
*3Functions when pressed with SHIFT.
9For disc/SD/USB operations:
• 5/ ∞:
DVD: Selects the title.
DVD-VR: Selects the program/Playlist.
SD/USB/other discs (except VCD/CD): Selects
the folders.
• 4/ ¢:
– Press briefly: reverse skip/forward skip
– Press and hold: reverse search/forward
search
For FM/AM and HD Radio operations:
• 5/ ∞:
FM/AM: Selects the preset stations.
HD Radio: Selects a multicast channel.
• 4/ ¢: Functions to search for stations.
– Press briefly: Auto Search
– Press and hold: Manual Search
For satellite tuner operations:
• 5/ ∞: Selects the categories.
• 4/ ¢:
– Press briefly: Selects a channel.
– Press and hold: Selects a channel rapidly.
For Apple iPod operations:
“USB iPod“:
• 5/ ∞: Selects previous/next item
• 4/ ¢:
– Press briefly: reverse skip/forward skip
– Press and hold: reverse search/forward
search
“iPod“:
• ∞: Starts playback/pauses.
• 5: Enters the main menu (then 5/ ∞
/ 4/ ¢work as menu selecting
buttons).
• 4/ ¢:
– Press briefly: reverse skip/forward skip
–
Press and hold: reverse search/forward
search
– In menu selecting mode:
• ∞: Confirms the selection.
• 5: Returns to the previous menu.
• 4/ ¢:
– Press briefly: Selects an item.
– Press and hold: Skips ten items at a time.
EN_KW-AVX810[J]f.indb 9EN_KW-AVX810[J]f.indb 9 08.1.25 7:50:23 PM08.1.25 7:50:23 PM

Exit
Back Exit
Setup
Demonstration
Wall Paper
Color
Scroll
Dimmer
Dimmer Time Set
Blue
Metal
Auto
Auto
Once
76
Back Exit
Setup
Demonstration
Wall Paper
Color
Scroll
Dimmer
Dimmer Time Set
Blue
Metal
Auto
Auto
Once
76
Back Exit
Setup
Time Set
Time Format
OSD Clock
Clock Adjust
Time Zone
DST
3 : 45 PM
12Hours 24Hours
AutoOff
Off
Off
Eastern
Back Exit
Setup
Time Set
Time Format
OSD Clock
Clock Adjust
Time Zone
DST
1 : 00 AM
12Hours 24Hours
AutoOff
Off
Off
Eastern
Setup
Time Set
Time Format
OSD Clock
Clock Adjust
3 : 45 PM
Time Zone
DST
Back Exit
10
ENGLISH
@Set the clock.
¤Finish the procedure.
You can cancel the demonstration on the screen and set
the clock.
• Non-available items will be shaded on the AV Menu
screens.
Indication language:
In this manual, English indications are used
for purpose of explanation. You can select the
indication language. (☞page 59)
~Turn on the power.
Ÿ
• You can also use MENU on the monitor panel.
!
⁄Cancel the demonstration.
Select <Off>.
Preparing for operations
Moves to the succeeding menu page
Moves to the preceding menu page
Returns to the previous screen.
Indicates the remaining time before the
current screen is erased automatically.
EN_KW-AVX810[J]f.indb 10EN_KW-AVX810[J]f.indb 10 08.1.25 7:50:24 PM08.1.25 7:50:24 PM

Exit
ABC Radio
OPERATIONS
11
ENGLISH
Changing the display
information
• Available display information varies among the
playback sources.
On the monitor panel only:
• Each time you press DISP, the display changes to
show the various information.
Ex.: When the playback source is a DVD video disc.
Selecting the playback source
• Available sources depend on the external
components you have connected, media you have
attached, and the <Input> settings you have made
(☞pages 61 and 62).
On the touch panel:
On the monitor panel:
“TUNER” or “HD Radio“ =“SAT” =“DISC”(DVD/
VCD/CD) =“SD“ =“USB“ or “USB iPod“ =
”CD-CH”, “iPod”, or “EXT-IN” =“Bluetooth
PHONE” =“Bluetooth AUDIO” =“AV-IN” =
(back to the beginning)
• You cannot select these sources if they are not ready.
Exit Source information
screen
Navigation screen*
Back to the beginning
Playback picture
screen
(only for video
sources)
Playback picture and
clock time in large
numbers
Common operations
* When <Navigation> is selected for <AV Input>
(☞page 61)
Current source
EN_KW-AVX810[J]f.indb 11EN_KW-AVX810[J]f.indb 11 08.1.25 7:50:24 PM08.1.25 7:50:24 PM

ABC Radio
Setup
Beep
Telephone Muting
Illumination
Motion Sensitiv.
Initialize
Normal
Proximity/Motion
Touch Panel
Back Exit
12
ENGLISH

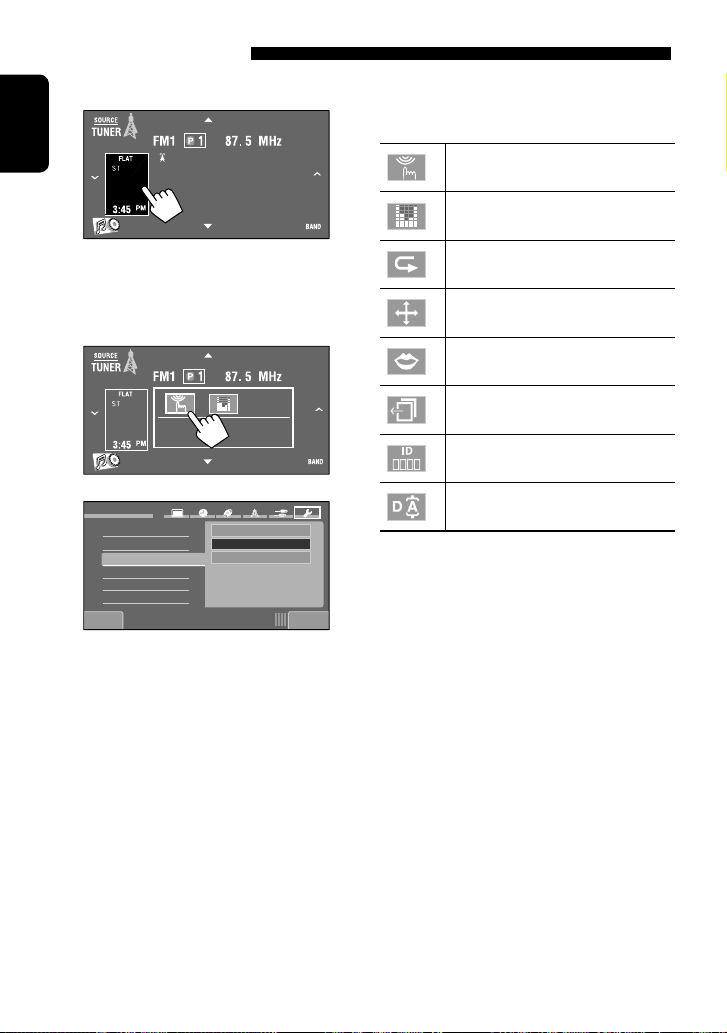

Short Cut icons:
Available icons vary among the sources.
Displays <Illumination> menu.
☞ page 62
Changes the sound mode.
☞ page 55
Turns on or off Track/Chapter Repeat.
☞ pages 21, 31, 33, 42, and 50
Displays <Aspect> menu.
☞ page 59
Activates <Voice Dialing> function.
☞ page 37
Displays <Redial> menu.
☞ page 38
Displays <Sirius ID> screen.
☞ page 61
Displays <Blend Hold> menu.
☞ page 47
1
Short Cut window appears.
• To erase the window, press the button again.
2Press a Short Cut icon.
3
The corresponding screen is displayed.
Using Short Cut Icons
You can easily access some frequently used functions by using Short Cut icons.
EN_KW-AVX810[J]f.indb 12EN_KW-AVX810[J]f.indb 12 08.1.25 7:50:25 PM08.1.25 7:50:25 PM

ABC Radio
OPERATIONS
13
ENGLISH
Listening to the radio
~Press [SOURCE], then press [TUNER]. (☞page 11)
• You can also use SOURCE on the monitor panel. Press it repeatedly.
ŸPress [BAND].
!Press [ ] or [ ] to search for a station—Auto Search.
• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then press it
repeatedly.
• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
Preset no.
Band
Tuner indicator
Assigned station name
(☞page 56). If no name
is assigned, “No Name”
appears.
Sound mode
(☞page 55)
EN_KW-AVX810[J]f.indb 13EN_KW-AVX810[J]f.indb 13 08.1.25 7:50:25 PM08.1.25 7:50:25 PM

Back Exit
Mode
Mono
SSM
Title Entry Enter
Start
Exit
Back Exit
Mode
Mono
SSM
Title Entry
Start
Enter
Exit
14
ENGLISH
When an FM stereo broadcast is
hard to receive
1
• You can also use MENU on the monitor panel.
2
3
Reception improves, but stereo effect will be lost.
• The MONO indicator lights up.
To restore stereo effect, select <Off>.
FM station automatic presetting
—SSM (Strong-station
Sequential Memory)
This function works only for FM bands.
You can preset six stations for each band.
1
• You can also use MENU on the monitor panel.
2
3
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
[Hold]
EN_KW-AVX810[J]f.indb 14EN_KW-AVX810[J]f.indb 14 08.1.25 7:50:26 PM08.1.25 7:50:26 PM

92.5 MHz
No Name
Back
Exit
ABC Radio
Exit
Back
OPERATIONS
15
ENGLISH

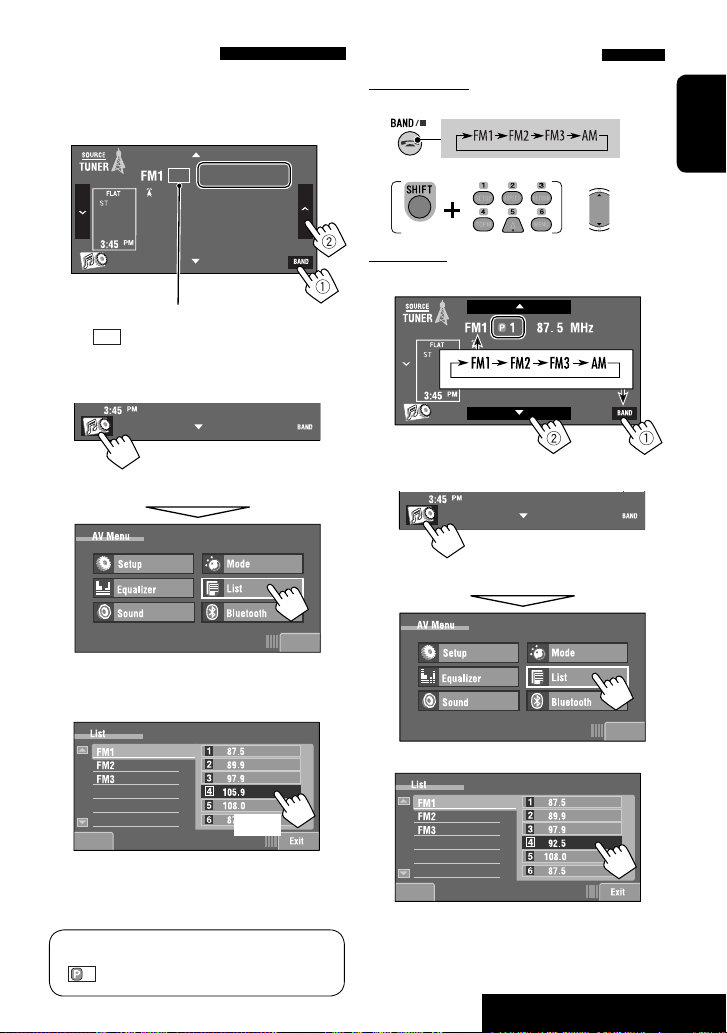

Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
1Tune in to a station you want to preset.
• You can also display the Preset List by pressing
[].
2Display the Preset List.
• You can also use MENU on the monitor panel.
3Select a preset number.
The station selected in step 1is now stored in
preset number 4.
You can also display the Preset List by pressing
[
1
] or holding [5/ ∞].
[Hold]
Selecting a preset station
On the remote:
1
2
On the unit:
• To select directly on the touch panel
• To select from the Preset List
1
• You can also use MENU on the monitor panel.
2
or
[Hold]
EN_KW-AVX810[J]f.indb 15EN_KW-AVX810[J]f.indb 15 08.1.25 7:50:26 PM08.1.25 7:50:26 PM

16
ENGLISH

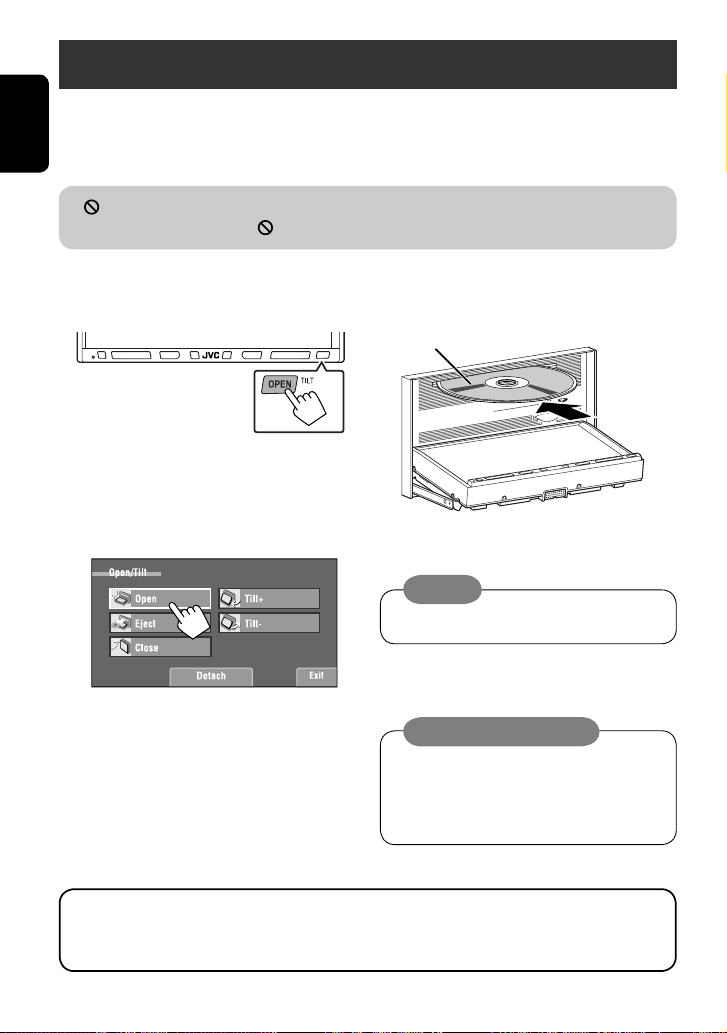

!Insert a disc.
Monitor panel closes automatically.
If not, press [Close].
Caution:
Do not place your finger behind the monitor panel.
Disc operations
The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears).
If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject
the disc.
If “ ” appears on the screen, the unit cannot accept the operation you have tried to do.
• In some cases, without showing “ ,” operations will not be accepted.
~Open the monitor panel.
<Open/Tilt> menu is displayed.
• By pressing and holding the button, you can
open the monitor panel and eject the disc.
Ÿ
When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.
• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible with these multi-
channel sources. (☞also page 72)
Caution on volume setting:
Discs produce very little noise compared with other
sources. Lower the volume before playing a disc
to avoid damaging the speakers by the sudden
increase of the output level.
Label side
EN_KW-AVX810[J]f.indb 16EN_KW-AVX810[J]f.indb 16 08.1.25 7:50:27 PM08.1.25 7:50:27 PM

OPERATIONS
17
ENGLISH

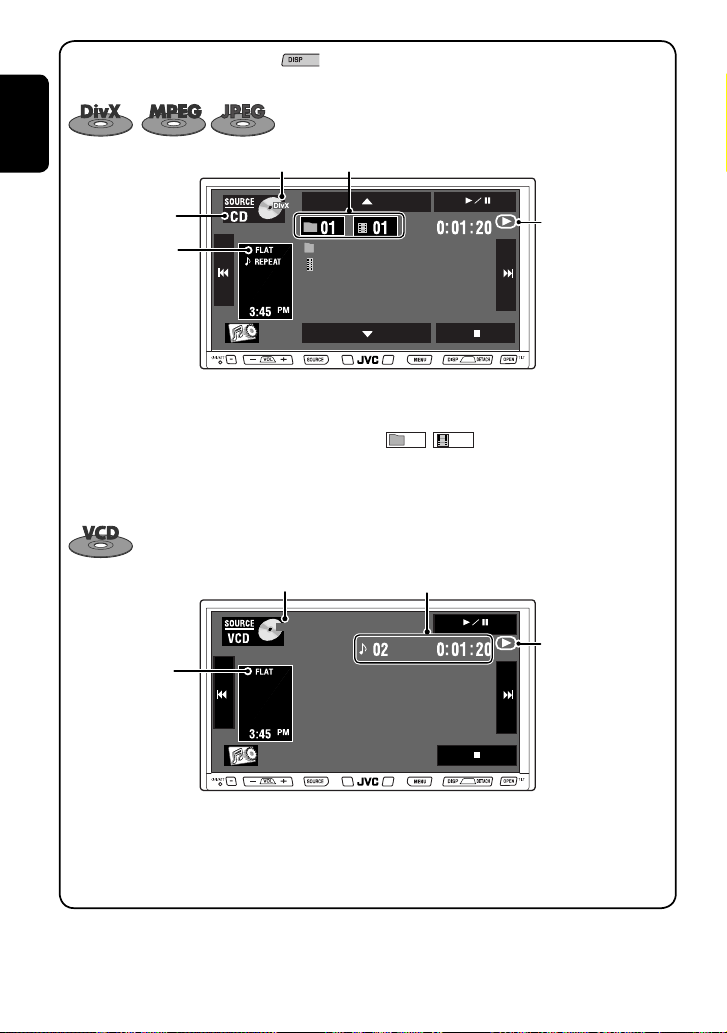

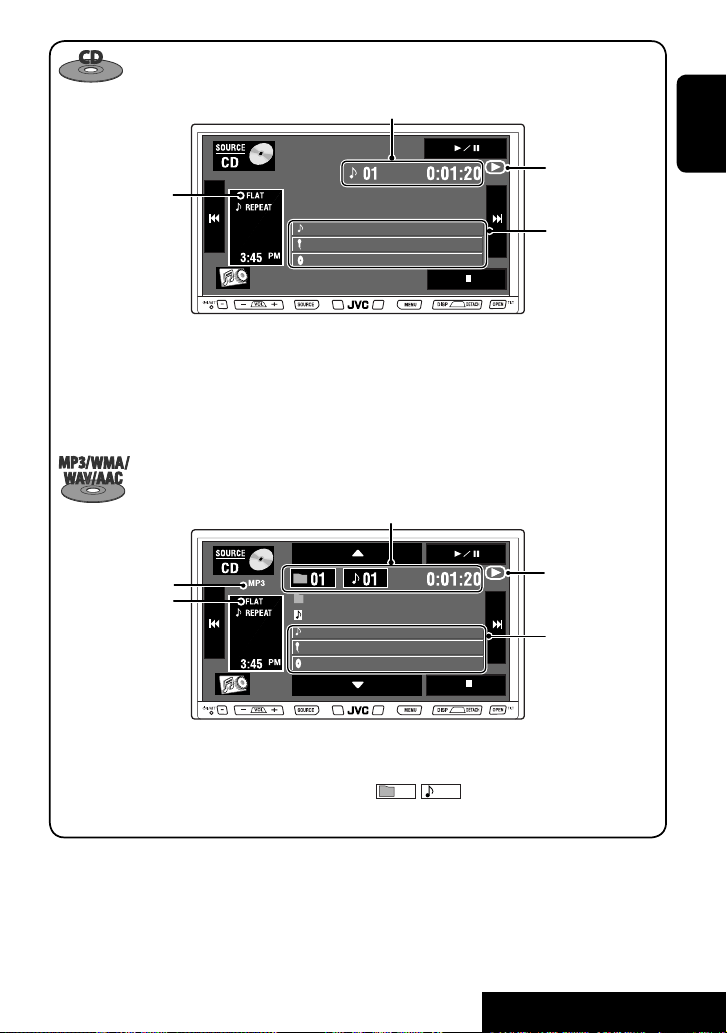

While playing the following discs, press .
• Each time you press the button, the display changes to show the different information. (☞page 11)
*1DVD-VR also indicates either VR-PRG (program) or VR-PLAY (playlist) playback.
*2Indicates the button pressed.
*3Search speed: x2 ]x10
: Buttons on the touch panel. In the explanation, they are indicated inside [ ].
These buttons also work when they are not shown on the touch panel (while watching the playback pictures
on the screen).
Audio format
DVD Video: Title no./Chapter no./Playing time
DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time
Sampling frequency/Bit
rate/Recorded signal
channel no.
[3/ 8] Starts playback/pauses
[7] Stops playback
[4¢] Press: Selects chapter
Hold: Reverse/forward search*3
[5∞] Selects title/program/playlist
Sound mode
(☞page 55)
Disc type
Playback mode
*2
*1
EN_KW-AVX810[J]f.indb 17EN_KW-AVX810[J]f.indb 17 08.1.25 7:50:27 PM08.1.25 7:50:27 PM

File Name.divx
Folder Name
PBC
18
ENGLISH
For DivX/MPEG1/MPEG2: Folder no./Track no./Playing time
For JPEG: Folder no./Track no.
[3/ 8] Starts playback/pauses
[7] Stops playback
[4¢] Press: Selects track
Hold: Reverse/forward search for DivX/
MPEG1/MPEG2 *1
While playing the following discs, press .
• Each time you press the button, the display changes to show the different information (☞page 11).
Disc type
Sound mode
(☞page 55)
Track no./Playing time
[3/ 8] Starts playback/pauses
[7] Stops playback
[4¢] Press: Selects track
Hold: Reverse/forward search*3
The PBC indicator lights
when PBC is in use.
Sound mode
(☞page 55)
*1Search speed: ¡1 ]¡2
*2Indicates the button pressed.
*3Search speed: x2 ]x10
[5∞] Press: Selects folder
Hold: Displays Folder/Track Lists
[
01
01
]:
Displays Folder/Track Lists
*2
*2
Video format
EN_KW-AVX810[J]f.indb 18EN_KW-AVX810[J]f.indb 18 08.1.25 7:50:28 PM08.1.25 7:50:28 PM

Current Track Title
Artist Name
Album Title
Current File Name.mp3
Current Folder Name
Current Track Title
Artist Name
Album Title
OPERATIONS
19
ENGLISH
Track no./Playing time
Only for CD
Text *5*6
Sound mode
(☞page 55)
[3/ 8] Starts playback/pauses
[7] Stops playback
[4¢] Press: Selects track
Hold: Reverse/forward search*7
Folder no./Track no./Playing time
Audio format
(MP3/WMA/WAV/AAC)
Tag data appears
only when it is
recorded.*5*6
[3/ 8] Starts playback/pauses
[7] Stops playback
[4¢] Press: Selects track
Hold: Reverse/forward search*7
Sound mode
(☞page 55)
*4Indicates the button pressed.
*5“No Name” appears for conventional CDs or if not recorded.
*6Touching an information bar scrolls the text if all the text is not shown.
*7Search speed: x2 ]x10
[5∞] Press: Selects folder
Hold: Displays Folder/Track Lists
[
01 01
]:
Displays Folder/Track Lists
*4
*4
EN_KW-AVX810[J]f.indb 19EN_KW-AVX810[J]f.indb 19 08.1.25 7:50:28 PM08.1.25 7:50:28 PM

20
ENGLISH
Operation buttons on the screen
You can display the following operation buttons while watching the playback pictures on the screen.
• If no operation is done for about 5 seconds, the operation buttons disappear (except when a disc menu is
displayed).
☞pages 23 to 27 on how the operation buttons
particularly work for a variety of the discs
A
[SOURCE] Displays <Source Menu> screen
[5∞] Selects folders
[3/ 8] Starts playback/pause
[4¢] Press: Selects tracks
Hold: Reverse/forward search
[] (*2) Displays Short Cut icons.
[] Displays <AV Menu> screen
[7] Stops playback
• The above buttons also work when they are not shown on
the screen (while watching the playback picture).
*1While a disc menu is played back for DVD, [KEY] is
automatically displayed. On the disc menu, you can select a
menu item directly by touching it on the screen
B
For DVD/VCD/DivX menu operation playback
[5∞23] Selects the menu items
[ENTER] Confirms the selection
[TOP MENU] Displays the disc menu
[MENU] Displays the disc menu
[RETURN] Returns to the previous menu or displays
the menu (only for VCD with PBC)
C
For entering the numbers
[0]–[9]=[ENTER]
Enters numbers
[Direct/CLR] • Switches between chapter/track entry
and title/folder entry
• Erases the last entry when you enter a
wrong number
Ex.: To enter “105,” press [1], [0], [5], then [ENTER]
To erase the operations, touch the screen again.
Touch the screen (center portion).
Touch [KEY].
*1
Touch [KEY].
Touch [KEY].
*2
EN_KW-AVX810[J]f.indb 20EN_KW-AVX810[J]f.indb 20 08.1.25 7:50:29 PM08.1.25 7:50:29 PM
