KD-R520
Headunits
KD-R520
USB/CD Receiver with Dual AUX
The dual AUX inputs offer flexible options including Bluetooth®connection with an optional adapter. Enjoy iPod/iPhone music via front
USB. You can even play app sound with External Mode for iPod/iPhone, while control is available from both the player and the
headunit side. Song search is quick and easy using the menu key/volume knob and Accelerated Search. MOS-FET power amp and
24-bit DAC provide quality sound. High-Pass Filter, HS-IVi tuner, and 3-band parametric iEQ are also available.
iPod/iPhone
USB G3
20W x 4
RMS
MOS-FET
50W x 4
Recommended Features
Key Benefits
2-Way Control
for iPod/iPhone
iPod Headunit
MP3/WMA
Radio Ready
SAT
Phone Book
Access Profile
Dual
AUX
External Mode
for
iPod/iPhone
✹USB Audio for iPod/iPhone
Connect your iPod/iPhone to the unit’s USB port with
the iPod/iPhone dock connector, and enjoy music in clear,
digital sound with full-speed transfer. Your iPod/iPhone’s
battery will be charged during connection.
2 Phones
(Full Time)
Connects
Ready for
Bluetooth
®
Adapter
✹Ready for Bluetooth®Adapter (KS-BTA100)
With the optional KS-BTA100 adapter,
you can enjoy the safety and
convenience of Bluetooth®Wireless
Technology such as hands-free
calling, voice dialing, and audio
streaming. The compact all-in-one
adapter has microphone/keys/LED
functions, and can be easily
connected via the AUX.
Cell phone
KS-BTA100
(optional)
(Front+Rear/Subwoofer)
2 Pre-Output
Full Digital
Full Speed Charging
Hands-Free Calls
- Voice Dialing
- Redial Call
- Private Mode
Audio Streaming
- Noise/Echo Cancellation
Ready for
KT-HD300

2011 JVC Product Tech Guide
C M Y K
KD-R520

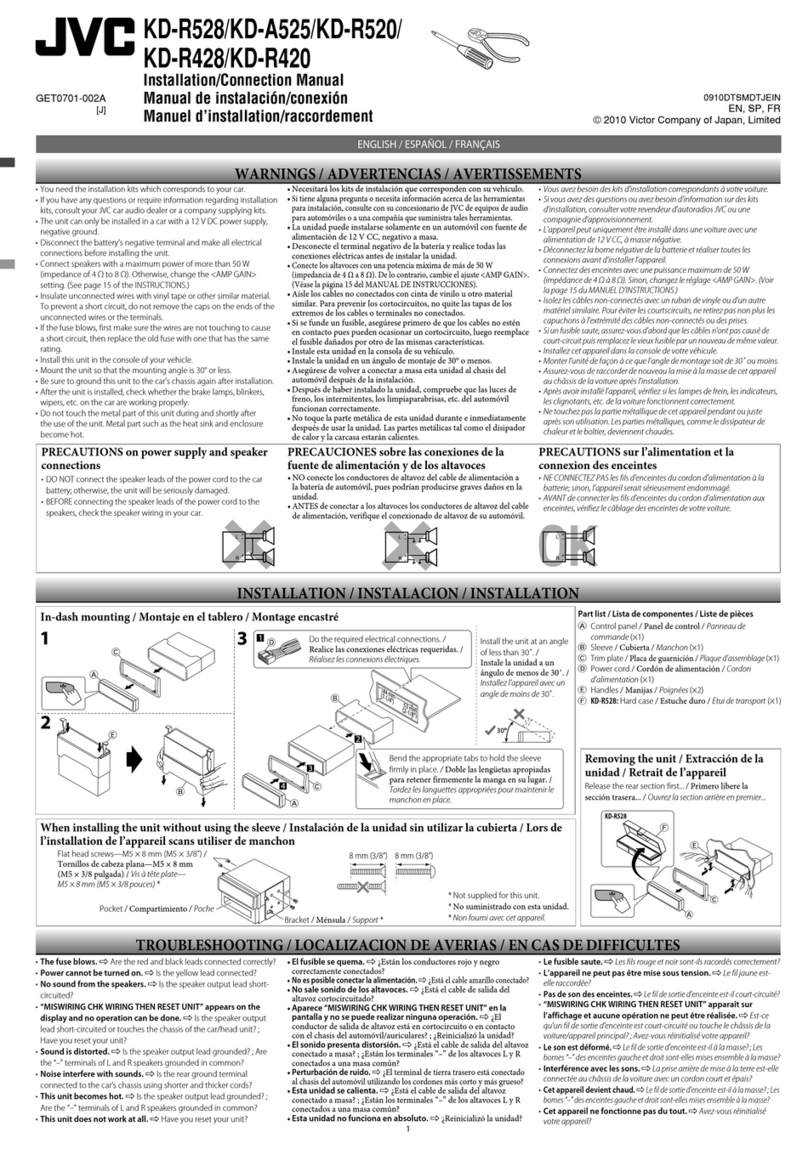

Connections
NTK-0786-10
Connections
KD-R520 USB/CD Receiver with Dual AUX
✹2-Way Control for iPod/iPhone
The 2-way control for iPod/iPhone lets you easily operate on your iPod/iPhone or
the headunit. Just hold down the BACK key to switch operation. The basic functions
can be controlled on the headunit
even during iPod/iPhone mode.
The song information is shown on
the display for both modes.
* Compatibility with 2-way control for iPod/iPhone
differs by model. Please visit
www.jvc.co.jp/english/car/ for details.
Headunit ModeiPod/iPhone Mode
•Display Song
Information
•Headunit
Direct Control
Play/Pause Skip/Forward
Switchable
✹High-Pass Filter
High-Pass Filter lets you control high-frequency sound settings by filtering out
frequencies below the cutoff level.
USB Memory
iPod
iPod
iPhone
Cell phone
Portable
Audio Players
USB
iPhone
KS-BTA100
(Optional)
AUX-IN
Front
AUX-IN
Rear
*4
*5
N/A
✔USB ✔USB ✔USB ✔USB ✔USB ✔USB ✔USB ✔USB ✔USB
Quick Reference of iPod/iPhone Compatibility*1
Playback
Connection
*2*3
*6
*1 Please visit www.jvc.co.jp/english/car/ for iPod/iPhone compatibility details. *2 Same compatibility applies for the following 4th generation and earlier iPod models: iPod with dock connector, iPod mini, and iPod with color display. *3 Same compatibility
applies for iPod nano (1st generation) *4 Same compatibility applies for iPod classic (160GB (2007) only). *5 Same compatibility applies for iPod touch (1st, 2nd, and 3rd generation) *6 Same compatibility applies for iPhone, and iPhone 3G.
✔USB
Maximum Power Output 50W x 4
